bacReadBlif.c File Reference

#include "bac.h"
#include "bacPrs.h"

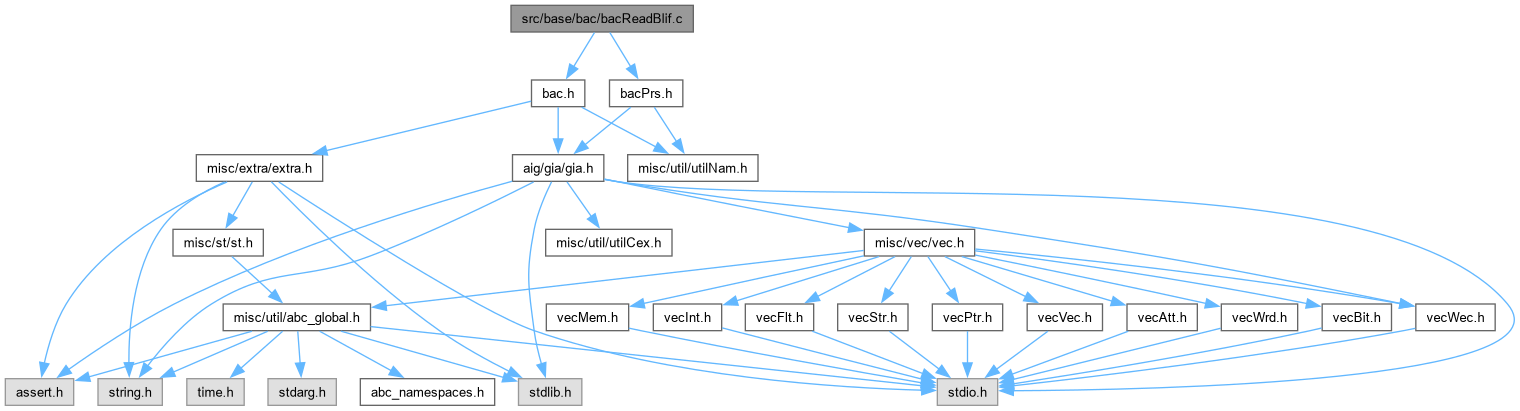

Include dependency graph for bacReadBlif.c:

Go to the source code of this file.

Enumerations
enum	Bac_BlifType_t {   PRS_BLIF_NONE = 0 , PRS_BLIF_MODEL , PRS_BLIF_INOUTS , PRS_BLIF_INPUTS ,   PRS_BLIF_OUTPUTS , PRS_BLIF_NAMES , PRS_BLIF_SUBCKT , PRS_BLIF_GATE ,   PRS_BLIF_LATCH , PRS_BLIF_SHORT , PRS_BLIF_END , PRS_BLIF_UNKNOWN }
	DECLARATIONS ///. More...

Functions
Vec_Ptr_t *	Psr_ManReadBlif (char *pFileName)
void	Psr_ManReadBlifTest ()

Enumeration Type Documentation

Bac_BlifType_t

enum Bac_BlifType_t

DECLARATIONS ///.

CFile****************************************************************

FileName [bacReadBlif.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Hierarchical word-level netlist.]

Synopsis [BLIF parser.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 29, 2014.]

Revision [

Id

bacReadBlif.c,v 1.00 2014/11/29 00:00:00 alanmi Exp

]

Enumerator
PRS_BLIF_NONE
PRS_BLIF_MODEL
PRS_BLIF_INOUTS
PRS_BLIF_INPUTS
PRS_BLIF_OUTPUTS
PRS_BLIF_NAMES
PRS_BLIF_SUBCKT
PRS_BLIF_GATE
PRS_BLIF_LATCH
PRS_BLIF_SHORT
PRS_BLIF_END
PRS_BLIF_UNKNOWN

Definition at line 31 of file bacReadBlif.c.

             {
    PRS_BLIF_NONE = 0, // 0:   unused
    PRS_BLIF_MODEL,    // 1:   .model
    PRS_BLIF_INOUTS,   // 2:   .inouts
    PRS_BLIF_INPUTS,   // 3:   .inputs
    PRS_BLIF_OUTPUTS,  // 4:   .outputs
    PRS_BLIF_NAMES,    // 5:   .names
    PRS_BLIF_SUBCKT,   // 6:   .subckt
    PRS_BLIF_GATE,     // 7:   .gate
    PRS_BLIF_LATCH,    // 8:   .latch
    PRS_BLIF_SHORT,    // 9:   .short
    PRS_BLIF_END,      // 10:  .end
    PRS_BLIF_UNKNOWN   // 11:  unknown
} Bac_BlifType_t;

Function Documentation

Psr_ManReadBlif()

Vec_Ptr_t * Psr_ManReadBlif

(

char *

pFileName

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 406 of file bacReadBlif.c.

{
    Vec_Ptr_t * vPrs = NULL;
    Psr_Man_t * p = Psr_ManAlloc( pFileName );
    if ( p == NULL )
        return NULL;
    Psr_NtkAddBlifDirectives( p );
    Psr_ManReadLines( p );
    if ( Psr_ManErrorPrint(p) )
        ABC_SWAP( Vec_Ptr_t *, vPrs, p->vNtks );
    Psr_ManFree( p );
    return vPrs;
}

Here is the caller graph for this function:

Psr_ManReadBlifTest()

void Psr_ManReadBlifTest

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 431 of file bacReadBlif.c.

{
    abctime clk = Abc_Clock();
    extern void Psr_ManWriteBlif( char * pFileName, Vec_Ptr_t * vPrs );
//    Vec_Ptr_t * vPrs = Psr_ManReadBlif( "aga/ray/ray_hie_oper.blif" );
    Vec_Ptr_t * vPrs = Psr_ManReadBlif( "c/hie/dump/1/netlist_1_out8.blif" );
    if ( !vPrs ) return;
    printf( "Finished reading %d networks. ", Vec_PtrSize(vPrs) );
    printf( "NameIDs = %d. ", Abc_NamObjNumMax(Psr_ManNameMan(vPrs)) );
    printf( "Memory = %.2f MB. ", 1.0*Psr_ManMemory(vPrs)/(1<<20) );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
//    Abc_NamPrint( p->pStrs );
    Psr_ManWriteBlif( "c/hie/dump/1/netlist_1_out8_out.blif", vPrs );
    Psr_ManVecFree( vPrs );
}

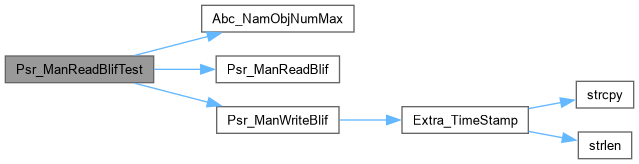

Here is the call graph for this function:
