bar.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	BAR_PROGRESS_USE   1
	INCLUDES ///.

Typedefs
typedef struct Bar_Progress_t_	Bar_Progress_t
	BASIC TYPES ///.

Functions
Bar_Progress_t *	Bar_ProgressStart (FILE *pFile, int nItemsTotal)
	MACRO DEFINITIONS ///.
void	Bar_ProgressStop (Bar_Progress_t *p)
void	Bar_ProgressUpdate_int (Bar_Progress_t *p, int nItemsCur, char *pString)

Macro Definition Documentation

BAR_PROGRESS_USE

#define BAR_PROGRESS_USE   1

INCLUDES ///.

CFile****************************************************************

FileName [bar.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Progress bar.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

bar.h,v 1.00 2005/06/20 00:00:00 alanmi Exp

] PARAMETERS ///

Definition at line 42 of file bar.h.

Typedef Documentation

Bar_Progress_t

typedef struct Bar_Progress_t_ Bar_Progress_t

BASIC TYPES ///.

Definition at line 48 of file bar.h.

Function Documentation

Bar_ProgressStart()

Bar_Progress_t * Bar_ProgressStart ( FILE * pFile, int nItemsTotal )

extern

MACRO DEFINITIONS ///.

FUNCTION DECLARATIONS ///

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis [Starts the progress bar.]

Description [The first parameter is the output stream (pFile), where the progress is printed. The current printing position should be the first one on the given line. The second parameters is the total number of items that correspond to 100% position of the progress bar.]

SideEffects []

SeeAlso []

Definition at line 66 of file bar.c.

{
    Bar_Progress_t * p;
    Abc_Frame_t * pFrame;
    pFrame = Abc_FrameReadGlobalFrame();
    if ( pFrame == NULL )
        return NULL;
    if ( !Abc_FrameShowProgress(pFrame) ) return NULL;
    p = ABC_ALLOC( Bar_Progress_t, 1 );
    memset( p, 0, sizeof(Bar_Progress_t) );
    p->pFile       = pFile;
    p->nItemsTotal = nItemsTotal;
    p->posTotal    = 78;
    p->posCur      = 1;
    p->nItemsNext  = (int)((7.0+p->posCur)*p->nItemsTotal/p->posTotal);
    Bar_ProgressShow( p, NULL );
    return p;
}

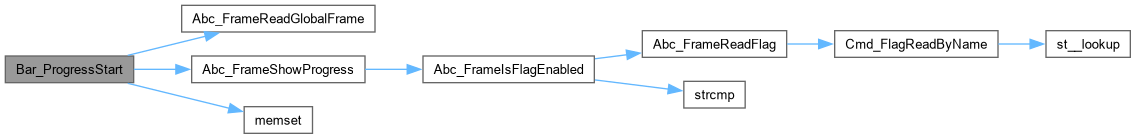

Here is the call graph for this function:

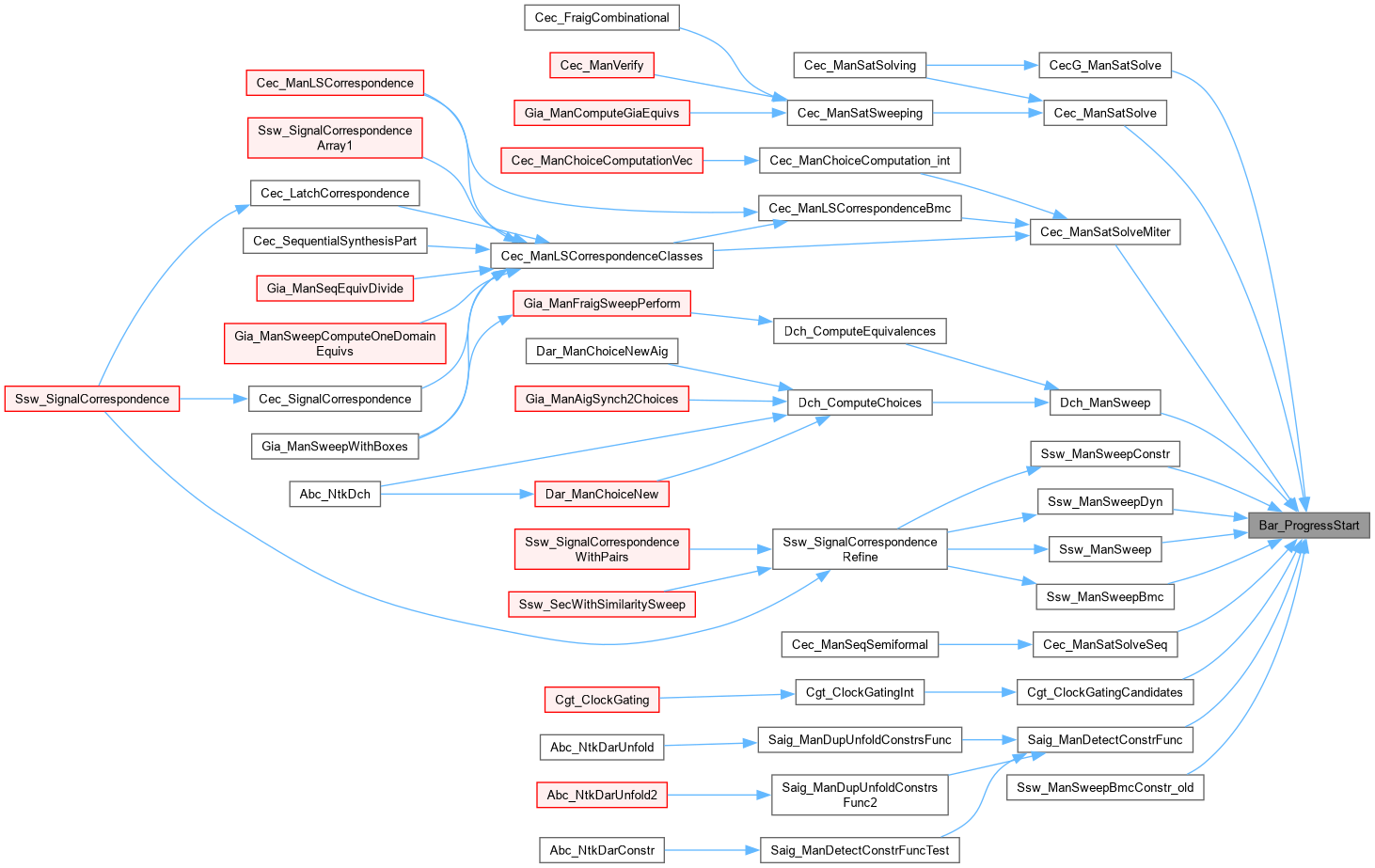

Here is the caller graph for this function:

Bar_ProgressStop()

void Bar_ProgressStop ( Bar_Progress_t * p )

extern

Function*************************************************************

Synopsis [Stops the progress bar.]

Description []

SideEffects []

SeeAlso []

Definition at line 126 of file bar.c.

{
    if ( p == NULL ) return;
    Bar_ProgressClean( p );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Bar_ProgressUpdate_int()

void Bar_ProgressUpdate_int ( Bar_Progress_t * p, int nItemsCur, char * pString )

extern

Function*************************************************************

Synopsis [Updates the progress bar.]

Description []

SideEffects []

SeeAlso []

Definition at line 96 of file bar.c.

{
    if ( p == NULL ) return;
    if ( nItemsCur < p->nItemsNext )
        return;
    if ( nItemsCur >= p->nItemsTotal )
    {
        p->posCur = 78;
        p->nItemsNext = 0x7FFFFFFF;
    }
    else
    {
        p->posCur += 7;
        p->nItemsNext = (int)((7.0+p->posCur)*p->nItemsTotal/p->posTotal);
    }
    Bar_ProgressShow( p, pString );
}
