cbaTypes.h File Reference

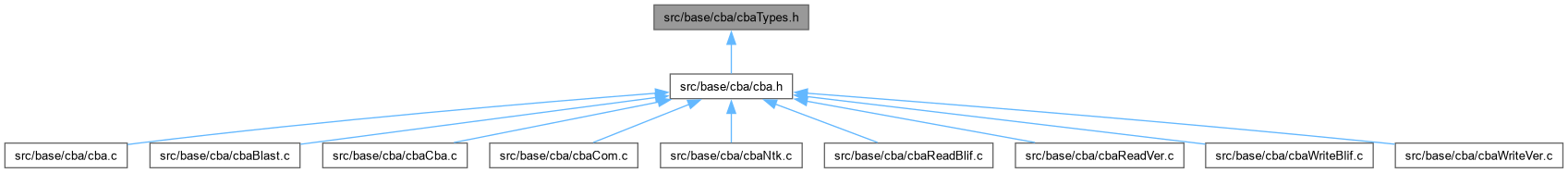

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	Cba_ObjType_t {   CBA_OBJ_NONE = 0 , CBA_OBJ_PI , CBA_OBJ_PO , CBA_OBJ_BOX ,   CBA_BOX_CF , CBA_BOX_CT , CBA_BOX_CX , CBA_BOX_CZ ,   CBA_BOX_BUF , CBA_BOX_INV , CBA_BOX_AND , CBA_BOX_NAND ,   CBA_BOX_OR , CBA_BOX_NOR , CBA_BOX_XOR , CBA_BOX_XNOR ,   CBA_BOX_SHARP , CBA_BOX_SHARPL , CBA_BOX_MUX , CBA_BOX_MAJ ,   CBA_BOX_ABC , CBA_BOX_BA , CBA_BOX_BO , CBA_BOX_BX ,   CBA_BOX_BN , CBA_BOX_BAO , CBA_BOX_BOA , CBA_BOX_RAND ,   CBA_BOX_RNAND , CBA_BOX_ROR , CBA_BOX_RNOR , CBA_BOX_RXOR ,   CBA_BOX_RXNOR , CBA_BOX_LNOT , CBA_BOX_LAND , CBA_BOX_LNAND ,   CBA_BOX_LOR , CBA_BOX_LNOR , CBA_BOX_LXOR , CBA_BOX_LXNOR ,   CBA_BOX_NMUX , CBA_BOX_SEL , CBA_BOX_PSEL , CBA_BOX_ENC ,   CBA_BOX_PENC , CBA_BOX_DEC , CBA_BOX_EDEC , CBA_BOX_ADD ,   CBA_BOX_SUB , CBA_BOX_MUL , CBA_BOX_SMUL , CBA_BOX_DIV ,   CBA_BOX_MOD , CBA_BOX_REM , CBA_BOX_POW , CBA_BOX_MIN ,   CBA_BOX_SQRT , CBA_BOX_ABS , CBA_BOX_SLTHAN , CBA_BOX_LTHAN ,   CBA_BOX_LETHAN , CBA_BOX_METHAN , CBA_BOX_MTHAN , CBA_BOX_EQU ,   CBA_BOX_NEQU , CBA_BOX_SHIL , CBA_BOX_SHIR , CBA_BOX_SHILA ,   CBA_BOX_SHIRA , CBA_BOX_ROTL , CBA_BOX_ROTR , CBA_BOX_NODE ,   CBA_BOX_LUT , CBA_BOX_GATE , CBA_BOX_TABLE , CBA_BOX_TRI ,   CBA_BOX_RAM , CBA_BOX_RAMR , CBA_BOX_RAMW , CBA_BOX_RAMWC ,   CBA_BOX_RAML , CBA_BOX_RAMS , CBA_BOX_RAMBOX , CBA_BOX_LATCH ,   CBA_BOX_LATCHRS , CBA_BOX_DFF , CBA_BOX_DFFCPL , CBA_BOX_DFFRS ,   CBA_BOX_SLICE , CBA_BOX_CONCAT , CBA_BOX_LAST }
	INCLUDES ///. More...

Enumeration Type Documentation

Cba_ObjType_t

enum Cba_ObjType_t

INCLUDES ///.

CFile****************************************************************

FileName [cbaTypes.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Hierarchical word-level netlist.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - July 21, 2015.]

Revision [

Id

cbaTypes.h,v 1.00 2014/11/29 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Enumerator
CBA_OBJ_NONE
CBA_OBJ_PI
CBA_OBJ_PO
CBA_OBJ_BOX
CBA_BOX_CF
CBA_BOX_CT
CBA_BOX_CX
CBA_BOX_CZ
CBA_BOX_BUF
CBA_BOX_INV
CBA_BOX_AND
CBA_BOX_NAND
CBA_BOX_OR
CBA_BOX_NOR
CBA_BOX_XOR
CBA_BOX_XNOR
CBA_BOX_SHARP
CBA_BOX_SHARPL
CBA_BOX_MUX
CBA_BOX_MAJ
CBA_BOX_ABC
CBA_BOX_BA
CBA_BOX_BO
CBA_BOX_BX
CBA_BOX_BN
CBA_BOX_BAO
CBA_BOX_BOA
CBA_BOX_RAND
CBA_BOX_RNAND
CBA_BOX_ROR
CBA_BOX_RNOR
CBA_BOX_RXOR
CBA_BOX_RXNOR
CBA_BOX_LNOT
CBA_BOX_LAND
CBA_BOX_LNAND
CBA_BOX_LOR
CBA_BOX_LNOR
CBA_BOX_LXOR
CBA_BOX_LXNOR
CBA_BOX_NMUX
CBA_BOX_SEL
CBA_BOX_PSEL
CBA_BOX_ENC
CBA_BOX_PENC
CBA_BOX_DEC
CBA_BOX_EDEC
CBA_BOX_ADD
CBA_BOX_SUB
CBA_BOX_MUL
CBA_BOX_SMUL
CBA_BOX_DIV
CBA_BOX_MOD
CBA_BOX_REM
CBA_BOX_POW
CBA_BOX_MIN
CBA_BOX_SQRT
CBA_BOX_ABS
CBA_BOX_SLTHAN
CBA_BOX_LTHAN
CBA_BOX_LETHAN
CBA_BOX_METHAN
CBA_BOX_MTHAN
CBA_BOX_EQU
CBA_BOX_NEQU
CBA_BOX_SHIL
CBA_BOX_SHIR
CBA_BOX_SHILA
CBA_BOX_SHIRA
CBA_BOX_ROTL
CBA_BOX_ROTR
CBA_BOX_NODE
CBA_BOX_LUT
CBA_BOX_GATE
CBA_BOX_TABLE
CBA_BOX_TRI
CBA_BOX_RAM
CBA_BOX_RAMR
CBA_BOX_RAMW
CBA_BOX_RAMWC
CBA_BOX_RAML
CBA_BOX_RAMS
CBA_BOX_RAMBOX
CBA_BOX_LATCH
CBA_BOX_LATCHRS
CBA_BOX_DFF
CBA_BOX_DFFCPL
CBA_BOX_DFFRS
CBA_BOX_SLICE
CBA_BOX_CONCAT
CBA_BOX_LAST

Definition at line 39 of file cbaTypes.h.

             {
    CBA_OBJ_NONE = 0,  // 00:  unused
    CBA_OBJ_PI,        // 01:  input
    CBA_OBJ_PO,        // 02:  output
    CBA_OBJ_BOX,       // 03:  box

    CBA_BOX_CF,        // 04:
    CBA_BOX_CT,        // 05:
    CBA_BOX_CX,        // 06:
    CBA_BOX_CZ,        // 07:

    CBA_BOX_BUF,       // 08:
    CBA_BOX_INV,       // 09:
    CBA_BOX_AND,       // 10:
    CBA_BOX_NAND,      // 11:
    CBA_BOX_OR,        // 12:
    CBA_BOX_NOR,       // 13:
    CBA_BOX_XOR,       // 14:
    CBA_BOX_XNOR,      // 15:
    CBA_BOX_SHARP,     // 16:
    CBA_BOX_SHARPL,    // 17:
    CBA_BOX_MUX,       // 18:
    CBA_BOX_MAJ,       // 19:

    CBA_BOX_ABC,       // 20:
    CBA_BOX_BA,        // 21:
    CBA_BOX_BO,        // 22:
    CBA_BOX_BX,        // 23:
    CBA_BOX_BN,        // 24:
    CBA_BOX_BAO,       // 25:
    CBA_BOX_BOA,       // 26:

    CBA_BOX_RAND,      // 27:
    CBA_BOX_RNAND,     // 28:
    CBA_BOX_ROR,       // 29:
    CBA_BOX_RNOR,      // 30:
    CBA_BOX_RXOR,      // 31:
    CBA_BOX_RXNOR,     // 32:

    CBA_BOX_LNOT,      // 33
    CBA_BOX_LAND,      // 34:
    CBA_BOX_LNAND,     // 35:
    CBA_BOX_LOR,       // 36:
    CBA_BOX_LNOR,      // 37:
    CBA_BOX_LXOR,      // 38:
    CBA_BOX_LXNOR,     // 39:

    CBA_BOX_NMUX,      // 40:
    CBA_BOX_SEL,       // 41:
    CBA_BOX_PSEL,      // 42:
    CBA_BOX_ENC,       // 43:
    CBA_BOX_PENC,      // 44:
    CBA_BOX_DEC,       // 45:
    CBA_BOX_EDEC,      // 46:

    CBA_BOX_ADD,       // 47:
    CBA_BOX_SUB,       // 48:
    CBA_BOX_MUL,       // 49:
    CBA_BOX_SMUL,      // 50:
    CBA_BOX_DIV,       // 51:
    CBA_BOX_MOD,       // 52:
    CBA_BOX_REM,       // 53:
    CBA_BOX_POW,       // 54:
    CBA_BOX_MIN,       // 55:
    CBA_BOX_SQRT,      // 56:
    CBA_BOX_ABS,       // 57:

    CBA_BOX_SLTHAN,    // 58:
    CBA_BOX_LTHAN,     // 59:
    CBA_BOX_LETHAN,    // 60:
    CBA_BOX_METHAN,    // 61:
    CBA_BOX_MTHAN,     // 62:
    CBA_BOX_EQU,       // 63:
    CBA_BOX_NEQU,      // 64:

    CBA_BOX_SHIL,      // 65:
    CBA_BOX_SHIR,      // 66:
    CBA_BOX_SHILA,     // 67:
    CBA_BOX_SHIRA,     // 68:
    CBA_BOX_ROTL,      // 69:
    CBA_BOX_ROTR,      // 70:

    CBA_BOX_NODE,      // 71:
    CBA_BOX_LUT,       // 72:
    CBA_BOX_GATE,      // 73:
    CBA_BOX_TABLE,     // 74:

    CBA_BOX_TRI,       // 75:
    CBA_BOX_RAM,       // 76:
    CBA_BOX_RAMR,      // 77:
    CBA_BOX_RAMW,      // 78:
    CBA_BOX_RAMWC,     // 79:
    CBA_BOX_RAML,      // 80:
    CBA_BOX_RAMS,      // 81:
    CBA_BOX_RAMBOX,    // 82:

    CBA_BOX_LATCH,     // 83:
    CBA_BOX_LATCHRS,   // 84:
    CBA_BOX_DFF,       // 85:
    CBA_BOX_DFFCPL,    // 86:
    CBA_BOX_DFFRS,     // 87:

    CBA_BOX_SLICE,     // 88:
    CBA_BOX_CONCAT,    // 89:

    CBA_BOX_LAST       // 90
} Cba_ObjType_t;
