cofactor.c File Reference

#include "espresso.h"

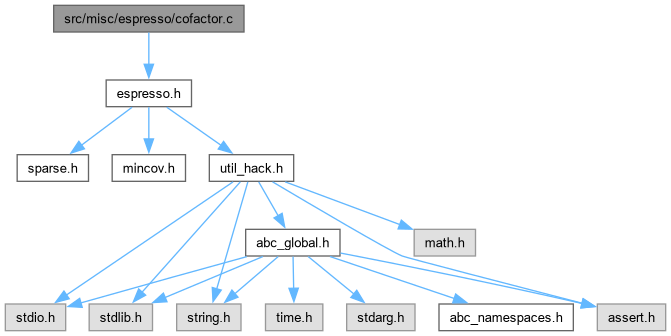

Include dependency graph for cofactor.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START pcube *	cofactor (IN pcube *T, IN register pcube c)
pcube *	scofactor (IN pcube *T, IN pcube c, IN int var)
void	massive_count (IN pcube *T)
int	binate_split_select (IN pcube *T, IN register pcube cleft, IN register pcube cright, IN int debug_flag)
pcube *	cube1list (pcover A)
pcube *	cube2list (pcover A, pcover B)
pcube *	cube3list (pcover A, pcover B, pcover C)
pcover	cubeunlist (pcube *A1)
void	simplify_cubelist (pcube *T)

Function Documentation

binate_split_select()

int binate_split_select	(	IN pcube *	T,
		IN register pcube	cleft,
		IN register pcube	cright,
		IN int	debug_flag )

Definition at line 258 of file cofactor.c.

{
    int best = cdata.best;
    register int i, lastbit = cube.last_part[best], halfbit = 0;
    register pcube cof=T[0];

    /* Create the cubes to cofactor against */
    (void) set_diff(cleft, cube.fullset, cube.var_mask[best]);
    (void) set_diff(cright, cube.fullset, cube.var_mask[best]);
    for(i = cube.first_part[best]; i <= lastbit; i++)
    if (! is_in_set(cof,i))
        halfbit++;
    for(i = cube.first_part[best], halfbit = halfbit/2; halfbit > 0; i++)
    if (! is_in_set(cof,i))
        halfbit--, set_insert(cleft, i);
    for(; i <= lastbit; i++)
    if (! is_in_set(cof,i))
        set_insert(cright, i);

    if (debug & debug_flag) {
    (void) printf("BINATE_SPLIT_SELECT: split against %d\n", best);
    if (verbose_debug)
        (void) printf("cl=%s\ncr=%s\n", pc1(cleft), pc2(cright));
    }
    return best;
}

Here is the call graph for this function:

cofactor()

ABC_NAMESPACE_IMPL_START pcube * cofactor	(	IN pcube *	T,
		IN register pcube	c )

Definition at line 44 of file cofactor.c.

{
    pcube temp = cube.temp[0], *Tc_save, *Tc, *T1;
    register pcube p;
    int listlen;

    listlen = CUBELISTSIZE(T) + 5;

    /* Allocate a new list of cube pointers (max size is previous size) */
    Tc_save = Tc = ALLOC(pcube, listlen);

    /* pass on which variables have been cofactored against */
    *Tc++ = set_or(new_cube(), T[0], set_diff(temp, cube.fullset, c));
    Tc++;

    /* Loop for each cube in the list, determine suitability, and save */
    for(T1 = T+2; (p = *T1++) != NULL; ) {
    if (p != c) {

#ifdef NO_INLINE
    if (! cdist0(p, c)) goto false;
#else
    {register int w,last;register unsigned int x;if((last=cube.inword)!=-1)
    {x=p[last]&c[last];if(~(x|x>>1)&cube.inmask)goto false;for(w=1;w<last;w++)
    {x=p[w]&c[w];if(~(x|x>>1)&DISJOINT)goto false;}}}{register int w,var,last;
    register pcube mask;for(var=cube.num_binary_vars;var<cube.num_vars;var++){
    mask=cube.var_mask[var];last=cube.last_word[var];for(w=cube.first_word[var
    ];w<=last;w++)if(p[w]&c[w]&mask[w])goto nextvar;goto false;nextvar:;}}
#endif

        *Tc++ = p;
    false: ;
    }
    }

    *Tc++ = (pcube) NULL;                       /* sentinel */
    Tc_save[1] = (pcube) Tc;                    /* save pointer to last */
    return Tc_save;
}

Here is the call graph for this function:

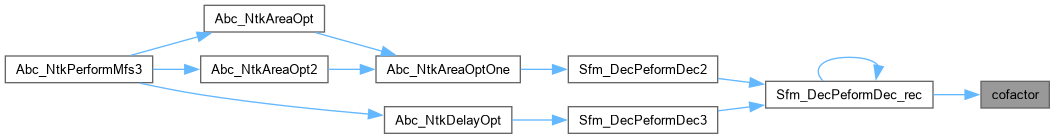

Here is the caller graph for this function:

cube1list()

pcube * cube1list

(

pcover

A

)

Definition at line 289 of file cofactor.c.

{
    register pcube last, p, *plist, *list;

    list = plist = ALLOC(pcube, A->count + 3);
    *plist++ = new_cube();
    plist++;
    foreach_set(A, last, p) {
    *plist++ = p;
    }
    *plist++ = NULL;                    /* sentinel */
    list[1] = (pcube) plist;
    return list;
}

cube2list()

pcube * cube2list	(	pcover	A,
		pcover	B )

Definition at line 306 of file cofactor.c.

{
    register pcube last, p, *plist, *list;

    list = plist = ALLOC(pcube, A->count + B->count + 3);
    *plist++ = new_cube();
    plist++;
    foreach_set(A, last, p) {
    *plist++ = p;
    }
    foreach_set(B, last, p) {
    *plist++ = p;
    }
    *plist++ = NULL;
    list[1] = (pcube) plist;
    return list;
}

cube3list()

pcube * cube3list	(	pcover	A,
		pcover	B,
		pcover	C )

Definition at line 326 of file cofactor.c.

{
    register pcube last, p, *plist, *list;

    plist = ALLOC(pcube, A->count + B->count + C->count + 3);
    list = plist;
    *plist++ = new_cube();
    plist++;
    foreach_set(A, last, p) {
    *plist++ = p;
    }
    foreach_set(B, last, p) {
    *plist++ = p;
    }
    foreach_set(C, last, p) {
    *plist++ = p;
    }
    *plist++ = NULL;
    list[1] = (pcube) plist;
    return list;
}

cubeunlist()

pcover cubeunlist

(

pcube *

A1

)

Definition at line 350 of file cofactor.c.

{
    register int i;
    register pcube p, pdest, cof = A1[0];
    register pcover A;

    A = new_cover(CUBELISTSIZE(A1));
    for(i = 2; (p = A1[i]) != NULL; i++) {
    pdest = GETSET(A, i-2);
    INLINEset_or(pdest, p, cof);
    }
    A->count = CUBELISTSIZE(A1);
    return A;
}

massive_count()

void massive_count

(

IN pcube *

T

)

Definition at line 131 of file cofactor.c.

{
    int *count = cdata.part_zeros;
    pcube *T1;

    /* Clear the column counts (count of # zeros in each column) */
 {  register int i;
    for(i = cube.size - 1; i >= 0; i--)
    count[i] = 0;
 }

    /* Count the number of zeros in each column */
 {  register int i, *cnt;
    register unsigned int val;
    register pcube p, cof = T[0], full = cube.fullset;
    for(T1 = T+2; (p = *T1++) != NULL; )
    for(i = LOOP(p); i > 0; i--)
        if ((val = full[i] & ~ (p[i] | cof[i]))) {
        cnt = count + ((i-1) << LOGBPI);
#if BPI == 32
        if (val & 0xFF000000) {
        if (val & 0x80000000) cnt[31]++;
        if (val & 0x40000000) cnt[30]++;
        if (val & 0x20000000) cnt[29]++;
        if (val & 0x10000000) cnt[28]++;
        if (val & 0x08000000) cnt[27]++;
        if (val & 0x04000000) cnt[26]++;
        if (val & 0x02000000) cnt[25]++;
        if (val & 0x01000000) cnt[24]++;
        }
        if (val & 0x00FF0000) {
        if (val & 0x00800000) cnt[23]++;
        if (val & 0x00400000) cnt[22]++;
        if (val & 0x00200000) cnt[21]++;
        if (val & 0x00100000) cnt[20]++;
        if (val & 0x00080000) cnt[19]++;
        if (val & 0x00040000) cnt[18]++;
        if (val & 0x00020000) cnt[17]++;
        if (val & 0x00010000) cnt[16]++;
        }
#endif
        if (val & 0xFF00) {
        if (val & 0x8000) cnt[15]++;
        if (val & 0x4000) cnt[14]++;
        if (val & 0x2000) cnt[13]++;
        if (val & 0x1000) cnt[12]++;
        if (val & 0x0800) cnt[11]++;
        if (val & 0x0400) cnt[10]++;
        if (val & 0x0200) cnt[ 9]++;
        if (val & 0x0100) cnt[ 8]++;
        }
        if (val & 0x00FF) {
        if (val & 0x0080) cnt[ 7]++;
        if (val & 0x0040) cnt[ 6]++;
        if (val & 0x0020) cnt[ 5]++;
        if (val & 0x0010) cnt[ 4]++;
        if (val & 0x0008) cnt[ 3]++;
        if (val & 0x0004) cnt[ 2]++;
        if (val & 0x0002) cnt[ 1]++;
        if (val & 0x0001) cnt[ 0]++;
        }
    }
 }

    /*
     * Perform counts for each variable:
     *    cdata.var_zeros[var] = number of zeros in the variable
     *    cdata.parts_active[var] = number of active parts for each variable
     *    cdata.vars_active = number of variables which are active
     *    cdata.vars_unate = number of variables which are active and unate
     *
     *    best -- the variable which is best for splitting based on:
     *    mostactive -- most # active parts in any variable
     *    mostzero -- most # zeros in any variable
     *    mostbalanced -- minimum over the maximum # zeros / part / variable
     */

 {  register int var, i, lastbit, active, maxactive;
    int best = -1, mostactive = 0, mostzero = 0, mostbalanced = 32000;
    cdata.vars_unate = cdata.vars_active = 0;

    for(var = 0; var < cube.num_vars; var++) {
    if (var < cube.num_binary_vars) { /* special hack for binary vars */
        i = count[var*2];
        lastbit = count[var*2 + 1];
        active = (i > 0) + (lastbit > 0);
        cdata.var_zeros[var] = i + lastbit;
        maxactive = MAX(i, lastbit);
    } else {
        maxactive = active = cdata.var_zeros[var] = 0;
        lastbit = cube.last_part[var];
        for(i = cube.first_part[var]; i <= lastbit; i++) {
        cdata.var_zeros[var] += count[i];
        active += (count[i] > 0);
        if (active > maxactive) maxactive = active;
        }
    }

    /* first priority is to maximize the number of active parts */
    /* for binary case, this will usually select the output first */
    if (active > mostactive)
        best = var, mostactive = active, mostzero = cdata.var_zeros[best],
        mostbalanced = maxactive;
    else if (active == mostactive)
    {
        /* secondary condition is to maximize the number zeros */
        /* for binary variables, this is the same as minimum # of 2's */
        if (cdata.var_zeros[var] > mostzero)
        best = var, mostzero = cdata.var_zeros[best],
        mostbalanced = maxactive;
        else if (cdata.var_zeros[var] == mostzero)
        /* third condition is to pick a balanced variable */
        /* for binary vars, this means roughly equal # 0's and 1's */
        if (maxactive < mostbalanced)
            best = var, mostbalanced = maxactive;
    }

    cdata.parts_active[var] = active;
    cdata.is_unate[var] = (active == 1);
    cdata.vars_active += (active > 0);
    cdata.vars_unate += (active == 1);
    }
    cdata.best = best;
 }
}

scofactor()

pcube * scofactor	(	IN pcube *	T,
		IN pcube	c,
		IN int	var )

Definition at line 93 of file cofactor.c.

{
    pcube *Tc, *Tc_save;
    register pcube p, mask = cube.temp[1], *T1;
    register int first = cube.first_word[var], last = cube.last_word[var];
    int listlen;

    listlen = CUBELISTSIZE(T) + 5;

    /* Allocate a new list of cube pointers (max size is previous size) */
    Tc_save = Tc = ALLOC(pcube, listlen);

    /* pass on which variables have been cofactored against */
    *Tc++ = set_or(new_cube(), T[0], set_diff(mask, cube.fullset, c));
    Tc++;

    /* Setup for the quick distance check */
    (void) set_and(mask, cube.var_mask[var], c);

    /* Loop for each cube in the list, determine suitability, and save */
    for(T1 = T+2; (p = *T1++) != NULL; )
    if (p != c) {
        register int i = first;
        do
        if (p[i] & mask[i]) {
            *Tc++ = p;
            break;
        }
        while (++i <= last);
    }

    *Tc++ = (pcube) NULL;                       /* sentinel */
    Tc_save[1] = (pcube) Tc;                    /* save pointer to last */
    return Tc_save;
}

Here is the call graph for this function:

simplify_cubelist()

void simplify_cubelist

(

pcube *

T

)

Definition at line 366 of file cofactor.c.

{
    register pcube *Tdest;
    register int i, ncubes;

    (void) set_copy(cube.temp[0], T[0]);        /* retrieve cofactor */

    ncubes = CUBELISTSIZE(T);
    qsort((char *) (T+2), (size_t)ncubes, sizeof(pset), (int (*)()) d1_order);

    Tdest = T+2;
    /*   *Tdest++ = T[2];   */
    for(i = 3; i < ncubes; i++) {
    if (d1_order(&T[i-1], &T[i]) != 0) {
        *Tdest++ = T[i];
    }
    }

    *Tdest++ = NULL;                /* sentinel */
    Tdest[1] = (pcube) Tdest;            /* save pointer to last */
}

Here is the call graph for this function:
