cubestr.c File Reference

#include "espresso.h"

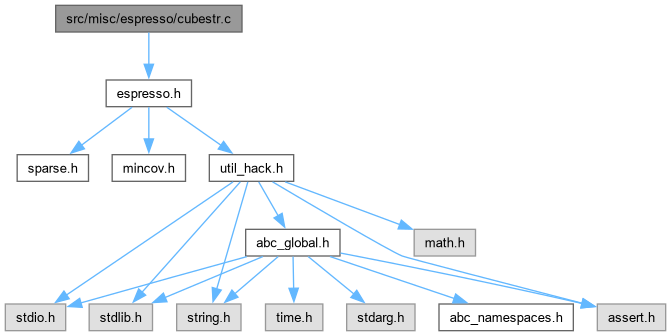

Include dependency graph for cubestr.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	cube_setup ()
void	setdown_cube ()
void	save_cube_struct ()
void	restore_cube_struct ()

Function Documentation

cube_setup()

ABC_NAMESPACE_IMPL_START void cube_setup

(

)

Definition at line 27 of file cubestr.c.

{
    register int i, var;
    register pcube p;

    if (cube.num_binary_vars < 0 || cube.num_vars < cube.num_binary_vars)
    fatal("cube size is silly, error in .i/.o or .mv");

    cube.num_mv_vars = cube.num_vars - cube.num_binary_vars;
    cube.output = cube.num_mv_vars > 0 ? cube.num_vars - 1 : -1;

    cube.size = 0;
    cube.first_part = ALLOC(int, cube.num_vars);
    cube.last_part = ALLOC(int, cube.num_vars);
    cube.first_word = ALLOC(int, cube.num_vars);
    cube.last_word = ALLOC(int, cube.num_vars);
    for(var = 0; var < cube.num_vars; var++) {
    if (var < cube.num_binary_vars)
        cube.part_size[var] = 2;
    cube.first_part[var] = cube.size;
    cube.first_word[var] = WHICH_WORD(cube.size);
    cube.size += ABS(cube.part_size[var]);
    cube.last_part[var] = cube.size - 1;
    cube.last_word[var] = WHICH_WORD(cube.size - 1);
    }

    cube.var_mask = ALLOC(pset, cube.num_vars);
    cube.sparse = ALLOC(int, cube.num_vars);
    cube.binary_mask = new_cube();
    cube.mv_mask = new_cube();
    for(var = 0; var < cube.num_vars; var++) {
    p = cube.var_mask[var] = new_cube();
    for(i = cube.first_part[var]; i <= cube.last_part[var]; i++)
        set_insert(p, i);
    if (var < cube.num_binary_vars) {
        INLINEset_or(cube.binary_mask, cube.binary_mask, p);
        cube.sparse[var] = 0;
    } else {
        INLINEset_or(cube.mv_mask, cube.mv_mask, p);
        cube.sparse[var] = 1;
    }
    }
    if (cube.num_binary_vars == 0)
    cube.inword = -1;
    else {
    cube.inword = cube.last_word[cube.num_binary_vars - 1];
    cube.inmask = cube.binary_mask[cube.inword] & DISJOINT;
    }

    cube.temp = ALLOC(pset, CUBE_TEMP);
    for(i = 0; i < CUBE_TEMP; i++)
    cube.temp[i] = new_cube();
    cube.fullset = set_fill(new_cube(), cube.size);
    cube.emptyset = new_cube();

    cdata.part_zeros = ALLOC(int, cube.size);
    cdata.var_zeros = ALLOC(int, cube.num_vars);
    cdata.parts_active = ALLOC(int, cube.num_vars);
    cdata.is_unate = ALLOC(int, cube.num_vars);
}

Here is the call graph for this function:

Here is the caller graph for this function:

restore_cube_struct()

void restore_cube_struct

(

)

Definition at line 151 of file cubestr.c.

{
    cube = temp_cube_save;              /* structure copy ! */
    cdata = temp_cdata_save;            /*      ""          */
}

save_cube_struct()

void save_cube_struct

(

)

Definition at line 134 of file cubestr.c.

{
    temp_cube_save = cube;              /* structure copy ! */
    temp_cdata_save = cdata;            /*      ""          */

    cube.first_part = cube.last_part = (int *) NULL;
    cube.first_word = cube.last_word = (int *) NULL;
    cube.part_size = (int *) NULL;
    cube.binary_mask = cube.mv_mask = (pcube) NULL;
    cube.fullset = cube.emptyset = (pcube) NULL;
    cube.var_mask = cube.temp = (pcube *) NULL;

    cdata.part_zeros = cdata.var_zeros = cdata.parts_active = (int *) NULL;
    cdata.is_unate = (bool *) NULL;
}

setdown_cube()

void setdown_cube

(

)

Definition at line 95 of file cubestr.c.

{
    register int i, var;

    FREE(cube.first_part);
    FREE(cube.last_part);
    FREE(cube.first_word);
    FREE(cube.last_word);
    FREE(cube.sparse);

    free_cube(cube.binary_mask);
    free_cube(cube.mv_mask);
    free_cube(cube.fullset);
    free_cube(cube.emptyset);
    for(var = 0; var < cube.num_vars; var++)
    free_cube(cube.var_mask[var]);
    FREE(cube.var_mask);

    for(i = 0; i < CUBE_TEMP; i++)
    free_cube(cube.temp[i]);
    FREE(cube.temp);

    FREE(cdata.part_zeros);
    FREE(cdata.var_zeros);
    FREE(cdata.parts_active);
    FREE(cdata.is_unate);

    cube.first_part = cube.last_part = (int *) NULL;
    cube.first_word = cube.last_word = (int *) NULL;
    cube.sparse = (int *) NULL;
    cube.binary_mask = cube.mv_mask = (pcube) NULL;
    cube.fullset = cube.emptyset = (pcube) NULL;
    cube.var_mask = cube.temp = (pcube *) NULL;

    cdata.part_zeros = cdata.var_zeros = cdata.parts_active = (int *) NULL;
    cdata.is_unate = (bool *) NULL;
}

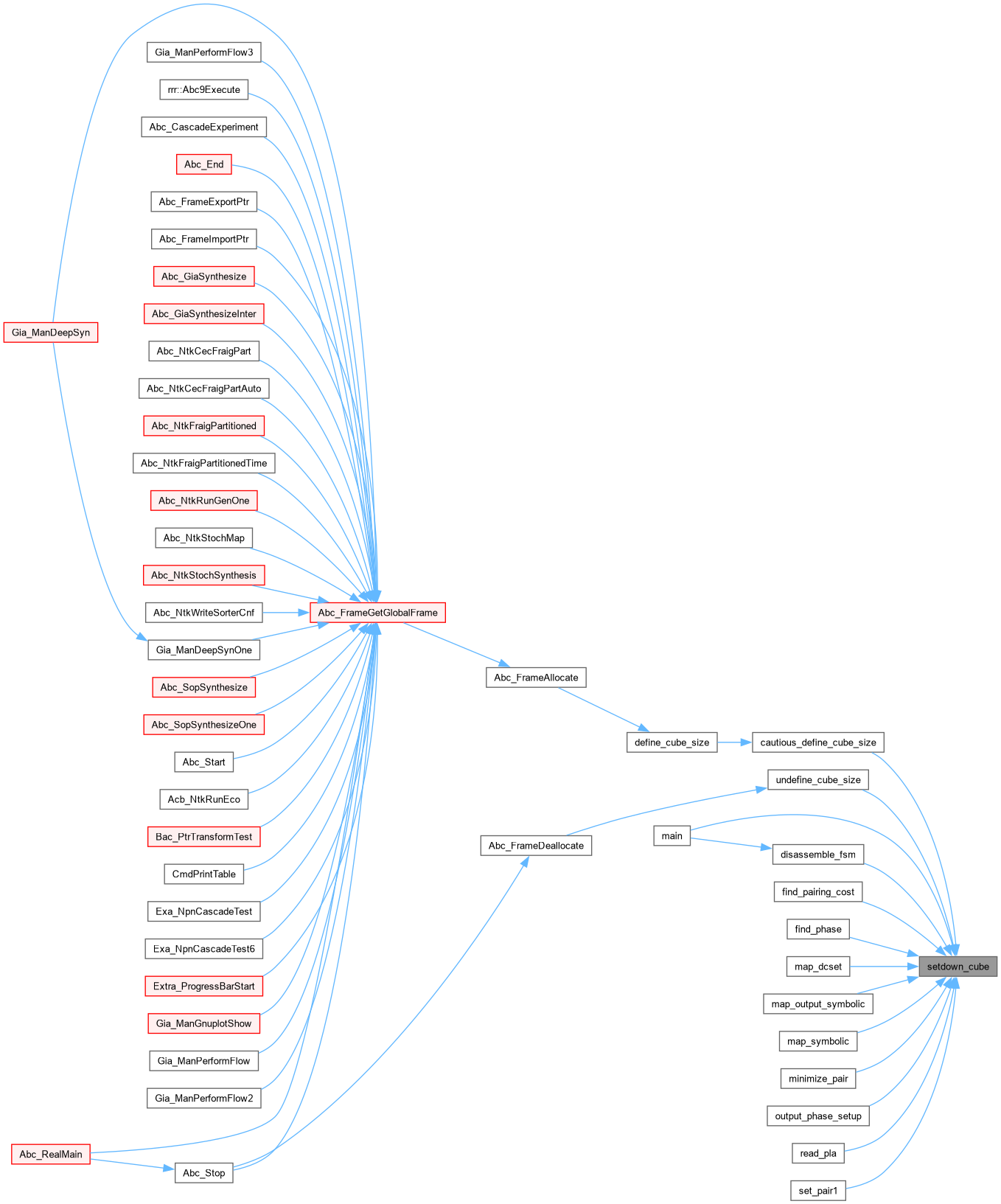

Here is the caller graph for this function:
