cutSeq.c File Reference

#include "cutInt.h"

Include dependency graph for cutSeq.c:

Go to the source code of this file.

Functions
void	Cut_NodeComputeCutsSeq (Cut_Man_t *p, int Node, int Node0, int Node1, int fCompl0, int fCompl1, int nLat0, int nLat1, int fTriv, int CutSetNum)
void	Cut_NodeNewMergeWithOld (Cut_Man_t *p, int Node)
int	Cut_NodeTempTransferToNew (Cut_Man_t *p, int Node, int CutSetNum)
void	Cut_NodeOldTransferToNew (Cut_Man_t *p, int Node)

Function Documentation

Cut_NodeComputeCutsSeq()

void Cut_NodeComputeCutsSeq	(	Cut_Man_t *	p,
		int	Node,
		int	Node0,
		int	Node1,
		int	fCompl0,
		int	fCompl1,
		int	nLat0,
		int	nLat1,
		int	fTriv,
		int	CutSetNum )

Function*************************************************************

Synopsis [Computes sequential cuts for the node from its fanins.]

Description []

SideEffects []

SeeAlso []

Definition at line 72 of file cutSeq.c.

{
    Cut_List_t Super, * pSuper = &Super;
    Cut_Cut_t * pListNew;
    abctime clk;

    // get the number of cuts at the node
    p->nNodeCuts = Cut_CutCountList( Cut_NodeReadCutsOld(p, Node) );
    if ( p->nNodeCuts >= p->pParams->nKeepMax )
        return;

    // count only the first visit
    if ( p->nNodeCuts == 0 )
        p->nNodes++;

    // store the fanin lists
    p->pStore0[0] = Cut_NodeReadCutsOld( p, Node0 );
    p->pStore0[1] = Cut_NodeReadCutsNew( p, Node0 );
    p->pStore1[0] = Cut_NodeReadCutsOld( p, Node1 );
    p->pStore1[1] = Cut_NodeReadCutsNew( p, Node1 );

    // duplicate the cut lists if fanin nodes are non-standard
    if ( Node == Node0 || Node == Node1 || Node0 == Node1 )
    {
        p->pStore0[0] = Cut_CutDupList( p, p->pStore0[0] );
        p->pStore0[1] = Cut_CutDupList( p, p->pStore0[1] );
        p->pStore1[0] = Cut_CutDupList( p, p->pStore1[0] );
        p->pStore1[1] = Cut_CutDupList( p, p->pStore1[1] );
    }

    // shift the cuts by as many latches and recompute signatures
    if ( nLat0 ) Cut_NodeShiftCutLeaves( p->pStore0[0], nLat0 );
    if ( nLat0 ) Cut_NodeShiftCutLeaves( p->pStore0[1], nLat0 );
    if ( nLat1 ) Cut_NodeShiftCutLeaves( p->pStore1[0], nLat1 );
    if ( nLat1 ) Cut_NodeShiftCutLeaves( p->pStore1[1], nLat1 );

    // store the original lists for comparison
    p->pCompareOld = Cut_NodeReadCutsOld( p, Node );
    p->pCompareNew = Cut_NodeReadCutsNew( p, Node );

    // merge the old and the new
clk = Abc_Clock();
    Cut_ListStart( pSuper );
    Cut_NodeDoComputeCuts( p, pSuper, Node, fCompl0, fCompl1, p->pStore0[0], p->pStore1[1], 0, 0 );
    Cut_NodeDoComputeCuts( p, pSuper, Node, fCompl0, fCompl1, p->pStore0[1], p->pStore1[0], 0, 0 );
    Cut_NodeDoComputeCuts( p, pSuper, Node, fCompl0, fCompl1, p->pStore0[1], p->pStore1[1], fTriv, 0 );
    pListNew = Cut_ListFinish( pSuper );
p->timeMerge += Abc_Clock() - clk;

    // shift the cuts by as many latches and recompute signatures
    if ( Node == Node0 || Node == Node1 || Node0 == Node1 )
    {
        Cut_CutRecycleList( p, p->pStore0[0] );
        Cut_CutRecycleList( p, p->pStore0[1] );
        Cut_CutRecycleList( p, p->pStore1[0] );
        Cut_CutRecycleList( p, p->pStore1[1] );
    }
    else
    {
        if ( nLat0 ) Cut_NodeShiftCutLeaves( p->pStore0[0], -nLat0 );
        if ( nLat0 ) Cut_NodeShiftCutLeaves( p->pStore0[1], -nLat0 );
        if ( nLat1 ) Cut_NodeShiftCutLeaves( p->pStore1[0], -nLat1 );
        if ( nLat1 ) Cut_NodeShiftCutLeaves( p->pStore1[1], -nLat1 );
    }

    // set the lists at the node
    if ( CutSetNum >= 0 )
    {
        assert( Cut_NodeReadCutsTemp(p, CutSetNum) == NULL );
        Cut_NodeWriteCutsTemp( p, CutSetNum, pListNew );
    }
    else
    {
        assert( Cut_NodeReadCutsNew(p, Node) == NULL );
        Cut_NodeWriteCutsNew( p, Node, pListNew );
    }

    // mark the node if we exceeded the number of cuts
    if ( p->nNodeCuts >= p->pParams->nKeepMax )
        p->nCutsLimit++;
}

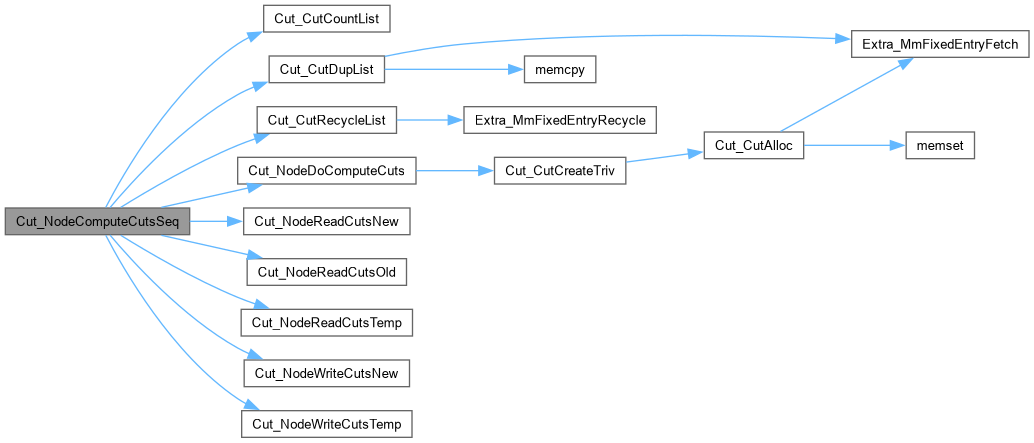

Here is the call graph for this function:

Here is the caller graph for this function:

Cut_NodeNewMergeWithOld()

void Cut_NodeNewMergeWithOld	(	Cut_Man_t *	p,
		int	Node )

Function*************************************************************

Synopsis [Merges the new cuts with the old cuts.]

Description []

SideEffects []

SeeAlso []

Definition at line 165 of file cutSeq.c.

{
    Cut_Cut_t * pListOld, * pListNew, * pList;
    // get the new cuts
    pListNew = Cut_NodeReadCutsNew( p, Node );
    if ( pListNew == NULL )
        return;
    Cut_NodeWriteCutsNew( p, Node, NULL );
    // get the old cuts
    pListOld = Cut_NodeReadCutsOld( p, Node );
    if ( pListOld == NULL )
    {
        Cut_NodeWriteCutsOld( p, Node, pListNew );
        return;
    }
    // merge the lists
    pList = Cut_CutMergeLists( pListOld, pListNew );
    Cut_NodeWriteCutsOld( p, Node, pList );
}

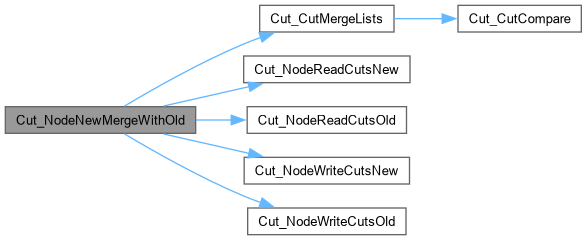

Here is the call graph for this function:

Cut_NodeOldTransferToNew()

void Cut_NodeOldTransferToNew	(	Cut_Man_t *	p,
		int	Node )

Function*************************************************************

Synopsis [Transfers the old cuts to be the new cuts.]

Description []

SideEffects []

SeeAlso []

Definition at line 217 of file cutSeq.c.

{
    Cut_Cut_t * pList;
    pList = Cut_NodeReadCutsOld( p, Node );
    Cut_NodeWriteCutsOld( p, Node, NULL );
    Cut_NodeWriteCutsNew( p, Node, pList );
//    Cut_CutListVerify( pList );
}

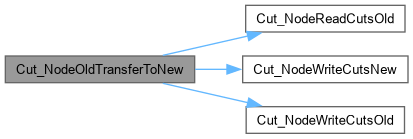

Here is the call graph for this function:

Cut_NodeTempTransferToNew()

int Cut_NodeTempTransferToNew	(	Cut_Man_t *	p,
		int	Node,
		int	CutSetNum )

Function*************************************************************

Synopsis [Transfers the temporary cuts to be the new cuts.]

Description [Returns 1 if something was transferred.]

SideEffects []

SeeAlso []

Definition at line 197 of file cutSeq.c.

{
    Cut_Cut_t * pList;
    pList = Cut_NodeReadCutsTemp( p, CutSetNum );
    Cut_NodeWriteCutsTemp( p, CutSetNum, NULL );
    Cut_NodeWriteCutsNew( p, Node, pList );
    return pList != NULL;
}

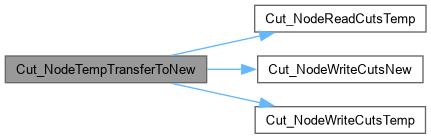

Here is the call graph for this function:
