dauDsd.c File Reference

#include "dauInt.h"
#include "misc/util/utilTruth.h"

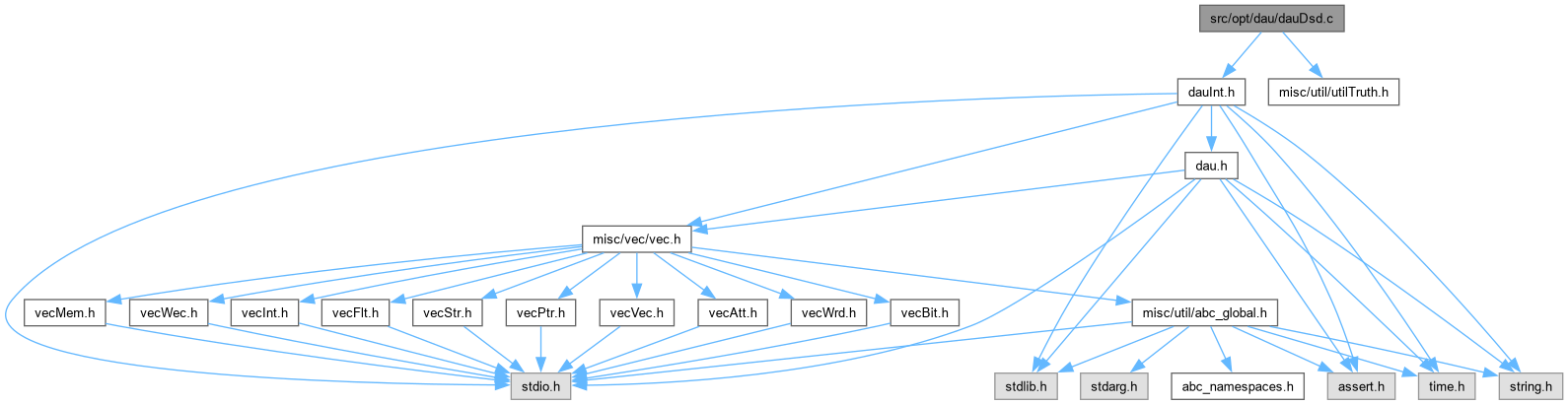

Include dependency graph for dauDsd.c:

Go to the source code of this file.

Classes
struct	Dau_Dsd_t_

Typedefs
typedef struct Dau_Dsd_t_	Dau_Dsd_t

Functions
int *	Dau_DsdComputeMatches (char *p)
int	Dau_DsdFindVarNum (char *pDsd)
void	Dau_DsdGenRandPerm (int *pPerm, int nVars)
void	Dau_DsdPermute (char *pDsd)
char *	Dau_DsdNormalizeCopy (char *pDest, char *pSour, int *pMarks, int i)
int	Dau_DsdNormalizeCompare (char *pStr, int *pMarks, int i, int j)
int *	Dau_DsdNormalizePerm (char *pStr, int *pMarks, int nMarks)
void	Dau_DsdNormalize_rec (char *pStr, char **p, int *pMatches)
void	Dau_DsdNormalize (char *pDsd)
int	Dau_DsdCountAnds_rec (char *pStr, char **p, int *pMatches)
int	Dau_DsdCountAnds (char *pDsd)
word	Dau_Dsd6TruthCompose_rec (word Func, word *pFanins, int nVars)
word	Dau_Dsd6ToTruth_rec (char *pStr, char **p, int *pMatches, word *pTruths)
word	Dau_Dsd6ToTruth (char *p)
void	Dau_DsdTruth6Compose_rec (word Func, word pFanins[DAU_MAX_VAR][DAU_MAX_WORD], word *pRes, int nVars, int nWordsR)
void	Dau_DsdTruthCompose_rec (word *pFunc, word pFanins[DAU_MAX_VAR][DAU_MAX_WORD], word *pRes, int nVars, int nWordsR)
void	Dau_DsdToTruth_rec (char *pStr, char **p, int *pMatches, word **pTtElems, word *pRes, int nVars)
word *	Dau_DsdToTruth (char *p, int nVars)
void	Dau_DsdTest2 ()
int	Dau_DsdPerform_rec (word t, char *pBuffer, int Pos, int *pVars, int nVars)
char *	Dau_DsdPerform (word t)
void	Dau_DsdTest3 ()
int	Dau_DsdCheck1Step (void *p, word *pTruth, int nVarsInit, int *pVarLevels)
int	Dau_DsdLevelVar (void *pMan, int iVar)
int	Dau_Dsd6DecomposeSingleVar (Dau_Dsd_t *p, word *pTruth, int *pVars, int nVars)
int	Dau_Dsd6DecomposeDoubleVars (Dau_Dsd_t *p, word *pTruth, int *pVars, int nVars)
int	Dau_Dsd6DecomposeTripleVars (Dau_Dsd_t *p, word *pTruth, int *pVars, int nVars)
int	Dau_Dsd6DecomposeInternal (Dau_Dsd_t *p, word *pTruth, int *pVars, int nVars)
int	Dau_DsdDecomposeSingleVar (Dau_Dsd_t *p, word *pTruth, int *pVars, int nVars)
int	Dau_DsdDecomposeDoubleVars (Dau_Dsd_t *p, word *pTruth, int *pVars, int nVars)
int	Dau_DsdDecomposeTripleVars (Dau_Dsd_t *p, word *pTruth, int *pVars, int nVars)
int	Dau_DsdDecomposeInternal (Dau_Dsd_t *p, word *pTruth, int *pVars, int nVars)
int	Dau_DsdMinBase (word *pTruth, int nVars, int *pVarsNew)
int	Dau_DsdDecomposeInt (Dau_Dsd_t *p, word *pTruth, int nVarsInit)
int	Dau_DsdDecompose (word *pTruth, int nVarsInit, int fSplitPrime, int fWriteTruth, char *pRes)
int	Dau_DsdDecomposeLevel (word *pTruth, int nVarsInit, int fSplitPrime, int fWriteTruth, char *pRes, int *pVarLevels)
void	Dau_DsdPrintFromTruthFile (FILE *pFile, word *pTruth, int nVarsInit)
void	Dau_DsdPrintFromTruth (word *pTruth, int nVarsInit)
void	Dau_DsdPrintFromTruth2 (word *pTruth, int nVarsInit)
void	Dau_DsdTest44 ()
void	Dau_DsdTest888 ()
void	Dau_DsdTest555 ()

Typedef Documentation

Dau_Dsd_t

typedef struct Dau_Dsd_t_ Dau_Dsd_t

Function*************************************************************

Synopsis [Data-structure to store DSD information.]

Description []

SideEffects []

SeeAlso []

Definition at line 955 of file dauDsd.c.

Function Documentation

Dau_Dsd6DecomposeDoubleVars()

int Dau_Dsd6DecomposeDoubleVars	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int *	pVars,
		int	nVars )

Definition at line 1320 of file dauDsd.c.

{
    abctime clk = Abc_Clock();
    while ( 1 )
    {
        int v, u, nVarsOld;
        for ( v = nVars - 1; v > 0; v-- )
        {
            for ( u = v - 1; u >= 0; u-- )
            {
                if ( Dau_DsdLookupVarCache( p, pVars[v], pVars[u] ) )
                    continue;
                nVarsOld = nVars;
                nVars = Dau_Dsd6DecomposeDoubleVarsOne( p, pTruth, pVars, nVars, v, u );
                if ( nVars == 0 )
                {
                    s_Times[1] += Abc_Clock() - clk;
                    return 0;
                }
                if ( nVarsOld > nVars )
                    break;
            }
            if ( u >= 0 ) // found
                break;
        }
        if ( v == 0 ) // not found
            break;
    }
    s_Times[1] += Abc_Clock() - clk;
    return nVars;
}

Here is the caller graph for this function:

Dau_Dsd6DecomposeInternal()

int Dau_Dsd6DecomposeInternal	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int *	pVars,
		int	nVars )

Definition at line 1461 of file dauDsd.c.

{
    // decompose single variales on the output side
    nVars = Dau_Dsd6DecomposeSingleVar( p, pTruth, pVars, nVars );
    if ( nVars == 0 )
        return 0;
    // decompose double variables on the input side
    nVars = Dau_Dsd6DecomposeDoubleVars( p, pTruth, pVars, nVars );
    if ( nVars == 0 )
        return 0;
    // decompose MUX on the output/input side
    nVars = Dau_Dsd6DecomposeTripleVars( p, pTruth, pVars, nVars );
    if ( nVars == 0 )
        return 0;
    // write non-decomposable function
    return Dau_DsdWritePrime( p, pTruth, pVars, nVars );
}

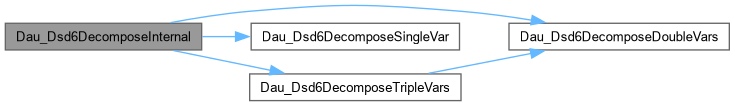

Here is the call graph for this function:

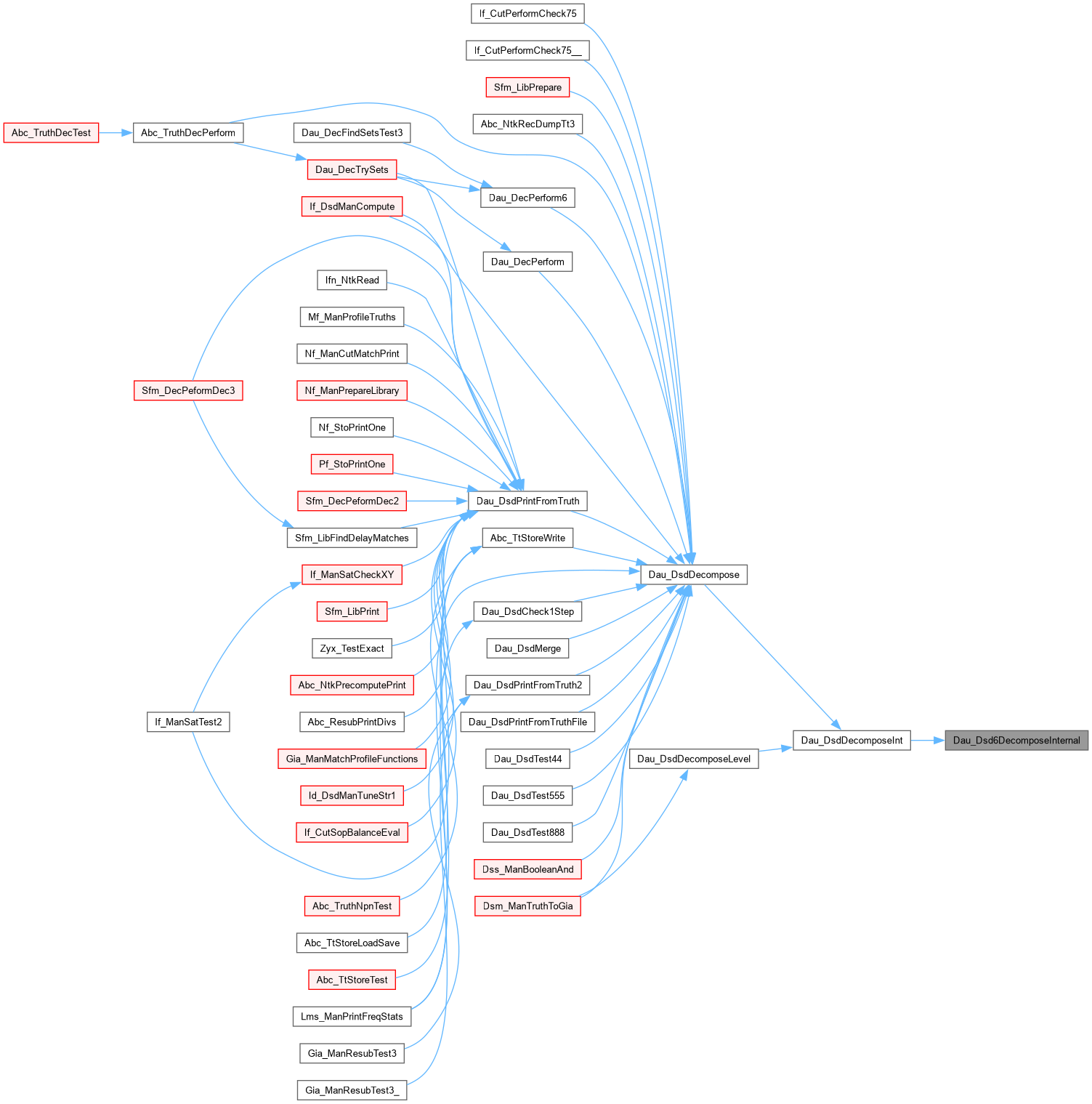

Here is the caller graph for this function:

Dau_Dsd6DecomposeSingleVar()

int Dau_Dsd6DecomposeSingleVar	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int *	pVars,
		int	nVars )

Definition at line 1191 of file dauDsd.c.

{
    abctime clk = Abc_Clock();
    assert( nVars > 1 );
    while ( 1 )
    {
        int v;
        for ( v = nVars - 1; v >= 0 && nVars > 1; v-- )
            if ( Dau_Dsd6DecomposeSingleVarOne( p, pTruth, pVars, nVars, v ) )
            {
                nVars--;
                break;
            }
        if ( v == -1 || nVars == 1 )
            break;
    }
    if ( nVars == 1 )
        Dau_DsdWriteVar( p, pVars[--nVars], (int)(pTruth[0] & 1) );
    s_Times[0] += Abc_Clock() - clk;
    return nVars;
}

Here is the caller graph for this function:

Dau_Dsd6DecomposeTripleVars()

int Dau_Dsd6DecomposeTripleVars	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int *	pVars,
		int	nVars )

Definition at line 1419 of file dauDsd.c.

{
    abctime clk = Abc_Clock();
    while ( 1 )
    {
        int v;
//        Kit_DsdPrintFromTruth( (unsigned *)pTruth, 6 ); printf( "\n" );
        for ( v = nVars - 1; v >= 0; v-- )
        {
            unsigned uSupports = Dau_Dsd6FindSupports( p, pTruth, pVars, nVars, v );
//            Dau_DsdPrintSupports( uSupports, nVars );
            if ( (uSupports & (uSupports >> 1) & 0x55555555) == 0 ) // non-overlapping supports
                return Dau_Dsd6DecomposeTripleVarsOuter( p, pTruth, pVars, nVars, v );
            if ( Abc_TtSuppOnlyOne( uSupports & (~uSupports >> 1) & 0x55555555) &&
                 Abc_TtSuppOnlyOne(~uSupports & ( uSupports >> 1) & 0x55555555) ) // one unique variable in each cofactor
            {
                int nVarsNew = Dau_Dsd6DecomposeTripleVarsInner( p, pTruth, pVars, nVars, v, uSupports );
                if ( nVarsNew == nVars )
                    continue;
                if ( nVarsNew == 0 )
                {
                    s_Times[2] += Abc_Clock() - clk;
                    return 0;
                }
                nVars = Dau_Dsd6DecomposeDoubleVars( p, pTruth, pVars, nVarsNew );
                if ( nVars == 0 )
                {
                    s_Times[2] += Abc_Clock() - clk;
                    return 0;
                }
                break;
            }
        }
        if ( v == -1 )
        {
            s_Times[2] += Abc_Clock() - clk;
            return nVars;
        }
    }
    assert( 0 );
    return -1;
}

Here is the call graph for this function:

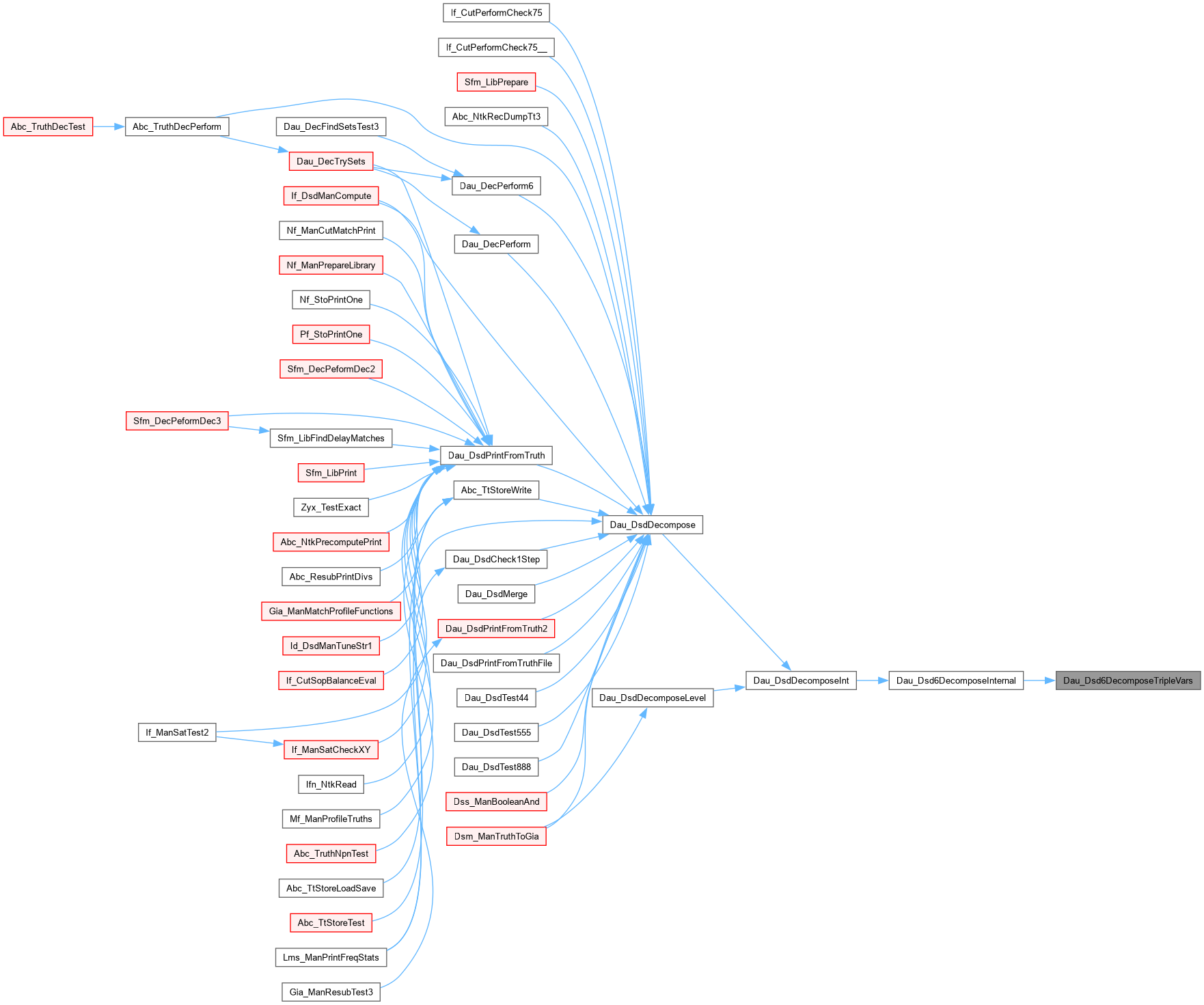

Here is the caller graph for this function:

Dau_Dsd6ToTruth()

word Dau_Dsd6ToTruth

(

char *

p

)

Definition at line 445 of file dauDsd.c.

{
    word Res;
    if ( *p == '0' && *(p+1) == 0 )
        Res = 0;
    else if ( *p == '1' && *(p+1) == 0 )
        Res = ~(word)0;
    else
        Res = Dau_Dsd6ToTruth_rec( p, &p, Dau_DsdComputeMatches(p), s_Truths6 );
    assert( *++p == 0 );
    return Res;
}

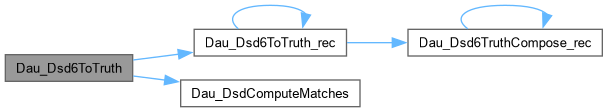

Here is the call graph for this function:

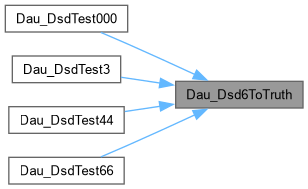

Here is the caller graph for this function:

Dau_Dsd6ToTruth_rec()

word Dau_Dsd6ToTruth_rec	(	char *	pStr,
		char **	p,
		int *	pMatches,
		word *	pTruths )

Definition at line 353 of file dauDsd.c.

{
    int fCompl = 0;
    if ( **p == '!' )
        (*p)++, fCompl = 1;
    if ( **p >= 'a' && **p <= 'f' ) // var
    {
        assert( **p - 'a' >= 0 && **p - 'a' < 6 );
        return fCompl ? ~pTruths[**p - 'a'] : pTruths[**p - 'a'];
    }
    if ( **p == '(' ) // and/or
    {
        char * q = pStr + pMatches[ *p - pStr ];
        word Res = ~(word)0;
        assert( **p == '(' && *q == ')' );
        for ( (*p)++; *p < q; (*p)++ )
            Res &= Dau_Dsd6ToTruth_rec( pStr, p, pMatches, pTruths );
        assert( *p == q );
        return fCompl ? ~Res : Res;
    }
    if ( **p == '[' ) // xor
    {
        char * q = pStr + pMatches[ *p - pStr ];
        word Res = 0;
        assert( **p == '[' && *q == ']' );
        for ( (*p)++; *p < q; (*p)++ )
            Res ^= Dau_Dsd6ToTruth_rec( pStr, p, pMatches, pTruths );
        assert( *p == q );
        return fCompl ? ~Res : Res;
    }
    if ( **p == '<' ) // mux
    {
        int nVars = 0;
        word Temp[3], * pTemp = Temp, Res;
        word Fanins[6], * pTruths2;
        char * pOld = *p;
        char * q = pStr + pMatches[ *p - pStr ];
        // read fanins
        if ( *(q+1) == '{' )
        {
            char * q2;
            *p = q+1;
            q2 = pStr + pMatches[ *p - pStr ];
            assert( **p == '{' && *q2 == '}' );
            for ( nVars = 0, (*p)++; *p < q2; (*p)++, nVars++ )
                Fanins[nVars] = Dau_Dsd6ToTruth_rec( pStr, p, pMatches, pTruths );
            assert( *p == q2 );
            pTruths2 = Fanins;
        }
        else
            pTruths2 = pTruths;
        // read MUX
        *p = pOld;
        q = pStr + pMatches[ *p - pStr ];
        assert( **p == '<' && *q == '>' );
        // verify internal variables
        if ( nVars )
            for ( ; pOld < q; pOld++ )
                if ( *pOld >= 'a' && *pOld <= 'z' )
                    assert( *pOld - 'a' < nVars );
        // derive MAX components
        for ( (*p)++; *p < q; (*p)++ )
            *pTemp++ = Dau_Dsd6ToTruth_rec( pStr, p, pMatches, pTruths2 );
        assert( pTemp == Temp + 3 );
        assert( *p == q );
        if ( *(q+1) == '{' ) // and/or
        {
            char * q = pStr + pMatches[ ++(*p) - pStr ];
            assert( **p == '{' && *q == '}' );
            *p = q;
        }
        Res = (Temp[0] & Temp[1]) | (~Temp[0] & Temp[2]);
        return fCompl ? ~Res : Res;
    }
    if ( (**p >= 'A' && **p <= 'F') || (**p >= '0' && **p <= '9') )
    {
        word Func, Fanins[6], Res;
        char * q;
        int i, nVars = Abc_TtReadHex( &Func, *p );
        *p += Abc_TtHexDigitNum( nVars );
        q = pStr + pMatches[ *p - pStr ];
        assert( **p == '{' && *q == '}' );
        for ( i = 0, (*p)++; *p < q; (*p)++, i++ )
            Fanins[i] = Dau_Dsd6ToTruth_rec( pStr, p, pMatches, pTruths );
        assert( i == nVars );
        assert( *p == q );
        Res = Dau_Dsd6TruthCompose_rec( Func, Fanins, nVars );
        return fCompl ? ~Res : Res;
    }
    assert( 0 );
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_Dsd6TruthCompose_rec()

word Dau_Dsd6TruthCompose_rec	(	word	Func,
		word *	pFanins,
		int	nVars )

Function*************************************************************

Synopsis [Computes truth table for the DSD formula.]

Description []

SideEffects []

SeeAlso []

Definition at line 334 of file dauDsd.c.

{
    word t0, t1;
    if ( Func == 0 )
        return 0;
    if ( Func == ~(word)0 )
        return ~(word)0;
    assert( nVars > 0 );
    if ( --nVars == 0 )
    {
        assert( Func == s_Truths6[0] || Func == s_Truths6Neg[0] );
        return (Func == s_Truths6[0]) ? pFanins[0] : ~pFanins[0];
    }
    if ( !Abc_Tt6HasVar(Func, nVars) )
        return Dau_Dsd6TruthCompose_rec( Func, pFanins, nVars );
    t0 = Dau_Dsd6TruthCompose_rec( Abc_Tt6Cofactor0(Func, nVars), pFanins, nVars );
    t1 = Dau_Dsd6TruthCompose_rec( Abc_Tt6Cofactor1(Func, nVars), pFanins, nVars );
    return (~pFanins[nVars] & t0) | (pFanins[nVars] & t1);
}

Here is the call graph for this function:

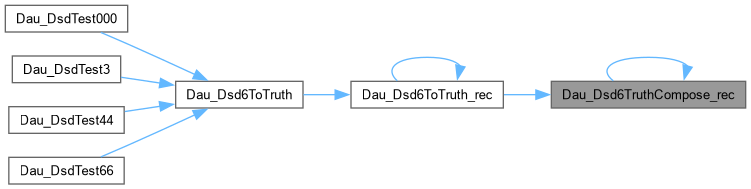

Here is the caller graph for this function:

Dau_DsdCheck1Step()

int Dau_DsdCheck1Step	(	void *	p,
		word *	pTruth,
		int	nVarsInit,
		int *	pVarLevels )

Function*************************************************************

Synopsis [Find the best cofactoring variable.]

Description [Return -2 if non-DSD; -1 if full DSD; otherwise, returns cofactoring variables i (i >= 0).]

SideEffects []

SeeAlso []

Definition at line 893 of file dauDsd.c.

{
    word pCofTemp[DAU_MAX_WORD];
    int pVarPrios[DAU_MAX_VAR];
    int nWords = Abc_TtWordNum(nVarsInit);
    int nSizeNonDec, nSizeNonDec0, nSizeNonDec1;
    int i, vBest = -2, nSumCofsBest = ABC_INFINITY, nSumCofs;
    nSizeNonDec = Dau_DsdDecompose( pTruth, nVarsInit, 0, 0, NULL );
    if ( nSizeNonDec == 0 )
        return -1;
    assert( nSizeNonDec > 0 );
    // find variable priority
    for ( i = 0; i < nVarsInit; i++ )
        pVarPrios[i] = i;
    if ( pVarLevels )
    {
        extern int Dau_DsdLevelVar( void * pMan, int iVar );
        int pVarLevels[DAU_MAX_VAR];
        for ( i = 0; i < nVarsInit; i++ )
            pVarLevels[i] = -Dau_DsdLevelVar( p, i );
//        for ( i = 0; i < nVarsInit; i++ )
//            printf( "%d ", -pVarLevels[i] );
//        printf( "\n" );
        Vec_IntSelectSortCost2( pVarPrios, nVarsInit, pVarLevels );
//        for ( i = 0; i < nVarsInit; i++ )
//            printf( "%d ", pVarPrios[i] );
//        printf( "\n\n" );
    }
    for ( i = 0; i < nVarsInit; i++ )
    {
        assert( pVarPrios[i] >= 0 && pVarPrios[i] < nVarsInit );
        // try first cofactor
        Abc_TtCofactor0p( pCofTemp, pTruth, nWords, pVarPrios[i] );
        nSumCofs = Abc_TtSupportSize( pCofTemp, nVarsInit );
        nSizeNonDec0 = Dau_DsdDecompose( pCofTemp, nVarsInit, 0, 0, NULL );
        // try second cofactor
        Abc_TtCofactor1p( pCofTemp, pTruth, nWords, pVarPrios[i] );
        nSumCofs += Abc_TtSupportSize( pCofTemp, nVarsInit );
        nSizeNonDec1 = Dau_DsdDecompose( pCofTemp, nVarsInit, 0, 0, NULL );
        // compare cofactors
        if ( nSizeNonDec0 || nSizeNonDec1 )
            continue;
        if ( nSumCofsBest > nSumCofs )
        {
            vBest = pVarPrios[i];
            nSumCofsBest = nSumCofs;
        }
    }
    return vBest;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdComputeMatches()

int * Dau_DsdComputeMatches

(

char *

p

)

Function*************************************************************

Synopsis [DSD formula manipulation.]

Description []

SideEffects []

SeeAlso []

Definition at line 80 of file dauDsd.c.

{
    static int pMatches[DAU_MAX_STR];
    int pNested[DAU_MAX_VAR];
    int v, nNested = 0;
    for ( v = 0; p[v]; v++ )
    {
        pMatches[v] = 0;
        if ( p[v] == '(' || p[v] == '[' || p[v] == '<' || p[v] == '{' )
            pNested[nNested++] = v;
        else if ( p[v] == ')' || p[v] == ']' || p[v] == '>' || p[v] == '}' )
            pMatches[pNested[--nNested]] = v;
        assert( nNested < DAU_MAX_VAR );
    }
    assert( nNested == 0 );
    return pMatches;
}

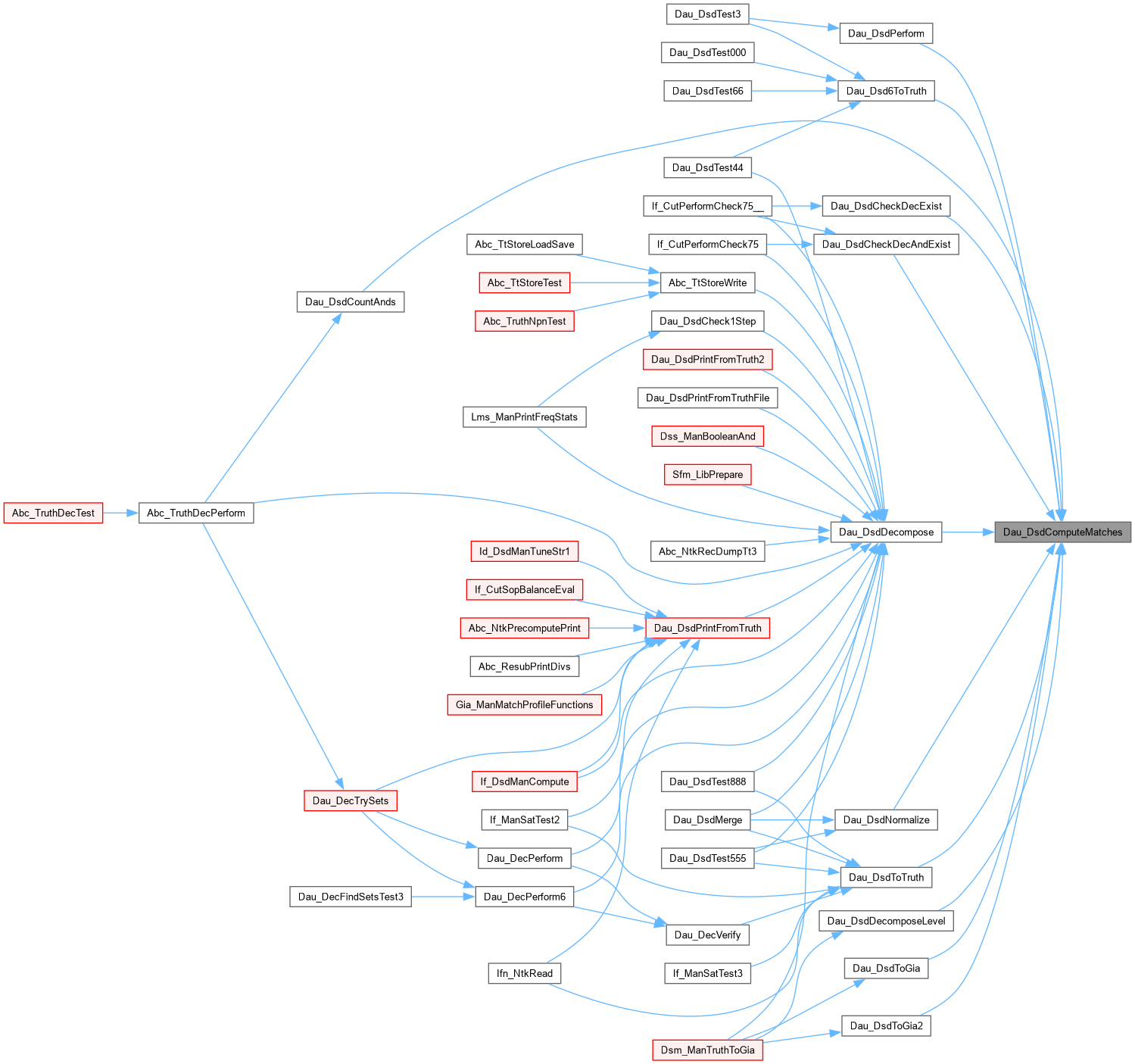

Here is the caller graph for this function:

Dau_DsdCountAnds()

int Dau_DsdCountAnds

(

char *

pDsd

)

Definition at line 316 of file dauDsd.c.

{
    if ( pDsd[1] == 0 )
        return 0;
    return Dau_DsdCountAnds_rec( pDsd, &pDsd, Dau_DsdComputeMatches(pDsd) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdCountAnds_rec()

int Dau_DsdCountAnds_rec	(	char *	pStr,
		char **	p,
		int *	pMatches )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 279 of file dauDsd.c.

{
    if ( **p == '!' )
        (*p)++;
    while ( (**p >= 'A' && **p <= 'F') || (**p >= '0' && **p <= '9') )
        (*p)++;
    if ( **p == '<' )
    {
        char * q = pStr + pMatches[*p - pStr];
        if ( *(q+1) == '{' )
            *p = q+1;
    }
    if ( **p >= 'a' && **p <= 'z' ) // var
        return 0;
    if ( **p == '(' || **p == '[' ) // and/or/xor
    {
        int Counter = 0, AddOn = (**p == '(')? 1 : 3;
        char * q = pStr + pMatches[ *p - pStr ];
        assert( *q == **p + 1 + (**p != '(') );
        for ( (*p)++; *p < q; (*p)++ )
            Counter += AddOn + Dau_DsdCountAnds_rec( pStr, p, pMatches );
        assert( *p == q );
        return Counter - AddOn;
    }
    if ( **p == '<' || **p == '{' ) // mux
    {
        int Counter = 3;
        char * q = pStr + pMatches[ *p - pStr ];
        assert( *q == **p + 1 + (**p != '(') );
        for ( (*p)++; *p < q; (*p)++ )
            Counter += Dau_DsdCountAnds_rec( pStr, p, pMatches );
        assert( *p == q );
        return Counter;
    }
    assert( 0 );
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdDecompose()

int Dau_DsdDecompose	(	word *	pTruth,
		int	nVarsInit,
		int	fSplitPrime,
		int	fWriteTruth,
		char *	pRes )

Definition at line 1912 of file dauDsd.c.

{
    Dau_Dsd_t P, * p = &P;
    p->fSplitPrime = fSplitPrime;
    p->fWriteTruth = fWriteTruth;
    p->pVarLevels  = NULL;
    p->nSizeNonDec = 0;
    if ( (pTruth[0] & 1) == 0 && Abc_TtIsConst0(pTruth, Abc_TtWordNum(nVarsInit)) )
        { if ( pRes ) pRes[0] = '0', pRes[1] = 0; }
    else if ( (pTruth[0] & 1) && Abc_TtIsConst1(pTruth, Abc_TtWordNum(nVarsInit)) )
        { if ( pRes ) pRes[0] = '1', pRes[1] = 0; }
    else
    {
        int Status = Dau_DsdDecomposeInt( p, pTruth, nVarsInit );
        Dau_DsdRemoveBraces( p->pOutput, Dau_DsdComputeMatches(p->pOutput) );
        if ( pRes )
            strcpy( pRes, p->pOutput );
        assert( fSplitPrime || Status != 1 );
        if ( fSplitPrime && Status == 2 )
            return -1;
    }
//    assert( p->nSizeNonDec == 0 );
    return p->nSizeNonDec;
}

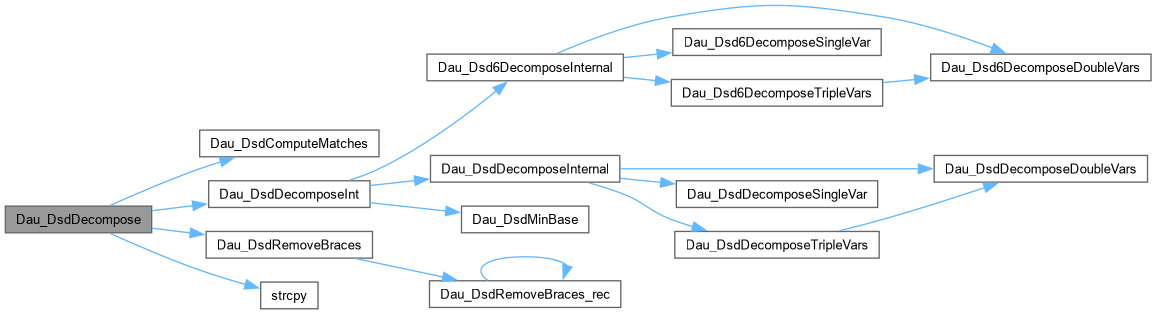

Here is the call graph for this function:

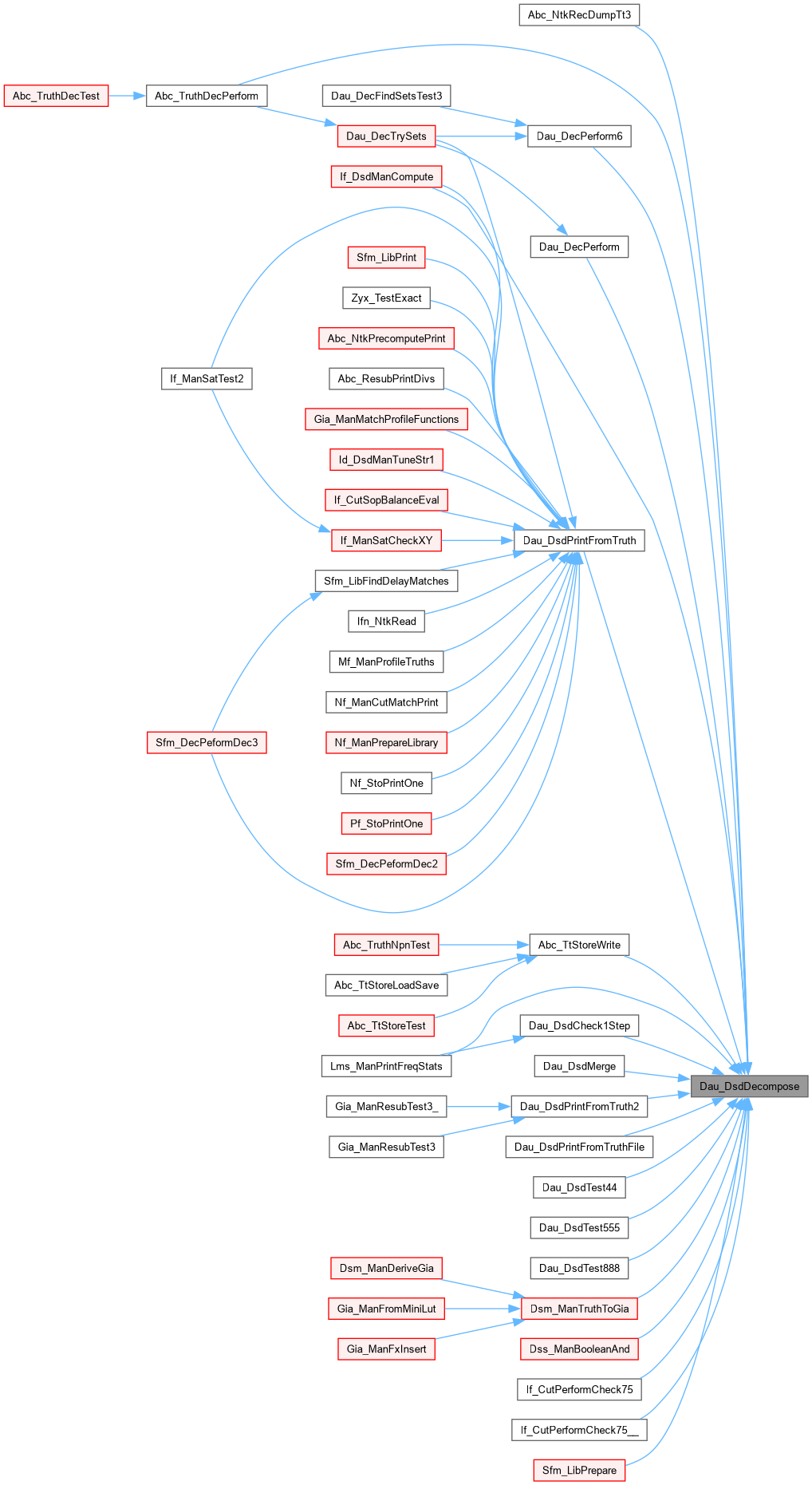

Here is the caller graph for this function:

Dau_DsdDecomposeDoubleVars()

int Dau_DsdDecomposeDoubleVars	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int *	pVars,
		int	nVars )

Definition at line 1697 of file dauDsd.c.

{
    abctime clk = Abc_Clock();
    while ( 1 )
    {
        int v, u, nVarsOld;
        for ( v = nVars - 1; v > 0; v-- )
        {
            for ( u = v - 1; u >= 0; u-- )
            {
                if ( Dau_DsdLookupVarCache( p, pVars[v], pVars[u] ) )
                    continue;
                nVarsOld = nVars;
                nVars = Dau_DsdDecomposeDoubleVarsOne( p, pTruth, pVars, nVars, v, u );
                if ( nVars == 0 )
                {
                    s_Times[1] += Abc_Clock() - clk;
                    return 0;
                }
                if ( nVarsOld > nVars )
                    break;
            }
            if ( u >= 0 ) // found
                break;
        }
        if ( v == 0 ) // not found
            break;
    }
    s_Times[1] += Abc_Clock() - clk;
    return nVars;
}

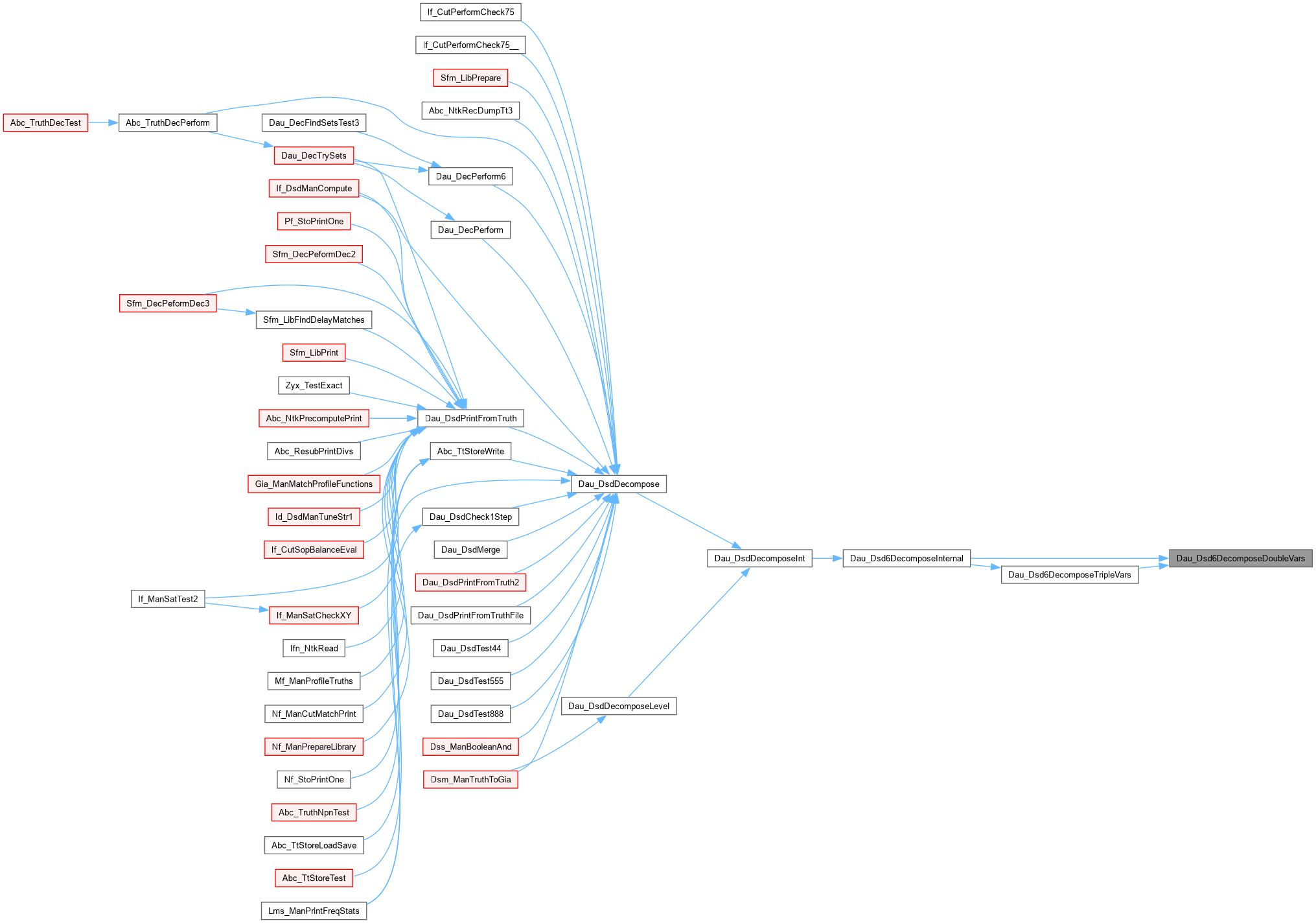

Here is the caller graph for this function:

Dau_DsdDecomposeInt()

int Dau_DsdDecomposeInt	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int	nVarsInit )

Definition at line 1897 of file dauDsd.c.

{
    int Status = 0, nVars, pVars[16];
    Dau_DsdInitialize( p, nVarsInit );
    nVars = Dau_DsdMinBase( pTruth, nVarsInit, pVars );
    assert( nVars > 0 && nVars <= nVarsInit );
    if ( nVars == 1 )
        Dau_DsdWriteVar( p, pVars[0], (int)(pTruth[0] & 1) );
    else if ( nVars <= 6 )
        Status = Dau_Dsd6DecomposeInternal( p, pTruth, pVars, nVars );
    else
        Status = Dau_DsdDecomposeInternal( p, pTruth, pVars, nVars );
    Dau_DsdFinalize( p );
    return Status;
}

Here is the call graph for this function:

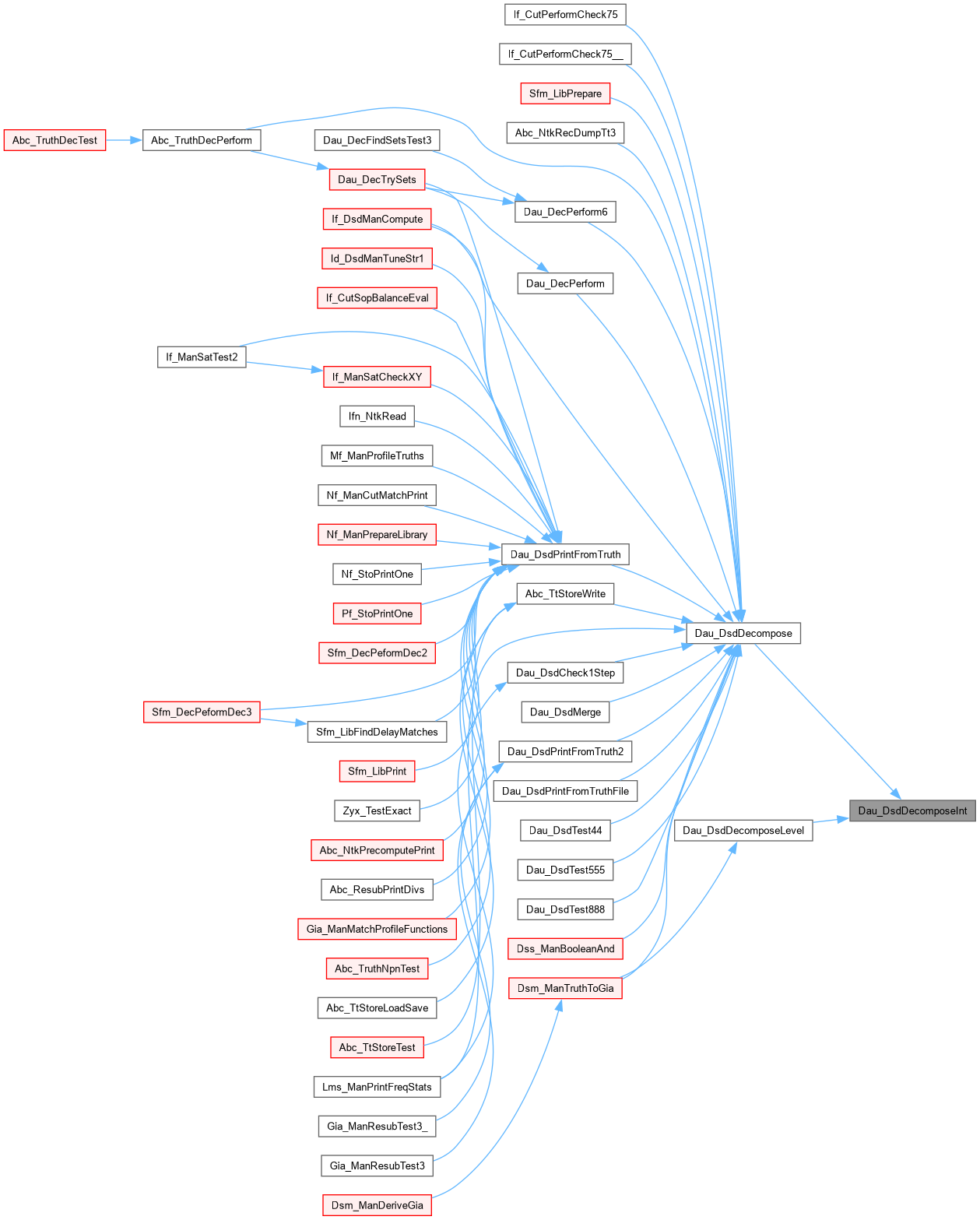

Here is the caller graph for this function:

Dau_DsdDecomposeInternal()

int Dau_DsdDecomposeInternal	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int *	pVars,
		int	nVars )

Definition at line 1854 of file dauDsd.c.

{
    // decompose single variales on the output side
    nVars = Dau_DsdDecomposeSingleVar( p, pTruth, pVars, nVars );
    if ( nVars == 0 )
        return 0;
    // decompose double variables on the input side
    nVars = Dau_DsdDecomposeDoubleVars( p, pTruth, pVars, nVars );
    if ( nVars == 0 )
        return 0;
    // decompose MUX on the output/input side
    nVars = Dau_DsdDecomposeTripleVars( p, pTruth, pVars, nVars );
    if ( nVars == 0 )
        return 0;
    // write non-decomposable function
    return Dau_DsdWritePrime( p, pTruth, pVars, nVars );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdDecomposeLevel()

int Dau_DsdDecomposeLevel	(	word *	pTruth,
		int	nVarsInit,
		int	fSplitPrime,
		int	fWriteTruth,
		char *	pRes,
		int *	pVarLevels )

Definition at line 1936 of file dauDsd.c.

{
    Dau_Dsd_t P, * p = &P;
    p->fSplitPrime = fSplitPrime;
    p->fWriteTruth = fWriteTruth;
    p->pVarLevels  = pVarLevels;
    p->nSizeNonDec = 0;
    if ( (pTruth[0] & 1) == 0 && Abc_TtIsConst0(pTruth, Abc_TtWordNum(nVarsInit)) )
        { if ( pRes ) pRes[0] = '0', pRes[1] = 0; }
    else if ( (pTruth[0] & 1) && Abc_TtIsConst1(pTruth, Abc_TtWordNum(nVarsInit)) )
        { if ( pRes ) pRes[0] = '1', pRes[1] = 0; }
    else
    {
        int Status = Dau_DsdDecomposeInt( p, pTruth, nVarsInit );
        Dau_DsdRemoveBraces( p->pOutput, Dau_DsdComputeMatches(p->pOutput) );
        if ( pRes )
            strcpy( pRes, p->pOutput );
        assert( fSplitPrime || Status != 1 );
        if ( fSplitPrime && Status == 2 )
            return -1;
    }
//    assert( p->nSizeNonDec == 0 );
    return p->nSizeNonDec;
}

Here is the call graph for this function:

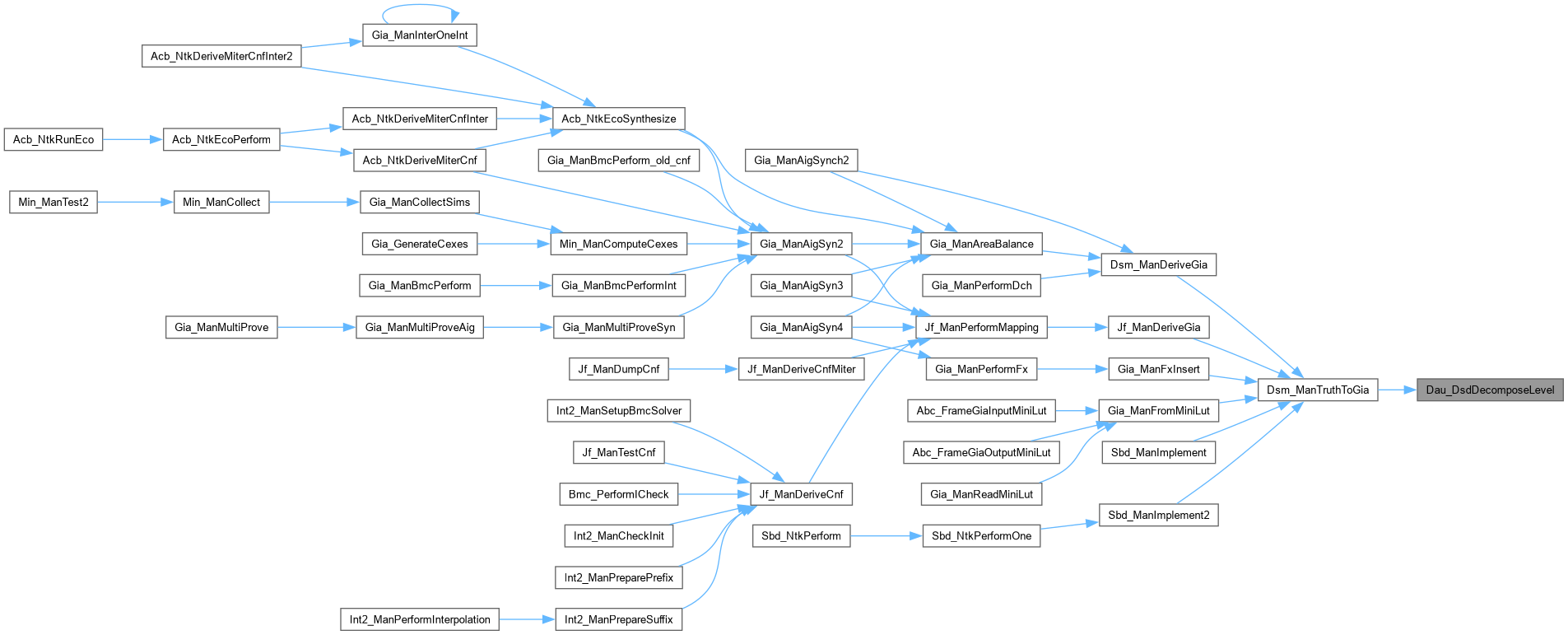

Here is the caller graph for this function:

Dau_DsdDecomposeSingleVar()

int Dau_DsdDecomposeSingleVar	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int *	pVars,
		int	nVars )

Definition at line 1550 of file dauDsd.c.

{
    abctime clk = Abc_Clock();
    assert( nVars > 1 );
    while ( 1 )
    {
        int v;
        for ( v = nVars - 1; v >= 0 && nVars > 1; v-- )
            if ( Dau_DsdDecomposeSingleVarOne( p, pTruth, pVars, nVars, v ) )
            {
                nVars--;
                break;
            }
        if ( v == -1 || nVars == 1 )
            break;
    }
    if ( nVars == 1 )
        Dau_DsdWriteVar( p, pVars[--nVars], (int)(pTruth[0] & 1) );
    s_Times[0] += Abc_Clock() - clk;
    return nVars;
}

Here is the caller graph for this function:

Dau_DsdDecomposeTripleVars()

int Dau_DsdDecomposeTripleVars	(	Dau_Dsd_t *	p,
		word *	pTruth,
		int *	pVars,
		int	nVars )

Definition at line 1812 of file dauDsd.c.

{
    abctime clk = Abc_Clock();
    while ( 1 )
    {
        int v;
//        Kit_DsdPrintFromTruth( (unsigned *)pTruth, 6 ); printf( "\n" );
        for ( v = nVars - 1; v >= 0; v-- )
        {
            unsigned uSupports = Dau_DsdFindSupports( p, pTruth, pVars, nVars, v );
//            Dau_DsdPrintSupports( uSupports, nVars );
            if ( (uSupports & (uSupports >> 1) & 0x55555555) == 0 ) // non-overlapping supports
                return Dau_DsdDecomposeTripleVarsOuter( p, pTruth, pVars, nVars, v );
            if ( Abc_TtSuppOnlyOne( uSupports & (~uSupports >> 1) & 0x55555555) &&
                 Abc_TtSuppOnlyOne(~uSupports & ( uSupports >> 1) & 0x55555555) ) // one unique variable in each cofactor
            {
                int nVarsNew = Dau_DsdDecomposeTripleVarsInner( p, pTruth, pVars, nVars, v, uSupports );
                if ( nVarsNew == nVars )
                    continue;
                if ( nVarsNew == 0 )
                {
                    s_Times[2] += Abc_Clock() - clk;
                    return 0;
                }
                nVars = Dau_DsdDecomposeDoubleVars( p, pTruth, pVars, nVarsNew );
                if ( nVars == 0 )
                {
                    s_Times[2] += Abc_Clock() - clk;
                    return 0;
                }
                break;
            }
        }
        if ( v == -1 )
        {
            s_Times[2] += Abc_Clock() - clk;
            return nVars;
        }
    }
    assert( 0 );
    return -1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdFindVarNum()

int Dau_DsdFindVarNum

(

char *

pDsd

)

Function*************************************************************

Synopsis [Generate random permutation.]

Description []

SideEffects []

SeeAlso []

Definition at line 109 of file dauDsd.c.

{
    int vMax = 0;
    pDsd--;
    while ( *++pDsd )
        if ( *pDsd >= 'a' && *pDsd <= 'z' )
            vMax = Abc_MaxInt( vMax, *pDsd - 'a' );
    return vMax + 1;
}

Here is the caller graph for this function:

Dau_DsdGenRandPerm()

void Dau_DsdGenRandPerm	(	int *	pPerm,
		int	nVars )

Definition at line 118 of file dauDsd.c.

{
    int v, vNew;
    for ( v = 0; v < nVars; v++ )
        pPerm[v] = v;
    for ( v = 0; v < nVars; v++ )
    {
        vNew = rand() % nVars;
        ABC_SWAP( int, pPerm[v], pPerm[vNew] );
    }
}

Here is the caller graph for this function:

Dau_DsdLevelVar()

int Dau_DsdLevelVar	(	void *	pMan,
		int	iVar )

Definition at line 1018 of file dauDsd.c.

{
    Dau_Dsd_t * p = (Dau_Dsd_t *)pMan;
    char * pStr;
    int LevelMax = 0, Level;
    for ( pStr = p->pVarDefs[iVar]; *pStr; pStr++ )
    {
        if ( *pStr >= 'a' + p->nVarsInit && *pStr < 'a' + p->nVarsUsed )
            Level = 1 + Dau_DsdLevelVar( p, *pStr - 'a' );
        else
            Level = p->pVarLevels[*pStr - 'a'];
        LevelMax = Abc_MaxInt( LevelMax, Level );
    }
    return LevelMax;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdMinBase()

int Dau_DsdMinBase	(	word *	pTruth,
		int	nVars,
		int *	pVarsNew )

Function*************************************************************

Synopsis [Fast DSD for truth tables.]

Description []

SideEffects []

SeeAlso []

Definition at line 1883 of file dauDsd.c.

{
    int v;
    for ( v = 0; v < nVars; v++ )
        pVarsNew[v] = v;
    for ( v = nVars - 1; v >= 0; v-- )
    {
        if ( Abc_TtHasVar( pTruth, nVars, v ) )
            continue;
        Abc_TtSwapVars( pTruth, nVars, v, nVars-1 );
        pVarsNew[v] = pVarsNew[--nVars];
    }
    return nVars;
}

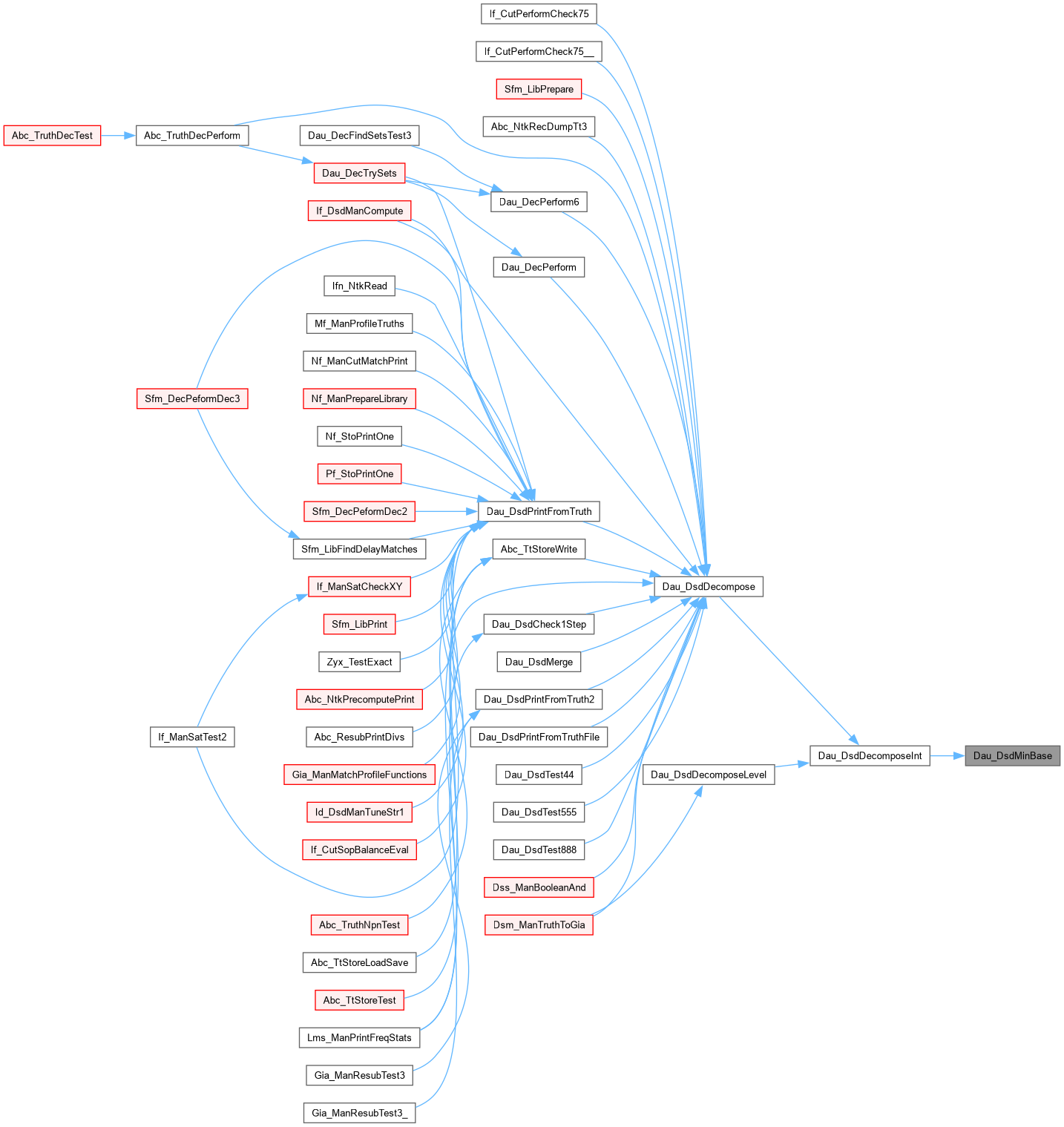

Here is the caller graph for this function:

Dau_DsdNormalize()

void Dau_DsdNormalize

(

char *

pDsd

)

Definition at line 260 of file dauDsd.c.

{
    if ( pDsd[1] != 0 )
        Dau_DsdNormalize_rec( pDsd, &pDsd, Dau_DsdComputeMatches(pDsd) );
}

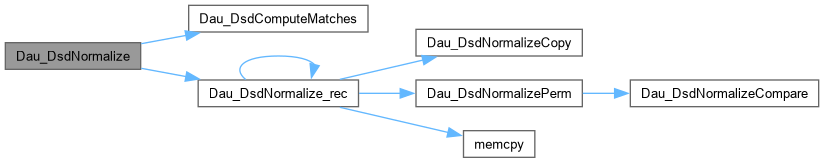

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdNormalize_rec()

void Dau_DsdNormalize_rec	(	char *	pStr,
		char **	p,
		int *	pMatches )

Definition at line 205 of file dauDsd.c.

{
    static char pBuffer[DAU_MAX_STR];
    if ( **p == '!' )
        (*p)++;
    while ( (**p >= 'A' && **p <= 'F') || (**p >= '0' && **p <= '9') )
        (*p)++;
    if ( **p == '<' )
    {
        char * q = pStr + pMatches[*p - pStr];
        if ( *(q+1) == '{' )
            *p = q+1;
    }
    if ( **p >= 'a' && **p <= 'z' ) // var
        return;
    if ( **p == '(' || **p == '[' ) // and/or/xor
    {
        char * pStore, * pOld = *p + 1;
        char * q = pStr + pMatches[ *p - pStr ];
        int i, * pPerm, nMarks = 0, pMarks[DAU_MAX_VAR+1];
        assert( *q == **p + 1 + (**p != '(') );
        for ( (*p)++; *p < q; (*p)++ )
        {
            pMarks[nMarks++] = *p - pStr;
            Dau_DsdNormalize_rec( pStr, p, pMatches );
        }
        pMarks[nMarks] = *p - pStr;
        assert( *p == q );
        // add to buffer in good order
        pPerm = Dau_DsdNormalizePerm( pStr, pMarks, nMarks );
        // copy to the buffer
        pStore = pBuffer;
        for ( i = 0; i < nMarks; i++ )
            pStore = Dau_DsdNormalizeCopy( pStore, pStr, pMarks, pPerm[i] );
        assert( pStore - pBuffer == *p - pOld );
        memcpy( pOld, pBuffer, (size_t)(pStore - pBuffer) );
        return;
    }
    if ( **p == '<' || **p == '{' ) // mux
    {
        char * q = pStr + pMatches[ *p - pStr ];
        assert( *q == **p + 1 + (**p != '(') );
        if ( (**p == '<') && (*(q+1) == '{') )
        {
            *p = q+1;
            Dau_DsdNormalize_rec( pStr, p, pMatches );
            return;
        }
        for ( (*p)++; *p < q; (*p)++ )
            Dau_DsdNormalize_rec( pStr, p, pMatches );
        assert( *p == q );
        return;
    }
    assert( 0 );
}

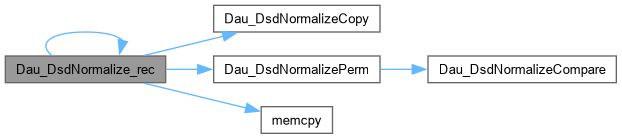

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdNormalizeCompare()

int Dau_DsdNormalizeCompare	(	char *	pStr,
		int *	pMarks,
		int	i,
		int	j )

Definition at line 158 of file dauDsd.c.

{
    char * pStr1 = pStr + pMarks[i];
    char * pStr2 = pStr + pMarks[j];
    char * pLimit1 = pStr + pMarks[i+1];
    char * pLimit2 = pStr + pMarks[j+1];
    for ( ; pStr1 < pLimit1 && pStr2 < pLimit2; pStr1++, pStr2++ )
    {
        if ( !(*pStr1 >= 'a' &&  *pStr1 <= 'z') )
        {
            pStr2--;
            continue;
        }
        if ( !(*pStr2 >= 'a' &&  *pStr2 <= 'z') )
        {
            pStr1--;
            continue;
        }
        if ( *pStr1 < *pStr2 )
            return -1;
        if ( *pStr1 > *pStr2 )
            return 1;
    }
    assert( pStr1 < pLimit1 || pStr2 < pLimit2 );
    if ( pStr1 == pLimit1 )
        return -1;
    if ( pStr2 == pLimit2 )
        return 1;
    assert( 0 );
    return 0;
}

Here is the caller graph for this function:

Dau_DsdNormalizeCopy()

char * Dau_DsdNormalizeCopy	(	char *	pDest,
		char *	pSour,
		int *	pMarks,
		int	i )

Function*************************************************************

Synopsis [Normalize the ordering of components.]

Description []

SideEffects []

SeeAlso []

Definition at line 151 of file dauDsd.c.

{
    int s;
    for ( s = pMarks[i]; s < pMarks[i+1]; s++ )
        *pDest++ = pSour[s];
    return pDest;
}

Here is the caller graph for this function:

Dau_DsdNormalizePerm()

int * Dau_DsdNormalizePerm	(	char *	pStr,
		int *	pMarks,
		int	nMarks )

Definition at line 189 of file dauDsd.c.

{
    static int pPerm[DAU_MAX_VAR];
    int i, k;
    for ( i = 0; i < nMarks; i++ )
        pPerm[i] = i;
    for ( i = 0; i < nMarks; i++ )
    {
        int iBest = i;
        for ( k = i + 1; k < nMarks; k++ )
            if ( Dau_DsdNormalizeCompare( pStr, pMarks, pPerm[iBest], pPerm[k] ) == 1 )
                iBest = k;
        ABC_SWAP( int, pPerm[i], pPerm[iBest] );
    }
    return pPerm;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdPerform()

char * Dau_DsdPerform

(

word

t

)

Definition at line 828 of file dauDsd.c.

{
    static char pBuffer[DAU_MAX_STR];
    int pVarsNew[6] = {0, 1, 2, 3, 4, 5};
    int Pos = 0;
    if ( t == 0 )
        pBuffer[Pos++] = '0';
    else if ( t == ~(word)0 )
        pBuffer[Pos++] = '1';
    else
        Pos = Dau_DsdPerform_rec( t, pBuffer, Pos, pVarsNew, 6 );
    pBuffer[Pos++] = 0;
//    printf( "%d ", strlen(pBuffer) );
//    printf( "%s ->", pBuffer );
    Dau_DsdRemoveBraces( pBuffer, Dau_DsdComputeMatches(pBuffer) );
//    printf( " %s\n", pBuffer );
    return pBuffer;
}

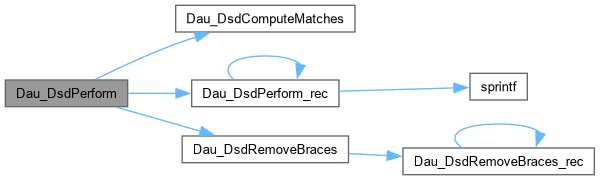

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdPerform_rec()

int Dau_DsdPerform_rec	(	word	t,
		char *	pBuffer,
		int	Pos,
		int *	pVars,
		int	nVars )

Definition at line 673 of file dauDsd.c.

{
    char pNest[10];
    word Cof0[6], Cof1[6], Cof[4];
    int pVarsNew[6], nVarsNew, PosStart;
    int v, u, vBest, CountBest;
    assert( Pos < DAU_MAX_STR );
    // perform support minimization
    nVarsNew = 0;
    for ( v = 0; v < nVars; v++ )
        if ( Abc_Tt6HasVar( t, pVars[v] ) )
            pVarsNew[ nVarsNew++ ] = pVars[v];
    assert( nVarsNew > 0 );
    // special case when function is a var
    if ( nVarsNew == 1 )
    {
        if ( t == s_Truths6[ pVarsNew[0] ] )
        {
            pBuffer[Pos++] = 'a' +  pVarsNew[0];
            return Pos;
        }
        if ( t == ~s_Truths6[ pVarsNew[0] ] )
        {
            pBuffer[Pos++] = '!';
            pBuffer[Pos++] = 'a' +  pVarsNew[0];
            return Pos;
        }
        assert( 0 );
        return Pos;
    }
    // decompose on the output side
    for ( v = 0; v < nVarsNew; v++ )
    {
        Cof0[v] = Abc_Tt6Cofactor0( t, pVarsNew[v] );
        Cof1[v] = Abc_Tt6Cofactor1( t, pVarsNew[v] );
        assert( Cof0[v] != Cof1[v] );
        if ( Cof0[v] == 0 ) // ax
        {
            pBuffer[Pos++] = '(';
            pBuffer[Pos++] = 'a' + pVarsNew[v];
            Pos = Dau_DsdPerform_rec( Cof1[v], pBuffer, Pos, pVarsNew, nVarsNew );
            pBuffer[Pos++] = ')';
            return Pos;
        }
        if ( Cof0[v] == ~(word)0 ) // !(ax)
        {
            pBuffer[Pos++] = '!';
            pBuffer[Pos++] = '(';
            pBuffer[Pos++] = 'a' + pVarsNew[v];
            Pos = Dau_DsdPerform_rec( ~Cof1[v], pBuffer, Pos, pVarsNew, nVarsNew );
            pBuffer[Pos++] = ')';
            return Pos;
        }
        if ( Cof1[v] == 0 ) // !ax
        {
            pBuffer[Pos++] = '(';
            pBuffer[Pos++] = '!';
            pBuffer[Pos++] = 'a' + pVarsNew[v];
            Pos = Dau_DsdPerform_rec( Cof0[v], pBuffer, Pos, pVarsNew, nVarsNew );
            pBuffer[Pos++] = ')';
            return Pos;
        }
        if ( Cof1[v] == ~(word)0 ) // !(!ax)
        {
            pBuffer[Pos++] = '!';
            pBuffer[Pos++] = '(';
            pBuffer[Pos++] = '!';
            pBuffer[Pos++] = 'a' + pVarsNew[v];
            Pos = Dau_DsdPerform_rec( ~Cof0[v], pBuffer, Pos, pVarsNew, nVarsNew );
            pBuffer[Pos++] = ')';
            return Pos;
        }
        if ( Cof0[v] == ~Cof1[v] ) // a^x
        {
            pBuffer[Pos++] = '[';
            pBuffer[Pos++] = 'a' + pVarsNew[v];
            Pos = Dau_DsdPerform_rec( Cof0[v], pBuffer, Pos, pVarsNew, nVarsNew );
            pBuffer[Pos++] = ']';
            return Pos;
        }
    }
    // decompose on the input side
    for ( v = 0; v < nVarsNew; v++ )
    for ( u = v+1; u < nVarsNew; u++ )
    {
        Cof[0] = Abc_Tt6Cofactor0( Cof0[v], pVarsNew[u] );
        Cof[1] = Abc_Tt6Cofactor1( Cof0[v], pVarsNew[u] );
        Cof[2] = Abc_Tt6Cofactor0( Cof1[v], pVarsNew[u] );
        Cof[3] = Abc_Tt6Cofactor1( Cof1[v], pVarsNew[u] );
        if ( Cof[0] == Cof[1] && Cof[0] == Cof[2] ) // vu
        {
            PosStart = Pos;
            sprintf( pNest, "(%c%c)", 'a' + pVarsNew[v], 'a' + pVarsNew[u] );
            Pos = Dau_DsdPerform_rec( (s_Truths6[pVarsNew[u]] & Cof[3]) | (~s_Truths6[pVarsNew[u]] & Cof[0]), pBuffer, Pos, pVarsNew, nVarsNew );
            Pos = Dau_DsdPerformReplace( pBuffer, PosStart, Pos, 'a' + pVarsNew[u], pNest );
            return Pos;
        }
        if ( Cof[0] == Cof[1] && Cof[0] == Cof[3] ) // v!u
        {
            PosStart = Pos;
            sprintf( pNest, "(%c!%c)", 'a' + pVarsNew[v], 'a' + pVarsNew[u] );
            Pos = Dau_DsdPerform_rec( (s_Truths6[pVarsNew[u]] & Cof[2]) | (~s_Truths6[pVarsNew[u]] & Cof[0]), pBuffer, Pos, pVarsNew, nVarsNew );
            Pos = Dau_DsdPerformReplace( pBuffer, PosStart, Pos, 'a' + pVarsNew[u], pNest );
            return Pos;
        }
        if ( Cof[0] == Cof[2] && Cof[0] == Cof[3] ) // !vu
        {
            PosStart = Pos;
            sprintf( pNest, "(!%c%c)", 'a' + pVarsNew[v], 'a' + pVarsNew[u] );
            Pos = Dau_DsdPerform_rec( (s_Truths6[pVarsNew[u]] & Cof[1]) | (~s_Truths6[pVarsNew[u]] & Cof[0]), pBuffer, Pos, pVarsNew, nVarsNew );
            Pos = Dau_DsdPerformReplace( pBuffer, PosStart, Pos, 'a' + pVarsNew[u], pNest );
            return Pos;
        }
        if ( Cof[1] == Cof[2] && Cof[1] == Cof[3] ) // !v!u
        {
            PosStart = Pos;
            sprintf( pNest, "(!%c!%c)", 'a' + pVarsNew[v], 'a' + pVarsNew[u] );
            Pos = Dau_DsdPerform_rec( (s_Truths6[pVarsNew[u]] & Cof[0]) | (~s_Truths6[pVarsNew[u]] & Cof[1]), pBuffer, Pos, pVarsNew, nVarsNew );
            Pos = Dau_DsdPerformReplace( pBuffer, PosStart, Pos, 'a' + pVarsNew[u], pNest );
            return Pos;
        }
        if ( Cof[0] == Cof[3] && Cof[1] == Cof[2] ) // v+u
        {
            PosStart = Pos;
            sprintf( pNest, "[%c%c]", 'a' + pVarsNew[v], 'a' + pVarsNew[u] );
            Pos = Dau_DsdPerform_rec( (s_Truths6[pVarsNew[u]] & Cof[1]) | (~s_Truths6[pVarsNew[u]] & Cof[0]), pBuffer, Pos, pVarsNew, nVarsNew );
            Pos = Dau_DsdPerformReplace( pBuffer, PosStart, Pos, 'a' + pVarsNew[u], pNest );
            return Pos;
        }
    }
    // find best variable for MUX decomposition
    vBest = -1;
    CountBest = 10;
    for ( v = 0; v < nVarsNew; v++ )
    {
        int CountCur = 0;
        for ( u = 0; u < nVarsNew; u++ )
            if ( u != v && Abc_Tt6HasVar(Cof0[v], pVarsNew[u]) && Abc_Tt6HasVar(Cof1[v], pVarsNew[u]) )
                CountCur++;
        if ( CountBest > CountCur )
        {
            CountBest = CountCur;
            vBest = v;
        }
        if ( CountCur == 0 )
            break;
    }
    // perform MUX decomposition
    pBuffer[Pos++] = '<';
    pBuffer[Pos++] = 'a' + pVarsNew[vBest];
    Pos = Dau_DsdPerform_rec( Cof1[vBest], pBuffer, Pos, pVarsNew, nVarsNew );
    Pos = Dau_DsdPerform_rec( Cof0[vBest], pBuffer, Pos, pVarsNew, nVarsNew );
    pBuffer[Pos++] = '>';
    return Pos;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdPermute()

void Dau_DsdPermute

(

char *

pDsd

)

Definition at line 129 of file dauDsd.c.

{
    int pPerm[16];
    int nVars = Dau_DsdFindVarNum( pDsd );
    Dau_DsdGenRandPerm( pPerm, nVars );
    pDsd--;
    while ( *++pDsd )
        if ( *pDsd >= 'a' && *pDsd < 'a' + nVars )
            *pDsd = 'a' + pPerm[*pDsd - 'a'];
}

Here is the call graph for this function:

Dau_DsdPrintFromTruth()

void Dau_DsdPrintFromTruth	(	word *	pTruth,
		int	nVarsInit )

Definition at line 1968 of file dauDsd.c.

{
    char pRes[DAU_MAX_STR];
    word pTemp[DAU_MAX_WORD];
    Abc_TtCopy( pTemp, pTruth, Abc_TtWordNum(nVarsInit), 0 );
    Dau_DsdDecompose( pTemp, nVarsInit, 0, 1, pRes );
    fprintf( stdout, "%s\n", pRes );
}

Here is the call graph for this function:

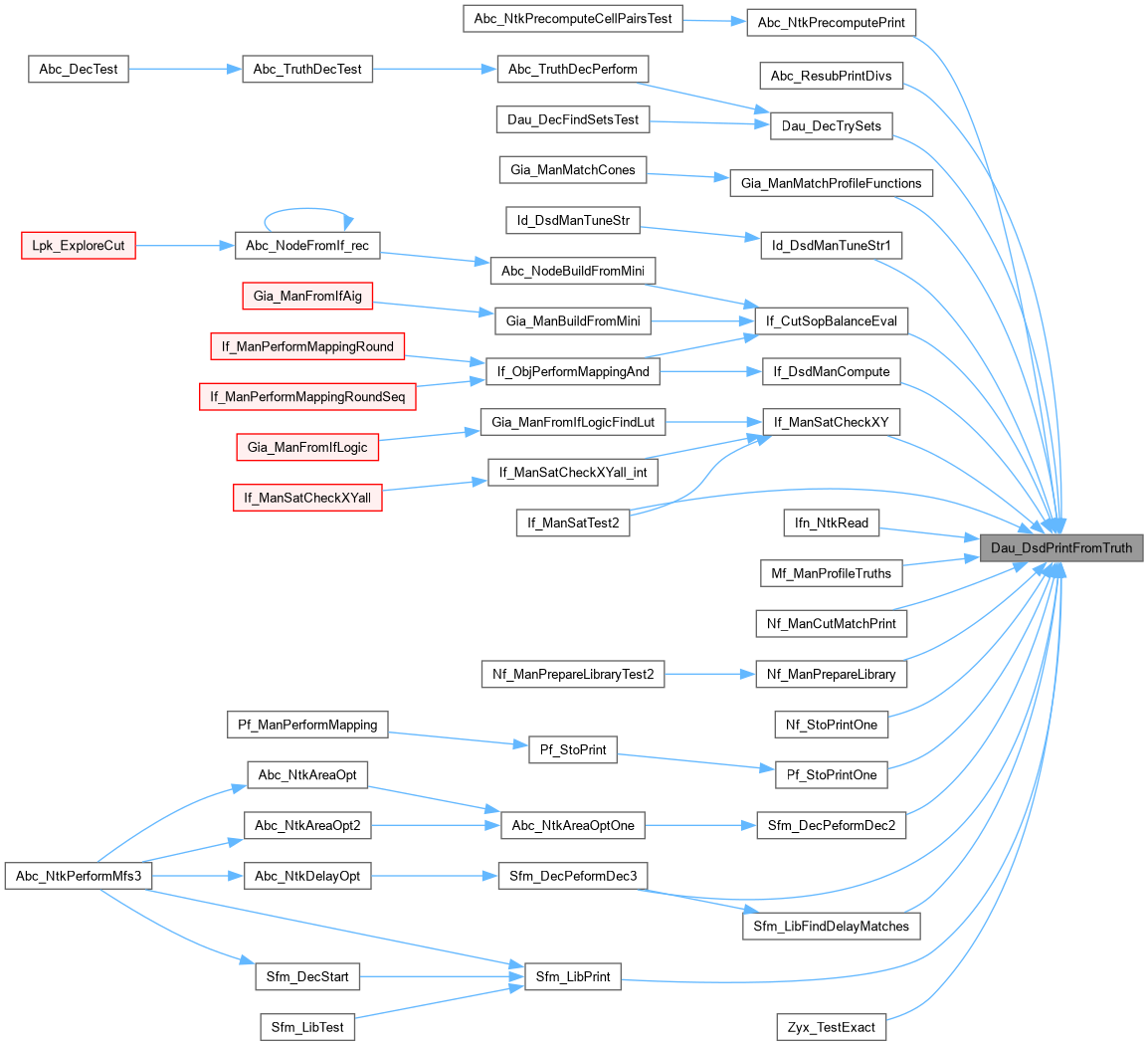

Here is the caller graph for this function:

Dau_DsdPrintFromTruth2()

void Dau_DsdPrintFromTruth2	(	word *	pTruth,
		int	nVarsInit )

Definition at line 1976 of file dauDsd.c.

{
    char pRes[DAU_MAX_STR];
    word pTemp[DAU_MAX_WORD];
    Abc_TtCopy( pTemp, pTruth, Abc_TtWordNum(nVarsInit), 0 );
    Dau_DsdDecompose( pTemp, nVarsInit, 0, 1, pRes );
    fprintf( stdout, "%s", pRes );
}

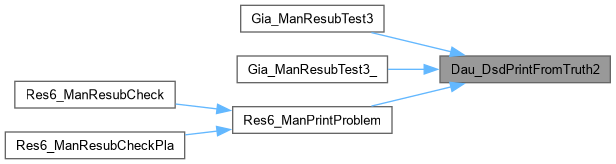

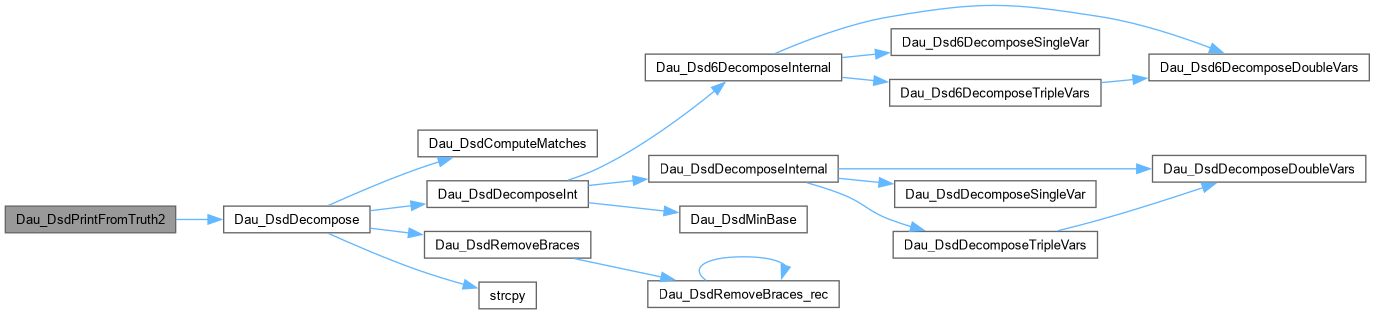

Here is the call graph for this function:

Here is the caller graph for this function:

Dau_DsdPrintFromTruthFile()

void Dau_DsdPrintFromTruthFile	(	FILE *	pFile,
		word *	pTruth,
		int	nVarsInit )

Definition at line 1960 of file dauDsd.c.

{
    char pRes[DAU_MAX_STR];
    word pTemp[DAU_MAX_WORD];
    Abc_TtCopy( pTemp, pTruth, Abc_TtWordNum(nVarsInit), 0 );
    Dau_DsdDecompose( pTemp, nVarsInit, 0, 1, pRes );
    fprintf( pFile, "%s\n", pRes );
}

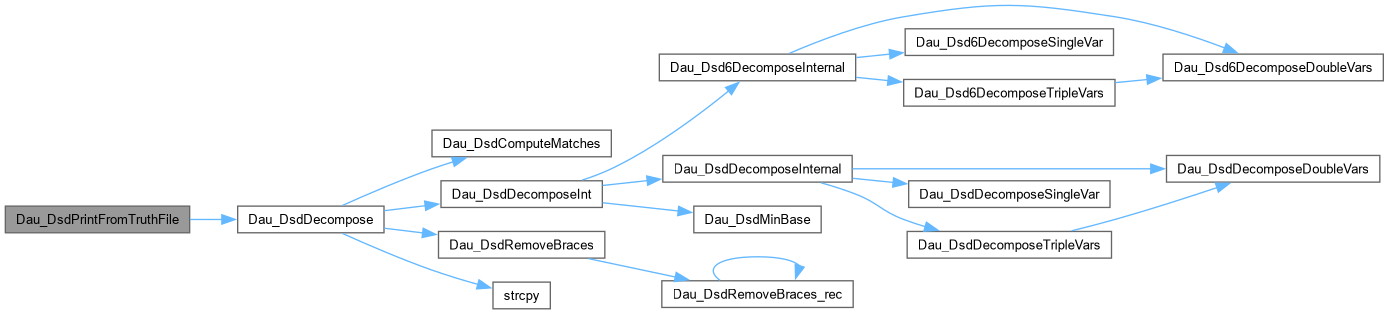

Here is the call graph for this function:

Dau_DsdTest2()

void Dau_DsdTest2

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 637 of file dauDsd.c.

{
//    char * p = Abc_UtilStrsav( "!(ab!(de[cf]))" );
//    char * p = Abc_UtilStrsav( "!(a![d<ecf>]b)" );
//    word t = Dau_Dsd6ToTruth( p );
}

Dau_DsdTest3()

void Dau_DsdTest3

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 858 of file dauDsd.c.

{
//    word t = s_Truths6[0] & s_Truths6[1] & s_Truths6[2];
//    word t = ~s_Truths6[0] | (s_Truths6[1] ^ ~s_Truths6[2]);
//    word t = (s_Truths6[1] & s_Truths6[2]) | (s_Truths6[0] & s_Truths6[3]);
//    word t = (~s_Truths6[1] & ~s_Truths6[2]) | (s_Truths6[0] ^ s_Truths6[3]);
//    word t = ((~s_Truths6[1] & ~s_Truths6[2]) | (s_Truths6[0] ^ s_Truths6[3])) ^ s_Truths6[5];
//    word t = ((s_Truths6[1] & ~s_Truths6[2]) ^ (s_Truths6[0] & s_Truths6[3])) & s_Truths6[5];
//    word t = (~(~s_Truths6[0] & ~s_Truths6[4]) & s_Truths6[2]) | (~s_Truths6[1] & ~s_Truths6[0] & ~s_Truths6[4]);
//    word t = 0x0000000000005F3F;
//    word t = 0xF3F5030503050305;
//    word t = (s_Truths6[0] & s_Truths6[1] & (s_Truths6[2] ^ s_Truths6[4])) | (~s_Truths6[0] & ~s_Truths6[1] & ~(s_Truths6[2] ^ s_Truths6[4]));
//    word t = 0x05050500f5f5f5f3;
    word t = ABC_CONST(0x9ef7a8d9c7193a0f);
    char * p = Dau_DsdPerform( t );
    word t2 = Dau_Dsd6ToTruth( p );
    if ( t != t2 )
        printf( "Verification failed.\n" );
}

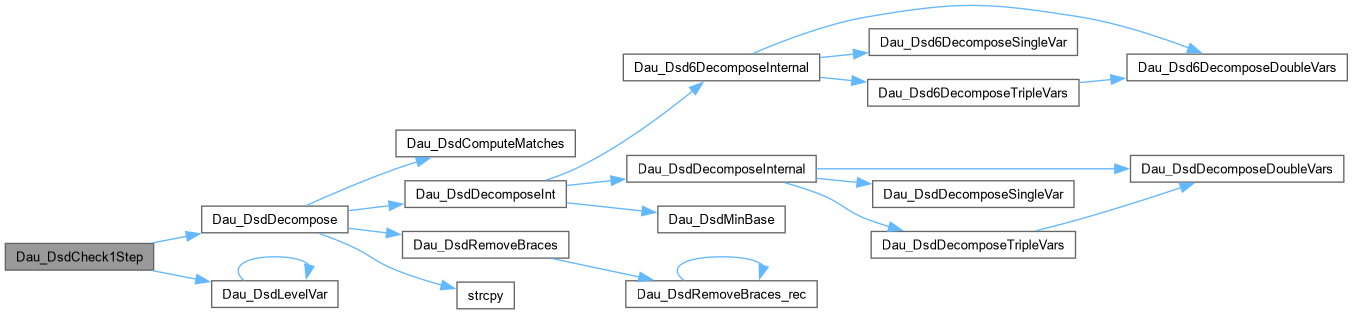

Here is the call graph for this function:

Dau_DsdTest44()

void Dau_DsdTest44

(

)

Definition at line 1985 of file dauDsd.c.

{
    char pRes[DAU_MAX_STR];
//    char * pStr = "(!(!a<bcd>)!(!fe))";
//    char * pStr = "([acb]<!edf>)";
//    char * pStr = "!(f!(b!c!(d[ea])))";
//    char * pStr = "[!(a[be])!(c!df)]";
//    char * pStr = "<(e<bca>)fd>";
//    char * pStr = "[d8001{abef}c]";
    char * pStr = "[dc<a(cbd)(!c!b!d)>{abef}]";
//    char * pStr3;
    word t = Dau_Dsd6ToTruth( pStr );
//    return;
    int nNonDec = Dau_DsdDecompose( &t, 6, 1, 1, pRes );
//    Dau_DsdNormalize( pStr2 );
//    Dau_DsdExtract( pStr, 2, 0 );
    t = 0;
    nNonDec = 0;
}

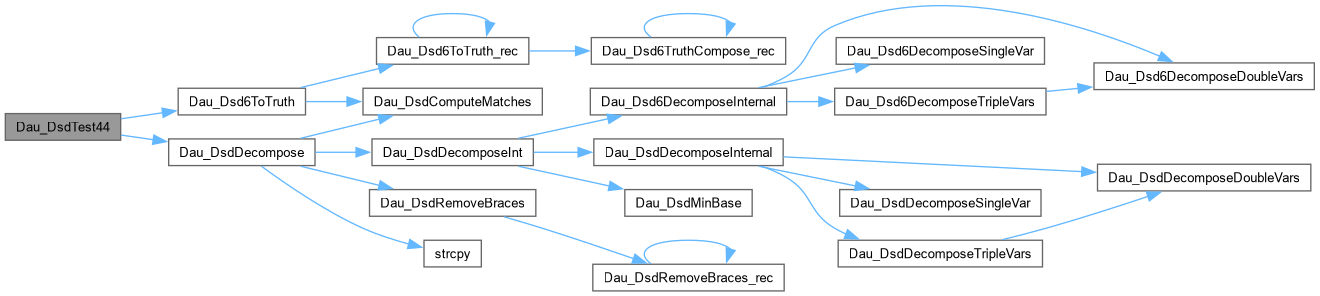

Here is the call graph for this function:

Dau_DsdTest555()

void Dau_DsdTest555

(

)

Definition at line 2040 of file dauDsd.c.

{
    int nVars = 10;
    int nWords = Abc_TtWordNum(nVars);
    char * pFileName = "_npn/npn/dsd10.txt";
    FILE * pFile = fopen( pFileName, "rb" );
    word Tru[2][DAU_MAX_WORD], * pTruth;
    char pBuffer[DAU_MAX_STR];
    char pRes[DAU_MAX_STR];
    int nSizeNonDec;
    int i, Counter = 0;
    abctime clk = Abc_Clock(), clkDec = 0, clk2;
//    return;

    while ( fgets( pBuffer, DAU_MAX_STR, pFile ) != NULL )
    {
        char * pStr2 = pBuffer + strlen(pBuffer)-1;
        if ( *pStr2 == '\n' )
            *pStr2-- = 0;
        if ( *pStr2 == '\r' )
            *pStr2-- = 0;
        if ( pBuffer[0] == 'V' || pBuffer[0] == 0 )
            continue;
        Counter++;

        for ( i = 0; i < 1; i++ )
        {
//            Dau_DsdPermute( pBuffer );
            pTruth = Dau_DsdToTruth( pBuffer[0] == '*' ? pBuffer + 1 : pBuffer, nVars );
            Abc_TtCopy( Tru[0], pTruth, nWords, 0 );
            Abc_TtCopy( Tru[1], pTruth, nWords, 0 );
            clk2 = Abc_Clock();
            nSizeNonDec = Dau_DsdDecompose( Tru[1], nVars, 0, 1, pRes );
            clkDec += Abc_Clock() - clk2;
            Dau_DsdNormalize( pRes );
//            pStr2 = Dau_DsdPerform( t ); nSizeNonDec = 0;
            assert( nSizeNonDec == 0 );
            pTruth = Dau_DsdToTruth( pRes, nVars );
            if ( !Abc_TtEqual( pTruth, Tru[0], nWords ) )
            {
    //        Kit_DsdPrintFromTruth( (unsigned *)&t, 6 );
    //        printf( "  " );
    //        Kit_DsdPrintFromTruth( (unsigned *)&t2, 6 );
                printf( "%s -> %s \n", pBuffer, pRes );
                printf( "Verification failed.\n" );
            }
        }
    }
    printf( "Finished trying %d decompositions.  ", Counter );
    Abc_PrintTime( 1, "Time", clkDec );
    Abc_PrintTime( 1, "Total", Abc_Clock() - clk );

    Abc_PrintTime( 1, "Time1", s_Times[0] );
    Abc_PrintTime( 1, "Time2", s_Times[1] );
    Abc_PrintTime( 1, "Time3", s_Times[2] );

    fclose( pFile );
}

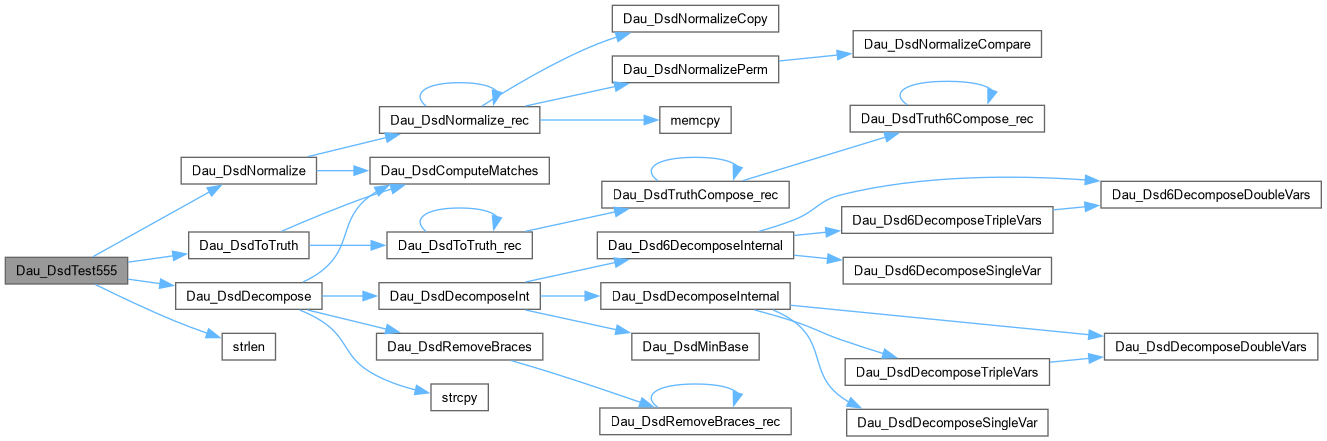

Here is the call graph for this function:

Dau_DsdTest888()

void Dau_DsdTest888

(

)

Definition at line 2007 of file dauDsd.c.

{
    char pDsd[DAU_MAX_STR];
    int nVars = 9;
//    char * pStr = "[(abc)(def)(ghi)]";
//    char * pStr = "[a!b!(c!d[e(fg)hi])]";
//    char * pStr = "[(abc)(def)]";
//    char * pStr = "[(abc)(def)]";
//    char * pStr = "[abcdefg]";
//    char * pStr = "[<abc>(de[ghi])]";
    char * pStr = "(<abc>(<def><ghi>))";
    word * pTruth = Dau_DsdToTruth( pStr, 9 );
    int i, Status;
//    Kit_DsdPrintFromTruth( (unsigned *)pTruth, 9 ); printf( "\n" );
/*
    for ( i = 0; i < 6; i++ )
    {
        unsigned uSupp = Dau_Dsd6FindSupports( NULL, pTruth, NULL, 6, i );
        Dau_DsdPrintSupports( uSupp, 6 );
    }
*/
/*
    printf( "\n" );
    for ( i = 0; i < nVars; i++ )
    {
        unsigned uSupp = Dau_DsdFindSupports( NULL, pTruth, NULL, nVars, i );
        Dau_DsdPrintSupports( uSupp, nVars );
    }
*/
    Status = Dau_DsdDecompose( pTruth, nVars, 0, 0, pDsd );
    i = 0;
}

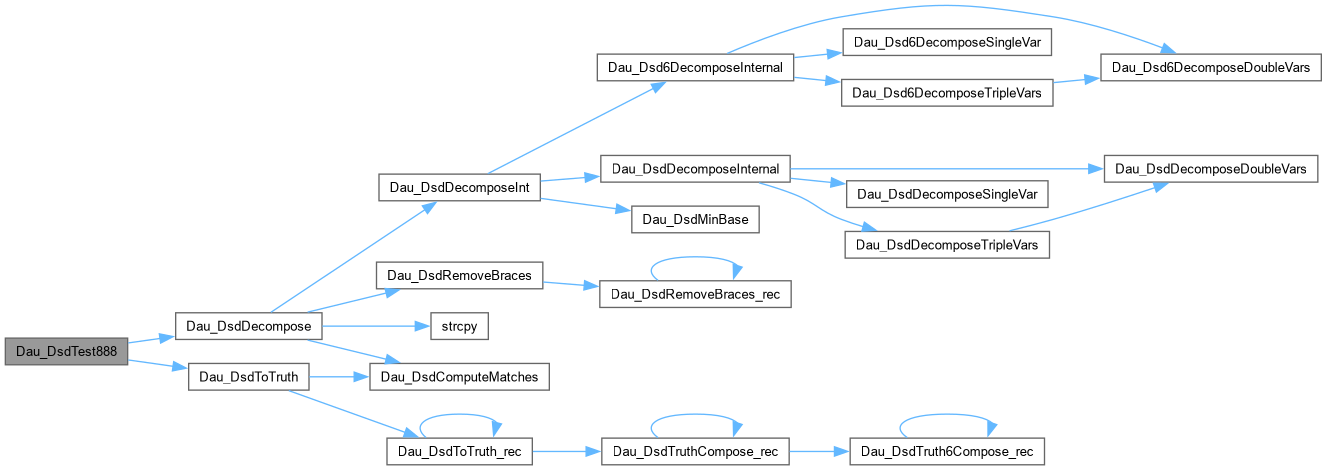

Here is the call graph for this function:

Dau_DsdToTruth()

word * Dau_DsdToTruth	(	char *	p,
		int	nVars )

Definition at line 609 of file dauDsd.c.

{
    int nWords = Abc_TtWordNum( nVars );
    word ** pTtElems = Dau_DsdTtElems();
    word * pRes = pTtElems[DAU_MAX_VAR];
    assert( nVars <= DAU_MAX_VAR );
    if ( Dau_DsdIsConst0(p) )
        Abc_TtConst0( pRes, nWords );
    else if ( Dau_DsdIsConst1(p) )
        Abc_TtConst1( pRes, nWords );
    else
        Dau_DsdToTruth_rec( p, &p, Dau_DsdComputeMatches(p), pTtElems, pRes, nVars );
    assert( *++p == 0 );
    return pRes;
}

Here is the call graph for this function:

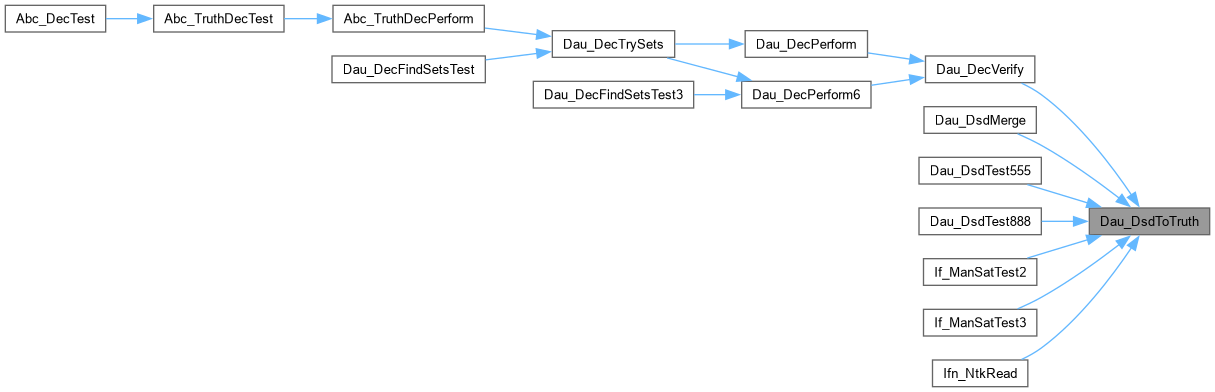

Here is the caller graph for this function:

Dau_DsdToTruth_rec()

void Dau_DsdToTruth_rec	(	char *	pStr,
		char **	p,
		int *	pMatches,
		word **	pTtElems,
		word *	pRes,
		int	nVars )

Definition at line 535 of file dauDsd.c.

{
    int nWords = Abc_TtWordNum( nVars );
    int fCompl = 0;
    if ( **p == '!' )
        (*p)++, fCompl = 1;
    if ( **p >= 'a' && **p <= 'z' ) // var
    {
        assert( **p - 'a' >= 0 && **p - 'a' < nVars );
        Abc_TtCopy( pRes, pTtElems[**p - 'a'], nWords, fCompl );
        return;
    }
    if ( **p == '(' ) // and/or
    {
        char * q = pStr + pMatches[ *p - pStr ];
        word pTtTemp[DAU_MAX_WORD];
        assert( **p == '(' && *q == ')' );
        Abc_TtConst1( pRes, nWords );
        for ( (*p)++; *p < q; (*p)++ )
        {
            Dau_DsdToTruth_rec( pStr, p, pMatches, pTtElems, pTtTemp, nVars );
            Abc_TtAnd( pRes, pRes, pTtTemp, nWords, 0 );
        }
        assert( *p == q );
        if ( fCompl ) Abc_TtNot( pRes, nWords );
        return;
    }
    if ( **p == '[' ) // xor
    {
        char * q = pStr + pMatches[ *p - pStr ];
        word pTtTemp[DAU_MAX_WORD];
        assert( **p == '[' && *q == ']' );
        Abc_TtConst0( pRes, nWords );
        for ( (*p)++; *p < q; (*p)++ )
        {
            Dau_DsdToTruth_rec( pStr, p, pMatches, pTtElems, pTtTemp, nVars );
            Abc_TtXor( pRes, pRes, pTtTemp, nWords, 0 );
        }
        assert( *p == q );
        if ( fCompl ) Abc_TtNot( pRes, nWords );
        return;
    }
    if ( **p == '<' ) // mux
    {
        char * q = pStr + pMatches[ *p - pStr ];
        word pTtTemp[3][DAU_MAX_WORD];
        int i;
        assert( **p == '<' && *q == '>' );
        for ( i = 0, (*p)++; *p < q; (*p)++, i++ )
            Dau_DsdToTruth_rec( pStr, p, pMatches, pTtElems, pTtTemp[i], nVars );
        assert( i == 3 );
        Abc_TtMux( pRes, pTtTemp[0], pTtTemp[1], pTtTemp[2], nWords );
        assert( *p == q );
        if ( fCompl ) Abc_TtNot( pRes, nWords );
        return;
    }
    if ( (**p >= 'A' && **p <= 'F') || (**p >= '0' && **p <= '9') )
    {
        word pFanins[DAU_MAX_VAR][DAU_MAX_WORD], pFunc[DAU_MAX_WORD];
        char * q;
        int i, nVarsF = Abc_TtReadHex( pFunc, *p );
        *p += Abc_TtHexDigitNum( nVarsF );
        q = pStr + pMatches[ *p - pStr ];
        assert( **p == '{' && *q == '}' );
        for ( i = 0, (*p)++; *p < q; (*p)++, i++ )
            Dau_DsdToTruth_rec( pStr, p, pMatches, pTtElems, pFanins[i], nVars );
        assert( i == nVarsF );
        assert( *p == q );
        Dau_DsdTruthCompose_rec( pFunc, pFanins, pRes, nVarsF, nWords );
        if ( fCompl ) Abc_TtNot( pRes, nWords );
        return;
    }
    assert( 0 );
}

Here is the call graph for this function:

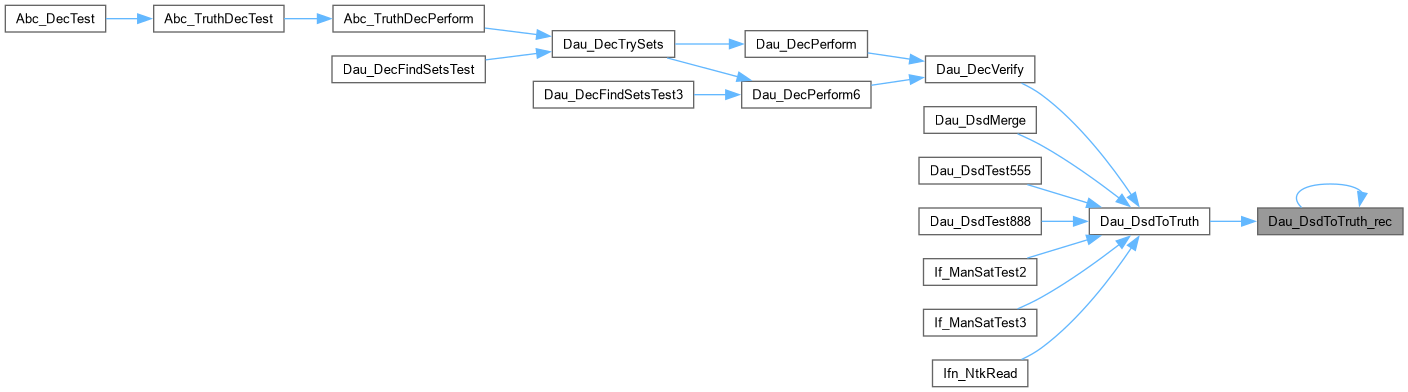

Here is the caller graph for this function:

Dau_DsdTruth6Compose_rec()

void Dau_DsdTruth6Compose_rec	(	word	Func,
		word	pFanins[DAU_MAX_VAR][DAU_MAX_WORD],
		word *	pRes,
		int	nVars,
		int	nWordsR )

Function*************************************************************

Synopsis [Computes truth table for the DSD formula.]

Description []

SideEffects []

SeeAlso []

Definition at line 469 of file dauDsd.c.

{
    if ( Func == 0 )
    {
        Abc_TtConst0( pRes, nWordsR );
        return;
    }
    if ( Func == ~(word)0 )
    {
        Abc_TtConst1( pRes, nWordsR );
        return;
    }
    assert( nVars > 0 );
    if ( --nVars == 0 )
    {
        assert( Func == s_Truths6[0] || Func == s_Truths6Neg[0] );
        Abc_TtCopy( pRes, pFanins[0], nWordsR, Func == s_Truths6Neg[0] );
        return;
    }
    if ( !Abc_Tt6HasVar(Func, nVars) )
    {
        Dau_DsdTruth6Compose_rec( Func, pFanins, pRes, nVars, nWordsR );
        return;
    }
    {
        word pTtTemp[2][DAU_MAX_WORD];
        Dau_DsdTruth6Compose_rec( Abc_Tt6Cofactor0(Func, nVars), pFanins, pTtTemp[0], nVars, nWordsR );
        Dau_DsdTruth6Compose_rec( Abc_Tt6Cofactor1(Func, nVars), pFanins, pTtTemp[1], nVars, nWordsR );
        Abc_TtMux( pRes, pFanins[nVars], pTtTemp[1], pTtTemp[0], nWordsR );
        return;
    }
}

Here is the call graph for this function:

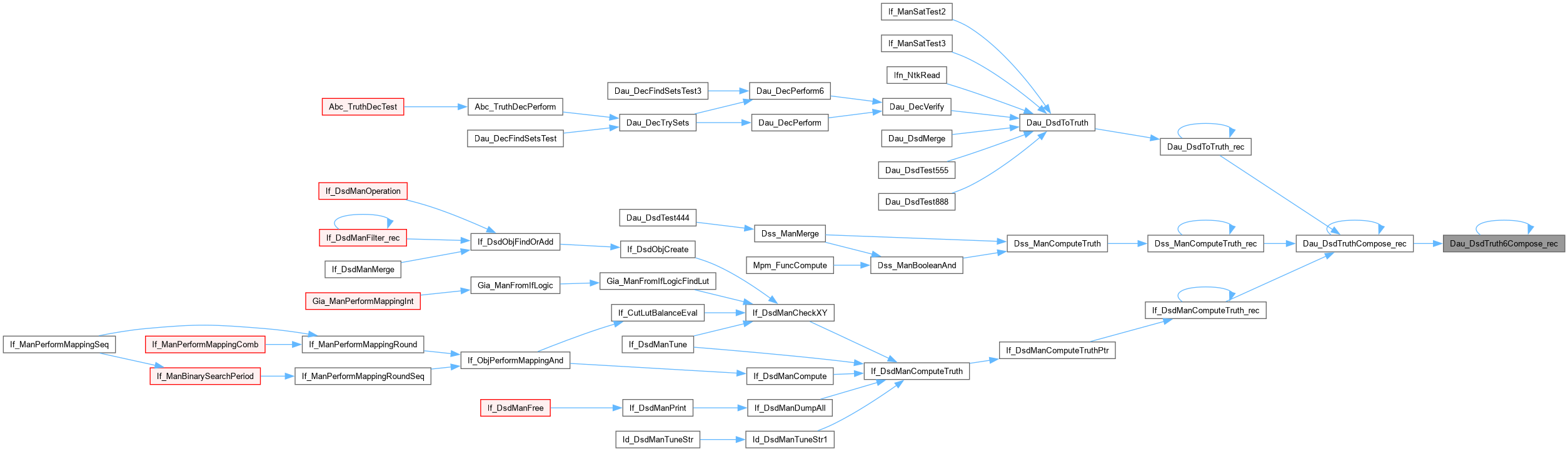

Here is the caller graph for this function:

Dau_DsdTruthCompose_rec()

void Dau_DsdTruthCompose_rec	(	word *	pFunc,
		word	pFanins[DAU_MAX_VAR][DAU_MAX_WORD],
		word *	pRes,
		int	nVars,
		int	nWordsR )

Definition at line 501 of file dauDsd.c.

{
    int nWordsF;
    if ( nVars <= 6 )
    {
        Dau_DsdTruth6Compose_rec( pFunc[0], pFanins, pRes, nVars, nWordsR );
        return;
    }
    nWordsF = Abc_TtWordNum( nVars );
    assert( nWordsF > 1 );
    if ( Abc_TtIsConst0(pFunc, nWordsF) )
    {
        Abc_TtConst0( pRes, nWordsR );
        return;
    }
    if ( Abc_TtIsConst1(pFunc, nWordsF) )
    {
        Abc_TtConst1( pRes, nWordsR );
        return;
    }
    if ( !Abc_TtHasVar( pFunc, nVars, nVars-1 ) )
    {
        Dau_DsdTruthCompose_rec( pFunc, pFanins, pRes, nVars-1, nWordsR );
        return;
    }
    {
        word pTtTemp[2][DAU_MAX_WORD];
        nVars--;
        Dau_DsdTruthCompose_rec( pFunc,             pFanins, pTtTemp[0], nVars, nWordsR );
        Dau_DsdTruthCompose_rec( pFunc + nWordsF/2, pFanins, pTtTemp[1], nVars, nWordsR );
        Abc_TtMux( pRes, pFanins[nVars], pTtTemp[1], pTtTemp[0], nWordsR );
        return;
    }
}

Here is the call graph for this function:

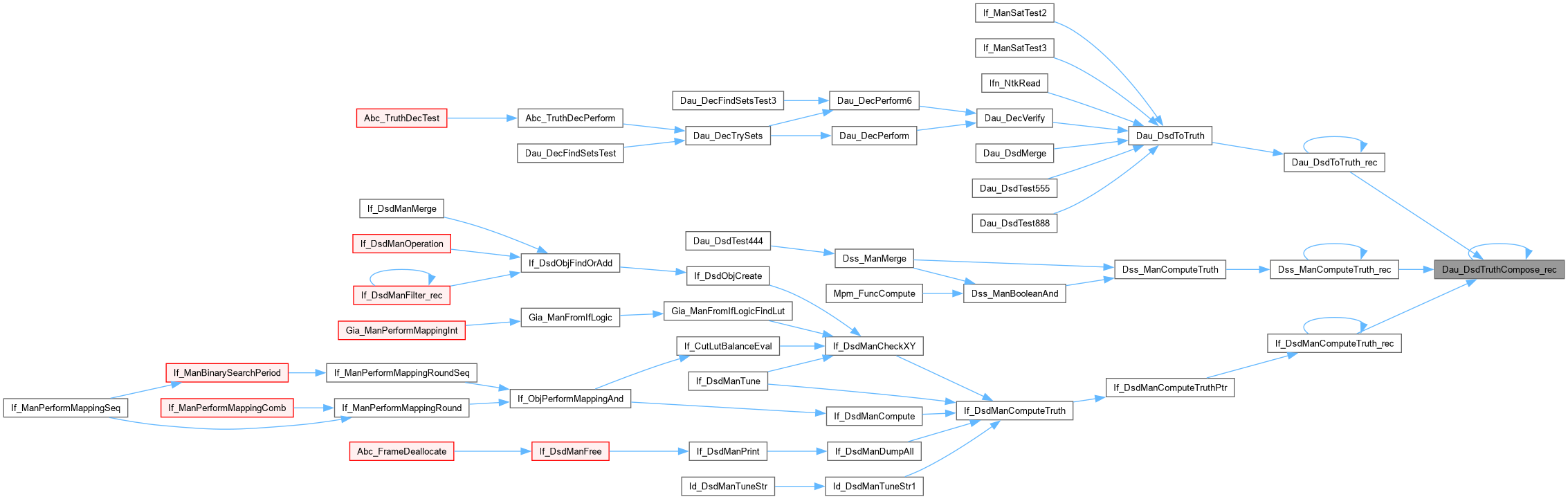

Here is the caller graph for this function:
