decUtil.c File Reference

#include "base/abc/abc.h"
#include "dec.h"

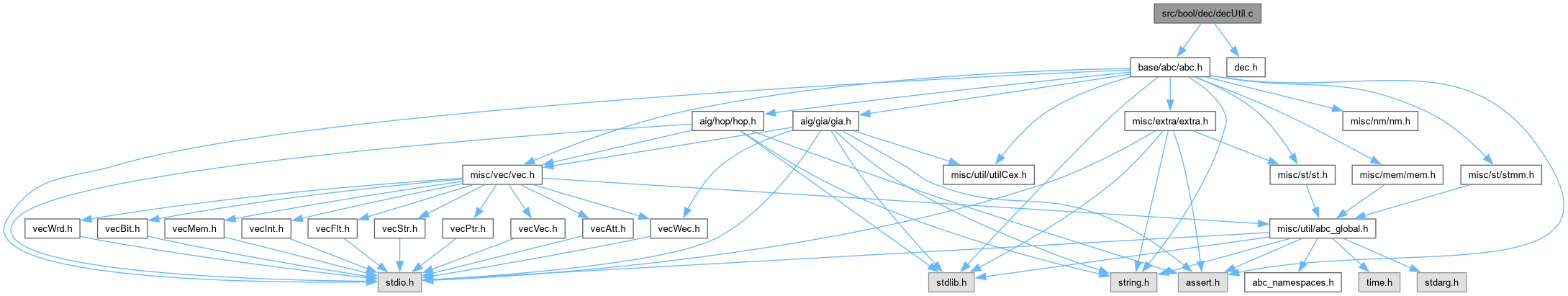

Include dependency graph for decUtil.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START unsigned	Dec_GraphDeriveTruth (Dec_Graph_t *pGraph)
	DECLARATIONS ///.

Function Documentation

Dec_GraphDeriveTruth()

ABC_NAMESPACE_IMPL_START unsigned Dec_GraphDeriveTruth

(

Dec_Graph_t *

pGraph

)

DECLARATIONS ///.

CFile****************************************************************

FileName [decUtil.c]

PackageName [MVSIS 2.0: Multi-valued logic synthesis system.]

Synopsis [Decomposition unitilies.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - February 1, 2003.]

Revision [

Id

decUtil.c,v 1.1 2003/05/22 19:20:05 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Derives the truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 102 of file decUtil.c.

{
    unsigned uTruths[5] = { 0xAAAAAAAA, 0xCCCCCCCC, 0xF0F0F0F0, 0xFF00FF00, 0xFFFF0000 };
    unsigned uTruth = 0; // Suppress "might be used uninitialized"
    unsigned uTruth0, uTruth1;
    Dec_Node_t * pNode;
    int i;

    // sanity checks
    assert( Dec_GraphLeaveNum(pGraph) >= 0 );
    assert( Dec_GraphLeaveNum(pGraph) <= pGraph->nSize );
    assert( Dec_GraphLeaveNum(pGraph) <= 5 );

    // check for constant function
    if ( Dec_GraphIsConst(pGraph) )
        return Dec_GraphIsComplement(pGraph)? 0 : ~((unsigned)0);
    // check for a literal
    if ( Dec_GraphIsVar(pGraph) )
        return Dec_GraphIsComplement(pGraph)? ~uTruths[Dec_GraphVarInt(pGraph)] : uTruths[Dec_GraphVarInt(pGraph)];

    // assign the elementary variables
    Dec_GraphForEachLeaf( pGraph, pNode, i )
        pNode->pFunc = (void *)(ABC_PTRUINT_T)uTruths[i];

    // compute the function for each internal node
    Dec_GraphForEachNode( pGraph, pNode, i )
    {
        uTruth0 = (unsigned)(ABC_PTRUINT_T)Dec_GraphNode(pGraph, pNode->eEdge0.Node)->pFunc;
        uTruth1 = (unsigned)(ABC_PTRUINT_T)Dec_GraphNode(pGraph, pNode->eEdge1.Node)->pFunc;
        uTruth0 = pNode->eEdge0.fCompl? ~uTruth0 : uTruth0;
        uTruth1 = pNode->eEdge1.fCompl? ~uTruth1 : uTruth1;
        uTruth = uTruth0 & uTruth1;
        pNode->pFunc = (void *)(ABC_PTRUINT_T)uTruth;
    }

    // complement the result if necessary
    return Dec_GraphIsComplement(pGraph)? ~uTruth : uTruth;
}

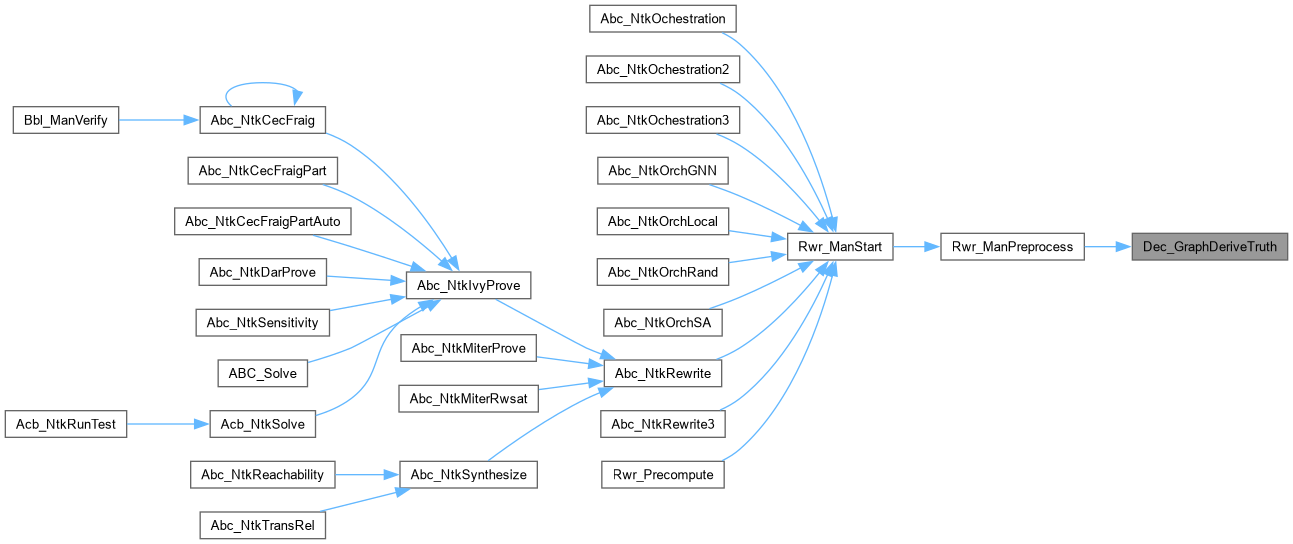

Here is the caller graph for this function:
