dsdLocal.c File Reference

#include "dsdInt.h"

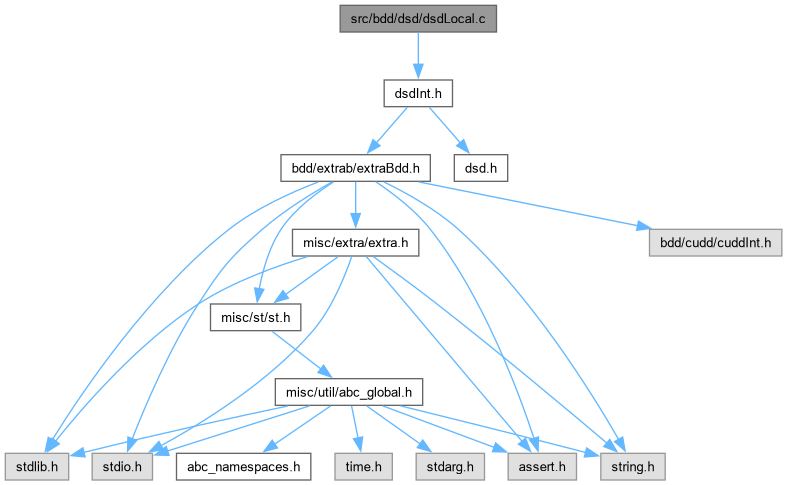

Include dependency graph for dsdLocal.c:

Go to the source code of this file.

Functions
DdNode *	Dsd_TreeGetPrimeFunction (DdManager *dd, Dsd_Node_t *pNode)
	FUNCTION DEFINITIONS ///.

Function Documentation

Dsd_TreeGetPrimeFunction()

DdNode * Dsd_TreeGetPrimeFunction	(	DdManager *	dd,
		Dsd_Node_t *	pNode )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Returns the local function of the DSD node. ]

Description [The local function is computed using the global function of the node and the global functions of the formal inputs. The resulting local function is mapped using the topmost N variables of the manager. The number of variables N is equal to the number of formal inputs.]

SideEffects []

SeeAlso []

Definition at line 54 of file dsdLocal.c.

{
    int * pForm2Var;   // the mapping of each formal input into its first var
    int * pVar2Form;   // the mapping of each var into its formal inputs
    int i, iVar, iLev, * pPermute;
    DdNode ** pbCube0, ** pbCube1;
    DdNode * bFunc, * bRes, * bTemp;
    st__table * pCache;

    pPermute  = ABC_ALLOC( int, dd->size );
    pVar2Form = ABC_ALLOC( int, dd->size );
    pForm2Var = ABC_ALLOC( int, dd->size );

    pbCube0 = ABC_ALLOC( DdNode *, dd->size );
    pbCube1 = ABC_ALLOC( DdNode *, dd->size );

    // remap the global function in such a way that
    // the support variables of each formal input are adjacent
    iLev = 0;
    for ( i = 0; i < pNode->nDecs; i++ )
    {
        pForm2Var[i] = dd->invperm[i];
        for ( bTemp = pNode->pDecs[i]->S; bTemp != b1; bTemp = cuddT(bTemp) )
        {
            iVar = dd->invperm[iLev];
            pPermute[bTemp->index] = iVar;
            pVar2Form[iVar] = i;
            iLev++;
        }

        // collect the cubes representing each assignment
        pbCube0[i] = Extra_bddGetOneCube( dd, Cudd_Not(pNode->pDecs[i]->G) );
        Cudd_Ref( pbCube0[i] );
        pbCube1[i] = Extra_bddGetOneCube( dd, pNode->pDecs[i]->G );
        Cudd_Ref( pbCube1[i] );
    }

    // remap the function
    bFunc = Cudd_bddPermute( dd, pNode->G, pPermute ); Cudd_Ref( bFunc );
    // remap the cube
    for ( i = 0; i < pNode->nDecs; i++ )
    {
        pbCube0[i] = Cudd_bddPermute( dd, bTemp = pbCube0[i], pPermute ); Cudd_Ref( pbCube0[i] );
        Cudd_RecursiveDeref( dd, bTemp );
        pbCube1[i] = Cudd_bddPermute( dd, bTemp = pbCube1[i], pPermute ); Cudd_Ref( pbCube1[i] );
        Cudd_RecursiveDeref( dd, bTemp );
    }

    // remap the function
    pCache = st__init_table( st__ptrcmp, st__ptrhash);;
    bRes = Extra_dsdRemap( dd, bFunc, pCache, pVar2Form, pForm2Var, pbCube0, pbCube1 );  Cudd_Ref( bRes );
    st__free_table( pCache );

    Cudd_RecursiveDeref( dd, bFunc );
    for ( i = 0; i < pNode->nDecs; i++ )
    {
        Cudd_RecursiveDeref( dd, pbCube0[i] );
        Cudd_RecursiveDeref( dd, pbCube1[i] );
    }
/*
    // permute the function once again
    // in such a way that i-th var stood for i-th formal input
    for ( i = 0; i < dd->size; i++ )
        pPermute[i] = -1;
    for ( i = 0; i < pNode->nDecs; i++ )
        pPermute[dd->invperm[i]] = i;
    bRes = Cudd_bddPermute( dd, bTemp = bRes, pPermute ); Cudd_Ref( bRes );
    Cudd_RecursiveDeref( dd, bTemp );
*/
    ABC_FREE(pPermute);
    ABC_FREE(pVar2Form);
    ABC_FREE(pForm2Var);
    ABC_FREE(pbCube0);
    ABC_FREE(pbCube1);

    Cudd_Deref( bRes );
    return bRes;
}

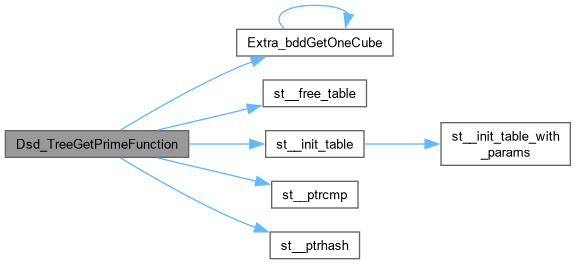

Here is the call graph for this function:

Here is the caller graph for this function:
