#include "extraBdd.h"

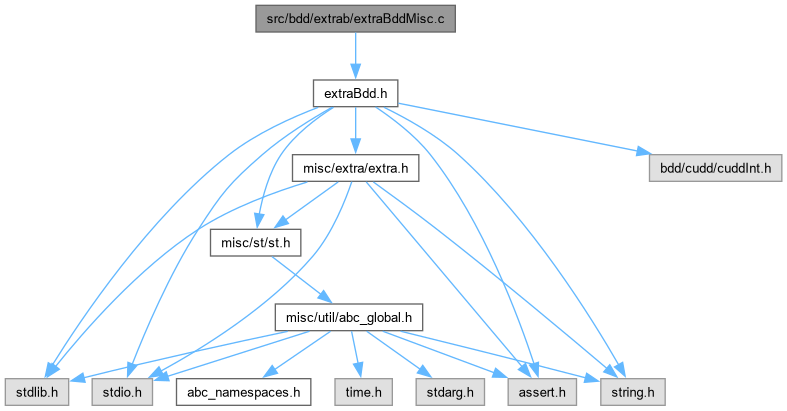

Include dependency graph for extraBddMisc.c:

Functions
void	ddSupportStep2 (DdNode f, int support)

void	ddClearFlag2 (DdNode *f)

DdNode *	Extra_TransferPermute (DdManager ddSource, DdManager ddDestination, DdNode f, int Permute)

DdNode *	Extra_TransferLevelByLevel (DdManager ddSource, DdManager ddDestination, DdNode *f)

DdNode *	Extra_bddRemapUp (DdManager dd, DdNode bF)

DdNode *	Extra_bddMove (DdManager dd, DdNode bF, int nVars)

void	Extra_StopManager (DdManager *dd)

void	Extra_bddPrint (DdManager dd, DdNode F)

void	Extra_bddPrintSupport (DdManager dd, DdNode F)

int	Extra_bddSuppSize (DdManager dd, DdNode bSupp)

int	Extra_bddSuppContainVar (DdManager dd, DdNode bS, DdNode *bVar)

int	Extra_bddSuppOverlapping (DdManager dd, DdNode S1, DdNode *S2)

int	Extra_bddSuppDifferentVars (DdManager dd, DdNode S1, DdNode *S2, int DiffMax)

int	Extra_bddSuppCheckContainment (DdManager dd, DdNode bL, DdNode bH, DdNode bLarge, DdNode *bSmall)

int *	Extra_SupportArray (DdManager dd, DdNode f, int *support)

int *	Extra_VectorSupportArray (DdManager dd, DdNode F, int n, int support)

DdNode *	Extra_bddFindOneCube (DdManager dd, DdNode bF)

DdNode *	Extra_bddGetOneCube (DdManager dd, DdNode bFunc)

DdNode *	Extra_bddComputeRangeCube (DdManager *dd, int iStart, int iStop)

DdNode *	Extra_bddBitsToCube (DdManager dd, int Code, int CodeWidth, DdNode *pbVars, int fMsbFirst)

DdNode *	Extra_bddSupportNegativeCube (DdManager dd, DdNode f)

int	Extra_bddIsVar (DdNode *bFunc)

DdNode *	Extra_bddCreateAnd (DdManager *dd, int nVars)

DdNode *	Extra_bddCreateOr (DdManager *dd, int nVars)

DdNode *	Extra_bddCreateExor (DdManager *dd, int nVars)

DdNode *	Extra_zddPrimes (DdManager dd, DdNode F)

void	Extra_bddPermuteArray (DdManager manager, DdNode bNodesIn, DdNode bNodesOut, int nNodes, int permut)

DdNode *	Extra_bddComputeCube (DdManager dd, DdNode *bXVars, int nVars)

DdNode *	Extra_bddChangePolarity (DdManager dd, DdNode bFunc, DdNode *bVars)

int	Extra_bddVarIsInCube (DdNode *bCube, int iVar)

DdNode *	Extra_bddAndPermute (DdManager ddF, DdNode bF, DdManager ddG, DdNode bG, int *pPermute)

DdNode *	extraBddMove (DdManager dd, DdNode bF, DdNode *bDist)

void	extraDecomposeCover (DdManager dd, DdNode zC, DdNode zC0, DdNode zC1, DdNode **zC2)

int	Extra_bddCountCubes (DdManager dd, DdNode pFuncs, int nFuncs, int fMode, int nLimit, int pGuide)

DdNode *	extraComposeCover (DdManager dd, DdNode zC0, DdNode zC1, DdNode zC2, int TopVar)

DdNode *	extraBddChangePolarity (DdManager dd, DdNode bFunc, DdNode *bVars)

void	Extra_TestAndPerm (DdManager ddF, DdNode bF, DdNode *bG)

void	Extra_zddDumpPla (DdManager dd, DdNode F, int nVars, char *pFileName)

void	Extra_GraphExperiment ()

DdNode *	extraZddCombination (DdManager dd, int VarValues, int nVars)

DdNode *	Extra_zddCombination (DdManager dd, int VarValues, int nVars)

DdNode *	Extra_zddRandomSet (DdManager *dd, int n, int k, double d)

void	Extra_ZddTest ()

DdNode *	extraBddTuples (DdManager dd, DdNode bVarsK, DdNode *bVarsN)

DdNode *	Extra_bddTuples (DdManager dd, int K, DdNode VarsN)

Function Documentation

◆ ddClearFlag2()

void ddClearFlag2 ( DdNode * f )

Function********************************************************************

Synopsis [Performs a DFS from f, clearing the LSB of the next pointers.]

Description []

SideEffects [None]

SeeAlso [ddSupportStep ddDagInt]

Definition at line 1724 of file extraBddMisc.c.

{
    if (!Cudd_IsComplement(f->next)) {
    return;
    }
    /* Clear visited flag. */
    f->next = Cudd_Regular(f->next);
    if (cuddIsConstant(f)) {
    return;
    }
    ddClearFlag2(cuddT(f));
    ddClearFlag2(Cudd_Regular(cuddE(f)));
    return;

} /* end of ddClearFlag */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ddSupportStep2()

void ddSupportStep2	(	DdNode *	f,
		int *	support )

Function********************************************************************

Synopsis [Performs the recursive step of Cudd_Support.]

Description [Performs the recursive step of Cudd_Support. Performs a DFS from f. The support is accumulated in supp as a side effect. Uses the LSB of the then pointer as visited flag.]

SideEffects [None]

SeeAlso [ddClearFlag]

Definition at line 1693 of file extraBddMisc.c.

{
    if (cuddIsConstant(f) || Cudd_IsComplement(f->next)) {
    return;
    }

    support[f->index] = 1;
    ddSupportStep2(cuddT(f),support);
    ddSupportStep2(Cudd_Regular(cuddE(f)),support);
    /* Mark as visited. */
    f->next = Cudd_Not(f->next);
    return;

} /* end of ddSupportStep */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Extra_bddAndPermute()

DdNode * Extra_bddAndPermute	(	DdManager *	ddF,
		DdNode *	bF,
		DdManager *	ddG,
		DdNode *	bG,
		int *	pPermute )

Function*************************************************************

Synopsis [Computes the AND of two BDD with different orders.]

Description [Derives the result of Boolean AND of bF and bG in ddF. The array pPermute gives the mapping of variables of ddG into that of ddF.]

SideEffects []

SeeAlso []

Definition at line 1090 of file extraBddMisc.c.

{
    DdHashTable * table;
    DdNode * bRes;
    do
    {
        ddF->reordered = 0;
        table = cuddHashTableInit( ddF, 2, 256 );
        if (table == NULL) return NULL;
        bRes = extraBddAndPermute( table, ddF, bF, ddG, bG, pPermute );
        if ( bRes ) cuddRef( bRes );
        cuddHashTableQuit( table );
        if ( bRes ) cuddDeref( bRes );
//if ( ddF->reordered == 1 )
//printf( "Reordering happened\n" );
    }
    while ( ddF->reordered == 1 );
//printf( "|F| =%6d  |G| =%6d  |H| =%6d  |F|*|G| =%9d\n",
//       Cudd_DagSize(bF), Cudd_DagSize(bG), Cudd_DagSize(bRes),
//       Cudd_DagSize(bF) * Cudd_DagSize(bG) );
    return ( bRes );
}

Here is the caller graph for this function:

◆ Extra_bddBitsToCube()

DdNode * Extra_bddBitsToCube	(	DdManager *	dd,
		int	Code,
		int	CodeWidth,
		DdNode **	pbVars,
		int	fMsbFirst )

Function********************************************************************

Synopsis [Computes the cube of BDD variables corresponding to bits it the bit-code]

Description [Returns a bdd composed of elementary bdds found in array BddVars[] such that the bdd vars encode the number Value of bit length CodeWidth (if fMsbFirst is 1, the most significant bit is encoded with the first bdd variable). If the variables BddVars are not specified, takes the first CodeWidth variables of the manager]

SideEffects []

SeeAlso []

Definition at line 730 of file extraBddMisc.c.

{
    int z;
    DdNode * bTemp, * bVar, * bVarBdd, * bResult;

    bResult = b1;   Cudd_Ref( bResult );
    for ( z = 0; z < CodeWidth; z++ )
    {
        bVarBdd = (pbVars)? pbVars[z]: dd->vars[z];
        if ( fMsbFirst )
            bVar = Cudd_NotCond( bVarBdd, (Code & (1 << (CodeWidth-1-z)))==0 );
        else
            bVar = Cudd_NotCond( bVarBdd, (Code & (1 << (z)))==0 );
        bResult = Cudd_bddAnd( dd, bTemp = bResult, bVar );     Cudd_Ref( bResult );
        Cudd_RecursiveDeref( dd, bTemp );
    }
    Cudd_Deref( bResult );

    return bResult;
}  /* end of Extra_bddBitsToCube */

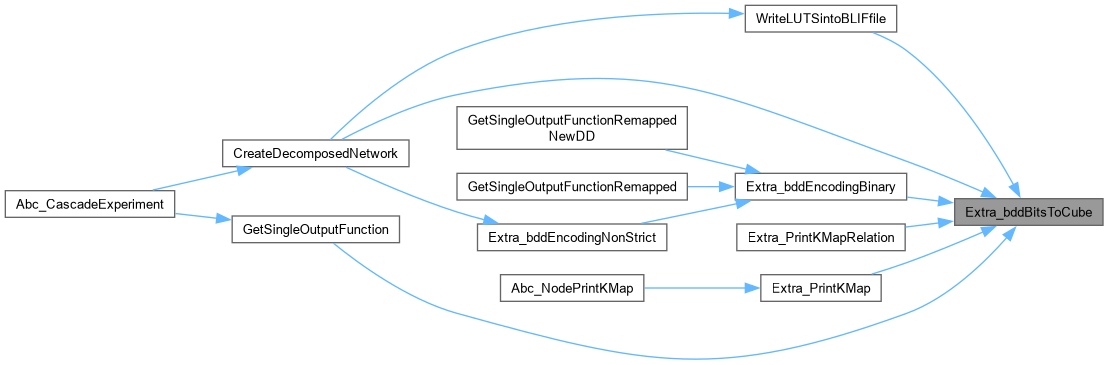

Here is the caller graph for this function:

◆ Extra_bddChangePolarity()

DdNode * Extra_bddChangePolarity	(	DdManager *	dd,
		DdNode *	bFunc,
		DdNode *	bVars )

Function********************************************************************

Synopsis [Changes the polarity of vars listed in the cube.]

Description []

SideEffects []

SeeAlso []

Definition at line 1029 of file extraBddMisc.c.

{
    DdNode  *res;
    do {
        dd->reordered = 0;
        res = extraBddChangePolarity( dd, bFunc, bVars );
    } while (dd->reordered == 1);
    return(res);

} /* end of Extra_bddChangePolarity */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Extra_bddComputeCube()

DdNode * Extra_bddComputeCube	(	DdManager *	dd,
		DdNode **	bXVars,
		int	nVars )

Function********************************************************************

Synopsis [Computes the positive polarty cube composed of the first vars in the array.]

Description []

SideEffects []

SeeAlso []

Definition at line 1001 of file extraBddMisc.c.

{
    DdNode * bRes;
    DdNode * bTemp;
    int i;

    bRes = b1; Cudd_Ref( bRes );
    for ( i = 0; i < nVars; i++ )
    {
        bRes = Cudd_bddAnd( dd, bTemp = bRes, bXVars[i] );  Cudd_Ref( bRes );
        Cudd_RecursiveDeref( dd, bTemp );
    }

    Cudd_Deref( bRes );
    return bRes;
}

Here is the caller graph for this function:

◆ Extra_bddComputeRangeCube()

DdNode * Extra_bddComputeRangeCube	(	DdManager *	dd,
		int	iStart,
		int	iStop )

Function********************************************************************

Synopsis [Performs the reordering-sensitive step of Extra_bddMove().]

Description []

SideEffects []

SeeAlso []

Definition at line 699 of file extraBddMisc.c.

{
    DdNode * bTemp, * bProd;
    int i;
    assert( iStart <= iStop );
    assert( iStart >= 0 && iStart <= dd->size );
    assert( iStop >= 0  && iStop  <= dd->size );
    bProd = b1;         Cudd_Ref( bProd );
    for ( i = iStart; i < iStop; i++ )
    {
        bProd = Cudd_bddAnd( dd, bTemp = bProd, dd->vars[i] );      Cudd_Ref( bProd );
        Cudd_RecursiveDeref( dd, bTemp );
    }
    Cudd_Deref( bProd );
    return bProd;
}

◆ Extra_bddCountCubes()

int Extra_bddCountCubes	(	DdManager *	dd,
		DdNode **	pFuncs,
		int	nFuncs,
		int	fMode,
		int	nLimit,
		int *	pGuide )

Definition at line 1485 of file extraBddMisc.c.

{
    DdNode * pF0, * pF1;
    int i, Count, Count0, Count1, CounterAll = 0;
    st__table *table = st__init_table( st__ptrcmp, st__ptrhash );
    unsigned int saveLimit = dd->maxLive;
    dd->maxLive = dd->keys - dd->dead + 1000000; // limit on intermediate BDD nodes
    for ( i = 0; i < nFuncs; i++ )
    {
        if ( !pFuncs[i] )
            continue;
        pF1 = pF0 = NULL;
        Count0 = Count1 = nLimit;
        if ( fMode == -1 || fMode == 1 ) // both or pos
            pF1 = extraBddCountCubes( dd, pFuncs[i], pFuncs[i], table, &Count1, nLimit );
        pFuncs[i] = Cudd_Not( pFuncs[i] );
        if ( fMode == -1 || fMode == 0 ) // both or neg
            pF0 = extraBddCountCubes( dd, pFuncs[i], pFuncs[i], table, &Count0, Count1 );
        pFuncs[i] = Cudd_Not( pFuncs[i] );
        if ( !pF1 && !pF0 )
            break;
        if ( !pF0 )                  pGuide[i] = 1, Count = Count1; // use pos
        else if ( !pF1 )             pGuide[i] = 0, Count = Count0; // use neg
        else if ( Count1 <= Count0 ) pGuide[i] = 1, Count = Count1; // use pos
        else                         pGuide[i] = 0, Count = Count0; // use neg
        CounterAll += Count;
        //printf( "Output %5d has %5d cubes (%d)  (%5d and %5d)\n", nOuts++, Count, pGuide[i], Count1, Count0 );
    }
    dd->maxLive = saveLimit;
    st__free_table( table );
    return i == nFuncs ? CounterAll : -1;
}   /* end of Extra_bddCountCubes */

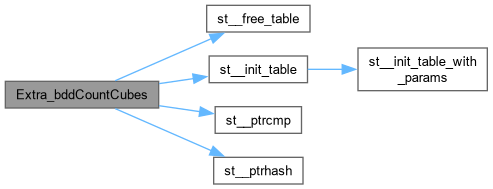

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Extra_bddCreateAnd()

DdNode * Extra_bddCreateAnd	(	DdManager *	dd,
		int	nVars )

Function********************************************************************

Synopsis [Creates AND composed of the first nVars of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 858 of file extraBddMisc.c.

{
    DdNode * bFunc, * bTemp;
    int i;
    bFunc = Cudd_ReadOne(dd); Cudd_Ref( bFunc );
    for ( i = 0; i < nVars; i++ )
    {
        bFunc = Cudd_bddAnd( dd, bTemp = bFunc, Cudd_bddIthVar(dd,i) );  Cudd_Ref( bFunc );
        Cudd_RecursiveDeref( dd, bTemp );
    }
    Cudd_Deref( bFunc );
    return bFunc;
}

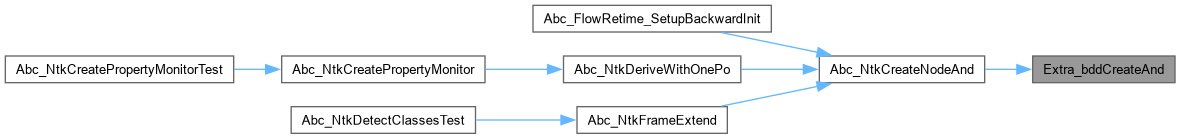

Here is the caller graph for this function:

◆ Extra_bddCreateExor()

DdNode * Extra_bddCreateExor	(	DdManager *	dd,
		int	nVars )

Function********************************************************************

Synopsis [Creates EXOR composed of the first nVars of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 908 of file extraBddMisc.c.

{
    DdNode * bFunc, * bTemp;
    int i;
    bFunc = Cudd_ReadLogicZero(dd); Cudd_Ref( bFunc );
    for ( i = 0; i < nVars; i++ )
    {
        bFunc = Cudd_bddXor( dd, bTemp = bFunc, Cudd_bddIthVar(dd,i) );  Cudd_Ref( bFunc );
        Cudd_RecursiveDeref( dd, bTemp );
    }
    Cudd_Deref( bFunc );
    return bFunc;
}

Here is the caller graph for this function:

◆ Extra_bddCreateOr()

DdNode * Extra_bddCreateOr	(	DdManager *	dd,
		int	nVars )

Function********************************************************************

Synopsis [Creates OR composed of the first nVars of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 883 of file extraBddMisc.c.

{
    DdNode * bFunc, * bTemp;
    int i;
    bFunc = Cudd_ReadLogicZero(dd); Cudd_Ref( bFunc );
    for ( i = 0; i < nVars; i++ )
    {
        bFunc = Cudd_bddOr( dd, bTemp = bFunc, Cudd_bddIthVar(dd,i) );  Cudd_Ref( bFunc );
        Cudd_RecursiveDeref( dd, bTemp );
    }
    Cudd_Deref( bFunc );
    return bFunc;
}

Here is the caller graph for this function:

◆ Extra_bddFindOneCube()

DdNode * Extra_bddFindOneCube	(	DdManager *	dd,
		DdNode *	bF )

Function********************************************************************

Synopsis [Find any cube belonging to the on-set of the function.]

Description []

SideEffects []

SeeAlso []

Definition at line 605 of file extraBddMisc.c.

{
    char * s_Temp;
    DdNode * bCube, * bTemp;
    int v;

    // get the vector of variables in the cube
    s_Temp = ABC_ALLOC( char, dd->size );
    Cudd_bddPickOneCube( dd, bF, s_Temp );

    // start the cube
    bCube = b1; Cudd_Ref( bCube );
    for ( v = 0; v < dd->size; v++ )
        if ( s_Temp[v] == 0 )
        {
//          Cube &= !s_XVars[v];
            bCube = Cudd_bddAnd( dd, bTemp = bCube, Cudd_Not(dd->vars[v]) ); Cudd_Ref( bCube );
            Cudd_RecursiveDeref( dd, bTemp );
        }
        else if ( s_Temp[v] == 1 )
        {
//          Cube &=  s_XVars[v];
            bCube = Cudd_bddAnd( dd, bTemp = bCube,          dd->vars[v]  ); Cudd_Ref( bCube );
            Cudd_RecursiveDeref( dd, bTemp );
        }
    Cudd_Deref(bCube);
    ABC_FREE( s_Temp );
    return bCube;
}

Here is the caller graph for this function:

◆ Extra_bddGetOneCube()

DdNode * Extra_bddGetOneCube	(	DdManager *	dd,
		DdNode *	bFunc )

Function********************************************************************

Synopsis [Returns one cube contained in the given BDD.]

Description [This function returns the cube with the smallest bits-to-integer value.]

SideEffects []

Definition at line 645 of file extraBddMisc.c.

{
    DdNode * bFuncR, * bFunc0, * bFunc1;
    DdNode * bRes0,  * bRes1,  * bRes;

    bFuncR = Cudd_Regular(bFunc);
    if ( cuddIsConstant(bFuncR) )
        return bFunc;

    // cofactor
    if ( Cudd_IsComplement(bFunc) )
    {
        bFunc0 = Cudd_Not( cuddE(bFuncR) );
        bFunc1 = Cudd_Not( cuddT(bFuncR) );
    }
    else
    {
        bFunc0 = cuddE(bFuncR);
        bFunc1 = cuddT(bFuncR);
    }

    // try to find the cube with the negative literal
    bRes0 = Extra_bddGetOneCube( dd, bFunc0 );  Cudd_Ref( bRes0 );

    if ( bRes0 != b0 )
    {
        bRes = Cudd_bddAnd( dd, bRes0, Cudd_Not(dd->vars[bFuncR->index]) ); Cudd_Ref( bRes );
        Cudd_RecursiveDeref( dd, bRes0 );
    }
    else
    {
        Cudd_RecursiveDeref( dd, bRes0 );
        // try to find the cube with the positive literal
        bRes1 = Extra_bddGetOneCube( dd, bFunc1 );  Cudd_Ref( bRes1 );
        assert( bRes1 != b0 );
        bRes = Cudd_bddAnd( dd, bRes1, dd->vars[bFuncR->index] ); Cudd_Ref( bRes );
        Cudd_RecursiveDeref( dd, bRes1 );
    }

    Cudd_Deref( bRes );
    return bRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Extra_bddIsVar()

int Extra_bddIsVar ( DdNode * bFunc )

Function********************************************************************

Synopsis [Returns 1 if the BDD is the BDD of elementary variable.]

Description []

SideEffects []

SeeAlso []

Definition at line 839 of file extraBddMisc.c.

{
    bFunc = Cudd_Regular( bFunc );
    if ( cuddIsConstant(bFunc) )
        return 0;
    return cuddIsConstant( cuddT(bFunc) ) && cuddIsConstant( Cudd_Regular(cuddE(bFunc)) );
}

◆ Extra_bddMove()

DdNode * Extra_bddMove	(	DdManager *	dd,
		DdNode *	bF,
		int	nVars )

Function********************************************************************

Synopsis [Moves the BDD by the given number of variables up or down.]

Description []

SideEffects []

SeeAlso [Extra_bddShift]

Definition at line 187 of file extraBddMisc.c.

{
    DdNode * res;
    DdNode * bVars;
    if ( nVars == 0 )
        return bF;
    if ( Cudd_IsConstant(bF) )
        return bF;
    assert( nVars <= dd->size );
    if ( nVars > 0 )
        bVars = dd->vars[nVars];
    else
        bVars = Cudd_Not(dd->vars[-nVars]);

    do {
        dd->reordered = 0;
        res = extraBddMove( dd, bF, bVars );
    } while (dd->reordered == 1);
    return(res);

} /* end of Extra_bddMove */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Extra_bddPermuteArray()

void Extra_bddPermuteArray	(	DdManager *	manager,
		DdNode **	bNodesIn,
		DdNode **	bNodesOut,
		int	nNodes,
		int *	permut )

Function********************************************************************

Synopsis [Permutes the variables of the array of BDDs.]

Description [Given a permutation in array permut, creates a new BDD with permuted variables. There should be an entry in array permut for each variable in the manager. The i-th entry of permut holds the index of the variable that is to substitute the i-th variable. The DDs in the resulting array are already referenced.]

SideEffects [None]

SeeAlso [Cudd_addPermute Cudd_bddSwapVariables]

Definition at line 961 of file extraBddMisc.c.

{
    DdHashTable *table;
    int i, k;
    do
    {
        manager->reordered = 0;
        table = cuddHashTableInit( manager, 1, 2 );

        /* permute the output functions one-by-one */
        for ( i = 0; i < nNodes; i++ )
        {
            bNodesOut[i] = cuddBddPermuteRecur( manager, table, bNodesIn[i], permut );
            if ( bNodesOut[i] == NULL )
            {
                /* deref the array of the already computed outputs */
                for ( k = 0; k < i; k++ )
                    Cudd_RecursiveDeref( manager, bNodesOut[k] );
                break;
            }
            cuddRef( bNodesOut[i] );
        }
        /* Dispose of local cache. */
        cuddHashTableQuit( table );
    }
    while ( manager->reordered == 1 );
}    /* end of Extra_bddPermuteArray */

Here is the caller graph for this function:

◆ Extra_bddPrint()

void Extra_bddPrint	(	DdManager *	dd,
		DdNode *	F )

Function********************************************************************

Synopsis [Outputs the BDD in a readable format.]

Description []

SideEffects [None]

SeeAlso []

Definition at line 246 of file extraBddMisc.c.

{
    DdGen * Gen;
    int * Cube;
    CUDD_VALUE_TYPE Value;
    int nVars = dd->size;
    int fFirstCube = 1;
    int i;

    if ( F == NULL )
    {
        printf("NULL");
        return;
    }
    if ( F == b0 )
    {
        printf("Constant 0");
        return;
    }
    if ( F == b1 )
    {
        printf("Constant 1");
        return;
    }

    Cudd_ForeachCube( dd, F, Gen, Cube, Value )
    {
        if ( fFirstCube )
            fFirstCube = 0;
        else
//          Output << " + ";
            printf( " + " );

        for ( i = 0; i < nVars; i++ )
            if ( Cube[i] == 0 )
                printf( "[%d]'", i );
//              printf( "%c'", (char)('a'+i) );
            else if ( Cube[i] == 1 )
                printf( "[%d]", i );
//              printf( "%c", (char)('a'+i) );
    }

//  printf("\n");
}

Here is the caller graph for this function:

◆ Extra_bddPrintSupport()

void Extra_bddPrintSupport	(	DdManager *	dd,
		DdNode *	F )

Function********************************************************************

Synopsis [Outputs the BDD in a readable format.]

Description []

SideEffects [None]

SeeAlso []

Definition at line 302 of file extraBddMisc.c.

{
    DdNode * bSupp;
    bSupp = Cudd_Support( dd, F );   Cudd_Ref( bSupp );
    Extra_bddPrint( dd, bSupp );
    Cudd_RecursiveDeref( dd, bSupp );
}

Here is the call graph for this function:

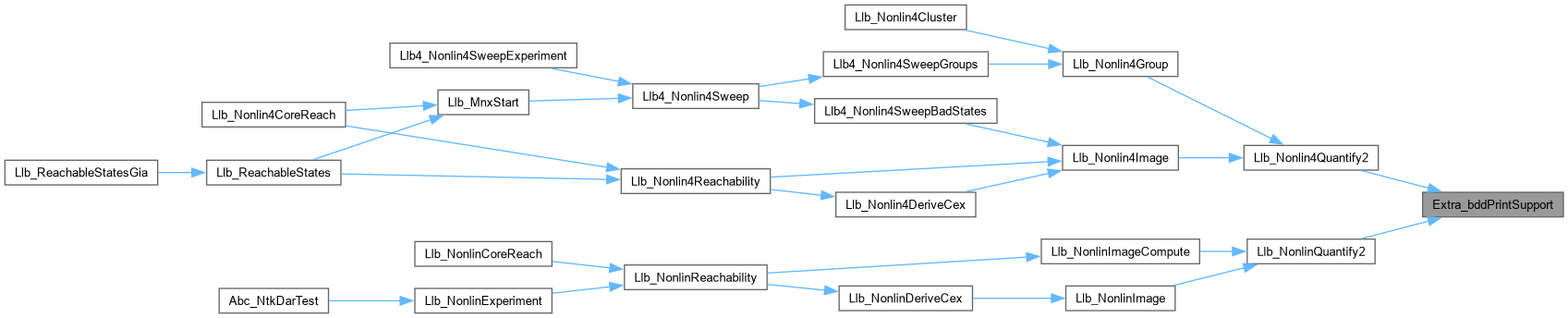

Here is the caller graph for this function:

◆ Extra_bddRemapUp()

DdNode * Extra_bddRemapUp	(	DdManager *	dd,
		DdNode *	bF )

Function********************************************************************

Synopsis [Remaps the function to depend on the topmost variables on the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 145 of file extraBddMisc.c.

{
    int * pPermute;
    DdNode * bSupp, * bTemp, * bRes;
    int Counter;

    pPermute = ABC_ALLOC( int, dd->size );

    // get support
    bSupp = Cudd_Support( dd, bF );    Cudd_Ref( bSupp );

    // create the variable map
    // to remap the DD into the upper part of the manager
    Counter = 0;
    for ( bTemp = bSupp; bTemp != dd->one; bTemp = cuddT(bTemp) )
        pPermute[bTemp->index] = dd->invperm[Counter++];

    // transfer the BDD and remap it
    bRes = Cudd_bddPermute( dd, bF, pPermute );  Cudd_Ref( bRes );

    // remove support
    Cudd_RecursiveDeref( dd, bSupp );

    // return
    Cudd_Deref( bRes );
    ABC_FREE( pPermute );
    return bRes;
}

Here is the caller graph for this function:

◆ Extra_bddSuppCheckContainment()

int Extra_bddSuppCheckContainment	(	DdManager *	dd,
		DdNode *	bL,
		DdNode *	bH,
		DdNode **	bLarge,
		DdNode **	bSmall )

Function********************************************************************

Synopsis [Checks the support containment.]

Description [This function returns 1 if one support is contained in another. In this case, bLarge (bSmall) is assigned to point to the larger (smaller) support. If the supports are identical, return 0 and does not assign the supports!]

SideEffects []

SeeAlso []

Definition at line 443 of file extraBddMisc.c.

{
    DdNode * bSL = bL;
    DdNode * bSH = bH;
    int fLcontainsH = 1;
    int fHcontainsL = 1;
    int TopVar;

    if ( bSL == bSH )
        return 0;

    while ( bSL != b1 || bSH != b1 )
    {
        if ( bSL == b1 )
        { // Low component has no vars; High components has some vars
            fLcontainsH = 0;
            if ( fHcontainsL == 0 )
                return 0;
            else
                break;
        }

        if ( bSH == b1 )
        { // similarly
            fHcontainsL = 0;
            if ( fLcontainsH == 0 )
                return 0;
            else
                break;
        }

        // determine the topmost var of the supports by comparing their levels
        if ( dd->perm[bSL->index] < dd->perm[bSH->index] )
            TopVar = bSL->index;
        else
            TopVar = bSH->index;

        if ( TopVar == bSL->index && TopVar == bSH->index )
        { // they are on the same level
            // it does not tell us anything about their containment
            // skip this var
            bSL = cuddT(bSL);
            bSH = cuddT(bSH);
        }
        else if ( TopVar == bSL->index ) // and TopVar != bSH->index
        { // Low components is higher and contains more vars
            // it is not possible that High component contains Low
            fHcontainsL = 0;
            // skip this var
            bSL = cuddT(bSL);
        }
        else // if ( TopVar == bSH->index ) // and TopVar != bSL->index
        { // similarly
            fLcontainsH = 0;
            // skip this var
            bSH = cuddT(bSH);
        }

        // check the stopping condition
        if ( !fHcontainsL && !fLcontainsH )
            return 0;
    }
    // only one of them can be true at the same time
    assert( !fHcontainsL || !fLcontainsH );
    if ( fHcontainsL )
    {
        *bLarge = bH;
        *bSmall = bL;
    }
    else // fLcontainsH
    {
        *bLarge = bL;
        *bSmall = bH;
    }
    return 1;
}

◆ Extra_bddSuppContainVar()

int Extra_bddSuppContainVar	(	DdManager *	dd,
		DdNode *	bS,
		DdNode *	bVar )

Function********************************************************************

Synopsis [Returns 1 if the support contains the given BDD variable.]

Description []

SideEffects []

SeeAlso []

Definition at line 346 of file extraBddMisc.c.

{
    for( ; bS != b1; bS = cuddT(bS) )
        if ( bS->index == bVar->index )
            return 1;
    return 0;
}

◆ Extra_bddSuppDifferentVars()

int Extra_bddSuppDifferentVars	(	DdManager *	dd,
		DdNode *	S1,
		DdNode *	S2,
		int	DiffMax )

Function********************************************************************

Synopsis [Returns the number of different vars in two supports.]

Description [Counts the number of variables that appear in one support and does not appear in other support. If the number exceeds DiffMax, returns DiffMax.]

SideEffects []

SeeAlso []

Definition at line 393 of file extraBddMisc.c.

{
    int Result = 0;
    while ( S1->index != CUDD_CONST_INDEX && S2->index != CUDD_CONST_INDEX )
    {
        // if the top vars are the same, this var is the same
        if ( S1->index == S2->index )
        {
            S1 = cuddT(S1);
            S2 = cuddT(S2);
            continue;
        }
        // the top var is different
        Result++;

        if ( Result >= DiffMax )
            return DiffMax;

        // if the top vars are different, skip the one, which is higher
        if ( dd->perm[S1->index] < dd->perm[S2->index] )
            S1 = cuddT(S1);
        else
            S2 = cuddT(S2);
    }

    // consider the remaining variables
    if ( S1->index != CUDD_CONST_INDEX )
        Result += Extra_bddSuppSize(dd,S1);
    else if ( S2->index != CUDD_CONST_INDEX )
        Result += Extra_bddSuppSize(dd,S2);

    if ( Result >= DiffMax )
        return DiffMax;
    return Result;
}

Here is the call graph for this function:

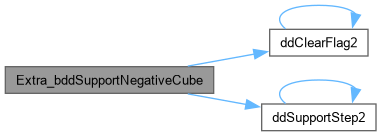

◆ Extra_bddSupportNegativeCube()

DdNode * Extra_bddSupportNegativeCube	(	DdManager *	dd,
		DdNode *	f )

Function********************************************************************

Synopsis [Finds the support as a negative polarity cube.]

Description [Finds the variables on which a DD depends. Returns a BDD consisting of the product of the variables in the negative polarity if successful; NULL otherwise.]

SideEffects [None]

SeeAlso [Cudd_VectorSupport Cudd_Support]

Definition at line 764 of file extraBddMisc.c.

{
    int *support;
    DdNode *res, *tmp, *var;
    int i, j;
    int size;

    /* Allocate and initialize support array for ddSupportStep. */
    size = ddMax( dd->size, dd->sizeZ );
    support = ABC_ALLOC( int, size );
    if ( support == NULL )
    {
        dd->errorCode = CUDD_MEMORY_OUT;
        return ( NULL );
    }
    for ( i = 0; i < size; i++ )
    {
        support[i] = 0;
    }

    /* Compute support and clean up markers. */
    ddSupportStep2( Cudd_Regular( f ), support );
    ddClearFlag2( Cudd_Regular( f ) );

    /* Transform support from array to cube. */
    do
    {
        dd->reordered = 0;
        res = DD_ONE( dd );
        cuddRef( res );
        for ( j = size - 1; j >= 0; j-- )
        {                        /* for each level bottom-up */
            i = ( j >= dd->size ) ? j : dd->invperm[j];
            if ( support[i] == 1 )
            {
                var = cuddUniqueInter( dd, i, dd->one, Cudd_Not( dd->one ) );
                var = Cudd_Not(var);
                cuddRef( var );
                tmp = cuddBddAndRecur( dd, res, var );
                if ( tmp == NULL )
                {
                    Cudd_RecursiveDeref( dd, res );
                    Cudd_RecursiveDeref( dd, var );
                    res = NULL;
                    break;
                }
                cuddRef( tmp );
                Cudd_RecursiveDeref( dd, res );
                Cudd_RecursiveDeref( dd, var );
                res = tmp;
            }
        }
    }
    while ( dd->reordered == 1 );

    ABC_FREE( support );
    if ( res != NULL )
        cuddDeref( res );
    return ( res );

}                                /* end of Extra_SupportNeg */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Extra_bddSuppOverlapping()

int Extra_bddSuppOverlapping	(	DdManager *	dd,
		DdNode *	S1,
		DdNode *	S2 )

Function********************************************************************

Synopsis [Returns 1 if two supports represented as BDD cubes are overlapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 365 of file extraBddMisc.c.

{
    while ( S1->index != CUDD_CONST_INDEX && S2->index != CUDD_CONST_INDEX )
    {
        // if the top vars are the same, they intersect
        if ( S1->index == S2->index )
            return 1;
        // if the top vars are different, skip the one, which is higher
        if ( dd->perm[S1->index] < dd->perm[S2->index] )
            S1 = cuddT(S1);
        else
            S2 = cuddT(S2);
    }
    return 0;
}

◆ Extra_bddSuppSize()

int Extra_bddSuppSize	(	DdManager *	dd,
		DdNode *	bSupp )

Function********************************************************************

Synopsis [Returns the size of the support.]

Description []

SideEffects []

SeeAlso []

Definition at line 321 of file extraBddMisc.c.

{
    int Counter = 0;
    while ( bSupp != b1 )
    {
        assert( !Cudd_IsComplement(bSupp) );
        assert( cuddE(bSupp) == b0 );

        bSupp = cuddT(bSupp);
        Counter++;
    }
    return Counter;
}

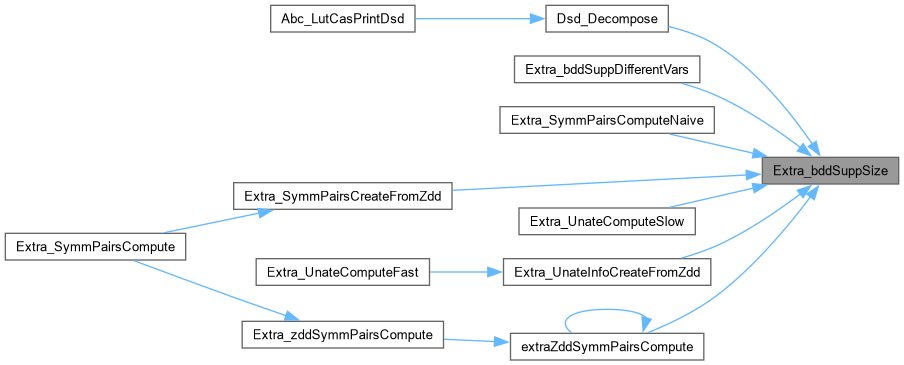

Here is the caller graph for this function:

◆ Extra_bddTuples()

DdNode * Extra_bddTuples	(	DdManager *	dd,
		int	K,
		DdNode *	VarsN )

Function********************************************************************

Synopsis [Builds BDD representing the set of fixed-size variable tuples.]

Description [Creates BDD of all combinations of variables in Support that have k vars in them.]

SideEffects []

SeeAlso []

Definition at line 2691 of file extraBddMisc.c.

{
    DdNode  *res;
    int     autoDyn;

    /* it is important that reordering does not happen,
       otherwise, this methods will not work */

    autoDyn = dd->autoDyn;
    dd->autoDyn = 0;

    do {
        /* transform the numeric arguments (K) into a DdNode * argument;
         * this allows us to use the standard internal CUDD cache */
        DdNode *VarSet = VarsN, *VarsK = VarsN;
        int     nVars = 0, i;

        /* determine the number of variables in VarSet */
        while ( VarSet != b1 )
        {
            nVars++;
            /* make sure that the VarSet is a cube */
            if ( cuddE( VarSet ) != b0 )
                return NULL;
            VarSet = cuddT( VarSet );
        }
        /* make sure that the number of variables in VarSet is less or equal
           that the number of variables that should be present in the tuples
        */
        if ( K > nVars )
            return NULL;

        /* the second argument in the recursive call stands for <n>;
         * create the first argument, which stands for <k>
         * as when we are talking about the tuple of <k> out of <n> */
        for ( i = 0; i < nVars-K; i++ )
            VarsK = cuddT( VarsK );

        dd->reordered = 0;
        res = extraBddTuples(dd, VarsK, VarsN );

    } while (dd->reordered == 1);
    dd->autoDyn = autoDyn;
    return(res);

} /* end of Extra_bddTuples */

Here is the call graph for this function:

◆ Extra_bddVarIsInCube()

int Extra_bddVarIsInCube	(	DdNode *	bCube,
		int	iVar )

Function*************************************************************

Synopsis [Checks if the given variable belongs to the cube.]

Description [Return -1 if the var does not appear in the cube. Otherwise, returns polarity (0 or 1) of the var in the cube.]

SideEffects []

SeeAlso []

Definition at line 1056 of file extraBddMisc.c.

{
    DdNode * bCube0, * bCube1;
    while ( Cudd_Regular(bCube)->index != CUDD_CONST_INDEX )
    {
        bCube0 = Cudd_NotCond( cuddE(Cudd_Regular(bCube)), Cudd_IsComplement(bCube) );
        bCube1 = Cudd_NotCond( cuddT(Cudd_Regular(bCube)), Cudd_IsComplement(bCube) );
        // make sure it is a cube
        assert( (Cudd_IsComplement(bCube0) && Cudd_Regular(bCube0)->index == CUDD_CONST_INDEX) || // bCube0 == 0
                (Cudd_IsComplement(bCube1) && Cudd_Regular(bCube1)->index == CUDD_CONST_INDEX) ); // bCube1 == 0
        // quit if it is the last one
        if ( Cudd_Regular(bCube)->index == iVar )
            return (int)(Cudd_IsComplement(bCube0) && Cudd_Regular(bCube0)->index == CUDD_CONST_INDEX);
        // get the next cube
        if ( (Cudd_IsComplement(bCube0) && Cudd_Regular(bCube0)->index == CUDD_CONST_INDEX) )
            bCube = bCube1;
        else
            bCube = bCube0;
    }
    return -1;
}

◆ Extra_GraphExperiment()

void Extra_GraphExperiment ( )

Function*************************************************************

Synopsis [Constructing ZDD of a graph.]

Description []

SideEffects []

SeeAlso []

Definition at line 2347 of file extraBddMisc.c.

{
    int Edges[5][5] = {
        {1, 3, 4},
        {1, 5},
        {2, 3, 5},
        {2, 4}
    };
    int e, n;

    DdManager * dd = Cudd_Init( 0, 6, CUDD_UNIQUE_SLOTS, CUDD_CACHE_SLOTS, 0 );

    // create the edges
    DdNode * zGraph, * zEdge, * zVar, * zTemp;
    zGraph = DD_ZERO(dd);                                                      Cudd_Ref( zGraph );
    for ( e = 0; Edges[e][0]; e++ )
    {
        zEdge = DD_ONE(dd);                                                    Cudd_Ref( zEdge );
        for ( n = 0; Edges[e][n]; n++ )
        {
            zVar = cuddZddGetNode( dd, Edges[e][n], DD_ONE(dd), DD_ZERO(dd) ); Cudd_Ref( zVar );
            zEdge = Cudd_zddUnateProduct( dd, zTemp = zEdge, zVar );           Cudd_Ref( zEdge );
            Cudd_RecursiveDerefZdd( dd, zTemp );
            Cudd_RecursiveDerefZdd( dd, zVar );
        }
        zGraph = Cudd_zddUnion( dd, zTemp = zGraph, zEdge );                   Cudd_Ref( zGraph );
        Cudd_RecursiveDerefZdd( dd, zTemp );
        Cudd_RecursiveDerefZdd( dd, zEdge );
    }

    Cudd_zddPrintMinterm( dd, zGraph );

    Cudd_RecursiveDerefZdd( dd, zGraph );
    Cudd_Quit(dd);
}

◆ Extra_StopManager()

void Extra_StopManager ( DdManager * dd )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 223 of file extraBddMisc.c.

{
    int RetValue;
    // check for remaining references in the package
    RetValue = Cudd_CheckZeroRef( dd );
    if ( RetValue > 10 )
//    if ( RetValue )
        printf( "\nThe number of referenced nodes = %d\n\n", RetValue );
//  Cudd_PrintInfo( dd, stdout );
    Cudd_Quit( dd );
}

Here is the caller graph for this function:

◆ Extra_SupportArray()

int * Extra_SupportArray	(	DdManager *	dd,
		DdNode *	f,
		int *	support )

Function********************************************************************

Synopsis [Finds variables on which the DD depends and returns them as am array.]

Description [Finds the variables on which the DD depends. Returns an array with entries set to 1 for those variables that belong to the support; NULL otherwise. The array is allocated by the user and should have at least as many entries as the maximum number of variables in BDD and ZDD parts of the manager.]

SideEffects [None]

SeeAlso [Cudd_Support Cudd_VectorSupport Cudd_ClassifySupport]

Definition at line 537 of file extraBddMisc.c.

{
    int i, size;

    /* Initialize support array for ddSupportStep. */
    size = ddMax(dd->size, dd->sizeZ);
    for (i = 0; i < size; i++)
        support[i] = 0;

    /* Compute support and clean up markers. */
    ddSupportStep2(Cudd_Regular(f),support);
    ddClearFlag2(Cudd_Regular(f));

    return(support);

} /* end of Extra_SupportArray */

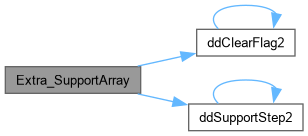

Here is the call graph for this function:

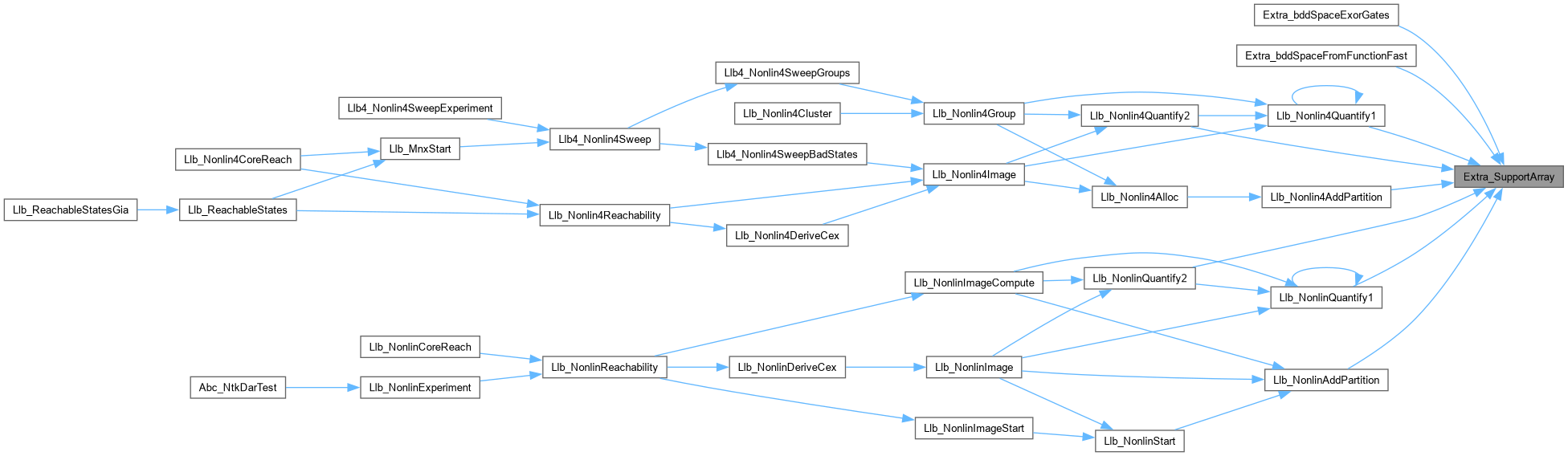

Here is the caller graph for this function:

◆ Extra_TestAndPerm()

void Extra_TestAndPerm	(	DdManager *	ddF,
		DdNode *	bF,
		DdNode *	bG )

Function*************************************************************

Synopsis [Testbench.]

Description [This procedure takes BDD manager ddF and two BDDs in this manager (bF and bG). It creates a new manager ddG, transfers bG into it and then reorders it, resulting in bG2. Then it tries to compute the product of bF and bG2 in ddF.]

SideEffects []

SeeAlso []

Definition at line 2250 of file extraBddMisc.c.

{
    DdManager * ddG;
    DdNode * bG2, * bRes1, * bRes2;
    abctime clk;
    // disable variable ordering in ddF
    Cudd_AutodynDisable( ddF );

    // create new BDD manager
    ddG = Cudd_Init( ddF->size, 0, CUDD_UNIQUE_SLOTS, CUDD_CACHE_SLOTS, 0 );
    // transfer BDD into it
    Cudd_ShuffleHeap( ddG, ddF->invperm );
    bG2 = Extra_TransferLevelByLevel( ddF, ddG, bG );   Cudd_Ref( bG2 );
    // reorder the new manager
    Cudd_ReduceHeap( ddG, CUDD_REORDER_SYMM_SIFT, 1 );

    // compute the result
clk = Abc_Clock();
    bRes1 = Cudd_bddAnd( ddF, bF, bG );                 Cudd_Ref( bRes1 );
Abc_PrintTime( 1, "Runtime of Cudd_bddAnd  ", Abc_Clock() - clk );

    // compute the result
Counter = 0;
clk = Abc_Clock();
    bRes2 = Extra_bddAndPermute( ddF, bF, ddG, bG2, NULL );      Cudd_Ref( bRes2 );
Abc_PrintTime( 1, "Runtime of new procedure", Abc_Clock() - clk );
printf( "Recursive calls = %d\n", Counter );
printf( "|F| =%6d  |G| =%6d  |H| =%6d  |F|*|G| =%9d  ",
       Cudd_DagSize(bF), Cudd_DagSize(bG), Cudd_DagSize(bRes2),
       Cudd_DagSize(bF) * Cudd_DagSize(bG) );

    if ( bRes1 == bRes2 )
        printf( "Result verified.\n\n" );
    else
        printf( "Result is incorrect.\n\n" );

    Cudd_RecursiveDeref( ddF, bRes1 );
    Cudd_RecursiveDeref( ddF, bRes2 );
    // quit the new manager
    Cudd_RecursiveDeref( ddG, bG2 );
    Extra_StopManager( ddG );

    // re-enable variable ordering in ddF
    Cudd_AutodynEnable( ddF, CUDD_REORDER_SYMM_SIFT );
}

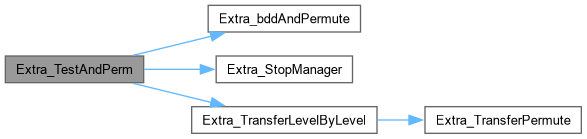

Here is the call graph for this function:

◆ Extra_TransferLevelByLevel()

DdNode * Extra_TransferLevelByLevel	(	DdManager *	ddSource,
		DdManager *	ddDestination,
		DdNode *	f )

Function********************************************************************

Synopsis [Transfers the BDD from one manager into another level by level.]

Description [Transfers the BDD from one manager into another while preserving the correspondence between variables level by level.]

SideEffects [None]

SeeAlso []

Definition at line 112 of file extraBddMisc.c.

{
    DdNode * bRes;
    int * pPermute;
    int nMin, nMax, i;

    nMin = ddMin(ddSource->size, ddDestination->size);
    nMax = ddMax(ddSource->size, ddDestination->size);
    pPermute = ABC_ALLOC( int, nMax );
    // set up the variable permutation
    for ( i = 0; i < nMin; i++ )
        pPermute[ ddSource->invperm[i] ] = ddDestination->invperm[i];
    if ( ddSource->size > ddDestination->size )
    {
        for (      ; i < nMax; i++ )
            pPermute[ ddSource->invperm[i] ] = -1;
    }
    bRes = Extra_TransferPermute( ddSource, ddDestination, f, pPermute );
    ABC_FREE( pPermute );
    return bRes;
}

Here is the call graph for this function:

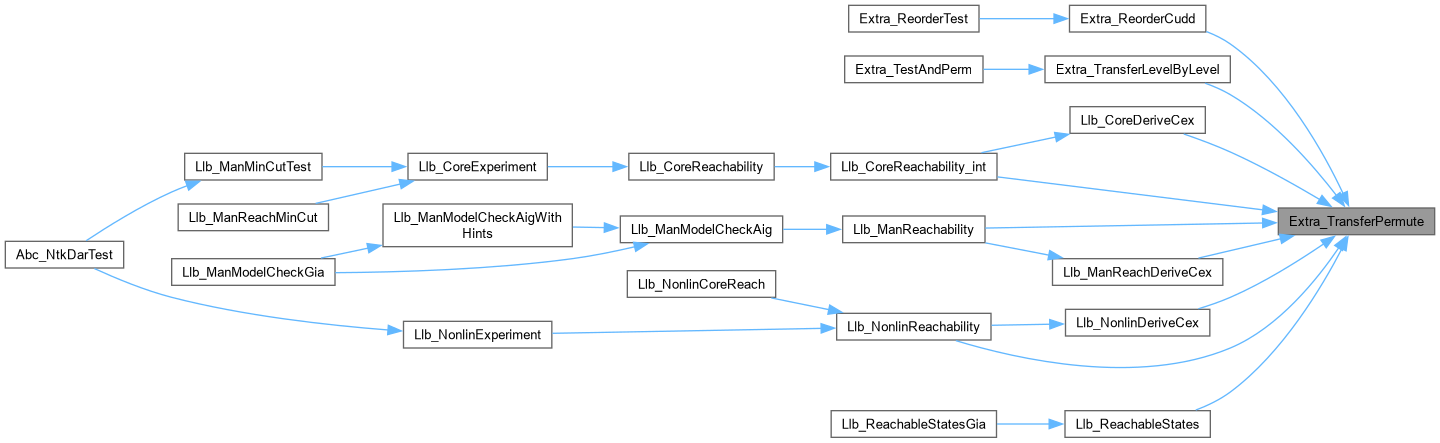

Here is the caller graph for this function:

◆ Extra_TransferPermute()

DdNode * Extra_TransferPermute	(	DdManager *	ddSource,
		DdManager *	ddDestination,
		DdNode *	f,
		int *	Permute )

AutomaticEnd Function********************************************************************

Synopsis [Convert a {A,B}DD from a manager to another with variable remapping.]

Description [Convert a {A,B}DD from a manager to another one. The orders of the variables in the two managers may be different. Returns a pointer to the {A,B}DD in the destination manager if successful; NULL otherwise. The i-th entry in the array Permute tells what is the index of the i-th variable from the old manager in the new manager.]

SideEffects [None]

SeeAlso []

Definition at line 87 of file extraBddMisc.c.

{
    DdNode * bRes;
    do
    {
        ddDestination->reordered = 0;
        bRes = extraTransferPermute( ddSource, ddDestination, f, Permute );
    }
    while ( ddDestination->reordered == 1 );
    return ( bRes );

}                               /* end of Extra_TransferPermute */

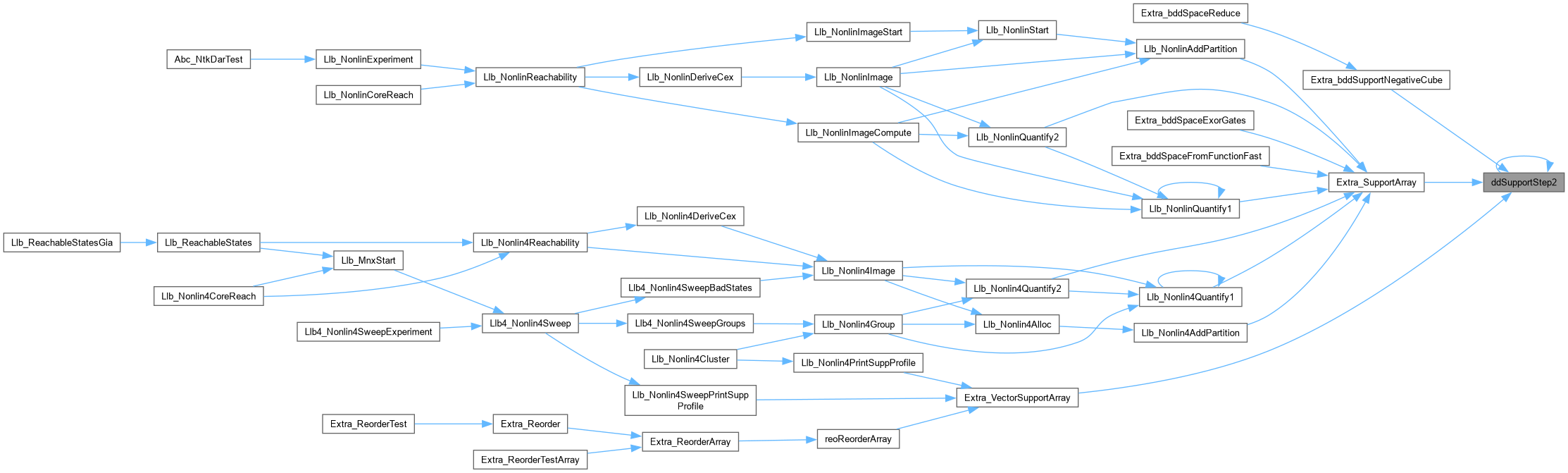

Here is the caller graph for this function:

◆ Extra_VectorSupportArray()

int * Extra_VectorSupportArray	(	DdManager *	dd,
		DdNode **	F,
		int	n,
		int *	support )

Function********************************************************************

Synopsis [Finds the variables on which a set of DDs depends.]

Description [Finds the variables on which a set of DDs depends. The set must contain either BDDs and ADDs, or ZDDs. Returns a BDD consisting of the product of the variables if successful; NULL otherwise.]

SideEffects [None]

SeeAlso [Cudd_Support Cudd_ClassifySupport]

Definition at line 572 of file extraBddMisc.c.

{
    int i, size;

    /* Allocate and initialize support array for ddSupportStep. */
    size = ddMax( dd->size, dd->sizeZ );
    for ( i = 0; i < size; i++ )
        support[i] = 0;

    /* Compute support and clean up markers. */
    for ( i = 0; i < n; i++ )
        ddSupportStep2( Cudd_Regular(F[i]), support );
    for ( i = 0; i < n; i++ )
        ddClearFlag2( Cudd_Regular(F[i]) );

    return support;
}

Here is the call graph for this function:

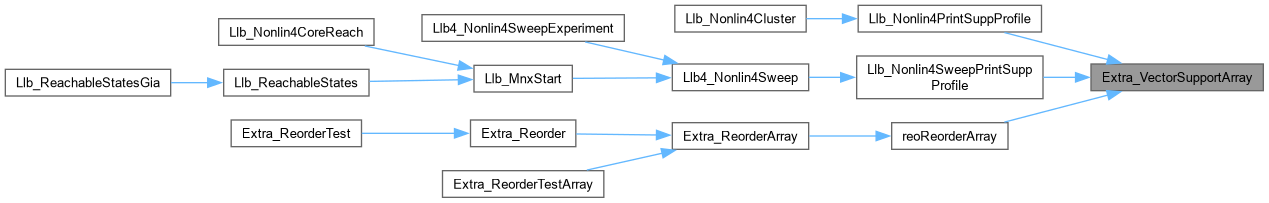

Here is the caller graph for this function:

◆ Extra_zddCombination()

DdNode * Extra_zddCombination	(	DdManager *	dd,
		int *	VarValues,
		int	nVars )

Function********************************************************************

Synopsis [Creates ZDD of the combination containing given variables.]

Description [Creates ZDD of the combination containing given variables. VarValues contains 1 for a variable that belongs to the combination and 0 for a varible that does not belong. nVars is number of ZDD variables in the array.]

SideEffects [New ZDD variables are created if indices of the variables present in the combination are larger than the currently allocated number of ZDD variables.]

SeeAlso []

Definition at line 2451 of file extraBddMisc.c.

{
    DdNode  *res;
    do {
    dd->reordered = 0;
    res = extraZddCombination(dd, VarValues, nVars);
    } while (dd->reordered == 1);
    return(res);

} /* end of Extra_zddCombination */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Extra_zddDumpPla()

void Extra_zddDumpPla	(	DdManager *	dd,
		DdNode *	F,
		int	nVars,
		char *	pFileName )

Function*************************************************************

Synopsis [Writes ZDD into a PLA file.]

Description []

SideEffects []

SeeAlso []

Definition at line 2307 of file extraBddMisc.c.

{
    DdGen *gen;
    char * pCube;
    int * pPath, i;
    FILE * pFile = fopen( pFileName, "wb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\" for writing.\n", pFileName );
        return;
    }
    fprintf( pFile, "# PLA file dumped by Extra_zddDumpPla() in ABC\n" );
    fprintf( pFile, ".i %d\n", nVars );
    fprintf( pFile, ".o 1\n" );
    pCube = ABC_CALLOC( char, dd->sizeZ );
    Cudd_zddForeachPath( dd, F, gen, pPath )
    {
        for ( i = 0; i < nVars; i++ )
            pCube[i] = '-';
        for ( i = 0; i < nVars; i++ )
            if ( pPath[2*i] == 1 || pPath[2*i+1] == 1 )
                pCube[i] = '0' + (pPath[2*i] == 1);
        fprintf( pFile, "%s 1\n", pCube );
    }
    fprintf( pFile, ".e\n\n" );
    fclose( pFile );
    ABC_FREE( pCube );
}

◆ Extra_zddPrimes()

DdNode * Extra_zddPrimes	(	DdManager *	dd,
		DdNode *	F )

Function********************************************************************

Synopsis [Computes the set of primes as a ZDD.]

Description []

SideEffects []

SeeAlso []

Definition at line 933 of file extraBddMisc.c.

{
    DdNode    *res;
    do {
        dd->reordered = 0;
        res = extraZddPrimes(dd, F);
        if ( dd->reordered == 1 )
            printf("\nReordering in Extra_zddPrimes()\n");
    } while (dd->reordered == 1);
    return(res);

} /* end of Extra_zddPrimes */

◆ Extra_zddRandomSet()

DdNode * Extra_zddRandomSet	(	DdManager *	dd,
		int	n,
		int	k,
		double	d )

Function********************************************************************

Synopsis [Generates a random set of combinations.]

Description [Given a set of n elements, each of which is encoded using one ZDD variable, this function generates a random set of k subsets (combinations of elements) with density d. Assumes that k and n are positive integers. Returns NULL if density is less than 0.0 or more than 1.0.]

SideEffects [Allocates new ZDD variables if their current number is less than n.]

SeeAlso []

Definition at line 2480 of file extraBddMisc.c.

{
    DdNode *Result, *TempComb, *Aux;
    int c, v, Limit, *VarValues;

    /* sanity check the parameters */
    if ( n <= 0 || k <= 0 || d < 0.0 || d > 1.0 )
        return NULL;

    /* allocate temporary storage for variable values */
    VarValues = ABC_ALLOC( int, n );
    if (VarValues == NULL)
    {
        dd->errorCode = CUDD_MEMORY_OUT;
        return NULL;
    }

    /* start the new set */
    Result = dd->zero;
    Cudd_Ref( Result );

    /* seed random number generator */
    Cudd_Srandom( time(NULL) );
//  Cudd_Srandom( 4 );
    /* determine the limit below which var belongs to the combination */
    Limit = (int)(d * 2147483561.0);

    /* add combinations one by one */
    for ( c = 0; c < k; c++ )
    {
        for ( v = 0; v < n; v++ )
            if ( Cudd_Random() <= Limit )
                VarValues[v] = 1;
            else
                VarValues[v] = 0;

        TempComb = Extra_zddCombination( dd, VarValues, n );
        Cudd_Ref( TempComb );

        /* make sure that this combination is not already in the set */
        if ( c )
        { /* at least one combination is already included */

            Aux = Cudd_zddDiff( dd, Result, TempComb );
            Cudd_Ref( Aux );
            if ( Aux != Result )
            {
                Cudd_RecursiveDerefZdd( dd, Aux );
                Cudd_RecursiveDerefZdd( dd, TempComb );
                c--;
                continue;
            }
            else
            { /* Aux is the same node as Result */
                Cudd_Deref( Aux );
            }
        }

        Result = Cudd_zddUnion( dd, Aux = Result, TempComb );
        Cudd_Ref( Result );
        Cudd_RecursiveDerefZdd( dd, Aux );
        Cudd_RecursiveDerefZdd( dd, TempComb );
    }

    ABC_FREE( VarValues );
    Cudd_Deref( Result );
    return Result;

} /* end of Extra_zddRandomSet */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Extra_ZddTest()

void Extra_ZddTest ( )

Function********************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 2565 of file extraBddMisc.c.

{
    int N  = 64;
    int K0 = 1000;
    int i, Size;
    DdManager * dd = Cudd_Init( 0, 32, CUDD_UNIQUE_SLOTS, CUDD_CACHE_SLOTS, 0 );
    for ( i = 1; i <= 10; i++ )
    {
        int K = K0 * i;
        DdNode * zRandSet = Extra_zddRandomSet( dd, N, K, 0.5 );  Cudd_Ref(zRandSet);
        Size = Cudd_zddDagSize(zRandSet);
        //Cudd_zddPrintMinterm( dd, zRandSet );
        printf( "N = %5d  K = %5d  BddSize = %6d   MemBdd = %8.3f MB   MemBit = %8.3f MB   Ratio = %8.3f %%\n",
            N, K, Size, 20.0*Size/(1<<20), 0.125 * N * K /(1<<20), 100.0*(0.125 * N * K)/(20.0*Size) );
        Cudd_RecursiveDerefZdd( dd, zRandSet );
    }
    Cudd_Quit(dd);
}

Here is the call graph for this function:

◆ extraBddChangePolarity()

DdNode * extraBddChangePolarity	(	DdManager *	dd,
		DdNode *	bFunc,
		DdNode *	bVars )

Function********************************************************************

Synopsis [Performs the reordering-sensitive step of Extra_bddChangePolarity().]

Description []

SideEffects []

SeeAlso []

Definition at line 2041 of file extraBddMisc.c.

{
    DdNode * bRes;

    if ( bVars == b1 )
        return bFunc;
    if ( Cudd_IsConstant(bFunc) )
        return bFunc;

    if ( (bRes = cuddCacheLookup2(dd, extraBddChangePolarity, bFunc, bVars)) )
        return bRes;
    else
    {
        DdNode * bFR = Cudd_Regular(bFunc);
        int LevelF   = dd->perm[bFR->index];
        int LevelV   = dd->perm[bVars->index];

        if ( LevelV < LevelF )
            bRes = extraBddChangePolarity( dd, bFunc, cuddT(bVars) );
        else // if ( LevelF <= LevelV )
        {
            DdNode * bRes0, * bRes1;
            DdNode * bF0, * bF1;
            DdNode * bVarsNext;

            // cofactor the functions
            if ( bFR != bFunc ) // bFunc is complemented
            {
                bF0 = Cudd_Not( cuddE(bFR) );
                bF1 = Cudd_Not( cuddT(bFR) );
            }
            else
            {
                bF0 = cuddE(bFR);
                bF1 = cuddT(bFR);
            }

            if ( LevelF == LevelV )
                bVarsNext = cuddT(bVars);
            else
                bVarsNext = bVars;

            bRes0 = extraBddChangePolarity( dd, bF0, bVarsNext );
            if ( bRes0 == NULL )
                return NULL;
            cuddRef( bRes0 );

            bRes1 = extraBddChangePolarity( dd, bF1, bVarsNext );
            if ( bRes1 == NULL )
            {
                Cudd_RecursiveDeref( dd, bRes0 );
                return NULL;
            }
            cuddRef( bRes1 );

            if ( LevelF == LevelV )
            { // swap the cofactors
                DdNode * bTemp;
                bTemp = bRes0;
                bRes0 = bRes1;
                bRes1 = bTemp;
            }

            /* only aRes0 and aRes1 are referenced at this point */

            /* consider the case when Res0 and Res1 are the same node */
            if ( bRes0 == bRes1 )
                bRes = bRes1;
            /* consider the case when Res1 is complemented */
            else if ( Cudd_IsComplement(bRes1) )
            {
                bRes = cuddUniqueInter(dd, bFR->index, Cudd_Not(bRes1), Cudd_Not(bRes0));
                if ( bRes == NULL )
                {
                    Cudd_RecursiveDeref(dd,bRes0);
                    Cudd_RecursiveDeref(dd,bRes1);
                    return NULL;
                }
                bRes = Cudd_Not(bRes);
            }
            else
            {
                bRes = cuddUniqueInter( dd, bFR->index, bRes1, bRes0 );
                if ( bRes == NULL )
                {
                    Cudd_RecursiveDeref(dd,bRes0);
                    Cudd_RecursiveDeref(dd,bRes1);
                    return NULL;
                }
            }
            cuddDeref( bRes0 );
            cuddDeref( bRes1 );
        }

        /* insert the result into cache */
        cuddCacheInsert2(dd, extraBddChangePolarity, bFunc, bVars, bRes);
        return bRes;
    }
} /* end of extraBddChangePolarity */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ extraBddMove()

DdNode * extraBddMove	(	DdManager *	dd,
		DdNode *	bF,
		DdNode *	bDist )

Function********************************************************************

Synopsis [Performs the reordering-sensitive step of Extra_bddMove().]

Description []

SideEffects []

SeeAlso []

Definition at line 1128 of file extraBddMisc.c.

{
    DdNode * bRes;

    if ( Cudd_IsConstant(bF) )
        return bF;

    if ( (bRes = cuddCacheLookup2(dd, extraBddMove, bF, bDist)) )
        return bRes;
    else
    {
        DdNode * bRes0, * bRes1;
        DdNode * bF0, * bF1;
        DdNode * bFR = Cudd_Regular(bF);
        int VarNew;

        if ( Cudd_IsComplement(bDist) )
            VarNew = bFR->index - Cudd_Not(bDist)->index;
        else
            VarNew = bFR->index + bDist->index;
        assert( VarNew < dd->size );

        // cofactor the functions
        if ( bFR != bF ) // bFunc is complemented
        {
            bF0 = Cudd_Not( cuddE(bFR) );
            bF1 = Cudd_Not( cuddT(bFR) );
        }
        else
        {
            bF0 = cuddE(bFR);
            bF1 = cuddT(bFR);
        }

        bRes0 = extraBddMove( dd, bF0, bDist );
        if ( bRes0 == NULL )
            return NULL;
        cuddRef( bRes0 );

        bRes1 = extraBddMove( dd, bF1, bDist );
        if ( bRes1 == NULL )
        {
            Cudd_RecursiveDeref( dd, bRes0 );
            return NULL;
        }
        cuddRef( bRes1 );

        /* only bRes0 and bRes1 are referenced at this point */
        bRes = cuddBddIteRecur( dd, dd->vars[VarNew], bRes1, bRes0 );
        if ( bRes == NULL )
        {
            Cudd_RecursiveDeref( dd, bRes0 );
            Cudd_RecursiveDeref( dd, bRes1 );
            return NULL;
        }
        cuddRef( bRes );
        Cudd_RecursiveDeref( dd, bRes0 );
        Cudd_RecursiveDeref( dd, bRes1 );

        /* insert the result into cache */
        cuddCacheInsert2( dd, extraBddMove, bF, bDist, bRes );
        cuddDeref( bRes );
        return bRes;
    }
} /* end of extraBddMove */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ extraBddTuples()

DdNode * extraBddTuples	(	DdManager *	dd,
		DdNode *	bVarsK,
		DdNode *	bVarsN )

Function********************************************************************

Synopsis [Performs the reordering-sensitive step of Extra_bddTuples().]

Description [Generates in a bottom-up fashion BDD for all combinations composed of k variables out of variables belonging to bVarsN.]

SideEffects []

SeeAlso []

Definition at line 2597 of file extraBddMisc.c.

{
    DdNode *bRes, *bRes0, *bRes1;
    statLine(dd);

    /* terminal cases */
/*  if ( k < 0 || k > n )
 *      return dd->zero;
 *  if ( n == 0 )
 *      return dd->one;
 */
    if ( cuddI( dd, bVarsK->index ) < cuddI( dd, bVarsN->index ) )
        return b0;
    if ( bVarsN == b1 )
        return b1;

    /* check cache */
    bRes = cuddCacheLookup2(dd, extraBddTuples, bVarsK, bVarsN);
    if (bRes)
        return(bRes);

    /* ZDD in which is variable is 0 */
/*  bRes0 = extraBddTuples( dd, k,     n-1 ); */
    bRes0 = extraBddTuples( dd, bVarsK, cuddT(bVarsN) );
    if ( bRes0 == NULL )
        return NULL;
    cuddRef( bRes0 );

    /* ZDD in which is variable is 1 */
/*  bRes1 = extraBddTuples( dd, k-1,          n-1 ); */
    if ( bVarsK == b1 )
    {
        bRes1 = b0;
        cuddRef( bRes1 );
    }
    else
    {
        bRes1 = extraBddTuples( dd, cuddT(bVarsK), cuddT(bVarsN) );
        if ( bRes1 == NULL )
        {
            Cudd_RecursiveDeref( dd, bRes0 );
            return NULL;
        }
        cuddRef( bRes1 );
    }

    /* consider the case when Res0 and Res1 are the same node */
    if ( bRes0 == bRes1 )
        bRes = bRes1;
    /* consider the case when Res1 is complemented */
    else if ( Cudd_IsComplement(bRes1) )
    {
        bRes = cuddUniqueInter(dd, bVarsN->index, Cudd_Not(bRes1), Cudd_Not(bRes0));
        if ( bRes == NULL )
        {
            Cudd_RecursiveDeref(dd,bRes0);
            Cudd_RecursiveDeref(dd,bRes1);
            return NULL;
        }
        bRes = Cudd_Not(bRes);
    }
    else
    {
        bRes = cuddUniqueInter( dd, bVarsN->index, bRes1, bRes0 );
        if ( bRes == NULL )
        {
            Cudd_RecursiveDeref(dd,bRes0);
            Cudd_RecursiveDeref(dd,bRes1);
            return NULL;
        }
    }
    cuddDeref( bRes0 );
    cuddDeref( bRes1 );

    /* insert the result into cache */
    cuddCacheInsert2(dd, extraBddTuples, bVarsK, bVarsN, bRes);
    return bRes;

} /* end of extraBddTuples */

Here is the call graph for this function:

Here is the caller graph for this function:

◆ extraComposeCover()

DdNode * extraComposeCover	(	DdManager *	dd,
		DdNode *	zC0,
		DdNode *	zC1,
		DdNode *	zC2,
		int	TopVar )

Function********************************************************************

Synopsis [Composed three subcovers into one ZDD.]

Description []

SideEffects [None]

SeeAlso []

Definition at line 1754 of file extraBddMisc.c.

{
    DdNode * zRes, * zTemp;
    /* compose with-neg-var and without-var using the neg ZDD var */
    zTemp = cuddZddGetNode( dd, 2*TopVar + 1, zC0, zC2 );
    if ( zTemp == NULL )
    {
        Cudd_RecursiveDerefZdd(dd, zC0);
        Cudd_RecursiveDerefZdd(dd, zC1);
        Cudd_RecursiveDerefZdd(dd, zC2);
        return NULL;
    }
    cuddRef( zTemp );
    cuddDeref( zC0 );
    cuddDeref( zC2 );

    /* compose with-pos-var and previous result using the pos ZDD var */
    zRes = cuddZddGetNode( dd, 2*TopVar, zC1, zTemp );
    if ( zRes == NULL )
    {
        Cudd_RecursiveDerefZdd(dd, zC1);
        Cudd_RecursiveDerefZdd(dd, zTemp);
        return NULL;
    }
    cuddDeref( zC1 );
    cuddDeref( zTemp );
    return zRes;
} /* extraComposeCover */

◆ extraDecomposeCover()

void extraDecomposeCover	(	DdManager *	dd,
		DdNode *	zC,
		DdNode **	zC0,
		DdNode **	zC1,
		DdNode **	zC2 )

Function********************************************************************

Synopsis [Finds three cofactors of the cover w.r.t. to the topmost variable.]

Description [Finds three cofactors of the cover w.r.t. to the topmost variable. Does not check the cover for being a constant. Assumes that ZDD variables encoding positive and negative polarities are adjacent in the variable order. Is different from cuddZddGetCofactors3() in that it does not compute the cofactors w.r.t. the given variable but takes the cofactors with respent to the topmost variable. This function is more efficient when used in recursive procedures because it does not require referencing of the resulting cofactors (compare cuddZddProduct() and extraZddPrimeProduct()).]

SideEffects [None]

SeeAlso [cuddZddGetCofactors3]

Definition at line 1217 of file extraBddMisc.c.

{
    if ( (zC->index & 1) == 0 )
    { /* the top variable is present in positive polarity and maybe in negative */

        DdNode *Temp = cuddE( zC );
        *zC1  = cuddT( zC );
        if ( cuddIZ(dd,Temp->index) == cuddIZ(dd,zC->index) + 1 )
        {   /* Temp is not a terminal node
             * top var is present in negative polarity */
            *zC2 = cuddE( Temp );
            *zC0 = cuddT( Temp );
        }
        else
        {   /* top var is not present in negative polarity */
            *zC2 = Temp;
            *zC0 = dd->zero;
        }
    }
    else
    { /* the top variable is present only in negative */
        *zC1 = dd->zero;
        *zC2 = cuddE( zC );
        *zC0 = cuddT( zC );
    }
} /* extraDecomposeCover */

◆ extraZddCombination()

DdNode * extraZddCombination	(	DdManager *	dd,
		int *	VarValues,
		int	nVars )

Function********************************************************************

Synopsis [Performs the reordering-sensitive step of Extra_zddCombination().]

Description [Generates in a bottom-up fashion ZDD for one combination whose var values are given in the array VarValues. If necessary, creates new variables on the fly.]

SideEffects []

SeeAlso []

Definition at line 2399 of file extraBddMisc.c.

{
    int lev, index;
    DdNode *zRes, *zTemp;

    /* transform the combination from the array VarValues into a ZDD cube. */
    zRes = dd->one;
    cuddRef(zRes);

    /*  go through levels starting bottom-up and create nodes
     *  if these variables are present in the comb
     */
    for (lev = nVars - 1; lev >= 0; lev--)
    {
        index = (lev >= dd->sizeZ) ? lev : dd->invpermZ[lev];
        if (VarValues[index] == 1)
        {
            /* compose zRes with ZERO for the given ZDD variable */
            zRes = cuddZddGetNode( dd, index, zTemp = zRes, dd->zero );
            if ( zRes == NULL )
            {
                Cudd_RecursiveDerefZdd( dd, zTemp );
                return NULL;
            }
            cuddRef( zRes );
            cuddDeref( zTemp );
        }
    }
    cuddDeref( zRes );
    return zRes;

} /* end of extraZddCombination */

Here is the caller graph for this function:

Functions

Function Documentation

◆ ddClearFlag2()

◆ ddSupportStep2()

◆ Extra_bddAndPermute()

◆ Extra_bddBitsToCube()

◆ Extra_bddChangePolarity()

◆ Extra_bddComputeCube()

◆ Extra_bddComputeRangeCube()

◆ Extra_bddCountCubes()

◆ Extra_bddCreateAnd()

◆ Extra_bddCreateExor()

◆ Extra_bddCreateOr()

◆ Extra_bddFindOneCube()

◆ Extra_bddGetOneCube()

◆ Extra_bddIsVar()

◆ Extra_bddMove()

◆ Extra_bddPermuteArray()

◆ Extra_bddPrint()

◆ Extra_bddPrintSupport()

◆ Extra_bddRemapUp()

◆ Extra_bddSuppCheckContainment()

◆ Extra_bddSuppContainVar()

◆ Extra_bddSuppDifferentVars()

◆ Extra_bddSupportNegativeCube()

◆ Extra_bddSuppOverlapping()

◆ Extra_bddSuppSize()

◆ Extra_bddTuples()

◆ Extra_bddVarIsInCube()

◆ Extra_GraphExperiment()

◆ Extra_StopManager()

◆ Extra_SupportArray()

◆ Extra_TestAndPerm()

◆ Extra_TransferLevelByLevel()

◆ Extra_TransferPermute()

◆ Extra_VectorSupportArray()

◆ Extra_zddCombination()

◆ Extra_zddDumpPla()

◆ Extra_zddPrimes()

◆ Extra_zddRandomSet()

◆ Extra_ZddTest()

◆ extraBddChangePolarity()

◆ extraBddMove()

◆ extraBddTuples()

◆ extraComposeCover()

◆ extraDecomposeCover()

◆ extraZddCombination()
