fsimFront.c File Reference

#include "fsimInt.h"

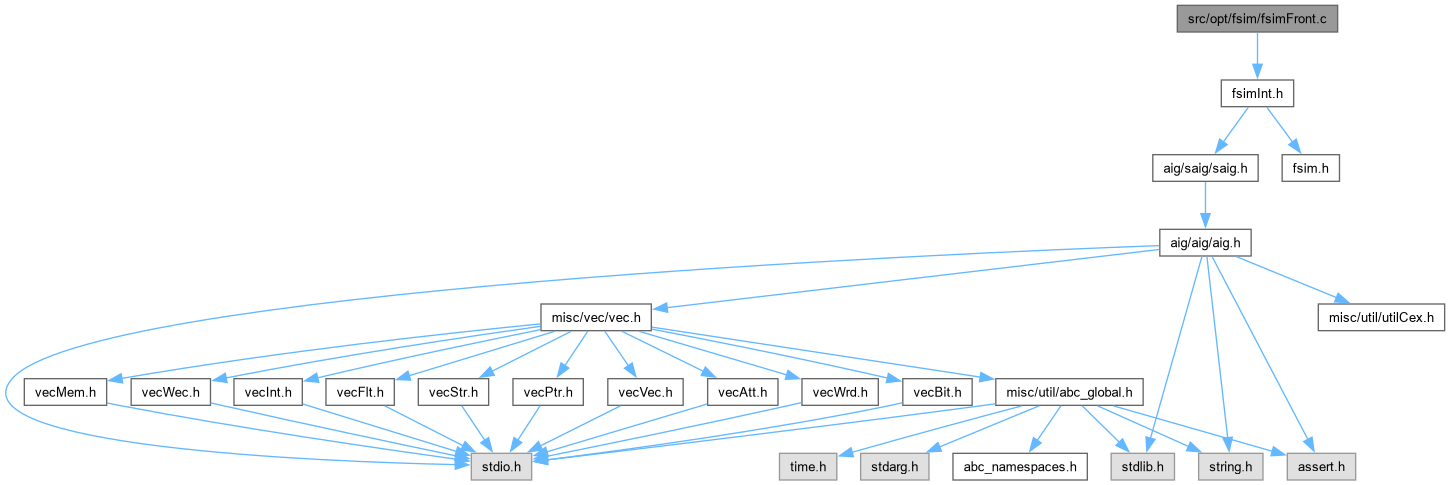

Include dependency graph for fsimFront.c:

Go to the source code of this file.

Functions
void	Fsim_ManVerifyFront (Fsim_Man_t *p)
void	Fsim_ManFront (Fsim_Man_t *p, int fCompressAig)
	FUNCTION DECLARATIONS ///.

Function Documentation

Fsim_ManFront()

void Fsim_ManFront	(	Fsim_Man_t *	p,
		int	fCompressAig )

FUNCTION DECLARATIONS ///.

Function*************************************************************

Synopsis [Determine the frontier.]

Description []

SideEffects []

SeeAlso []

Definition at line 245 of file fsimFront.c.

{
    Fsim_Obj_t Obj, * pObj = &Obj;
    char * pFront;    // places used for the frontier
    int * pIdToFront; // mapping of nodes into frontier places
    int i, iVar0, iVar1, nCrossCut = 0, nCrossCutMax = 0;
    // start the frontier
    pFront = ABC_CALLOC( char, p->nFront );
    pIdToFront = ABC_ALLOC( int, p->nObjs );
    pIdToFront[0] = -1;
    pIdToFront[1] = -1;
    // add constant node
    p->iNumber = 1;
    if ( p->pRefs[1] )
    {
        pIdToFront[1] = Fsim_ManFrontFindNext( p, pFront );
        nCrossCut = 1;
    }
    // allocate room for data
    if ( fCompressAig )
    {
        p->nDataAig = p->nObjs * 6;
        p->pDataAig = ABC_ALLOC( unsigned char, p->nDataAig );
        p->pDataCur = p->pDataAig;
        p->iNodePrev = 0;
    }
    else
    {
        p->pDataAig2 = ABC_ALLOC( int, 3 * p->nObjs );
        p->pDataCur2 = p->pDataAig2 + 6;
    }
    // iterate through the objects
    for ( i = 2; i < p->nObjs; i++ )
    {
        if ( p->pFans0[i] == 0 ) // ci
        {
            // store node
            pIdToFront[i] = Fsim_ManFrontFindNext( p, pFront );
            pObj->iNode = pIdToFront[i];
            pObj->iFan0 = 0;
            pObj->iFan1 = 0;
            Fsim_ManStoreObj( p, pObj );
            // handle CIs without fanout
            if ( p->pRefs[i] == 0 )
            {
                pFront[pIdToFront[i] % p->nFront] = 0;
                pIdToFront[i] = -1;
            }
        }
        else if ( p->pFans1[i] == 0 ) // co
        {
            assert( p->pRefs[i] == 0 );
            // get the fanin
            iVar0 = Fsim_Lit2Var(p->pFans0[i]);
            assert( pIdToFront[iVar0] > 0 );
            // store node
            pObj->iNode = 0;
            pObj->iFan0 = Fsim_Var2Lit(pIdToFront[iVar0], Fsim_LitIsCompl(p->pFans0[i]));
            pObj->iFan1 = 0;
            Fsim_ManStoreObj( p, pObj );
            // deref the fanin
            if ( --p->pRefs[iVar0] == 0 )
            {
                pFront[pIdToFront[iVar0] % p->nFront] = 0;
                pIdToFront[iVar0] = -1;
                nCrossCut--;
            }
        }
        else
        {
            // get the fanins
            iVar0 = Fsim_Lit2Var(p->pFans0[i]);
            assert( pIdToFront[iVar0] > 0 );
            iVar1 = Fsim_Lit2Var(p->pFans1[i]);
            assert( pIdToFront[iVar1] > 0 );
            // store node
            pIdToFront[i] = Fsim_ManFrontFindNext( p, pFront );
            pObj->iNode = pIdToFront[i];
            pObj->iFan0 = Fsim_Var2Lit(pIdToFront[iVar0], Fsim_LitIsCompl(p->pFans0[i]));
            pObj->iFan1 = Fsim_Var2Lit(pIdToFront[iVar1], Fsim_LitIsCompl(p->pFans1[i]));
            Fsim_ManStoreObj( p, pObj );
            // deref the fanins
            if ( --p->pRefs[iVar0] == 0 )
            {
                pFront[pIdToFront[iVar0] % p->nFront] = 0;
                pIdToFront[iVar0] = -1;
                nCrossCut--;
            }
            if ( --p->pRefs[iVar1] == 0 )
            {
                pFront[pIdToFront[iVar1] % p->nFront] = 0;
                pIdToFront[iVar1] = -1;
                nCrossCut--;
            }
            // handle nodes without fanout (choice nodes)
            if ( p->pRefs[i] == 0 )
            {
                pFront[pIdToFront[i] % p->nFront] = 0;
                pIdToFront[i] = -1;
            }
        }
        if ( p->pRefs[i] )
            if ( nCrossCutMax < ++nCrossCut )
                nCrossCutMax = nCrossCut;
    }
    assert( p->pDataAig2 == NULL || p->pDataCur2 - p->pDataAig2 == (3 * p->nObjs) );
    assert( nCrossCut == 0 );
    assert( nCrossCutMax == p->nCrossCutMax );
    for ( i = 0; i < p->nFront; i++ )
        assert( pFront[i] == 0 );
    ABC_FREE( pFront );
    ABC_FREE( pIdToFront );
//    Fsim_ManVerifyFront( p );
    ABC_FREE( p->pFans0 );
    ABC_FREE( p->pFans1 );
    ABC_FREE( p->pRefs );
}

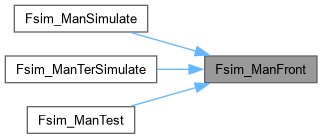

Here is the caller graph for this function:

Fsim_ManVerifyFront()

void Fsim_ManVerifyFront

(

Fsim_Man_t *

p

)

Function*************************************************************

Synopsis [Verifies the frontier.]

Description []

SideEffects []

SeeAlso []

Definition at line 202 of file fsimFront.c.

{
    Fsim_Obj_t * pObj;
    int * pFans0, * pFans1;  // representation of fanins
    int * pFrontToId;        // mapping of nodes into frontier variables
    int i, iVar0, iVar1;
    pFans0 = ABC_ALLOC( int, p->nObjs );
    pFans1 = ABC_ALLOC( int, p->nObjs );
    pFans0[0] = pFans1[0] = 0;
    pFans0[1] = pFans1[1] = 0;
    pFrontToId = ABC_CALLOC( int, p->nFront );
    if ( Aig_ObjRefs(Aig_ManConst1(p->pAig)) )
        pFrontToId[1] = 1;
    Fsim_ManForEachObj( p, pObj, i )
    {
        if ( pObj->iNode )
            pFrontToId[pObj->iNode % p->nFront] = i;
        iVar0 = Fsim_Lit2Var(pObj->iFan0);
        iVar1 = Fsim_Lit2Var(pObj->iFan1);
        pFans0[i] = Fsim_Var2Lit(pFrontToId[iVar0 % p->nFront], Fsim_LitIsCompl(pObj->iFan0));
        pFans1[i] = Fsim_Var2Lit(pFrontToId[iVar1 % p->nFront], Fsim_LitIsCompl(pObj->iFan1));
    }
    for ( i = 0; i < p->nObjs; i++ )
    {
        assert( pFans0[i] == p->pFans0[i] );
        assert( pFans1[i] == p->pFans1[i] );
    }
    ABC_FREE( pFrontToId );
    ABC_FREE( pFans0 );
    ABC_FREE( pFans1 );
}
