gimpel.c File Reference
#include "mincov_int.h"

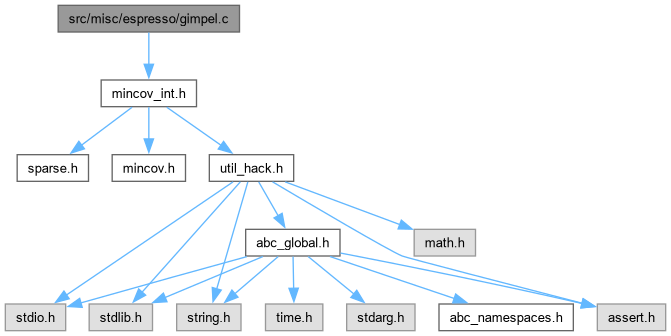

Include dependency graph for gimpel.c:

Go to the source code of this file.

Functions

ABC_NAMESPACE_IMPL_START int gimpel_reduce (sm_matrix *A, solution_t *select, int *weight, int lb, int bound, int depth, stats_t *stats, solution_t **best)


Function Documentation

◆ gimpel_reduce()

ABC_NAMESPACE_IMPL_START int gimpel_reduce ( sm_matrix * A,
solution_t * select,
int * weight,
int lb,
int bound,
int depth,
stats_t * stats,
solution_t ** best )

Definition at line 30 of file gimpel.c.

39{
40 register sm_row *prow, *save_sec;
41 register sm_col *c1 = NULL, *c2 = NULL; // Suppress "might be used uninitialized"
42 register sm_element *p, *p1;
43 int c1_col_num, c2_col_num;
44 int primary_row_num = -1, secondary_row_num = -1; // Suppress "might be used uninitialized"
45 int reduce_it;
46
47 reduce_it = 0;
48 for(prow = A->first_row; prow != 0; prow = prow->next_row) {
49 if (prow->length == 2) {
50 c1 = sm_get_col(A, prow->first_col->col_num);
51 c2 = sm_get_col(A, prow->last_col->col_num);
52 if (c1->length == 2) {
53 reduce_it = 1;
54 } else if (c2->length == 2) {
55 c1 = sm_get_col(A, prow->last_col->col_num);
56 c2 = sm_get_col(A, prow->first_col->col_num);
57 reduce_it = 1;
58 }
59 if (reduce_it) {
60 primary_row_num = prow->row_num;
61 secondary_row_num = c1->first_row->row_num;
62 if (secondary_row_num == primary_row_num) {
63 secondary_row_num = c1->last_row->row_num;
64 }
65 break;
66 }
67 }
68 }
69
70 if (reduce_it) {
71 c1_col_num = c1->col_num;
72 c2_col_num = c2->col_num;
73 save_sec = sm_row_dup(sm_get_row(A, secondary_row_num));
74 sm_row_remove(save_sec, c1_col_num);
75
76 for(p = c2->first_row; p != 0; p = p->next_row) {
77 if (p->row_num != primary_row_num) {
78 /* merge rows S1 and T */
79 for(p1 = save_sec->first_col; p1 != 0; p1 = p1->next_col) {
80 (void) sm_insert(A, p->row_num, p1->col_num);
81 }
82 }
83 }
84
85 sm_delcol(A, c1_col_num);
86 sm_delcol(A, c2_col_num);
87 sm_delrow(A, primary_row_num);
88 sm_delrow(A, secondary_row_num);
89
90 stats->gimpel_count++;
91 stats->gimpel++;
92 *best = sm_mincov(A, select, weight, lb-1, bound-1, depth, stats);
93 stats->gimpel--;
94
95 if (*best != NIL(solution_t)) {
96 /* is secondary row covered ? */
97 if (sm_row_intersects(save_sec, (*best)->row)) {
98 /* yes, actually select c2 */
99 solution_add(*best, weight, c2_col_num);
100 } else {
101 solution_add(*best, weight, c1_col_num);
102 }
103 }
104
105 sm_row_free(save_sec);
106 return 1;
107 } else {
108 return 0;
109 }
110}
#define NIL(type)
Definition avl.h:25
Cube * p
Definition exorList.c:222
void solution_add()
struct solution_struct solution_t
Definition mincov_int.h:35
solution_t * sm_mincov()
typedefABC_NAMESPACE_HEADER_START struct sm_element_struct sm_element
Definition sparse.h:21
struct sm_col_struct sm_col
Definition sparse.h:23
void sm_delcol()
void sm_row_remove()
int sm_row_intersects()
#define sm_get_row(A, rownum)
Definition sparse.h:93
void sm_row_free()
void sm_delrow()
sm_element * sm_insert()
struct sm_row_struct sm_row
Definition sparse.h:22
sm_row * sm_row_dup()
#define sm_get_col(A, colnum)
Definition sparse.h:89
int col_num
Definition sparse.h:60
sm_element * first_row
Definition sparse.h:63
sm_element * last_row
Definition sparse.h:64
sm_row * first_row
Definition sparse.h:79
sm_element * first_col
Definition sparse.h:48
int row_num
Definition sparse.h:45
sm_element * last_col
Definition sparse.h:49
sm_row * next_row
Definition sparse.h:50

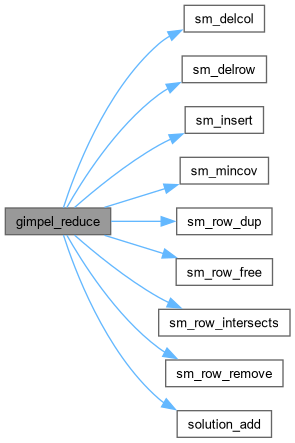

Here is the call graph for this function:
