hopCheck.c File Reference

#include "hop.h"

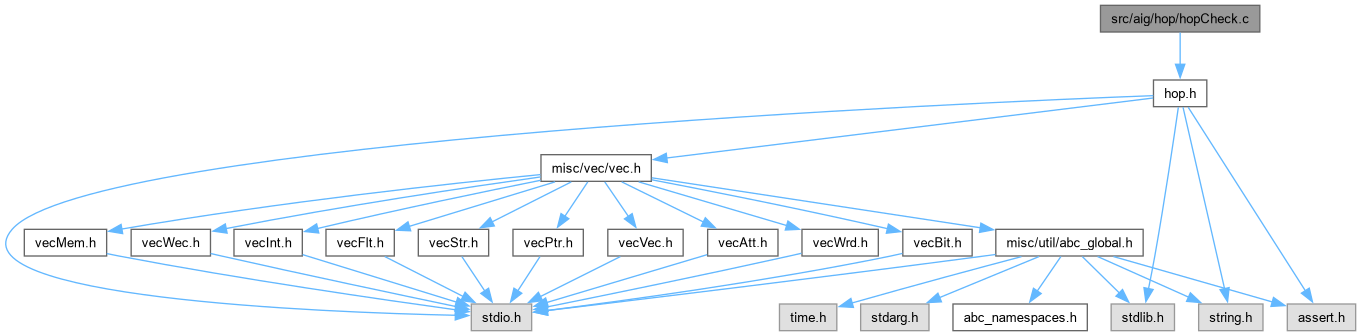

Include dependency graph for hopCheck.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Hop_ManCheck (Hop_Man_t *p)
	DECLARATIONS ///.

Function Documentation

Hop_ManCheck()

ABC_NAMESPACE_IMPL_START int Hop_ManCheck

(

Hop_Man_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [hopCheck.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Minimalistic And-Inverter Graph package.]

Synopsis [AIG checking procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - May 11, 2006.]

Revision [

Id

hopCheck.c,v 1.00 2006/05/11 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Checks the consistency of the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file hopCheck.c.

{
    Hop_Obj_t * pObj, * pObj2;
    int i;
    // check primary inputs
    Hop_ManForEachPi( p, pObj, i )
    {
        if ( Hop_ObjFanin0(pObj) || Hop_ObjFanin1(pObj) )
        {
            printf( "Hop_ManCheck: The PI node \"%p\" has fanins.\n", pObj );
            return 0;
        }
    }
    // check primary outputs
    Hop_ManForEachPo( p, pObj, i )
    {
        if ( !Hop_ObjFanin0(pObj) )
        {
            printf( "Hop_ManCheck: The PO node \"%p\" has NULL fanin.\n", pObj );
            return 0;
        }
        if ( Hop_ObjFanin1(pObj) )
        {
            printf( "Hop_ManCheck: The PO node \"%p\" has second fanin.\n", pObj );
            return 0;
        }
    }
    // check internal nodes
    Hop_ManForEachNode( p, pObj, i )
    {
        if ( !Hop_ObjFanin0(pObj) || !Hop_ObjFanin1(pObj) )
        {
            printf( "Hop_ManCheck: The AIG has internal node \"%p\" with a NULL fanin.\n", pObj );
            return 0;
        }
        if ( Hop_ObjFanin0(pObj)->Id >= Hop_ObjFanin1(pObj)->Id )
        {
            printf( "Hop_ManCheck: The AIG has node \"%p\" with a wrong ordering of fanins.\n", pObj );
            return 0;
        }
        pObj2 = Hop_TableLookup( p, pObj );
        if ( pObj2 != pObj )
        {
            printf( "Hop_ManCheck: Node \"%p\" is not in the structural hashing table.\n", pObj );
            return 0;
        }
    }
    // count the total number of nodes
    if ( Hop_ManObjNum(p) != 1 + Hop_ManPiNum(p) + Hop_ManPoNum(p) + Hop_ManAndNum(p) + Hop_ManExorNum(p) )
    {
        printf( "Hop_ManCheck: The number of created nodes is wrong.\n" );
        return 0;
    }
    // count the number of nodes in the table
    if ( Hop_TableCountEntries(p) != Hop_ManAndNum(p) + Hop_ManExorNum(p) )
    {
        printf( "Hop_ManCheck: The number of nodes in the structural hashing table is wrong.\n" );
        return 0;
    }
//    if ( !Hop_ManIsAcyclic(p) )
//        return 0;
    return 1;
}

Here is the call graph for this function:

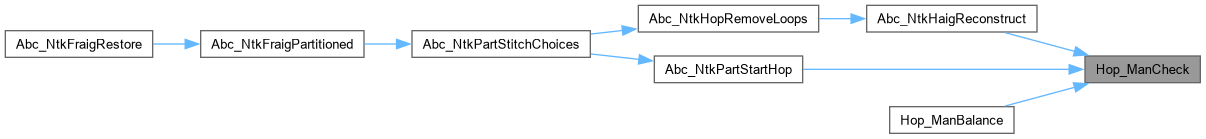

Here is the caller graph for this function:
