#include "hop.h"

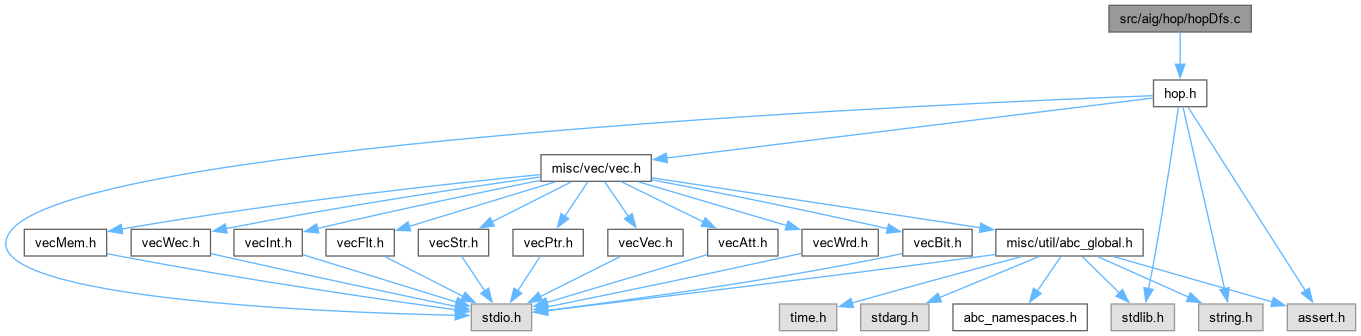

Include dependency graph for hopDfs.c:

Functions
ABC_NAMESPACE_IMPL_START void	Hop_ManDfs_rec (Hop_Obj_t pObj, Vec_Ptr_t vNodes)
	DECLARATIONS ///.

Vec_Ptr_t *	Hop_ManDfs (Hop_Man_t *p)

Vec_Ptr_t *	Hop_ManDfsNode (Hop_Man_t p, Hop_Obj_t pNode)

int	Hop_ManCountLevels (Hop_Man_t *p)

void	Hop_ManCreateRefs (Hop_Man_t *p)

void	Hop_ConeMark_rec (Hop_Obj_t *pObj)

void	Hop_ConeCleanAndMark_rec (Hop_Obj_t *pObj)

int	Hop_ConeCountAndMark_rec (Hop_Obj_t *pObj)

void	Hop_ConeUnmark_rec (Hop_Obj_t *pObj)

int	Hop_DagSize (Hop_Obj_t *pObj)

int	Hop_ObjFanoutCount_rec (Hop_Obj_t pObj, Hop_Obj_t pPivot)

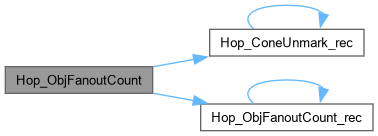

int	Hop_ObjFanoutCount (Hop_Obj_t pObj, Hop_Obj_t pPivot)

void	Hop_Transfer_rec (Hop_Man_t pDest, Hop_Obj_t pObj)

Hop_Obj_t *	Hop_Transfer (Hop_Man_t pSour, Hop_Man_t pDest, Hop_Obj_t *pRoot, int nVars)

void	Hop_Compose_rec (Hop_Man_t p, Hop_Obj_t pObj, Hop_Obj_t pFunc, Hop_Obj_t pVar)

Hop_Obj_t *	Hop_Compose (Hop_Man_t p, Hop_Obj_t pRoot, Hop_Obj_t *pFunc, int iVar)

void	Hop_Complement_rec (Hop_Man_t p, Hop_Obj_t pObj, Hop_Obj_t *pVar)

Hop_Obj_t *	Hop_Complement (Hop_Man_t p, Hop_Obj_t pRoot, int iVar)

void	Hop_Remap_rec (Hop_Man_t p, Hop_Obj_t pObj)

Hop_Obj_t *	Hop_Remap (Hop_Man_t p, Hop_Obj_t pRoot, unsigned uSupp, int nVars)

Hop_Obj_t *	Hop_Permute (Hop_Man_t p, Hop_Obj_t pRoot, int nRootVars, int *pPermute)

Function Documentation

◆ Hop_Complement()

Hop_Obj_t * Hop_Complement	(	Hop_Man_t *	p,
		Hop_Obj_t *	pRoot,
		int	iVar )

Function*************************************************************

Synopsis [Complements the AIG (pRoot) with the function (pFunc) using PI var (iVar).]

Description []

SideEffects []

SeeAlso []

Definition at line 469 of file hopDfs.c.

{
    // quit if the PI variable is not defined
    if ( iVar >= Hop_ManPiNum(p) )
    {
        printf( "Hop_Complement(): The PI variable %d is not defined.\n", iVar );
        return NULL;
    }
    // recursively perform composition
    Hop_Complement_rec( p, Hop_Regular(pRoot), Hop_ManPi(p, iVar) );
    // clear the markings
    Hop_ConeUnmark_rec( Hop_Regular(pRoot) );
    return Hop_NotCond( (Hop_Obj_t *)Hop_Regular(pRoot)->pData, Hop_IsComplement(pRoot) );
}

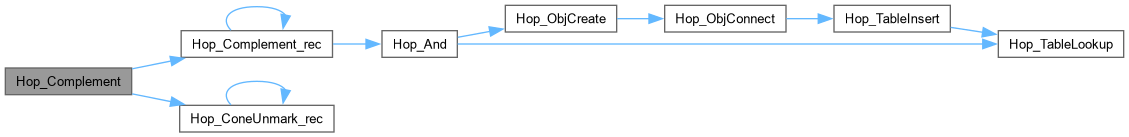

Here is the call graph for this function:

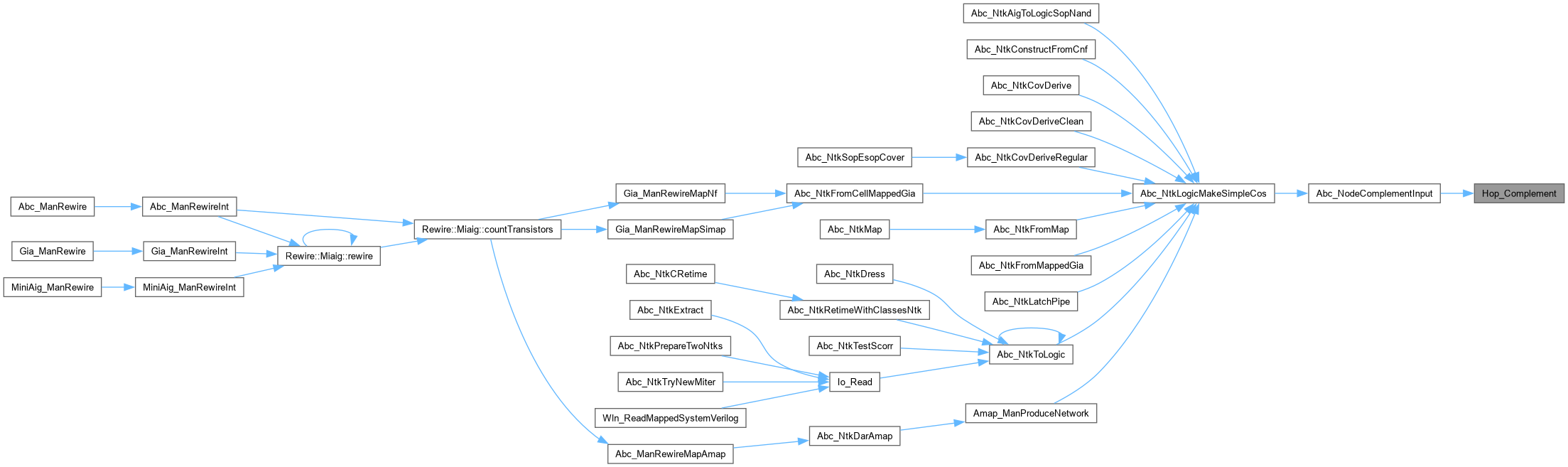

Here is the caller graph for this function:

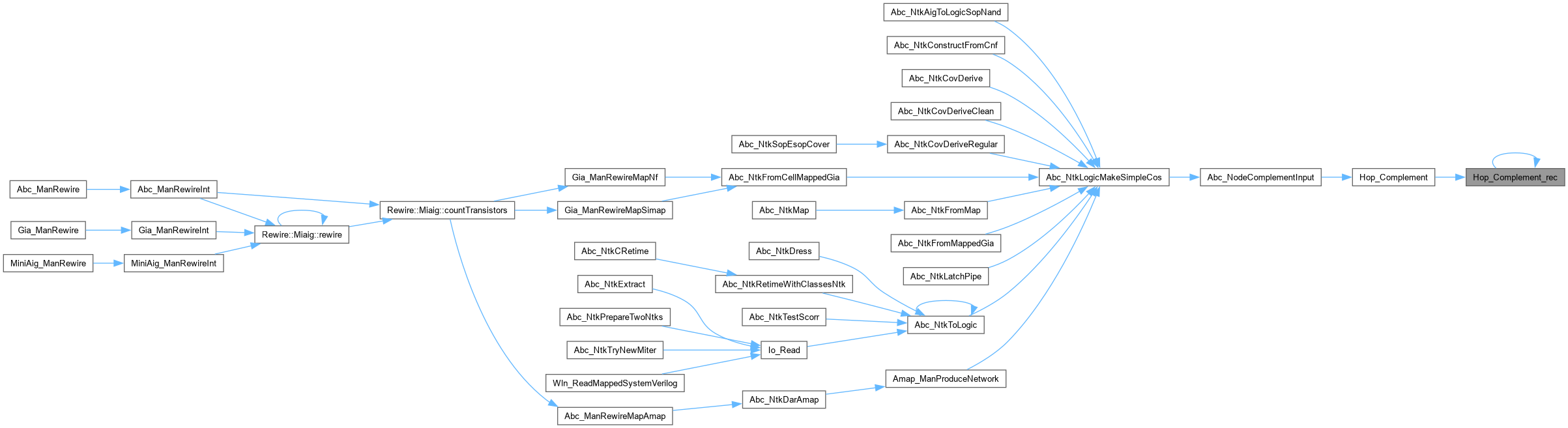

◆ Hop_Complement_rec()

void Hop_Complement_rec	(	Hop_Man_t *	p,
		Hop_Obj_t *	pObj,
		Hop_Obj_t *	pVar )

Function*************************************************************

Synopsis [Complements the AIG (pRoot) with the function (pFunc) using PI var (iVar).]

Description []

SideEffects []

SeeAlso []

Definition at line 441 of file hopDfs.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( Hop_ObjIsMarkA(pObj) )
        return;
    if ( Hop_ObjIsConst1(pObj) || Hop_ObjIsPi(pObj) )
    {
        pObj->pData = pObj == pVar ? Hop_Not(pObj) : pObj;
        return;
    }
    Hop_Complement_rec( p, Hop_ObjFanin0(pObj), pVar );
    Hop_Complement_rec( p, Hop_ObjFanin1(pObj), pVar );
    pObj->pData = Hop_And( p, Hop_ObjChild0Copy(pObj), Hop_ObjChild1Copy(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hop_Compose()

Hop_Obj_t * Hop_Compose	(	Hop_Man_t *	p,
		Hop_Obj_t *	pRoot,
		Hop_Obj_t *	pFunc,
		int	iVar )

Function*************************************************************

Synopsis [Composes the AIG (pRoot) with the function (pFunc) using PI var (iVar).]

Description []

SideEffects []

SeeAlso []

Definition at line 415 of file hopDfs.c.

{
    // quit if the PI variable is not defined
    if ( iVar >= Hop_ManPiNum(p) )
    {
        printf( "Hop_Compose(): The PI variable %d is not defined.\n", iVar );
        return NULL;
    }
    // recursively perform composition
    Hop_Compose_rec( p, Hop_Regular(pRoot), pFunc, Hop_ManPi(p, iVar) );
    // clear the markings
    Hop_ConeUnmark_rec( Hop_Regular(pRoot) );
    return Hop_NotCond( (Hop_Obj_t *)Hop_Regular(pRoot)->pData, Hop_IsComplement(pRoot) );
}

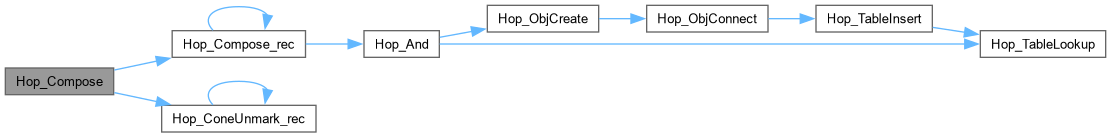

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hop_Compose_rec()

void Hop_Compose_rec	(	Hop_Man_t *	p,
		Hop_Obj_t *	pObj,
		Hop_Obj_t *	pFunc,
		Hop_Obj_t *	pVar )

Function*************************************************************

Synopsis [Composes the AIG (pRoot) with the function (pFunc) using PI var (iVar).]

Description []

SideEffects []

SeeAlso []

Definition at line 387 of file hopDfs.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( Hop_ObjIsMarkA(pObj) )
        return;
    if ( Hop_ObjIsConst1(pObj) || Hop_ObjIsPi(pObj) )
    {
        pObj->pData = pObj == pVar ? pFunc : pObj;
        return;
    }
    Hop_Compose_rec( p, Hop_ObjFanin0(pObj), pFunc, pVar );
    Hop_Compose_rec( p, Hop_ObjFanin1(pObj), pFunc, pVar );
    pObj->pData = Hop_And( p, Hop_ObjChild0Copy(pObj), Hop_ObjChild1Copy(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hop_ConeCleanAndMark_rec()

void Hop_ConeCleanAndMark_rec ( Hop_Obj_t * pObj )

Function*************************************************************

Synopsis [Counts the number of AIG nodes rooted at this cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 210 of file hopDfs.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return;
    Hop_ConeCleanAndMark_rec( Hop_ObjFanin0(pObj) );
    Hop_ConeCleanAndMark_rec( Hop_ObjFanin1(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
    pObj->pData = NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

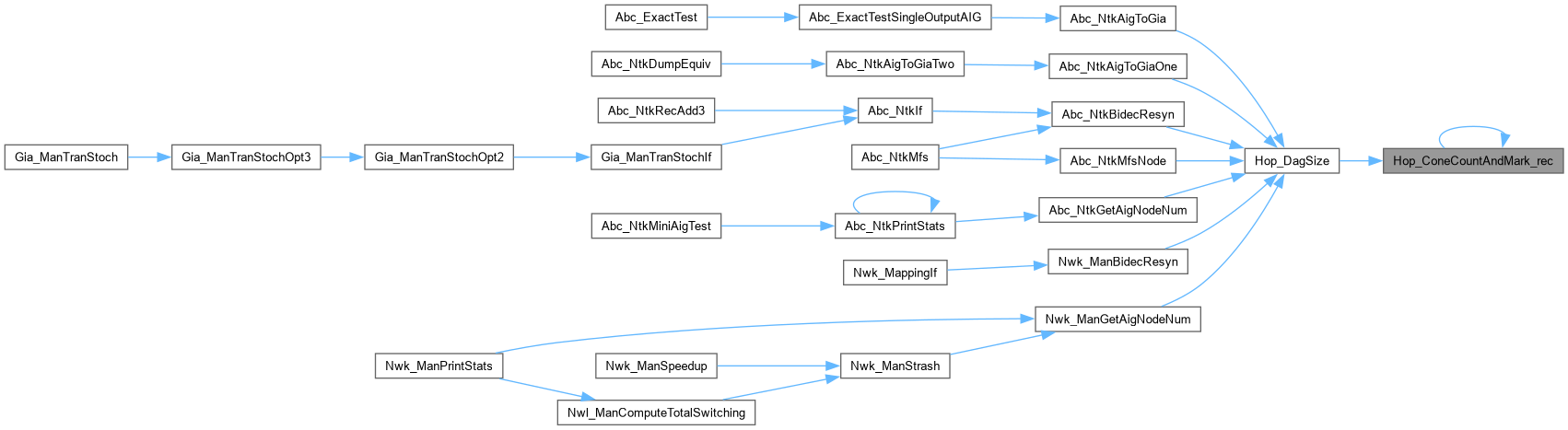

◆ Hop_ConeCountAndMark_rec()

int Hop_ConeCountAndMark_rec ( Hop_Obj_t * pObj )

Function*************************************************************

Synopsis [Counts the number of AIG nodes rooted at this cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 233 of file hopDfs.c.

{
    int Counter;
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return 0;
    Counter = 1 + Hop_ConeCountAndMark_rec( Hop_ObjFanin0(pObj) ) +
        Hop_ConeCountAndMark_rec( Hop_ObjFanin1(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hop_ConeMark_rec()

void Hop_ConeMark_rec ( Hop_Obj_t * pObj )

Function*************************************************************

Synopsis [Counts the number of AIG nodes rooted at this cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 188 of file hopDfs.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return;
    Hop_ConeMark_rec( Hop_ObjFanin0(pObj) );
    Hop_ConeMark_rec( Hop_ObjFanin1(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

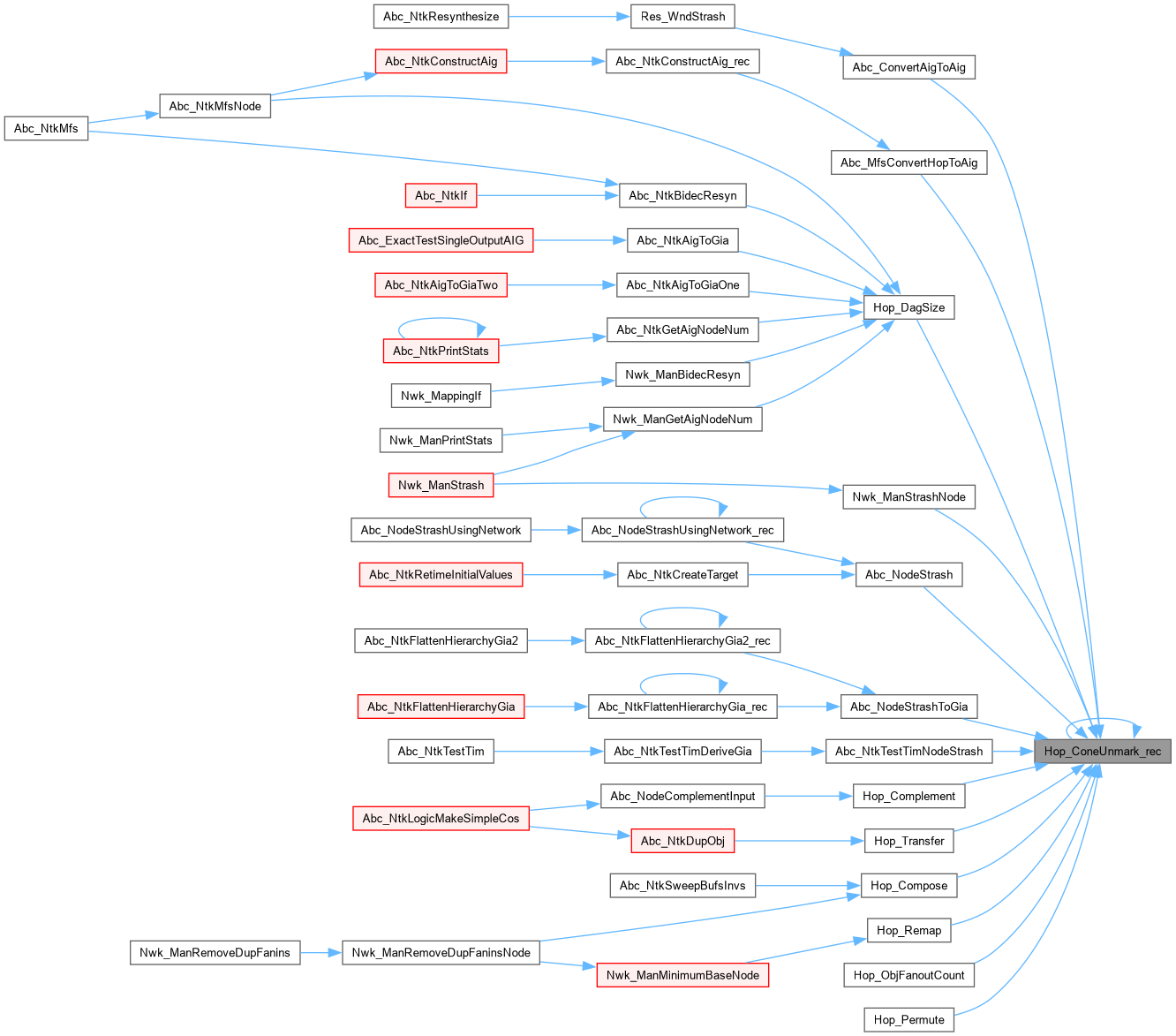

◆ Hop_ConeUnmark_rec()

void Hop_ConeUnmark_rec ( Hop_Obj_t * pObj )

Function*************************************************************

Synopsis [Counts the number of AIG nodes rooted at this cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 257 of file hopDfs.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || !Hop_ObjIsMarkA(pObj) )
        return;
    Hop_ConeUnmark_rec( Hop_ObjFanin0(pObj) );
    Hop_ConeUnmark_rec( Hop_ObjFanin1(pObj) );
    assert( Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjClearMarkA( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

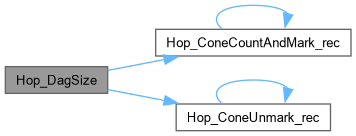

◆ Hop_DagSize()

int Hop_DagSize ( Hop_Obj_t * pObj )

Function*************************************************************

Synopsis [Counts the number of AIG nodes rooted at this cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 279 of file hopDfs.c.

{
    int Counter;
    Counter = Hop_ConeCountAndMark_rec( Hop_Regular(pObj) );
    Hop_ConeUnmark_rec( Hop_Regular(pObj) );
    return Counter;
}

Here is the call graph for this function:

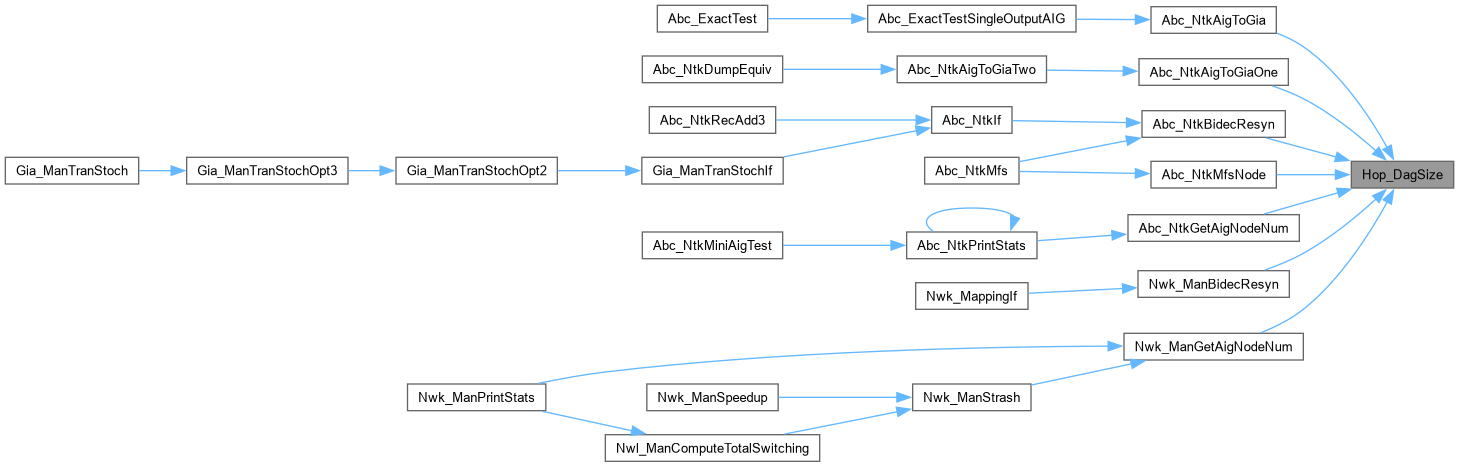

Here is the caller graph for this function:

◆ Hop_ManCountLevels()

int Hop_ManCountLevels ( Hop_Man_t * p )

Function*************************************************************

Synopsis [Computes the max number of levels in the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 116 of file hopDfs.c.

{
    Vec_Ptr_t * vNodes;
    Hop_Obj_t * pObj;
    int i, LevelsMax, Level0, Level1;
    // initialize the levels
    Hop_ManConst1(p)->pData = NULL;
    Hop_ManForEachPi( p, pObj, i )
        pObj->pData = NULL;
    // compute levels in a DFS order
    vNodes = Hop_ManDfs( p );
    Vec_PtrForEachEntry( Hop_Obj_t *, vNodes, pObj, i )
    {
        Level0 = (int)(ABC_PTRUINT_T)Hop_ObjFanin0(pObj)->pData;
        Level1 = (int)(ABC_PTRUINT_T)Hop_ObjFanin1(pObj)->pData;
        pObj->pData = (void *)(ABC_PTRUINT_T)(1 + Hop_ObjIsExor(pObj) + Abc_MaxInt(Level0, Level1));
    }
    Vec_PtrFree( vNodes );
    // get levels of the POs
    LevelsMax = 0;
    Hop_ManForEachPo( p, pObj, i )
        LevelsMax = Abc_MaxInt( LevelsMax, (int)(ABC_PTRUINT_T)Hop_ObjFanin0(pObj)->pData );
    return LevelsMax;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hop_ManCreateRefs()

void Hop_ManCreateRefs ( Hop_Man_t * p )

Function*************************************************************

Synopsis [Creates correct reference counters at each node.]

Description []

SideEffects []

SeeAlso []

Definition at line 152 of file hopDfs.c.

{
    Hop_Obj_t * pObj;
    int i;
    if ( p->fRefCount )
        return;
    p->fRefCount = 1;
    // clear refs
    Hop_ObjClearRef( Hop_ManConst1(p) );
    Hop_ManForEachPi( p, pObj, i )
        Hop_ObjClearRef( pObj );
    Hop_ManForEachNode( p, pObj, i )
        Hop_ObjClearRef( pObj );
    Hop_ManForEachPo( p, pObj, i )
        Hop_ObjClearRef( pObj );
    // set refs
    Hop_ManForEachNode( p, pObj, i )
    {
        Hop_ObjRef( Hop_ObjFanin0(pObj) );
        Hop_ObjRef( Hop_ObjFanin1(pObj) );
    }
    Hop_ManForEachPo( p, pObj, i )
        Hop_ObjRef( Hop_ObjFanin0(pObj) );
}

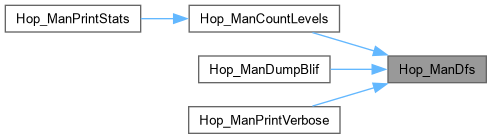

◆ Hop_ManDfs()

Vec_Ptr_t * Hop_ManDfs ( Hop_Man_t * p )

Function*************************************************************

Synopsis [Collects internal nodes in the DFS order.]

Description []

SideEffects []

SeeAlso []

Definition at line 68 of file hopDfs.c.

{
    Vec_Ptr_t * vNodes;
    Hop_Obj_t * pObj;
    int i;
    vNodes = Vec_PtrAlloc( Hop_ManNodeNum(p) );
    Hop_ManForEachNode( p, pObj, i )
        Hop_ManDfs_rec( pObj, vNodes );
    Hop_ManForEachNode( p, pObj, i )
        Hop_ObjClearMarkA(pObj);
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

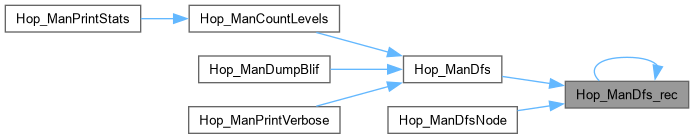

◆ Hop_ManDfs_rec()

ABC_NAMESPACE_IMPL_START void Hop_ManDfs_rec	(	Hop_Obj_t *	pObj,
		Vec_Ptr_t *	vNodes )

DECLARATIONS ///.

CFile****************************************************************

FileName [hopDfs.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Minimalistic And-Inverter Graph package.]

Synopsis [DFS traversal procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - May 11, 2006.]

Revision [

Id: hopDfs.c,v 1.00 2006/05/11 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Collects internal nodes in the DFS order.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file hopDfs.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return;
    Hop_ManDfs_rec( Hop_ObjFanin0(pObj), vNodes );
    Hop_ManDfs_rec( Hop_ObjFanin1(pObj), vNodes );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA(pObj);
    Vec_PtrPush( vNodes, pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hop_ManDfsNode()

Vec_Ptr_t * Hop_ManDfsNode	(	Hop_Man_t *	p,
		Hop_Obj_t *	pNode )

Function*************************************************************

Synopsis [Collects internal nodes in the DFS order.]

Description []

SideEffects []

SeeAlso []

Definition at line 92 of file hopDfs.c.

{
    Vec_Ptr_t * vNodes;
    Hop_Obj_t * pObj;
    int i;
    assert( !Hop_IsComplement(pNode) );
    vNodes = Vec_PtrAlloc( 16 );
    Hop_ManDfs_rec( pNode, vNodes );
    Vec_PtrForEachEntry( Hop_Obj_t *, vNodes, pObj, i )
        Hop_ObjClearMarkA(pObj);
    return vNodes;
}

Here is the call graph for this function:

◆ Hop_ObjFanoutCount()

int Hop_ObjFanoutCount	(	Hop_Obj_t *	pObj,
		Hop_Obj_t *	pPivot )

Definition at line 310 of file hopDfs.c.

{
    int Counter;
    assert( !Hop_IsComplement(pPivot) );
    Counter = Hop_ObjFanoutCount_rec( Hop_Regular(pObj), pPivot );
    Hop_ConeUnmark_rec( Hop_Regular(pObj) );
    return Counter;
}

Here is the call graph for this function:

◆ Hop_ObjFanoutCount_rec()

int Hop_ObjFanoutCount_rec	(	Hop_Obj_t *	pObj,
		Hop_Obj_t *	pPivot )

Function*************************************************************

Synopsis [Counts how many fanout the given node has.]

Description []

SideEffects []

SeeAlso []

Definition at line 298 of file hopDfs.c.

{
    int Counter;
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return (int)(pObj == pPivot);
    Counter = Hop_ObjFanoutCount_rec( Hop_ObjFanin0(pObj), pPivot ) +
              Hop_ObjFanoutCount_rec( Hop_ObjFanin1(pObj), pPivot );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hop_Permute()

Hop_Obj_t * Hop_Permute	(	Hop_Man_t *	p,
		Hop_Obj_t *	pRoot,
		int	nRootVars,
		int *	pPermute )

Function*************************************************************

Synopsis [Permute the AIG according to the given permutation.]

Description []

SideEffects []

SeeAlso []

Definition at line 563 of file hopDfs.c.

{
    Hop_Obj_t * pObj;
    int i;
    // return if constant
    if ( Hop_ObjIsConst1( Hop_Regular(pRoot) ) )
        return pRoot;
    // create mapping
    Hop_ManForEachPi( p, pObj, i )
    {
        if ( i == nRootVars )
            break;
        assert( pPermute[i] >= 0 && pPermute[i] < Hop_ManPiNum(p) );
        pObj->pData = Hop_IthVar( p, pPermute[i] );
    }
    // recursively perform composition
    Hop_Remap_rec( p, Hop_Regular(pRoot) );
    // clear the markings
    Hop_ConeUnmark_rec( Hop_Regular(pRoot) );
    return Hop_NotCond( (Hop_Obj_t *)Hop_Regular(pRoot)->pData, Hop_IsComplement(pRoot) );
}

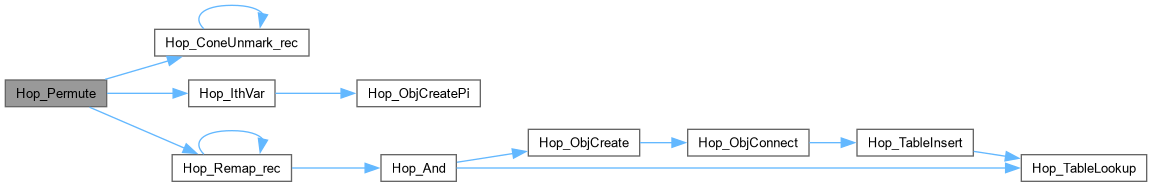

Here is the call graph for this function:

◆ Hop_Remap()

Hop_Obj_t * Hop_Remap	(	Hop_Man_t *	p,
		Hop_Obj_t *	pRoot,
		unsigned	uSupp,
		int	nVars )

Function*************************************************************

Synopsis [Remaps the AIG (pRoot) to have the given support (uSupp).]

Description []

SideEffects []

SeeAlso []

Definition at line 518 of file hopDfs.c.

{
    Hop_Obj_t * pObj;
    int i, k;
    // quit if the PI variable is not defined
    if ( nVars > Hop_ManPiNum(p) )
    {
        printf( "Hop_Remap(): The number of variables (%d) is more than the manager size (%d).\n", nVars, Hop_ManPiNum(p) );
        return NULL;
    }
    // return if constant
    if ( Hop_ObjIsConst1( Hop_Regular(pRoot) ) )
        return pRoot;
    if ( uSupp == 0 )
        return Hop_NotCond( Hop_ManConst0(p), Hop_ObjPhaseCompl(pRoot) );
    // set the PI mapping
    k = 0;
    Hop_ManForEachPi( p, pObj, i )
    {
        if ( i == nVars )
           break;
        if ( uSupp & (1 << i) )
            pObj->pData = Hop_IthVar(p, k++);
        else
            pObj->pData = Hop_ManConst0(p);
    }
    assert( k > 0 && k < nVars );
    // recursively perform composition
    Hop_Remap_rec( p, Hop_Regular(pRoot) );
    // clear the markings
    Hop_ConeUnmark_rec( Hop_Regular(pRoot) );
    return Hop_NotCond( (Hop_Obj_t *)Hop_Regular(pRoot)->pData, Hop_IsComplement(pRoot) );
}

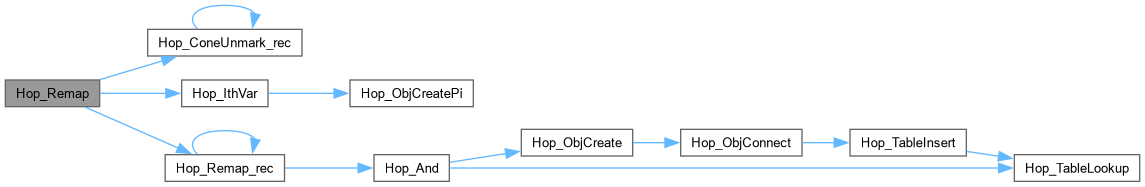

Here is the call graph for this function:

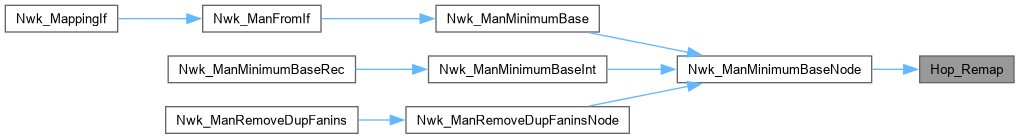

Here is the caller graph for this function:

◆ Hop_Remap_rec()

void Hop_Remap_rec	(	Hop_Man_t *	p,
		Hop_Obj_t *	pObj )

Function*************************************************************

Synopsis [Remaps the AIG (pRoot) to have the given support (uSupp).]

Description []

SideEffects []

SeeAlso []

Definition at line 495 of file hopDfs.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return;
    Hop_Remap_rec( p, Hop_ObjFanin0(pObj) );
    Hop_Remap_rec( p, Hop_ObjFanin1(pObj) );
    pObj->pData = Hop_And( p, Hop_ObjChild0Copy(pObj), Hop_ObjChild1Copy(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
}

Here is the call graph for this function:

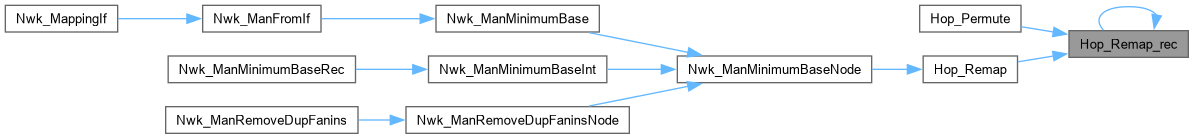

Here is the caller graph for this function:

◆ Hop_Transfer()

Hop_Obj_t * Hop_Transfer	(	Hop_Man_t *	pSour,
		Hop_Man_t *	pDest,
		Hop_Obj_t *	pRoot,
		int	nVars )

Function*************************************************************

Synopsis [Transfers the AIG from one manager into another.]

Description []

SideEffects []

SeeAlso []

Definition at line 353 of file hopDfs.c.

{
    Hop_Obj_t * pObj;
    int i;
    // solve simple cases
    if ( pSour == pDest )
        return pRoot;
    if ( Hop_ObjIsConst1( Hop_Regular(pRoot) ) )
        return Hop_NotCond( Hop_ManConst1(pDest), Hop_IsComplement(pRoot) );
    // set the PI mapping
    Hop_ManForEachPi( pSour, pObj, i )
    {
        if ( i == nVars )
           break;
        pObj->pData = Hop_IthVar(pDest, i);
    }
    // transfer and set markings
    Hop_Transfer_rec( pDest, Hop_Regular(pRoot) );
    // clear the markings
    Hop_ConeUnmark_rec( Hop_Regular(pRoot) );
    return Hop_NotCond( (Hop_Obj_t *)Hop_Regular(pRoot)->pData, Hop_IsComplement(pRoot) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hop_Transfer_rec()

void Hop_Transfer_rec	(	Hop_Man_t *	pDest,
		Hop_Obj_t *	pObj )

Function*************************************************************

Synopsis [Transfers the AIG from one manager into another.]

Description []

SideEffects []

SeeAlso []

Definition at line 330 of file hopDfs.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return;
    Hop_Transfer_rec( pDest, Hop_ObjFanin0(pObj) );
    Hop_Transfer_rec( pDest, Hop_ObjFanin1(pObj) );
    pObj->pData = Hop_And( pDest, Hop_ObjChild0Copy(pObj), Hop_ObjChild1Copy(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Functions

Function Documentation

◆ Hop_Complement()

◆ Hop_Complement_rec()

◆ Hop_Compose()

◆ Hop_Compose_rec()

◆ Hop_ConeCleanAndMark_rec()

◆ Hop_ConeCountAndMark_rec()

◆ Hop_ConeMark_rec()

◆ Hop_ConeUnmark_rec()

◆ Hop_DagSize()

◆ Hop_ManCountLevels()

◆ Hop_ManCreateRefs()

◆ Hop_ManDfs()

◆ Hop_ManDfs_rec()

◆ Hop_ManDfsNode()

◆ Hop_ObjFanoutCount()

◆ Hop_ObjFanoutCount_rec()

◆ Hop_Permute()

◆ Hop_Remap()

◆ Hop_Remap_rec()

◆ Hop_Transfer()

◆ Hop_Transfer_rec()
