hopMan.c File Reference

#include "hop.h"

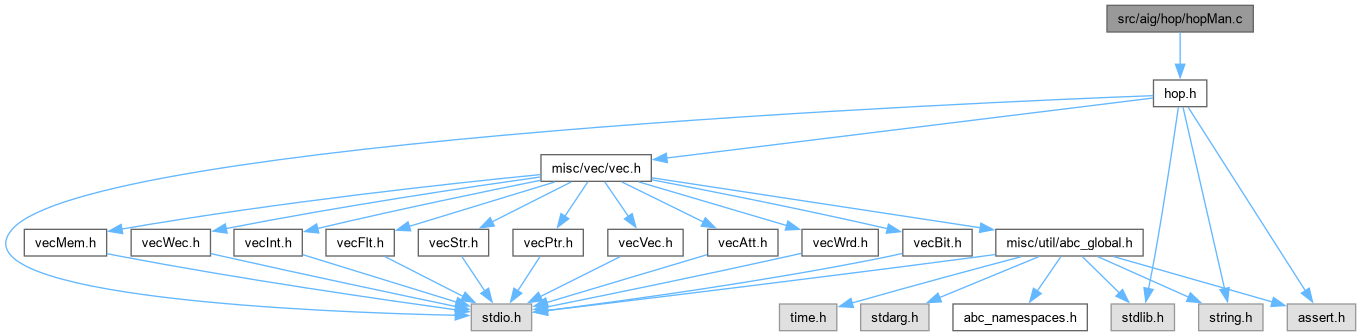

Include dependency graph for hopMan.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Hop_Man_t *	Hop_ManStart ()
	DECLARATIONS ///.
void	Hop_ManStop (Hop_Man_t *p)
int	Hop_ManCleanup (Hop_Man_t *p)
void	Hop_ManPrintStats (Hop_Man_t *p)

Function Documentation

Hop_ManCleanup()

int Hop_ManCleanup

(

Hop_Man_t *

p

)

Function*************************************************************

Synopsis [Returns the number of dangling nodes removed.]

Description []

SideEffects []

SeeAlso []

Definition at line 120 of file hopMan.c.

{
    Vec_Ptr_t * vObjs;
    Hop_Obj_t * pNode;
    int i, nNodesOld;
    assert( p->fRefCount );
    nNodesOld = Hop_ManNodeNum(p);
    // collect roots of dangling nodes
    vObjs = Vec_PtrAlloc( 100 );
    Hop_ManForEachNode( p, pNode, i )
        if ( Hop_ObjRefs(pNode) == 0 )
            Vec_PtrPush( vObjs, pNode );
    // recursively remove dangling nodes
    Vec_PtrForEachEntry( Hop_Obj_t *, vObjs, pNode, i )
        Hop_ObjDelete_rec( p, pNode );
    Vec_PtrFree( vObjs );
    return nNodesOld - Hop_ManNodeNum(p);
}

Here is the call graph for this function:

Hop_ManPrintStats()

void Hop_ManPrintStats

(

Hop_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 150 of file hopMan.c.

{
    printf( "PI/PO = %d/%d. ", Hop_ManPiNum(p), Hop_ManPoNum(p) );
    printf( "A = %7d. ",       Hop_ManAndNum(p) );
    printf( "X = %5d. ",       Hop_ManExorNum(p) );
    printf( "Cre = %7d. ",     p->nCreated );
    printf( "Del = %7d. ",     p->nDeleted );
    printf( "Lev = %3d. ",     Hop_ManCountLevels(p) );
    printf( "\n" );
}

Here is the call graph for this function:

Hop_ManStart()

ABC_NAMESPACE_IMPL_START Hop_Man_t * Hop_ManStart

(

)

DECLARATIONS ///.

CFile****************************************************************

FileName [hopMan.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Minimalistic And-Inverter Graph package.]

Synopsis [AIG manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - May 11, 2006.]

Revision [

Id

hopMan.c,v 1.00 2006/05/11 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Starts the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file hopMan.c.

{
    Hop_Man_t * p;
    // start the manager
    p = ABC_ALLOC( Hop_Man_t, 1 );
    memset( p, 0, sizeof(Hop_Man_t) );
    // perform initializations
    p->nTravIds = 1;
    p->fRefCount = 1;
    p->fCatchExor = 0;
    // allocate arrays for nodes
    p->vPis = Vec_PtrAlloc( 100 );
    p->vPos = Vec_PtrAlloc( 100 );
    // prepare the internal memory manager
    Hop_ManStartMemory( p );
    // create the constant node
    p->pConst1 = Hop_ManFetchMemory( p );
    p->pConst1->Type = AIG_CONST1;
    p->pConst1->fPhase = 1;
    p->nCreated = 1;
    // start the table
//    p->nTableSize = 107;
    p->nTableSize = 10007;
    p->pTable = ABC_ALLOC( Hop_Obj_t *, p->nTableSize );
    memset( p->pTable, 0, sizeof(Hop_Obj_t *) * p->nTableSize );
    return p;
}

Here is the call graph for this function:

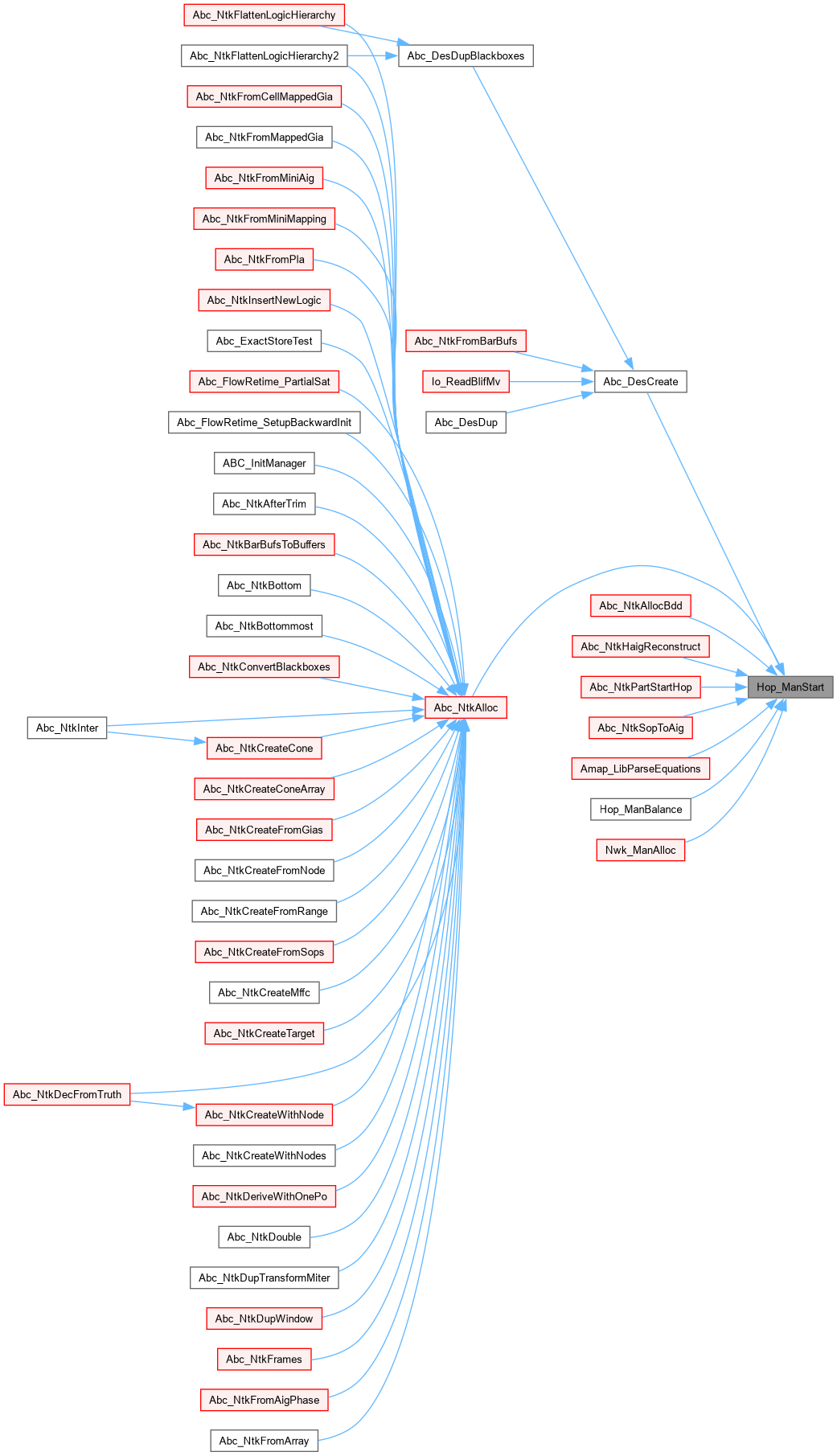

Here is the caller graph for this function:

Hop_ManStop()

void Hop_ManStop

(

Hop_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 84 of file hopMan.c.

{
    Hop_Obj_t * pObj;
    int i;
    // make sure the nodes have clean marks
    pObj = Hop_ManConst1(p);
    assert( !pObj->fMarkA && !pObj->fMarkB );
    Hop_ManForEachPi( p, pObj, i )
        assert( !pObj->fMarkA && !pObj->fMarkB );
    Hop_ManForEachPo( p, pObj, i )
        assert( !pObj->fMarkA && !pObj->fMarkB );
    Hop_ManForEachNode( p, pObj, i )
        assert( !pObj->fMarkA && !pObj->fMarkB );
    // print time
    if ( p->time1 ) { ABC_PRT( "time1", p->time1 ); }
    if ( p->time2 ) { ABC_PRT( "time2", p->time2 ); }
//    Hop_TableProfile( p );
    if ( p->vChunks )  Hop_ManStopMemory( p );
    if ( p->vPis )     Vec_PtrFree( p->vPis );
    if ( p->vPos )     Vec_PtrFree( p->vPos );
    if ( p->vObjs )    Vec_PtrFree( p->vObjs );
    ABC_FREE( p->pTable );
    ABC_FREE( p );
}

Here is the call graph for this function:

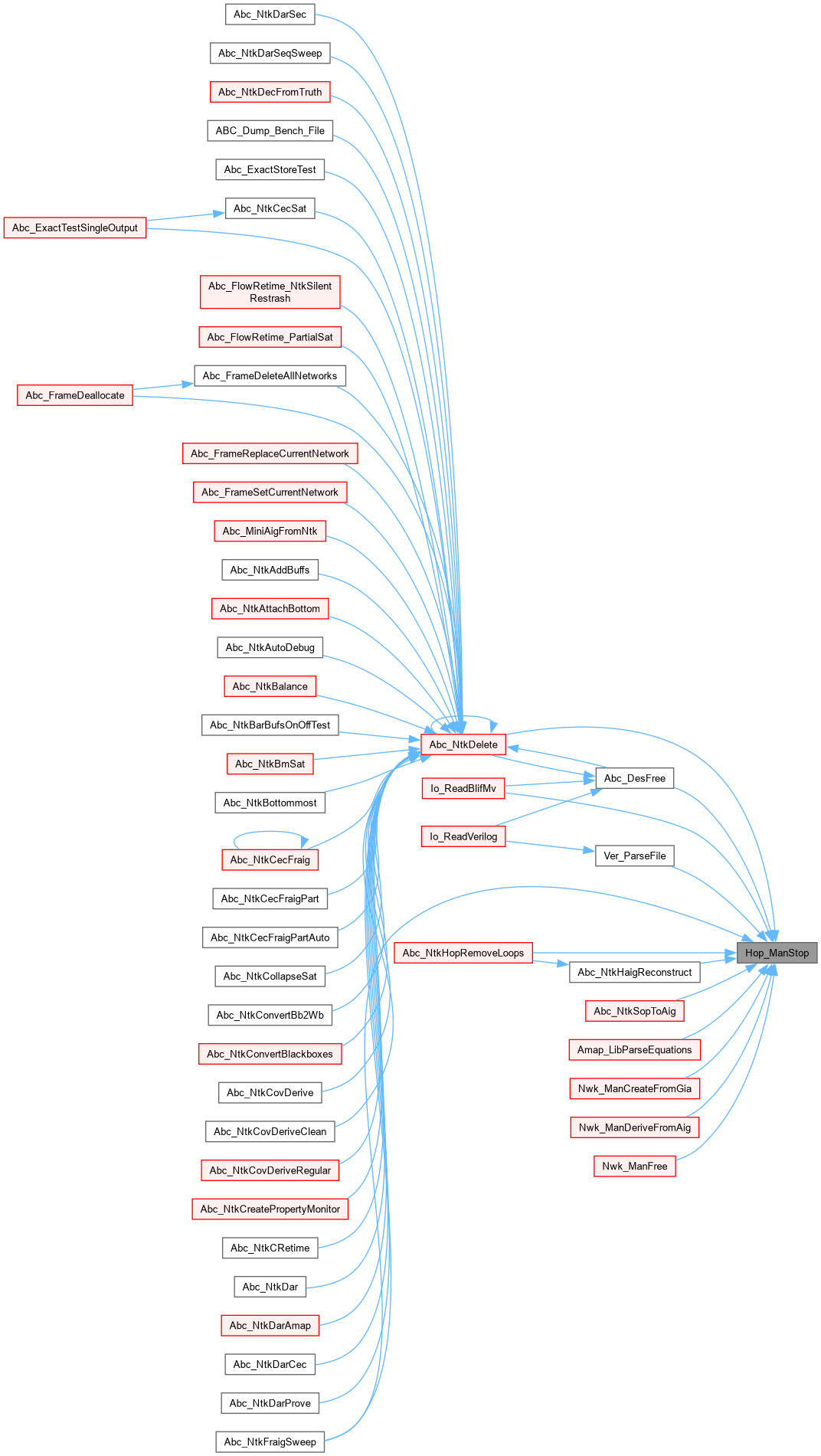

Here is the caller graph for this function:
