hopOper.c File Reference

#include "hop.h"

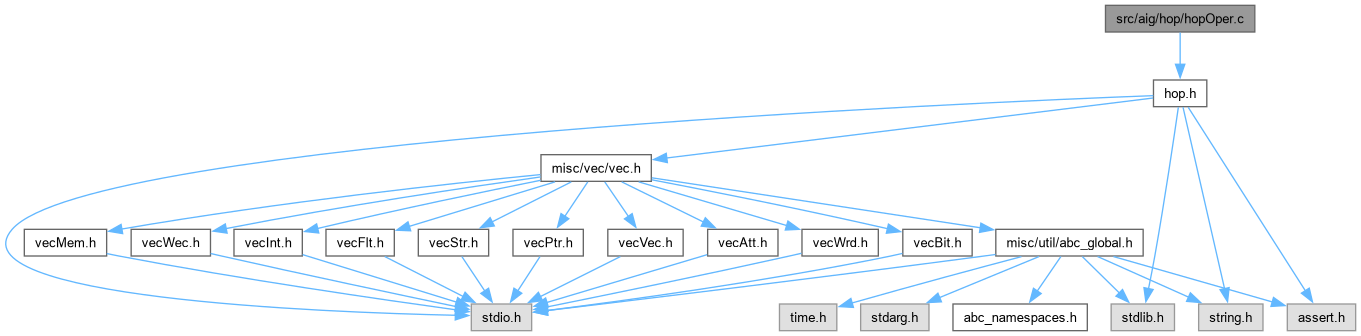

Include dependency graph for hopOper.c:

Go to the source code of this file.

Functions
Hop_Obj_t *	Hop_IthVar (Hop_Man_t *p, int i)
	FUNCTION DEFINITIONS ///.
Hop_Obj_t *	Hop_Oper (Hop_Man_t *p, Hop_Obj_t *p0, Hop_Obj_t *p1, Hop_Type_t Type)
Hop_Obj_t *	Hop_And (Hop_Man_t *p, Hop_Obj_t *p0, Hop_Obj_t *p1)
Hop_Obj_t *	Hop_Exor (Hop_Man_t *p, Hop_Obj_t *p0, Hop_Obj_t *p1)
Hop_Obj_t *	Hop_Or (Hop_Man_t *p, Hop_Obj_t *p0, Hop_Obj_t *p1)
Hop_Obj_t *	Hop_Mux (Hop_Man_t *p, Hop_Obj_t *pC, Hop_Obj_t *p1, Hop_Obj_t *p0)
Hop_Obj_t *	Hop_Maj (Hop_Man_t *p, Hop_Obj_t *pA, Hop_Obj_t *pB, Hop_Obj_t *pC)
Hop_Obj_t *	Hop_Multi_rec (Hop_Man_t *p, Hop_Obj_t **ppObjs, int nObjs, Hop_Type_t Type)
Hop_Obj_t *	Hop_Multi (Hop_Man_t *p, Hop_Obj_t **pArgs, int nArgs, Hop_Type_t Type)
Hop_Obj_t *	Hop_Miter (Hop_Man_t *p, Vec_Ptr_t *vPairs)
Hop_Obj_t *	Hop_CreateAnd (Hop_Man_t *p, int nVars)
Hop_Obj_t *	Hop_CreateOr (Hop_Man_t *p, int nVars)
Hop_Obj_t *	Hop_CreateExor (Hop_Man_t *p, int nVars)

Function Documentation

Hop_And()

Hop_Obj_t * Hop_And	(	Hop_Man_t *	p,
		Hop_Obj_t *	p0,
		Hop_Obj_t *	p1 )

Function*************************************************************

Synopsis [Performs canonicization step.]

Description [The argument nodes can be complemented.]

SideEffects []

SeeAlso []

Definition at line 104 of file hopOper.c.

{
    Hop_Obj_t * pGhost, * pResult;
//    Hop_Obj_t * pFan0, * pFan1;
    // check trivial cases
    if ( p0 == p1 )
        return p0;
    if ( p0 == Hop_Not(p1) )
        return Hop_Not(p->pConst1);
    if ( Hop_Regular(p0) == p->pConst1 )
        return p0 == p->pConst1 ? p1 : Hop_Not(p->pConst1);
    if ( Hop_Regular(p1) == p->pConst1 )
        return p1 == p->pConst1 ? p0 : Hop_Not(p->pConst1);
    // check if it can be an EXOR gate
//    if ( Hop_ObjIsExorType( p0, p1, &pFan0, &pFan1 ) )
//        return Hop_Exor( p, pFan0, pFan1 );
    // check the table
    pGhost = Hop_ObjCreateGhost( p, p0, p1, AIG_AND );
    if ( (pResult = Hop_TableLookup( p, pGhost )) )
        return pResult;
    return Hop_ObjCreate( p, pGhost );
}

Here is the call graph for this function:

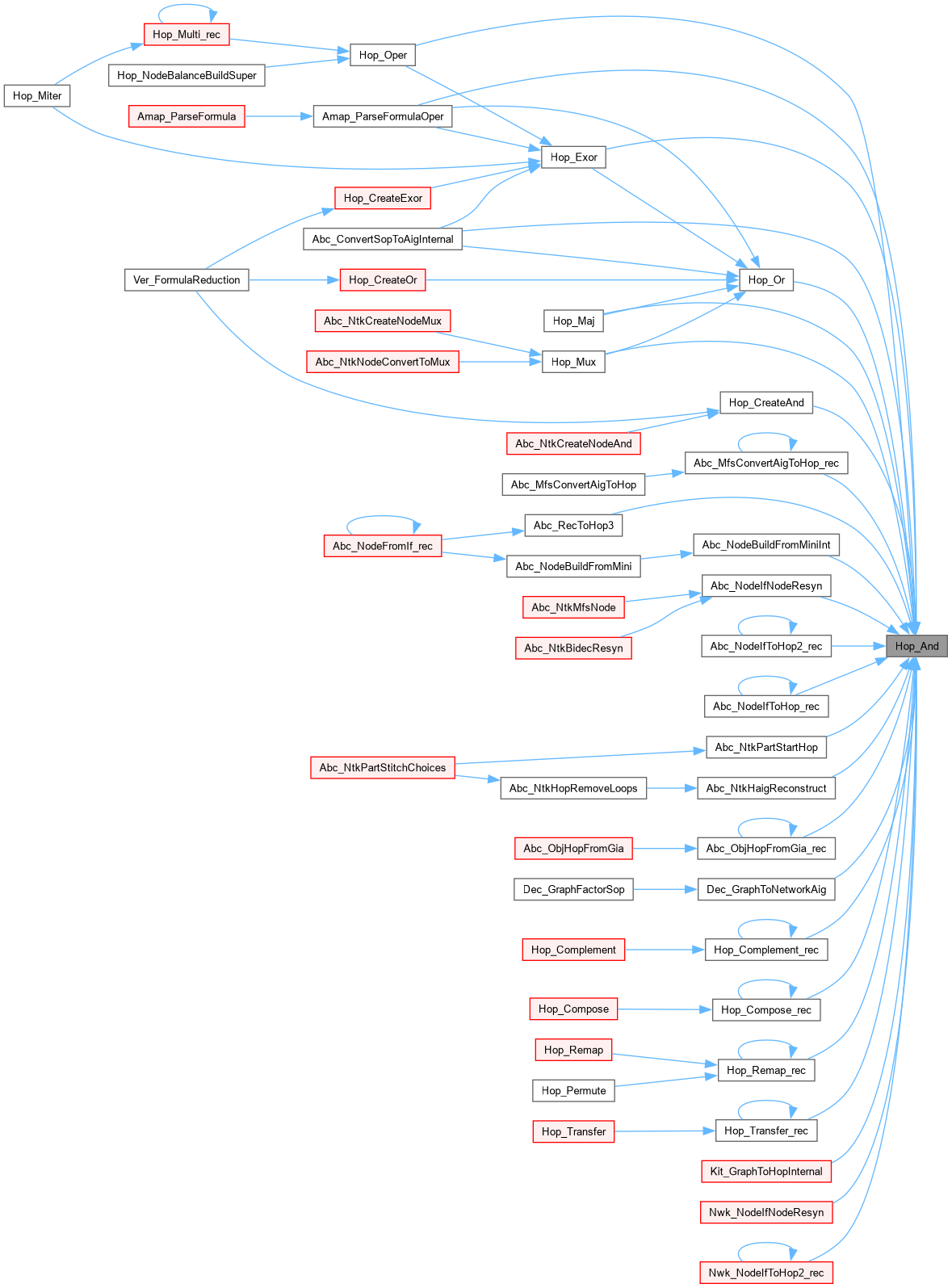

Here is the caller graph for this function:

Hop_CreateAnd()

Hop_Obj_t * Hop_CreateAnd	(	Hop_Man_t *	p,
		int	nVars )

Function*************************************************************

Synopsis [Creates AND function with nVars inputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 320 of file hopOper.c.

{
    Hop_Obj_t * pFunc;
    int i;
    pFunc = Hop_ManConst1( p );
    for ( i = 0; i < nVars; i++ )
        pFunc = Hop_And( p, pFunc, Hop_IthVar(p, i) );
    return pFunc;
}

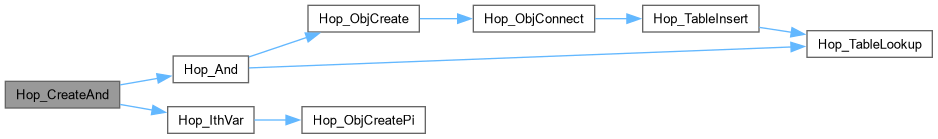

Here is the call graph for this function:

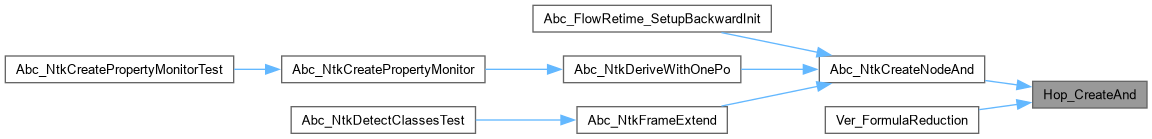

Here is the caller graph for this function:

Hop_CreateExor()

Hop_Obj_t * Hop_CreateExor	(	Hop_Man_t *	p,
		int	nVars )

Function*************************************************************

Synopsis [Creates AND function with nVars inputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 362 of file hopOper.c.

{
    Hop_Obj_t * pFunc;
    int i;
    pFunc = Hop_ManConst0( p );
    for ( i = 0; i < nVars; i++ )
        pFunc = Hop_Exor( p, pFunc, Hop_IthVar(p, i) );
    return pFunc;
}

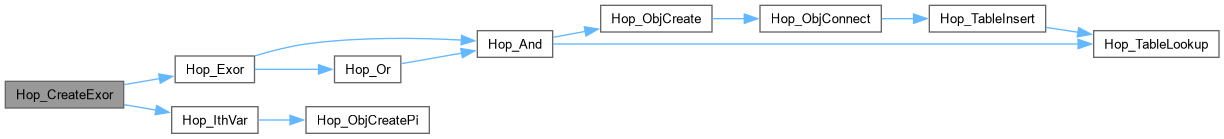

Here is the call graph for this function:

Here is the caller graph for this function:

Hop_CreateOr()

Hop_Obj_t * Hop_CreateOr	(	Hop_Man_t *	p,
		int	nVars )

Function*************************************************************

Synopsis [Creates AND function with nVars inputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 341 of file hopOper.c.

{
    Hop_Obj_t * pFunc;
    int i;
    pFunc = Hop_ManConst0( p );
    for ( i = 0; i < nVars; i++ )
        pFunc = Hop_Or( p, pFunc, Hop_IthVar(p, i) );
    return pFunc;
}

Here is the call graph for this function:

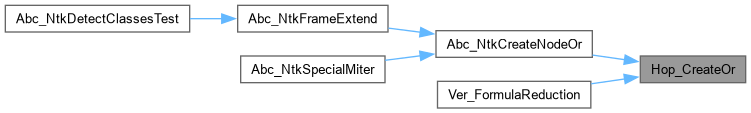

Here is the caller graph for this function:

Hop_Exor()

Hop_Obj_t * Hop_Exor	(	Hop_Man_t *	p,
		Hop_Obj_t *	p0,
		Hop_Obj_t *	p1 )

Function*************************************************************

Synopsis [Performs canonicization step.]

Description [The argument nodes can be complemented.]

SideEffects []

SeeAlso []

Definition at line 138 of file hopOper.c.

{
/*
    Hop_Obj_t * pGhost, * pResult;
    // check trivial cases
    if ( p0 == p1 )
        return Hop_Not(p->pConst1);
    if ( p0 == Hop_Not(p1) )
        return p->pConst1;
    if ( Hop_Regular(p0) == p->pConst1 )
        return Hop_NotCond( p1, p0 == p->pConst1 );
    if ( Hop_Regular(p1) == p->pConst1 )
        return Hop_NotCond( p0, p1 == p->pConst1 );
    // check the table
    pGhost = Hop_ObjCreateGhost( p, p0, p1, AIG_EXOR );
    if ( pResult = Hop_TableLookup( p, pGhost ) )
        return pResult;
    return Hop_ObjCreate( p, pGhost );
*/
    return Hop_Or( p, Hop_And(p, p0, Hop_Not(p1)), Hop_And(p, Hop_Not(p0), p1) );
}

Here is the call graph for this function:

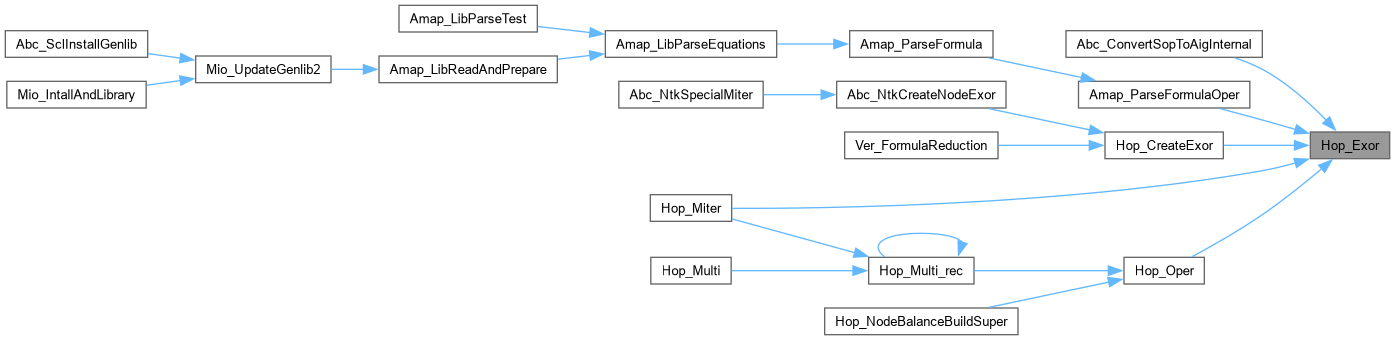

Here is the caller graph for this function:

Hop_IthVar()

Hop_Obj_t * Hop_IthVar	(	Hop_Man_t *	p,
		int	i )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Returns i-th elementary variable.]

Description []

SideEffects []

SeeAlso []

Definition at line 63 of file hopOper.c.

{
    int v;
    for ( v = Hop_ManPiNum(p); v <= i; v++ )
        Hop_ObjCreatePi( p );
    assert( i < Vec_PtrSize(p->vPis) );
    return Hop_ManPi( p, i );
}

Here is the call graph for this function:

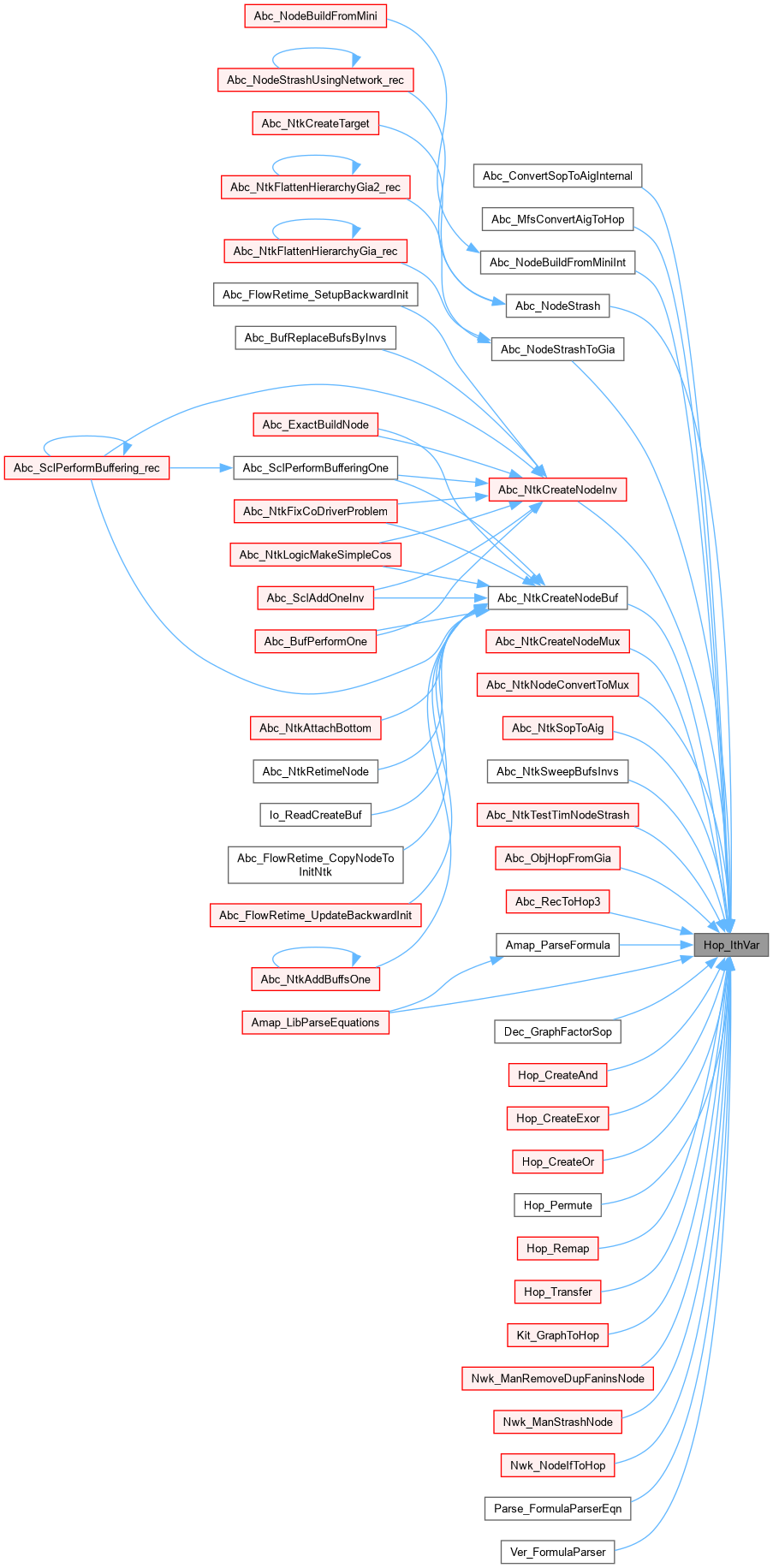

Here is the caller graph for this function:

Hop_Maj()

Hop_Obj_t * Hop_Maj	(	Hop_Man_t *	p,
		Hop_Obj_t *	pA,
		Hop_Obj_t *	pB,
		Hop_Obj_t *	pC )

Function*************************************************************

Synopsis [Implements ITE operation.]

Description []

SideEffects []

SeeAlso []

Definition at line 242 of file hopOper.c.

{
    return Hop_Or( p, Hop_Or(p, Hop_And(p, pA, pB), Hop_And(p, pA, pC)), Hop_And(p, pB, pC) );
}

Here is the call graph for this function:

Hop_Miter()

Hop_Obj_t * Hop_Miter	(	Hop_Man_t *	p,
		Vec_Ptr_t *	vPairs )

Function*************************************************************

Synopsis [Implements the miter.]

Description []

SideEffects []

SeeAlso []

Definition at line 297 of file hopOper.c.

{
    int i;
    assert( vPairs->nSize > 0 );
    assert( vPairs->nSize % 2 == 0 );
    // go through the cubes of the node's SOP
    for ( i = 0; i < vPairs->nSize; i += 2 )
        vPairs->pArray[i/2] = Hop_Not( Hop_Exor( p, (Hop_Obj_t *)vPairs->pArray[i], (Hop_Obj_t *)vPairs->pArray[i+1] ) );
    vPairs->nSize = vPairs->nSize/2;
    return Hop_Not( Hop_Multi_rec( p, (Hop_Obj_t **)vPairs->pArray, vPairs->nSize, AIG_AND ) );
}

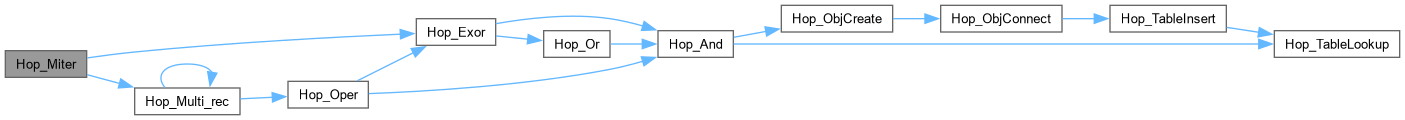

Here is the call graph for this function:

Hop_Multi()

Hop_Obj_t * Hop_Multi	(	Hop_Man_t *	p,
		Hop_Obj_t **	pArgs,
		int	nArgs,
		Hop_Type_t	Type )

Function*************************************************************

Synopsis [Old code.]

Description []

SideEffects []

SeeAlso []

Definition at line 279 of file hopOper.c.

{
    assert( Type == AIG_AND || Type == AIG_EXOR );
    assert( nArgs > 0 );
    return Hop_Multi_rec( p, pArgs, nArgs, Type );
}

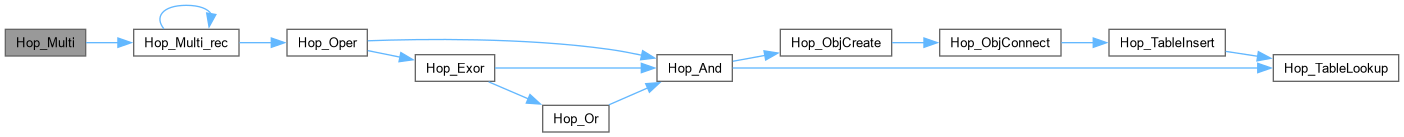

Here is the call graph for this function:

Hop_Multi_rec()

Hop_Obj_t * Hop_Multi_rec	(	Hop_Man_t *	p,
		Hop_Obj_t **	ppObjs,
		int	nObjs,
		Hop_Type_t	Type )

Function*************************************************************

Synopsis [Constructs the well-balanced tree of gates.]

Description [Disregards levels and possible logic sharing.]

SideEffects []

SeeAlso []

Definition at line 258 of file hopOper.c.

{
    Hop_Obj_t * pObj1, * pObj2;
    if ( nObjs == 1 )
        return ppObjs[0];
    pObj1 = Hop_Multi_rec( p, ppObjs,           nObjs/2,         Type );
    pObj2 = Hop_Multi_rec( p, ppObjs + nObjs/2, nObjs - nObjs/2, Type );
    return Hop_Oper( p, pObj1, pObj2, Type );
}

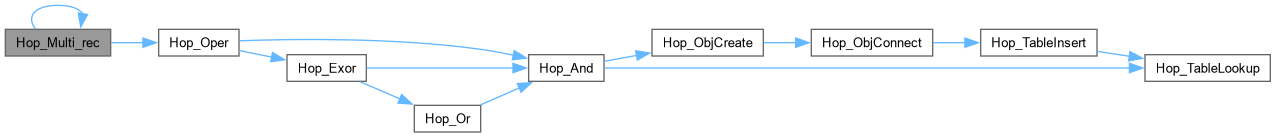

Here is the call graph for this function:

Here is the caller graph for this function:

Hop_Mux()

Hop_Obj_t * Hop_Mux	(	Hop_Man_t *	p,
		Hop_Obj_t *	pC,
		Hop_Obj_t *	p1,
		Hop_Obj_t *	p0 )

Function*************************************************************

Synopsis [Implements ITE operation.]

Description []

SideEffects []

SeeAlso []

Definition at line 187 of file hopOper.c.

{
/*
    Hop_Obj_t * pTempA1, * pTempA2, * pTempB1, * pTempB2, * pTemp;
    int Count0, Count1;
    // consider trivial cases
    if ( p0 == Hop_Not(p1) )
        return Hop_Exor( p, pC, p0 );
    // other cases can be added
    // implement the first MUX (F = C * x1 + C' * x0)

    // check for constants here!!!

    pTempA1 = Hop_TableLookup( p, Hop_ObjCreateGhost(p, pC,          p1, AIG_AND) );
    pTempA2 = Hop_TableLookup( p, Hop_ObjCreateGhost(p, Hop_Not(pC), p0, AIG_AND) );
    if ( pTempA1 && pTempA2 )
    {
        pTemp = Hop_TableLookup( p, Hop_ObjCreateGhost(p, Hop_Not(pTempA1), Hop_Not(pTempA2), AIG_AND) );
        if ( pTemp ) return Hop_Not(pTemp);
    }
    Count0 = (pTempA1 != NULL) + (pTempA2 != NULL);
    // implement the second MUX (F' = C * x1' + C' * x0')
    pTempB1 = Hop_TableLookup( p, Hop_ObjCreateGhost(p, pC,          Hop_Not(p1), AIG_AND) );
    pTempB2 = Hop_TableLookup( p, Hop_ObjCreateGhost(p, Hop_Not(pC), Hop_Not(p0), AIG_AND) );
    if ( pTempB1 && pTempB2 )
    {
        pTemp = Hop_TableLookup( p, Hop_ObjCreateGhost(p, Hop_Not(pTempB1), Hop_Not(pTempB2), AIG_AND) );
        if ( pTemp ) return pTemp;
    }
    Count1 = (pTempB1 != NULL) + (pTempB2 != NULL);
    // compare and decide which one to implement
    if ( Count0 >= Count1 )
    {
        pTempA1 = pTempA1? pTempA1 : Hop_And(p, pC,          p1);
        pTempA2 = pTempA2? pTempA2 : Hop_And(p, Hop_Not(pC), p0);
        return Hop_Or( p, pTempA1, pTempA2 );
    }
    pTempB1 = pTempB1? pTempB1 : Hop_And(p, pC,          Hop_Not(p1));
    pTempB2 = pTempB2? pTempB2 : Hop_And(p, Hop_Not(pC), Hop_Not(p0));
    return Hop_Not( Hop_Or( p, pTempB1, pTempB2 ) );
*/
    return Hop_Or( p, Hop_And(p, pC, p1), Hop_And(p, Hop_Not(pC), p0) );
}

Here is the call graph for this function:

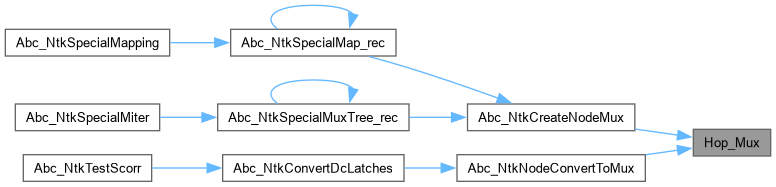

Here is the caller graph for this function:

Hop_Oper()

Hop_Obj_t * Hop_Oper	(	Hop_Man_t *	p,
		Hop_Obj_t *	p0,
		Hop_Obj_t *	p1,
		Hop_Type_t	Type )

Function*************************************************************

Synopsis [Perform one operation.]

Description [The argument nodes can be complemented.]

SideEffects []

SeeAlso []

Definition at line 83 of file hopOper.c.

{
    if ( Type == AIG_AND )
        return Hop_And( p, p0, p1 );
    if ( Type == AIG_EXOR )
        return Hop_Exor( p, p0, p1 );
    assert( 0 );
    return NULL;
}

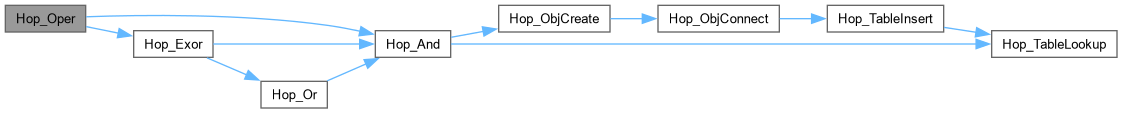

Here is the call graph for this function:

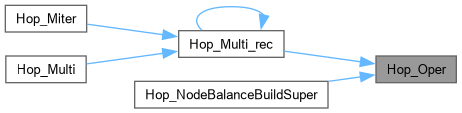

Here is the caller graph for this function:

Hop_Or()

Hop_Obj_t * Hop_Or	(	Hop_Man_t *	p,
		Hop_Obj_t *	p0,
		Hop_Obj_t *	p1 )

Function*************************************************************

Synopsis [Implements Boolean OR.]

Description []

SideEffects []

SeeAlso []

Definition at line 171 of file hopOper.c.

{
    return Hop_Not( Hop_And( p, Hop_Not(p0), Hop_Not(p1) ) );
}

Here is the call graph for this function:

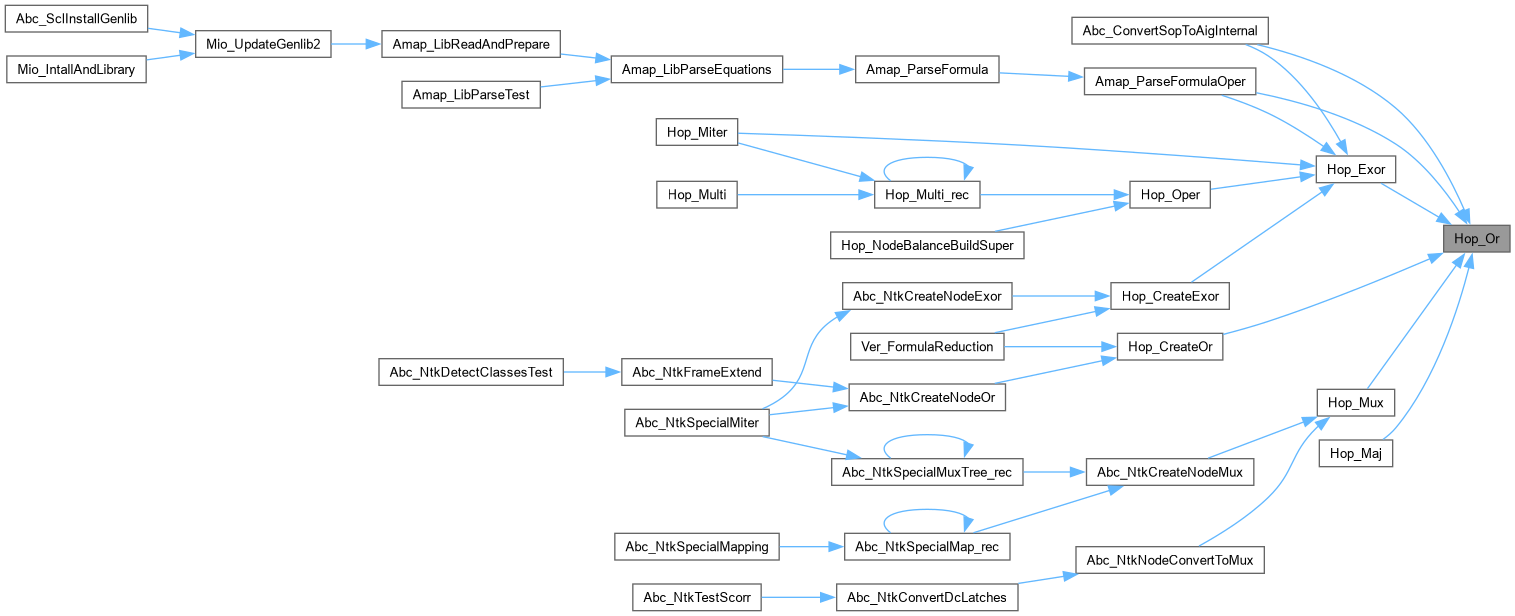

Here is the caller graph for this function:
