hopTruth.c File Reference

#include "hop.h"

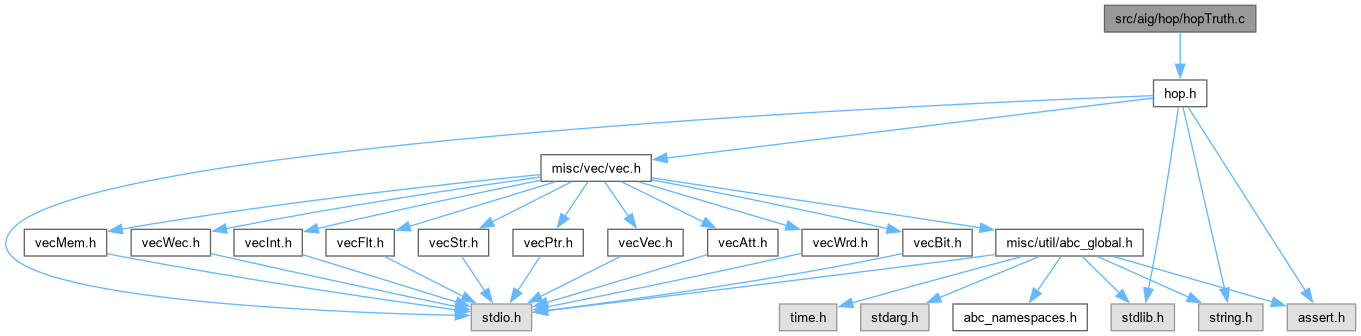

Include dependency graph for hopTruth.c:

Go to the source code of this file.

Functions
int	Hop_ManConvertAigToTruth_rec1 (Hop_Obj_t *pObj)
	FUNCTION DEFINITIONS ///.
unsigned *	Hop_ManConvertAigToTruth_rec2 (Hop_Obj_t *pObj, Vec_Int_t *vTruth, int nWords)
unsigned *	Hop_ManConvertAigToTruth (Hop_Man_t *p, Hop_Obj_t *pRoot, int nVars, Vec_Int_t *vTruth, int fMsbFirst)
word	Hop_ManComputeTruth6_rec (Hop_Man_t *p, Hop_Obj_t *pObj)
word	Hop_ManComputeTruth6 (Hop_Man_t *p, Hop_Obj_t *pObj, int nVars)

Function Documentation

Hop_ManComputeTruth6()

word Hop_ManComputeTruth6	(	Hop_Man_t *	p,
		Hop_Obj_t *	pObj,
		int	nVars )

Definition at line 256 of file hopTruth.c.

{
    word Truth;
    int i;
    if ( Hop_ObjIsConst1( Hop_Regular(pObj) ) )
        return Hop_IsComplement(pObj) ? 0 : ~(word)0;
    for ( i = 0; i < nVars; i++ )
        Hop_ManPi( p, i )->iData = i;
    Truth = Hop_ManComputeTruth6_rec( p, Hop_Regular(pObj) );
    return Hop_IsComplement(pObj) ? ~Truth : Truth;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Hop_ManComputeTruth6_rec()

word Hop_ManComputeTruth6_rec	(	Hop_Man_t *	p,
		Hop_Obj_t *	pObj )

Definition at line 244 of file hopTruth.c.

{
    word Truth0, Truth1;
    if ( Hop_ObjIsPi(pObj) )
        return Truth[pObj->iData];
    assert( Hop_ObjIsNode(pObj) );
    Truth0 = Hop_ManComputeTruth6_rec( p, Hop_ObjFanin0(pObj) );
    Truth1 = Hop_ManComputeTruth6_rec( p, Hop_ObjFanin1(pObj) );
    Truth0 = Hop_ObjFaninC0(pObj) ? ~Truth0 : Truth0;
    Truth1 = Hop_ObjFaninC1(pObj) ? ~Truth1 : Truth1;
    return Truth0 & Truth1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Hop_ManConvertAigToTruth()

unsigned * Hop_ManConvertAigToTruth	(	Hop_Man_t *	p,
		Hop_Obj_t *	pRoot,
		int	nVars,
		Vec_Int_t *	vTruth,
		int	fMsbFirst )

Function*************************************************************

Synopsis [Computes truth table of the node.]

Description [Assumes that the structural support is no more than 8 inputs. Uses array vTruth to store temporary truth tables. The returned pointer should be used immediately.]

SideEffects []

SeeAlso []

Definition at line 143 of file hopTruth.c.

{
    static unsigned uTruths[8][8] = { // elementary truth tables
        { 0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA },
        { 0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC },
        { 0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0 },
        { 0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00 },
        { 0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000 },
        { 0x00000000,0xFFFFFFFF,0x00000000,0xFFFFFFFF,0x00000000,0xFFFFFFFF,0x00000000,0xFFFFFFFF },
        { 0x00000000,0x00000000,0xFFFFFFFF,0xFFFFFFFF,0x00000000,0x00000000,0xFFFFFFFF,0xFFFFFFFF },
        { 0x00000000,0x00000000,0x00000000,0x00000000,0xFFFFFFFF,0xFFFFFFFF,0xFFFFFFFF,0xFFFFFFFF }
    };
    Hop_Obj_t * pObj;
    unsigned * pTruth, * pTruth2;
    int i, nWords, nNodes;
    Vec_Ptr_t * vTtElems;

    // if the number of variables is more than 8, allocate truth tables
    if ( nVars > 8 )
        vTtElems = Vec_PtrAllocTruthTables( nVars );
    else
        vTtElems = NULL;

    // clear the data fields and set marks
    nNodes = Hop_ManConvertAigToTruth_rec1( Hop_Regular(pRoot) );
    // prepare memory
    nWords = Hop_TruthWordNum( nVars );
    Vec_IntClear( vTruth );
    Vec_IntGrow( vTruth, nWords * (nNodes+1) );
    pTruth = Vec_IntFetch( vTruth, nWords );
    // check the case of a constant
    if ( Hop_ObjIsConst1( Hop_Regular(pRoot) ) )
    {
        assert( nNodes == 0 );
        if ( Hop_IsComplement(pRoot) )
            Hop_ManTruthClear( pTruth, nVars );
        else
            Hop_ManTruthFill( pTruth, nVars );
        return pTruth;
    }
    // set elementary truth tables at the leaves
    assert( nVars <= Hop_ManPiNum(p) );
//    assert( Hop_ManPiNum(p) <= 8 );
    if ( fMsbFirst )
    {
//        Hop_ManForEachPi( p, pObj, i )
        for ( i = 0; i < nVars; i++ )
        {
            pObj = Hop_ManPi( p, i );
            if ( vTtElems )
                pObj->pData = Vec_PtrEntry(vTtElems, nVars-1-i);
            else
                pObj->pData = (void *)uTruths[nVars-1-i];
        }
    }
    else
    {
//        Hop_ManForEachPi( p, pObj, i )
        for ( i = 0; i < nVars; i++ )
        {
            pObj = Hop_ManPi( p, i );
            if ( vTtElems )
                pObj->pData = Vec_PtrEntry(vTtElems, i);
            else
                pObj->pData = (void *)uTruths[i];
        }
    }
    // clear the marks and compute the truth table
    pTruth2 = Hop_ManConvertAigToTruth_rec2( Hop_Regular(pRoot), vTruth, nWords );
    // copy the result
    Hop_ManTruthCopy( pTruth, pTruth2, nVars );
    if ( Hop_IsComplement(pRoot) )
        Hop_ManTruthNot( pTruth, pTruth, nVars );
    if ( vTtElems )
        Vec_PtrFree( vTtElems );
    return pTruth;
}

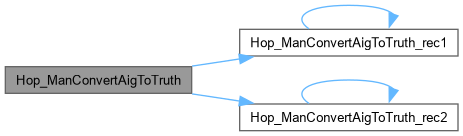

Here is the call graph for this function:

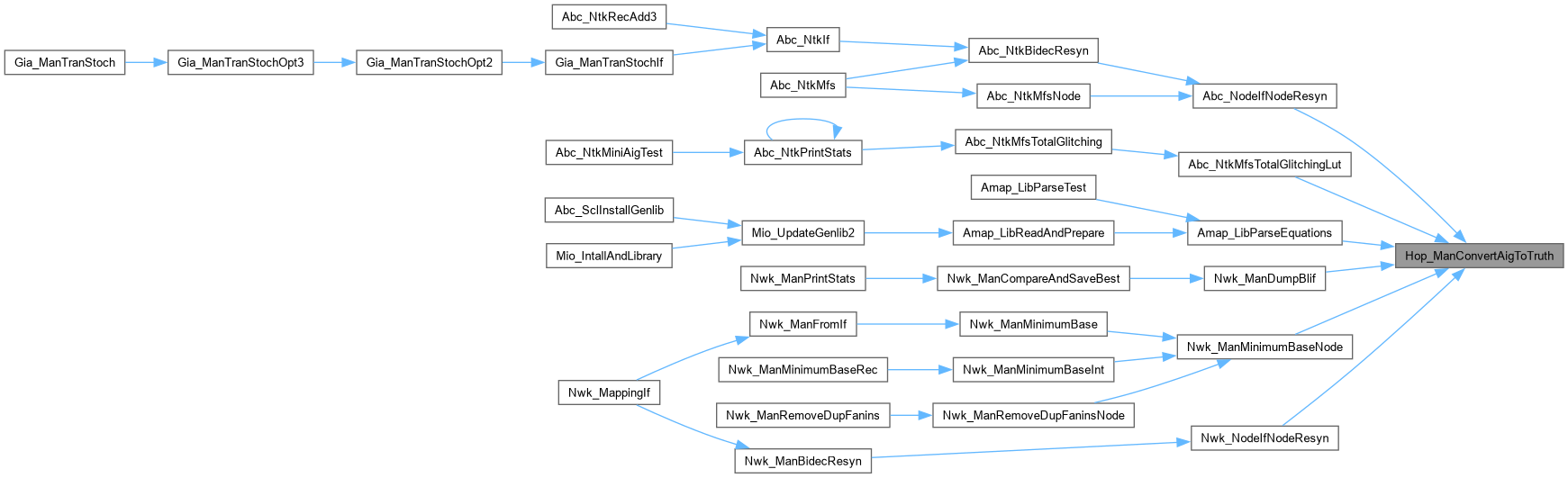

Here is the caller graph for this function:

Hop_ManConvertAigToTruth_rec1()

int Hop_ManConvertAigToTruth_rec1

(

Hop_Obj_t *

pObj

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Construct BDDs and mark AIG nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 73 of file hopTruth.c.

{
    int Counter = 0;
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return 0;
    Counter += Hop_ManConvertAigToTruth_rec1( Hop_ObjFanin0(pObj) );
    Counter += Hop_ManConvertAigToTruth_rec1( Hop_ObjFanin1(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
    return Counter + 1;
}

Here is the call graph for this function:

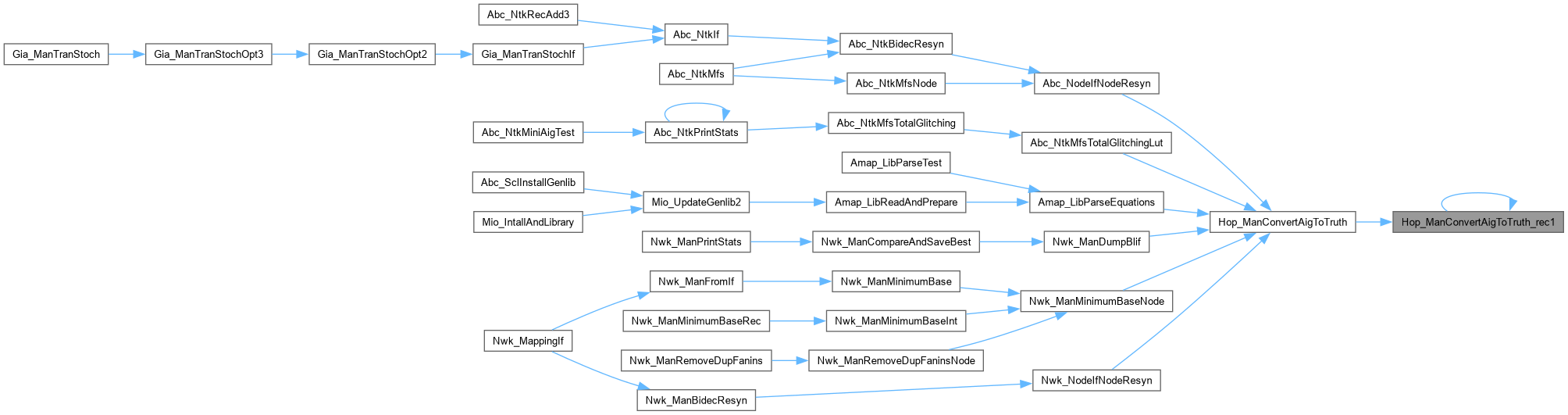

Here is the caller graph for this function:

Hop_ManConvertAigToTruth_rec2()

unsigned * Hop_ManConvertAigToTruth_rec2	(	Hop_Obj_t *	pObj,
		Vec_Int_t *	vTruth,
		int	nWords )

Function*************************************************************

Synopsis [Computes truth table of the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 97 of file hopTruth.c.

{
    unsigned * pTruth, * pTruth0, * pTruth1;
    int i;
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || !Hop_ObjIsMarkA(pObj) )
        return (unsigned *)pObj->pData;
    // compute the truth tables of the fanins
    pTruth0 = Hop_ManConvertAigToTruth_rec2( Hop_ObjFanin0(pObj), vTruth, nWords );
    pTruth1 = Hop_ManConvertAigToTruth_rec2( Hop_ObjFanin1(pObj), vTruth, nWords );
    // creat the truth table of the node
    pTruth  = Vec_IntFetch( vTruth, nWords );
    if ( Hop_ObjIsExor(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = pTruth0[i] ^ pTruth1[i];
    else if ( !Hop_ObjFaninC0(pObj) && !Hop_ObjFaninC1(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = pTruth0[i] & pTruth1[i];
    else if ( !Hop_ObjFaninC0(pObj) && Hop_ObjFaninC1(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = pTruth0[i] & ~pTruth1[i];
    else if ( Hop_ObjFaninC0(pObj) && !Hop_ObjFaninC1(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = ~pTruth0[i] & pTruth1[i];
    else // if ( Hop_ObjFaninC0(pObj) && Hop_ObjFaninC1(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = ~pTruth0[i] & ~pTruth1[i];
    assert( Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjClearMarkA( pObj );
    pObj->pData = pTruth;
    return pTruth;
}

Here is the call graph for this function:

Here is the caller graph for this function:
