hopUtil.c File Reference
#include "hop.h"

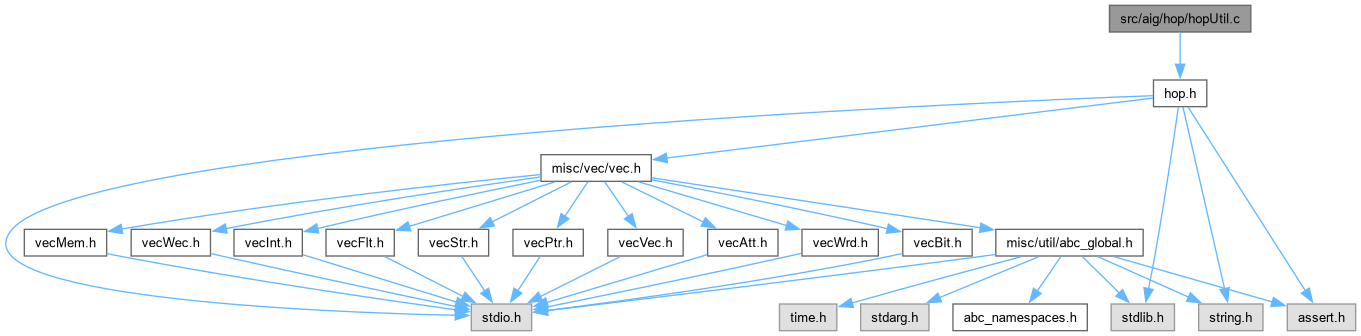

Include dependency graph for hopUtil.c:

Go to the source code of this file.

Functions

ABC_NAMESPACE_IMPL_START void Hop_ManIncrementTravId (Hop_Man_t *p)
 DECLARATIONS ///.

void Hop_ManCleanData (Hop_Man_t *p)

void Hop_ObjCleanData_rec (Hop_Obj_t *pObj)

void Hop_ObjCollectMulti_rec (Hop_Obj_t *pRoot, Hop_Obj_t *pObj, Vec_Ptr_t *vSuper)

void Hop_ObjCollectMulti (Hop_Obj_t *pRoot, Vec_Ptr_t *vSuper)

int Hop_ObjIsMuxType (Hop_Obj_t *pNode)

int Hop_ObjRecognizeExor (Hop_Obj_t *pObj, Hop_Obj_t **ppFan0, Hop_Obj_t **ppFan1)

Hop_Obj_t * Hop_ObjRecognizeMux (Hop_Obj_t *pNode, Hop_Obj_t **ppNodeT, Hop_Obj_t **ppNodeE)

void Hop_ObjPrintEqn (FILE *pFile, Hop_Obj_t *pObj, Vec_Vec_t *vLevels, int Level)

void Hop_ObjPrintVerilog (FILE *pFile, Hop_Obj_t *pObj, Vec_Vec_t *vLevels, int Level, int fOnlyAnds)

void Hop_ObjPrintVerbose (Hop_Obj_t *pObj, int fHaig)

void Hop_ManPrintVerbose (Hop_Man_t *p, int fHaig)

void Hop_ManDumpBlif (Hop_Man_t *p, char *pFileName)


Function Documentation

◆ Hop_ManCleanData()

void Hop_ManCleanData ( Hop_Man_t * p)

Function*************************************************************

Synopsis [Cleans the data pointers for the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 63 of file hopUtil.c.

64{
65 Hop_Obj_t * pObj;
66 int i;
67 p->nTravIds = 1;
68 Hop_ManConst1(p)->pData = NULL;
69 Hop_ManForEachPi( p, pObj, i )
70 pObj->pData = NULL;
71 Hop_ManForEachPo( p, pObj, i )
72 pObj->pData = NULL;
73 Hop_ManForEachNode( p, pObj, i )
74 pObj->pData = NULL;
75}
p
Cube * p
Definition exorList.c:222
Hop_ManForEachPi
#define Hop_ManForEachPi(p, pObj, i)
ITERATORS ///.
Definition hop.h:259
Hop_ManForEachNode
#define Hop_ManForEachNode(p, pObj, i)
Definition hop.h:265
Hop_ManForEachPo
#define Hop_ManForEachPo(p, pObj, i)
Definition hop.h:262
Hop_Obj_t
struct Hop_Obj_t_ Hop_Obj_t
Definition hop.h:50
Hop_Obj_t_::pData
void * pData
Definition hop.h:68
Here is the caller graph for this function:

◆ Hop_ManDumpBlif()

void Hop_ManDumpBlif ( Hop_Man_t * p,
char * pFileName )

Function*************************************************************

Synopsis [Writes the AIG into the BLIF file.]

Description []

SideEffects []

SeeAlso []

Definition at line 509 of file hopUtil.c.

510{
511 FILE * pFile;
512 Vec_Ptr_t * vNodes;
513 Hop_Obj_t * pObj, * pConst1 = NULL;
514 int i, nDigits, Counter = 0;
515 if ( Hop_ManPoNum(p) == 0 )
516 {
517 printf( "Hop_ManDumpBlif(): AIG manager does not have POs.\n" );
518 return;
519 }
520 // collect nodes in the DFS order
521 vNodes = Hop_ManDfs( p );
522 // assign IDs to objects
523 Hop_ManConst1(p)->pData = (void *)(ABC_PTRUINT_T)Counter++;
524 Hop_ManForEachPi( p, pObj, i )
525 pObj->pData = (void *)(ABC_PTRUINT_T)Counter++;
526 Hop_ManForEachPo( p, pObj, i )
527 pObj->pData = (void *)(ABC_PTRUINT_T)Counter++;
528 Vec_PtrForEachEntry( Hop_Obj_t *, vNodes, pObj, i )
529 pObj->pData = (void *)(ABC_PTRUINT_T)Counter++;
530 nDigits = Hop_Base10Log( Counter );
531 // write the file
532 pFile = fopen( pFileName, "w" );
533 fprintf( pFile, "# BLIF file written by procedure Hop_ManDumpBlif() in ABC\n" );
534 fprintf( pFile, "# http://www.eecs.berkeley.edu/~alanmi/abc/\n" );
535 fprintf( pFile, ".model test\n" );
536 // write PIs
537 fprintf( pFile, ".inputs" );
538 Hop_ManForEachPi( p, pObj, i )
539 fprintf( pFile, " n%0*d", nDigits, (int)(ABC_PTRUINT_T)pObj->pData );
540 fprintf( pFile, "\n" );
541 // write POs
542 fprintf( pFile, ".outputs" );
543 Hop_ManForEachPo( p, pObj, i )
544 fprintf( pFile, " n%0*d", nDigits, (int)(ABC_PTRUINT_T)pObj->pData );
545 fprintf( pFile, "\n" );
546 // write nodes
547 Vec_PtrForEachEntry( Hop_Obj_t *, vNodes, pObj, i )
548 {
549 fprintf( pFile, ".names n%0*d n%0*d n%0*d\n",
550 nDigits, (int)(ABC_PTRUINT_T)Hop_ObjFanin0(pObj)->pData,
551 nDigits, (int)(ABC_PTRUINT_T)Hop_ObjFanin1(pObj)->pData,
552 nDigits, (int)(ABC_PTRUINT_T)pObj->pData );
553 fprintf( pFile, "%d%d 1\n", !Hop_ObjFaninC0(pObj), !Hop_ObjFaninC1(pObj) );
554 }
555 // write POs
556 Hop_ManForEachPo( p, pObj, i )
557 {
558 fprintf( pFile, ".names n%0*d n%0*d\n",
559 nDigits, (int)(ABC_PTRUINT_T)Hop_ObjFanin0(pObj)->pData,
560 nDigits, (int)(ABC_PTRUINT_T)pObj->pData );
561 fprintf( pFile, "%d 1\n", !Hop_ObjFaninC0(pObj) );
562 if ( Hop_ObjIsConst1(Hop_ObjFanin0(pObj)) )
563 pConst1 = Hop_ManConst1(p);
564 }
565 if ( pConst1 )
566 fprintf( pFile, ".names n%0*d\n 1\n", nDigits, (int)(ABC_PTRUINT_T)pConst1->pData );
567 fprintf( pFile, ".end\n\n" );
568 fclose( pFile );
569 Vec_PtrFree( vNodes );
570}
Hop_ManDfs
Vec_Ptr_t * Hop_ManDfs(Hop_Man_t *p)
Definition hopDfs.c:68
Vec_Ptr_t
typedefABC_NAMESPACE_HEADER_START struct Vec_Ptr_t_ Vec_Ptr_t
INCLUDES ///.
Definition vecPtr.h:42
Vec_PtrForEachEntry
#define Vec_PtrForEachEntry(Type, vVec, pEntry, i)
MACRO DEFINITIONS ///.
Definition vecPtr.h:55
Here is the call graph for this function:

◆ Hop_ManIncrementTravId()

ABC_NAMESPACE_IMPL_START void Hop_ManIncrementTravId ( Hop_Man_t * p)

DECLARATIONS ///.

CFile****************************************************************

FileName [hopUtil.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [And-Inverter Graph package.]

Synopsis [Various procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - May 11, 2006.]

Revision [

Id
hopUtil.c,v 1.00 2006/05/11 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Increments the current traversal ID of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file hopUtil.c.

46{
47 if ( p->nTravIds >= (1<<30)-1 )
48 Hop_ManCleanData( p );
49 p->nTravIds++;
50}
Hop_ManCleanData
void Hop_ManCleanData(Hop_Man_t *p)
Definition hopUtil.c:63
Here is the call graph for this function:

◆ Hop_ManPrintVerbose()

void Hop_ManPrintVerbose ( Hop_Man_t * p,
int fHaig )

Function*************************************************************

Synopsis [Prints node in HAIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 482 of file hopUtil.c.

483{
484 Vec_Ptr_t * vNodes;
485 Hop_Obj_t * pObj;
486 int i;
487 printf( "PIs: " );
488 Hop_ManForEachPi( p, pObj, i )
489 printf( " %p", pObj );
490 printf( "\n" );
491 vNodes = Hop_ManDfs( p );
492 Vec_PtrForEachEntry( Hop_Obj_t *, vNodes, pObj, i )
493 Hop_ObjPrintVerbose( pObj, fHaig ), printf( "\n" );
494 printf( "\n" );
495 Vec_PtrFree( vNodes );
496}
Hop_ObjPrintVerbose
void Hop_ObjPrintVerbose(Hop_Obj_t *pObj, int fHaig)
Definition hopUtil.c:456

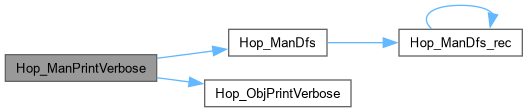

Here is the call graph for this function:

◆ Hop_ObjCleanData_rec()

void Hop_ObjCleanData_rec ( Hop_Obj_t * pObj)

Function*************************************************************

Synopsis [Recursively cleans the data pointers in the cone of the node.]

Description [Applicable to small AIGs only because no caching is performed.]

SideEffects []

SeeAlso []

Definition at line 88 of file hopUtil.c.

89{
90 assert( !Hop_IsComplement(pObj) );
91 assert( !Hop_ObjIsPo(pObj) );
92 if ( Hop_ObjIsAnd(pObj) )
93 {
94 Hop_ObjCleanData_rec( Hop_ObjFanin0(pObj) );
95 Hop_ObjCleanData_rec( Hop_ObjFanin1(pObj) );
96 }
97 pObj->pData = NULL;
98}
Hop_ObjCleanData_rec
void Hop_ObjCleanData_rec(Hop_Obj_t *pObj)
Definition hopUtil.c:88
assert
#define assert(ex)
Definition util_old.h:213
Here is the call graph for this function:

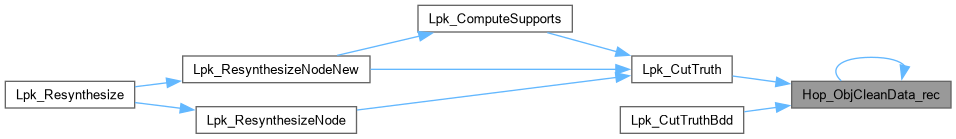

Here is the caller graph for this function:

◆ Hop_ObjCollectMulti()

void Hop_ObjCollectMulti ( Hop_Obj_t * pRoot,
Vec_Ptr_t * vSuper )

Function*************************************************************

Synopsis [Detects multi-input gate rooted at this node.]

Description []

SideEffects []

SeeAlso []

Definition at line 133 of file hopUtil.c.

134{
135 assert( !Hop_IsComplement(pRoot) );
136 Vec_PtrClear( vSuper );
137 Hop_ObjCollectMulti_rec( pRoot, pRoot, vSuper );
138}
Hop_ObjCollectMulti_rec
void Hop_ObjCollectMulti_rec(Hop_Obj_t *pRoot, Hop_Obj_t *pObj, Vec_Ptr_t *vSuper)
Definition hopUtil.c:111
Here is the call graph for this function:

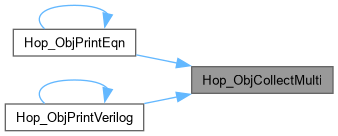

Here is the caller graph for this function:

◆ Hop_ObjCollectMulti_rec()

void Hop_ObjCollectMulti_rec ( Hop_Obj_t * pRoot,
Hop_Obj_t * pObj,
Vec_Ptr_t * vSuper )

Function*************************************************************

Synopsis [Detects multi-input gate rooted at this node.]

Description []

SideEffects []

SeeAlso []

Definition at line 111 of file hopUtil.c.

112{
113 if ( pRoot != pObj && (Hop_IsComplement(pObj) || Hop_ObjIsPi(pObj) || Hop_ObjType(pRoot) != Hop_ObjType(pObj)) )
114 {
115 Vec_PtrPushUnique(vSuper, pObj);
116 return;
117 }
118 Hop_ObjCollectMulti_rec( pRoot, Hop_ObjChild0(pObj), vSuper );
119 Hop_ObjCollectMulti_rec( pRoot, Hop_ObjChild1(pObj), vSuper );
120}
Here is the call graph for this function:

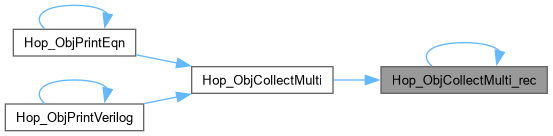

Here is the caller graph for this function:

◆ Hop_ObjIsMuxType()

int Hop_ObjIsMuxType ( Hop_Obj_t * pNode)

Function*************************************************************

Synopsis [Returns 1 if the node is the root of MUX or EXOR/NEXOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 151 of file hopUtil.c.

152{
153 Hop_Obj_t * pNode0, * pNode1;
154 // check that the node is regular
155 assert( !Hop_IsComplement(pNode) );
156 // if the node is not AND, this is not MUX
157 if ( !Hop_ObjIsAnd(pNode) )
158 return 0;
159 // if the children are not complemented, this is not MUX
160 if ( !Hop_ObjFaninC0(pNode) || !Hop_ObjFaninC1(pNode) )
161 return 0;
162 // get children
163 pNode0 = Hop_ObjFanin0(pNode);
164 pNode1 = Hop_ObjFanin1(pNode);
165 // if the children are not ANDs, this is not MUX
166 if ( !Hop_ObjIsAnd(pNode0) || !Hop_ObjIsAnd(pNode1) )
167 return 0;
168 // otherwise the node is MUX iff it has a pair of equal grandchildren
169 return (Hop_ObjFanin0(pNode0) == Hop_ObjFanin0(pNode1) && (Hop_ObjFaninC0(pNode0) ^ Hop_ObjFaninC0(pNode1))) ||
170 (Hop_ObjFanin0(pNode0) == Hop_ObjFanin1(pNode1) && (Hop_ObjFaninC0(pNode0) ^ Hop_ObjFaninC1(pNode1))) ||
171 (Hop_ObjFanin1(pNode0) == Hop_ObjFanin0(pNode1) && (Hop_ObjFaninC1(pNode0) ^ Hop_ObjFaninC0(pNode1))) ||
172 (Hop_ObjFanin1(pNode0) == Hop_ObjFanin1(pNode1) && (Hop_ObjFaninC1(pNode0) ^ Hop_ObjFaninC1(pNode1)));
173}
Here is the caller graph for this function:

◆ Hop_ObjPrintEqn()

void Hop_ObjPrintEqn ( FILE * pFile,
Hop_Obj_t * pObj,
Vec_Vec_t * vLevels,
int Level )

Function*************************************************************

Synopsis [Prints Eqn formula for the AIG rooted at this node.]

Description [The formula is in terms of PIs, which should have their names assigned in pObj->pData fields.]

SideEffects []

SeeAlso []

Definition at line 322 of file hopUtil.c.

323{
324 Vec_Ptr_t * vSuper;
325 Hop_Obj_t * pFanin;
326 int fCompl, i;
327 // store the complemented attribute
328 fCompl = Hop_IsComplement(pObj);
329 pObj = Hop_Regular(pObj);
330 // constant case
331 if ( Hop_ObjIsConst1(pObj) )
332 {
333 fprintf( pFile, "%d", !fCompl );
334 return;
335 }
336 // PI case
337 if ( Hop_ObjIsPi(pObj) )
338 {
339 fprintf( pFile, "%s%s", fCompl? "!" : "", (char*)pObj->pData );
340 return;
341 }
342 // AND case
343 Vec_VecExpand( vLevels, Level );
344 vSuper = Vec_VecEntry(vLevels, Level);
345 Hop_ObjCollectMulti( pObj, vSuper );
346 fprintf( pFile, "%s", (Level==0? "" : "(") );
347 Vec_PtrForEachEntry( Hop_Obj_t *, vSuper, pFanin, i )
348 {
349 Hop_ObjPrintEqn( pFile, Hop_NotCond(pFanin, fCompl), vLevels, Level+1 );
350 if ( i < Vec_PtrSize(vSuper) - 1 )
351 fprintf( pFile, " %s ", fCompl? "+" : "*" );
352 }
353 fprintf( pFile, "%s", (Level==0? "" : ")") );
354 return;
355}
Hop_ObjCollectMulti
void Hop_ObjCollectMulti(Hop_Obj_t *pRoot, Vec_Ptr_t *vSuper)
Definition hopUtil.c:133
Hop_ObjPrintEqn
void Hop_ObjPrintEqn(FILE *pFile, Hop_Obj_t *pObj, Vec_Vec_t *vLevels, int Level)
Definition hopUtil.c:322
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Hop_ObjPrintVerbose()

void Hop_ObjPrintVerbose ( Hop_Obj_t * pObj,
int fHaig )

Function*************************************************************

Synopsis [Prints node in HAIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 456 of file hopUtil.c.

457{
458 assert( !Hop_IsComplement(pObj) );
459 printf( "Node %p : ", pObj );
460 if ( Hop_ObjIsConst1(pObj) )
461 printf( "constant 1" );
462 else if ( Hop_ObjIsPi(pObj) )
463 printf( "PI" );
464 else
465 printf( "AND( %p%s, %p%s )",
466 Hop_ObjFanin0(pObj), (Hop_ObjFaninC0(pObj)? "\'" : " "),
467 Hop_ObjFanin1(pObj), (Hop_ObjFaninC1(pObj)? "\'" : " ") );
468 printf( " (refs = %3d)", Hop_ObjRefs(pObj) );
469}
Here is the caller graph for this function:

◆ Hop_ObjPrintVerilog()

void Hop_ObjPrintVerilog ( FILE * pFile,
Hop_Obj_t * pObj,
Vec_Vec_t * vLevels,
int Level,
int fOnlyAnds )

Function*************************************************************

Synopsis [Prints Verilog formula for the AIG rooted at this node.]

Description [The formula is in terms of PIs, which should have their names assigned in pObj->pData fields.]

SideEffects []

SeeAlso []

Definition at line 369 of file hopUtil.c.

370{
371 Vec_Ptr_t * vSuper;
372 Hop_Obj_t * pFanin, * pFanin0, * pFanin1, * pFaninC;
373 int fCompl, i;
374 // store the complemented attribute
375 fCompl = Hop_IsComplement(pObj);
376 pObj = Hop_Regular(pObj);
377 // constant case
378 if ( Hop_ObjIsConst1(pObj) )
379 {
380 fprintf( pFile, "1\'b%d", !fCompl );
381 return;
382 }
383 // PI case
384 if ( Hop_ObjIsPi(pObj) )
385 {
386 fprintf( pFile, "%s%s", fCompl? "~" : "", (char*)pObj->pData );
387 return;
388 }
389 // EXOR case
390 if ( !fOnlyAnds && Hop_ObjIsExor(pObj) )
391 {
392 Vec_VecExpand( vLevels, Level );
393 vSuper = Vec_VecEntry( vLevels, Level );
394 Hop_ObjCollectMulti( pObj, vSuper );
395 fprintf( pFile, "%s", (Level==0? "" : "(") );
396 Vec_PtrForEachEntry( Hop_Obj_t *, vSuper, pFanin, i )
397 {
398 Hop_ObjPrintVerilog( pFile, Hop_NotCond(pFanin, (fCompl && i==0)), vLevels, Level+1, fOnlyAnds );
399 if ( i < Vec_PtrSize(vSuper) - 1 )
400 fprintf( pFile, " ^ " );
401 }
402 fprintf( pFile, "%s", (Level==0? "" : ")") );
403 return;
404 }
405 // MUX case
406 if ( !fOnlyAnds && Hop_ObjIsMuxType(pObj) )
407 {
408 if ( Hop_ObjRecognizeExor( pObj, &pFanin0, &pFanin1 ) )
409 {
410 fprintf( pFile, "%s", (Level==0? "" : "(") );
411 Hop_ObjPrintVerilog( pFile, Hop_NotCond(pFanin0, fCompl), vLevels, Level+1, fOnlyAnds );
412 fprintf( pFile, " ^ " );
413 Hop_ObjPrintVerilog( pFile, pFanin1, vLevels, Level+1, fOnlyAnds );
414 fprintf( pFile, "%s", (Level==0? "" : ")") );
415 }
416 else
417 {
418 pFaninC = Hop_ObjRecognizeMux( pObj, &pFanin1, &pFanin0 );
419 fprintf( pFile, "%s", (Level==0? "" : "(") );
420 Hop_ObjPrintVerilog( pFile, pFaninC, vLevels, Level+1, fOnlyAnds );
421 fprintf( pFile, " ? " );
422 Hop_ObjPrintVerilog( pFile, Hop_NotCond(pFanin1, fCompl), vLevels, Level+1, fOnlyAnds );
423 fprintf( pFile, " : " );
424 Hop_ObjPrintVerilog( pFile, Hop_NotCond(pFanin0, fCompl), vLevels, Level+1, fOnlyAnds );
425 fprintf( pFile, "%s", (Level==0? "" : ")") );
426 }
427 return;
428 }
429 // AND case
430 Vec_VecExpand( vLevels, Level );
431 vSuper = Vec_VecEntry(vLevels, Level);
432 Hop_ObjCollectMulti( pObj, vSuper );
433 fprintf( pFile, "%s", (Level==0? "" : "(") );
434 Vec_PtrForEachEntry( Hop_Obj_t *, vSuper, pFanin, i )
435 {
436 Hop_ObjPrintVerilog( pFile, Hop_NotCond(pFanin, fCompl), vLevels, Level+1, fOnlyAnds );
437 if ( i < Vec_PtrSize(vSuper) - 1 )
438 fprintf( pFile, " %s ", fCompl? "|" : "&" );
439 }
440 fprintf( pFile, "%s", (Level==0? "" : ")") );
441 return;
442}
Hop_ObjRecognizeMux
Hop_Obj_t * Hop_ObjRecognizeMux(Hop_Obj_t *pNode, Hop_Obj_t **ppNodeT, Hop_Obj_t **ppNodeE)
Definition hopUtil.c:231
Hop_ObjIsMuxType
int Hop_ObjIsMuxType(Hop_Obj_t *pNode)
Definition hopUtil.c:151
Hop_ObjRecognizeExor
int Hop_ObjRecognizeExor(Hop_Obj_t *pObj, Hop_Obj_t **ppFan0, Hop_Obj_t **ppFan1)
Definition hopUtil.c:187
Hop_ObjPrintVerilog
void Hop_ObjPrintVerilog(FILE *pFile, Hop_Obj_t *pObj, Vec_Vec_t *vLevels, int Level, int fOnlyAnds)
Definition hopUtil.c:369

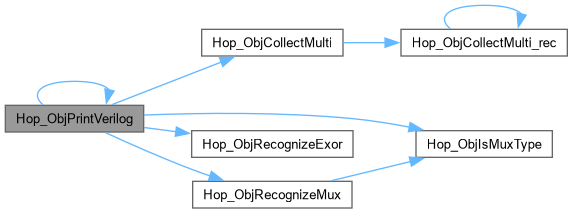

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Hop_ObjRecognizeExor()

int Hop_ObjRecognizeExor ( Hop_Obj_t * pObj,
Hop_Obj_t ** ppFan0,
Hop_Obj_t ** ppFan1 )

Function*************************************************************

Synopsis [Recognizes what nodes are inputs of the EXOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 187 of file hopUtil.c.

188{
189 Hop_Obj_t * p0, * p1;
190 assert( !Hop_IsComplement(pObj) );
191 if ( !Hop_ObjIsNode(pObj) )
192 return 0;
193 if ( Hop_ObjIsExor(pObj) )
194 {
195 *ppFan0 = Hop_ObjChild0(pObj);
196 *ppFan1 = Hop_ObjChild1(pObj);
197 return 1;
198 }
199 assert( Hop_ObjIsAnd(pObj) );
200 p0 = Hop_ObjChild0(pObj);
201 p1 = Hop_ObjChild1(pObj);
202 if ( !Hop_IsComplement(p0) || !Hop_IsComplement(p1) )
203 return 0;
204 p0 = Hop_Regular(p0);
205 p1 = Hop_Regular(p1);
206 if ( !Hop_ObjIsAnd(p0) || !Hop_ObjIsAnd(p1) )
207 return 0;
208 if ( Hop_ObjFanin0(p0) != Hop_ObjFanin0(p1) || Hop_ObjFanin1(p0) != Hop_ObjFanin1(p1) )
209 return 0;
210 if ( Hop_ObjFaninC0(p0) == Hop_ObjFaninC0(p1) || Hop_ObjFaninC1(p0) == Hop_ObjFaninC1(p1) )
211 return 0;
212 *ppFan0 = Hop_ObjChild0(p0);
213 *ppFan1 = Hop_ObjChild1(p0);
214 return 1;
215}
Here is the caller graph for this function:

◆ Hop_ObjRecognizeMux()

Hop_Obj_t * Hop_ObjRecognizeMux ( Hop_Obj_t * pNode,
Hop_Obj_t ** ppNodeT,
Hop_Obj_t ** ppNodeE )

Function*************************************************************

Synopsis [Recognizes what nodes are control and data inputs of a MUX.]

Description [If the node is a MUX, returns the control variable C. Assigns nodes T and E to be the then and else variables of the MUX. Node C is never complemented. Nodes T and E can be complemented. This function also recognizes EXOR/NEXOR gates as MUXes.]

SideEffects []

SeeAlso []

Definition at line 231 of file hopUtil.c.

232{
233 Hop_Obj_t * pNode0, * pNode1;
234 assert( !Hop_IsComplement(pNode) );
235 assert( Hop_ObjIsMuxType(pNode) );
236 // get children
237 pNode0 = Hop_ObjFanin0(pNode);
238 pNode1 = Hop_ObjFanin1(pNode);
239
240 // find the control variable
241 if ( Hop_ObjFanin1(pNode0) == Hop_ObjFanin1(pNode1) && (Hop_ObjFaninC1(pNode0) ^ Hop_ObjFaninC1(pNode1)) )
242 {
243// if ( Fraig_IsComplement(pNode1->p2) )
244 if ( Hop_ObjFaninC1(pNode0) )
245 { // pNode2->p2 is positive phase of C
246 *ppNodeT = Hop_Not(Hop_ObjChild0(pNode1));//pNode2->p1);
247 *ppNodeE = Hop_Not(Hop_ObjChild0(pNode0));//pNode1->p1);
248 return Hop_ObjChild1(pNode1);//pNode2->p2;
249 }
250 else
251 { // pNode1->p2 is positive phase of C
252 *ppNodeT = Hop_Not(Hop_ObjChild0(pNode0));//pNode1->p1);
253 *ppNodeE = Hop_Not(Hop_ObjChild0(pNode1));//pNode2->p1);
254 return Hop_ObjChild1(pNode0);//pNode1->p2;
255 }
256 }
257 else if ( Hop_ObjFanin0(pNode0) == Hop_ObjFanin0(pNode1) && (Hop_ObjFaninC0(pNode0) ^ Hop_ObjFaninC0(pNode1)) )
258 {
259// if ( Fraig_IsComplement(pNode1->p1) )
260 if ( Hop_ObjFaninC0(pNode0) )
261 { // pNode2->p1 is positive phase of C
262 *ppNodeT = Hop_Not(Hop_ObjChild1(pNode1));//pNode2->p2);
263 *ppNodeE = Hop_Not(Hop_ObjChild1(pNode0));//pNode1->p2);
264 return Hop_ObjChild0(pNode1);//pNode2->p1;
265 }
266 else
267 { // pNode1->p1 is positive phase of C
268 *ppNodeT = Hop_Not(Hop_ObjChild1(pNode0));//pNode1->p2);
269 *ppNodeE = Hop_Not(Hop_ObjChild1(pNode1));//pNode2->p2);
270 return Hop_ObjChild0(pNode0);//pNode1->p1;
271 }
272 }
273 else if ( Hop_ObjFanin0(pNode0) == Hop_ObjFanin1(pNode1) && (Hop_ObjFaninC0(pNode0) ^ Hop_ObjFaninC1(pNode1)) )
274 {
275// if ( Fraig_IsComplement(pNode1->p1) )
276 if ( Hop_ObjFaninC0(pNode0) )
277 { // pNode2->p2 is positive phase of C
278 *ppNodeT = Hop_Not(Hop_ObjChild0(pNode1));//pNode2->p1);
279 *ppNodeE = Hop_Not(Hop_ObjChild1(pNode0));//pNode1->p2);
280 return Hop_ObjChild1(pNode1);//pNode2->p2;
281 }
282 else
283 { // pNode1->p1 is positive phase of C
284 *ppNodeT = Hop_Not(Hop_ObjChild1(pNode0));//pNode1->p2);
285 *ppNodeE = Hop_Not(Hop_ObjChild0(pNode1));//pNode2->p1);
286 return Hop_ObjChild0(pNode0);//pNode1->p1;
287 }
288 }
289 else if ( Hop_ObjFanin1(pNode0) == Hop_ObjFanin0(pNode1) && (Hop_ObjFaninC1(pNode0) ^ Hop_ObjFaninC0(pNode1)) )
290 {
291// if ( Fraig_IsComplement(pNode1->p2) )
292 if ( Hop_ObjFaninC1(pNode0) )
293 { // pNode2->p1 is positive phase of C
294 *ppNodeT = Hop_Not(Hop_ObjChild1(pNode1));//pNode2->p2);
295 *ppNodeE = Hop_Not(Hop_ObjChild0(pNode0));//pNode1->p1);
296 return Hop_ObjChild0(pNode1);//pNode2->p1;
297 }
298 else
299 { // pNode1->p2 is positive phase of C
300 *ppNodeT = Hop_Not(Hop_ObjChild0(pNode0));//pNode1->p1);
301 *ppNodeE = Hop_Not(Hop_ObjChild1(pNode1));//pNode2->p2);
302 return Hop_ObjChild1(pNode0);//pNode1->p2;
303 }
304 }
305 assert( 0 ); // this is not MUX
306 return NULL;
307}
Here is the call graph for this function:
Here is the caller graph for this function:
