ifDelay.c File Reference

#include "if.h"
#include "ifCount.h"
#include "bool/kit/kit.h"

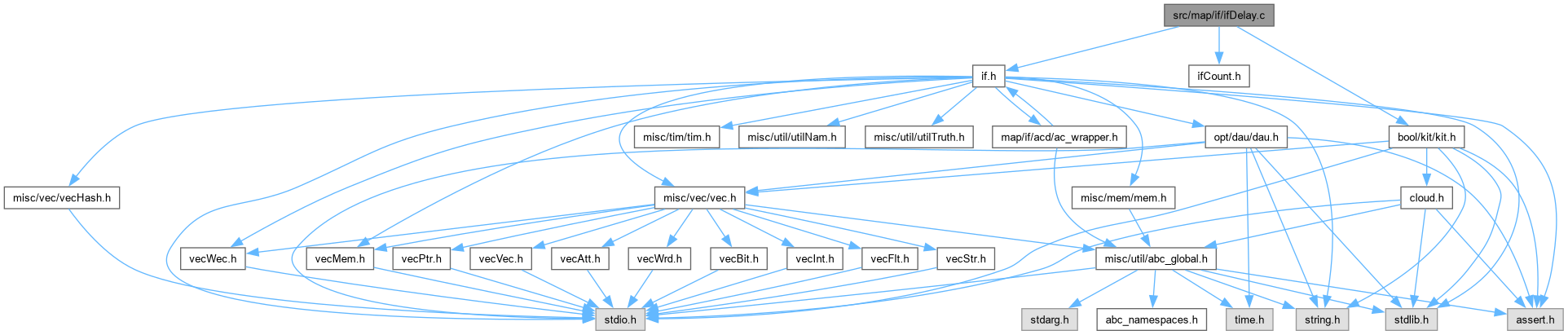

Include dependency graph for ifDelay.c:

Go to the source code of this file.

Macros
#define	IF_MAX_CUBES   70
	DECLARATIONS ///.

Functions
int	If_CutDelaySop (If_Man_t *p, If_Cut_t *pCut)
int	If_CutSopBalancePinDelaysInt (Vec_Int_t *vCover, int *pTimes, word *pFaninRes, int nSuppAll, word *pRes)
int	If_CutSopBalancePinDelaysIntInt (Vec_Int_t *vCover, int *pTimes, int nSuppAll, char *pPerm)
int	If_CutSopBalancePinDelays (If_Man_t *p, If_Cut_t *pCut, char *pPerm)
int	If_CutSopBalanceEvalInt (Vec_Int_t *vCover, int *pTimes, int *pFaninLits, Vec_Int_t *vAig, int *piRes, int nSuppAll, int *pArea)
int	If_CutSopBalanceEvalIntInt (Vec_Int_t *vCover, int nLeaves, int *pTimes, Vec_Int_t *vAig, int fCompl, int *pArea)
int	If_CutSopBalanceEval (If_Man_t *p, If_Cut_t *pCut, Vec_Int_t *vAig)
int	If_CutLutBalancePinDelays (If_Man_t *p, If_Cut_t *pCut, char *pPerm)
int	If_CutLutBalanceEval (If_Man_t *p, If_Cut_t *pCut)
int	If_LutDecEval (If_Man_t *p, If_Cut_t *pCut, If_Obj_t *pObj, int optDelay, int fFirst)
int	If_Lut2DecEval (If_Man_t *p, If_Cut_t *pCut, If_Obj_t *pObj, int optDelay, int fFirst)
int	If_LutDecReEval (If_Man_t *p, If_Cut_t *pCut)
float	If_LutDecPinRequired (If_Man_t *p, If_Cut_t *pCut, int i, float required)

Macro Definition Documentation

IF_MAX_CUBES

#define IF_MAX_CUBES   70

DECLARATIONS ///.

CFile****************************************************************

FileName [ifDelay.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [FPGA mapping based on priority cuts.]

Synopsis [Delay balancing for cut functions.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 21, 2006.]

Revision [

Id

ifDelay.c,v 1.00 2006/11/21 00:00:00 alanmi Exp

]

Definition at line 31 of file ifDelay.c.

Function Documentation

If_CutDelaySop()

int If_CutDelaySop	(	If_Man_t *	p,
		If_Cut_t *	pCut )

Definition at line 64 of file ifDelay.c.

{
    char * pPerm = If_CutPerm( pCut );
    // delay is calculated using 1+log2(NumFanins)
    static double GateDelays[20] = { 1.00, 1.00, 2.00, 2.58, 3.00, 3.32, 3.58, 3.81, 4.00, 4.17, 4.32, 4.46, 4.58, 4.70, 4.81, 4.91, 5.00, 5.09, 5.17, 5.25 };
    Vec_Int_t * vCover;
    If_Obj_t * pLeaf;
    int i, nLitMax, Delay, DelayMax;
    // mark cut as a user cut
    pCut->fUser = 1;
    if ( pCut->nLeaves == 0 )
        return 0;
    if ( pCut->nLeaves == 1 )
        return (int)If_ObjCutBest(If_CutLeaf(p, pCut, 0))->Delay;
    vCover = Vec_WecEntry( p->vTtIsops[pCut->nLeaves], Abc_Lit2Var(If_CutTruthLit(pCut)) );
    if ( Vec_IntSize(vCover) == 0 )
        return -1;
    // mark the output as complemented
//    vAnds = If_CutDelaySopAnds( p, pCut, vCover, RetValue ^ pCut->fCompl );
    if ( Vec_IntSize(vCover) > p->pPars->nGateSize )
        return -1;
    // set the area cost
    assert( If_CutLeaveNum(pCut) >= 0 && If_CutLeaveNum(pCut) <= 16 );
    // compute the gate delay
    nLitMax = If_CutMaxCubeSize( vCover, If_CutLeaveNum(pCut) );
    if ( Vec_IntSize(vCover) < 2 )
    {
        pCut->Cost = Vec_IntSize(vCover);
        Delay = (int)(GateDelays[If_CutLeaveNum(pCut)] + 0.5);
        DelayMax = 0;
        If_CutForEachLeaf( p, pCut, pLeaf, i )
            DelayMax = Abc_MaxInt( DelayMax, If_ObjCutBest(pLeaf)->Delay + (pPerm[i] = (char)Delay) );
    }
    else
    {
        pCut->Cost = Vec_IntSize(vCover) + 1;
        Delay = (int)(GateDelays[If_CutLeaveNum(pCut)] + GateDelays[nLitMax] + 0.5);
        DelayMax = 0;
        If_CutForEachLeaf( p, pCut, pLeaf, i )
            DelayMax = Abc_MaxInt( DelayMax, If_ObjCutBest(pLeaf)->Delay + (pPerm[i] = (char)Delay) );
    }
    return DelayMax;
}

Here is the caller graph for this function:

If_CutLutBalanceEval()

int If_CutLutBalanceEval	(	If_Man_t *	p,
		If_Cut_t *	pCut )

Function*************************************************************

Synopsis [Evaluate delay using SOP balancing.]

Description []

SideEffects []

SeeAlso []

Definition at line 369 of file ifDelay.c.

{
    pCut->fUser = 1;
    pCut->Cost = pCut->nLeaves > 1 ? 1 : 0;
    pCut->uMaskFunc = 0;
    if ( pCut->nLeaves == 0 ) // const
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 0 );
        return 0;
    }
    if ( pCut->nLeaves == 1 ) // variable
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 1 );
        return (int)If_ObjCutBest(If_CutLeaf(p, pCut, 0))->Delay;
    }
    else
    {
        char * pCutPerm = If_CutDsdPerm( p, pCut );
        int LutSize = p->pPars->pLutStruct[0] - '0';
        int i, pTimes[IF_MAX_FUNC_LUTSIZE];
        int DelayMax = -1, nLeafMax = 0;
        unsigned uLeafMask = 0;
        for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
        {
            pTimes[i] = (int)If_ObjCutBest(If_CutLeaf(p, pCut, Abc_Lit2Var((int)pCutPerm[i])))->Delay;
            if ( DelayMax < pTimes[i] )
                DelayMax = pTimes[i], nLeafMax = 1, uLeafMask = (1 << (i << 1));
            else if ( DelayMax == pTimes[i] )
                nLeafMax++, uLeafMask |= (1 << (i << 1));
        }
        if ( If_CutLeaveNum(pCut) <= LutSize )
            return DelayMax + 1;
        pCut->Cost = 2;
        if ( nLeafMax <= LutSize - 1 )
        {
            pCut->uMaskFunc = If_DsdManCheckXY( p->pIfDsdMan, If_CutDsdLit(p, pCut), LutSize, 1, uLeafMask, 0, 0 );
            if ( pCut->uMaskFunc > 0 )
                return DelayMax + 1;
        }
        pCut->uMaskFunc = If_DsdManCheckXY( p->pIfDsdMan, If_CutDsdLit(p, pCut), LutSize, 1, 0, 0, 0 );
        if ( pCut->uMaskFunc == 0 )
            return -1;
        return DelayMax + 2;
    }
}

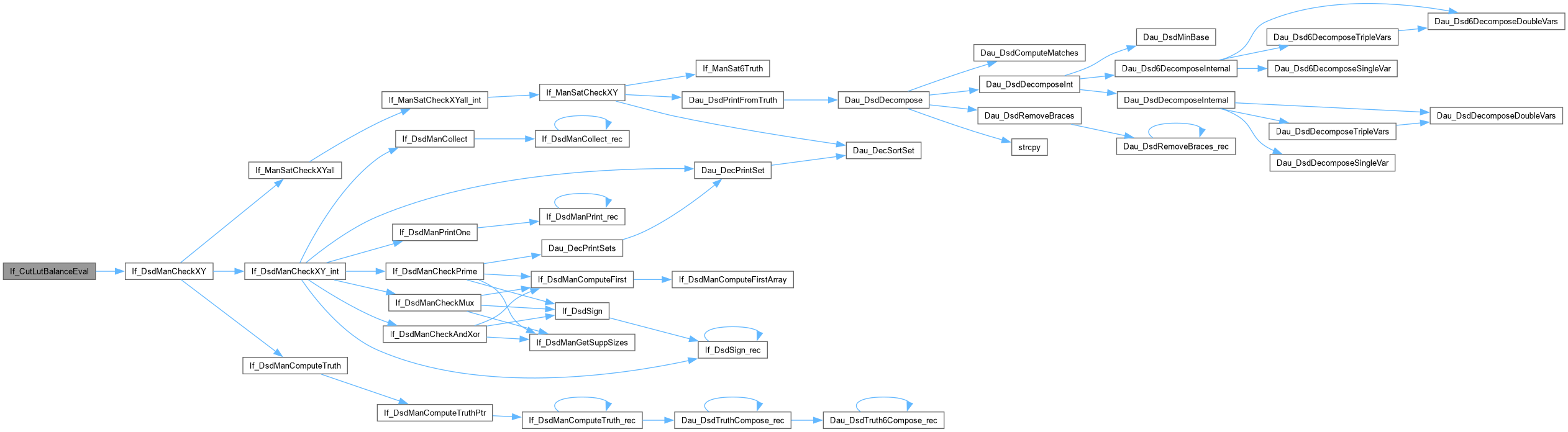

Here is the call graph for this function:

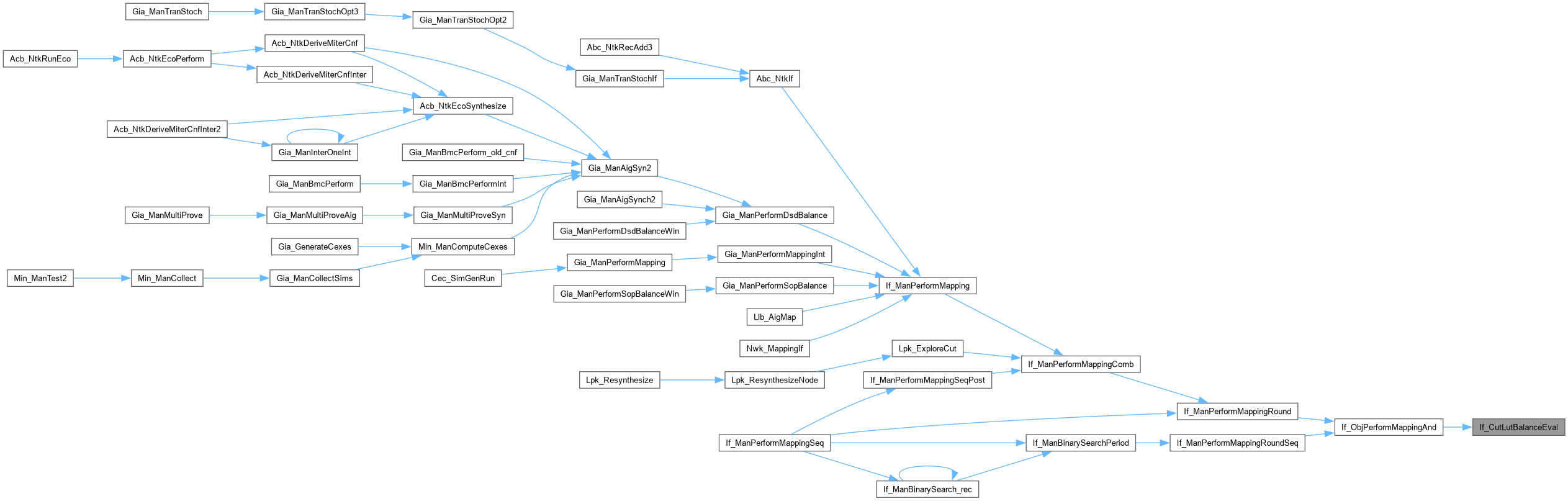

Here is the caller graph for this function:

If_CutLutBalancePinDelays()

int If_CutLutBalancePinDelays	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		char *	pPerm )

Function*************************************************************

Synopsis [Evaluate delay using SOP balancing.]

Description []

SideEffects []

SeeAlso []

Definition at line 327 of file ifDelay.c.

{
    if ( pCut->nLeaves == 0 ) // const
        return 0;
    if ( pCut->nLeaves == 1 ) // variable
    {
        pPerm[0] = 0;
        return (int)If_ObjCutBest(If_CutLeaf(p, pCut, 0))->Delay;
    }
    else
    {
        char * pCutPerm = If_CutDsdPerm( p, pCut );
        int LutSize = p->pPars->pLutStruct[0] - '0';
        int i, Delay, DelayMax = -1;
        assert( (If_CutLeaveNum(pCut) > LutSize) == (pCut->uMaskFunc > 0) );
        for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
        {
            if ( If_CutLeaveNum(pCut) > LutSize && ((pCut->uMaskFunc >> (i << 1)) & 1) )
                pPerm[Abc_Lit2Var((int)pCutPerm[i])] = 2;
            else
                pPerm[Abc_Lit2Var((int)pCutPerm[i])] = 1;
        }
        for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
        {
            Delay = (int)If_ObjCutBest(If_CutLeaf(p, pCut, i))->Delay;
            DelayMax = Abc_MaxInt( DelayMax, Delay + (int)pPerm[i] );
        }
        return DelayMax;
    }
}

Here is the caller graph for this function:

If_CutSopBalanceEval()

int If_CutSopBalanceEval	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		Vec_Int_t *	vAig )

Definition at line 248 of file ifDelay.c.

{
    pCut->fUser = 1;
    if ( vAig )
        Vec_IntClear( vAig );
    if ( pCut->nLeaves == 0 ) // const
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 0 );
        if ( vAig )
            Vec_IntPush( vAig, Abc_LitIsCompl(If_CutTruthLit(pCut)) );
        pCut->Cost = 0;
        return 0;
    }
    if ( pCut->nLeaves == 1 ) // variable
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 1 );
        if ( vAig )
            Vec_IntPush( vAig, 0 );
        if ( vAig )
            Vec_IntPush( vAig, Abc_LitIsCompl(If_CutTruthLit(pCut)) );
        pCut->Cost = 0;
        return (int)If_ObjCutBest(If_CutLeaf(p, pCut, 0))->Delay;
    }
    else
    {
        int fVerbose = 0;
        Vec_Int_t * vCover = Vec_WecEntry( p->vTtIsops[pCut->nLeaves], Abc_Lit2Var(If_CutTruthLit(pCut)) );
        int Delay, Area = 0;
        int i, pTimes[IF_MAX_FUNC_LUTSIZE];
        if ( vCover == NULL )
            return -1;
        assert( Vec_IntSize(vCover) > 0 );
        for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
            pTimes[i] = (int)If_ObjCutBest(If_CutLeaf(p, pCut, i))->Delay;
        Delay = If_CutSopBalanceEvalIntInt( vCover, If_CutLeaveNum(pCut), pTimes, vAig, Abc_LitIsCompl(If_CutTruthLit(pCut)) ^ pCut->fCompl, &Area );
        pCut->Cost = Area;
        if ( fVerbose )
        {
            int Max = 0, Two = 0;
            for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
                Max = Abc_MaxInt( Max, pTimes[i] );
            for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
                if ( pTimes[i] != Max )
                    Two = Abc_MaxInt( Two, pTimes[i] );
            if ( Two + 2 < Max && Max + 3 < Delay )
            {
                for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
                    printf( "%3d ", pTimes[i] );
                for ( ; i < p->pPars->nLutSize; i++ )
                    printf( "    " );
                printf( "-> %3d   ", Delay );
                Dau_DsdPrintFromTruth( If_CutTruthW(p, pCut), If_CutLeaveNum(pCut) );
                Kit_TruthIsopPrintCover( vCover, If_CutLeaveNum(pCut), Abc_LitIsCompl(If_CutTruthLit(pCut)) ^ pCut->fCompl );
                {
                    Vec_Int_t vIsop;
                    int pIsop[64];
                    vIsop.nCap = vIsop.nSize = Abc_Tt6Esop( *If_CutTruthW(p, pCut), pCut->nLeaves, pIsop );
                    vIsop.pArray = pIsop;
                    printf( "ESOP (%d -> %d)\n", Vec_IntSize(vCover), vIsop.nSize );
                    Kit_TruthIsopPrintCover( &vIsop, If_CutLeaveNum(pCut), 0 );
                }
                printf( "\n" );
            }
        }
        return Delay;
    }
}

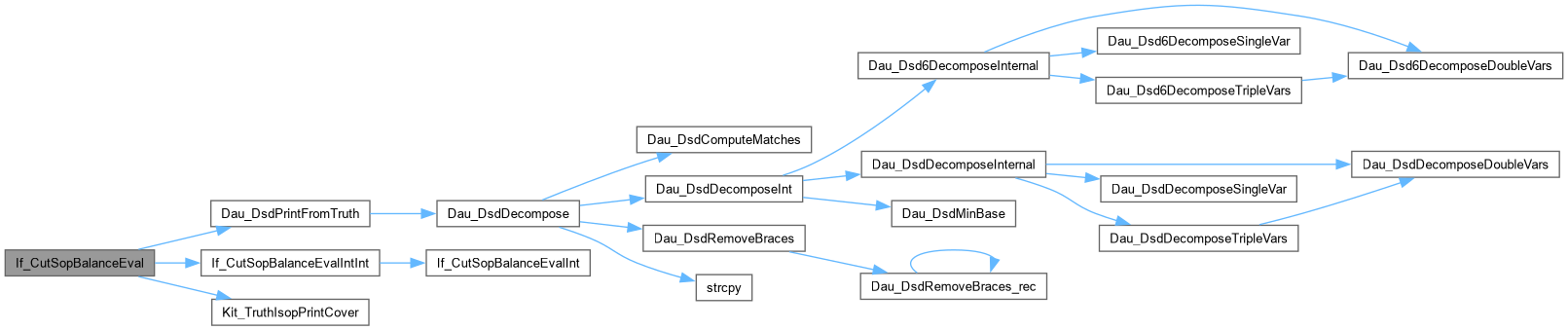

Here is the call graph for this function:

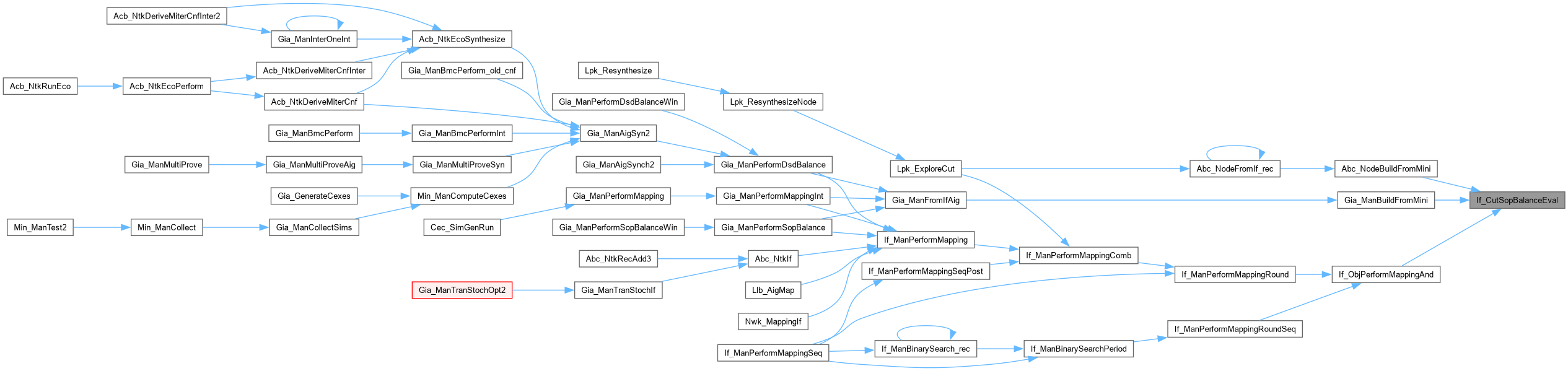

Here is the caller graph for this function:

If_CutSopBalanceEvalInt()

int If_CutSopBalanceEvalInt	(	Vec_Int_t *	vCover,
		int *	pTimes,
		int *	pFaninLits,
		Vec_Int_t *	vAig,
		int *	piRes,
		int	nSuppAll,
		int *	pArea )

Function*************************************************************

Synopsis [Evaluate delay using SOP balancing.]

Description []

SideEffects []

SeeAlso []

Definition at line 192 of file ifDelay.c.

{
    int nCounterAnd, pCounterAnd[IF_MAX_FUNC_LUTSIZE], pFaninLitsAnd[IF_MAX_FUNC_LUTSIZE];
    int nCounterOr,  pCounterOr[IF_MAX_CUBES],  pFaninLitsOr[IF_MAX_CUBES];
    int i, k, Entry, Literal, nLits, Delay = 0, iRes = 0;
    if ( Vec_IntSize(vCover) > IF_MAX_CUBES )
        return -1;
    nCounterOr = 0;
    Vec_IntForEachEntry( vCover, Entry, i )
    {
        nCounterAnd = nLits = 0;
        for ( k = 0; k < nSuppAll; k++ )
        {
            Literal = 3 & (Entry >> (k << 1));
            if ( Literal == 1 ) // neg literal
                nLits++, Delay = If_LogCounterAddAig( pCounterAnd, &nCounterAnd, pFaninLitsAnd, pTimes[k], vAig ? Abc_LitNot(pFaninLits[k]) : -1, vAig, nSuppAll, 0, 0 );
            else if ( Literal == 2 ) // pos literal
                nLits++, Delay = If_LogCounterAddAig( pCounterAnd, &nCounterAnd, pFaninLitsAnd, pTimes[k], vAig ? pFaninLits[k] : -1, vAig, nSuppAll, 0, 0 );
            else if ( Literal != 0 )
                assert( 0 );
        }
        assert( nCounterAnd > 0 );
        assert( nLits > 0 );
        if ( vAig )
            iRes = If_LogCreateAndXorMulti( vAig, pFaninLitsAnd, nCounterAnd, nSuppAll, 0 );
        else
            *pArea += nLits == 1 ? 0 : nLits - 1;
        Delay = If_LogCounterAddAig( pCounterOr, &nCounterOr, pFaninLitsOr, Delay, vAig ? Abc_LitNot(iRes) : -1, vAig, nSuppAll, 0, 0 );
    }
    assert( nCounterOr > 0 );
    if ( vAig )
    {
        *piRes = Abc_LitNot( If_LogCreateAndXorMulti( vAig, pFaninLitsOr, nCounterOr, nSuppAll, 0 ) );
        if ( ((vCover->nCap >> 16) & 1) )  // hack to remember complemented attribute
            *piRes = Abc_LitNot( *piRes );
    }
    else
        *pArea += Vec_IntSize(vCover) == 1 ? 0 : Vec_IntSize(vCover) - 1;
    return Delay;
}

Here is the caller graph for this function:

If_CutSopBalanceEvalIntInt()

int If_CutSopBalanceEvalIntInt	(	Vec_Int_t *	vCover,
		int	nLeaves,
		int *	pTimes,
		Vec_Int_t *	vAig,
		int	fCompl,
		int *	pArea )

Definition at line 232 of file ifDelay.c.

{
    int pFaninLits[IF_MAX_FUNC_LUTSIZE];
    int iRes = 0, Res, k;
    if ( vAig )
        for ( k = 0; k < nLeaves; k++ )
            pFaninLits[k] = Abc_Var2Lit(k, 0);
    Res = If_CutSopBalanceEvalInt( vCover, pTimes, pFaninLits, vAig, &iRes, nLeaves, pArea );
    if ( Res == -1 )
        return -1;
    assert( vAig == NULL || Abc_Lit2Var(iRes) == nLeaves + Abc_Lit2Var(Vec_IntSize(vAig)) - 1 );
    if ( vAig )
        Vec_IntPush( vAig, Abc_LitIsCompl(iRes) ^ fCompl );
    assert( vAig == NULL || (Vec_IntSize(vAig) & 1) );
    return Res;
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_CutSopBalancePinDelays()

int If_CutSopBalancePinDelays	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		char *	pPerm )

Definition at line 159 of file ifDelay.c.

{
    if ( pCut->nLeaves == 0 ) // const
        return 0;
    if ( pCut->nLeaves == 1 ) // variable
    {
        pPerm[0] = 0;
        return (int)If_ObjCutBest(If_CutLeaf(p, pCut, 0))->Delay;
    }
    else
    {
        Vec_Int_t * vCover;
        int i, pTimes[IF_MAX_FUNC_LUTSIZE];
        vCover = Vec_WecEntry( p->vTtIsops[pCut->nLeaves], Abc_Lit2Var(If_CutTruthLit(pCut)) );
        if ( Vec_IntSize(vCover) == 0 )
            return -1;
        for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
            pTimes[i] = (int)If_ObjCutBest(If_CutLeaf(p, pCut, i))->Delay;
        return If_CutSopBalancePinDelaysIntInt( vCover, pTimes, If_CutLeaveNum(pCut), pPerm );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_CutSopBalancePinDelaysInt()

int If_CutSopBalancePinDelaysInt	(	Vec_Int_t *	vCover,
		int *	pTimes,
		word *	pFaninRes,
		int	nSuppAll,
		word *	pRes )

Function*************************************************************

Synopsis [Compute pin delays.]

Description []

SideEffects []

SeeAlso []

Definition at line 120 of file ifDelay.c.

{
    word pPinDelsAnd[IF_MAX_FUNC_LUTSIZE], pPinDelsOr[IF_MAX_CUBES];
    int nCounterAnd, pCounterAnd[IF_MAX_FUNC_LUTSIZE];
    int nCounterOr,  pCounterOr[IF_MAX_CUBES];
    int i, k, Entry, Literal, Delay = 0;
    word ResAnd;
    if ( Vec_IntSize(vCover) > IF_MAX_CUBES )
        return -1;
    nCounterOr = 0;
    Vec_IntForEachEntry( vCover, Entry, i )
    {
        nCounterAnd = 0;
        for ( k = 0; k < nSuppAll; k++ )
        {
            Literal = 3 & (Entry >> (k << 1));
            if ( Literal == 1 || Literal == 2 ) // neg or pos literal
                Delay = If_LogCounterPinDelays( pCounterAnd, &nCounterAnd, pPinDelsAnd, pTimes[k], pFaninRes[k], nSuppAll, 0 );
            else if ( Literal != 0 )
                assert( 0 );
        }
        assert( nCounterAnd > 0 );
        ResAnd = If_LogPinDelaysMulti( pPinDelsAnd, nCounterAnd, nSuppAll, 0 );
        Delay = If_LogCounterPinDelays( pCounterOr, &nCounterOr, pPinDelsOr, Delay, ResAnd, nSuppAll, 0 );
    }
    assert( nCounterOr > 0 );
    *pRes = If_LogPinDelaysMulti( pPinDelsOr, nCounterOr, nSuppAll, 0 );
    return Delay;
}

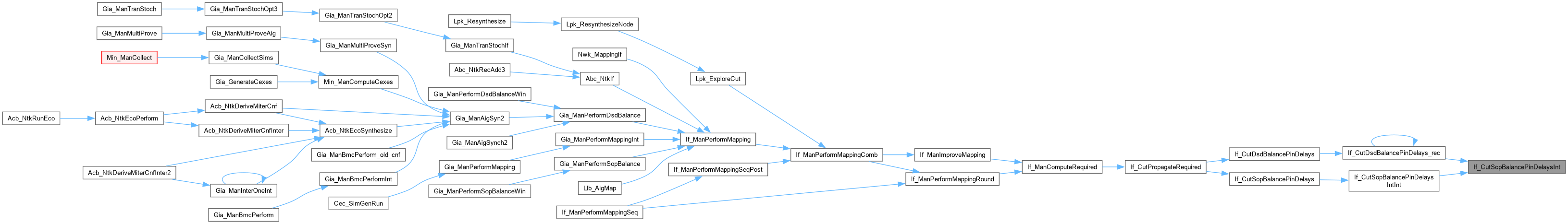

Here is the caller graph for this function:

If_CutSopBalancePinDelaysIntInt()

int If_CutSopBalancePinDelaysIntInt	(	Vec_Int_t *	vCover,
		int *	pTimes,
		int	nSuppAll,
		char *	pPerm )

Definition at line 149 of file ifDelay.c.

{
    int i, Delay;
    word Res, FaninRes[IF_MAX_FUNC_LUTSIZE];
    for ( i = 0; i < nSuppAll; i++ )
        FaninRes[i] = If_CutPinDelayInit(i);
    Delay = If_CutSopBalancePinDelaysInt( vCover, pTimes, FaninRes, nSuppAll, &Res );
    If_CutPinDelayTranslate( Res, nSuppAll, pPerm );
    return Delay;
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_Lut2DecEval()

int If_Lut2DecEval	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		If_Obj_t *	pObj,
		int	optDelay,
		int	fFirst )

Definition at line 508 of file ifDelay.c.

{
    pCut->fUser = 1;
    pCut->Cost = pCut->nLeaves > 1 ? 1 : 0;
    pCut->decDelay = 0;
    if ( pCut->nLeaves == 0 ) // const
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 0 );
        return 0;
    }
    if ( pCut->nLeaves == 1 ) // variable
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 1 );
        return (int)If_ObjCutBest(If_CutLeaf(p, pCut, 0))->Delay;
    }

    int LutSize = p->pPars->nLutDecSize;
    int i, leaf_delay;
    int DelayMax = -1, nLeafMax = 0;
    unsigned uLeafMask = 0;
    for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
    {
        leaf_delay = If_ObjCutBest(If_CutLeaf(p, pCut, i))->Delay;

        if ( DelayMax < leaf_delay )
        {
            DelayMax = leaf_delay;
            nLeafMax = 1;
            uLeafMask = (1 << i);
        }
        else if ( DelayMax == leaf_delay )
        {
            nLeafMax++;
            uLeafMask |= (1 << i);
        }
    }
    if ( If_CutLeaveNum(pCut) <= LutSize )
    {
        pCut->decDelay = ( 1 << LutSize ) - 1;
        return DelayMax + 1;
    }

    /* compute the decomposition */
    int use_late_arrival = 0;
    unsigned cost = 1;

    if ( !fFirst )
    {
        if ( optDelay )
        {
            /* checks based on delay: must be better than the previous best cut */
            use_late_arrival = DelayMax + 2 >= If_ObjCutBest(pObj)->Delay;
        }
        else
        {
            /* checks based on delay: look at the required time */
            use_late_arrival = DelayMax + 2 > pObj->Required + p->fEpsilon;
        }
    }

    /* Too many late-arriving signals */
    if ( nLeafMax == LutSize && use_late_arrival )
    {
        /* unfeasible decomposition */
        pCut->Cost = IF_COST_MAX;
        return ABC_INFINITY;
    }

    if ( !use_late_arrival )
    {
        uLeafMask = 0;
    }

    /* returns the delay of the decomposition */
    word *pTruth = If_CutTruthW( p, pCut );
    int val = acd2_evaluate( pTruth, pCut->nLeaves, LutSize, &uLeafMask, &cost, !use_late_arrival );

    /* not feasible decomposition */
    pCut->decDelay = uLeafMask;
    if ( val < 0 )
    {
        pCut->Cost = IF_COST_MAX;
        return ABC_INFINITY;
    }

    pCut->Cost = 2;
    return DelayMax + val;
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_LutDecEval()

int If_LutDecEval	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		If_Obj_t *	pObj,
		int	optDelay,
		int	fFirst )

Definition at line 415 of file ifDelay.c.

{
    pCut->fUser = 1;
    pCut->Cost = pCut->nLeaves > 1 ? 1 : 0;
    pCut->decDelay = 0;
    if ( pCut->nLeaves == 0 ) // const
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 0 );
        return 0;
    }
    if ( pCut->nLeaves == 1 ) // variable
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 1 );
        return (int)If_ObjCutBest(If_CutLeaf(p, pCut, 0))->Delay;
    }

    int LutSize = p->pPars->nLutDecSize;
    int i, leaf_delay;
    int DelayMax = -1, nLeafMax = 0;
    unsigned uLeafMask = 0;
    for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
    {
        leaf_delay = If_ObjCutBest(If_CutLeaf(p, pCut, i))->Delay;

        if ( DelayMax < leaf_delay )
        {
            DelayMax = leaf_delay;
            nLeafMax = 1;
            uLeafMask = (1 << i);
        }
        else if ( DelayMax == leaf_delay )
        {
            nLeafMax++;
            uLeafMask |= (1 << i);
        }
    }
    if ( If_CutLeaveNum(pCut) <= LutSize )
    {
        pCut->decDelay = ( 1 << LutSize ) - 1;
        return DelayMax + 1;
    }

    /* compute the decomposition */
    int use_late_arrival = 0;
    unsigned cost = 1;

    if ( !fFirst )
    {
        if ( optDelay )
        {
            /* checks based on delay: must be better than the previous best cut */
            use_late_arrival = DelayMax + 2 >= If_ObjCutBest(pObj)->Delay;
        }
        else
        {
            /* checks based on delay: look at the required time */
            use_late_arrival = DelayMax + 2 > pObj->Required + p->fEpsilon;
        }
    }

    /* Too many late-arriving signals */
    if ( nLeafMax == LutSize )
    {
        if ( use_late_arrival )
        {
            /* unfeasible decomposition */
            pCut->Cost = IF_COST_MAX;
            return ABC_INFINITY;
        }
        else
        {
            /* remove critical signals as not needed */
            uLeafMask = 0;
        }
    }

    /* returns the delay of the decomposition */
    word *pTruth = If_CutTruthW( p, pCut );
    int val = acd_evaluate( pTruth, pCut->nLeaves, LutSize, &uLeafMask, &cost, !use_late_arrival );

    /* not feasible decomposition */
    pCut->decDelay = uLeafMask;
    if ( val < 0 )
    {
        pCut->Cost = IF_COST_MAX;
        return ABC_INFINITY;
    }

    pCut->Cost = cost;

    return DelayMax + val;
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_LutDecPinRequired()

float If_LutDecPinRequired	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		int	i,
		float	required )

Definition at line 625 of file ifDelay.c.

{
    if ( pCut->nLeaves == 0 ) // const
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 0 );
        return required;
    }
    if ( pCut->nLeaves == 1 ) // variable
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 1 );
        return 0;
    }

    return ( ( pCut->decDelay >> i ) & 1 ) == 0 ? 2 : 1;
}

Here is the caller graph for this function:

If_LutDecReEval()

int If_LutDecReEval	(	If_Man_t *	p,
		If_Cut_t *	pCut )

Definition at line 597 of file ifDelay.c.

{
    // pCut->fUser = 1;

    if ( pCut->nLeaves == 0 ) // const
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 0 );
        return 0;
    }
    if ( pCut->nLeaves == 1 ) // variable
    {
        assert( Abc_Lit2Var(If_CutTruthLit(pCut)) == 1 );
        return (int)If_ObjCutBest(If_CutLeaf(p, pCut, 0))->Delay;
    }

    // int LutSize = p->pPars->pLutStruct[0] - '0';
    int i, leaf_delay;
    int DelayMax = -1;
    for ( i = 0; i < If_CutLeaveNum(pCut); i++ )
    {
        leaf_delay = If_ObjCutBest(If_CutLeaf(p, pCut, i))->Delay;
        leaf_delay += ( ( pCut->decDelay >> i ) & 1 ) == 0 ? 2 : 1;
        DelayMax = Abc_MaxInt( leaf_delay, DelayMax );
    }

    return DelayMax;
}

Here is the caller graph for this function:
