ifTime.c File Reference

#include "if.h"

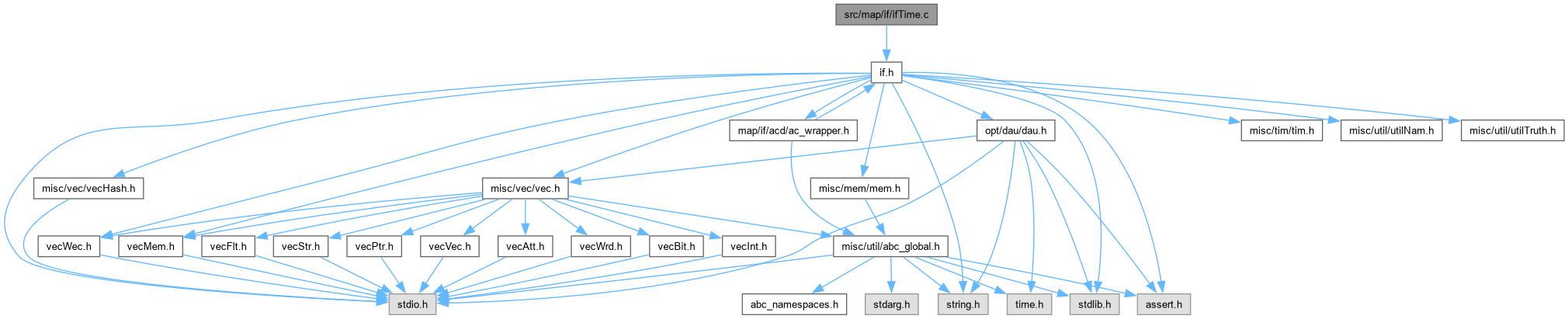

Include dependency graph for ifTime.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	If_CutSortInputPins (If_Man_t *p, If_Cut_t *pCut, int *pPinPerm, float *pPinDelays)
	DECLARATIONS ///.
float	If_CutDelay (If_Man_t *p, If_Obj_t *pObj, If_Cut_t *pCut)
void	If_CutPropagateRequired (If_Man_t *p, If_Obj_t *pObj, If_Cut_t *pCut, float ObjRequired)
float	If_ManDelayMax (If_Man_t *p, int fSeq)
void	If_ManComputeRequired (If_Man_t *p)

Function Documentation

If_CutDelay()

float If_CutDelay	(	If_Man_t *	p,
		If_Obj_t *	pObj,
		If_Cut_t *	pCut )

Function*************************************************************

Synopsis [Computes delay.]

Description []

SideEffects []

SeeAlso []

Definition at line 91 of file ifTime.c.

{
    static int pPinPerm[IF_MAX_LUTSIZE];
    static float pPinDelays[IF_MAX_LUTSIZE];
    char * pPerm = If_CutPerm( pCut );
    If_Obj_t * pLeaf;
    float Delay, DelayCur;
    float * pLutDelays;
    int i, Shift, Pin2PinDelay;//, iLeaf;
    Delay = -IF_FLOAT_LARGE;
    if ( pCut->fAndCut )
    {
        If_CutForEachLeaf( p, pCut, pLeaf, i )
        {
            DelayCur = If_ObjCutBest(pLeaf)->Delay + p->pPars->nAndDelay;
            Delay = IF_MAX( Delay, DelayCur );
        }
    }
    else if ( p->pPars->pLutLib )
    {
        assert( !p->pPars->fLiftLeaves );
        pLutDelays = p->pPars->pLutLib->pLutDelays[pCut->nLeaves];
        if ( p->pPars->pLutLib->fVarPinDelays )
        {
            // compute the delay using sorted pins
            If_CutSortInputPins( p, pCut, pPinPerm, pPinDelays );
            for ( i = 0; i < (int)pCut->nLeaves; i++ )
            {
                DelayCur = pPinDelays[pPinPerm[i]] + pLutDelays[i];
                Delay = IF_MAX( Delay, DelayCur );
            }
        }
        else
        {
            If_CutForEachLeaf( p, pCut, pLeaf, i )
            {
                DelayCur = If_ObjCutBest(pLeaf)->Delay + pLutDelays[0];
                Delay = IF_MAX( Delay, DelayCur );
            }
        }
    }
    else
    {
        if ( pCut->fUser )
        {
            assert( !p->pPars->fLiftLeaves );
            If_CutForEachLeaf( p, pCut, pLeaf, i )
            {
                Pin2PinDelay = pPerm ? (pPerm[i] == IF_BIG_CHAR ? -IF_BIG_CHAR : pPerm[i]) : 1;
                DelayCur = If_ObjCutBest(pLeaf)->Delay + (float)Pin2PinDelay;
                Delay = IF_MAX( Delay, DelayCur );
            }
        }
        else
        {
            if ( p->pPars->fLiftLeaves )
            {
                If_CutForEachLeafSeq( p, pCut, pLeaf, Shift, i )
                {
                    DelayCur = If_ObjCutBest(pLeaf)->Delay - Shift * p->Period;
                    Delay = IF_MAX( Delay, DelayCur + 1.0 );
                }
            }
            else
            {
                If_CutForEachLeaf( p, pCut, pLeaf, i )
                {
                    DelayCur = If_ObjCutBest(pLeaf)->Delay + 1.0;
                    Delay = IF_MAX( Delay, DelayCur );
                }
            }
        }
    }
    return Delay;
}

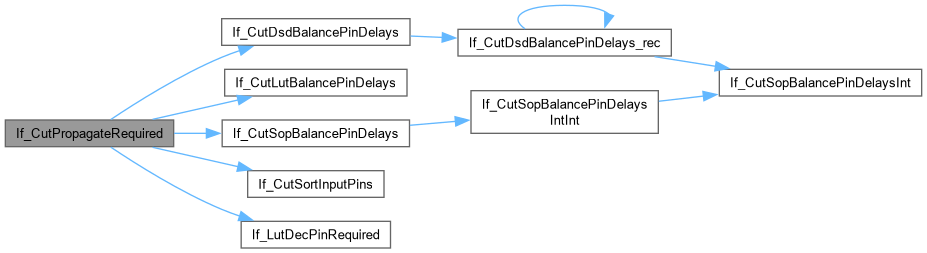

Here is the call graph for this function:

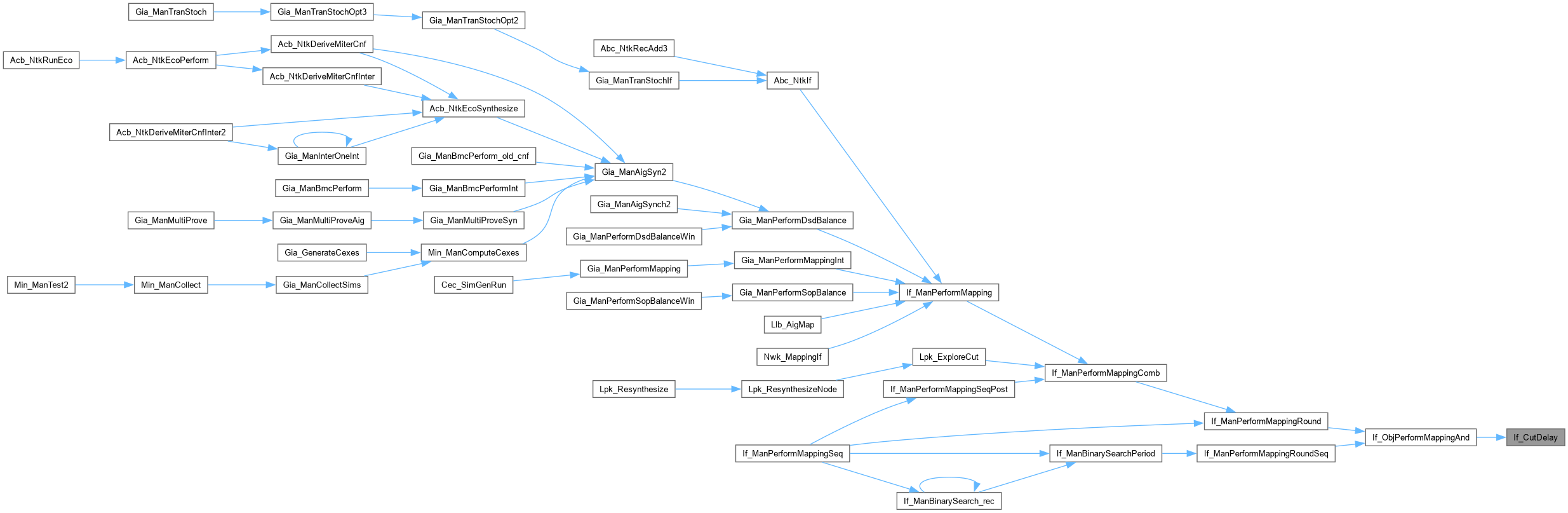

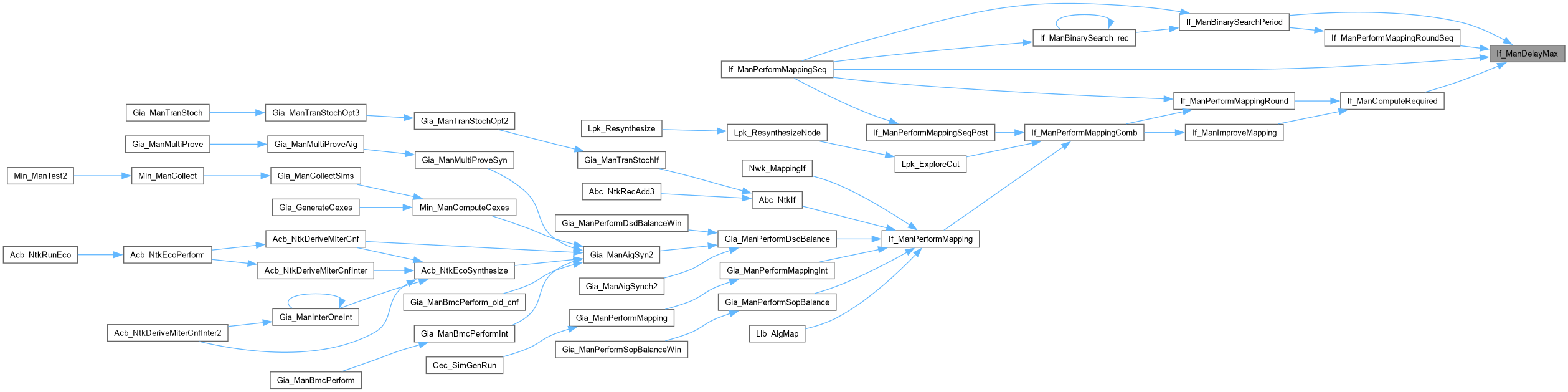

Here is the caller graph for this function:

If_CutPropagateRequired()

void If_CutPropagateRequired	(	If_Man_t *	p,
		If_Obj_t *	pObj,
		If_Cut_t *	pCut,
		float	ObjRequired )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 178 of file ifTime.c.

{
    static int pPinPerm[IF_MAX_LUTSIZE];
    static float pPinDelays[IF_MAX_LUTSIZE];
    If_Obj_t * pLeaf;
    float * pLutDelays;
    float Required;
    int i, Pin2PinDelay;//, iLeaf;
    assert( !p->pPars->fLiftLeaves );
    // compute the pins
    if ( pCut->fAndCut )
    {
        If_CutForEachLeaf( p, pCut, pLeaf, i )
            pLeaf->Required = IF_MIN( pLeaf->Required, ObjRequired - p->pPars->nAndDelay );
    }
    else if ( p->pPars->pLutLib )
    {
        pLutDelays = p->pPars->pLutLib->pLutDelays[pCut->nLeaves];
        if ( p->pPars->pLutLib->fVarPinDelays )
        {
            // compute the delay using sorted pins
            If_CutSortInputPins( p, pCut, pPinPerm, pPinDelays );
            for ( i = 0; i < (int)pCut->nLeaves; i++ )
            {
                Required = ObjRequired - pLutDelays[i];
                pLeaf = If_ManObj( p, pCut->pLeaves[pPinPerm[i]] );
                pLeaf->Required = IF_MIN( pLeaf->Required, Required );
            }
        }
        else
        {
            Required = ObjRequired;
            If_CutForEachLeaf( p, pCut, pLeaf, i )
                pLeaf->Required = IF_MIN( pLeaf->Required, Required - pLutDelays[0] );
        }
    }
    else if ( p->pPars->fUserLutDec || p->pPars->fUserLut2D )
    {
        Required = ObjRequired;
        If_CutForEachLeaf( p, pCut, pLeaf, i )
            pLeaf->Required = IF_MIN( pLeaf->Required, Required - If_LutDecPinRequired( p, pCut, i, ObjRequired ) );
    }
    else
    {
        if ( pCut->fUser )
        {
            char Perm[IF_MAX_FUNC_LUTSIZE], * pPerm = Perm;
            if ( p->pPars->fDelayOpt )
            {
                int Delay = If_CutSopBalancePinDelays( p, pCut, pPerm );
                assert( Delay == (int)pCut->Delay );
            }
            else if ( p->pPars->fDelayOptLut )
            {
                int Delay = If_CutLutBalancePinDelays( p, pCut, pPerm );
                assert( Delay == (int)pCut->Delay );
            }
            else if ( p->pPars->fDsdBalance )
            {
                int Delay = If_CutDsdBalancePinDelays( p, pCut, pPerm );
                assert( Delay == (int)pCut->Delay );
            }
            else
                pPerm = If_CutPerm(pCut);
            If_CutForEachLeaf( p, pCut, pLeaf, i )
            {
                Pin2PinDelay = pPerm ? (pPerm[i] == IF_BIG_CHAR ? -IF_BIG_CHAR : pPerm[i]) : 1;
                Required = ObjRequired - (float)Pin2PinDelay;
                pLeaf->Required = IF_MIN( pLeaf->Required, Required );
            }
        }
        else
        {
            Required = ObjRequired;
            If_CutForEachLeaf( p, pCut, pLeaf, i )
                pLeaf->Required = IF_MIN( pLeaf->Required, Required - (float)1.0 );
        }
    }
}

Here is the call graph for this function:

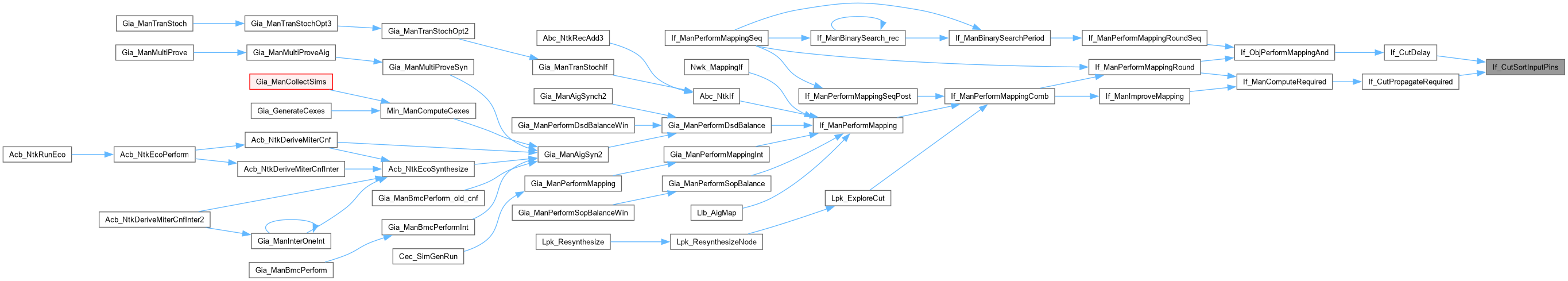

Here is the caller graph for this function:

If_CutSortInputPins()

ABC_NAMESPACE_IMPL_START void If_CutSortInputPins	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		int *	pPinPerm,
		float *	pPinDelays )

DECLARATIONS ///.

CFile****************************************************************

FileName [ifTime.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [FPGA mapping based on priority cuts.]

Synopsis [Computation of delay paramters depending on the library.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 21, 2006.]

Revision [

Id

ifTime.c,v 1.00 2006/11/21 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Sorts the pins in the decreasing order of delays.]

Description []

SideEffects []

SeeAlso []

Definition at line 44 of file ifTime.c.

{
    If_Obj_t * pLeaf;
    int i, j, best_i, temp;
    // start the trivial permutation and collect pin delays
    If_CutForEachLeaf( p, pCut, pLeaf, i )
    {
        pPinPerm[i] = i;
        pPinDelays[i] = If_ObjCutBest(pLeaf)->Delay;
    }
    // selection sort the pins in the decreasible order of delays
    // this order will match the increasing order of LUT input pins
    for ( i = 0; i < (int)pCut->nLeaves-1; i++ )
    {
        best_i = i;
        for ( j = i+1; j < (int)pCut->nLeaves; j++ )
            if ( pPinDelays[pPinPerm[j]] > pPinDelays[pPinPerm[best_i]] )
                best_i = j;
        if ( best_i == i )
            continue;
        temp = pPinPerm[i];
        pPinPerm[i] = pPinPerm[best_i];
        pPinPerm[best_i] = temp;
    }
/*
    // verify
    assert( pPinPerm[0] < (int)pCut->nLeaves );
    for ( i = 1; i < (int)pCut->nLeaves; i++ )
    {
        assert( pPinPerm[i] < (int)pCut->nLeaves );
        assert( pPinDelays[pPinPerm[i-1]] >= pPinDelays[pPinPerm[i]] );
    }
*/
}

Here is the caller graph for this function:

If_ManComputeRequired()

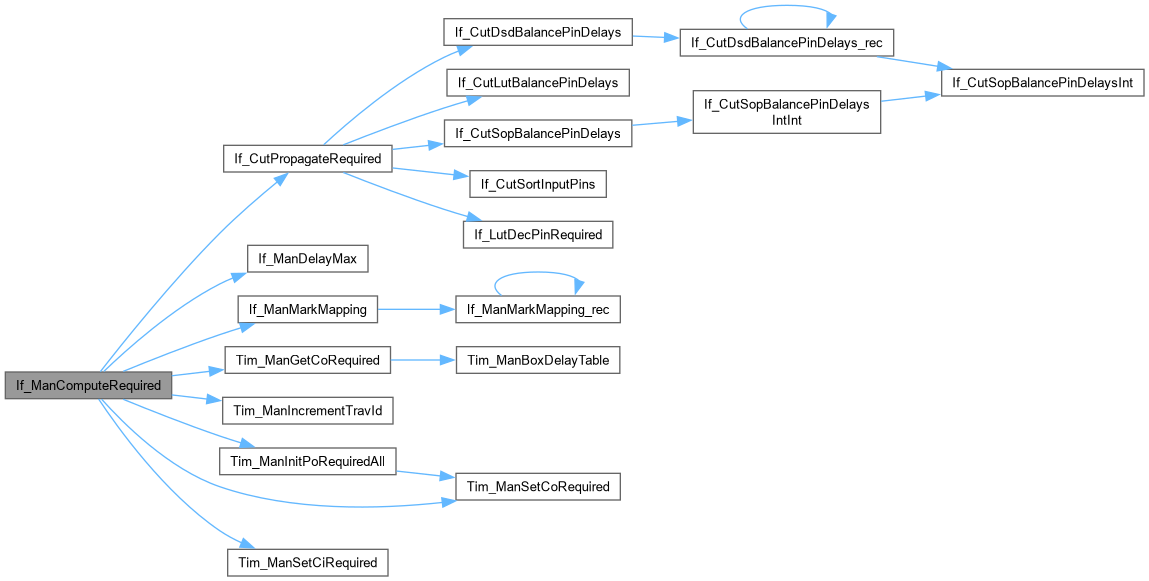

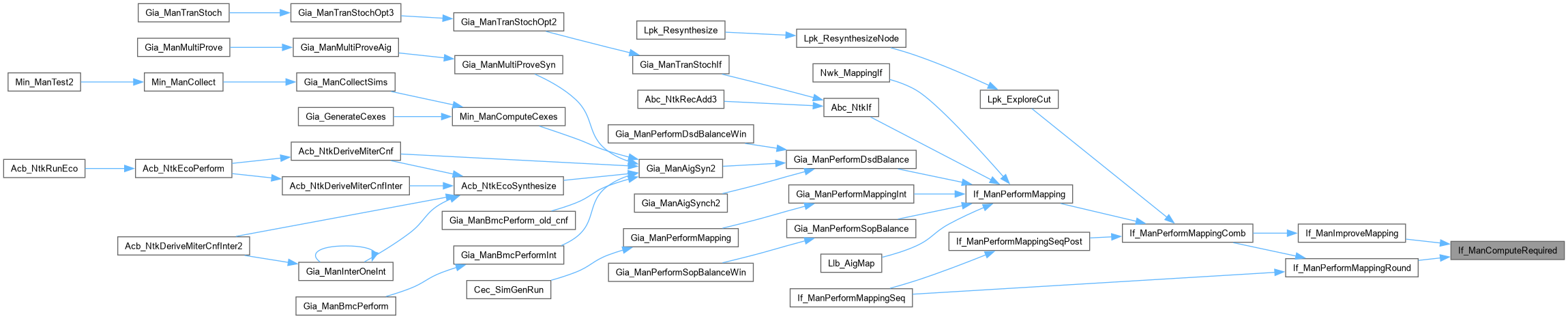

void If_ManComputeRequired

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Computes the required times of all nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 313 of file ifTime.c.

{
    If_Obj_t * pObj;
    int i, Counter;
    float reqTime;

    // compute area, clean required times, collect nodes used in the mapping
//    p->AreaGlo = If_ManScanMapping( p );
    If_ManMarkMapping( p );
    if ( p->pManTim == NULL )
    {
        // get the global required times
        p->RequiredGlo = If_ManDelayMax( p, 0 );

        // consider the case when the required times are given
        if ( p->pPars->pTimesReq && !p->pPars->fAreaOnly )
        {
            // make sure that the required time hold
            Counter = 0;
            If_ManForEachCo( p, pObj, i )
            {
                if ( If_ObjArrTime(If_ObjFanin0(pObj)) > p->pPars->pTimesReq[i] + p->fEpsilon )
                {
                    If_ObjFanin0(pObj)->Required = If_ObjArrTime(If_ObjFanin0(pObj));
                    Counter++;
    //                Abc_Print( 0, "Required times are violated for output %d (arr = %d; req = %d).\n",
    //                    i, (int)If_ObjArrTime(If_ObjFanin0(pObj)), (int)p->pPars->pTimesReq[i] );
                }
                else
                    If_ObjFanin0(pObj)->Required = p->pPars->pTimesReq[i];
            }
            if ( Counter && !p->fReqTimeWarn )
            {
                Abc_Print( 0, "Required times are exceeded at %d output%s. The earliest arrival times are used.\n", Counter, Counter > 1 ? "s":"" );
                p->fReqTimeWarn = 1;
            }
        }
        else
        {
            // find new delay target
            if ( p->pPars->nRelaxRatio && p->pPars->DelayTargetNew == 0 )
                p->pPars->DelayTargetNew = p->RequiredGlo * (100.0 + p->pPars->nRelaxRatio) / 100.0;

            // update the required times according to the target
            if ( p->pPars->DelayTarget != -1 )
            {
                if ( p->RequiredGlo > p->pPars->DelayTarget + p->fEpsilon )
                {
                    if ( p->fNextRound == 0 )
                    {
                        p->fNextRound = 1;
                        Abc_Print( 0, "Cannot meet the target required times (%4.2f). Mapping continues anyway.\n", p->pPars->DelayTarget );
                    }
                }
                else if ( p->RequiredGlo < p->pPars->DelayTarget - p->fEpsilon )
                {
                    if ( p->fNextRound == 0 )
                    {
                        p->fNextRound = 1;
//                        Abc_Print( 0, "Relaxing the required times from (%4.2f) to the target (%4.2f).\n", p->RequiredGlo, p->pPars->DelayTarget );
                    }
                    p->RequiredGlo = p->pPars->DelayTarget;
                }
            }
            else if ( p->pPars->DelayTargetNew > 0 ) // relax the required times
                p->RequiredGlo = p->pPars->DelayTargetNew;
            // do not propagate required times if area minimization is requested
            if ( p->pPars->fAreaOnly )
                return;
            // set the required times for the POs
            if ( p->pPars->fDoAverage )
            {
                if ( p->pPars->nRelaxRatio )
                {
                    If_ManForEachCo( p, pObj, i )
                        If_ObjFanin0(pObj)->Required = If_ObjArrTime(If_ObjFanin0(pObj)) * (100.0 + p->pPars->nRelaxRatio) / 100.0;
                }
                else
                {
                    If_ManForEachCo( p, pObj, i )
                        If_ObjFanin0(pObj)->Required = If_ObjArrTime(If_ObjFanin0(pObj));
                }
            }
            else if ( p->pPars->fLatchPaths )
            {
                If_ManForEachLatchInput( p, pObj, i )
                    If_ObjFanin0(pObj)->Required = p->RequiredGlo;
            }
            else
            {
                If_ManForEachCo( p, pObj, i )
                    If_ObjFanin0(pObj)->Required = p->RequiredGlo;
            }
        }
        // go through the nodes in the reverse topological order
    //    Vec_PtrForEachEntry( If_Obj_t *, p->vMapped, pObj, i )
    //        If_CutPropagateRequired( p, pObj, If_ObjCutBest(pObj), pObj->Required );
        If_ManForEachObjReverse( p, pObj, i )
        {
            if ( pObj->nRefs == 0 )
                continue;
            If_CutPropagateRequired( p, pObj, If_ObjCutBest(pObj), pObj->Required );
        }
    }
    else
    {
        // get the global required times
        p->RequiredGlo = If_ManDelayMax( p, 0 );

        // find new delay target
        if ( p->pPars->nRelaxRatio && p->pPars->DelayTargetNew == 0 )
            p->pPars->DelayTargetNew = p->RequiredGlo * (100.0 + p->pPars->nRelaxRatio) / 100.0;

        // update the required times according to the target
        if ( p->pPars->DelayTarget != -1 )
        {
            if ( p->RequiredGlo > p->pPars->DelayTarget + p->fEpsilon )
            {
                if ( p->fNextRound == 0 )
                {
                    p->fNextRound = 1;
                    Abc_Print( 0, "Cannot meet the target required times (%4.2f). Mapping continues anyway.\n", p->pPars->DelayTarget );
                }
            }
            else if ( p->RequiredGlo < p->pPars->DelayTarget - p->fEpsilon )
            {
                if ( p->fNextRound == 0 )
                {
                    p->fNextRound = 1;
//                    Abc_Print( 0, "Relaxing the required times from (%4.2f) to the target (%4.2f).\n", p->RequiredGlo, p->pPars->DelayTarget );
                }
                p->RequiredGlo = p->pPars->DelayTarget;
            }
        }
        else if ( p->pPars->DelayTargetNew > 0 ) // relax the required times
            p->RequiredGlo = p->pPars->DelayTargetNew;

        // do not propagate required times if area minimization is requested
        if ( p->pPars->fAreaOnly )
            return;
        // set the required times for the POs
        Tim_ManIncrementTravId( p->pManTim );
        if ( p->vCoAttrs )
        {
            assert( If_ManCoNum(p) == Vec_IntSize(p->vCoAttrs) );
            If_ManForEachCo( p, pObj, i )
            {
                if ( Vec_IntEntry(p->vCoAttrs, i) == -1 )       // -1=internal
                    continue;
                if ( Vec_IntEntry(p->vCoAttrs, i) == 0 )        //  0=optimize
                    Tim_ManSetCoRequired( p->pManTim, i, p->RequiredGlo );
                else if ( Vec_IntEntry(p->vCoAttrs, i) == 1 )   //  1=keep
                    Tim_ManSetCoRequired( p->pManTim, i, If_ObjArrTime(If_ObjFanin0(pObj)) );
                else if ( Vec_IntEntry(p->vCoAttrs, i) == 2 )   //  2=relax
                    Tim_ManSetCoRequired( p->pManTim, i, IF_FLOAT_LARGE );
                else assert( 0 );
            }
        }
        else if ( p->pPars->fDoAverage )
        {
            if ( p->pPars->nRelaxRatio )
            {
                If_ManForEachCo( p, pObj, i )
                    Tim_ManSetCoRequired( p->pManTim, i, If_ObjArrTime(If_ObjFanin0(pObj)) * (100.0 + p->pPars->nRelaxRatio) / 100.0 );
            }
            else
            {
                If_ManForEachCo( p, pObj, i )
                    Tim_ManSetCoRequired( p->pManTim, i, If_ObjArrTime(If_ObjFanin0(pObj)) );
            }
        }
        else if ( p->pPars->fLatchPaths )
        {
            If_ManForEachPo( p, pObj, i )
                Tim_ManSetCoRequired( p->pManTim, i, IF_FLOAT_LARGE );
            If_ManForEachLatchInput( p, pObj, i )
                Tim_ManSetCoRequired( p->pManTim, i, p->RequiredGlo );
        }
        else
        {
            Tim_ManInitPoRequiredAll( p->pManTim, p->RequiredGlo );
//            If_ManForEachCo( p, pObj, i )
//                Tim_ManSetCoRequired( p->pManTim, pObj->IdPio, p->RequiredGlo );
        }
        // go through the nodes in the reverse topological order
        If_ManForEachObjReverse( p, pObj, i )
        {
            if ( If_ObjIsAnd(pObj) )
            {
                if ( pObj->nRefs == 0 )
                    continue;
                If_CutPropagateRequired( p, pObj, If_ObjCutBest(pObj), pObj->Required );
            }
            else if ( If_ObjIsCi(pObj) )
            {
                reqTime = pObj->Required;
                Tim_ManSetCiRequired( p->pManTim, pObj->IdPio, reqTime );
            }
            else if ( If_ObjIsCo(pObj) )
            {
                reqTime = Tim_ManGetCoRequired( p->pManTim, pObj->IdPio );
                If_ObjFanin0(pObj)->Required = IF_MIN( reqTime, If_ObjFanin0(pObj)->Required );
            }
            else if ( If_ObjIsConst1(pObj) )
            {
            }
            else // add the node to the mapper
                assert( 0 );
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_ManDelayMax()

float If_ManDelayMax	(	If_Man_t *	p,
		int	fSeq )

Function*************************************************************

Synopsis [Returns the max delay of the POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 269 of file ifTime.c.

{
    If_Obj_t * pObj;
    float DelayBest;
    int i;
    if ( p->pPars->fLatchPaths && (p->pPars->nLatchesCi == 0 || p->pPars->nLatchesCo == 0) )
    {
        Abc_Print( 0, "Delay optimization of latch path is not performed because there is no latches.\n" );
        p->pPars->fLatchPaths = 0;
    }
    DelayBest = -IF_FLOAT_LARGE;
    if ( fSeq )
    {
        assert( p->pPars->nLatchesCi > 0 );
        If_ManForEachPo( p, pObj, i )
            if ( DelayBest < If_ObjArrTime(If_ObjFanin0(pObj)) )
                 DelayBest = If_ObjArrTime(If_ObjFanin0(pObj));
    }
    else if ( p->pPars->fLatchPaths )
    {
        If_ManForEachLatchInput( p, pObj, i )
            if ( DelayBest < If_ObjArrTime(If_ObjFanin0(pObj)) )
                 DelayBest = If_ObjArrTime(If_ObjFanin0(pObj));
    }
    else
    {
        If_ManForEachCo( p, pObj, i )
            if ( DelayBest < If_ObjArrTime(If_ObjFanin0(pObj)) )
                 DelayBest = If_ObjArrTime(If_ObjFanin0(pObj));
    }
    return DelayBest;
}

Here is the caller graph for this function:
