ifUtil.c File Reference

#include "if.h"

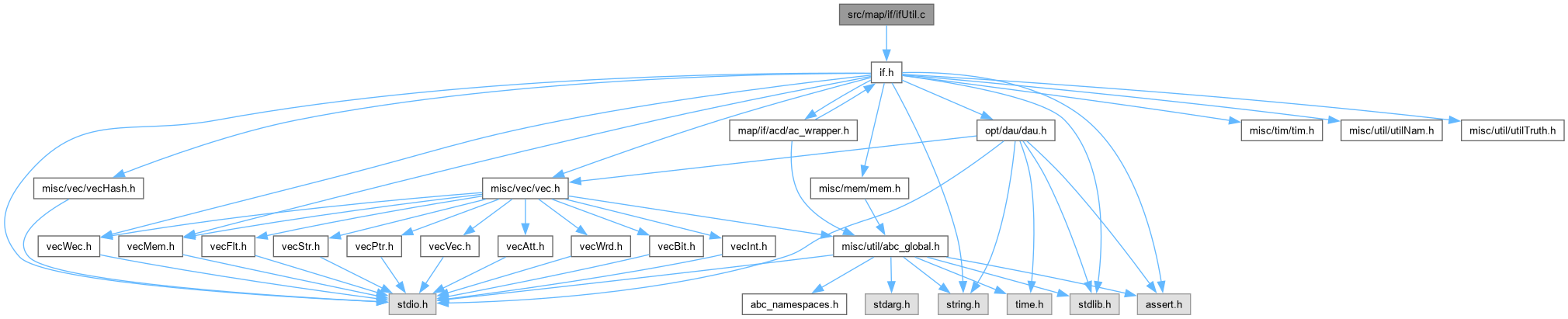

Include dependency graph for ifUtil.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	If_ManCleanNodeCopy (If_Man_t *p)
	DECLARATIONS ///.
void	If_ManCleanCutData (If_Man_t *p)
void	If_ManCleanMarkV (If_Man_t *p)
void	If_ManResetOriginalRefs (If_Man_t *p)
int	If_ManCrossCut (If_Man_t *p)
Vec_Ptr_t *	If_ManReverseOrder (If_Man_t *p)
float	If_ManMarkMapping_rec (If_Man_t *p, If_Obj_t *pObj)
void	If_ManMarkMapping (If_Man_t *p)
Vec_Ptr_t *	If_ManCollectMappingDirect (If_Man_t *p)
Vec_Int_t *	If_ManCollectMappingInt (If_Man_t *p)
int	If_ManCountSpecialPos (If_Man_t *p)
void	If_CutTraverse (If_Man_t *p, If_Obj_t *pRoot, If_Cut_t *pCut, Vec_Ptr_t *vNodes)
void	If_CutTraverseTest (If_Man_t *p, If_Obj_t *pRoot, If_Cut_t *pCut)
void	If_ObjPrint (If_Obj_t *pObj)

Function Documentation

If_CutTraverse()

void If_CutTraverse	(	If_Man_t *	p,
		If_Obj_t *	pRoot,
		If_Cut_t *	pCut,
		Vec_Ptr_t *	vNodes )

Definition at line 565 of file ifUtil.c.

{
    If_Obj_t * pLeaf;
    int i;
    // collect the internal nodes of the cut
    Vec_PtrClear( vNodes );
    If_CutForEachLeaf( p, pCut, pLeaf, i )
    {
        Vec_PtrPush( vNodes, pLeaf );
        assert( pLeaf->fMark == 0 );
        pLeaf->fMark = 1;
    }
    // collect other nodes
    If_CutTraverse_rec( pRoot, vNodes );
    // clean the mark
    Vec_PtrForEachEntry( If_Obj_t *, vNodes, pLeaf, i )
        pLeaf->fMark = 0;
}

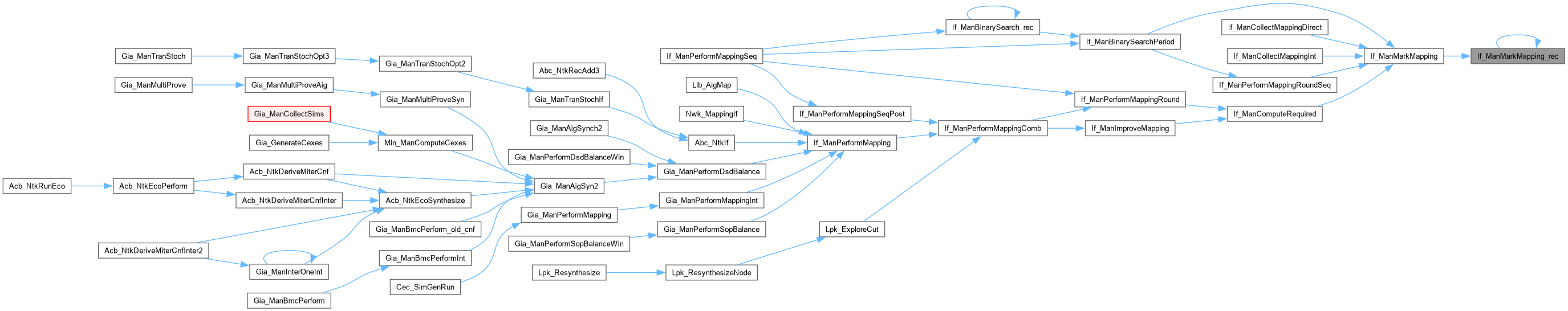

Here is the caller graph for this function:

If_CutTraverseTest()

void If_CutTraverseTest	(	If_Man_t *	p,
		If_Obj_t *	pRoot,
		If_Cut_t *	pCut )

Definition at line 583 of file ifUtil.c.

{
    Vec_Ptr_t * vNodes;
    vNodes = Vec_PtrAlloc( 1000 );
    If_CutTraverse( p, pRoot, pCut, vNodes );
//if ( Vec_PtrSize(vNodes) > 30 )
//printf( "%d ", Vec_PtrSize(vNodes) );
    Vec_PtrFree( vNodes );
}

Here is the call graph for this function:

If_ManCleanCutData()

void If_ManCleanCutData

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Sets all the cut data to NULL.]

Description []

SideEffects []

SeeAlso []

Definition at line 64 of file ifUtil.c.

{
    If_Obj_t * pObj;
    int i;
    If_ManForEachObj( p, pObj, i )
        If_CutSetData( If_ObjCutBest(pObj), NULL );
}

Here is the caller graph for this function:

If_ManCleanMarkV()

void If_ManCleanMarkV

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Sets all visited marks to 0.]

Description []

SideEffects []

SeeAlso []

Definition at line 83 of file ifUtil.c.

{
    If_Obj_t * pObj;
    int i;
    If_ManForEachObj( p, pObj, i )
        pObj->fVisit = 0;
}

If_ManCleanNodeCopy()

ABC_NAMESPACE_IMPL_START void If_ManCleanNodeCopy

(

If_Man_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [ifUtil.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [FPGA mapping based on priority cuts.]

Synopsis [Various utilities.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 21, 2006.]

Revision [

Id

ifUtil.c,v 1.00 2006/11/21 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Sets all the node copy to NULL.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file ifUtil.c.

{
    If_Obj_t * pObj;
    int i;
    If_ManForEachObj( p, pObj, i )
        If_ObjSetCopy( pObj, NULL );
}

Here is the caller graph for this function:

If_ManCollectMappingDirect()

Vec_Ptr_t * If_ManCollectMappingDirect

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Collects nodes used in the mapping in the topological order.]

Description []

SideEffects []

SeeAlso []

Definition at line 462 of file ifUtil.c.

{
    Vec_Ptr_t * vOrder;
    If_Obj_t * pObj;
    int i;
    If_ManMarkMapping( p );
    vOrder = Vec_PtrAlloc( If_ManObjNum(p) );
    If_ManForEachObj( p, pObj, i )
        if ( If_ObjIsAnd(pObj) && pObj->nRefs )
            Vec_PtrPush( vOrder, pObj );
    return vOrder;
}

Here is the call graph for this function:

If_ManCollectMappingInt()

Vec_Int_t * If_ManCollectMappingInt

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Collects nodes used in the mapping in the topological order.]

Description [Represents mapping as an array of integers.]

SideEffects []

SeeAlso []

Definition at line 486 of file ifUtil.c.

{
    Vec_Int_t * vOrder;
    If_Cut_t * pCutBest;
    If_Obj_t * pObj;
    int i, k, nLeaves, * ppLeaves;
    If_ManMarkMapping( p );
    vOrder = Vec_IntAlloc( If_ManObjNum(p) );
    If_ManForEachObj( p, pObj, i )
        if ( If_ObjIsAnd(pObj) && pObj->nRefs )
        {
            pCutBest = If_ObjCutBest( pObj );
            nLeaves  = If_CutLeaveNum( pCutBest );
            ppLeaves = If_CutLeaves( pCutBest );
            // save the number of leaves, the leaves, and finally, the root
            Vec_IntPush( vOrder, nLeaves );
            for ( k = 0; k < nLeaves; k++ )
                Vec_IntPush( vOrder, ppLeaves[k] );
            Vec_IntPush( vOrder, pObj->Id );
        }
    return vOrder;
}

Here is the call graph for this function:

If_ManCountSpecialPos()

int If_ManCountSpecialPos

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Returns the number of POs pointing to the same internal nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 520 of file ifUtil.c.

{
    If_Obj_t * pObj;
    int i, Counter = 0;
    // clean all marks
    If_ManForEachPo( p, pObj, i )
        If_ObjFanin0(pObj)->fMark = 0;
    // label nodes
    If_ManForEachPo( p, pObj, i )
        if ( !If_ObjFaninC0(pObj) )
            If_ObjFanin0(pObj)->fMark = 1;
    // label nodes
    If_ManForEachPo( p, pObj, i )
        if ( If_ObjFaninC0(pObj) )
            Counter += If_ObjFanin0(pObj)->fMark;
    // clean all marks
    If_ManForEachPo( p, pObj, i )
        If_ObjFanin0(pObj)->fMark = 0;
    return Counter;
}

If_ManCrossCut()

int If_ManCrossCut

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Computes cross-cut of the circuit.]

Description []

SideEffects []

SeeAlso []

Definition at line 316 of file ifUtil.c.

{
    If_Obj_t * pObj, * pFanin;
    int i, nCutSize = 0, nCutSizeMax = 0;
    If_ManForEachObj( p, pObj, i )
    {
        if ( !If_ObjIsAnd(pObj) )
            continue;
        // consider the node
        if ( nCutSizeMax < ++nCutSize )
            nCutSizeMax = nCutSize;
        if ( pObj->nVisits == 0 )
            nCutSize--;
        // consider the fanins
        pFanin = If_ObjFanin0(pObj);
        if ( !If_ObjIsCi(pFanin) && --pFanin->nVisits == 0 )
            nCutSize--;
        pFanin = If_ObjFanin1(pObj);
        if ( !If_ObjIsCi(pFanin) && --pFanin->nVisits == 0 )
            nCutSize--;
        // consider the choice class
        if ( pObj->fRepr )
            for ( pFanin = pObj; pFanin; pFanin = pFanin->pEquiv )
                if ( !If_ObjIsCi(pFanin) && --pFanin->nVisits == 0 )
                    nCutSize--;
    }
    If_ManForEachObj( p, pObj, i )
    {
        assert( If_ObjIsCi(pObj) || pObj->fVisit == 0 );
        pObj->nVisits = pObj->nVisitsCopy;
    }
    assert( nCutSize == 0 );
//    Abc_Print( 1, "Max cross cut size = %6d.\n", nCutSizeMax );
    return nCutSizeMax;
}

Here is the caller graph for this function:

If_ManMarkMapping()

void If_ManMarkMapping

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Computes area, references, and nodes used in the mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 434 of file ifUtil.c.

{
    If_Obj_t * pObj;
    int i;
    If_ManForEachObj( p, pObj, i )
    {
        pObj->Required = IF_FLOAT_LARGE;
        pObj->nVisits = pObj->nVisitsCopy;
        pObj->nRefs = 0;
    }
    p->nNets = 0;
    p->dPower = 0.0;
    p->AreaGlo = 0.0;
    If_ManForEachCo( p, pObj, i )
        p->AreaGlo += If_ManMarkMapping_rec( p, If_ObjFanin0(pObj) );
}

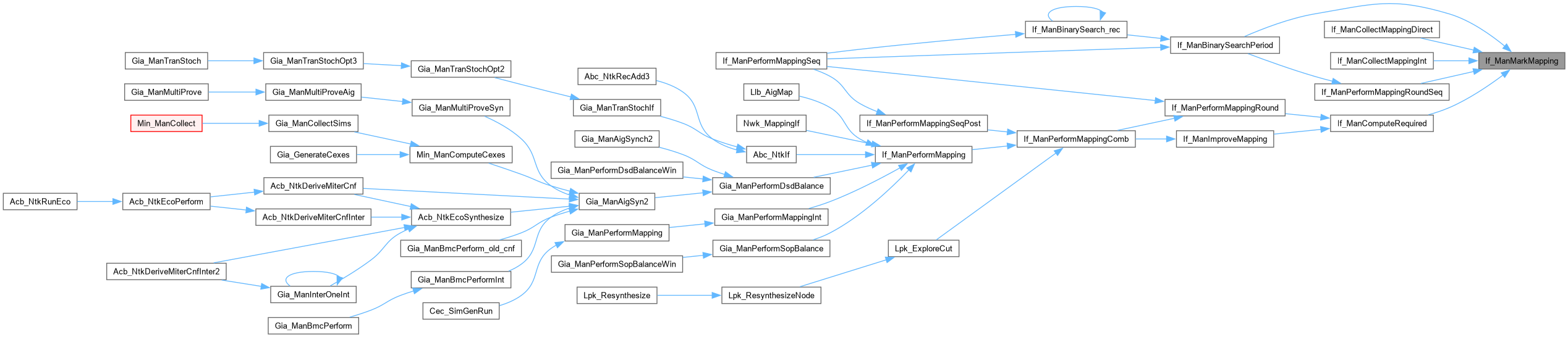

Here is the call graph for this function:

Here is the caller graph for this function:

If_ManMarkMapping_rec()

float If_ManMarkMapping_rec	(	If_Man_t *	p,
		If_Obj_t *	pObj )

Function*************************************************************

Synopsis [Computes area, references, and nodes used in the mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 400 of file ifUtil.c.

{
    If_Obj_t * pLeaf;
    If_Cut_t * pCutBest;
    float * pSwitching = p->vSwitching? (float*)p->vSwitching->pArray : NULL;
    float aArea;
    int i;
    if ( pObj->nRefs++ || If_ObjIsCi(pObj) || If_ObjIsConst1(pObj) )
        return 0.0;
    // store the node in the structure by level
    assert( If_ObjIsAnd(pObj) );
    // visit the transitive fanin of the selected cut
    pCutBest = If_ObjCutBest(pObj);
    p->nNets += pCutBest->nLeaves;
    aArea = If_CutLutArea( p, pCutBest );
    If_CutForEachLeaf( p, pCutBest, pLeaf, i )
    {
        p->dPower += pSwitching? pSwitching[pLeaf->Id] : 0.0;
        aArea += If_ManMarkMapping_rec( p, pLeaf );
    }
    return aArea;
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_ManResetOriginalRefs()

void If_ManResetOriginalRefs

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Computes area, references, and nodes used in the mapping.]

Description [Collects the nodes in reverse topological order in array p->vMapping.]

SideEffects []

SeeAlso []

Definition at line 287 of file ifUtil.c.

{
    If_Obj_t * pObj;
    int i;
    If_ManForEachObj( p, pObj, i )
        pObj->nRefs = 0;
    If_ManForEachObj( p, pObj, i )
    {
        if ( If_ObjIsAnd(pObj) )
        {
            pObj->pFanin0->nRefs++;
            pObj->pFanin1->nRefs++;
        }
        else if ( If_ObjIsCo(pObj) )
            pObj->pFanin0->nRefs++;
    }
}

Here is the caller graph for this function:

If_ManReverseOrder()

Vec_Ptr_t * If_ManReverseOrder

(

If_Man_t *

p

)

Function*************************************************************

Synopsis [Computes the reverse topological order of nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 363 of file ifUtil.c.

{
    Vec_Ptr_t * vOrder;
    If_Obj_t * pObj, ** ppStore;
    int i;
    // allocate place to store the nodes
    ppStore = ABC_ALLOC( If_Obj_t *, p->nLevelMax + 1 );
    memset( ppStore, 0, sizeof(If_Obj_t *) * (p->nLevelMax + 1) );
    // add the nodes
    If_ManForEachObj( p, pObj, i )
    {
        assert( pObj->Level >= 0 && pObj->Level <= (unsigned)p->nLevelMax );
        pObj->pCopy = (char *)ppStore[pObj->Level];
        ppStore[pObj->Level] = pObj;
    }
    vOrder = Vec_PtrAlloc( If_ManObjNum(p) );
    for ( i = p->nLevelMax; i >= 0; i-- )
        for ( pObj = ppStore[i]; pObj; pObj = (If_Obj_t *)pObj->pCopy )
            Vec_PtrPush( vOrder, pObj );
    ABC_FREE( ppStore );
    // print the order
//    Vec_PtrForEachEntry( If_Obj_t *, vOrder, pObj, i )
//        Abc_Print( 1, "Obj %2d   Type %d  Level = %d\n", pObj->Id, pObj->Type, pObj->Level );
    return vOrder;
}

Here is the call graph for this function:

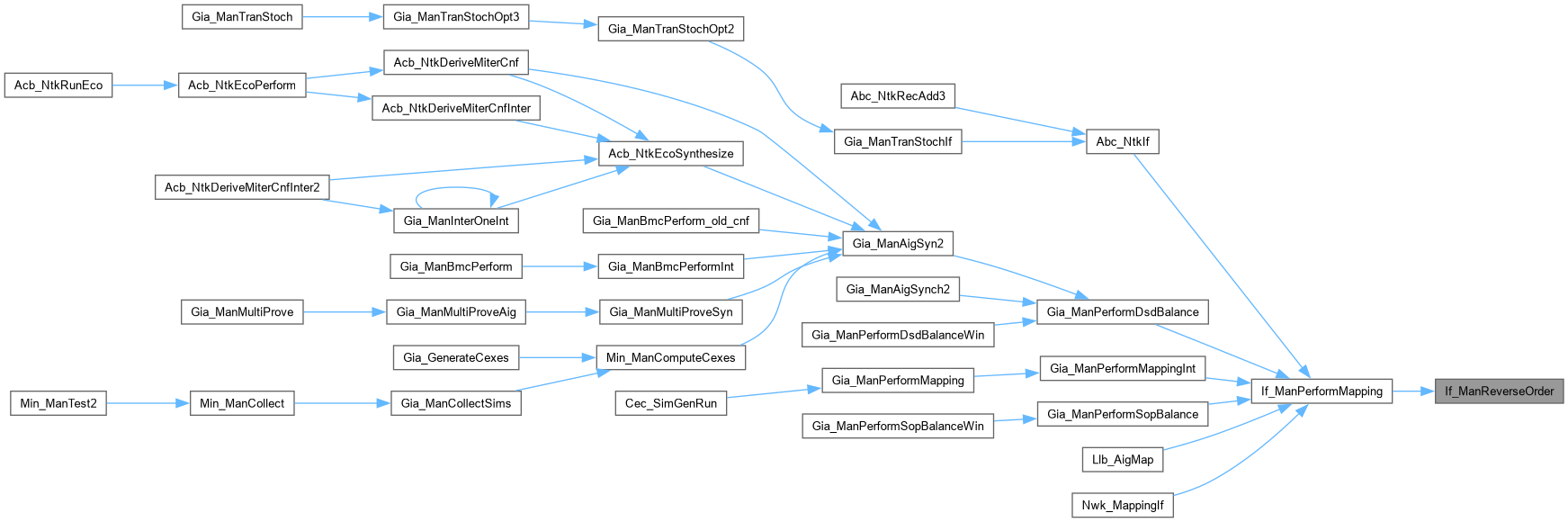

Here is the caller graph for this function:

If_ObjPrint()

void If_ObjPrint

(

If_Obj_t *

pObj

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 604 of file ifUtil.c.

{
    if ( pObj == NULL )
    {
        printf( "Object is NULL." );
        return;
    }
    printf( "Obj %4d : ", If_ObjId(pObj) );
    if ( If_ObjIsConst1(pObj) )
        printf( "constant 1" );
    else if ( If_ObjIsCi(pObj) )
        printf( "PI" );
    else if ( If_ObjIsCo(pObj) )
        printf( "PO( %4d%s )", If_ObjId(If_ObjFanin0(pObj)), (If_ObjFaninC0(pObj)? "\'" : " ") );
    else
        printf( "AND( %4d%s, %4d%s )",
            If_ObjId(If_ObjFanin0(pObj)), (If_ObjFaninC0(pObj)? "\'" : " "),
            If_ObjId(If_ObjFanin1(pObj)), (If_ObjFaninC1(pObj)? "\'" : " ") );
    printf( " (refs = %3d)", pObj->nVisitsCopy );
    printf( "\n" );
}
