ivyCanon.c File Reference

#include "ivy.h"

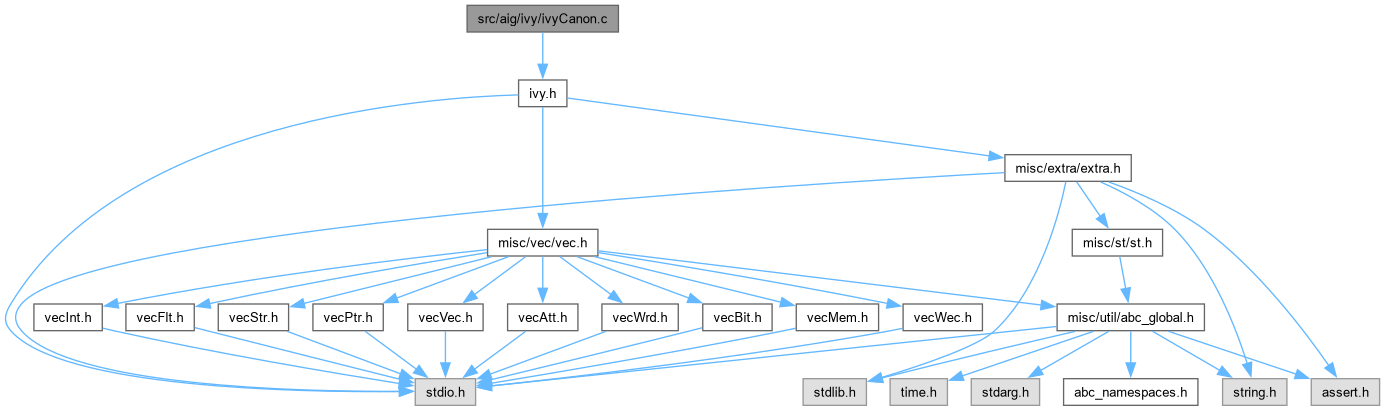

Include dependency graph for ivyCanon.c:

Go to the source code of this file.

Functions
Ivy_Obj_t *	Ivy_CanonPair_rec (Ivy_Man_t *p, Ivy_Obj_t *pGhost)
	FUNCTION DEFINITIONS ///.
Ivy_Obj_t *	Ivy_CanonAnd (Ivy_Man_t *p, Ivy_Obj_t *pObj0, Ivy_Obj_t *pObj1)
Ivy_Obj_t *	Ivy_CanonExor (Ivy_Man_t *p, Ivy_Obj_t *pObj0, Ivy_Obj_t *pObj1)
Ivy_Obj_t *	Ivy_CanonLatch (Ivy_Man_t *p, Ivy_Obj_t *pObj, Ivy_Init_t Init)

Function Documentation

Ivy_CanonAnd()

Ivy_Obj_t * Ivy_CanonAnd	(	Ivy_Man_t *	p,
		Ivy_Obj_t *	pObj0,
		Ivy_Obj_t *	pObj1 )

Function*************************************************************

Synopsis [Creates the canonical form of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 90 of file ivyCanon.c.

{
    Ivy_Obj_t * pGhost, * pResult;
    pGhost = Ivy_ObjCreateGhost( p, pObj0, pObj1, IVY_AND, IVY_INIT_NONE );
    pResult = Ivy_CanonPair_rec( p, pGhost );
    return pResult;
}

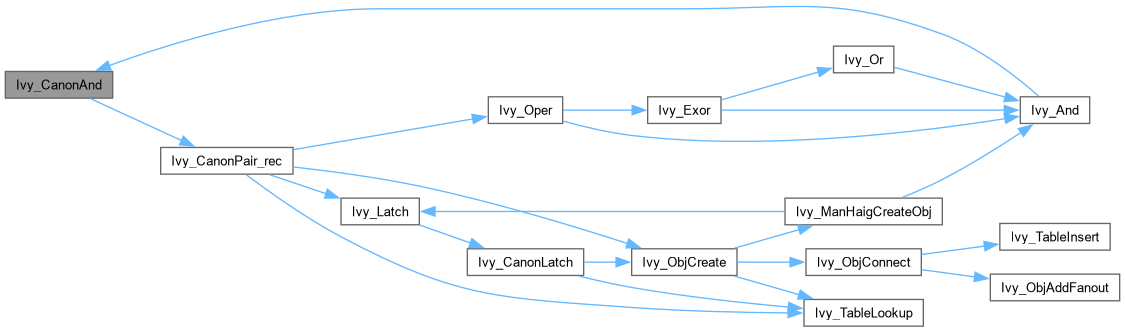

Here is the call graph for this function:

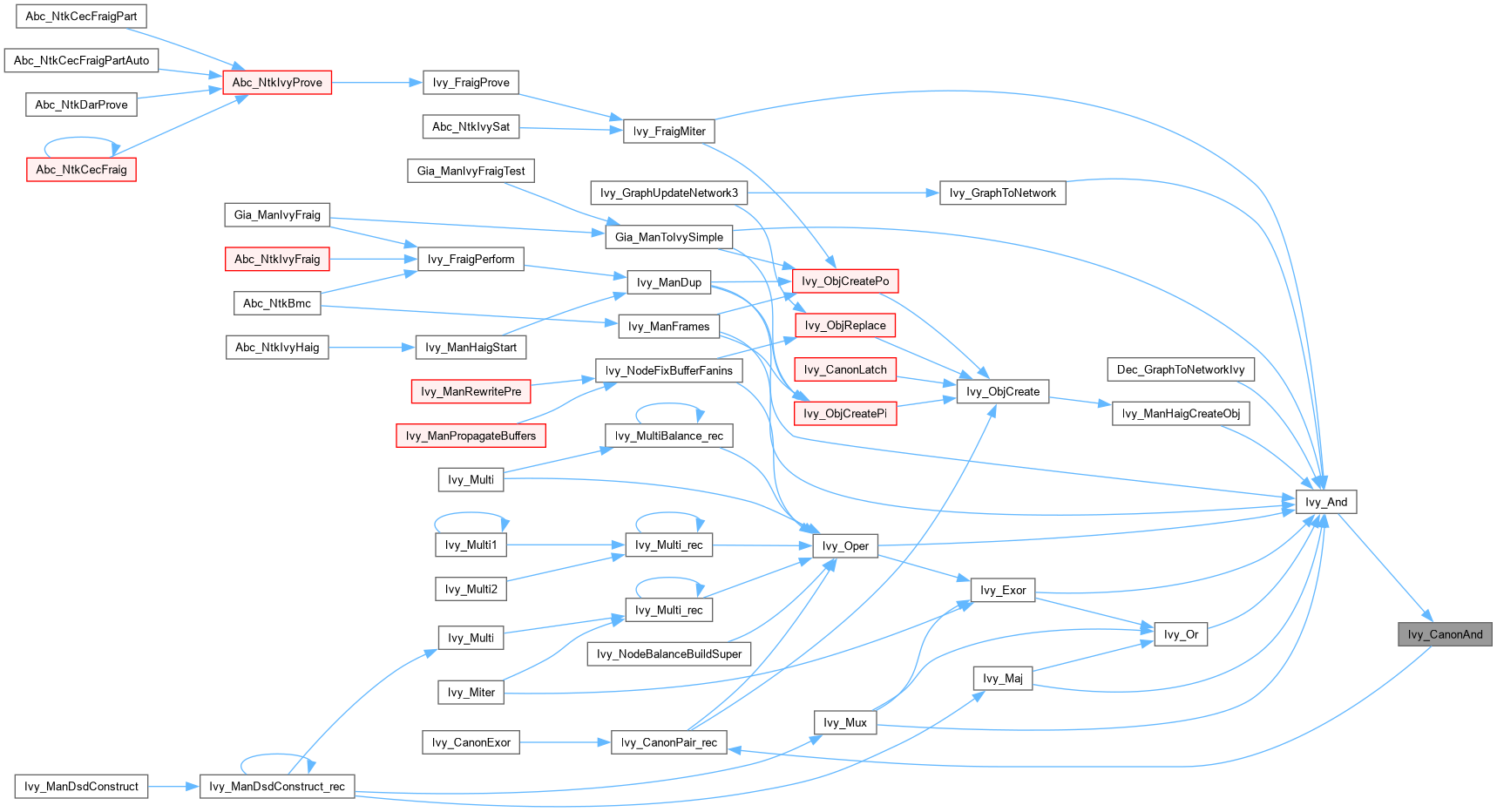

Here is the caller graph for this function:

Ivy_CanonExor()

Ivy_Obj_t * Ivy_CanonExor	(	Ivy_Man_t *	p,
		Ivy_Obj_t *	pObj0,
		Ivy_Obj_t *	pObj1 )

Function*************************************************************

Synopsis [Creates the canonical form of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 109 of file ivyCanon.c.

{
    Ivy_Obj_t * pGhost, * pResult;
    int fCompl = Ivy_IsComplement(pObj0) ^ Ivy_IsComplement(pObj1);
    pObj0 = Ivy_Regular(pObj0);
    pObj1 = Ivy_Regular(pObj1);
    pGhost = Ivy_ObjCreateGhost( p, pObj0, pObj1, IVY_EXOR, IVY_INIT_NONE );
    pResult = Ivy_CanonPair_rec( p, pGhost );
    return Ivy_NotCond( pResult, fCompl );
}

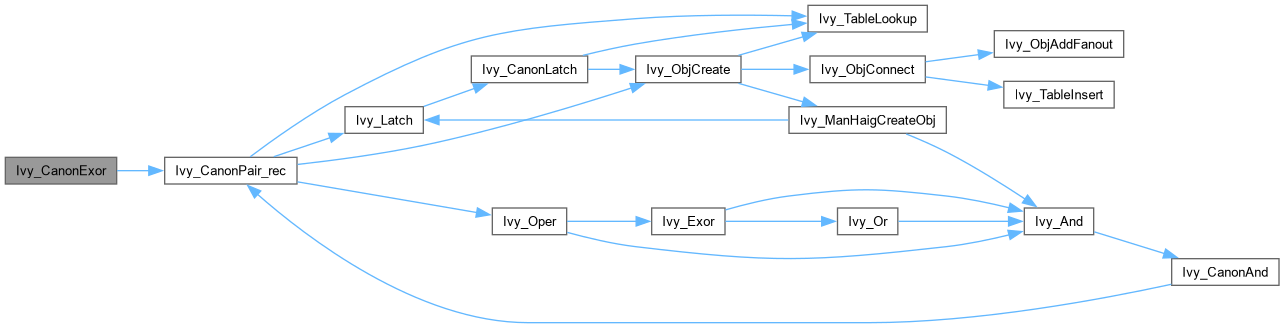

Here is the call graph for this function:

Ivy_CanonLatch()

Ivy_Obj_t * Ivy_CanonLatch	(	Ivy_Man_t *	p,
		Ivy_Obj_t *	pObj,
		Ivy_Init_t	Init )

Function*************************************************************

Synopsis [Creates the canonical form of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 131 of file ivyCanon.c.

{
    Ivy_Obj_t * pGhost, * pResult;
    int fCompl = Ivy_IsComplement(pObj);
    pObj = Ivy_Regular(pObj);
    pGhost = Ivy_ObjCreateGhost( p, pObj, NULL, IVY_LATCH, Ivy_InitNotCond(Init, fCompl) );
    pResult = Ivy_TableLookup( p, pGhost );
    if ( pResult == NULL )
        pResult = Ivy_ObjCreate( p, pGhost );
    return Ivy_NotCond( pResult, fCompl );
}

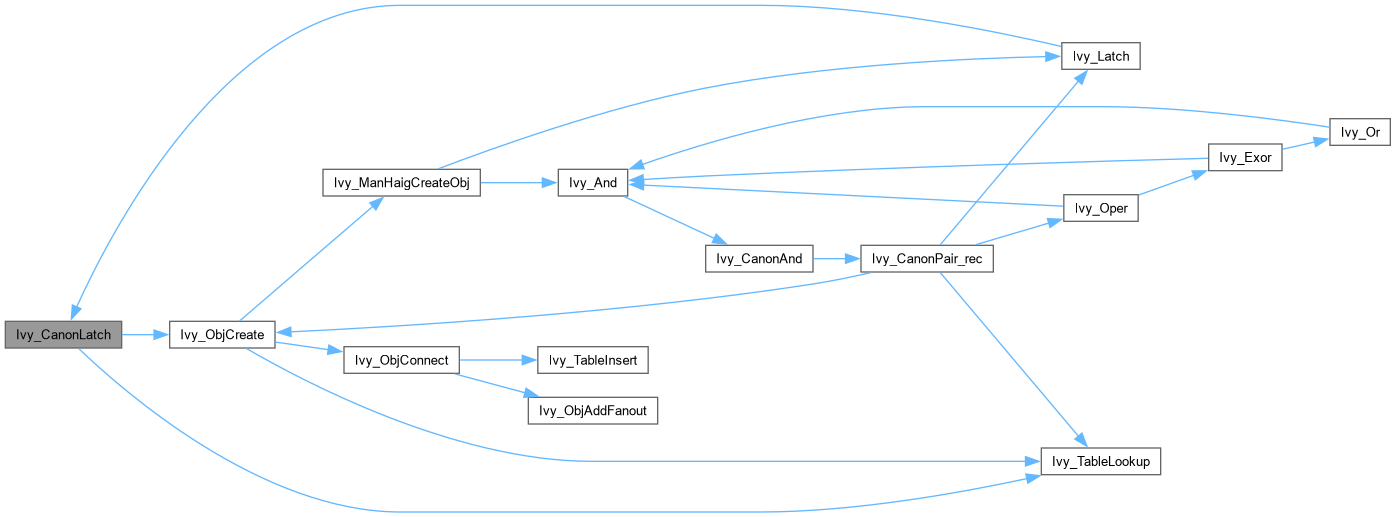

Here is the call graph for this function:

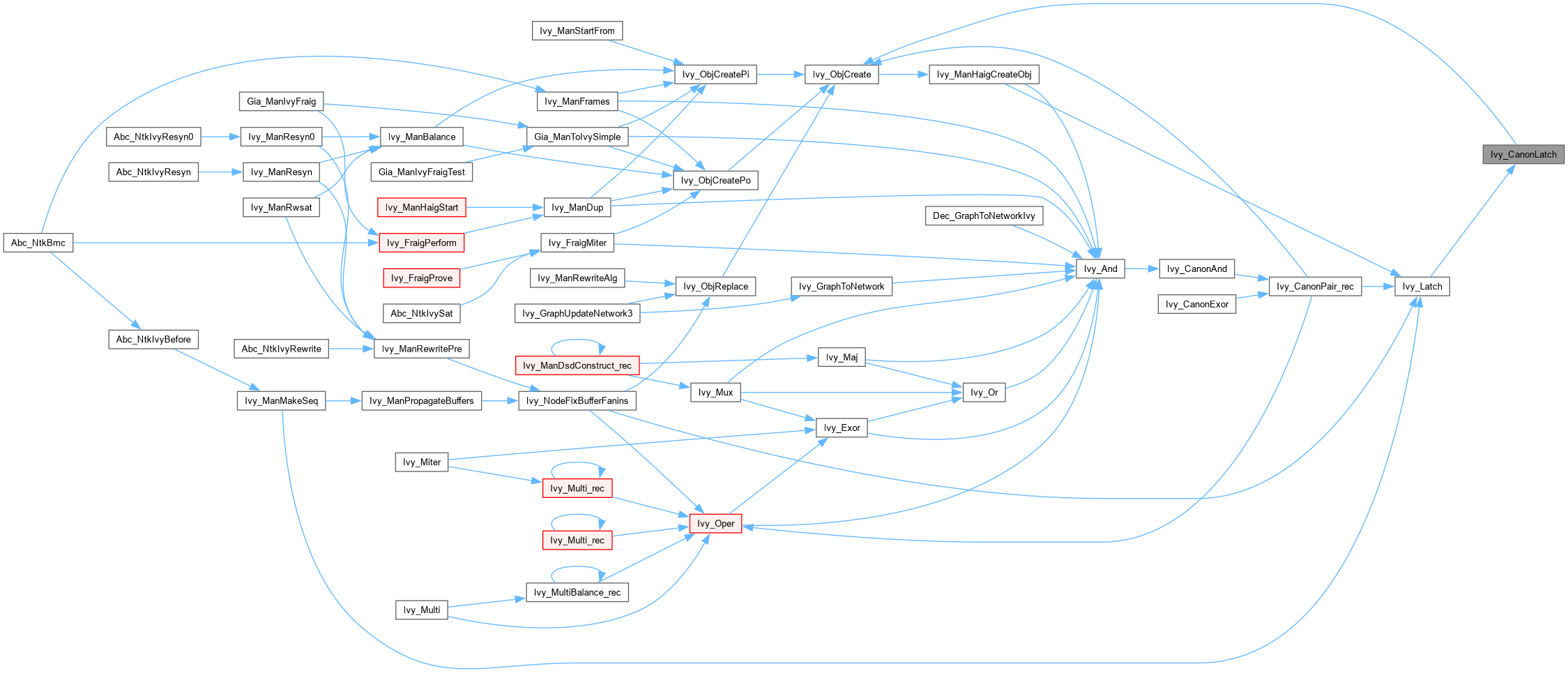

Here is the caller graph for this function:

Ivy_CanonPair_rec()

Ivy_Obj_t * Ivy_CanonPair_rec	(	Ivy_Man_t *	p,
		Ivy_Obj_t *	pGhost )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Creates the canonical form of the node.]

Description []

SideEffects []

SeeAlso []

remember the latches

Definition at line 47 of file ivyCanon.c.

{
    Ivy_Obj_t * pResult, * pLat0, * pLat1;
    Ivy_Init_t Init, Init0, Init1;
    int fCompl0, fCompl1;
    Ivy_Type_t Type;
    assert( Ivy_ObjIsNode(pGhost) );
    assert( Ivy_ObjIsAnd(pGhost) || (!Ivy_ObjFaninC0(pGhost) && !Ivy_ObjFaninC1(pGhost)) );
    assert( Ivy_ObjFaninId0(pGhost) != 0 && Ivy_ObjFaninId1(pGhost) != 0 );
    // consider the case when the pair is canonical
    if ( !Ivy_ObjIsLatch(Ivy_ObjFanin0(pGhost)) || !Ivy_ObjIsLatch(Ivy_ObjFanin1(pGhost)) )
    {
        if ( (pResult = Ivy_TableLookup( p, pGhost )) )
            return pResult;
        return Ivy_ObjCreate( p, pGhost );
    }
    pLat0 = Ivy_ObjFanin0(pGhost);
    pLat1 = Ivy_ObjFanin1(pGhost);
    // remember type and compls
    Type = Ivy_ObjType(pGhost);
    fCompl0 = Ivy_ObjFaninC0(pGhost);
    fCompl1 = Ivy_ObjFaninC1(pGhost);
    // call recursively
    pResult = Ivy_Oper( p, Ivy_NotCond(Ivy_ObjFanin0(pLat0), fCompl0), Ivy_NotCond(Ivy_ObjFanin0(pLat1), fCompl1), Type );
    // build latch on top of this
    Init0 = Ivy_InitNotCond( Ivy_ObjInit(pLat0), fCompl0 );
    Init1 = Ivy_InitNotCond( Ivy_ObjInit(pLat1), fCompl1 );
    Init  = (Type == IVY_AND)? Ivy_InitAnd(Init0, Init1) : Ivy_InitExor(Init0, Init1);
    return Ivy_Latch( p, pResult, Init );
}

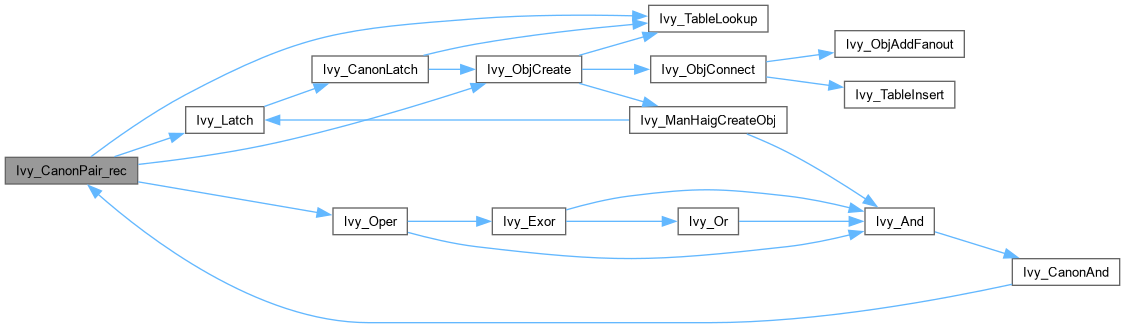

Here is the call graph for this function:

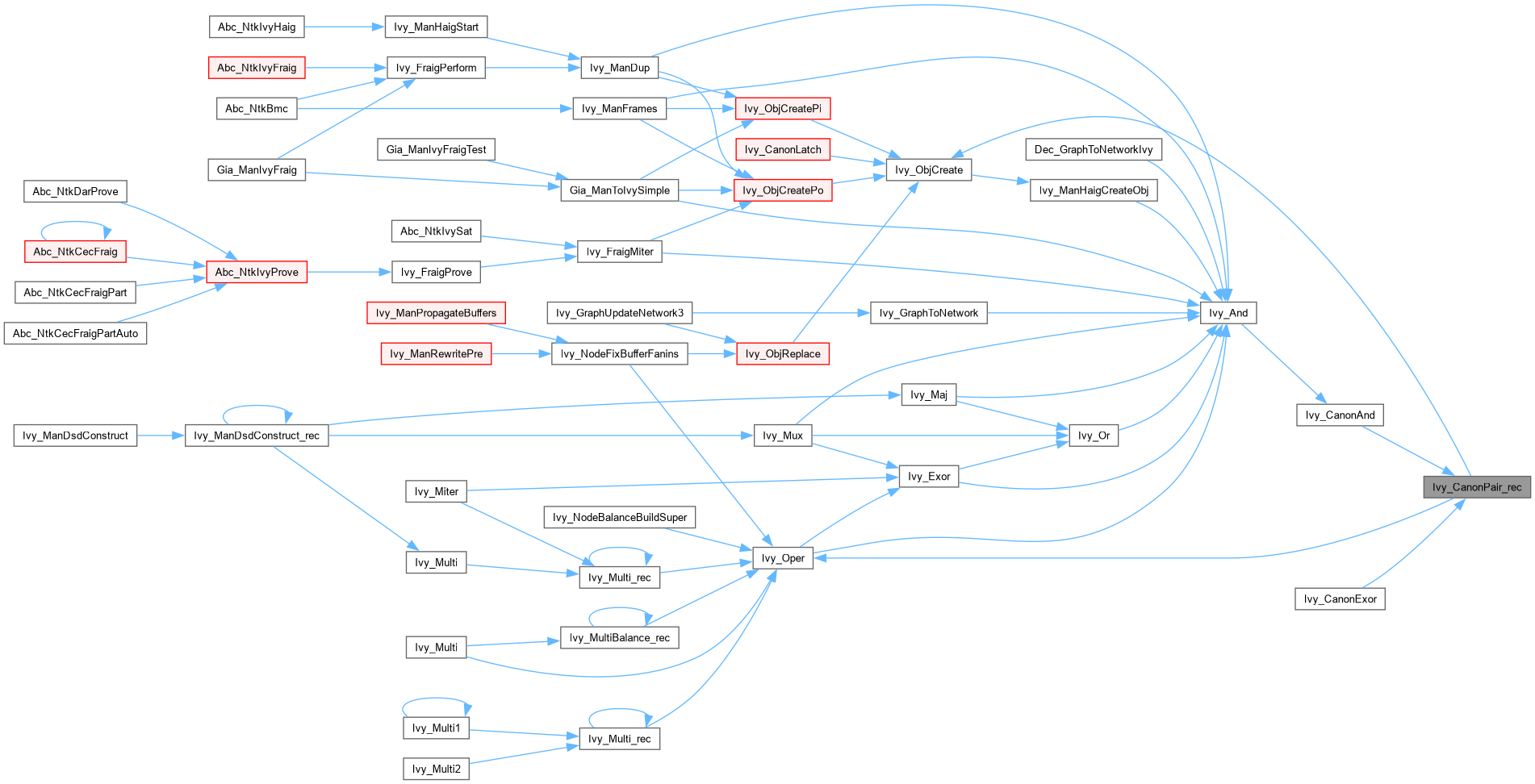

Here is the caller graph for this function:
