ivyFastMap.c File Reference

#include "ivy.h"

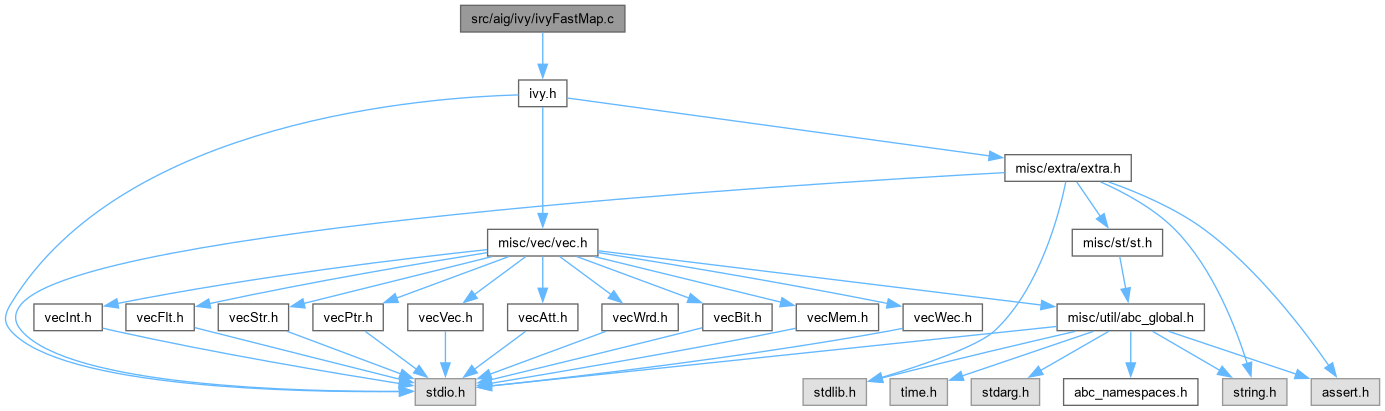

Include dependency graph for ivyFastMap.c:

Go to the source code of this file.

Classes
struct	Ivy_SuppMan_t_
struct	Ivy_Supp_t_

Macros
#define	IVY_INFINITY   10000
	DECLARATIONS ///.

Typedefs
typedef struct Ivy_SuppMan_t_	Ivy_SuppMan_t
typedef struct Ivy_Supp_t_	Ivy_Supp_t

Functions
void	Ivy_FastMapPerform (Ivy_Man_t *pAig, int nLimit, int fRecovery, int fVerbose)
	FUNCTION DEFINITIONS ///.
void	Ivy_FastMapStop (Ivy_Man_t *pAig)
int	Ivy_FastMapArea_rec (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, Vec_Vec_t *vLuts)
void	Ivy_FastMapNodeArea2 (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit)
void	Ivy_FastMapReadSupp (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, Vec_Int_t *vLeaves)
void	Ivy_FastMapRequired_rec (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, Ivy_Obj_t *pRoot, int DelayR)
int	Ivy_FastMapCutCost (Ivy_Man_t *pAig, Vec_Ptr_t *vFront)
void	Ivy_FastMapMark_rec (Ivy_Man_t *pAig, Ivy_Obj_t *pObj)
int	Ivy_FastMapNodeWillGrow (Ivy_Man_t *pAig, Ivy_Obj_t *pObj)
int	Ivy_FastMapNodeFaninCost (Ivy_Man_t *pAig, Ivy_Obj_t *pObj)
void	Ivy_FastMapNodeFaninUpdate (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, Vec_Ptr_t *vFront)
int	Ivy_FastMapNodeFaninCompact0 (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit, Vec_Ptr_t *vFront)
int	Ivy_FastMapNodeFaninCompact1 (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit, Vec_Ptr_t *vFront)
int	Ivy_FastMapNodeFaninCompact2 (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit, Vec_Ptr_t *vFront)
int	Ivy_FastMapNodeFaninCompact_int (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit, Vec_Ptr_t *vFront)
void	Ivy_FastMapNodeFaninCompact (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit, Vec_Ptr_t *vFront)
void	Ivy_FastMapNodePrepare (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit, Vec_Ptr_t *vFront, Vec_Ptr_t *vFrontOld)
void	Ivy_FastMapNodeUpdate (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, Vec_Ptr_t *vFront)
void	Ivy_FastMapNodeRecover2 (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit, Vec_Ptr_t *vFront, Vec_Ptr_t *vFrontOld)
void	Ivy_FastMapNodeRecover4 (Ivy_Man_t *pAig, Ivy_Obj_t *pObj, int nLimit, Vec_Ptr_t *vFront, Vec_Ptr_t *vFrontOld)

Variables
abctime	s_MappingTime
	DECLARATIONS ///.
int	s_MappingMem

Macro Definition Documentation

IVY_INFINITY

#define IVY_INFINITY   10000

DECLARATIONS ///.

CFile****************************************************************

FileName [ivyFastMap.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [And-Inverter Graph package.]

Synopsis [Fast FPGA mapping.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - May 11, 2006.]

Revision [

Id

ivyFastMap.c,v 1.00 2006/05/11 00:00:00 alanmi Exp

]

Definition at line 30 of file ivyFastMap.c.

Typedef Documentation

Ivy_Supp_t

typedef struct Ivy_Supp_t_ Ivy_Supp_t

Definition at line 42 of file ivyFastMap.c.

Ivy_SuppMan_t

typedef struct Ivy_SuppMan_t_ Ivy_SuppMan_t

Definition at line 32 of file ivyFastMap.c.

Function Documentation

Ivy_FastMapArea_rec()

int Ivy_FastMapArea_rec	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		Vec_Vec_t *	vLuts )

Function*************************************************************

Synopsis [Computes area after mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 259 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSupp;
    int i, Counter;
    pSupp = Ivy_ObjSupp( pAig, pObj );
    // skip visited nodes and PIs
    if ( pSupp->fMark || pSupp->nSize == 1 )
        return 0;
    pSupp->fMark = 1;
    // compute the area of this node
    Counter = 0;
    for ( i = 0; i < pSupp->nSize; i++ )
        Counter += Ivy_FastMapArea_rec( pAig, Ivy_ManObj(pAig, pSupp->pArray[i]), vLuts );
    // add the node to the array of LUTs
    Vec_VecPush( vLuts, pSupp->Delay, pObj );
    return 1 + Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapCutCost()

int Ivy_FastMapCutCost	(	Ivy_Man_t *	pAig,
		Vec_Ptr_t *	vFront )

Function*************************************************************

Synopsis [Counts the number of nodes with no external fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 1093 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSuppF;
    Ivy_Obj_t * pFanin;
    int i, Counter = 0;
    Vec_PtrForEachEntry( Ivy_Obj_t *, vFront, pFanin, i )
    {
        pSuppF = Ivy_ObjSupp( pAig, pFanin );
        if ( pSuppF->nRefs == 0 )
            Counter++;
    }
    return Counter;
}

Here is the caller graph for this function:

Ivy_FastMapMark_rec()

void Ivy_FastMapMark_rec	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj )

Function*************************************************************

Synopsis [Performs area recovery for each node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1118 of file ivyFastMap.c.

{
    if ( Ivy_ObjIsTravIdCurrent(pAig, pObj) )
        return;
    assert( Ivy_ObjIsNode(pObj) );
    Ivy_FastMapMark_rec( pAig, Ivy_ObjFanin0(pObj) );
    Ivy_FastMapMark_rec( pAig, Ivy_ObjFanin1(pObj) );
    Ivy_ObjSetTravIdCurrent(pAig, pObj);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapNodeArea2()

void Ivy_FastMapNodeArea2	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit )

Function*************************************************************

Synopsis [Performs fast mapping for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 370 of file ivyFastMap.c.

{
    static int Store[32], StoreSize;
    static char Supp0[16], Supp1[16];
    static Ivy_Supp_t * pTemp0 = (Ivy_Supp_t *)Supp0;
    static Ivy_Supp_t * pTemp1 = (Ivy_Supp_t *)Supp1;
    Ivy_Obj_t * pFanin0, * pFanin1;
    Ivy_Supp_t * pSupp0, * pSupp1, * pSupp;
    int RetValue, DelayOld;
    assert( nLimit <= 32 );
    assert( Ivy_ObjIsNode(pObj) );
    // get the fanins
    pFanin0 = Ivy_ObjFanin0(pObj);
    pFanin1 = Ivy_ObjFanin1(pObj);
    // get the supports
    pSupp0 = Ivy_ObjSupp( pAig, pFanin0 );
    pSupp1 = Ivy_ObjSupp( pAig, pFanin1 );
    pSupp  = Ivy_ObjSupp( pAig, pObj );
    assert( pSupp->fMark == 0 );
    // get the old delay of the node
    DelayOld = Ivy_FastMapNodeDelay(pAig, pObj);
    assert( DelayOld <= pSupp->DelayR );
    // copy the current cut
    memcpy( Store, pSupp->pArray, sizeof(int) * pSupp->nSize );
    StoreSize = pSupp->nSize;
    // get the fanin support
    if ( Ivy_ObjRefs(pFanin0) > 1 && pSupp0->Delay < pSupp->DelayR )
    {
        pSupp0 = pTemp0;
        pSupp0->nSize = 1;
        pSupp0->pArray[0] = Ivy_ObjFaninId0(pObj);
    }
    // get the fanin support
    if ( Ivy_ObjRefs(pFanin1) > 1 && pSupp1->Delay < pSupp->DelayR )
    {
        pSupp1 = pTemp1;
        pSupp1->nSize = 1;
        pSupp1->pArray[0] = Ivy_ObjFaninId1(pObj);
    }
    // merge the cuts
    if ( pSupp0->nSize < pSupp1->nSize )
        RetValue = Ivy_FastMapMerge( pSupp1, pSupp0, pSupp, nLimit );
    else
        RetValue = Ivy_FastMapMerge( pSupp0, pSupp1, pSupp, nLimit );
    if ( !RetValue )
    {
        pSupp->nSize = 2;
        pSupp->pArray[0] = Ivy_ObjFaninId0(pObj);
        pSupp->pArray[1] = Ivy_ObjFaninId1(pObj);
    }
    // check the resulting delay
    pSupp->Delay = Ivy_FastMapNodeDelay(pAig, pObj);
    if ( pSupp->Delay > pSupp->DelayR )
    {
        pSupp->nSize = StoreSize;
        memcpy( pSupp->pArray, Store, sizeof(int) * pSupp->nSize );
        pSupp->Delay = DelayOld;
    }
}

Here is the call graph for this function:

Ivy_FastMapNodeFaninCompact()

void Ivy_FastMapNodeFaninCompact	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit,
		Vec_Ptr_t *	vFront )

Function*************************************************************

Synopsis [Compacts the number of external refs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1332 of file ivyFastMap.c.

{
    while ( Ivy_FastMapNodeFaninCompact_int( pAig, pObj, nLimit, vFront ) );
}

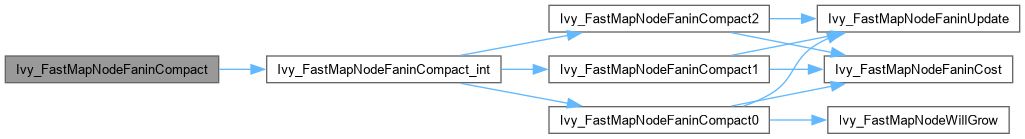

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapNodeFaninCompact0()

int Ivy_FastMapNodeFaninCompact0	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit,
		Vec_Ptr_t *	vFront )

Function*************************************************************

Synopsis [Compacts the number of external refs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1223 of file ivyFastMap.c.

{
    Ivy_Obj_t * pFanin;
    int i;
    Vec_PtrForEachEntry( Ivy_Obj_t *, vFront, pFanin, i )
    {
        if ( Ivy_ObjIsCi(pFanin) )
            continue;
        if ( Ivy_FastMapNodeWillGrow(pAig, pFanin) )
            continue;
        if ( Ivy_FastMapNodeFaninCost(pAig, pFanin) <= 0 )
        {
            Ivy_FastMapNodeFaninUpdate( pAig, pFanin, vFront );
            return 1;
        }
    }
    return 0;
}

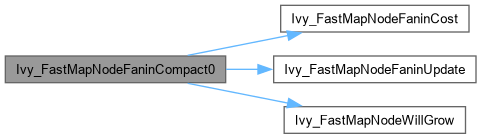

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapNodeFaninCompact1()

int Ivy_FastMapNodeFaninCompact1	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit,
		Vec_Ptr_t *	vFront )

Function*************************************************************

Synopsis [Compacts the number of external refs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1253 of file ivyFastMap.c.

{
    Ivy_Obj_t * pFanin;
    int i;
    Vec_PtrForEachEntry( Ivy_Obj_t *, vFront, pFanin, i )
    {
        if ( Ivy_ObjIsCi(pFanin) )
            continue;
        if ( Ivy_FastMapNodeFaninCost(pAig, pFanin) < 0 )
        {
            Ivy_FastMapNodeFaninUpdate( pAig, pFanin, vFront );
            return 1;
        }
    }
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapNodeFaninCompact2()

int Ivy_FastMapNodeFaninCompact2	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit,
		Vec_Ptr_t *	vFront )

Function*************************************************************

Synopsis [Compacts the number of external refs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1281 of file ivyFastMap.c.

{
    Ivy_Obj_t * pFanin;
    int i;
    Vec_PtrForEachEntry( Ivy_Obj_t *, vFront, pFanin, i )
    {
        if ( Ivy_ObjIsCi(pFanin) )
            continue;
        if ( Ivy_FastMapNodeFaninCost(pAig, pFanin) <= 0 )
        {
            Ivy_FastMapNodeFaninUpdate( pAig, pFanin, vFront );
            return 1;
        }
    }
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapNodeFaninCompact_int()

int Ivy_FastMapNodeFaninCompact_int	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit,
		Vec_Ptr_t *	vFront )

Function*************************************************************

Synopsis [Compacts the number of external refs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1309 of file ivyFastMap.c.

{
    if ( Ivy_FastMapNodeFaninCompact0(pAig, pObj, nLimit, vFront) )
        return 1;
    if (  Vec_PtrSize(vFront) < nLimit && Ivy_FastMapNodeFaninCompact1(pAig, pObj, nLimit, vFront) )
        return 1;
    if ( Vec_PtrSize(vFront) < nLimit && Ivy_FastMapNodeFaninCompact2(pAig, pObj, nLimit, vFront) )
        return 1;
    assert( Vec_PtrSize(vFront) <= nLimit );
    return 0;
}

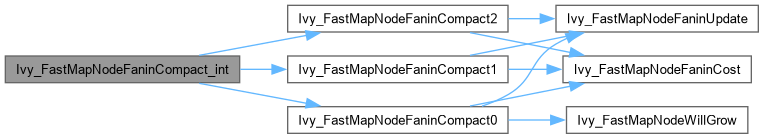

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapNodeFaninCost()

int Ivy_FastMapNodeFaninCost	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj )

Function*************************************************************

Synopsis [Returns the increase in the number of fanins with no external refs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1159 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSuppF;
    Ivy_Obj_t * pFanin;
    int Counter = 0;
    assert( Ivy_ObjIsNode(pObj) );
    // check if the node has external refs
    pSuppF = Ivy_ObjSupp( pAig, pObj );
    if ( pSuppF->nRefs == 0 )
        Counter--;
    // increment the number of fanins without external refs
    pFanin = Ivy_ObjFanin0(pObj);
    pSuppF = Ivy_ObjSupp( pAig, pFanin );
    if ( !Ivy_ObjIsTravIdCurrent(pAig, pFanin) && pSuppF->nRefs == 0 )
        Counter++;
    // increment the number of fanins without external refs
    pFanin = Ivy_ObjFanin1(pObj);
    pSuppF = Ivy_ObjSupp( pAig, pFanin );
    if ( !Ivy_ObjIsTravIdCurrent(pAig, pFanin) && pSuppF->nRefs == 0 )
        Counter++;
    return Counter;
}

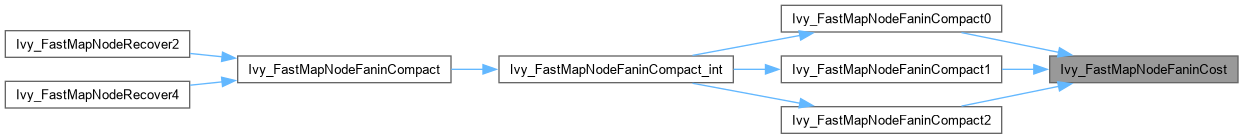

Here is the caller graph for this function:

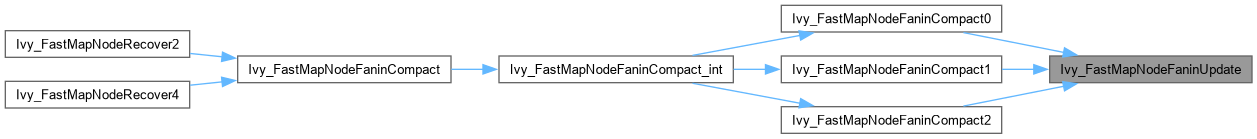

Ivy_FastMapNodeFaninUpdate()

void Ivy_FastMapNodeFaninUpdate	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		Vec_Ptr_t *	vFront )

Function*************************************************************

Synopsis [Updates the frontier.]

Description []

SideEffects []

SeeAlso []

Definition at line 1193 of file ivyFastMap.c.

{
    Ivy_Obj_t * pFanin;
    assert( Ivy_ObjIsNode(pObj) );
    Vec_PtrRemove( vFront, pObj );
    pFanin = Ivy_ObjFanin0(pObj);
    if ( !Ivy_ObjIsTravIdCurrent(pAig, pFanin) )
    {
        Ivy_ObjSetTravIdCurrent(pAig, pFanin);
        Vec_PtrPush( vFront, pFanin );
    }
    pFanin = Ivy_ObjFanin1(pObj);
    if ( !Ivy_ObjIsTravIdCurrent(pAig, pFanin) )
    {
        Ivy_ObjSetTravIdCurrent(pAig, pFanin);
        Vec_PtrPush( vFront, pFanin );
    }
}

Here is the caller graph for this function:

Ivy_FastMapNodePrepare()

void Ivy_FastMapNodePrepare	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit,
		Vec_Ptr_t *	vFront,
		Vec_Ptr_t *	vFrontOld )

Function*************************************************************

Synopsis [Prepares node mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 1348 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSupp;
    Ivy_Obj_t * pFanin;
    int i;
    pSupp = Ivy_ObjSupp( pAig, pObj );
    // expand the cut downwards from the given place
    Vec_PtrClear( vFront );
    Vec_PtrClear( vFrontOld );
    Ivy_ManIncrementTravId( pAig );
    for ( i = 0; i < pSupp->nSize; i++ )
    {
        pFanin = Ivy_ManObj(pAig, pSupp->pArray[i]);
        Vec_PtrPush( vFront, pFanin );
        Vec_PtrPush( vFrontOld, pFanin );
        Ivy_ObjSetTravIdCurrent( pAig, pFanin );
    }
    // mark the nodes in the cone
    Ivy_FastMapMark_rec( pAig, pObj );
}

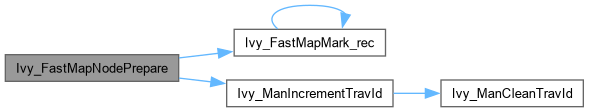

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapNodeRecover2()

void Ivy_FastMapNodeRecover2	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit,
		Vec_Ptr_t *	vFront,
		Vec_Ptr_t *	vFrontOld )

Function*************************************************************

Synopsis [Performs area recovery for each node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1407 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSupp;
    int CostBef, CostAft;
    int AreaBef, AreaAft;
    pSupp = Ivy_ObjSupp( pAig, pObj );
//    if ( pSupp->nRefs == 0 )
//        return;
    if ( pSupp->nRefs == 0 )
        AreaBef = Ivy_FastMapNodeAreaDerefed( pAig, pObj );
    else
        AreaBef = Ivy_FastMapNodeAreaRefed( pAig, pObj );
    // get the area
    if ( AreaBef == 1 )
        return;

    if ( pSupp->nRefs == 0 )
    {
        pSupp->nRefs = 1000000;
        Ivy_FastMapNodeRef( pAig, pObj );
    }
    // the cut is non-trivial
    Ivy_FastMapNodePrepare( pAig, pObj, nLimit, vFront, vFrontOld );
    // iteratively modify the cut
    CostBef = Ivy_FastMapCutCost( pAig, vFront );
    Ivy_FastMapNodeFaninCompact( pAig, pObj, nLimit, vFront );
    CostAft = Ivy_FastMapCutCost( pAig, vFront );
    assert( CostBef >= CostAft );
    // update the node
    Ivy_FastMapNodeUpdate( pAig, pObj, vFront );
    // get the new area
    AreaAft = Ivy_FastMapNodeAreaRefed( pAig, pObj );
    if ( AreaAft > AreaBef )
    {
        Ivy_FastMapNodeUpdate( pAig, pObj, vFrontOld );
        AreaAft = Ivy_FastMapNodeAreaRefed( pAig, pObj );
        assert( AreaAft == AreaBef );
    }
    if ( pSupp->nRefs == 1000000 )
    {
        pSupp->nRefs = 0;
        Ivy_FastMapNodeDeref( pAig, pObj );
    }
}

Here is the call graph for this function:

Ivy_FastMapNodeRecover4()

void Ivy_FastMapNodeRecover4	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		int	nLimit,
		Vec_Ptr_t *	vFront,
		Vec_Ptr_t *	vFrontOld )

Function*************************************************************

Synopsis [Performs area recovery for each node.]

Description []

SideEffects []

SeeAlso []

Definition at line 1512 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSupp;
    int CostBef, CostAft;
    int AreaBef, AreaAft;
    int DelayOld;
    pSupp = Ivy_ObjSupp( pAig, pObj );
    DelayOld = pSupp->Delay = Ivy_FastMapNodeDelay( pAig, pObj );
    assert( pSupp->Delay <= pSupp->DelayR );
//    if ( pSupp->nRefs == 0 )
//        return;
//    AreaBef = Ivy_FastMapNodeAreaRefed( pAig, pObj );
    // get the area
    if ( pSupp->nRefs == 0 )
        AreaBef = Ivy_FastMapNodeAreaDerefed( pAig, pObj );
    else
        AreaBef = Ivy_FastMapNodeAreaRefed( pAig, pObj );
    if ( AreaBef == 1 )
        return;

    if ( pSupp->nRefs == 0 )
    {
        pSupp->nRefs = 1000000;
        Ivy_FastMapNodeRef( pAig, pObj );
    }
    // the cut is non-trivial
    Ivy_FastMapNodePrepare( pAig, pObj, nLimit, vFront, vFrontOld );
    // iteratively modify the cut
    CostBef = Ivy_FastMapCutCost( pAig, vFront );
    Ivy_FastMapNodeFaninCompact( pAig, pObj, nLimit, vFront );
    CostAft = Ivy_FastMapCutCost( pAig, vFront );
    assert( CostBef >= CostAft );
    // update the node
    Ivy_FastMapNodeUpdate( pAig, pObj, vFront );
    pSupp->Delay = Ivy_FastMapNodeDelay( pAig, pObj );
    // get the new area
    AreaAft = Ivy_FastMapNodeAreaRefed( pAig, pObj );
    if ( AreaAft > AreaBef || pSupp->Delay > pSupp->DelayR )
    {
        Ivy_FastMapNodeUpdate( pAig, pObj, vFrontOld );
        AreaAft = Ivy_FastMapNodeAreaRefed( pAig, pObj );
        assert( AreaAft == AreaBef );
        pSupp->Delay = DelayOld;
    }
    if ( pSupp->nRefs == 1000000 )
    {
        pSupp->nRefs = 0;
        Ivy_FastMapNodeDeref( pAig, pObj );
    }
}

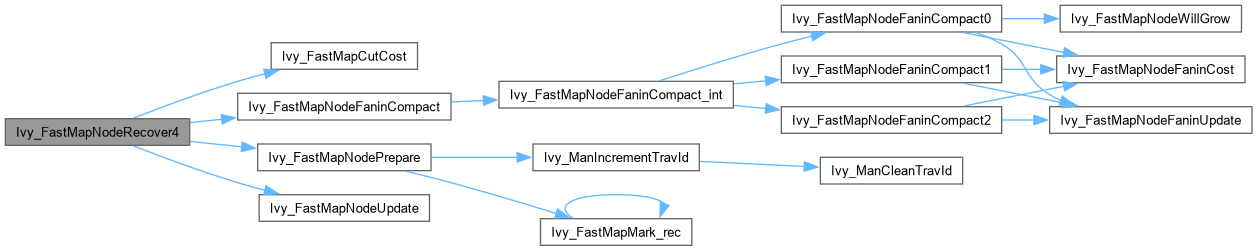

Here is the call graph for this function:

Ivy_FastMapNodeUpdate()

void Ivy_FastMapNodeUpdate	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		Vec_Ptr_t *	vFront )

Function*************************************************************

Synopsis [Updates the frontier.]

Description []

SideEffects []

SeeAlso []

Definition at line 1380 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSupp;
    Ivy_Obj_t * pFanin;
    int i;
    pSupp = Ivy_ObjSupp( pAig, pObj );
    // deref node's cut
    Ivy_FastMapNodeDeref( pAig, pObj );
    // update the node's cut
    pSupp->nSize = Vec_PtrSize(vFront);
    Vec_PtrForEachEntry( Ivy_Obj_t *, vFront, pFanin, i )
        pSupp->pArray[i] = pFanin->Id;
    // ref the new cut
    Ivy_FastMapNodeRef( pAig, pObj );
}

Here is the caller graph for this function:

Ivy_FastMapNodeWillGrow()

int Ivy_FastMapNodeWillGrow	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj )

Function*************************************************************

Synopsis [Returns 1 if the number of fanins will grow.]

Description []

SideEffects []

SeeAlso []

Definition at line 1139 of file ivyFastMap.c.

{
    Ivy_Obj_t * pFanin0, * pFanin1;
    assert( Ivy_ObjIsNode(pObj) );
    pFanin0 = Ivy_ObjFanin0(pObj);
    pFanin1 = Ivy_ObjFanin1(pObj);
    return !Ivy_ObjIsTravIdCurrent(pAig, pFanin0) && !Ivy_ObjIsTravIdCurrent(pAig, pFanin1);
}

Here is the caller graph for this function:

Ivy_FastMapPerform()

void Ivy_FastMapPerform	(	Ivy_Man_t *	pAig,
		int	nLimit,
		int	fRecovery,
		int	fVerbose )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Performs fast K-LUT mapping of the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 105 of file ivyFastMap.c.

{
    Ivy_SuppMan_t * pMan;
    Ivy_Obj_t * pObj;
    int i, Delay, Area;
    abctime clk, clkTotal = Abc_Clock();
    // start the memory for supports
    pMan = ABC_ALLOC( Ivy_SuppMan_t, 1 );
    memset( pMan, 0, sizeof(Ivy_SuppMan_t) );
    pMan->nLimit = nLimit;
    pMan->nObjs  = Ivy_ManObjIdMax(pAig) + 1;
    pMan->nSize  = sizeof(Ivy_Supp_t) + nLimit * sizeof(int);
    pMan->pMem   = (char *)ABC_ALLOC( char, pMan->nObjs * pMan->nSize );
    memset( pMan->pMem, 0, pMan->nObjs * pMan->nSize );
    pMan->vLuts  = Vec_VecAlloc( 100 );
    pAig->pData  = pMan;
clk = Abc_Clock();
    // set the PI mapping
    Ivy_ObjSuppStart( pAig, Ivy_ManConst1(pAig) );
    Ivy_ManForEachPi( pAig, pObj, i )
        Ivy_ObjSuppStart( pAig, pObj );
    // iterate through all nodes in the topological order
    Ivy_ManForEachNode( pAig, pObj, i )
        Ivy_FastMapNode( pAig, pObj, nLimit );
    // find the best arrival time and area
    Delay = Ivy_FastMapDelay( pAig );
    Area = Ivy_FastMapArea(pAig);
    if ( fVerbose )
        Ivy_FastMapPrint( pAig, Delay, Area, Abc_Clock() - clk, "Delay oriented mapping: " );

// 2-1-2 (doing 2-1-2-1-2 improves 0.5%)

    if ( fRecovery )
    {
clk = Abc_Clock();
    Ivy_FastMapRequired( pAig, Delay, 0 );
    // remap the nodes
    Ivy_FastMapRecover( pAig, nLimit );
    Delay = Ivy_FastMapDelay( pAig );
    Area = Ivy_FastMapArea(pAig);
    if ( fVerbose )
        Ivy_FastMapPrint( pAig, Delay, Area, Abc_Clock() - clk, "Area recovery 2       : " );

clk = Abc_Clock();
    Ivy_FastMapRequired( pAig, Delay, 0 );
    // iterate through all nodes in the topological order
    Ivy_ManForEachNode( pAig, pObj, i )
        Ivy_FastMapNodeArea( pAig, pObj, nLimit );
    Delay = Ivy_FastMapDelay( pAig );
    Area = Ivy_FastMapArea(pAig);
    if ( fVerbose )
        Ivy_FastMapPrint( pAig, Delay, Area, Abc_Clock() - clk, "Area recovery 1       : " );

clk = Abc_Clock();
    Ivy_FastMapRequired( pAig, Delay, 0 );
    // remap the nodes
    Ivy_FastMapRecover( pAig, nLimit );
    Delay = Ivy_FastMapDelay( pAig );
    Area = Ivy_FastMapArea(pAig);
    if ( fVerbose )
        Ivy_FastMapPrint( pAig, Delay, Area, Abc_Clock() - clk, "Area recovery 2       : " );
    }


    s_MappingTime = Abc_Clock() - clkTotal;
    s_MappingMem = pMan->nObjs * pMan->nSize;
/*
    {
        Vec_Ptr_t * vNodes;
        vNodes = Vec_PtrAlloc( 100 );
        Vec_VecForEachEntry( Ivy_Obj_t *, pMan->vLuts, pObj, i, k )
            Vec_PtrPush( vNodes, pObj );
        Ivy_ManShow( pAig, 0, vNodes );
        Vec_PtrFree( vNodes );
    }
*/
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapReadSupp()

void Ivy_FastMapReadSupp	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		Vec_Int_t *	vLeaves )

Function*************************************************************

Synopsis [Creates integer vector with the support of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 793 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSupp;
    pSupp = Ivy_ObjSupp( pAig, pObj );
    vLeaves->nCap   = 8;
    vLeaves->nSize  = pSupp->nSize;
    vLeaves->pArray = pSupp->pArray;
}

Ivy_FastMapRequired_rec()

void Ivy_FastMapRequired_rec	(	Ivy_Man_t *	pAig,
		Ivy_Obj_t *	pObj,
		Ivy_Obj_t *	pRoot,
		int	DelayR )

Function*************************************************************

Synopsis [Sets the required times of the intermediate nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 813 of file ivyFastMap.c.

{
    Ivy_Supp_t * pSupp;
    pSupp = Ivy_ObjSupp( pAig, pObj );
    if ( pObj != pRoot && (pSupp->nRefs > 0 || Ivy_ObjIsCi(pObj)) )
        return;
    Ivy_FastMapRequired_rec( pAig, Ivy_ObjFanin0(pObj), pRoot, DelayR );
    Ivy_FastMapRequired_rec( pAig, Ivy_ObjFanin1(pObj), pRoot, DelayR );
//    assert( pObj == pRoot || pSupp->DelayR == IVY_INFINITY );
    pSupp->DelayR = DelayR;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_FastMapStop()

void Ivy_FastMapStop

(

Ivy_Man_t *

pAig

)

Function*************************************************************

Synopsis [Cleans memory used for decomposition.]

Description []

SideEffects []

SeeAlso []

Definition at line 194 of file ivyFastMap.c.

{
    Ivy_SuppMan_t * p = (Ivy_SuppMan_t *)pAig->pData;
    Vec_VecFree( p->vLuts );
    ABC_FREE( p->pMem );
    ABC_FREE( p );
    pAig->pData = NULL;
}

Here is the caller graph for this function:

Variable Documentation

s_MappingMem

int s_MappingMem

extern

Definition at line 48 of file abcPrint.c.

s_MappingTime

abctime s_MappingTime

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [abcPrint.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Printing statistics.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcPrint.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 47 of file abcPrint.c.
