ivyHaig.c File Reference

#include "ivy.h"

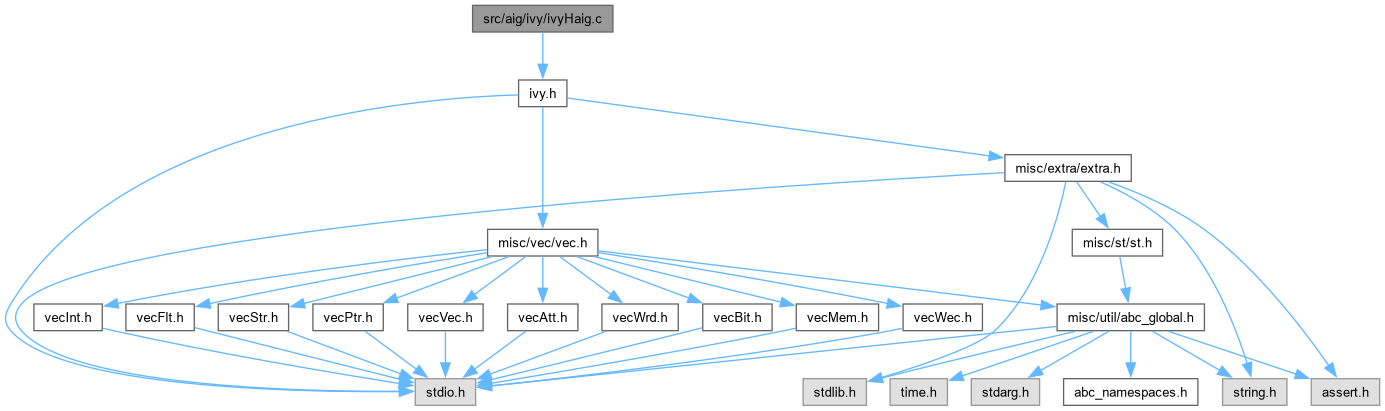

Include dependency graph for ivyHaig.c:

Go to the source code of this file.

Functions
void	Ivy_ManHaigStart (Ivy_Man_t *p, int fVerbose)
	FUNCTION DEFINITIONS ///.
void	Ivy_ManHaigTrasfer (Ivy_Man_t *p, Ivy_Man_t *pNew)
void	Ivy_ManHaigStop (Ivy_Man_t *p)
void	Ivy_ManHaigCreateObj (Ivy_Man_t *p, Ivy_Obj_t *pObj)
int	Ivy_ObjIsInTfi_rec (Ivy_Obj_t *pObjNew, Ivy_Obj_t *pObjOld, int Levels)
void	Ivy_ManHaigCreateChoice (Ivy_Man_t *p, Ivy_Obj_t *pObjOld, Ivy_Obj_t *pObjNew)
int	Ivy_ManHaigCountChoices (Ivy_Man_t *p, int *pnChoices)
void	Ivy_ManHaigPostprocess (Ivy_Man_t *p, int fVerbose)
void	Ivy_ManHaigSimulate (Ivy_Man_t *p)

Function Documentation

Ivy_ManHaigCountChoices()

int Ivy_ManHaigCountChoices	(	Ivy_Man_t *	p,
		int *	pnChoices )

Function*************************************************************

Synopsis [Count the number of choices and choice nodes in HAIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 317 of file ivyHaig.c.

{
    Ivy_Obj_t * pObj;
    int nChoices, nChoiceNodes, Counter, i;
    assert( p->pHaig != NULL );
    nChoices = nChoiceNodes = 0;
    Ivy_ManForEachObj( p->pHaig, pObj, i )
    {
        if ( Ivy_ObjIsTerm(pObj) || i == 0 )
            continue;
        if ( Ivy_ObjRefs(pObj) == 0 )
            continue;
        Counter = Ivy_HaigObjCountClass( pObj );
        nChoiceNodes += (int)(Counter > 1);
        nChoices += Counter - 1;
//        if ( Counter > 1 )
//            printf( "Choice node %d %s\n", pObj->Id, Ivy_ObjIsLatch(pObj)? "(latch)": "" );
    }
    *pnChoices = nChoices;
    return nChoiceNodes;
}

Here is the caller graph for this function:

Ivy_ManHaigCreateChoice()

void Ivy_ManHaigCreateChoice	(	Ivy_Man_t *	p,
		Ivy_Obj_t *	pObjOld,
		Ivy_Obj_t *	pObjNew )

Function*************************************************************

Synopsis [Sets the pair of equivalent nodes in HAIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 246 of file ivyHaig.c.

{
    Ivy_Obj_t * pObjOldHaig, * pObjNewHaig;
    Ivy_Obj_t * pObjOldHaigR, * pObjNewHaigR;
    int fCompl;
//printf( "\nCreating choice for %d and %d in AIG\n", pObjOld->Id, Ivy_Regular(pObjNew)->Id );

    assert( p->pHaig != NULL );
    assert( !Ivy_IsComplement(pObjOld) );
    // get pointers to the representatives of pObjOld and pObjNew
    pObjOldHaig = pObjOld->pEquiv;
    pObjNewHaig = Ivy_NotCond( Ivy_Regular(pObjNew)->pEquiv, Ivy_IsComplement(pObjNew) );
    // get the classes
    pObjOldHaig = Ivy_NotCond( Ivy_HaigObjRepr(Ivy_Regular(pObjOldHaig)), Ivy_IsComplement(pObjOldHaig) );
    pObjNewHaig = Ivy_NotCond( Ivy_HaigObjRepr(Ivy_Regular(pObjNewHaig)), Ivy_IsComplement(pObjNewHaig) );
    // get regular pointers
    pObjOldHaigR = Ivy_Regular(pObjOldHaig);
    pObjNewHaigR = Ivy_Regular(pObjNewHaig);
    // check if there is phase difference between them
    fCompl = (Ivy_IsComplement(pObjOldHaig) != Ivy_IsComplement(pObjNewHaig));
    // if the class is the same, nothing to do
    if ( pObjOldHaigR == pObjNewHaigR )
        return;
    // if the second node belongs to a class, do not merge classes (for the time being)
    if ( Ivy_ObjRefs(pObjOldHaigR) == 0 || pObjNewHaigR->pEquiv != NULL ||
        Ivy_ObjRefs(pObjNewHaigR) > 0 ) //|| Ivy_ObjIsInTfi_rec(pObjNewHaigR, pObjOldHaigR, 10) )
    {
/*
        if ( pObjNewHaigR->pEquiv != NULL )
            printf( "c" );
        if ( Ivy_ObjRefs(pObjNewHaigR) > 0 )
            printf( "f" );
        printf( " " );
*/
        p->pHaig->nClassesSkip++;
        return;
    }

    // add this node to the class of pObjOldHaig
    assert( Ivy_ObjRefs(pObjOldHaigR) > 0 );
    assert( !Ivy_IsComplement(pObjOldHaigR->pEquiv) );
    if ( pObjOldHaigR->pEquiv == NULL )
        pObjNewHaigR->pEquiv = Ivy_NotCond( pObjOldHaigR, fCompl );
    else
        pObjNewHaigR->pEquiv = Ivy_NotCond( pObjOldHaigR->pEquiv, fCompl );
    pObjOldHaigR->pEquiv = pObjNewHaigR;
//printf( "Setting choice node %d -> %d.\n", pObjOldHaigR->Id, pObjNewHaigR->Id );
    // update the class of the new node
//    Ivy_Regular(pObjNew)->pEquiv = Ivy_NotCond( pObjOldHaigR, fCompl ^ Ivy_IsComplement(pObjNew) );
//printf( "Creating choice for %d and %d in HAIG\n", pObjOldHaigR->Id, pObjNewHaigR->Id );

//    if ( pObjOldHaigR->Id == 13 )
//    {
//        Ivy_ManShow( p, 0 );
//        Ivy_ManShow( p->pHaig, 1 );
//    }
//    if ( !Ivy_ManIsAcyclic( p->pHaig ) )
//        printf( "HAIG contains a cycle\n" );
}

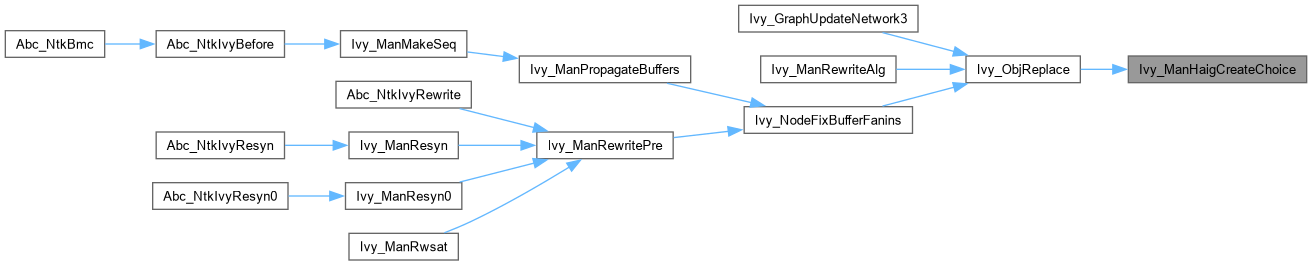

Here is the caller graph for this function:

Ivy_ManHaigCreateObj()

void Ivy_ManHaigCreateObj	(	Ivy_Man_t *	p,
		Ivy_Obj_t *	pObj )

Function*************************************************************

Synopsis [Creates a new node in HAIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 183 of file ivyHaig.c.

{
    Ivy_Obj_t * pEquiv0, * pEquiv1;
    assert( p->pHaig != NULL );
    assert( !Ivy_IsComplement(pObj) );
    if ( Ivy_ObjType(pObj) == IVY_BUF )
        pObj->pEquiv = Ivy_ObjChild0Equiv(pObj);
    else if ( Ivy_ObjType(pObj) == IVY_LATCH )
    {
//        pObj->pEquiv = Ivy_Latch( p->pHaig, Ivy_ObjChild0Equiv(pObj), pObj->Init );
        pEquiv0 = Ivy_ObjChild0Equiv(pObj);
        pEquiv0 = Ivy_NotCond( Ivy_HaigObjRepr(Ivy_Regular(pEquiv0)), Ivy_IsComplement(pEquiv0) );
        pObj->pEquiv = Ivy_Latch( p->pHaig, pEquiv0, (Ivy_Init_t)pObj->Init );
    }
    else if ( Ivy_ObjType(pObj) == IVY_AND )
    {
//        pObj->pEquiv = Ivy_And( p->pHaig, Ivy_ObjChild0Equiv(pObj), Ivy_ObjChild1Equiv(pObj) );
        pEquiv0 = Ivy_ObjChild0Equiv(pObj);
        pEquiv0 = Ivy_NotCond( Ivy_HaigObjRepr(Ivy_Regular(pEquiv0)), Ivy_IsComplement(pEquiv0) );
        pEquiv1 = Ivy_ObjChild1Equiv(pObj);
        pEquiv1 = Ivy_NotCond( Ivy_HaigObjRepr(Ivy_Regular(pEquiv1)), Ivy_IsComplement(pEquiv1) );
        pObj->pEquiv = Ivy_And( p->pHaig, pEquiv0, pEquiv1 );
    }
    else assert( 0 );
    // make sure the node points to the representative
//    pObj->pEquiv = Ivy_NotCond( Ivy_HaigObjRepr(Ivy_Regular(pObj->pEquiv)), Ivy_IsComplement(pObj->pEquiv) );
}

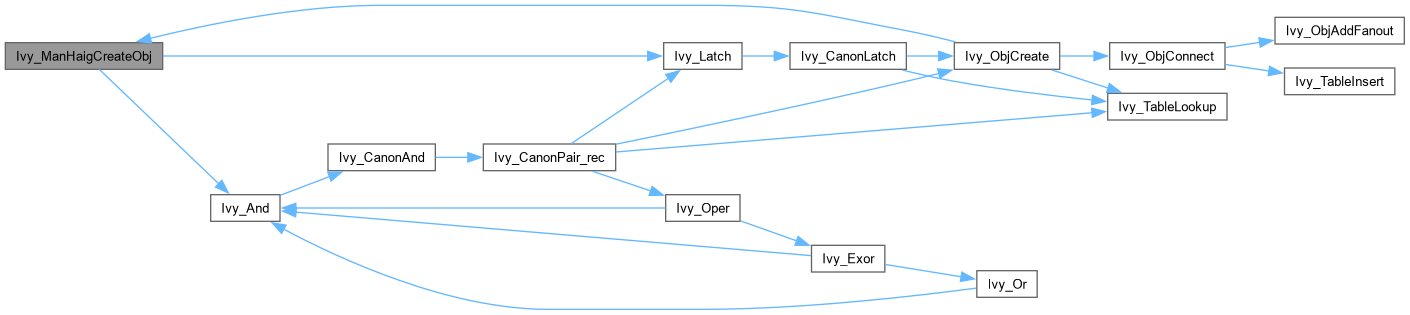

Here is the call graph for this function:

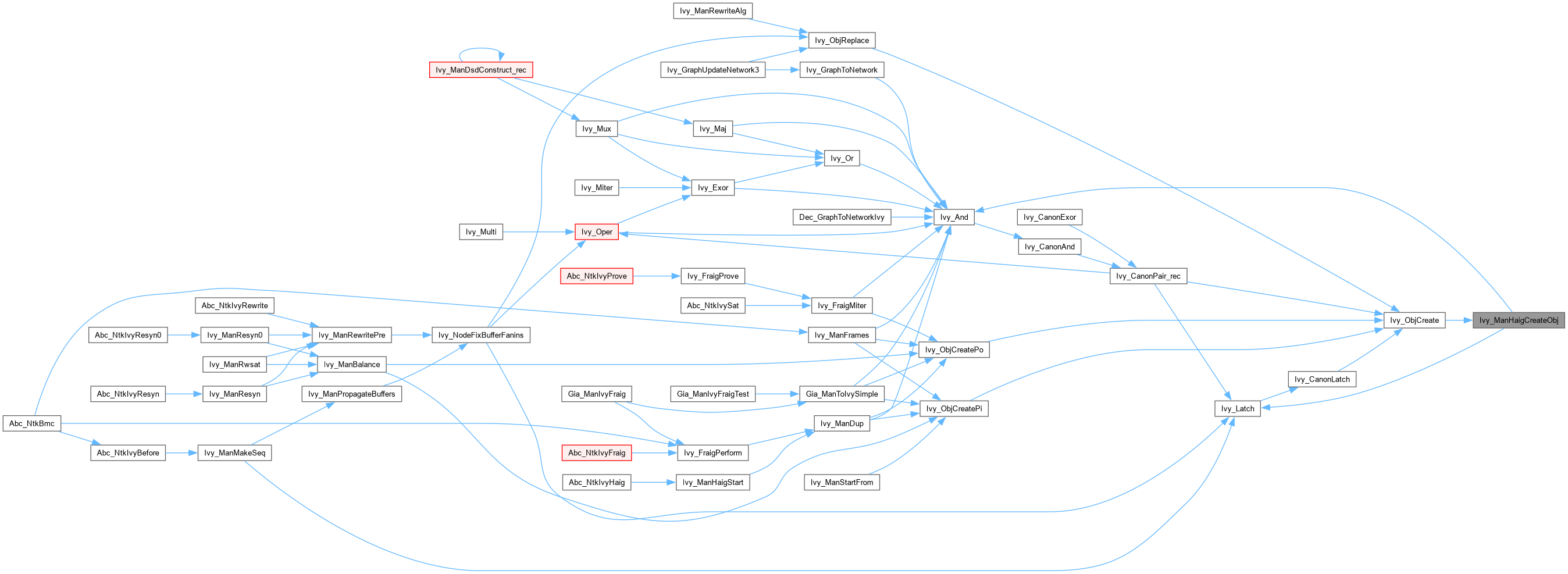

Here is the caller graph for this function:

Ivy_ManHaigPostprocess()

void Ivy_ManHaigPostprocess	(	Ivy_Man_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis [Prints statistics of the HAIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 350 of file ivyHaig.c.

{
    int nChoices, nChoiceNodes;

    assert( p->pHaig != NULL );

    if ( fVerbose )
    {
        printf( "Final    : " );
        Ivy_ManPrintStats( p );
        printf( "HAIG     : " );
        Ivy_ManPrintStats( p->pHaig );

        // print choice node stats
        nChoiceNodes = Ivy_ManHaigCountChoices( p, &nChoices );
        printf( "Total choice nodes = %d. Total choices = %d. Skipped classes = %d.\n",
            nChoiceNodes, nChoices, p->pHaig->nClassesSkip );
    }

    if ( Ivy_ManIsAcyclic( p->pHaig ) )
    {
        if ( fVerbose )
            printf( "HAIG is acyclic\n" );
    }
    else
        printf( "HAIG contains a cycle\n" );

//    if ( fVerbose )
//        Ivy_ManHaigSimulate( p );
}

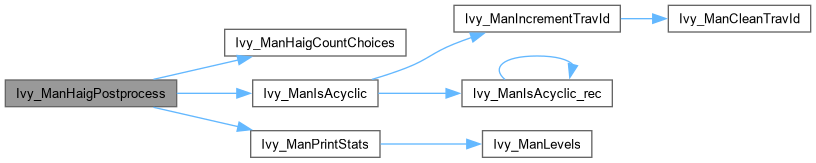

Here is the call graph for this function:

Ivy_ManHaigSimulate()

void Ivy_ManHaigSimulate

(

Ivy_Man_t *

p

)

Function*************************************************************

Synopsis [Simulate HAIG using modified 3-valued simulation.]

Description []

SideEffects []

SeeAlso []

Definition at line 440 of file ivyHaig.c.

{
    Vec_Int_t * vNodes, * vLatches, * vLatchesD;
    Ivy_Obj_t * pObj, * pTemp;
    Ivy_Init_t In0, In1;
    int i, k, Counter;
    int fVerbose = 0;

    // check choices
    Ivy_ManCheckChoices( p );

    // switch to HAIG
    assert( p->pHaig != NULL );
    p = p->pHaig;

if ( fVerbose )
Ivy_ManForEachPi( p, pObj, i )
printf( "Setting PI %d\n", pObj->Id );

    // collect latches and nodes in the DFS order
    vNodes = Ivy_ManDfsSeq( p, &vLatches );

if ( fVerbose )
Ivy_ManForEachNodeVec( p, vNodes, pObj, i )
printf( "Collected node %d with fanins %d and %d\n", pObj->Id, Ivy_ObjFanin0(pObj)->Id, Ivy_ObjFanin1(pObj)->Id );

    // set the PI values
    Ivy_ManConst1(p)->Init = IVY_INIT_1;
    Ivy_ManForEachPi( p, pObj, i )
        pObj->Init = IVY_INIT_0;

    // set the latch values
    Ivy_ManForEachNodeVec( p, vLatches, pObj, i )
        pObj->Init = IVY_INIT_DC;
    // set the latches of D to be determinate
    vLatchesD = (Vec_Int_t *)p->pData;
    Ivy_ManForEachNodeVec( p, vLatchesD, pObj, i )
        pObj->Init = IVY_INIT_0;

    // perform several rounds of simulation
    for ( k = 0; k < 10; k++ )
    {
        // count the number of non-determinate values
        Counter = 0;
        Ivy_ManForEachNodeVec( p, vLatches, pObj, i )
            Counter += ( pObj->Init == IVY_INIT_DC );
        printf( "Iter %d : Non-determinate = %d\n", k, Counter );

        // simulate the internal nodes
        Ivy_ManForEachNodeVec( p, vNodes, pObj, i )
        {
if ( fVerbose )
printf( "Processing node %d with fanins %d and %d\n", pObj->Id, Ivy_ObjFanin0(pObj)->Id, Ivy_ObjFanin1(pObj)->Id );
            In0 = Ivy_InitNotCond( (Ivy_Init_t)Ivy_ObjFanin0(pObj)->Init, Ivy_ObjFaninC0(pObj) );
            In1 = Ivy_InitNotCond( (Ivy_Init_t)Ivy_ObjFanin1(pObj)->Init, Ivy_ObjFaninC1(pObj) );
            pObj->Init = Ivy_ManHaigSimulateAnd( In0, In1 );
            // simulate the equivalence class if the node is a representative
            if ( pObj->pEquiv && Ivy_ObjRefs(pObj) > 0 )
            {
if ( fVerbose )
printf( "Processing choice node %d\n", pObj->Id );
                In0 = (Ivy_Init_t)pObj->Init;
                assert( !Ivy_IsComplement(pObj->pEquiv) );
                for ( pTemp = pObj->pEquiv; pTemp != pObj; pTemp = Ivy_Regular(pTemp->pEquiv) )
                {
if ( fVerbose )
printf( "Processing secondary node %d\n", pTemp->Id );
                    In1 = Ivy_InitNotCond( (Ivy_Init_t)pTemp->Init, Ivy_IsComplement(pTemp->pEquiv) );
                    In0 = Ivy_ManHaigSimulateChoice( In0, In1 );
                }
                pObj->Init = In0;
            }
        }

        // simulate the latches
        Ivy_ManForEachNodeVec( p, vLatches, pObj, i )
        {
            pObj->Level = Ivy_ObjFanin0(pObj)->Init;
if ( fVerbose )
printf( "Using latch %d with fanin %d\n", pObj->Id, Ivy_ObjFanin0(pObj)->Id );
        }
        Ivy_ManForEachNodeVec( p, vLatches, pObj, i )
            pObj->Init = pObj->Level, pObj->Level = 0;
    }
    // free arrays
    Vec_IntFree( vNodes );
    Vec_IntFree( vLatches );
}

Here is the call graph for this function:

Ivy_ManHaigStart()

void Ivy_ManHaigStart	(	Ivy_Man_t *	p,
		int	fVerbose )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Starts HAIG for the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 94 of file ivyHaig.c.

{
    Vec_Int_t * vLatches;
    Ivy_Obj_t * pObj;
    int i;
    assert( p->pHaig == NULL );
    p->pHaig = Ivy_ManDup( p );

    if ( fVerbose )
    {
        printf( "Starting : " );
        Ivy_ManPrintStats( p->pHaig );
    }

    // collect latches of design D and set their values to be DC
    vLatches = Vec_IntAlloc( 100 );
    Ivy_ManForEachLatch( p->pHaig, pObj, i )
    {
        pObj->Init = IVY_INIT_DC;
        Vec_IntPush( vLatches, pObj->Id );
    }
    p->pHaig->pData = vLatches;
/*
    {
        int x;
        Ivy_ManShow( p, 0, NULL );
        Ivy_ManShow( p->pHaig, 1, NULL );
        x = 0;
    }
*/
}

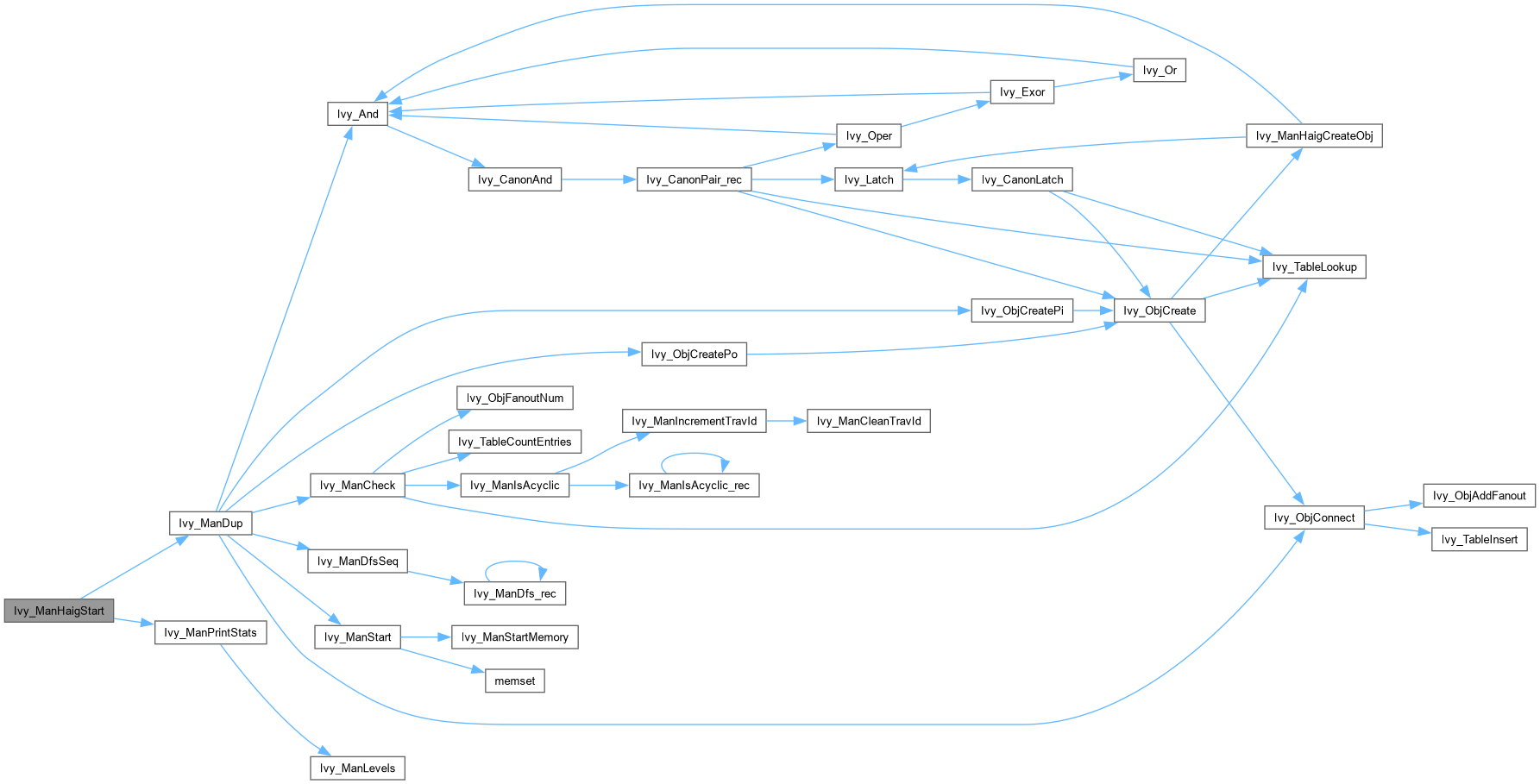

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_ManHaigStop()

void Ivy_ManHaigStop

(

Ivy_Man_t *

p

)

Function*************************************************************

Synopsis [Stops HAIG for the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 159 of file ivyHaig.c.

{
    Ivy_Obj_t * pObj;
    int i;
    assert( p->pHaig != NULL );
    Vec_IntFree( (Vec_Int_t *)p->pHaig->pData );
    Ivy_ManStop( p->pHaig );
    p->pHaig = NULL;
    // remove dangling pointers to the HAIG objects
    Ivy_ManForEachObj( p, pObj, i )
        pObj->pEquiv = NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_ManHaigTrasfer()

void Ivy_ManHaigTrasfer	(	Ivy_Man_t *	p,
		Ivy_Man_t *	pNew )

Function*************************************************************

Synopsis [Transfers the HAIG to the newly created manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 137 of file ivyHaig.c.

{
    Ivy_Obj_t * pObj;
    int i;
    assert( p->pHaig != NULL );
    Ivy_ManConst1(pNew)->pEquiv = Ivy_ManConst1(p)->pEquiv;
    Ivy_ManForEachPi( pNew, pObj, i )
        pObj->pEquiv = Ivy_ManPi( p, i )->pEquiv;
    pNew->pHaig = p->pHaig;
}

Ivy_ObjIsInTfi_rec()

int Ivy_ObjIsInTfi_rec	(	Ivy_Obj_t *	pObjNew,
		Ivy_Obj_t *	pObjOld,
		int	Levels )

Function*************************************************************

Synopsis [Checks if the old node is in the TFI of the new node.]

Description []

SideEffects []

SeeAlso []

Definition at line 222 of file ivyHaig.c.

{
    if ( pObjNew == pObjOld )
        return 1;
    if ( Levels == 0 || Ivy_ObjIsCi(pObjNew) || Ivy_ObjIsConst1(pObjNew) )
        return 0;
    if ( Ivy_ObjIsInTfi_rec( Ivy_ObjFanin0(pObjNew), pObjOld, Levels - 1 ) )
        return 1;
    if ( Ivy_ObjIsNode(pObjNew) && Ivy_ObjIsInTfi_rec( Ivy_ObjFanin1(pObjNew), pObjOld, Levels - 1 ) )
        return 1;
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:
