ivyRwr.c File Reference

#include "ivy.h"
#include "bool/deco/deco.h"
#include "opt/rwt/rwt.h"

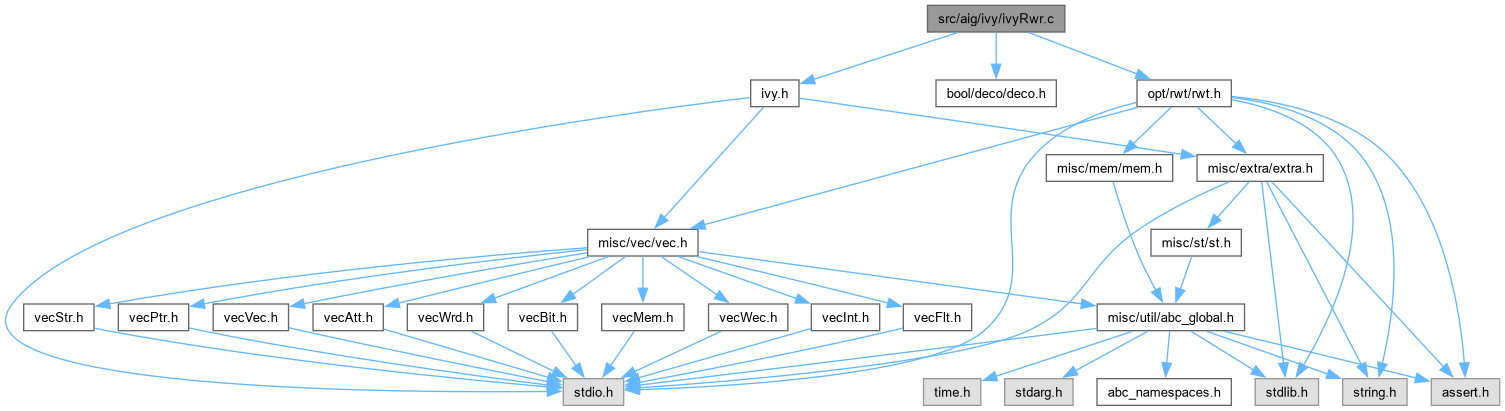

Include dependency graph for ivyRwr.c:

Go to the source code of this file.

Functions
int	Ivy_ManRewritePre (Ivy_Man_t *p, int fUpdateLevel, int fUseZeroCost, int fVerbose)
	FUNCTION DEFINITIONS ///.
unsigned	Ivy_NodeGetTruth_rec (Ivy_Obj_t *pObj, int *pNums, int nNums)
Ivy_Obj_t *	Ivy_GraphToNetwork (Ivy_Man_t *p, Dec_Graph_t *pGraph)
void	Ivy_GraphUpdateNetwork3 (Ivy_Man_t *p, Ivy_Obj_t *pRoot, Dec_Graph_t *pGraph, int fUpdateLevel, int nGain)

Function Documentation

Ivy_GraphToNetwork()

Ivy_Obj_t * Ivy_GraphToNetwork	(	Ivy_Man_t *	p,
		Dec_Graph_t *	pGraph )

Function*************************************************************

Synopsis [Transforms the decomposition graph into the AIG.]

Description [AIG nodes for the fanins should be assigned to pNode->pFunc of the leaves of the graph before calling this procedure.]

SideEffects []

SeeAlso []

Definition at line 485 of file ivyRwr.c.

{
    Ivy_Obj_t * pAnd0, * pAnd1;
    Dec_Node_t * pNode = NULL; // Suppress "might be used uninitialized"
    int i;
    // check for constant function
    if ( Dec_GraphIsConst(pGraph) )
        return Ivy_NotCond( Ivy_ManConst1(p), Dec_GraphIsComplement(pGraph) );
    // check for a literal
    if ( Dec_GraphIsVar(pGraph) )
        return Ivy_NotCond( (Ivy_Obj_t *)Dec_GraphVar(pGraph)->pFunc, Dec_GraphIsComplement(pGraph) );
    // build the AIG nodes corresponding to the AND gates of the graph
    Dec_GraphForEachNode( pGraph, pNode, i )
    {
        pAnd0 = Ivy_NotCond( (Ivy_Obj_t *)Dec_GraphNode(pGraph, pNode->eEdge0.Node)->pFunc, pNode->eEdge0.fCompl );
        pAnd1 = Ivy_NotCond( (Ivy_Obj_t *)Dec_GraphNode(pGraph, pNode->eEdge1.Node)->pFunc, pNode->eEdge1.fCompl );
        pNode->pFunc = Ivy_And( p, pAnd0, pAnd1 );
    }
    // complement the result if necessary
    return Ivy_NotCond( (Ivy_Obj_t *)pNode->pFunc, Dec_GraphIsComplement(pGraph) );
}

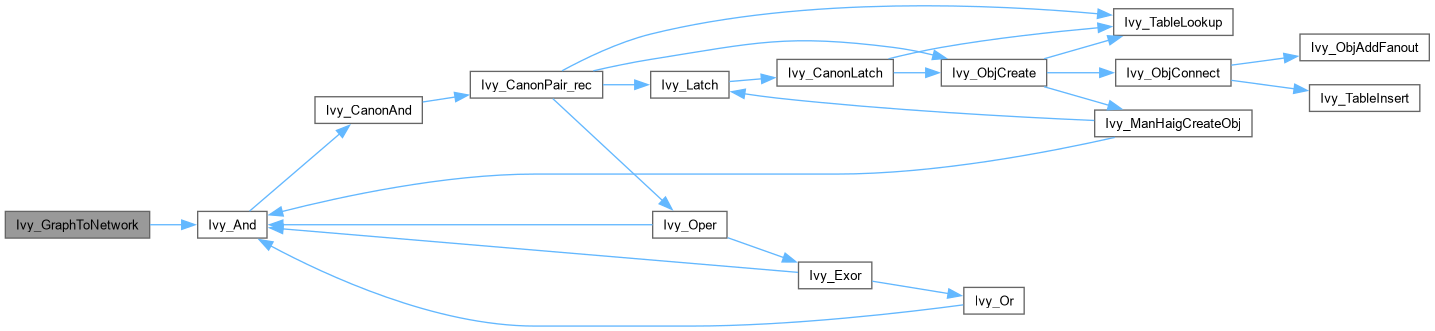

Here is the call graph for this function:

Here is the caller graph for this function:

Ivy_GraphUpdateNetwork3()

void Ivy_GraphUpdateNetwork3	(	Ivy_Man_t *	p,
		Ivy_Obj_t *	pRoot,
		Dec_Graph_t *	pGraph,
		int	fUpdateLevel,
		int	nGain )

Function*************************************************************

Synopsis [Replaces MFFC of the node by the new factored form.]

Description []

SideEffects []

SeeAlso []

Definition at line 559 of file ivyRwr.c.

{
    Ivy_Obj_t * pRootNew, * pFanin;
    int nNodesNew, nNodesOld, i, nRefsOld;
    nNodesOld = Ivy_ManNodeNum(p);

//printf( "Before = %d. ", Ivy_ManNodeNum(p) );
    // mark the cut
    Vec_PtrForEachEntry( Ivy_Obj_t *, ((Rwt_Man_t *)p->pData)->vFanins, pFanin, i )
        Ivy_ObjRefsInc( Ivy_Regular(pFanin) );
    // deref the old cone
    nRefsOld = pRoot->nRefs;
    pRoot->nRefs = 0;
    Ivy_ObjDelete_rec( p, pRoot, 0 );
    pRoot->nRefs = nRefsOld;
    // unmark the cut
    Vec_PtrForEachEntry( Ivy_Obj_t *, ((Rwt_Man_t *)p->pData)->vFanins, pFanin, i )
        Ivy_ObjRefsDec( Ivy_Regular(pFanin) );
//printf( "Deref = %d. ", Ivy_ManNodeNum(p) );

    // create the new structure of nodes
    pRootNew = Ivy_GraphToNetwork( p, pGraph );
//printf( "Create = %d. ", Ivy_ManNodeNum(p) );
    // remove the old nodes
//    Ivy_AigReplace( pMan->pManFunc, pRoot, pRootNew, fUpdateLevel );
/*
    if ( Ivy_IsComplement(pRootNew) )
        printf( "c" );
    else
        printf( "d" );
    if ( Ivy_ObjRefs(Ivy_Regular(pRootNew)) > 0 )
        printf( "%d", Ivy_ObjRefs(Ivy_Regular(pRootNew)) );
    printf( " " );
*/
    Ivy_ObjReplace( p, pRoot, pRootNew, 0, 0, 1 );
//printf( "Replace = %d. ", Ivy_ManNodeNum(p) );

    // delete remaining dangling nodes
    Vec_PtrForEachEntry( Ivy_Obj_t *, ((Rwt_Man_t *)p->pData)->vFanins, pFanin, i )
    {
        pFanin = Ivy_Regular(pFanin);
        if ( !Ivy_ObjIsNone(pFanin) && Ivy_ObjRefs(pFanin) == 0 )
            Ivy_ObjDelete_rec( p, pFanin, 1 );
    }
//printf( "Deref = %d. ", Ivy_ManNodeNum(p) );
//printf( "\n" );

    // compare the gains
    nNodesNew = Ivy_ManNodeNum(p);
    assert( nGain <= nNodesOld - nNodesNew );
}

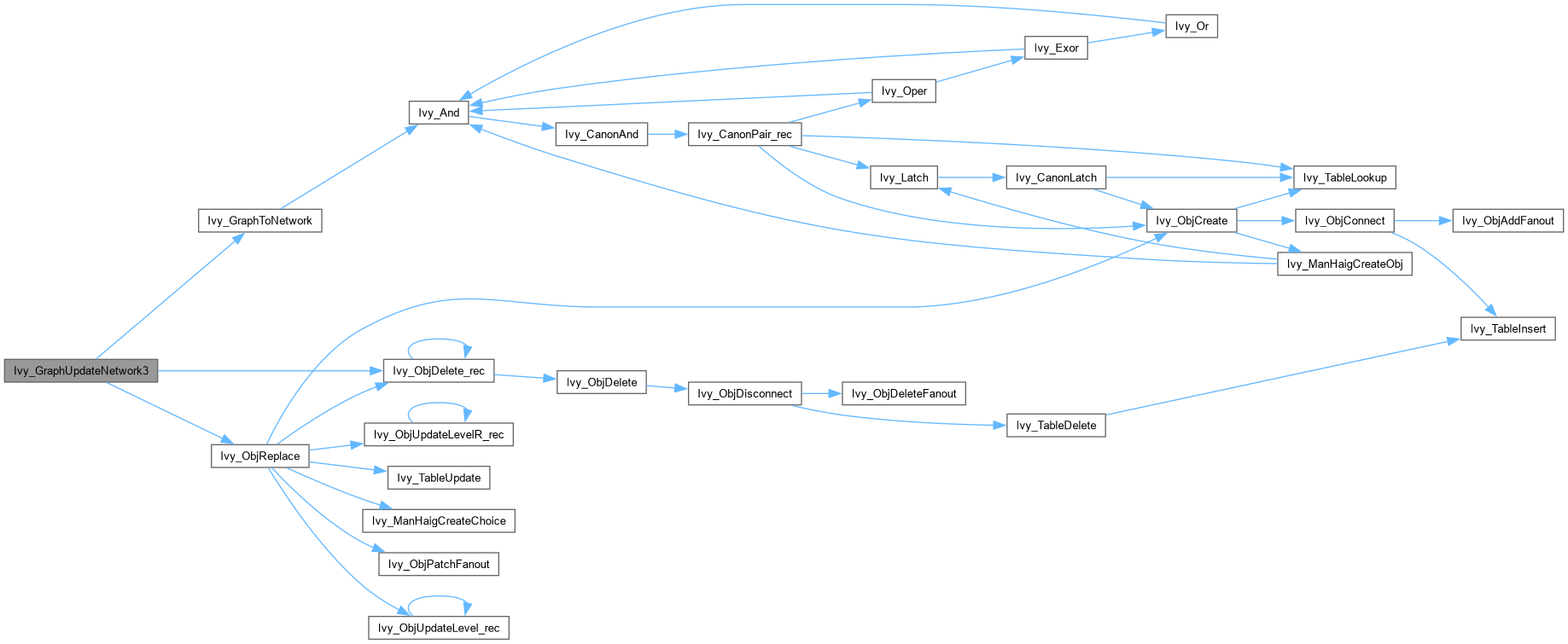

Here is the call graph for this function:

Ivy_ManRewritePre()

int Ivy_ManRewritePre	(	Ivy_Man_t *	p,
		int	fUpdateLevel,
		int	fUseZeroCost,
		int	fVerbose )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Performs incremental rewriting of the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 55 of file ivyRwr.c.

{
    Rwt_Man_t * pManRwt;
    Ivy_Obj_t * pNode;
    int i, nNodes, nGain;
    abctime clk, clkStart = Abc_Clock();
    // start the rewriting manager
    pManRwt = Rwt_ManStart( 0 );
    p->pData = pManRwt;
    if ( pManRwt == NULL )
        return 0;
    // create fanouts
    if ( fUpdateLevel && p->fFanout == 0 )
        Ivy_ManStartFanout( p );
    // compute the reverse levels if level update is requested
    if ( fUpdateLevel )
        Ivy_ManRequiredLevels( p );
    // set the number of levels
//    p->nLevelMax = Ivy_ManLevels( p );
    // resynthesize each node once
    nNodes = Ivy_ManObjIdMax(p);
    Ivy_ManForEachNode( p, pNode, i )
    {
        // fix the fanin buffer problem
        Ivy_NodeFixBufferFanins( p, pNode, 1 );
        if ( Ivy_ObjIsBuf(pNode) )
            continue;
        // stop if all nodes have been tried once
        if ( i > nNodes )
            break;
        // for each cut, try to resynthesize it
        nGain = Ivy_NodeRewrite( p, pManRwt, pNode, fUpdateLevel, fUseZeroCost );
        if ( nGain > 0 || (nGain == 0 && fUseZeroCost) )
        {
            Dec_Graph_t * pGraph = (Dec_Graph_t *)Rwt_ManReadDecs(pManRwt);
            int fCompl           = Rwt_ManReadCompl(pManRwt);
/*
            {
                Ivy_Obj_t * pObj;
                int i;
                printf( "USING: (" );
                Vec_PtrForEachEntry( Ivy_Obj_t *, Rwt_ManReadLeaves(pManRwt), pObj, i )
                    printf( "%d ", Ivy_ObjFanoutNum(Ivy_Regular(pObj)) );
                printf( ")   Gain = %d.\n", nGain );
            }
            if ( nGain > 0 )
            { // print stats on the MFFC
                extern void Ivy_NodeMffcConeSuppPrint( Ivy_Obj_t * pNode );
                printf( "Node %6d : Gain = %4d  ", pNode->Id, nGain );
                Ivy_NodeMffcConeSuppPrint( pNode );
            }
*/
            // complement the FF if needed
clk = Abc_Clock();
            if ( fCompl ) Dec_GraphComplement( pGraph );
            Ivy_GraphUpdateNetwork( p, pNode, pGraph, fUpdateLevel, nGain );
            if ( fCompl ) Dec_GraphComplement( pGraph );
Rwt_ManAddTimeUpdate( pManRwt, Abc_Clock() - clk );
        }
    }
Rwt_ManAddTimeTotal( pManRwt, Abc_Clock() - clkStart );
    // print stats
    if ( fVerbose )
        Rwt_ManPrintStats( pManRwt );
    // delete the managers
    Rwt_ManStop( pManRwt );
    p->pData = NULL;
    // fix the levels
    if ( fUpdateLevel )
        Vec_IntFree( p->vRequired ), p->vRequired = NULL;
    else
        Ivy_ManResetLevels( p );
    // check
    if ( (i = Ivy_ManCleanup(p)) )
        printf( "Cleanup after rewriting removed %d dangling nodes.\n", i );
    if ( !Ivy_ManCheck(p) )
        printf( "Ivy_ManRewritePre(): The check has failed.\n" );
    return 1;
}

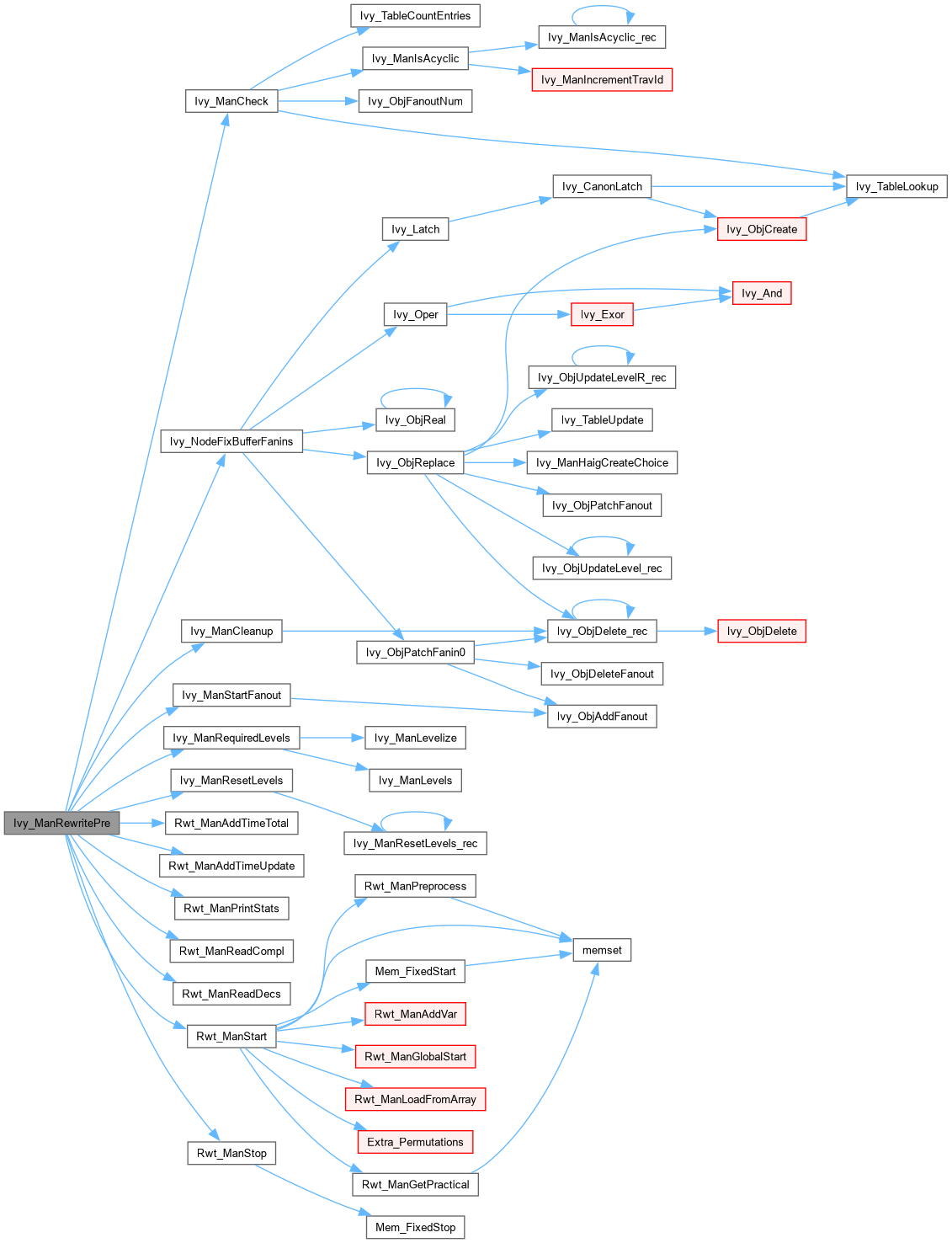

Here is the call graph for this function:

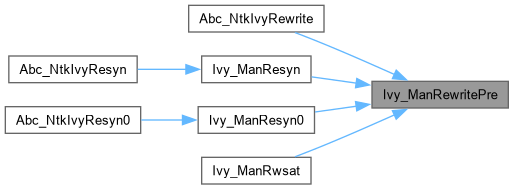

Here is the caller graph for this function:

Ivy_NodeGetTruth_rec()

unsigned Ivy_NodeGetTruth_rec	(	Ivy_Obj_t *	pObj,
		int *	pNums,
		int	nNums )

Function*************************************************************

Synopsis [Computes the truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 312 of file ivyRwr.c.

{
    static unsigned uMasks[5] = { 0xAAAAAAAA, 0xCCCCCCCC, 0xF0F0F0F0, 0xFF00FF00, 0xFFFF0000 };
    unsigned uTruth0, uTruth1;
    int i;
    for ( i = 0; i < nNums; i++ )
        if ( pObj->Id == pNums[i] )
            return uMasks[i];
    assert( Ivy_ObjIsNode(pObj) || Ivy_ObjIsBuf(pObj) );
    uTruth0 = Ivy_NodeGetTruth_rec( Ivy_ObjFanin0(pObj), pNums, nNums );
    if ( Ivy_ObjFaninC0(pObj) )
        uTruth0 = ~uTruth0;
    if ( Ivy_ObjIsBuf(pObj) )
        return uTruth0;
    uTruth1 = Ivy_NodeGetTruth_rec( Ivy_ObjFanin1(pObj), pNums, nNums );
    if ( Ivy_ObjFaninC1(pObj) )
        uTruth1 = ~uTruth1;
    return uTruth0 & uTruth1;
}

Here is the call graph for this function:

Here is the caller graph for this function:
