mapperCore.c File Reference

#include "mapperInt.h"

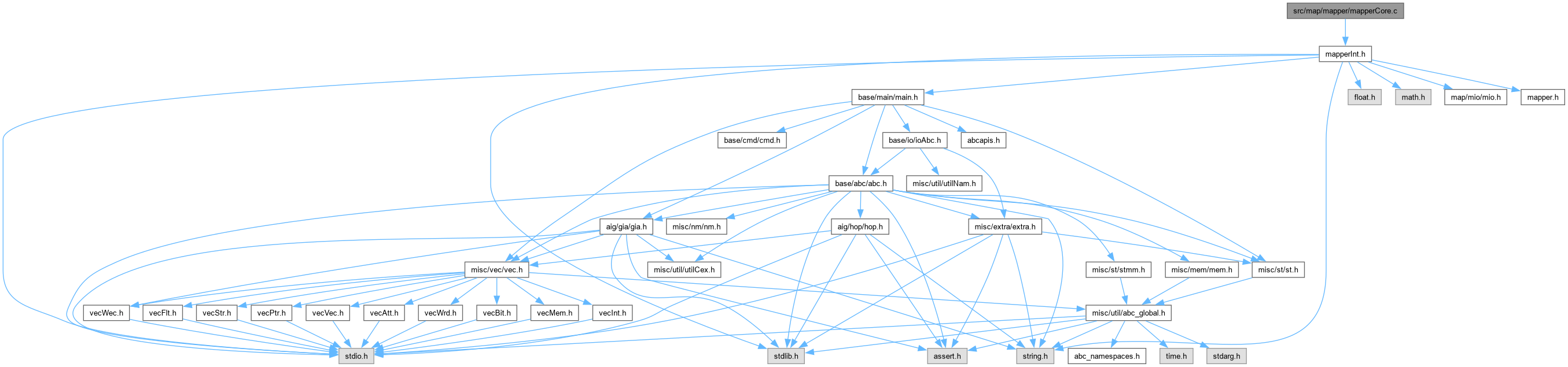

Include dependency graph for mapperCore.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Map_Mapping (Map_Man_t *p)
	DECLARATIONS ///.

Function Documentation

Map_Mapping()

ABC_NAMESPACE_IMPL_START int Map_Mapping

(

Map_Man_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [mapperCore.c]

PackageName [MVSIS 1.3: Multi-valued logic synthesis system.]

Synopsis [Generic technology mapping engine.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 2.0. Started - June 1, 2004.]

Revision [

Id

mapperCore.c,v 1.7 2004/10/01 23:41:04 satrajit Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Performs technology mapping for the given object graph.]

Description [The object graph is stored in the mapping manager. First, the AND nodes that fanout into POs are collected in the DFS order. Two preprocessing steps are performed: the k-feasible cuts are computed for each node and the truth tables are computed for each cut. Next, the delay-optimal matches are assigned for each node, followed by several iterations of area recoveryd: using area flow (global optimization) and using exact area at a node (local optimization).]

SideEffects []

SeeAlso []

Definition at line 50 of file mapperCore.c.

{
    int fShowSwitching         = 0;
    int fUseAreaFlow           = 1;
    int fUseExactArea          = !p->fSwitching;
    int fUseExactAreaWithPhase = !p->fSwitching;
    abctime clk;

    // perform pre-mapping computations
    if ( p->fVerbose )
        Map_MappingReportChoices( p );
    Map_MappingSetChoiceLevels( p ); // should always be called before mapping!
//    return 1;

    // compute the cuts of nodes in the DFS order
    clk = Abc_Clock();
    Map_MappingCuts( p );
    p->timeCuts = Abc_Clock() - clk;
    // derive the truth tables
    clk = Abc_Clock();
    Map_MappingTruths( p );
    p->timeTruth = Abc_Clock() - clk;
//ABC_PRT( "Truths", Abc_Clock() - clk );

    // compute the minimum-delay mapping
    clk = Abc_Clock();
    p->fMappingMode = 0;
    if ( !Map_MappingMatches( p ) )
        return 0;
    p->timeMatch = Abc_Clock() - clk;
    // compute the references and collect the nodes used in the mapping
    Map_MappingSetRefs( p );
    p->AreaBase = Map_MappingGetArea( p );
if ( p->fVerbose )
{
printf( "Delay    : %s = %8.2f  Flow = %11.1f  Area = %11.1f  %4.1f %%   ",
                    fShowSwitching? "Switch" : "Delay",
                    fShowSwitching? Map_MappingGetSwitching(p) : p->fRequiredGlo,
                    Map_MappingGetAreaFlow(p), p->AreaBase, 0.0 );
ABC_PRT( "Time", p->timeMatch );
}

    if ( !p->fAreaRecovery )
    {
        if ( p->fVerbose )
            Map_MappingPrintOutputArrivals( p );
        return 1;
    }

    // perform area recovery using area flow
    clk = Abc_Clock();
    if ( fUseAreaFlow )
    {
        // compute the required times
        Map_TimeComputeRequiredGlobal( p );
        // recover area flow
        p->fMappingMode = 1;
        Map_MappingMatches( p );
        // compute the references and collect the nodes used in the mapping
        Map_MappingSetRefs( p );
        p->AreaFinal = Map_MappingGetArea( p );
if ( p->fVerbose )
{
printf( "AreaFlow : %s = %8.2f  Flow = %11.1f  Area = %11.1f  %4.1f %%   ",
                    fShowSwitching? "Switch" : "Delay",
                    fShowSwitching? Map_MappingGetSwitching(p) : p->fRequiredGlo,
                    Map_MappingGetAreaFlow(p), p->AreaFinal,
                    100.0*(p->AreaBase-p->AreaFinal)/p->AreaBase );
ABC_PRT( "Time", Abc_Clock() - clk );
}
    }
    p->timeArea += Abc_Clock() - clk;

    // perform area recovery using exact area
    clk = Abc_Clock();
    if ( fUseExactArea )
    {
        // compute the required times
        Map_TimeComputeRequiredGlobal( p );
        // recover area
        p->fMappingMode = 2;
        Map_MappingMatches( p );
        // compute the references and collect the nodes used in the mapping
        Map_MappingSetRefs( p );
        p->AreaFinal = Map_MappingGetArea( p );
if ( p->fVerbose )
{
printf( "Area     : %s = %8.2f  Flow = %11.1f  Area = %11.1f  %4.1f %%   ",
                    fShowSwitching? "Switch" : "Delay",
                    fShowSwitching? Map_MappingGetSwitching(p) : p->fRequiredGlo,
                    0.0, p->AreaFinal,
                    100.0*(p->AreaBase-p->AreaFinal)/p->AreaBase );
ABC_PRT( "Time", Abc_Clock() - clk );
}
    }
    p->timeArea += Abc_Clock() - clk;

    // perform area recovery using exact area
    clk = Abc_Clock();
    if ( fUseExactAreaWithPhase )
    {
        // compute the required times
        Map_TimeComputeRequiredGlobal( p );
        // recover area
        p->fMappingMode = 3;
        Map_MappingMatches( p );
        // compute the references and collect the nodes used in the mapping
        Map_MappingSetRefs( p );
        p->AreaFinal = Map_MappingGetArea( p );
if ( p->fVerbose )
{
printf( "Area     : %s = %8.2f  Flow = %11.1f  Area = %11.1f  %4.1f %%   ",
                    fShowSwitching? "Switch" : "Delay",
                    fShowSwitching? Map_MappingGetSwitching(p) : p->fRequiredGlo,
                    0.0, p->AreaFinal,
                    100.0*(p->AreaBase-p->AreaFinal)/p->AreaBase );
ABC_PRT( "Time", Abc_Clock() - clk );
}
    }
    p->timeArea += Abc_Clock() - clk;

    // perform area recovery using exact area
    clk = Abc_Clock();
    if ( p->fSwitching )
    {
        // compute the required times
        Map_TimeComputeRequiredGlobal( p );
        // recover switching activity
        p->fMappingMode = 4;
        Map_MappingMatches( p );
        // compute the references and collect the nodes used in the mapping
        Map_MappingSetRefs( p );
        p->AreaFinal = Map_MappingGetArea( p );
if ( p->fVerbose )
{
printf( "Switching: %s = %8.2f  Flow = %11.1f  Area = %11.1f  %4.1f %%   ",
                    fShowSwitching? "Switch" : "Delay",
                    fShowSwitching? Map_MappingGetSwitching(p) : p->fRequiredGlo,
                    0.0, p->AreaFinal,
                    100.0*(p->AreaBase-p->AreaFinal)/p->AreaBase );
ABC_PRT( "Time", Abc_Clock() - clk );
}

        // compute the required times
        Map_TimeComputeRequiredGlobal( p );
        // recover switching activity
        p->fMappingMode = 4;
        Map_MappingMatches( p );
        // compute the references and collect the nodes used in the mapping
        Map_MappingSetRefs( p );
        p->AreaFinal = Map_MappingGetArea( p );
if ( p->fVerbose )
{
printf( "Switching: %s = %8.2f  Flow = %11.1f  Area = %11.1f  %4.1f %%   ",
                    fShowSwitching? "Switch" : "Delay",
                    fShowSwitching? Map_MappingGetSwitching(p) : p->fRequiredGlo,
                    0.0, p->AreaFinal,
                    100.0*(p->AreaBase-p->AreaFinal)/p->AreaBase );
ABC_PRT( "Time", Abc_Clock() - clk );
}
    }
    p->timeArea += Abc_Clock() - clk;

    // print the arrival times of the latest outputs
    if ( p->fVerbose )
        Map_MappingPrintOutputArrivals( p );
    return 1;
}

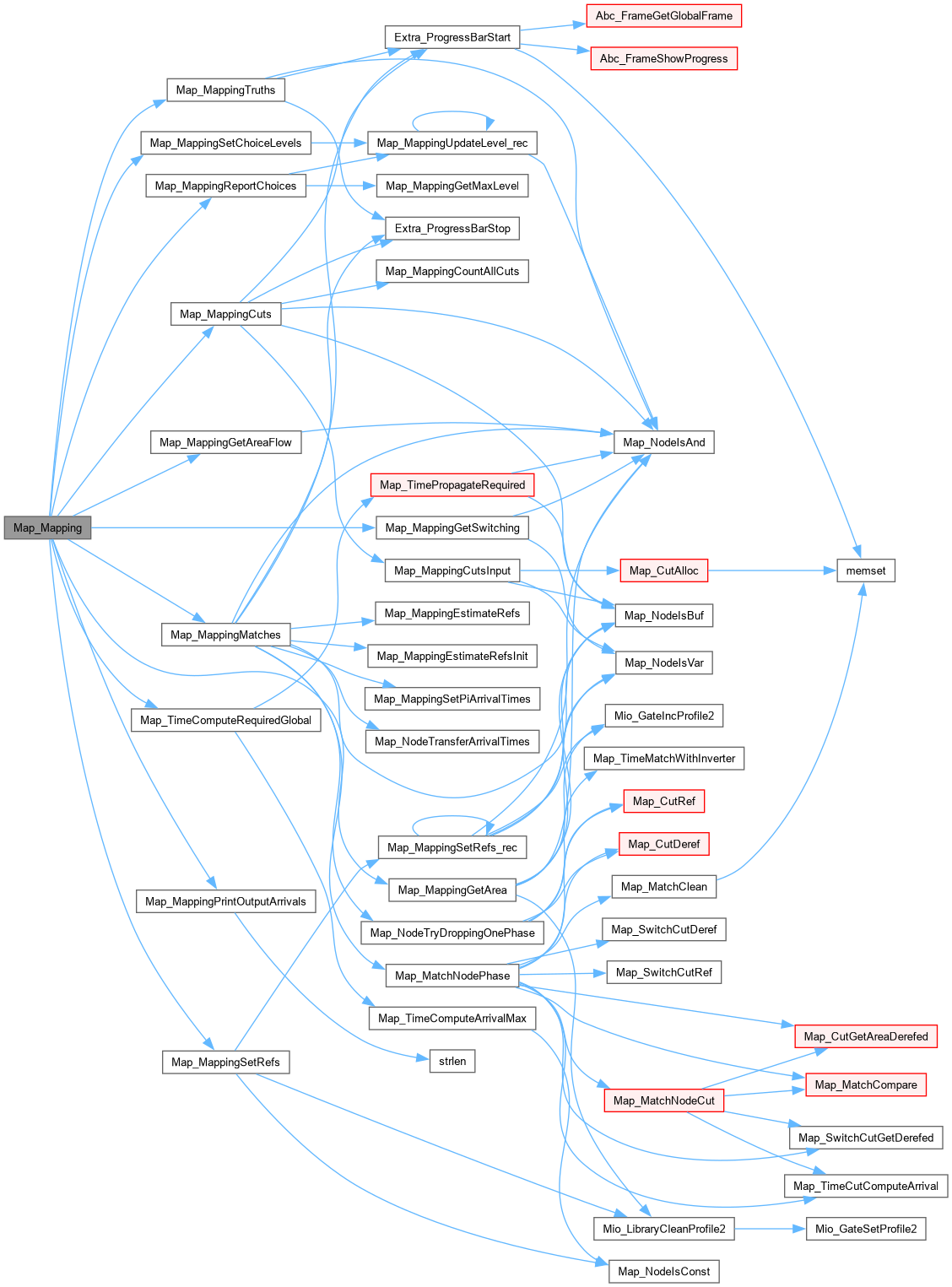

Here is the call graph for this function:

Here is the caller graph for this function:
