mapperUtils.c File Reference

#include "mapperInt.h"

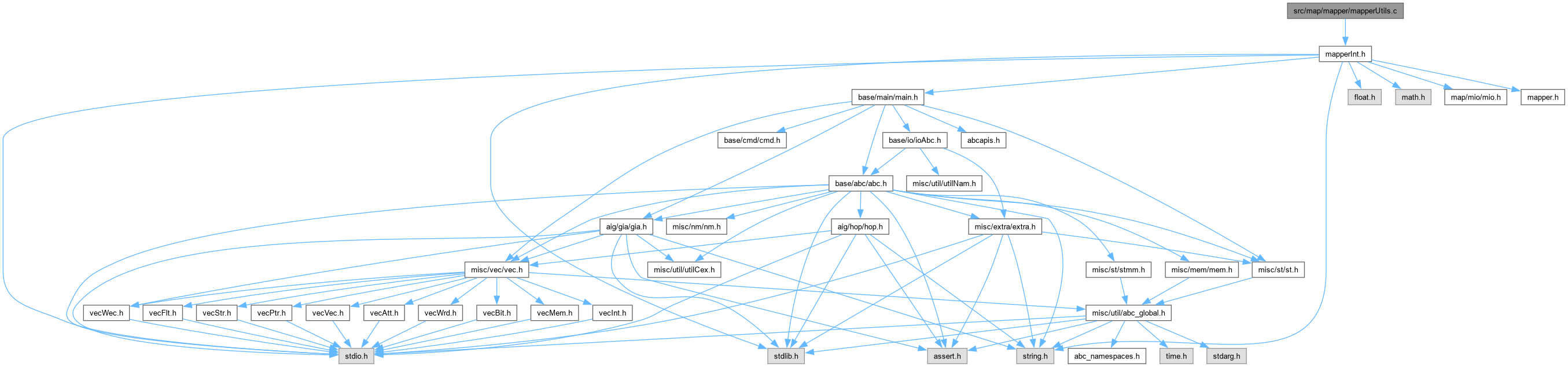

Include dependency graph for mapperUtils.c:

Go to the source code of this file.

Macros
#define	MAP_CO_LIST_SIZE   5
	DECLARATIONS ///.

Functions
void	Map_MappingDfs_rec (Map_Node_t *pNode, Map_NodeVec_t *vNodes, int fCollectEquiv)
	FUNCTION DEFINITIONS ///.
Map_NodeVec_t *	Map_MappingDfs (Map_Man_t *pMan, int fCollectEquiv)
int	Map_MappingCountLevels (Map_Man_t *pMan)
void	Map_MappingUnmark (Map_Man_t *pMan)
void	Map_MappingUnmark_rec (Map_Node_t *pNode)
void	Map_MappingMark_rec (Map_Node_t *pNode)
void	Map_MappingPrintOutputArrivals (Map_Man_t *p)
void	Map_MappingSetupTruthTables (unsigned uTruths[][2])
void	Map_MappingSetupTruthTablesLarge (unsigned uTruths[][32])
void	Map_MappingSetupMask (unsigned uMask[], int nVarsMax)
int	Map_ManCheckConsistency (Map_Man_t *p)
int	Map_MappingNodeIsViolator (Map_Node_t *pNode, Map_Cut_t *pCut, int fPosPol)
float	Map_MappingGetAreaFlow (Map_Man_t *p)
int	Map_CompareNodesByLevel (Map_Node_t **ppS1, Map_Node_t **ppS2)
void	Map_MappingSortByLevel (Map_Man_t *pMan, Map_NodeVec_t *vNodes)
int	Map_CompareNodesByPointer (Map_Node_t **ppS1, Map_Node_t **ppS2)
int	Map_MappingCountDoubles (Map_Man_t *pMan, Map_NodeVec_t *vNodes)
st__table *	Map_CreateTableGate2Super (Map_Man_t *pMan)
void	Map_ManCleanData (Map_Man_t *p)
void	Map_MappingExpandTruth (unsigned uTruth[2], int nVars)
float	Map_MappingComputeDelayWithFanouts (Map_Man_t *p)
int	Map_MappingGetMaxLevel (Map_Man_t *pMan)
int	Map_MappingUpdateLevel_rec (Map_Man_t *pMan, Map_Node_t *pNode, int fMaximum)
void	Map_MappingSetChoiceLevels (Map_Man_t *pMan)
void	Map_MappingReportChoices (Map_Man_t *pMan)

Macro Definition Documentation

MAP_CO_LIST_SIZE

#define MAP_CO_LIST_SIZE   5

DECLARATIONS ///.

CFile****************************************************************

FileName [mapperUtils.c]

PackageName [MVSIS 1.3: Multi-valued logic synthesis system.]

Synopsis [Generic technology mapping engine.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 2.0. Started - June 1, 2004.]

Revision [

Id

mapperUtils.c,v 1.8 2004/11/03 22:41:45 satrajit Exp

]

Definition at line 28 of file mapperUtils.c.

Function Documentation

Map_CompareNodesByLevel()

int Map_CompareNodesByLevel	(	Map_Node_t **	ppS1,
		Map_Node_t **	ppS2 )

Function*************************************************************

Synopsis [Compares the supergates by their level.]

Description []

SideEffects []

SeeAlso []

Definition at line 522 of file mapperUtils.c.

{
    Map_Node_t * pN1 = Map_Regular(*ppS1);
    Map_Node_t * pN2 = Map_Regular(*ppS2);
    if ( pN1->Level > pN2->Level )
        return -1;
    if ( pN1->Level < pN2->Level )
        return 1;
    return 0;
}

Here is the caller graph for this function:

Map_CompareNodesByPointer()

int Map_CompareNodesByPointer	(	Map_Node_t **	ppS1,
		Map_Node_t **	ppS2 )

Function*************************************************************

Synopsis [Compares the supergates by their pointer.]

Description []

SideEffects []

SeeAlso []

Definition at line 563 of file mapperUtils.c.

{
    if ( *ppS1 < *ppS2 )
        return -1;
    if ( *ppS1 > *ppS2 )
        return 1;
    return 0;
}

Map_CreateTableGate2Super()

st__table * Map_CreateTableGate2Super

(

Map_Man_t *

pMan

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 613 of file mapperUtils.c.

{
    Map_Super_t * pSuper;
    st__table * tTable;
    int i, nInputs, v;
    tTable = st__init_table(strcmp, st__strhash);
    for ( i = 0; i < pMan->pSuperLib->nSupersAll; i++ )
    {
        pSuper = pMan->pSuperLib->ppSupers[i];
        if ( pSuper->nGates == 1 )
        {
            // skip different versions of the same root gate
            nInputs = Mio_GateReadPinNum(pSuper->pRoot);
            for ( v = 0; v < nInputs; v++ )
                if ( pSuper->pFanins[v]->Num != nInputs - 1 - v )
                    break;
            if ( v != nInputs )
                continue;
//            printf( "%s\n", Mio_GateReadName(pSuper->pRoot) );
            if ( st__insert( tTable, (char *)pSuper->pRoot, (char *)pSuper ) )
            {
                assert( 0 );
            }
        }
    }
    return tTable;
}

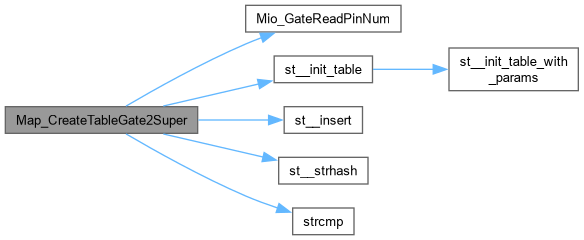

Here is the call graph for this function:

Map_ManCheckConsistency()

int Map_ManCheckConsistency

(

Map_Man_t *

p

)

Function*************************************************************

Synopsis [Verify one useful property.]

Description [This procedure verifies one useful property. After the FRAIG construction with choice nodes is over, each primary node should have fanins that are primary nodes. The primary nodes is the one that does not have pNode->pRepr set to point to another node.]

SideEffects []

SeeAlso []

Definition at line 427 of file mapperUtils.c.

{
    Map_Node_t * pNode;
    Map_NodeVec_t * pVec;
    int i;
    pVec = Map_MappingDfs( p, 0 );
    for ( i = 0; i < pVec->nSize; i++ )
    {
        pNode = pVec->pArray[i];
        if ( Map_NodeIsVar(pNode) )
        {
            if ( pNode->pRepr )
                printf( "Primary input %d is a secondary node.\n", pNode->Num );
        }
        else if ( Map_NodeIsConst(pNode) )
        {
            if ( pNode->pRepr )
                printf( "Constant 1 %d is a secondary node.\n", pNode->Num );
        }
        else
        {
            if ( pNode->pRepr )
                printf( "Internal node %d is a secondary node.\n", pNode->Num );
            if ( Map_Regular(pNode->p1)->pRepr )
                printf( "Internal node %d has first fanin that is a secondary node.\n", pNode->Num );
            if ( Map_Regular(pNode->p2)->pRepr )
                printf( "Internal node %d has second fanin that is a secondary node.\n", pNode->Num );
        }
    }
    Map_NodeVecFree( pVec );
    return 1;
}

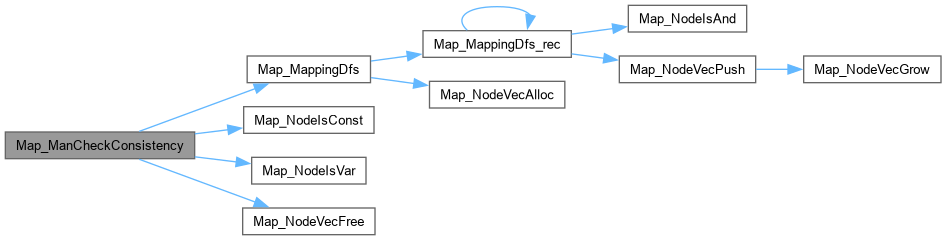

Here is the call graph for this function:

Map_ManCleanData()

void Map_ManCleanData

(

Map_Man_t *

p

)

Function*************************************************************

Synopsis [Get the FRAIG node with phase.]

Description []

SideEffects []

SeeAlso []

Definition at line 652 of file mapperUtils.c.

{
    int i;
    for ( i = 0; i < p->vMapObjs->nSize; i++ )
        p->vMapObjs->pArray[i]->pData0 = p->vMapObjs->pArray[i]->pData1 = 0;
}

Here is the caller graph for this function:

Map_MappingComputeDelayWithFanouts()

float Map_MappingComputeDelayWithFanouts

(

Map_Man_t *

p

)

Function*************************************************************

Synopsis [Compute the arrival times.]

Description []

SideEffects []

SeeAlso []

Definition at line 713 of file mapperUtils.c.

{
    Map_Node_t * pNode;
    float Result;
    int i;
    for ( i = 0; i < p->vMapObjs->nSize; i++ )
    {
        // skip primary inputs
        pNode = p->vMapObjs->pArray[i];
        if ( !Map_NodeIsAnd( pNode ) )
            continue;
        // skip a secondary node
        if ( pNode->pRepr )
            continue;
        // count the switching nodes
        if ( pNode->nRefAct[0] > 0 )
            Map_TimeCutComputeArrival( pNode, pNode->pCutBest[0], 0, MAP_FLOAT_LARGE );
        if ( pNode->nRefAct[1] > 0 )
            Map_TimeCutComputeArrival( pNode, pNode->pCutBest[1], 1, MAP_FLOAT_LARGE );
    }
    Result = Map_TimeComputeArrivalMax(p);
    printf( "Max arrival times with fanouts = %10.2f.\n", Result );
    return Result;
}

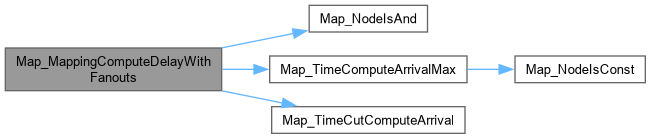

Here is the call graph for this function:

Map_MappingCountDoubles()

int Map_MappingCountDoubles	(	Map_Man_t *	pMan,
		Map_NodeVec_t *	vNodes )

Function*************************************************************

Synopsis [Counts how many AIG nodes are mapped in both polarities.]

Description []

SideEffects []

SeeAlso []

Definition at line 583 of file mapperUtils.c.

{
    Map_Node_t * pNode;
    int Counter, i;
    // count the number of equal adjacent nodes
    Counter = 0;
    for ( i = 0; i < vNodes->nSize; i++ )
    {
        pNode = vNodes->pArray[i];
        if ( !Map_NodeIsAnd(pNode) )
            continue;
        if ( (pNode->nRefAct[0] && pNode->pCutBest[0]) &&
             (pNode->nRefAct[1] && pNode->pCutBest[1]) )
            Counter++;
    }
    return Counter;
}

Here is the call graph for this function:

Map_MappingCountLevels()

int Map_MappingCountLevels

(

Map_Man_t *

pMan

)

Function*************************************************************

Synopsis [Computes the number of logic levels not counting PIs/POs.]

Description []

SideEffects [Note that this procedure will reassign the levels assigned originally by NodeCreate() because it counts the number of levels with choices differently!]

SeeAlso []

Definition at line 105 of file mapperUtils.c.

{
    int i, LevelsMax, LevelsCur;
    // perform the traversal
    LevelsMax = -1;
    for ( i = 0; i < pMan->nOutputs; i++ )
    {
        LevelsCur = Map_MappingCountLevels_rec( Map_Regular(pMan->pOutputs[i]) );
        if ( LevelsMax < LevelsCur )
            LevelsMax = LevelsCur;
    }
    for ( i = 0; i < pMan->nOutputs; i++ )
        Map_MappingUnmark_rec( Map_Regular(pMan->pOutputs[i]) );
    return LevelsMax;
}

Here is the call graph for this function:

Map_MappingDfs()

Map_NodeVec_t * Map_MappingDfs	(	Map_Man_t *	pMan,
		int	fCollectEquiv )

Definition at line 77 of file mapperUtils.c.

{
    Map_NodeVec_t * vNodes;
    int i;
    // perform the traversal
    vNodes = Map_NodeVecAlloc( 100 );
    for ( i = 0; i < pMan->nOutputs; i++ )
        Map_MappingDfs_rec( Map_Regular(pMan->pOutputs[i]), vNodes, fCollectEquiv );
    for ( i = 0; i < vNodes->nSize; i++ )
        vNodes->pArray[i]->fMark0 = 0;
//    for ( i = 0; i < pMan->nOutputs; i++ )
//        Map_MappingUnmark_rec( Map_Regular(pMan->pOutputs[i]) );
    return vNodes;
}

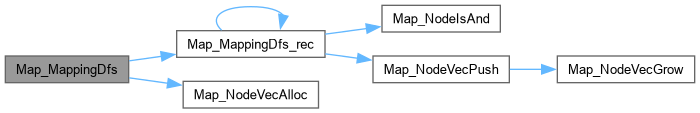

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingDfs_rec()

void Map_MappingDfs_rec	(	Map_Node_t *	pNode,
		Map_NodeVec_t *	vNodes,
		int	fCollectEquiv )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Computes the DFS ordering of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 56 of file mapperUtils.c.

{
    assert( !Map_IsComplement(pNode) );
    if ( pNode->fMark0 )
        return;
    // visit the transitive fanin
    if ( Map_NodeIsAnd(pNode) )
    {
        Map_MappingDfs_rec( Map_Regular(pNode->p1), vNodes, fCollectEquiv );
        Map_MappingDfs_rec( Map_Regular(pNode->p2), vNodes, fCollectEquiv );
    }
    // visit the equivalent nodes
    if ( fCollectEquiv && pNode->pNextE )
        Map_MappingDfs_rec( pNode->pNextE, vNodes, fCollectEquiv );
    // make sure the node is not visited through the equivalent nodes
    assert( pNode->fMark0 == 0 );
    // mark the node as visited
    pNode->fMark0 = 1;
    // add the node to the list
    Map_NodeVecPush( vNodes, pNode );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingExpandTruth()

void Map_MappingExpandTruth	(	unsigned	uTruth[2],
		int	nVars )

Function*************************************************************

Synopsis [Expand the truth table]

Description []

SideEffects []

SeeAlso []

Definition at line 670 of file mapperUtils.c.

{
    assert( nVars < 7 );
    if ( nVars == 6 )
        return;
    if ( nVars < 5 )
    {
        uTruth[0] &= MAP_MASK( (1<<nVars) );
        uTruth[0]  = Map_MappingExpandTruth_rec( uTruth[0], nVars );
    }
    uTruth[1] = uTruth[0];
}

Map_MappingGetAreaFlow()

float Map_MappingGetAreaFlow

(

Map_Man_t *

p

)

Function*************************************************************

Synopsis [Computes the total are flow of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 487 of file mapperUtils.c.

{
    Map_Node_t * pNode;
    Map_Cut_t * pCut;
    float aFlowFlowTotal = 0;
    int fPosPol, i;
    for ( i = 0; i < p->nOutputs; i++ )
    {
        pNode = Map_Regular(p->pOutputs[i]);
        if ( !Map_NodeIsAnd(pNode) )
            continue;
        fPosPol = !Map_IsComplement(p->pOutputs[i]);
        pCut = pNode->pCutBest[fPosPol];
        if ( pCut == NULL )
        {
            fPosPol = !fPosPol;
            pCut = pNode->pCutBest[fPosPol];
        }
        aFlowFlowTotal += pNode->pCutBest[fPosPol]->M[fPosPol].AreaFlow;
    }
    return aFlowFlowTotal;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingGetMaxLevel()

int Map_MappingGetMaxLevel

(

Map_Man_t *

pMan

)

Function*************************************************************

Synopsis [Sets up the mask.]

Description []

SideEffects []

SeeAlso []

Definition at line 750 of file mapperUtils.c.

{
    int nLevelMax, i;
    nLevelMax = 0;
    for ( i = 0; i < pMan->nOutputs; i++ )
        nLevelMax = ((unsigned)nLevelMax) > Map_Regular(pMan->pOutputs[i])->Level?
                nLevelMax : Map_Regular(pMan->pOutputs[i])->Level;
    return nLevelMax;
}

Here is the caller graph for this function:

Map_MappingMark_rec()

void Map_MappingMark_rec

(

Map_Node_t *

pNode

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 207 of file mapperUtils.c.

{
    assert( !Map_IsComplement(pNode) );
    if ( pNode->fMark0 == 1 )
        return;
    pNode->fMark0 = 1;
    if ( !Map_NodeIsAnd(pNode) )
        return;
    // visit the transitive fanin of the selected cut
    Map_MappingMark_rec( Map_Regular(pNode->p1) );
    Map_MappingMark_rec( Map_Regular(pNode->p2) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingNodeIsViolator()

int Map_MappingNodeIsViolator	(	Map_Node_t *	pNode,
		Map_Cut_t *	pCut,
		int	fPosPol )

Function*************************************************************

Synopsis [Returns 1 if current mapping of the node violates fanout limits.]

Description []

SideEffects []

SeeAlso []

Definition at line 471 of file mapperUtils.c.

{
    return pNode->nRefAct[fPosPol] > (int)pCut->M[fPosPol].pSuperBest->nFanLimit;
}

Map_MappingPrintOutputArrivals()

void Map_MappingPrintOutputArrivals

(

Map_Man_t *

p

)

Function*************************************************************

Synopsis [Prints a bunch of latest arriving outputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 289 of file mapperUtils.c.

{
    int pSorted[MAP_CO_LIST_SIZE];
    Map_Time_t * pTimes;
    Map_Node_t * pNode;
    int fPhase, Limit, i;
    int MaxNameSize;

    // determine the number of nodes to print
    Limit = (p->nOutputs > MAP_CO_LIST_SIZE)? MAP_CO_LIST_SIZE : p->nOutputs;

    // determine the order
    Map_MappingFindLatest( p, pSorted, Limit );

    // determine max size of the node's name
    MaxNameSize = 0;
    for ( i = 0; i < Limit; i++ )
        if ( MaxNameSize < (int)strlen(p->ppOutputNames[pSorted[i]]) )
            MaxNameSize = strlen(p->ppOutputNames[pSorted[i]]);

    // print the latest outputs
    for ( i = 0; i < Limit; i++ )
    {
        // get the i-th latest output
        pNode  = Map_Regular(p->pOutputs[pSorted[i]]);
        fPhase =!Map_IsComplement(p->pOutputs[pSorted[i]]);
        pTimes = pNode->tArrival + fPhase;
        // print out the best arrival time
        printf( "Output  %-*s : ", MaxNameSize + 3, p->ppOutputNames[pSorted[i]] );
        printf( "Delay = (%5.2f, %5.2f)  ", (double)pTimes->Rise, (double)pTimes->Fall );
        printf( "%s", fPhase? "POS" : "NEG" );
        printf( "\n" );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingReportChoices()

void Map_MappingReportChoices

(

Map_Man_t *

pMan

)

Function*************************************************************

Synopsis [Reports statistics on choice nodes.]

Description [The number of choice nodes is the number of primary nodes, which has pNextE set to a pointer. The number of choices is the number of entries in the equivalent-node lists of the primary nodes.]

SideEffects []

SeeAlso []

Definition at line 842 of file mapperUtils.c.

{
    Map_Node_t * pNode, * pTemp;
    int nChoiceNodes, nChoices;
    int i, LevelMax1, LevelMax2;

    // report the number of levels
    LevelMax1 = Map_MappingGetMaxLevel( pMan );
    pMan->nTravIds++;
    for ( i = 0; i < pMan->nOutputs; i++ )
        Map_MappingUpdateLevel_rec( pMan, Map_Regular(pMan->pOutputs[i]), 0 );
    LevelMax2 = Map_MappingGetMaxLevel( pMan );

    // report statistics about choices
    nChoiceNodes = nChoices = 0;
    for ( i = 0; i < pMan->vMapObjs->nSize; i++ )
    {
        pNode = pMan->vMapObjs->pArray[i];
        if ( pNode->pRepr == NULL && pNode->pNextE != NULL )
        { // this is a choice node = the primary node that has equivalent nodes
            nChoiceNodes++;
            for ( pTemp = pNode; pTemp; pTemp = pTemp->pNextE )
                nChoices++;
        }
    }
    printf( "Maximum level: Original = %d. Reduced due to choices = %d.\n", LevelMax1, LevelMax2 );
    printf( "Choice stats:  Choice nodes = %d. Total choices = %d.\n", nChoiceNodes, nChoices );
}

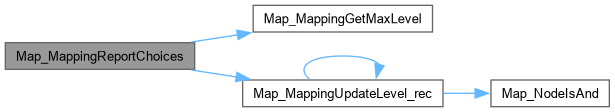

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingSetChoiceLevels()

void Map_MappingSetChoiceLevels

(

Map_Man_t *

pMan

)

Function*************************************************************

Synopsis [Resets the levels of the nodes in the choice graph.]

Description [Makes the level of the choice nodes to be equal to the maximum of the level of the nodes in the equivalence class. This way sorting by level leads to the reverse topological order, which is needed for the required time computation.]

SideEffects []

SeeAlso []

Definition at line 821 of file mapperUtils.c.

{
    int i;
    pMan->nTravIds++;
    for ( i = 0; i < pMan->nOutputs; i++ )
        Map_MappingUpdateLevel_rec( pMan, Map_Regular(pMan->pOutputs[i]), 1 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingSetupMask()

void Map_MappingSetupMask	(	unsigned	uMask[],
		int	nVarsMax )

Function*************************************************************

Synopsis [Sets up the mask.]

Description []

SideEffects []

SeeAlso []

Definition at line 402 of file mapperUtils.c.

{
    if ( nVarsMax == 6 )
        uMask[0] = uMask[1] = MAP_FULL;
    else
    {
        uMask[0] = MAP_MASK(1 << nVarsMax);
        uMask[1] = 0;
    }
}

Map_MappingSetupTruthTables()

void Map_MappingSetupTruthTables

(

unsigned

uTruths[][2]

)

Function*************************************************************

Synopsis [Sets up the truth tables.]

Description []

SideEffects []

SeeAlso []

Definition at line 335 of file mapperUtils.c.

{
    int m, v;
    // set up the truth tables
    for ( m = 0; m < 32; m++ )
        for ( v = 0; v < 5; v++ )
            if ( m & (1 << v) )
                uTruths[v][0] |= (1 << m);
    // make adjustments for the case of 6 variables
    for ( v = 0; v < 5; v++ )
        uTruths[v][1] = uTruths[v][0];
    uTruths[5][0] = 0;
    uTruths[5][1] = MAP_FULL;
}

Here is the caller graph for this function:

Map_MappingSetupTruthTablesLarge()

void Map_MappingSetupTruthTablesLarge

(

unsigned

uTruths[][32]

)

Function*************************************************************

Synopsis [Sets up the truth tables.]

Description []

SideEffects []

SeeAlso []

Definition at line 361 of file mapperUtils.c.

{
    int m, v;
    // clean everything
    for ( m = 0; m < 32; m++ )
        for ( v = 0; v < 10; v++ )
            uTruths[v][m] = 0;
    // set up the truth tables
    for ( m = 0; m < 32; m++ )
        for ( v = 0; v < 5; v++ )
            if ( m & (1 << v) )
            {
                uTruths[v][0] |= (1 << m);
                uTruths[v+5][m] = MAP_FULL;
            }
    // extend this info for the rest of the first 5 variables
    for ( m = 0; m < 32; m++ )
        for ( v = 0; v < 5; v++ )
            uTruths[v][m] = uTruths[v][0];
/*
    // verify
    for ( m = 0; m < 1024; m++, printf("\n") )
        for ( v = 0; v < 10; v++ )
            if ( Map_InfoReadVar( uTruths[v], m ) )
                printf( "1" );
            else
                printf( "0" );
*/
}

Here is the caller graph for this function:

Map_MappingSortByLevel()

void Map_MappingSortByLevel	(	Map_Man_t *	pMan,
		Map_NodeVec_t *	vNodes )

Function*************************************************************

Synopsis [Orders the nodes in the decreasing order of levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 544 of file mapperUtils.c.

{
    qsort( (void *)vNodes->pArray, (size_t)vNodes->nSize, sizeof(Map_Node_t *),
            (int (*)(const void *, const void *)) Map_CompareNodesByLevel );
//    assert( Map_CompareNodesByLevel( vNodes->pArray, vNodes->pArray + vNodes->nSize - 1 ) <= 0 );
}

Here is the call graph for this function:

Map_MappingUnmark()

void Map_MappingUnmark

(

Map_Man_t *

pMan

)

Function*************************************************************

Synopsis [Unmarks the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 163 of file mapperUtils.c.

{
    int i;
    for ( i = 0; i < pMan->nOutputs; i++ )
        Map_MappingUnmark_rec( Map_Regular(pMan->pOutputs[i]) );
}

Here is the call graph for this function:

Map_MappingUnmark_rec()

void Map_MappingUnmark_rec

(

Map_Node_t *

pNode

)

Function*************************************************************

Synopsis [Recursively unmarks the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 181 of file mapperUtils.c.

{
    assert( !Map_IsComplement(pNode) );
    if ( pNode->fMark0 == 0 )
        return;
    pNode->fMark0 = 0;
    if ( !Map_NodeIsAnd(pNode) )
        return;
    Map_MappingUnmark_rec( Map_Regular(pNode->p1) );
    Map_MappingUnmark_rec( Map_Regular(pNode->p2) );
    // visit the equivalent nodes
    if ( pNode->pNextE )
        Map_MappingUnmark_rec( pNode->pNextE );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingUpdateLevel_rec()

int Map_MappingUpdateLevel_rec	(	Map_Man_t *	pMan,
		Map_Node_t *	pNode,
		int	fMaximum )

Function*************************************************************

Synopsis [Analyses choice nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 771 of file mapperUtils.c.

{
    Map_Node_t * pTemp;
    int Level1, Level2, LevelE;
    assert( !Map_IsComplement(pNode) );
    if ( !Map_NodeIsAnd(pNode) )
        return pNode->Level;
    // skip the visited node
    if ( pNode->TravId == pMan->nTravIds )
        return pNode->Level;
    pNode->TravId = pMan->nTravIds;
    // compute levels of the children nodes
    Level1 = Map_MappingUpdateLevel_rec( pMan, Map_Regular(pNode->p1), fMaximum );
    Level2 = Map_MappingUpdateLevel_rec( pMan, Map_Regular(pNode->p2), fMaximum );
    pNode->Level = 1 + MAP_MAX( Level1, Level2 );
    if ( pNode->pNextE )
    {
        LevelE = Map_MappingUpdateLevel_rec( pMan, pNode->pNextE, fMaximum );
        if ( fMaximum )
        {
            if ( pNode->Level < (unsigned)LevelE )
                pNode->Level = LevelE;
        }
        else
        {
            if ( pNode->Level > (unsigned)LevelE )
                pNode->Level = LevelE;
        }
        // set the level of all equivalent nodes to be the same minimum
        if ( pNode->pRepr == NULL ) // the primary node
            for ( pTemp = pNode->pNextE; pTemp; pTemp = pTemp->pNextE )
                pTemp->Level = pNode->Level;
    }
    return pNode->Level;
}

Here is the call graph for this function:

Here is the caller graph for this function:
