mvcList.c File Reference
#include "mvc.h"

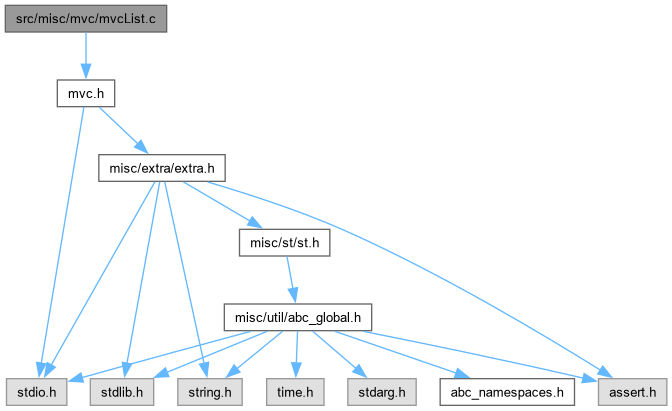

Include dependency graph for mvcList.c:

Go to the source code of this file.

Functions

ABC_NAMESPACE_IMPL_START void Mvc_ListAddCubeHead_ (Mvc_List_t *pList, Mvc_Cube_t *pCube)
 DECLARATIONS ///.

void Mvc_ListAddCubeTail_ (Mvc_List_t *pList, Mvc_Cube_t *pCube)

void Mvc_ListDeleteCube_ (Mvc_List_t *pList, Mvc_Cube_t *pPrev, Mvc_Cube_t *pCube)

void Mvc_CoverAddCubeHead_ (Mvc_Cover_t *pCover, Mvc_Cube_t *pCube)

void Mvc_CoverAddCubeTail_ (Mvc_Cover_t *pCover, Mvc_Cube_t *pCube)

void Mvc_CoverDeleteCube_ (Mvc_Cover_t *pCover, Mvc_Cube_t *pPrev, Mvc_Cube_t *pCube)

void Mvc_CoverAddDupCubeHead (Mvc_Cover_t *pCover, Mvc_Cube_t *pCube)

void Mvc_CoverAddDupCubeTail (Mvc_Cover_t *pCover, Mvc_Cube_t *pCube)

void Mvc_CoverAddLiteralsOfCube (Mvc_Cover_t *pCover, Mvc_Cube_t *pCube)

void Mvc_CoverDeleteLiteralsOfCube (Mvc_Cover_t *pCover, Mvc_Cube_t *pCube)

void Mvc_CoverList2Array (Mvc_Cover_t *pCover)

void Mvc_CoverArray2List (Mvc_Cover_t *pCover)

Mvc_Cube_t * Mvc_ListGetTailFromHead (Mvc_Cube_t *pHead)


Function Documentation

◆ Mvc_CoverAddCubeHead_()

void Mvc_CoverAddCubeHead_ ( Mvc_Cover_t * pCover,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 121 of file mvcList.c.

122{
123 Mvc_List_t * pList = &pCover->lCubes;
124 if ( pList->pHead == NULL )
125 {
126 Mvc_CubeSetNext( pCube, NULL );
127 pList->pHead = pCube;
128 pList->pTail = pCube;
129 }
130 else
131 {
132 Mvc_CubeSetNext( pCube, pList->pHead );
133 pList->pHead = pCube;
134 }
135 pList->nItems++;
136}
Mvc_CubeSetNext
#define Mvc_CubeSetNext(Cube, Next)
Definition mvc.h:126
Mvc_List_t
struct MvcListStruct Mvc_List_t
Definition mvc.h:57
MvcCoverStruct::lCubes
Mvc_List_t lCubes
Definition mvc.h:88
MvcListStruct::pHead
Mvc_Cube_t * pHead
Definition mvc.h:77
MvcListStruct::pTail
Mvc_Cube_t * pTail
Definition mvc.h:78
MvcListStruct::nItems
int nItems
Definition mvc.h:79

◆ Mvc_CoverAddCubeTail_()

void Mvc_CoverAddCubeTail_ ( Mvc_Cover_t * pCover,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 149 of file mvcList.c.

150{
151 Mvc_List_t * pList = &pCover->lCubes;
152
153 if ( pList->pHead == NULL )
154 pList->pHead = pCube;
155 else
156 Mvc_CubeSetNext( pList->pTail, pCube );
157 pList->pTail = pCube;
158 Mvc_CubeSetNext( pCube, NULL );
159 pList->nItems++;
160}

◆ Mvc_CoverAddDupCubeHead()

void Mvc_CoverAddDupCubeHead ( Mvc_Cover_t * pCover,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 202 of file mvcList.c.

203{
204 Mvc_Cube_t * pCubeNew;
205 pCubeNew = Mvc_CubeAlloc( pCover );
206 Mvc_CubeBitCopy( pCubeNew, pCube );
207 Mvc_CoverAddCubeHead( pCover, pCubeNew );
208}
Mvc_Cube_t
struct MvcCubeStruct Mvc_Cube_t
Definition mvc.h:56
Mvc_CubeAlloc
Mvc_Cube_t * Mvc_CubeAlloc(Mvc_Cover_t *pCover)
DECLARATIONS ///.
Definition mvcCube.c:43
Mvc_CoverAddCubeHead
#define Mvc_CoverAddCubeHead(pCover, pCube)
Definition mvc.h:496
Mvc_CubeBitCopy
#define Mvc_CubeBitCopy(Cube1, Cube2)
Definition mvc.h:393
Here is the call graph for this function:

◆ Mvc_CoverAddDupCubeTail()

void Mvc_CoverAddDupCubeTail ( Mvc_Cover_t * pCover,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 221 of file mvcList.c.

222{
223 Mvc_Cube_t * pCubeNew;
224 // copy the cube as part of this cover
225 pCubeNew = Mvc_CubeAlloc( pCover );
226 Mvc_CubeBitCopy( pCubeNew, pCube );
227 // clean the last bits of the new cube
228// pCubeNew->pData[pCubeNew->iLast] &= (BITS_FULL >> pCubeNew->nUnused);
229 // add the cube at the end
230 Mvc_CoverAddCubeTail( pCover, pCubeNew );
231}
Mvc_CoverAddCubeTail
#define Mvc_CoverAddCubeTail(pCover, pCube)
Definition mvc.h:501
Here is the call graph for this function:

◆ Mvc_CoverAddLiteralsOfCube()

void Mvc_CoverAddLiteralsOfCube ( Mvc_Cover_t * pCover,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 245 of file mvcList.c.

246{
247// int iBit, Value;
248// assert( pCover->pLits );
249// Mvc_CubeForEachBit( pCover, pCube, iBit, Value )
250// if ( Value )
251// pCover->pLits[iBit] += Value;
252}

◆ Mvc_CoverArray2List()

void Mvc_CoverArray2List ( Mvc_Cover_t * pCover)

Function*************************************************************

Synopsis [Transfers the cubes from the array into list.]

Description []

SideEffects []

SeeAlso []

Definition at line 310 of file mvcList.c.

311{
312 Mvc_Cube_t * pCube;
313 int nCubes, i;
314
315 assert( pCover->pCubes );
316
317 nCubes = Mvc_CoverReadCubeNum(pCover);
318 if ( nCubes == 0 )
319 return;
320 if ( nCubes == 1 )
321 {
322 pCube = pCover->pCubes[0];
323 pCube->pNext = NULL;
324 pCover->lCubes.pHead = pCover->lCubes.pTail = pCube;
325 return;
326 }
327 // set up the first cube
328 pCube = pCover->pCubes[0];
329 pCover->lCubes.pHead = pCube;
330 // set up the last cube
331 pCube = pCover->pCubes[nCubes-1];
332 pCube->pNext = NULL;
333 pCover->lCubes.pTail = pCube;
334
335 // link all cubes starting from the first one
336 for ( i = 0; i < nCubes - 1; i++ )
337 pCover->pCubes[i]->pNext = pCover->pCubes[i+1];
338}
Mvc_CoverReadCubeNum
int Mvc_CoverReadCubeNum(Mvc_Cover_t *pCover)
Definition mvcApi.c:45
MvcCoverStruct::pCubes
Mvc_Cube_t ** pCubes
Definition mvc.h:89
MvcCubeStruct::pNext
Mvc_Cube_t * pNext
Definition mvc.h:65
assert
#define assert(ex)
Definition util_old.h:213
Here is the call graph for this function:

◆ Mvc_CoverDeleteCube_()

void Mvc_CoverDeleteCube_ ( Mvc_Cover_t * pCover,
Mvc_Cube_t * pPrev,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 173 of file mvcList.c.

174{
175 Mvc_List_t * pList = &pCover->lCubes;
176
177 if ( pPrev == NULL ) // deleting the head cube
178 pList->pHead = Mvc_CubeReadNext(pCube);
179 else
180 pPrev->pNext = pCube->pNext;
181 if ( pList->pTail == pCube ) // deleting the tail cube
182 {
183 assert( Mvc_CubeReadNext(pCube) == NULL );
184 pList->pTail = pPrev;
185 }
186 pList->nItems--;
187}
Mvc_CubeReadNext
#define Mvc_CubeReadNext(Cube)
MACRO DEFINITIONS ///.
Definition mvc.h:121

◆ Mvc_CoverDeleteLiteralsOfCube()

void Mvc_CoverDeleteLiteralsOfCube ( Mvc_Cover_t * pCover,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 265 of file mvcList.c.

266{
267// int iBit, Value;
268// assert( pCover->pLits );
269// Mvc_CubeForEachBit( pCover, pCube, iBit, Value )
270// if ( Value )
271// pCover->pLits[iBit] -= Value;
272}

◆ Mvc_CoverList2Array()

void Mvc_CoverList2Array ( Mvc_Cover_t * pCover)

Function*************************************************************

Synopsis [Transfers the cubes from the list into the array.]

Description []

SideEffects []

SeeAlso []

Definition at line 286 of file mvcList.c.

287{
288 Mvc_Cube_t * pCube;
289 int Counter;
290 // resize storage if necessary
291 Mvc_CoverAllocateArrayCubes( pCover );
292 // iterate through the cubes
293 Counter = 0;
294 Mvc_CoverForEachCube( pCover, pCube )
295 pCover->pCubes[ Counter++ ] = pCube;
296 assert( Counter == Mvc_CoverReadCubeNum(pCover) );
297}
Mvc_CoverAllocateArrayCubes
void Mvc_CoverAllocateArrayCubes(Mvc_Cover_t *pCover)
Definition mvcCover.c:202
Mvc_CoverForEachCube
#define Mvc_CoverForEachCube(Cover, Cube)
Definition mvc.h:528
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Mvc_ListAddCubeHead_()

ABC_NAMESPACE_IMPL_START void Mvc_ListAddCubeHead_ ( Mvc_List_t * pList,
Mvc_Cube_t * pCube )

DECLARATIONS ///.

CFile****************************************************************

FileName [mvcList.c]

PackageName [MVSIS 2.0: Multi-valued logic synthesis system.]

Synopsis [Manipulating list of cubes in the cover.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - February 1, 2003.]

Revision [

Id
mvcList.c,v 1.4 2003/04/03 06:31:50 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 43 of file mvcList.c.

44{
45 if ( pList->pHead == NULL )
46 {
47 Mvc_CubeSetNext( pCube, NULL );
48 pList->pHead = pCube;
49 pList->pTail = pCube;
50 }
51 else
52 {
53 Mvc_CubeSetNext( pCube, pList->pHead );
54 pList->pHead = pCube;
55 }
56 pList->nItems++;
57}

◆ Mvc_ListAddCubeTail_()

void Mvc_ListAddCubeTail_ ( Mvc_List_t * pList,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 71 of file mvcList.c.

72{
73 if ( pList->pHead == NULL )
74 pList->pHead = pCube;
75 else
76 Mvc_CubeSetNext( pList->pTail, pCube );
77 pList->pTail = pCube;
78 Mvc_CubeSetNext( pCube, NULL );
79 pList->nItems++;
80}

◆ Mvc_ListDeleteCube_()

void Mvc_ListDeleteCube_ ( Mvc_List_t * pList,
Mvc_Cube_t * pPrev,
Mvc_Cube_t * pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 94 of file mvcList.c.

95{
96 if ( pPrev == NULL ) // deleting the head cube
97 pList->pHead = Mvc_CubeReadNext(pCube);
98 else
99 pPrev->pNext = pCube->pNext;
100 if ( pList->pTail == pCube ) // deleting the tail cube
101 {
102 assert( Mvc_CubeReadNext(pCube) == NULL );
103 pList->pTail = pPrev;
104 }
105 pList->nItems--;
106}

◆ Mvc_ListGetTailFromHead()

Mvc_Cube_t * Mvc_ListGetTailFromHead ( Mvc_Cube_t * pHead)

Function*************************************************************

Synopsis [Returns the tail of the linked list given by the head.]

Description []

SideEffects []

SeeAlso []

Definition at line 351 of file mvcList.c.

352{
353 Mvc_Cube_t * pCube, * pTail;
354 for ( pTail = pCube = pHead;
355 pCube;
356 pTail = pCube, pCube = Mvc_CubeReadNext(pCube) );
357 return pTail;
358}

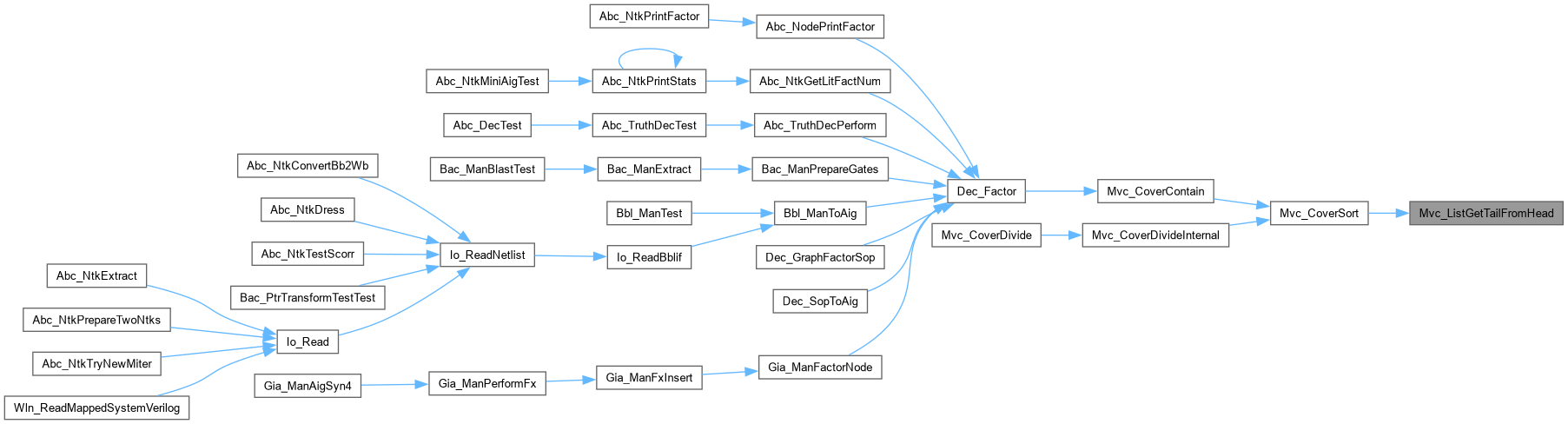

Here is the caller graph for this function:
