mvcOpAlg.c File Reference

#include "mvc.h"

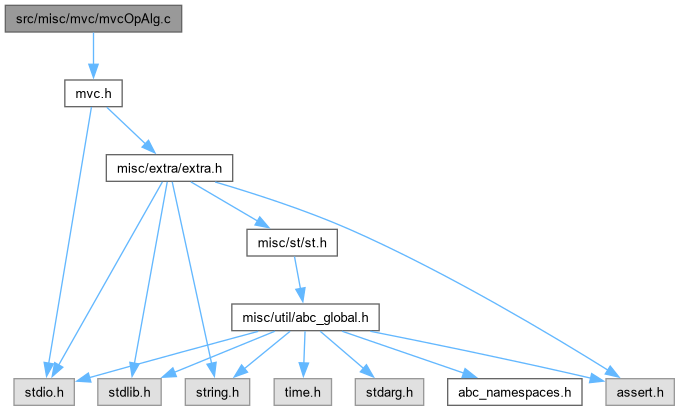

Include dependency graph for mvcOpAlg.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Mvc_Cover_t *	Mvc_CoverAlgebraicMultiply (Mvc_Cover_t *pCover1, Mvc_Cover_t *pCover2)
	DECLARATIONS ///.
Mvc_Cover_t *	Mvc_CoverAlgebraicSubtract (Mvc_Cover_t *pCover1, Mvc_Cover_t *pCover2)
int	Mvc_CoverAlgebraicEqual (Mvc_Cover_t *pCover1, Mvc_Cover_t *pCover2)

Function Documentation

Mvc_CoverAlgebraicEqual()

int Mvc_CoverAlgebraicEqual	(	Mvc_Cover_t *	pCover1,
		Mvc_Cover_t *	pCover2 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 134 of file mvcOpAlg.c.

{
    Mvc_Cube_t * pCube1, * pCube2;
    int fFound;
    int CompResult;

    // covers should be the same base
    assert( pCover1->nBits == pCover2->nBits );
    // iterate through the cubes
    Mvc_CoverForEachCube( pCover1, pCube1 )
    {
        fFound = 0;
        Mvc_CoverForEachCube( pCover2, pCube2 )
        {
            Mvc_CubeBitEqual( CompResult, pCube1, pCube2 );
            if ( CompResult )
            {
                fFound = 1;
                break;
            }
        }
        if ( !fFound )
            return 0;
    }
    return 1;
}

Mvc_CoverAlgebraicMultiply()

ABC_NAMESPACE_IMPL_START Mvc_Cover_t * Mvc_CoverAlgebraicMultiply	(	Mvc_Cover_t *	pCover1,
		Mvc_Cover_t *	pCover2 )

DECLARATIONS ///.

CFile****************************************************************

FileName [mvcOperAlg.c]

PackageName [MVSIS 2.0: Multi-valued logic synthesis system.]

Synopsis [Miscellaneous operations on covers.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - February 1, 2003.]

Revision [

Id

mvcOpAlg.c,v 1.4 2003/04/26 20:41:36 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Multiplies two disjoint-support covers.]

Description []

SideEffects []

SeeAlso []

Definition at line 43 of file mvcOpAlg.c.

{
    Mvc_Cover_t * pCover;
    Mvc_Cube_t * pCube1, * pCube2, * pCube;
    int CompResult;

    // covers should be the same base
    assert( pCover1->nBits == pCover2->nBits );
    // make sure that supports do not overlap
    Mvc_CoverAllocateMask( pCover1 );
    Mvc_CoverAllocateMask( pCover2 );
    Mvc_CoverSupport( pCover1, pCover1->pMask );
    Mvc_CoverSupport( pCover2, pCover2->pMask );
    // check if the cubes are bit-wise disjoint
    Mvc_CubeBitDisjoint( CompResult, pCover1->pMask, pCover2->pMask );
    if ( !CompResult )
        printf( "Mvc_CoverMultiply(): Cover supports are not disjoint!\n" );

    // iterate through the cubes
    pCover = Mvc_CoverClone( pCover1 );
    Mvc_CoverForEachCube( pCover1, pCube1 )
        Mvc_CoverForEachCube( pCover2, pCube2 )
        {
            // create the product cube
            pCube = Mvc_CubeAlloc( pCover );
            // set the product cube equal to the product of the two cubes
            Mvc_CubeBitOr( pCube, pCube1, pCube2 );
            // add the cube to the cover
            Mvc_CoverAddCubeTail( pCover, pCube );
        }
    return pCover;
}

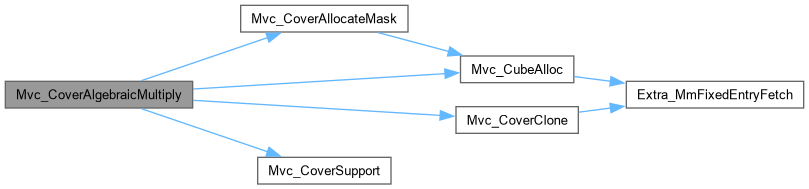

Here is the call graph for this function:

Mvc_CoverAlgebraicSubtract()

Mvc_Cover_t * Mvc_CoverAlgebraicSubtract	(	Mvc_Cover_t *	pCover1,
		Mvc_Cover_t *	pCover2 )

Function*************************************************************

Synopsis [Subtracts the second cover from the first.]

Description []

SideEffects []

SeeAlso []

Definition at line 88 of file mvcOpAlg.c.

{
    Mvc_Cover_t * pCover;
    Mvc_Cube_t * pCube1, * pCube2, * pCube;
    int fFound;
    int CompResult;

    // covers should be the same base
    assert( pCover1->nBits == pCover2->nBits );

    // iterate through the cubes
    pCover = Mvc_CoverClone( pCover1 );
    Mvc_CoverForEachCube( pCover1, pCube1 )
    {
        fFound = 0;
        Mvc_CoverForEachCube( pCover2, pCube2 )
        {
            Mvc_CubeBitEqual( CompResult, pCube1, pCube2 );
            if ( CompResult )
            {
                fFound = 1;
                break;
            }
        }
        if ( !fFound )
        {
            // create the copy of the cube
            pCube = Mvc_CubeDup( pCover, pCube1 );
            // add the cube copy to the cover
            Mvc_CoverAddCubeTail( pCover, pCube );
        }
    }
    return pCover;
}

Here is the call graph for this function:
