mvcSort.c File Reference

#include "mvc.h"

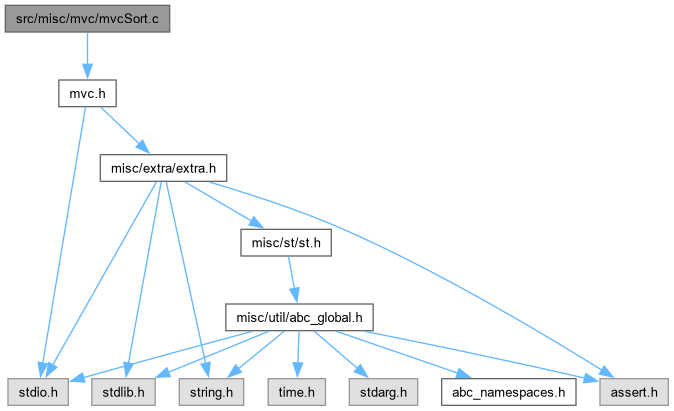

Include dependency graph for mvcSort.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Mvc_Cube_t *	Mvc_CoverSort_rec (Mvc_Cube_t *pList, int nItems, Mvc_Cube_t *pMask, int(*pCompareFunc)(Mvc_Cube_t *, Mvc_Cube_t *, Mvc_Cube_t *))
	DECLARATIONS ///.
Mvc_Cube_t *	Mvc_CoverSortMerge (Mvc_Cube_t *pList1, Mvc_Cube_t *pList2, Mvc_Cube_t *pMask, int(*pCompareFunc)(Mvc_Cube_t *, Mvc_Cube_t *, Mvc_Cube_t *))
void	Mvc_CoverSort (Mvc_Cover_t *pCover, Mvc_Cube_t *pMask, int(*pCompareFunc)(Mvc_Cube_t *, Mvc_Cube_t *, Mvc_Cube_t *))
	FuNCTION DEFINITIONS ///.

Function Documentation

Mvc_CoverSort()

void Mvc_CoverSort	(	Mvc_Cover_t *	pCover,
		Mvc_Cube_t *	pMask,
		int(*	pCompareFunc )(Mvc_Cube_t *, Mvc_Cube_t *, Mvc_Cube_t *) )

FuNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Sorts cubes using the given cost function.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file mvcSort.c.

{
    Mvc_Cube_t * pHead;
    int nCubes;
    // one cube does not need sorting
    nCubes = Mvc_CoverReadCubeNum(pCover);
    if ( nCubes <= 1 )
        return;
    // sort the cubes
    pHead = Mvc_CoverSort_rec( Mvc_CoverReadCubeHead(pCover), nCubes, pMask, pCompareFunc );
    // insert the sorted list into the cover
    Mvc_CoverSetCubeHead( pCover, pHead );
    Mvc_CoverSetCubeTail( pCover, Mvc_ListGetTailFromHead(pHead) );
    // make sure that the list is sorted in the increasing order
    assert( pCompareFunc( Mvc_CoverReadCubeHead(pCover), Mvc_CoverReadCubeTail(pCover), pMask ) <= 0 );
}

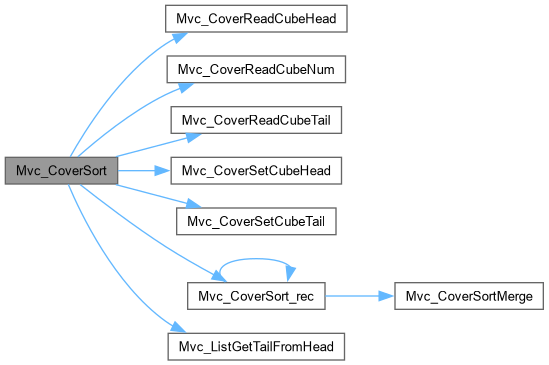

Here is the call graph for this function:

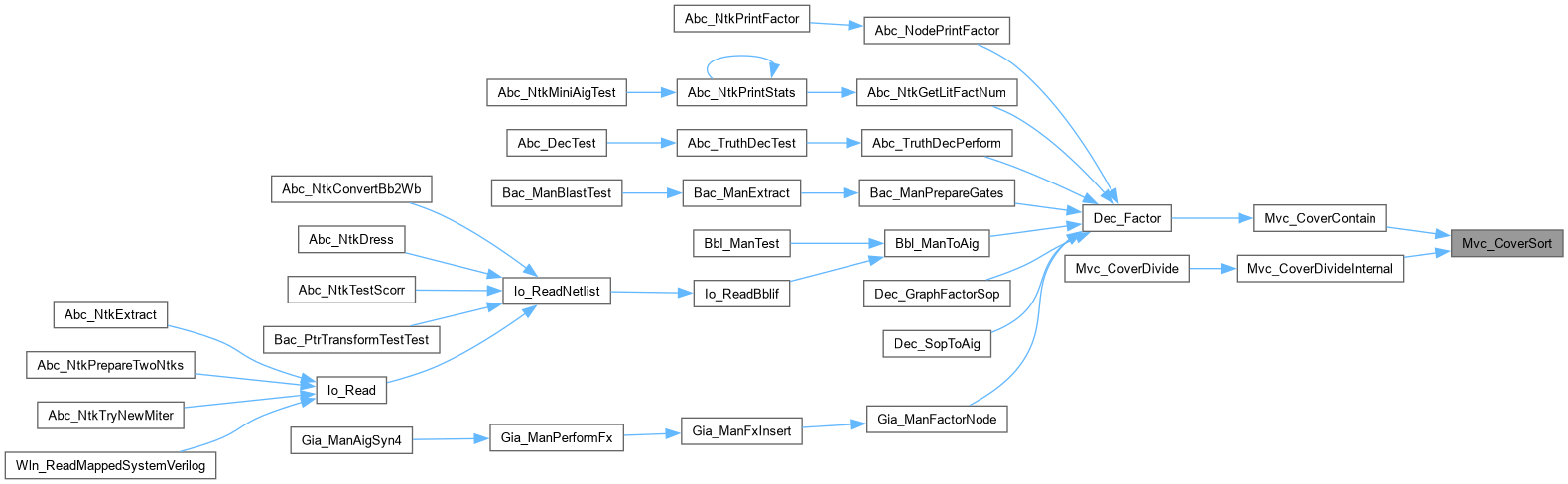

Here is the caller graph for this function:

Mvc_CoverSort_rec()

Mvc_Cube_t * Mvc_CoverSort_rec	(	Mvc_Cube_t *	pList,
		int	nItems,
		Mvc_Cube_t *	pMask,
		int(*	pCompareFunc )(Mvc_Cube_t *, Mvc_Cube_t *, Mvc_Cube_t *) )

DECLARATIONS ///.

CFile****************************************************************

FileName [mvcSort.c]

PackageName [MVSIS 2.0: Multi-valued logic synthesis system.]

Synopsis [Sorting cubes in the cover with the mask.]

Author [MVSIS Group]

Affiliation [uC Berkeley]

Date [Ver. 1.0. Started - February 1, 2003.]

Revision [

Id

mvcSort.c,v 1.5 2003/04/27 01:03:45 wjiang Exp

]

Function*************************************************************

Synopsis [Recursive part of Mvc_CoverSort()]

Description []

SideEffects []

SeeAlso []

Definition at line 75 of file mvcSort.c.

{
    Mvc_Cube_t * pList1, * pList2;
    int nItems1, nItems2, i;

    // trivial case
    if ( nItems == 1 )
    {
        Mvc_CubeSetNext( pList, NULL );
        return pList;
    }

    // select the new sizes
    nItems1 = nItems/2;
    nItems2 = nItems - nItems1;

    // set the new beginnings
    pList1 = pList2 = pList;
    for ( i = 0; i < nItems1; i++ )
        pList2 = Mvc_CubeReadNext( pList2 );

    // solve recursively
    pList1 = Mvc_CoverSort_rec( pList1, nItems1, pMask, pCompareFunc );
    pList2 = Mvc_CoverSort_rec( pList2, nItems2, pMask, pCompareFunc );

    // merge
    return Mvc_CoverSortMerge( pList1, pList2, pMask, pCompareFunc );
}

Here is the call graph for this function:

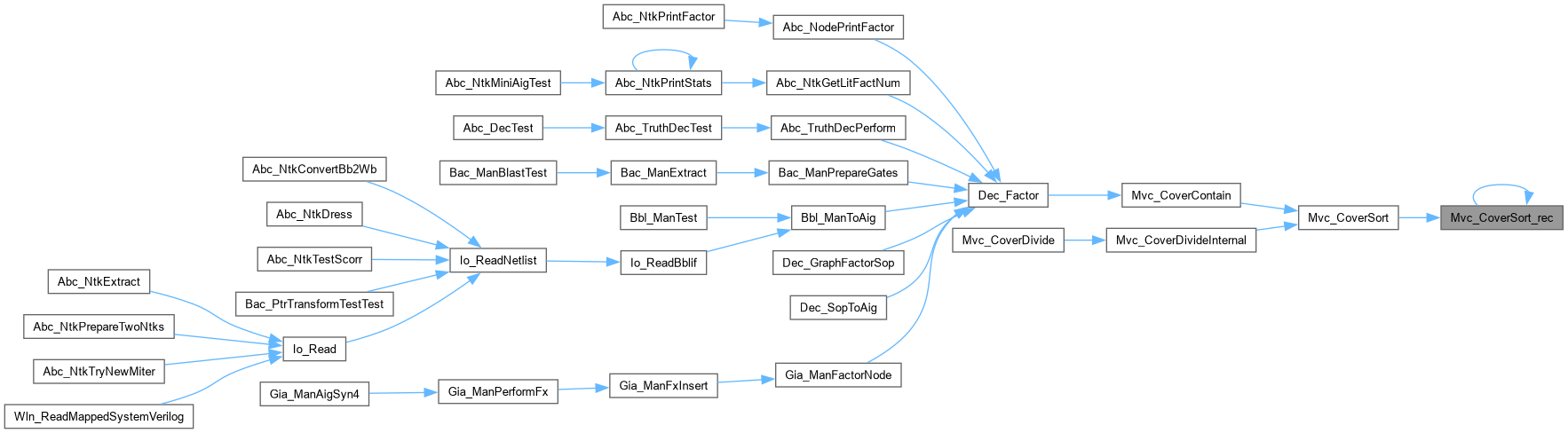

Here is the caller graph for this function:

Mvc_CoverSortMerge()

Mvc_Cube_t * Mvc_CoverSortMerge	(	Mvc_Cube_t *	pList1,
		Mvc_Cube_t *	pList2,
		Mvc_Cube_t *	pMask,
		int(*	pCompareFunc )(Mvc_Cube_t *, Mvc_Cube_t *, Mvc_Cube_t *) )

Function*************************************************************

Synopsis [Merges two NULL-terminated linked lists.]

Description []

SideEffects []

SeeAlso []

Definition at line 116 of file mvcSort.c.

{
    Mvc_Cube_t * pList = NULL, ** ppTail = &pList;
    Mvc_Cube_t * pCube;
    while ( pList1 && pList2 )
    {
        if ( pCompareFunc( pList1, pList2, pMask ) < 0 )
        {
            pCube = pList1;
            pList1 = Mvc_CubeReadNext(pList1);
        }
        else
        {
            pCube = pList2;
            pList2 = Mvc_CubeReadNext(pList2);
        }
        *ppTail = pCube;
        ppTail = Mvc_CubeReadNextP(pCube);
    }
    *ppTail = pList1? pList1: pList2;
    return pList;
}

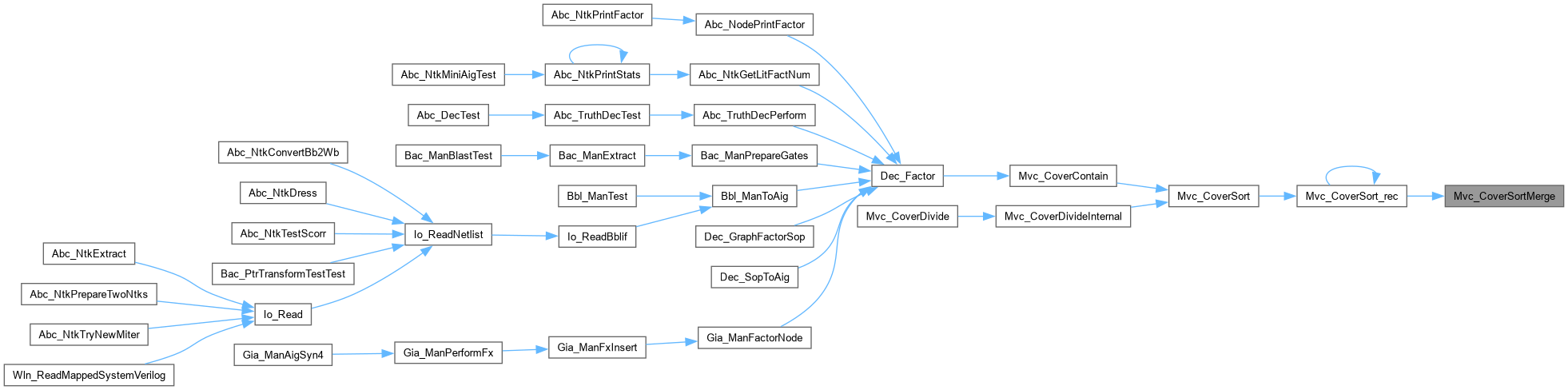

Here is the caller graph for this function:
