nwkBidec.c File Reference

#include "nwk.h"

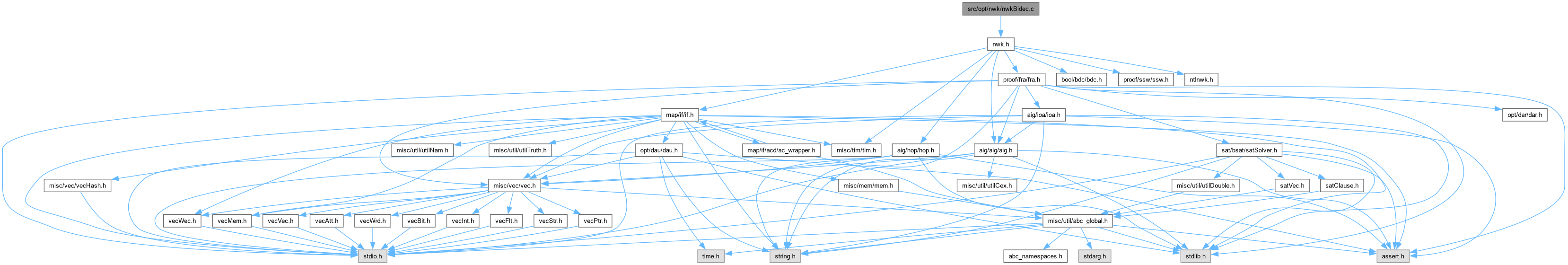

Include dependency graph for nwkBidec.c:

Go to the source code of this file.

Functions
Hop_Obj_t *	Nwk_NodeIfNodeResyn (Bdc_Man_t *p, Hop_Man_t *pHop, Hop_Obj_t *pRoot, int nVars, Vec_Int_t *vTruth, unsigned *puCare, float dProb)
	FUNCTION DEFINITIONS ///.
void	Nwk_ManBidecResyn (Nwk_Man_t *pNtk, int fVerbose)

Function Documentation

Nwk_ManBidecResyn()

void Nwk_ManBidecResyn	(	Nwk_Man_t *	pNtk,
		int	fVerbose )

Function*************************************************************

Synopsis [Resynthesizes nodes using bi-decomposition.]

Description []

SideEffects []

SeeAlso []

Definition at line 129 of file nwkBidec.c.

{
    Bdc_Par_t Pars = {0}, * pPars = &Pars;
    Bdc_Man_t * p;
    Nwk_Obj_t * pObj;
    Vec_Int_t * vTruth;
    int i, nGainTotal = 0, nNodes1, nNodes2;
    abctime clk = Abc_Clock();
    pPars->nVarsMax = Nwk_ManGetFaninMax( pNtk );
    pPars->fVerbose = fVerbose;
    if ( pPars->nVarsMax < 2 )
    {
        printf( "Resynthesis is not performed for networks whose nodes are less than 2 inputs.\n" );
        return;
    }
    if ( pPars->nVarsMax > 15 )
    {
        if ( fVerbose )
        printf( "Resynthesis is not performed for nodes with more than 15 inputs.\n" );
        pPars->nVarsMax = 15;
    }
    vTruth = Vec_IntAlloc( 0 );
    p = Bdc_ManAlloc( pPars );
    Nwk_ManForEachNode( pNtk, pObj, i )
    {
        if ( Nwk_ObjFaninNum(pObj) > 15 )
            continue;
        nNodes1 = Hop_DagSize(pObj->pFunc);
        pObj->pFunc = Nwk_NodeIfNodeResyn( p, pNtk->pManHop, pObj->pFunc, Nwk_ObjFaninNum(pObj), vTruth, NULL, -1.0 );
        nNodes2 = Hop_DagSize(pObj->pFunc);
        nGainTotal += nNodes1 - nNodes2;
    }
    Bdc_ManFree( p );
    Vec_IntFree( vTruth );
    if ( fVerbose )
    {
    printf( "Total gain in AIG nodes = %d.  ", nGainTotal );
    ABC_PRT( "Total runtime", Abc_Clock() - clk );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Nwk_NodeIfNodeResyn()

Hop_Obj_t * Nwk_NodeIfNodeResyn	(	Bdc_Man_t *	p,
		Hop_Man_t *	pHop,
		Hop_Obj_t *	pRoot,
		int	nVars,
		Vec_Int_t *	vTruth,
		unsigned *	puCare,
		float	dProb )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Resynthesizes nodes using bi-decomposition.]

Description []

SideEffects []

SeeAlso []

Definition at line 67 of file nwkBidec.c.

{
    unsigned * pTruth;
    Bdc_Fun_t * pFunc;
    int nNodes, i;
    assert( nVars <= 16 );
    // derive truth table
    pTruth = Hop_ManConvertAigToTruth( pHop, Hop_Regular(pRoot), nVars, vTruth, 0 );
    if ( Hop_IsComplement(pRoot) )
        for ( i = Abc_TruthWordNum(nVars)-1; i >= 0; i-- )
            pTruth[i] = ~pTruth[i];
    // perform power-aware decomposition
    if ( dProb >= 0.0 )
    {
        float Prob = (float)2.0 * dProb * (1.0 - dProb);
        assert( Prob >= 0.0 && Prob <= 0.5 );
        if ( Prob >= 0.4 )
        {
            Extra_TruthNot( puCare, puCare, nVars );
            if ( dProb > 0.5 ) // more 1s than 0s
                Extra_TruthOr( pTruth, pTruth, puCare, nVars );
            else
                Extra_TruthSharp( pTruth, pTruth, puCare, nVars );
            Extra_TruthNot( puCare, puCare, nVars );
            // decompose truth table
            Bdc_ManDecompose( p, pTruth, NULL, nVars, NULL, 1000 );
        }
        else
        {
            // decompose truth table
            Bdc_ManDecompose( p, pTruth, puCare, nVars, NULL, 1000 );
        }
    }
    else
    {
        // decompose truth table
        Bdc_ManDecompose( p, pTruth, puCare, nVars, NULL, 1000 );
    }
    // convert back into HOP
    Bdc_FuncSetCopy( Bdc_ManFunc( p, 0 ), Hop_ManConst1( pHop ) );
    for ( i = 0; i < nVars; i++ )
        Bdc_FuncSetCopy( Bdc_ManFunc( p, i+1 ), Hop_ManPi( pHop, i ) );
    nNodes = Bdc_ManNodeNum(p);
    for ( i = nVars + 1; i < nNodes; i++ )
    {
        pFunc = Bdc_ManFunc( p, i );
        Bdc_FuncSetCopy( pFunc, Hop_And( pHop, Bdc_FunCopyHop(Bdc_FuncFanin0(pFunc)), Bdc_FunCopyHop(Bdc_FuncFanin1(pFunc)) ) );
    }
    return Bdc_FunCopyHop( Bdc_ManRoot(p) );
}

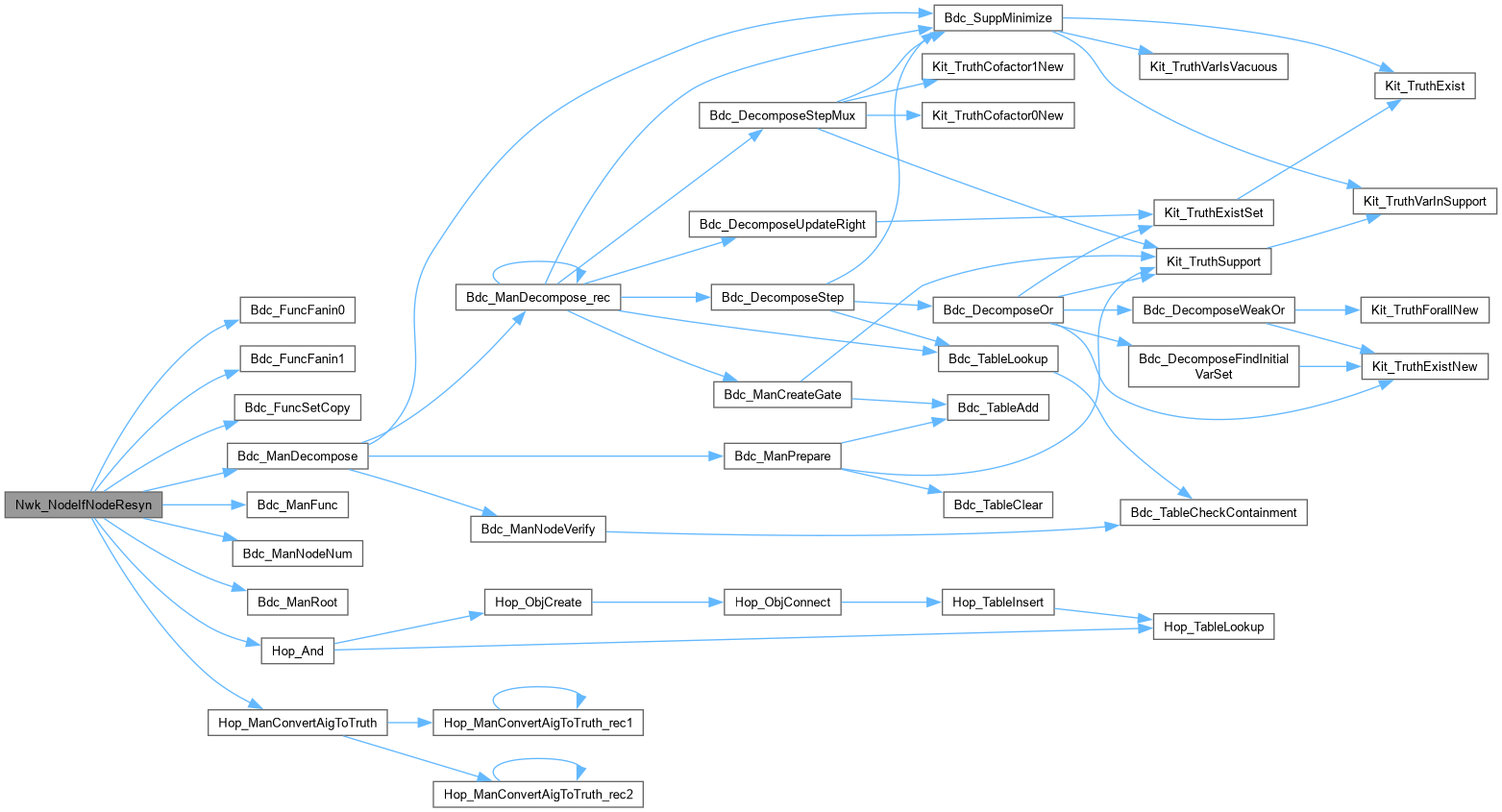

Here is the call graph for this function:

Here is the caller graph for this function:
