nwkFanio.c File Reference

#include "nwk.h"

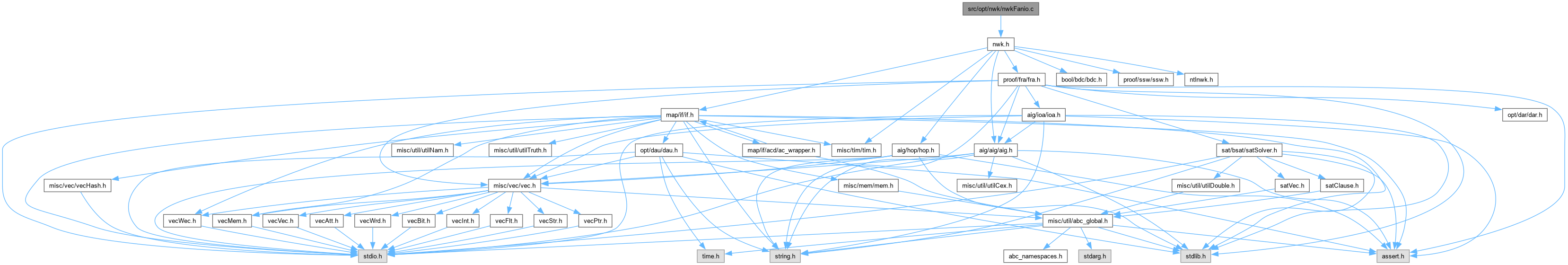

Include dependency graph for nwkFanio.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Nwk_ObjCollectFanins (Nwk_Obj_t *pNode, Vec_Ptr_t *vNodes)
	DECLARATIONS ///.
void	Nwk_ObjCollectFanouts (Nwk_Obj_t *pNode, Vec_Ptr_t *vNodes)
int	Nwk_ObjFindFanin (Nwk_Obj_t *pObj, Nwk_Obj_t *pFanin)
int	Nwk_ObjFindFanout (Nwk_Obj_t *pObj, Nwk_Obj_t *pFanout)
void	Nwk_ObjAddFanin (Nwk_Obj_t *pObj, Nwk_Obj_t *pFanin)
void	Nwk_ObjDeleteFanin (Nwk_Obj_t *pObj, Nwk_Obj_t *pFanin)
void	Nwk_ObjPatchFanin (Nwk_Obj_t *pObj, Nwk_Obj_t *pFaninOld, Nwk_Obj_t *pFaninNew)
void	Nwk_ObjTransferFanout (Nwk_Obj_t *pNodeFrom, Nwk_Obj_t *pNodeTo)
void	Nwk_ObjReplace (Nwk_Obj_t *pNodeOld, Nwk_Obj_t *pNodeNew)

Function Documentation

Nwk_ObjAddFanin()

void Nwk_ObjAddFanin	(	Nwk_Obj_t *	pObj,
		Nwk_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Creates fanout/fanin relationship between the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 165 of file nwkFanio.c.

{
    int i;
    assert( pObj->pMan == pFanin->pMan );
    assert( pObj->Id >= 0 && pFanin->Id >= 0 );
    if ( Nwk_ObjReallocIsNeeded(pObj) )
        Nwk_ManReallocNode( pObj );
    if ( Nwk_ObjReallocIsNeeded(pFanin) )
        Nwk_ManReallocNode( pFanin );
    for ( i = pObj->nFanins + pObj->nFanouts; i > pObj->nFanins; i-- )
        pObj->pFanio[i] = pObj->pFanio[i-1];
    pObj->pFanio[pObj->nFanins++] = pFanin;
    pFanin->pFanio[pFanin->nFanins + pFanin->nFanouts++] = pObj;
    pObj->Level = Abc_MaxInt( pObj->Level, pFanin->Level + Nwk_ObjIsNode(pObj) );
}

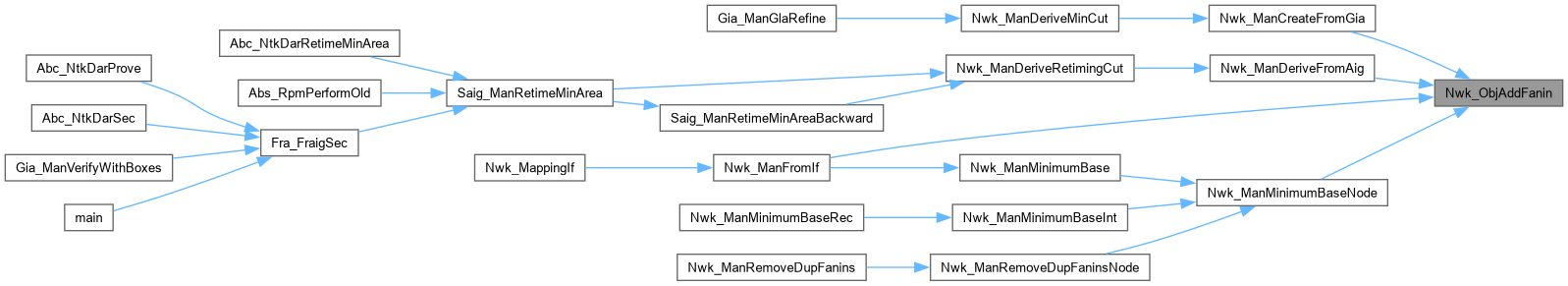

Here is the caller graph for this function:

Nwk_ObjCollectFanins()

ABC_NAMESPACE_IMPL_START void Nwk_ObjCollectFanins	(	Nwk_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

DECLARATIONS ///.

CFile****************************************************************

FileName [nwkFanio.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Logic network representation.]

Synopsis [Manipulation of fanins/fanouts.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

nwkFanio.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Collects fanins of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file nwkFanio.c.

{
    Nwk_Obj_t * pFanin;
    int i;
    Vec_PtrClear(vNodes);
    Nwk_ObjForEachFanin( pNode, pFanin, i )
        Vec_PtrPush( vNodes, pFanin );
}

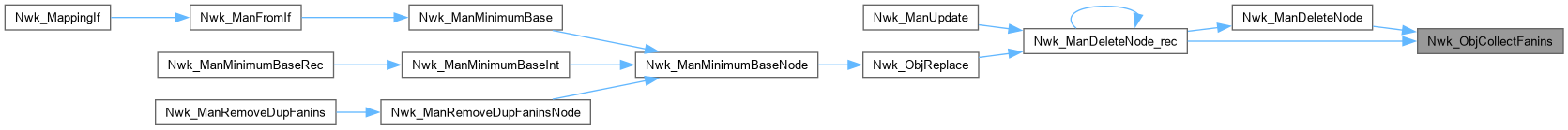

Here is the caller graph for this function:

Nwk_ObjCollectFanouts()

void Nwk_ObjCollectFanouts	(	Nwk_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Collects fanouts of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 65 of file nwkFanio.c.

{
    Nwk_Obj_t * pFanout;
    int i;
    Vec_PtrClear(vNodes);
    Nwk_ObjForEachFanout( pNode, pFanout, i )
        Vec_PtrPush( vNodes, pFanout );
}

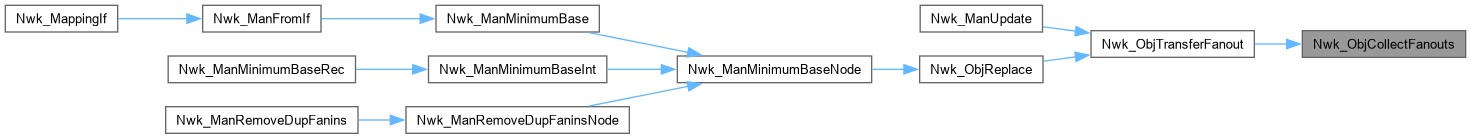

Here is the caller graph for this function:

Nwk_ObjDeleteFanin()

void Nwk_ObjDeleteFanin	(	Nwk_Obj_t *	pObj,
		Nwk_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Removes fanout/fanin relationship between the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 192 of file nwkFanio.c.

{
    int i, k, Limit, fFound;
    // remove pFanin from the fanin list of pObj
    Limit = pObj->nFanins + pObj->nFanouts;
    fFound = 0;
    for ( k = i = 0; i < Limit; i++ )
        if ( fFound || pObj->pFanio[i] != pFanin )
            pObj->pFanio[k++] = pObj->pFanio[i];
        else
            fFound = 1;
    assert( i == k + 1 ); // if it fails, likely because of duplicated fanin
    pObj->nFanins--;
    // remove pObj from the fanout list of pFanin
    Limit = pFanin->nFanins + pFanin->nFanouts;
    fFound = 0;
    for ( k = i = pFanin->nFanins; i < Limit; i++ )
        if ( fFound || pFanin->pFanio[i] != pObj )
            pFanin->pFanio[k++] = pFanin->pFanio[i];
        else
            fFound = 1;
    assert( i == k + 1 ); // if it fails, likely because of duplicated fanout
    pFanin->nFanouts--;
}

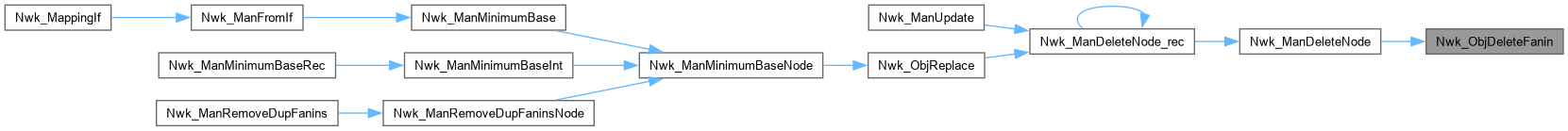

Here is the caller graph for this function:

Nwk_ObjFindFanin()

int Nwk_ObjFindFanin	(	Nwk_Obj_t *	pObj,
		Nwk_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Returns the number of the fanin of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 85 of file nwkFanio.c.

{
    Nwk_Obj_t * pTemp;
    int i;
    Nwk_ObjForEachFanin( pObj, pTemp, i )
        if ( pTemp == pFanin )
            return i;
    return -1;
}

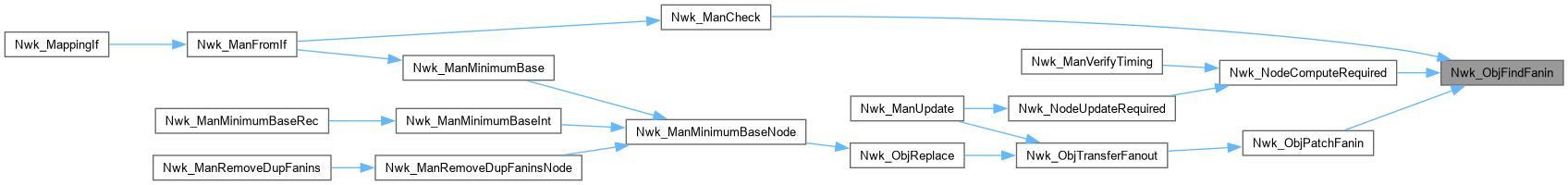

Here is the caller graph for this function:

Nwk_ObjFindFanout()

int Nwk_ObjFindFanout	(	Nwk_Obj_t *	pObj,
		Nwk_Obj_t *	pFanout )

Function*************************************************************

Synopsis [Returns the number of the fanout of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 106 of file nwkFanio.c.

{
    Nwk_Obj_t * pTemp;
    int i;
    Nwk_ObjForEachFanout( pObj, pTemp, i )
        if ( pTemp == pFanout )
            return i;
    return -1;
}

Here is the caller graph for this function:

Nwk_ObjPatchFanin()

void Nwk_ObjPatchFanin	(	Nwk_Obj_t *	pObj,
		Nwk_Obj_t *	pFaninOld,
		Nwk_Obj_t *	pFaninNew )

Function*************************************************************

Synopsis [Replaces a fanin of the node.]

Description [The node is pObj. An old fanin of this node (pFaninOld) has to be replaced by a new fanin (pFaninNew). Assumes that the node and the old fanin are not complemented. The new fanin can be complemented. In this case, the polarity of the new fanin will change, compared to the polarity of the old fanin.]

SideEffects []

SeeAlso []

Definition at line 231 of file nwkFanio.c.

{
    int i, k, iFanin, Limit;
    assert( pFaninOld != pFaninNew );
    assert( pObj != pFaninOld );
    assert( pObj != pFaninNew );
    assert( pObj->pMan == pFaninOld->pMan );
    assert( pObj->pMan == pFaninNew->pMan );
    // update the fanin
    iFanin = Nwk_ObjFindFanin( pObj, pFaninOld );
    if ( iFanin == -1 )
    {
        printf( "Nwk_ObjPatchFanin(); Error! Node %d is not among", pFaninOld->Id );
        printf( " the fanins of node %d...\n", pObj->Id );
        return;
    }
    pObj->pFanio[iFanin] = pFaninNew;
    // remove pObj from the fanout list of pFaninOld
    Limit = pFaninOld->nFanins + pFaninOld->nFanouts;
    for ( k = i = pFaninOld->nFanins; i < Limit; i++ )
        if ( pFaninOld->pFanio[i] != pObj )
            pFaninOld->pFanio[k++] = pFaninOld->pFanio[i];
    pFaninOld->nFanouts--;
    // add pObj to the fanout list of pFaninNew
    if ( Nwk_ObjReallocIsNeeded(pFaninNew) )
        Nwk_ManReallocNode( pFaninNew );
    pFaninNew->pFanio[pFaninNew->nFanins + pFaninNew->nFanouts++] = pObj;
}

Here is the call graph for this function:

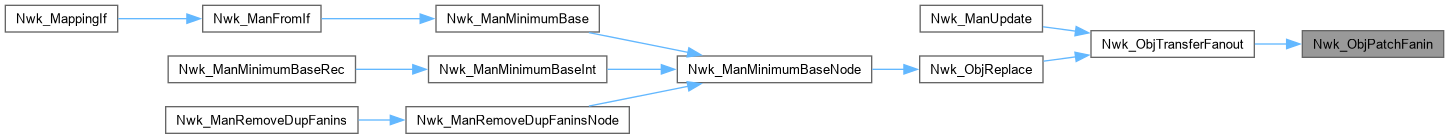

Here is the caller graph for this function:

Nwk_ObjReplace()

void Nwk_ObjReplace	(	Nwk_Obj_t *	pNodeOld,
		Nwk_Obj_t *	pNodeNew )

Function*************************************************************

Synopsis [Replaces the node by a new node.]

Description []

SideEffects []

SeeAlso []

Definition at line 302 of file nwkFanio.c.

{
    assert( pNodeOld->pMan == pNodeNew->pMan );
    assert( pNodeOld != pNodeNew );
    assert( Nwk_ObjFanoutNum(pNodeOld) > 0 );
    // transfer the fanouts to the old node
    Nwk_ObjTransferFanout( pNodeOld, pNodeNew );
    // remove the old node
    Nwk_ManDeleteNode_rec( pNodeOld );
}

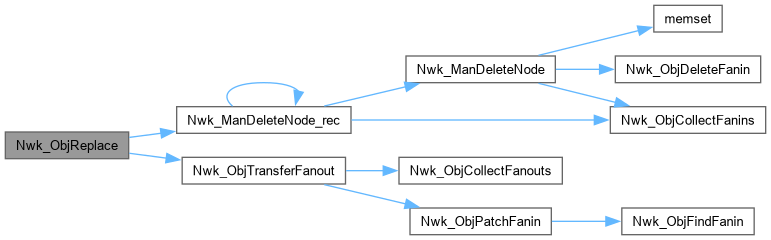

Here is the call graph for this function:

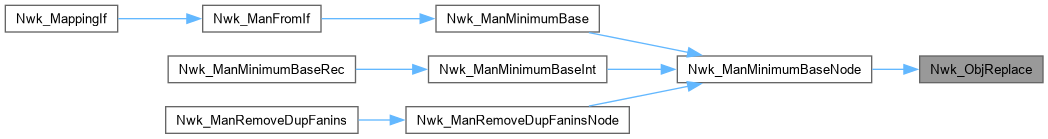

Here is the caller graph for this function:

Nwk_ObjTransferFanout()

void Nwk_ObjTransferFanout	(	Nwk_Obj_t *	pNodeFrom,
		Nwk_Obj_t *	pNodeTo )

Function*************************************************************

Synopsis [Transfers fanout from the old node to the new node.]

Description []

SideEffects []

SeeAlso []

Definition at line 272 of file nwkFanio.c.

{
    Vec_Ptr_t * vFanouts = pNodeFrom->pMan->vTemp;
    Nwk_Obj_t * pTemp;
    int nFanoutsOld, i;
    assert( !Nwk_ObjIsCo(pNodeFrom) && !Nwk_ObjIsCo(pNodeTo) );
    assert( pNodeFrom->pMan == pNodeTo->pMan );
    assert( pNodeFrom != pNodeTo );
    assert( Nwk_ObjFanoutNum(pNodeFrom) > 0 );
    // get the fanouts of the old node
    nFanoutsOld = Nwk_ObjFanoutNum(pNodeTo);
    Nwk_ObjCollectFanouts( pNodeFrom, vFanouts );
    // patch the fanin of each of them
    Vec_PtrForEachEntry( Nwk_Obj_t *, vFanouts, pTemp, i )
        Nwk_ObjPatchFanin( pTemp, pNodeFrom, pNodeTo );
    assert( Nwk_ObjFanoutNum(pNodeFrom) == 0 );
    assert( Nwk_ObjFanoutNum(pNodeTo) == nFanoutsOld + Vec_PtrSize(vFanouts) );
}

Here is the call graph for this function:

Here is the caller graph for this function:
