parseInt.h File Reference

#include "aig/hop/hop.h"
#include "misc/vec/vec.h"

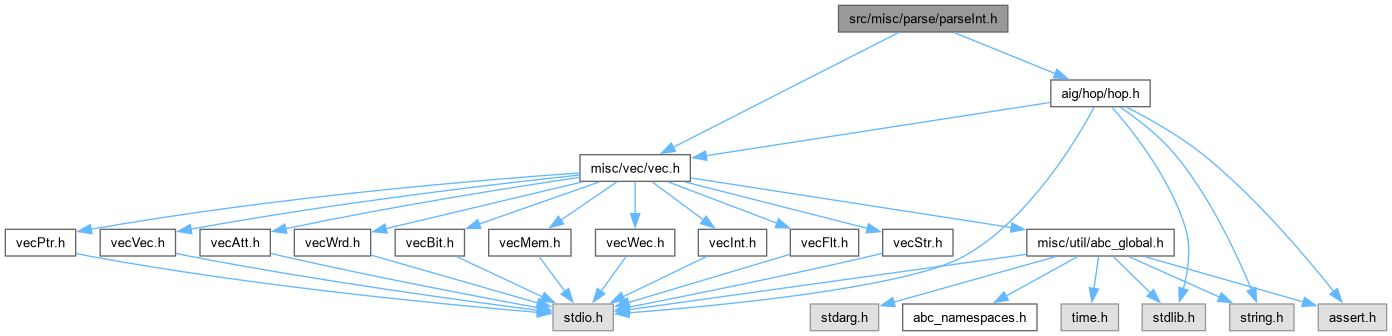

Include dependency graph for parseInt.h:

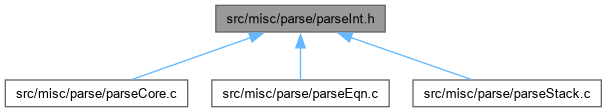

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct ParseStackFnStruct	Parse_StackFn_t
	INCLUDES ///.
typedef struct ParseStackOpStruct	Parse_StackOp_t

Functions
Parse_StackFn_t *	Parse_StackFnStart (int nDepth)
	GLOBAL VARIABLES ///.
int	Parse_StackFnIsEmpty (Parse_StackFn_t *p)
void	Parse_StackFnPush (Parse_StackFn_t *p, void *bFunc)
void *	Parse_StackFnPop (Parse_StackFn_t *p)
void	Parse_StackFnFree (Parse_StackFn_t *p)
Parse_StackOp_t *	Parse_StackOpStart (int nDepth)
int	Parse_StackOpIsEmpty (Parse_StackOp_t *p)
void	Parse_StackOpPush (Parse_StackOp_t *p, int Oper)
int	Parse_StackOpPop (Parse_StackOp_t *p)
void	Parse_StackOpFree (Parse_StackOp_t *p)

Typedef Documentation

Parse_StackFn_t

typedef typedefABC_NAMESPACE_HEADER_START struct ParseStackFnStruct Parse_StackFn_t

INCLUDES ///.

CFile****************************************************************

FileName [parseInt.h]

PackageName [MVSIS 2.0: Multi-valued logic synthesis system.]

Synopsis [Parsing symbolic Boolean formulas into BDDs.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - September 8, 2003.]

Revision [

Id

parseInt.h,v 1.0 2003/09/08 00:00:00 alanmi Exp

] PARAMETERS /// STRUCTURE DEFINITIONS ///

Definition at line 41 of file parseInt.h.

Parse_StackOp_t

typedef struct ParseStackOpStruct Parse_StackOp_t

Definition at line 42 of file parseInt.h.

Function Documentation

Parse_StackFnFree()

void Parse_StackFnFree ( Parse_StackFn_t * p )

extern

Function*************************************************************

Synopsis [Deletes the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 136 of file parseStack.c.

{
    ABC_FREE( p->pData );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Parse_StackFnIsEmpty()

int Parse_StackFnIsEmpty ( Parse_StackFn_t * p )

extern

Function*************************************************************

Synopsis [Checks whether the stack is empty.]

Description []

SideEffects []

SeeAlso []

Definition at line 78 of file parseStack.c.

{
    return (int)(p->Top == 0);
}

Here is the caller graph for this function:

Parse_StackFnPop()

void * Parse_StackFnPop ( Parse_StackFn_t * p )

extern

Function*************************************************************

Synopsis [Pops an entry out of the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 115 of file parseStack.c.

{
    if ( p->Top == 0 )
    {
        printf( "Parse_StackFnPush(): Trying to extract data from the empty stack!\n" );
        return NULL;
    }
    return p->pData[ --p->Top ];
}

Here is the caller graph for this function:

Parse_StackFnPush()

void Parse_StackFnPush ( Parse_StackFn_t * p, void * bFunc )

extern

Function*************************************************************

Synopsis [Pushes an entry into the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 94 of file parseStack.c.

{
    if ( p->Top >= p->Size )
    {
        printf( "Parse_StackFnPush(): Stack size is too small!\n" );
        return;
    }
    p->pData[ p->Top++ ] = bFunc;
}

Here is the caller graph for this function:

Parse_StackFnStart()

Parse_StackFn_t * Parse_StackFnStart ( int nDepth )

extern

GLOBAL VARIABLES ///.

MACRO DEFINITIONS /// FUNCTION DEFINITIONS ///

GLOBAL VARIABLES ///.

Function*************************************************************

Synopsis [Starts the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 57 of file parseStack.c.

{
    Parse_StackFn_t * p;
    p = ABC_ALLOC( Parse_StackFn_t, 1 );
    memset( p, 0, sizeof(Parse_StackFn_t) );
    p->pData = ABC_ALLOC( void *, nDepth );
    p->Size = nDepth;
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Parse_StackOpFree()

void Parse_StackOpFree ( Parse_StackOp_t * p )

extern

Function*************************************************************

Synopsis [Deletes the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 235 of file parseStack.c.

{
    ABC_FREE( p->pData );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Parse_StackOpIsEmpty()

int Parse_StackOpIsEmpty ( Parse_StackOp_t * p )

extern

Function*************************************************************

Synopsis [Checks whether the stack is empty.]

Description []

SideEffects []

SeeAlso []

Definition at line 177 of file parseStack.c.

{
    return (int)(p->Top == 0);
}

Here is the caller graph for this function:

Parse_StackOpPop()

int Parse_StackOpPop ( Parse_StackOp_t * p )

extern

Function*************************************************************

Synopsis [Pops an entry out of the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 214 of file parseStack.c.

{
    if ( p->Top == 0 )
    {
        printf( "Parse_StackOpPush(): Trying to extract data from the empty stack!\n" );
        return -1;
    }
    return p->pData[ --p->Top ];
}

Here is the caller graph for this function:

Parse_StackOpPush()

void Parse_StackOpPush ( Parse_StackOp_t * p, int Oper )

extern

Function*************************************************************

Synopsis [Pushes an entry into the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 193 of file parseStack.c.

{
    if ( p->Top >= p->Size )
    {
        printf( "Parse_StackOpPush(): Stack size is too small!\n" );
        return;
    }
    p->pData[ p->Top++ ] = Oper;
}

Here is the caller graph for this function:

Parse_StackOpStart()

Parse_StackOp_t * Parse_StackOpStart ( int nDepth )

extern

Function*************************************************************

Synopsis [Starts the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 156 of file parseStack.c.

{
    Parse_StackOp_t * p;
    p = ABC_ALLOC( Parse_StackOp_t, 1 );
    memset( p, 0, sizeof(Parse_StackOp_t) );
    p->pData = ABC_ALLOC( int, nDepth );
    p->Size = nDepth;
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:
