place_bin.c File Reference

#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <limits.h>
#include <assert.h>
#include "place_base.h"

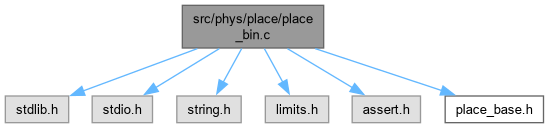

Include dependency graph for place_bin.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	spreadDensityX (int numBins, float maxMovement)
void	spreadDensityY (int numBins, float maxMovement)
void	globalFixDensity (int numBins, float maxMovement)
	Doesn't deal well with fixed cells in the core area.

Function Documentation

globalFixDensity()

void globalFixDensity	(	int	numBins,
		float	maxMovement )

Doesn't deal well with fixed cells in the core area.

Definition at line 43 of file place_bin.c.

                                                      {

  printf("QCLN-10 : \tbin-based density correction\n");

  spreadDensityX(numBins, maxMovement);
  // spreadDensityY(numBins, maxMovement);
}

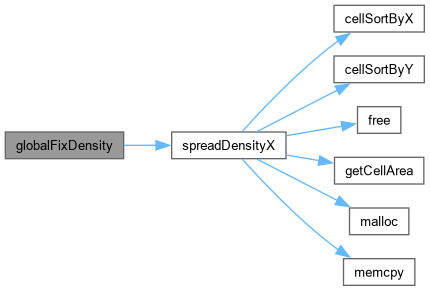

Here is the call graph for this function:

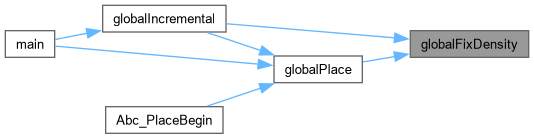

Here is the caller graph for this function:

spreadDensityX()

void spreadDensityX	(	int	numBins,
		float	maxMovement )

Definition at line 56 of file place_bin.c.

                                                    {

  int c, c2, c3, x, y;
  float totalArea = 0;
  int moveableCells = 0;
  float yBinArea = 0,  yCumArea = 0;
  int   yBinStart = 0, yBinCount = 0;
  int  xBinCount, xBinStart;
  float xBinArea, xCumArea;
  float lastOldEdge;
  float lastNewEdge;
  float curOldEdge, curNewEdge;
  float stretch, w;
  ConcreteCell *xCell, *yCell;
  ConcreteCell **binCells;
  ConcreteCell **allCells;

  binCells = (ConcreteCell **)malloc(sizeof(ConcreteCell*)*g_place_numCells);
  allCells = (ConcreteCell **)malloc(sizeof(ConcreteCell*)*g_place_numCells);

  for(c=0; c<g_place_numCells; c++) if (g_place_concreteCells[c]) {
    ConcreteCell *cell =  g_place_concreteCells[c];
    if (!cell->m_fixed && !cell->m_parent->m_pad) {
      allCells[moveableCells++] = cell;
      totalArea += getCellArea(cell);
    }
  }

  // spread X
  qsort(allCells, (size_t)moveableCells, sizeof(ConcreteCell*), cellSortByY);

  y = 0;

  // for each y-bin...
  for(c=0; c<moveableCells; c++) {
    yCell = allCells[c];
    yBinArea += getCellArea(yCell);
    yCumArea += getCellArea(yCell);
    yBinCount++;

    // have we filled up a y-bin?
    if (yCumArea >= totalArea*(y+1)/numBins && yBinArea > 0) {
      memcpy(binCells, &(allCells[yBinStart]), sizeof(ConcreteCell*)*yBinCount);
      qsort(binCells, (size_t)yBinCount, sizeof(ConcreteCell*), cellSortByX);

#if defined(DEBUG)
      printf("y-bin %d count=%d area=%f\n",y,yBinCount, yBinArea);
#endif

      x = 0;
      xBinCount = 0, xBinStart =  0;
      xBinArea = 0, xCumArea = 0;
      lastOldEdge = g_place_coreBounds.x;
      lastNewEdge = g_place_coreBounds.x;

      // for each x-bin...
      for(c2=0; c2<yBinCount; c2++) {
        xCell = binCells[c2];
        xBinArea += getCellArea(xCell);
        xCumArea += getCellArea(xCell);
        xBinCount++;
        curOldEdge = xCell->m_x;

        printf("%.3f ", xCell->m_x);

        // have we filled up an x-bin?
        if (xCumArea >= yBinArea*(x+1)/numBins && xBinArea > 0) {
          curNewEdge = lastNewEdge + g_place_coreBounds.w*xBinArea/yBinArea;

          if (curNewEdge > g_place_coreBounds.x+g_place_coreBounds.w)
            curNewEdge = g_place_coreBounds.x+g_place_coreBounds.w;
          if ((curNewEdge-curOldEdge)>maxMovement) curNewEdge = curOldEdge + maxMovement;
          if ((curOldEdge-curNewEdge)>maxMovement) curNewEdge = curOldEdge - maxMovement;

#if defined(DEBUG)
          printf("->\tx-bin %d count=%d area=%f (%f,%f)->(%f,%f)\n",x, xBinCount, xBinArea,
                 curOldEdge, lastOldEdge, curNewEdge, lastNewEdge);
#endif

          stretch = (curNewEdge-lastNewEdge)/(curOldEdge-lastOldEdge);

          // stretch!
          for(c3=xBinStart; c3<xBinStart+xBinCount; c3++) {
            if (curOldEdge == lastOldEdge)
              binCells[c3]->m_x = lastNewEdge+(c3-xBinStart)*(curNewEdge-lastNewEdge);
            else
              binCells[c3]->m_x = lastNewEdge+(binCells[c3]->m_x-lastOldEdge)*stretch;

              // force within core
            w = binCells[c3]->m_parent->m_width*0.5;
            if (binCells[c3]->m_x-w < g_place_coreBounds.x)
              binCells[c3]->m_x = g_place_coreBounds.x+w;
            if (binCells[c3]->m_x+w > g_place_coreBounds.x+g_place_coreBounds.w)
              binCells[c3]->m_x = g_place_coreBounds.x+g_place_coreBounds.w-w;
          }

          lastOldEdge = curOldEdge;
          lastNewEdge = curNewEdge;
          x++;
          xBinCount = 0;
          xBinArea = 0;
          xBinStart = c2+1;
        }
      }

      y++;
      yBinCount = 0;
      yBinArea = 0;
      yBinStart = c+1;
    }
  }

  free(binCells);
  free(allCells);
}

Here is the call graph for this function:

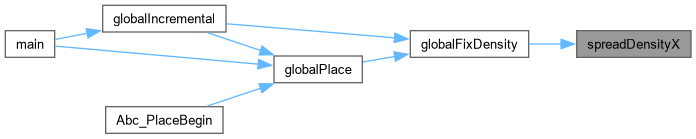

Here is the caller graph for this function:

spreadDensityY()

void spreadDensityY	(	int	numBins,
		float	maxMovement )

Definition at line 177 of file place_bin.c.

                                                    {

  int c, c2, c3, x, y;
  float totalArea = 0;
  int moveableCells = 0;
  float xBinArea = 0,  xCumArea = 0;
  int   xBinStart = 0, xBinCount = 0;
  int   yBinCount, yBinStart;
  float yBinArea, yCumArea;
  float lastOldEdge;
  float lastNewEdge;
  float curOldEdge, curNewEdge;
  float stretch, h;
  ConcreteCell *xCell, *yCell;
  ConcreteCell **binCells;
  ConcreteCell **allCells;

  binCells = (ConcreteCell **)malloc(sizeof(ConcreteCell*)*g_place_numCells);
  allCells = (ConcreteCell **)malloc(sizeof(ConcreteCell*)*g_place_numCells);

  for(c=0; c<g_place_numCells; c++) if (g_place_concreteCells[c]) {
    ConcreteCell *cell =  g_place_concreteCells[c];
    if (!cell->m_fixed && !cell->m_parent->m_pad) {
      allCells[moveableCells++] = cell;
      totalArea += getCellArea(cell);
    }
  }

  // spread Y
  qsort(allCells, moveableCells, sizeof(ConcreteCell*), cellSortByX);

  x = 0;

  // for each x-bin...
  for(c=0; c<moveableCells; c++) {
    xCell = allCells[c];
    xBinArea += getCellArea(xCell);
    xCumArea += getCellArea(xCell);
    xBinCount++;

    // have we filled up an x-bin?
    if (xCumArea >= totalArea*(x+1)/numBins && xBinArea > 0) {
      memcpy(binCells, &(allCells[xBinStart]), sizeof(ConcreteCell*)*xBinCount);
      qsort(binCells, (size_t)xBinCount, sizeof(ConcreteCell*), cellSortByY);

      // printf("x-bin %d count=%d area=%f\n",y,yBinCount, yBinArea);

      y = 0;
      yBinCount = 0, yBinStart =  0;
      yBinArea = 0, yCumArea = 0;
      lastOldEdge = g_place_coreBounds.y;
      lastNewEdge = g_place_coreBounds.y;

      // for each y-bin...
      for(c2=0; c2<xBinCount; c2++) {
        yCell = binCells[c2];
        yBinArea += getCellArea(yCell);
        yCumArea += getCellArea(yCell);
        yBinCount++;
        curOldEdge = yCell->m_y;

        // have we filled up an x-bin?
        if (yCumArea >= xBinArea*(y+1)/numBins && yBinArea > 0) {
          curNewEdge = lastNewEdge + g_place_coreBounds.h*yBinArea/xBinArea;

          if (curNewEdge > g_place_coreBounds.y+g_place_coreBounds.h)
            curNewEdge = g_place_coreBounds.y+g_place_coreBounds.h;
          if ((curNewEdge-curOldEdge)>maxMovement) curNewEdge = curOldEdge + maxMovement;
          if ((curOldEdge-curNewEdge)>maxMovement) curNewEdge = curOldEdge - maxMovement;

          if (curOldEdge == lastOldEdge) continue; // hmmm
          stretch = (curNewEdge-lastNewEdge)/(curOldEdge-lastOldEdge);

          // stretch!
          for(c3=yBinStart; c3<yBinStart+yBinCount; c3++) {
            binCells[c3]->m_y = lastNewEdge+(binCells[c3]->m_y-lastOldEdge)*stretch;

            // force within core
            h = binCells[c3]->m_parent->m_height;
            if (binCells[c3]->m_y-h < g_place_coreBounds.y)
              binCells[c3]->m_y = g_place_coreBounds.y+h;
            if (binCells[c3]->m_y+h > g_place_coreBounds.y+g_place_coreBounds.h)
              binCells[c3]->m_y = g_place_coreBounds.y+g_place_coreBounds.h-h;
          }

          lastOldEdge = curOldEdge;
          lastNewEdge = curNewEdge;
          y++;
          yBinCount = 0;
          yBinArea = 0;
          yBinStart = c2+1;
        }
      }

      x++;
      xBinCount = 0;
      xBinArea = 0;
      xBinStart = c+1;
    }
  }

  free(binCells);
  free(allCells);
}

Here is the call graph for this function:
