place_gordian.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <assert.h>
#include <limits.h>
#include "place_gordian.h"
#include "place_base.h"

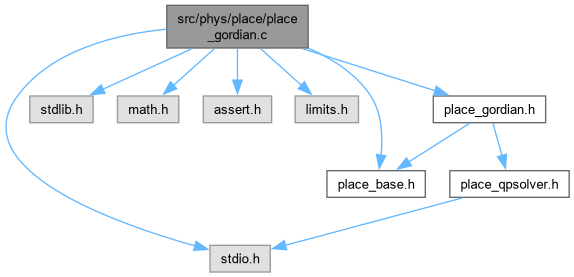

Include dependency graph for place_gordian.c:

Go to the source code of this file.

Functions
void	globalPlace ()
	Performs analytic placement using a GORDIAN-like algorithm.
void	globalIncremental ()
	Performs analytic placement using a GORDIAN-like algorithm.
void	sanitizePlacement ()
	Moves any cells that are outside of the core bounds to the nearest location within.

Variables
ABC_NAMESPACE_IMPL_START int	g_place_numPartitions

Function Documentation

globalIncremental()

void globalIncremental

(

)

Performs analytic placement using a GORDIAN-like algorithm.

Requires a valid set of partitions.

Definition at line 94 of file place_gordian.c.

                           {
  if (!g_place_rootPartition) {
    printf("WARNING: Can not perform incremental placement\n");
    globalPlace();
    return;
  }

  printf("PLAC-10 : Incremental global placement\n");

  incrementalPartition();

  printf("QMAN-00 : \tconstructing initial quadratic problem...\n");
  constructQuadraticProblem();

  solveQuadraticProblem(!IGNORE_COG);
  printf("QMAN-01 : \t\twirelength = %e\n", getTotalWirelength());

  // clean up
  sanitizePlacement();
  printf("QMAN-01 : \t\twirelength = %e\n", getTotalWirelength());
  globalFixDensity(25, g_place_rowHeight*5);
  printf("QMAN-01 : \t\twirelength = %e\n", getTotalWirelength());
}

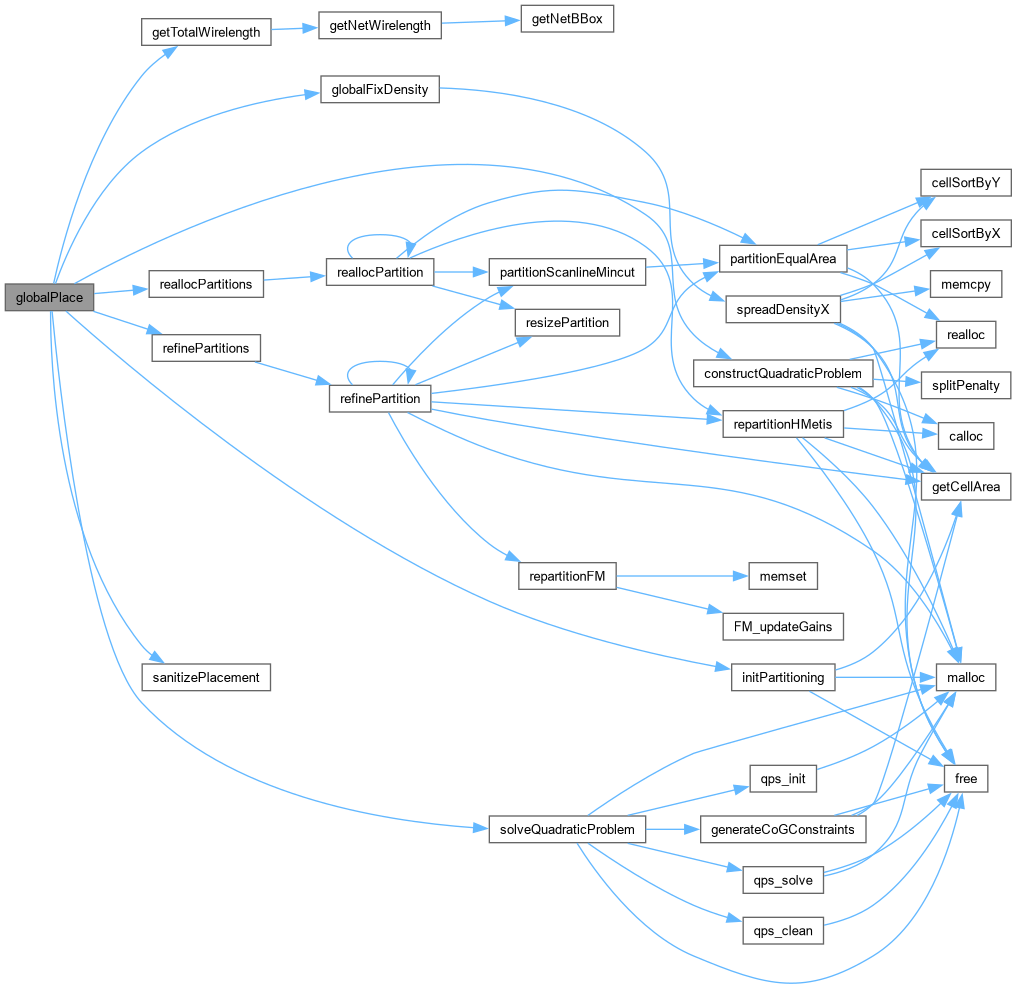

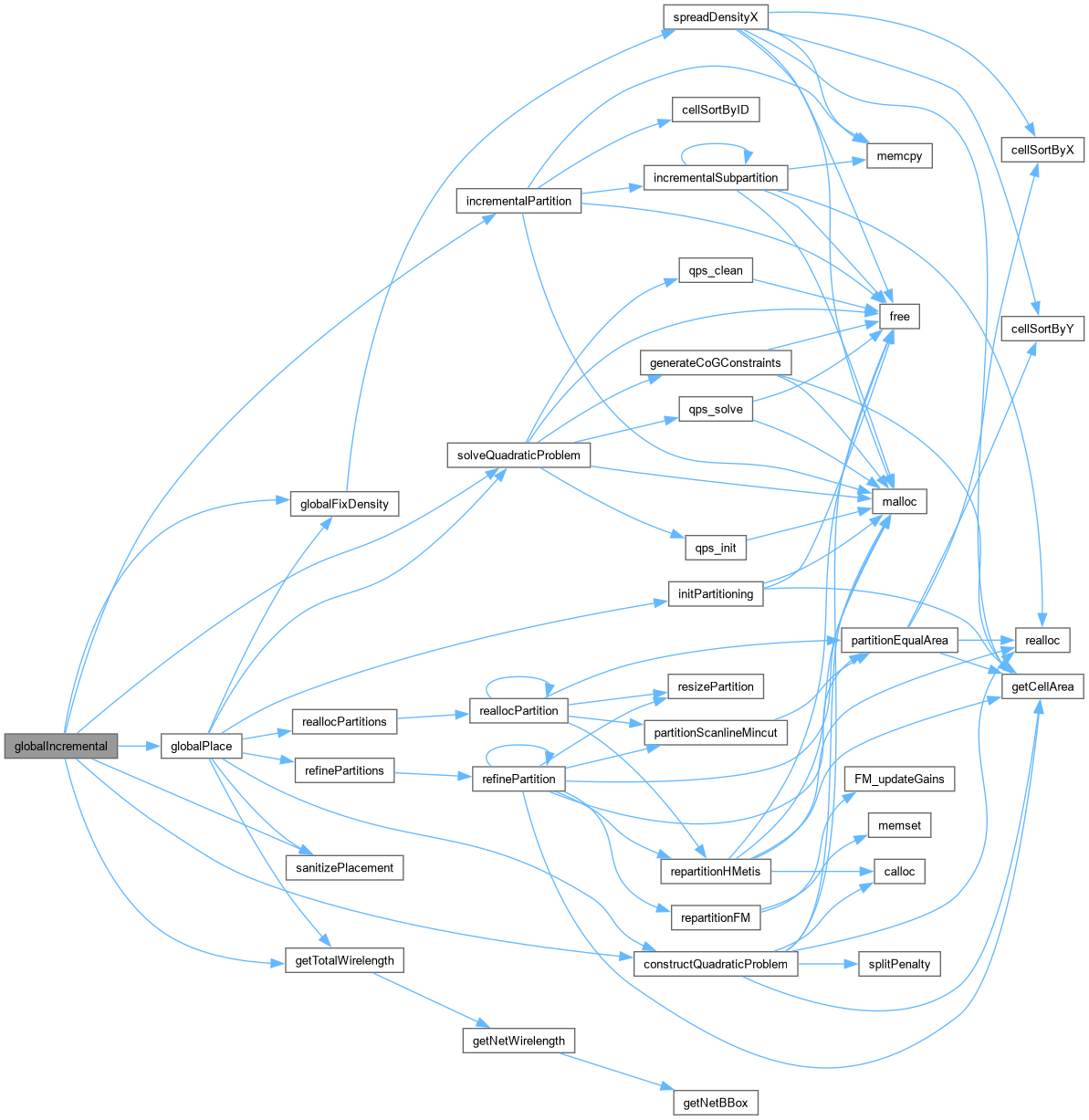

Here is the call graph for this function:

Here is the caller graph for this function:

globalPlace()

void globalPlace

(

)

Performs analytic placement using a GORDIAN-like algorithm.

Updates the positions of all non-fixed non-pad cells.

Definition at line 39 of file place_gordian.c.

                   {
  bool completionFlag = false;
  int iteration = 0;

  printf("PLAC-10 : Global placement (wirelength-driven Gordian)\n");

  initPartitioning();

  // build matrices representing interconnections
  printf("QMAN-00 : \tconstructing initial quadratic problem...\n");
  constructQuadraticProblem();

  // iterate placement until termination condition is met
  while(!completionFlag) {
    printf("QMAN-01 : \titeration %d numPartitions = %d\n",iteration,g_place_numPartitions);

    // do the global optimization in each direction
    printf("QMAN-01 : \t\tglobal optimization\n");
    solveQuadraticProblem(!IGNORE_COG);

    // -------- PARTITIONING BASED CELL SPREADING ------

    // bisection
    printf("QMAN-01 : \t\tpartition refinement\n");
    if (REALLOCATE_PARTITIONS) reallocPartitions();
    completionFlag |= refinePartitions();

    printf("QMAN-01 : \t\twirelength = %e\n", getTotalWirelength());

    iteration++;
  }

  // final global optimization
  printf("QMAN-02 : \t\tfinal pass\n");
  if (FINAL_REALLOCATE_PARTITIONS) reallocPartitions();
  solveQuadraticProblem(!IGNORE_COG);
  printf("QMAN-01 : \t\twirelength = %e\n", getTotalWirelength());

  // clean up
  sanitizePlacement();
  printf("QMAN-01 : \t\twirelength = %e\n", getTotalWirelength());
  globalFixDensity(25, g_place_rowHeight*5);
  printf("QMAN-01 : \t\twirelength = %e\n", getTotalWirelength());
}

Here is the call graph for this function:

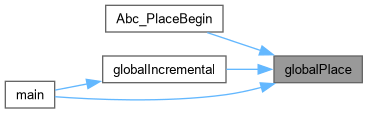

Here is the caller graph for this function:

sanitizePlacement()

void sanitizePlacement

(

)

Moves any cells that are outside of the core bounds to the nearest location within.

Definition at line 125 of file place_gordian.c.

                         {
  int c;
  float order_width = g_place_rowHeight;
  float x, y, edge, w, h;

  printf("QCLN-10 : \tsanitizing placement\n");

  for(c=0; c<g_place_numCells; c++) if (g_place_concreteCells[c]) {
    ConcreteCell *cell = g_place_concreteCells[c];
    if (cell->m_fixed || cell->m_parent->m_pad) {
      continue;
    }
    // the new locations of the cells will be distributed within
    // a small margin inside the border so that ordering is preserved
    order_width = g_place_rowHeight;

    x = cell->m_x, y = cell->m_y,
      w = cell->m_parent->m_width, h = cell->m_parent->m_height;

    if ((edge=x-w*0.5) < g_place_coreBounds.x) {
      x = g_place_coreBounds.x+w*0.5 +
        order_width/(1.0+g_place_coreBounds.x-edge);
    }
    else if ((edge=x+w*0.5) > g_place_coreBounds.x+g_place_coreBounds.w) {
      x = g_place_coreBounds.x+g_place_coreBounds.w-w*0.5 -
        order_width/(1.0+edge-g_place_coreBounds.x-g_place_coreBounds.w);
    }
    if ((edge=y-h*0.5) < g_place_coreBounds.y) {
      y = g_place_coreBounds.y+h*0.5 +
        order_width/(1.0+g_place_coreBounds.y-edge);
    }
    else if ((edge=y+h*0.5) > g_place_coreBounds.y+g_place_coreBounds.h) {
      y = g_place_coreBounds.y+g_place_coreBounds.h-h*0.5 -
        order_width/(1.0+edge-g_place_coreBounds.x-g_place_coreBounds.w);
    }
    cell->m_x = x;
    cell->m_y = y;
  }
}

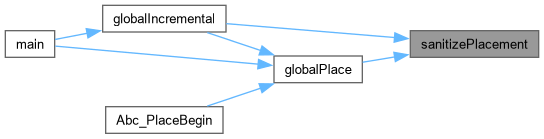

Here is the caller graph for this function:

Variable Documentation

g_place_numPartitions

ABC_NAMESPACE_IMPL_START int g_place_numPartitions

Definition at line 28 of file place_gordian.c.
