place_test.c File Reference

#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <assert.h>
#include "place_base.h"

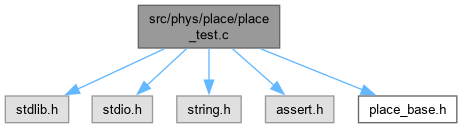

Include dependency graph for place_test.c:

Go to the source code of this file.

Classes
struct	hash_element

Functions
int	hash_string (int hash_max, const char *str)
void	hash_add (struct hash_element **hash, int hash_max, ConcreteCell *cell)
ConcreteCell *	hash_find (struct hash_element **hash, int hash_max, const char *str)
void	readBookshelfNets (char *filename)
void	readBookshelfNodes (char *filename)
void	readBookshelfPlacement (char *filename)
void	writeBookshelfPlacement (char *filename)
void	delNetConnections (ConcreteCell *cell)
int	main (int argc, char **argv)

Variables
ABC_NAMESPACE_IMPL_START struct hash_element	hash_element
struct hash_element **	hash_cellname
int	numCells = 0
int	numNets = 0
AbstractCell *	abstractCells
ConcreteCell *	concreteCells
ConcreteNet *	concreteNets

Function Documentation

delNetConnections()

void delNetConnections

(

ConcreteCell *

cell

)

Definition at line 294 of file place_test.c.

                                           {
  int n, t, t2, count = 0;
  ConcreteCell **old = malloc(sizeof(ConcreteCell*)*g_place_numCells);

  for(n=0; n<g_place_numNets; n++) if (g_place_concreteNets[n]) {
    ConcreteNet *net = g_place_concreteNets[n];
    count = 0;
    for(t=0; t<net->m_numTerms; t++)
      if (net->m_terms[t] == cell) count++;
    if (count) {
      memcpy(old, net->m_terms, sizeof(ConcreteCell*)*net->m_numTerms);
      net->m_terms = realloc(net->m_terms,
                             sizeof(ConcreteCell*)*(net->m_numTerms-count));
      t2 = 0;
      for(t=0; t<net->m_numTerms; t++)
        if (old[t] != cell) net->m_terms[t2++] = old[t];
      net->m_numTerms -= count;
    }
  }
  free(old);
}

Here is the call graph for this function:

hash_add()

void hash_add	(	struct hash_element **	hash,
		int	hash_max,
		ConcreteCell *	cell )

Definition at line 38 of file place_test.c.

                                  {
  int key = hash_string(hash_max, cell->m_label);
  // printf("adding %s key = %d\n", cell->m_label, key);
  struct hash_element *element = malloc(sizeof(struct hash_element));
  assert(element);
  element->obj = cell;
  element->next = hash[key];
  hash[key] = element;
}

Here is the call graph for this function:

Here is the caller graph for this function:

hash_find()

ConcreteCell * hash_find	(	struct hash_element **	hash,
		int	hash_max,
		const char *	str )

Definition at line 49 of file place_test.c.

                                                                                   {
  int key = hash_string(hash_max, str);
  // printf("looking for %s key = %d\n", str, key);
  struct hash_element *next = hash[key];
  while(next) {
    if (!strcmp(str, next->obj->m_label))
      return next->obj;
    next = next->next;
  }
  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

hash_string()

int hash_string	(	int	hash_max,
		const char *	str )

Definition at line 30 of file place_test.c.

                                               {
  unsigned int hash = 0;
  int p;
  for(p = 0; p<strlen(str); p++)
    hash += str[p]*p;
  return hash % hash_max;
}

Here is the call graph for this function:

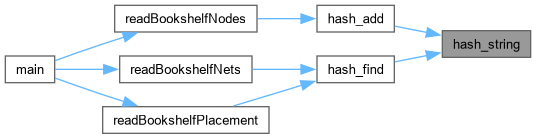

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv )

Definition at line 316 of file place_test.c.

                                {

  if (argc != 4) {
    printf("Usage: %s [nodes] [nets] [pl]\n", argv[0]);
    exit(1);
  }

  readBookshelfNodes(argv[1]);
  readBookshelfNets(argv[2]);
  readBookshelfPlacement(argv[3]);

  globalPreplace(0.8);
  globalPlace();

  // DEBUG net/cell removal/addition
  /*
  int i;
  for(i=1000; i<2000; i++) {
    delConcreteNet(g_place_concreteNets[i]);
    delNetConnections(g_place_concreteCells[i]);
    delConcreteCell(g_place_concreteCells[i]);
  }

  ConcreteCell newCell[2];
  newCell[0].m_id = g_place_numCells+1;
  newCell[0].m_x = 1000;
  newCell[0].m_y = 1000;
  newCell[0].m_fixed = false;
  newCell[0].m_parent = &(abstractCells[1000]);
  newCell[0].m_label = " ";
  addConcreteCell(&newCell[0]);
  newCell[1].m_id = g_place_numCells+3;
  newCell[1].m_x = 1000;
  newCell[1].m_y = 1000;
  newCell[1].m_fixed = false;
  newCell[1].m_parent = &(abstractCells[1000]);
  newCell[1].m_label = " ";
  addConcreteCell(&newCell[1]);
  */

  globalIncremental();

  writeBookshelfPlacement(argv[3]);

  free(hash_cellname);

  return 0;
}

Here is the call graph for this function:

readBookshelfNets()

void readBookshelfNets

(

char *

filename

)

Definition at line 79 of file place_test.c.

                                       {
  char *tok;
  char buf[1024];
  const char *DELIMITERS = " \n\t:";
  int id = 0;
  int t;
  ConcreteCell *cell;

  FILE *netsFile = fopen(filename, "r");
  if (!netsFile) {
    printf("ERROR: Could not open .nets file\n");
    exit(1);
  }

  // line 1 : version
  while (fgets(buf, 1024, netsFile) && (buf[0] == '\n' || buf[0] == '#'));

  // line 2 : number of nets
  while (fgets(buf, 1024, netsFile) && (buf[0] == '\n' || buf[0] == '#'));
  tok = strtok(buf, DELIMITERS);
  tok = strtok(NULL, DELIMITERS);
  numNets = atoi(tok);
  printf("READ-20 : number of nets = %d\n", numNets);
  concreteNets = malloc(sizeof(ConcreteNet)*numNets);

  // line 3 : number of pins
  while (fgets(buf, 1024, netsFile) && (buf[0] == '\n' || buf[0] == '#'));

  // line XXX : net definitions
  while(fgets(buf, 1024, netsFile)) {
    if (buf[0] == '\n' || buf[0] == '#') continue;

    concreteNets[id].m_id = id;
    concreteNets[id].m_weight = 1.0;

    tok = strtok(buf, DELIMITERS);
    if (!!strcmp(tok, "NetDegree")) {
      printf("%s\n",buf);
      printf("ERROR: Incorrect format in .nets file\n");
      exit(1);
    }

    tok = strtok(NULL, DELIMITERS);
    concreteNets[id].m_numTerms = atoi(tok);
    if (concreteNets[id].m_numTerms < 0 ||
        concreteNets[id].m_numTerms > 100000) {
      printf("ERROR: Bad net degree\n");
      exit(1);
    }
    concreteNets[id].m_terms = malloc(sizeof(ConcreteCell*)*
         concreteNets[id].m_numTerms);

    // read terms
    t = 0;
    while(t < concreteNets[id].m_numTerms &&
          fgets(buf, 1024, netsFile)) {
      if (buf[0] == '\n' || buf[0] == '#') continue;

      // cell name
      tok = strtok(buf, DELIMITERS);
      cell = hash_find(hash_cellname, numCells, tok);
      if (!cell) {
        printf("ERROR: Could not find cell %s in .nodes file\n", tok);
        exit(1);
      }
      concreteNets[id].m_terms[t] = cell;
      t++;
    }

    // add!
    addConcreteNet(&(concreteNets[id]));

    id++;
  }

  fclose(netsFile);
}

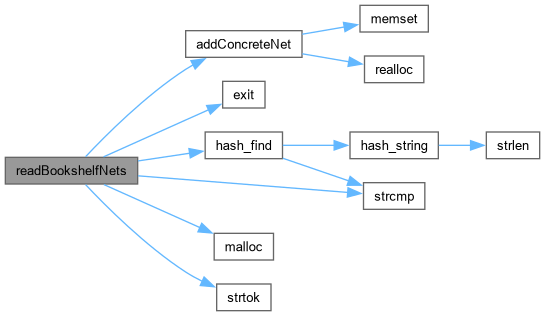

Here is the call graph for this function:

Here is the caller graph for this function:

readBookshelfNodes()

void readBookshelfNodes

(

char *

filename

)

Definition at line 157 of file place_test.c.

                                        {
  char *tok;
  char buf[1024];
  const char *DELIMITERS = " \n\t:";
  int id = 0;

  FILE *nodesFile = fopen(filename, "r");
  if (!nodesFile) {
    printf("ERROR: Could not open .nodes file\n");
    exit(1);
  }

  // line 1 : version
  while (fgets(buf, 1024, nodesFile) && (buf[0] == '\n' || buf[0] == '#'));

  // line 2 : num nodes
  while (fgets(buf, 1024, nodesFile) && (buf[0] == '\n' || buf[0] == '#'));
  tok = strtok(buf, DELIMITERS);
  tok = strtok(NULL, DELIMITERS);
  numCells = atoi(tok);
  printf("READ-10 : number of cells = %d\n", numCells);
  concreteCells = malloc(sizeof(ConcreteCell)*numCells);
  abstractCells = malloc(sizeof(AbstractCell)*numCells);
  hash_cellname = calloc(numCells, sizeof(struct hash_element*));

  // line 3 : num terminals
  while (fgets(buf, 1024, nodesFile) && (buf[0] == '\n' || buf[0] == '#'));

  // line XXX : cell definitions
  while(fgets(buf, 1024, nodesFile)) {
    if (buf[0] == '\n' || buf[0] == '#') continue;

    tok = strtok(buf, DELIMITERS);
    concreteCells[id].m_id = id;;

    // label
    concreteCells[id].m_parent = &(abstractCells[id]);
    concreteCells[id].m_label = malloc(sizeof(char)*strlen(tok)+1);
    strcpy(concreteCells[id].m_label, tok);
    abstractCells[id].m_label = concreteCells[id].m_label;
    hash_add(hash_cellname, numCells,
             &(concreteCells[id]));

    // dimensions
    tok = strtok(NULL, DELIMITERS);
    abstractCells[id].m_width = atof(tok);
    tok = strtok(NULL, DELIMITERS);
    abstractCells[id].m_height = atof(tok);
    tok = strtok(NULL, DELIMITERS);
    // terminal
    abstractCells[id].m_pad = tok && !strcmp(tok, "terminal");

    // add!
    addConcreteCell(&(concreteCells[id]));

    // DEBUG
    /*
    printf("\"%s\" : %f x %f\n", concreteCells[id].m_label,
           abstractCells[id].m_width,
           abstractCells[id].m_height);
    */
    id++;
  }

  fclose(nodesFile);
}

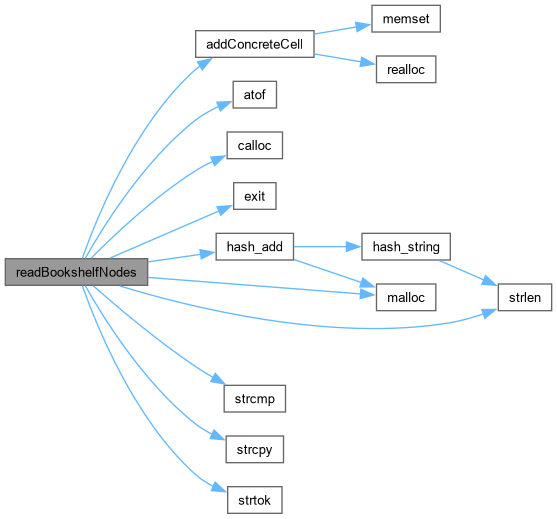

Here is the call graph for this function:

Here is the caller graph for this function:

readBookshelfPlacement()

void readBookshelfPlacement

(

char *

filename

)

Definition at line 224 of file place_test.c.

                                            {
  char *tok;
  char buf[1024];
  const char *DELIMITERS = " \n\t:";
  ConcreteCell *cell;

  FILE *plFile = fopen(filename, "r");
  FILE *netsFile = fopen(filename, "r");
  if (!plFile) {
    printf("ERROR: Could not open .pl file\n");
    exit(1);
  }
  if (!netsFile) {
    printf("ERROR: Could not open .nets file\n");
    exit(1);
  }

  // line 1 : version
  while (fgets(buf, 1024, plFile) && (buf[0] == '\n' || buf[0] == '#'));

  // line XXX : placement definitions
  while(fgets(buf, 1024, plFile)) {
    if (buf[0] == '\n' || buf[0] == '#') continue;

    tok = strtok(buf, DELIMITERS);

    // cell name
    cell = hash_find(hash_cellname, numCells, tok);
    if (!cell) {
      printf("ERROR: Could not find cell %s in .nodes file\n",tok);
      exit(1);
    }

    // position
    tok = strtok(NULL, DELIMITERS);
    cell->m_x = atof(tok);
    tok = strtok(NULL, DELIMITERS);
    cell->m_y = atof(tok);

    // hfixed
    cell->m_fixed = strtok(NULL, DELIMITERS) &&
      (tok = strtok(NULL, DELIMITERS)) &&
      !strcmp(tok, "\\FIXED");
  }

  fclose(plFile);
}

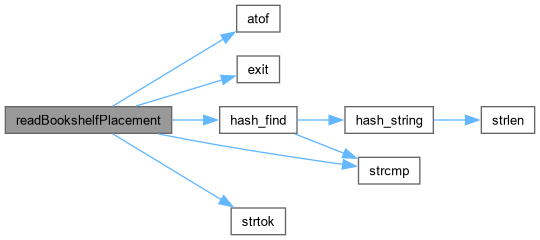

Here is the call graph for this function:

Here is the caller graph for this function:

writeBookshelfPlacement()

void writeBookshelfPlacement

(

char *

filename

)

Definition at line 272 of file place_test.c.

                                             {
  int c = 0;

  FILE *plFile = fopen(filename, "w");
  if (!plFile) {
    printf("ERROR: Could not open .pl file\n");
    exit(1);
  }

  fprintf(plFile, "UCLA pl 1.0\n");
  for(c=0; c<numCells; c++) {
    fprintf(plFile, "%s %f %f : N %s\n",
            concreteCells[c].m_label,
            concreteCells[c].m_x,
            concreteCells[c].m_y,
            (concreteCells[c].m_fixed ? "\\FIXED" : ""));
  }

  fclose(plFile);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

abstractCells

AbstractCell* abstractCells

Definition at line 70 of file place_test.c.

concreteCells

ConcreteCell* concreteCells

Definition at line 71 of file place_test.c.

concreteNets

ConcreteNet* concreteNets

Definition at line 72 of file place_test.c.

hash_cellname

struct hash_element** hash_cellname

Definition at line 66 of file place_test.c.

hash_element

ABC_NAMESPACE_IMPL_START struct hash_element hash_element

numCells

int numCells = 0

Definition at line 68 of file place_test.c.

numNets

int numNets = 0

Definition at line 68 of file place_test.c.
