reoCore.c File Reference

#include "reo.h"

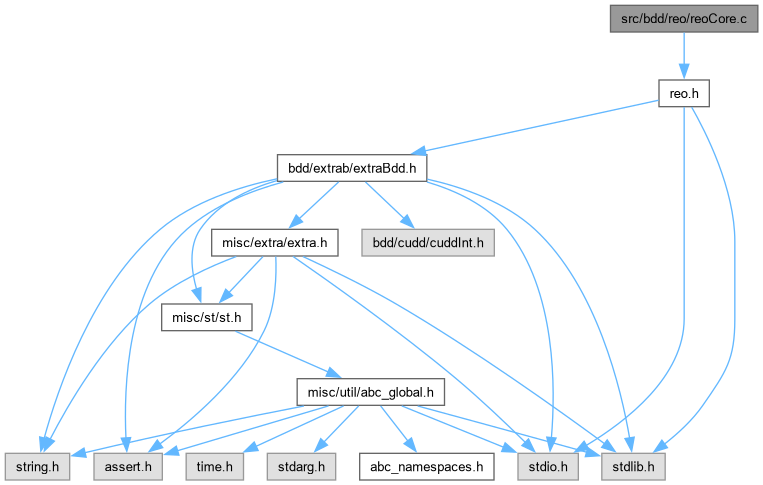

Include dependency graph for reoCore.c:

Go to the source code of this file.

Functions
void	reoReorderArray (reo_man *p, DdManager *dd, DdNode *Funcs[], DdNode *FuncsRes[], int nFuncs, int *pOrder)
	FUNCTION DEFINITIONS ///.
void	reoResizeStructures (reo_man *p, int nDdVarsMax, int nNodesMax, int nFuncs)

Variables
double	s_AplBefore
double	s_AplAfter

Function Documentation

reoReorderArray()

void reoReorderArray	(	reo_man *	p,
		DdManager *	dd,
		DdNode *	Funcs[],
		DdNode *	FuncsRes[],
		int	nFuncs,
		int *	pOrder )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 50 of file reoCore.c.

{
    int Counter, i;

    // set the initial parameters
    p->dd     = dd;
    p->pOrder = pOrder;
    p->nTops  = nFuncs;
    // get the initial number of nodes
    p->nNodesBeg = Cudd_SharingSize( Funcs, nFuncs );
    // resize the internal data structures of the manager if necessary
    reoResizeStructures( p, ddMax(dd->size,dd->sizeZ), p->nNodesBeg, nFuncs );
    // compute the support
    p->pSupp = Extra_VectorSupportArray( dd, Funcs, nFuncs, p->pSupp );
    // get the number of support variables
    p->nSupp = 0;
    for ( i = 0; i < dd->size; i++ )
        p->nSupp += p->pSupp[i];

    // if it is the constant function, no need to reorder
    if ( p->nSupp == 0 )
    {
        for ( i = 0; i < nFuncs; i++ )
        {
            FuncsRes[i] = Funcs[i]; Cudd_Ref( FuncsRes[i] );
        }
        return;
    }

    // create the internal variable maps
    // go through variable levels in the manager
    Counter = 0;
    for ( i = 0; i < dd->size; i++ )
        if ( p->pSupp[ dd->invperm[i] ] )
        {
            p->pMapToPlanes[ dd->invperm[i] ] = Counter;
            p->pMapToDdVarsOrig[Counter]      = dd->invperm[i];
            if ( !p->fRemapUp )
                p->pMapToDdVarsFinal[Counter] = dd->invperm[i];
            else
                p->pMapToDdVarsFinal[Counter] = dd->invperm[Counter];
            p->pOrderInt[Counter]        = Counter;
            Counter++;
        }

    // set the initial parameters
    p->nUnitsUsed = 0;
    p->nNodesCur  = 0;
    p->fThisIsAdd = 0;
    p->Signature++;
    // transfer the function from the CUDD package into REO"s internal data structure
    for ( i = 0; i < nFuncs; i++ )
        p->pTops[i] = reoTransferNodesToUnits_rec( p, Funcs[i] );
    assert( p->nNodesBeg == p->nNodesCur );

    if ( !p->fThisIsAdd && p->fMinWidth )
    {
        printf( "An important message from the REO reordering engine:\n" );
        printf( "The BDD given to the engine for reordering contains complemented edges.\n" );
        printf( "Currently, such BDDs cannot be reordered for the minimum width.\n" );
        printf( "Therefore, minimization for the number of BDD nodes is performed.\n" );
        fflush( stdout );
        p->fMinApl   = 0;
        p->fMinWidth = 0;
    }

    if ( p->fMinWidth )
        reoProfileWidthStart(p);
    else if ( p->fMinApl )
        reoProfileAplStart(p);
    else
        reoProfileNodesStart(p);

    if ( p->fVerbose )
    {
        printf( "INITIAL:\n" );
        if ( p->fMinWidth )
            reoProfileWidthPrint(p);
        else if ( p->fMinApl )
            reoProfileAplPrint(p);
        else
            reoProfileNodesPrint(p);
    }

    // performs the reordering
    p->nSwaps   = 0;
    p->nNISwaps = 0;
    for ( i = 0; i < p->nIters; i++ )
    {
        reoReorderSift( p );
        // print statistics after each iteration
        if ( p->fVerbose )
        {
            printf( "ITER #%d:\n", i+1 );
            if ( p->fMinWidth )
                reoProfileWidthPrint(p);
            else if ( p->fMinApl )
                reoProfileAplPrint(p);
            else
                reoProfileNodesPrint(p);
        }
        // if the cost function did not change, stop iterating
        if ( p->fMinWidth )
        {
            p->nWidthEnd = p->nWidthCur;
            assert( p->nWidthEnd <= p->nWidthBeg );
            if ( p->nWidthEnd == p->nWidthBeg )
                break;
        }
        else if ( p->fMinApl )
        {
            p->nAplEnd = p->nAplCur;
            assert( p->nAplEnd <= p->nAplBeg );
            if ( p->nAplEnd == p->nAplBeg )
                break;
        }
        else
        {
            p->nNodesEnd = p->nNodesCur;
            assert( p->nNodesEnd <= p->nNodesBeg );
            if ( p->nNodesEnd == p->nNodesBeg )
                break;
        }
    }
    assert( reoCheckLevels( p ) );

s_AplBefore = p->nAplBeg;
s_AplAfter  = p->nAplEnd;

    // set the initial parameters
    p->nRefNodes  = 0;
    p->nNodesCur  = 0;
    p->Signature++;
    // transfer the BDDs from REO's internal data structure to CUDD
    for ( i = 0; i < nFuncs; i++ )
    {
        FuncsRes[i] = reoTransferUnitsToNodes_rec( p, p->pTops[i] ); Cudd_Ref( FuncsRes[i] );
    }
    // undo the DDs referenced for storing in the cache
    for ( i = 0; i < p->nRefNodes; i++ )
        Cudd_RecursiveDeref( dd, p->pRefNodes[i] );
    // verify zero refs of the terminal nodes
    for ( i = 0; i < nFuncs; i++ )
    {
        assert( reoRecursiveDeref( p->pTops[i] ) );
    }
    assert( reoCheckZeroRefs( &(p->pPlanes[p->nSupp]) ) );

    // prepare the variable map to return to the user
    if ( p->pOrder )
    {
        // i is the current level in the planes data structure
        // p->pOrderInt[i] is the original level in the planes data structure
        // p->pMapToDdVarsOrig[i] is the variable, into which we remap when we construct the BDD from planes
        // p->pMapToDdVarsOrig[ p->pOrderInt[i] ] is the original BDD variable corresponding to this level
        // Therefore, p->pOrder[ p->pMapToDdVarsFinal[i] ] = p->pMapToDdVarsOrig[ p->pOrderInt[i] ]
        // creates the permutation, which remaps the resulting BDD variable into the original BDD variable
        for ( i = 0; i < p->nSupp; i++ )
            p->pOrder[ p->pMapToDdVarsFinal[i] ] = p->pMapToDdVarsOrig[ p->pOrderInt[i] ];
    }

    if ( p->fVerify )
    {
        int fVerification;
        DdNode * FuncRemapped;
        int * pOrder;

        if ( p->pOrder == NULL )
        {
            pOrder = ABC_ALLOC( int, p->nSupp );
            for ( i = 0; i < p->nSupp; i++ )
                pOrder[ p->pMapToDdVarsFinal[i] ] = p->pMapToDdVarsOrig[ p->pOrderInt[i] ];
        }
        else
            pOrder = p->pOrder;

        fVerification = 1;
        for ( i = 0; i < nFuncs; i++ )
        {
            // verify the result
            if ( p->fThisIsAdd )
                FuncRemapped = Cudd_addPermute( dd, FuncsRes[i], pOrder );
            else
                FuncRemapped = Cudd_bddPermute( dd, FuncsRes[i], pOrder );
            Cudd_Ref( FuncRemapped );

            if ( FuncRemapped != Funcs[i] )
            {
                fVerification = 0;
                printf( "REO: Internal verification has failed!\n" );
                fflush( stdout );
            }
            Cudd_RecursiveDeref( dd, FuncRemapped );
        }
        if ( fVerification )
            printf( "REO: Internal verification is okay!\n" );

        if ( p->pOrder == NULL )
            ABC_FREE( pOrder );
    }

    // recycle the data structure
    for ( i = 0; i <= p->nSupp; i++ )
        reoUnitsRecycleUnitList( p, p->pPlanes + i );
}

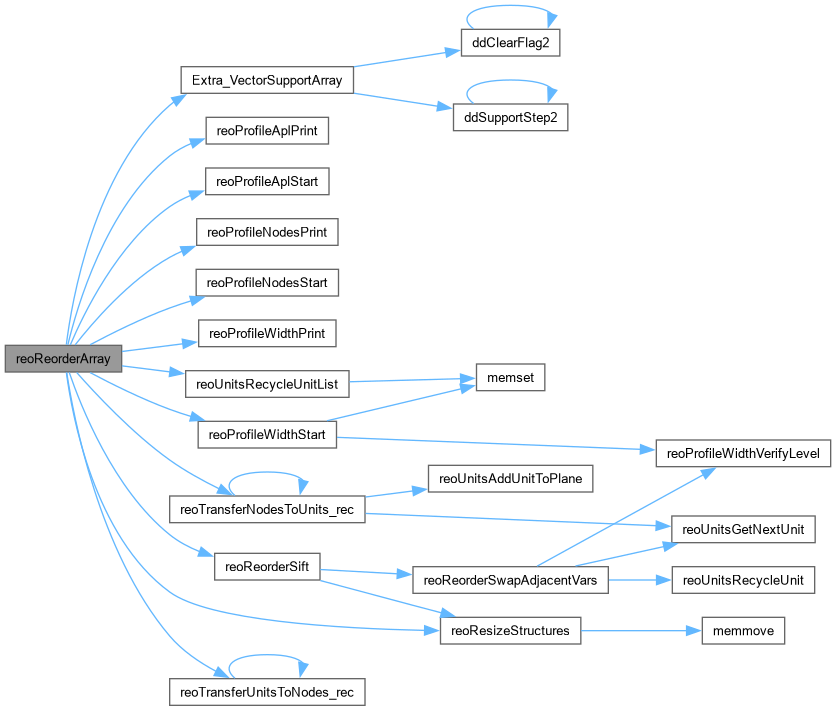

Here is the call graph for this function:

Here is the caller graph for this function:

reoResizeStructures()

void reoResizeStructures	(	reo_man *	p,
		int	nDdVarsMax,
		int	nNodesMax,
		int	nFuncs )

Function*************************************************************

Synopsis [Resizes the internal manager data structures.]

Description []

SideEffects []

SeeAlso []

Definition at line 269 of file reoCore.c.

{
    // resize data structures depending on the number of variables in the DD manager
    if ( p->nSuppAlloc == 0 )
    {
        p->pSupp             = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pOrderInt         = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pMapToPlanes      = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pMapToDdVarsOrig  = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pMapToDdVarsFinal = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pPlanes           = ABC_CALLOC( reo_plane, nDdVarsMax + 1 );
        p->pVarCosts         = ABC_ALLOC( double,     nDdVarsMax + 1 );
        p->pLevelOrder       = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->nSuppAlloc        = nDdVarsMax + 1;
    }
    else if ( p->nSuppAlloc < nDdVarsMax )
    {
        ABC_FREE( p->pSupp );
        ABC_FREE( p->pOrderInt );
        ABC_FREE( p->pMapToPlanes );
        ABC_FREE( p->pMapToDdVarsOrig );
        ABC_FREE( p->pMapToDdVarsFinal );
        ABC_FREE( p->pPlanes );
        ABC_FREE( p->pVarCosts );
        ABC_FREE( p->pLevelOrder );

        p->pSupp             = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pOrderInt         = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pMapToPlanes      = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pMapToDdVarsOrig  = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pMapToDdVarsFinal = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->pPlanes           = ABC_CALLOC( reo_plane, nDdVarsMax + 1 );
        p->pVarCosts         = ABC_ALLOC( double,     nDdVarsMax + 1 );
        p->pLevelOrder       = ABC_ALLOC( int,        nDdVarsMax + 1 );
        p->nSuppAlloc        = nDdVarsMax + 1;
    }

    // resize the data structures depending on the number of nodes
    if ( p->nRefNodesAlloc == 0 )
    {
        p->nNodesMaxAlloc  = nNodesMax;
        p->nTableSize      = 3*nNodesMax + 1;
        p->nRefNodesAlloc  = 3*nNodesMax + 1;
        p->nMemChunksAlloc = (10*nNodesMax + 1)/REO_CHUNK_SIZE + 1;

        p->HTable          = ABC_CALLOC( reo_hash,  p->nTableSize );
        p->pRefNodes       = ABC_ALLOC( DdNode *,   p->nRefNodesAlloc );
        p->pWidthCofs      = ABC_ALLOC( reo_unit *, p->nRefNodesAlloc );
        p->pMemChunks      = ABC_ALLOC( reo_unit *, p->nMemChunksAlloc );
    }
    else if ( p->nNodesMaxAlloc < nNodesMax )
    {
        reo_unit ** pTemp;
        int nMemChunksAllocPrev = p->nMemChunksAlloc;

        p->nNodesMaxAlloc  = nNodesMax;
        p->nTableSize      = 3*nNodesMax + 1;
        p->nRefNodesAlloc  = 3*nNodesMax + 1;
        p->nMemChunksAlloc = (10*nNodesMax + 1)/REO_CHUNK_SIZE + 1;

        ABC_FREE( p->HTable );
        ABC_FREE( p->pRefNodes );
        ABC_FREE( p->pWidthCofs );
        p->HTable          = ABC_CALLOC( reo_hash,    p->nTableSize );
        p->pRefNodes       = ABC_ALLOC(  DdNode *,    p->nRefNodesAlloc );
        p->pWidthCofs      = ABC_ALLOC(  reo_unit *,  p->nRefNodesAlloc );
        // p->pMemChunks should be reallocated because it contains pointers currently in use
        pTemp              = ABC_ALLOC(  reo_unit *,  p->nMemChunksAlloc );
        memmove( pTemp, p->pMemChunks, sizeof(reo_unit *) * nMemChunksAllocPrev );
        ABC_FREE( p->pMemChunks );
        p->pMemChunks      = pTemp;
    }

    // resize the data structures depending on the number of functions
    if ( p->nTopsAlloc == 0 )
    {
        p->pTops      = ABC_ALLOC( reo_unit *, nFuncs );
        p->nTopsAlloc = nFuncs;
    }
    else if ( p->nTopsAlloc < nFuncs )
    {
        ABC_FREE( p->pTops );
        p->pTops      = ABC_ALLOC( reo_unit *, nFuncs );
        p->nTopsAlloc = nFuncs;
    }
}

Here is the call graph for this function:

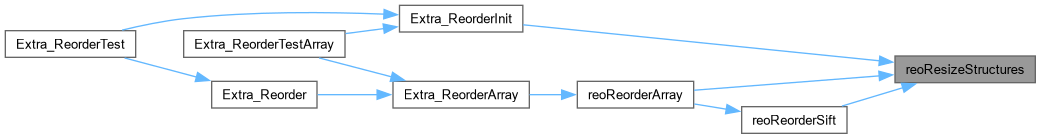

Here is the caller graph for this function:

Variable Documentation

s_AplAfter

double s_AplAfter

Definition at line 33 of file reoCore.c.

s_AplBefore

double s_AplBefore

Definition at line 32 of file reoCore.c.
