reoShuffle.c File Reference

#include "reo.h"

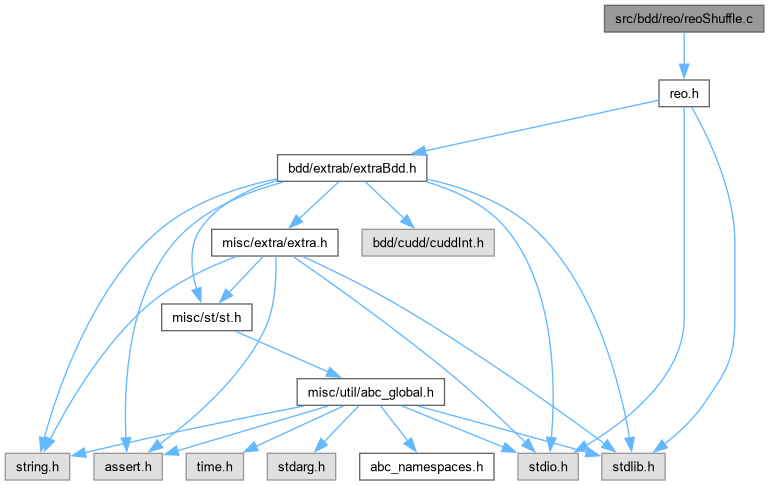

Include dependency graph for reoShuffle.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START DdNode *	reoShuffle (reo_man *p, DdManager *dd, DdNode *bFunc, int *pPerm, int *pPermInv)
	DECLARATIONS ///.
void	Extra_ShuffleTest (reo_man *pReo, DdManager *dd, DdNode *Func)

Function Documentation

Extra_ShuffleTest()

void Extra_ShuffleTest	(	reo_man *	pReo,
		DdManager *	dd,
		DdNode *	Func )

Function*************************************************************

Synopsis [Reorders the DD using REO and CUDD.]

Description [This function can be used to test the performance of the reordering package.]

SideEffects []

SeeAlso []

Definition at line 159 of file reoShuffle.c.

{
//    extern int runtime1, runtime2;

    DdNode * Temp, * bRemap;
    int nSuppSize, OffSet, Num, i;
    abctime clk;
    int pOrder[1000], pOrderInv[1000];
    assert( dd->size < 1000 );

    srand( 0x12341234 );
    nSuppSize = Cudd_SupportSize( dd, Func );
    if ( nSuppSize < 2 )
        return;

    for ( i = 0; i < nSuppSize; i++ )
        pOrder[i] = i;
    for ( i = 0; i < 120; i++ )
    {
        OffSet = rand() % (nSuppSize - 1);
        Num = pOrder[OffSet];
        pOrder[OffSet] = pOrder[OffSet+1];
        pOrder[OffSet+1] = Num;
    }
    for ( i = 0; i < nSuppSize; i++ )
        pOrderInv[pOrder[i]] = i;

/*
    printf( "Permutation: " );
    for ( i = 0; i < nSuppSize; i++ )
        printf( "%d ", pOrder[i] );
    printf( "\n" );
    printf( "Inverse permutation: " );
    for ( i = 0; i < nSuppSize; i++ )
        printf( "%d ", pOrderInv[i] );
    printf( "\n" );
*/

    // create permutation
//    Extra_ReorderSetVerification( pReo, 1 );
    bRemap = Extra_bddRemapUp( dd, Func );  Cudd_Ref( bRemap );

clk = Abc_Clock();
    Temp  = reoShuffle( pReo, dd, bRemap, pOrder, pOrderInv );  Cudd_Ref( Temp );
//runtime1 += Abc_Clock() - clk;

//printf( "Initial = %d. Final = %d.\n", Cudd_DagSize(bRemap), Cudd_DagSize(Temp)  );

    {
        DdNode * bFuncPerm;
clk = Abc_Clock();
        bFuncPerm = Cudd_bddPermute( dd, bRemap, pOrderInv );  Cudd_Ref( bFuncPerm );
//runtime2 += Abc_Clock() - clk;
        if ( bFuncPerm != Temp )
        {
            printf( "REO: Internal verification has failed!\n" );
            fflush( stdout );
        }
        Cudd_RecursiveDeref( dd, bFuncPerm );
    }

    Cudd_RecursiveDeref( dd, Temp );
    Cudd_RecursiveDeref( dd, bRemap );
}

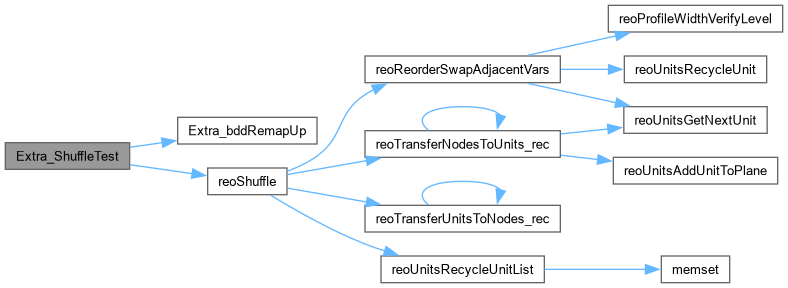

Here is the call graph for this function:

reoShuffle()

ABC_NAMESPACE_IMPL_START DdNode * reoShuffle	(	reo_man *	p,
		DdManager *	dd,
		DdNode *	bFunc,
		int *	pPerm,
		int *	pPermInv )

DECLARATIONS ///.

CFile****************************************************************

FileName [reoShuffle.c]

PackageName [REO: A specialized DD reordering engine.]

Synopsis [Implementation of the two-variable swap.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - October 15, 2002.]

Revision [

Id

reoShuffle.c,v 1.0 2002/15/10 03:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [This procedure is similar to Cudd_ShuffleHeap() and Cudd_bddPermute().]

Description [The first argument is the REO manager. The 2nd/3d arguments are the function and its CUDD manager. The last argument is the permutation to be implemented. The i-th entry of the permutation array contains the index of the variable that should be brought to the i-th level. The size of the array should be equal or greater to the number of variables currently in use (that is, the size of CUDD manager and the size of REO manager).]

SideEffects [Note that the resulting BDD is not referenced.]

SeeAlso []

Definition at line 49 of file reoShuffle.c.

{
    DdNode * bFuncRes = NULL;
    int i, k, v;

    if ( Cudd_IsConstant(bFunc) )
        return bFunc;

    // set the initial parameters
    p->dd    = dd;
    p->nSupp = Cudd_SupportSize( dd, bFunc );
    p->nTops = 1;
//    p->nNodesBeg = Cudd_DagSize( bFunc );

    // set the starting permutation
    for ( i = 0; i < p->nSupp; i++ )
    {
        p->pOrderInt[i] = i;
        p->pMapToPlanes[ dd->invperm[i] ] = i;
        p->pMapToDdVarsFinal[i] = dd->invperm[i];
    }

    // set the initial parameters
    p->nUnitsUsed = 0;
    p->nNodesCur  = 0;
    p->fThisIsAdd = 0;
    p->Signature++;

    // transfer the function from the CUDD package into REO's internal data structure
    p->pTops[0] = reoTransferNodesToUnits_rec( p, bFunc );
//    assert( p->nNodesBeg == p->nNodesCur );

    // reorder one variable at a time
    for ( i = 0; i < p->nSupp; i++ )
    {
        if ( p->pOrderInt[i] == pPerm[i] )
            continue;
        // find where is variable number pPerm[i]
        for ( k = i + 1; k < p->nSupp; k++ )
            if ( pPerm[i] == p->pOrderInt[k] )
                break;
        if ( k == p->nSupp )
        {
            printf( "reoShuffle() Error: Cannot find a variable.\n" );
            goto finish;
        }
        // move the variable up
        for ( v = k - 1; v >= i; v-- )
        {
            reoReorderSwapAdjacentVars( p, v, 1 );
            // check if the number of nodes is not too large
            if ( p->nNodesCur > 10000 )
            {
                printf( "reoShuffle() Error: BDD size is too large.\n" );
                goto finish;
            }
        }
        assert( p->pOrderInt[i] == pPerm[i] );
    }

    // set the initial parameters
    p->nRefNodes  = 0;
    p->nNodesCur  = 0;
    p->Signature++;
    // transfer the BDDs from REO's internal data structure to CUDD
    bFuncRes = reoTransferUnitsToNodes_rec( p, p->pTops[0] ); Cudd_Ref( bFuncRes );
    // undo the DDs referenced for storing in the cache
    for ( i = 0; i < p->nRefNodes; i++ )
        Cudd_RecursiveDeref( dd, p->pRefNodes[i] );

    // verify zero refs of the terminal nodes
//    assert( reoRecursiveDeref( p->pTops[0] ) );
//    assert( reoCheckZeroRefs( &(p->pPlanes[p->nSupp]) ) );

    // perform verification
    if ( p->fVerify )
    {
        DdNode * bFuncPerm;
        bFuncPerm = Cudd_bddPermute( dd, bFunc, pPermInv );  Cudd_Ref( bFuncPerm );
        if ( bFuncPerm != bFuncRes )
        {
            printf( "REO: Internal verification has failed!\n" );
            fflush( stdout );
        }
        Cudd_RecursiveDeref( dd, bFuncPerm );
    }

    // recycle the data structure
    for ( i = 0; i <= p->nSupp; i++ )
        reoUnitsRecycleUnitList( p, p->pPlanes + i );

finish :
    if ( bFuncRes )
        Cudd_Deref( bFuncRes );
    return bFuncRes;
}

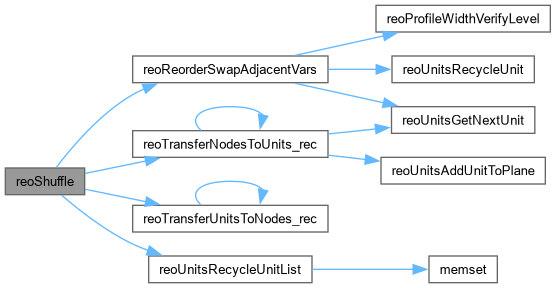

Here is the call graph for this function:

Here is the caller graph for this function:
