rwtUtil.c File Reference

#include "rwt.h"

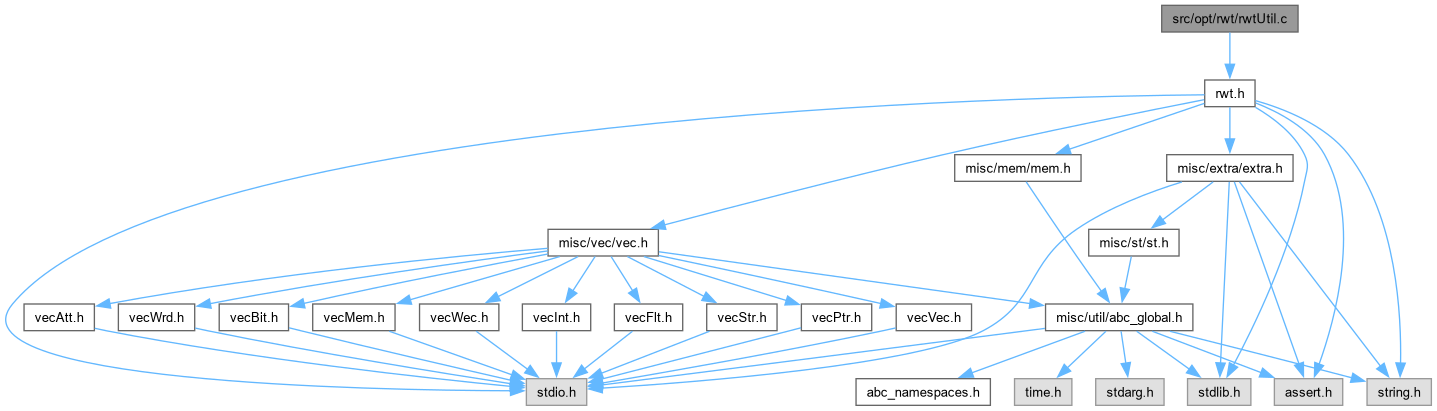

Include dependency graph for rwtUtil.c:

Go to the source code of this file.

Functions
void	Rwt_ListAddToTail (Rwt_Node_t **ppList, Rwt_Node_t *pNode)
	FUNCTION DEFINITIONS ///.
Rwt_Node_t *	Rwt_ManAddVar (Rwt_Man_t *p, unsigned uTruth, int fPrecompute)
Rwt_Node_t *	Rwt_ManAddNode (Rwt_Man_t *p, Rwt_Node_t *p0, Rwt_Node_t *p1, int fExor, int Level, int Volume)
void	Rwt_Trav_rec (Rwt_Man_t *p, Rwt_Node_t *pNode, int *pVolume)
void	Rwt_ManIncTravId (Rwt_Man_t *p)
int	Rwt_ManNodeVolume (Rwt_Man_t *p, Rwt_Node_t *p0, Rwt_Node_t *p1)
void	Rwt_ManLoadFromArray (Rwt_Man_t *p, int fVerbose)
char *	Rwt_ManGetPractical (Rwt_Man_t *p)

Function Documentation

Rwt_ListAddToTail()

void Rwt_ListAddToTail	(	Rwt_Node_t **	ppList,
		Rwt_Node_t *	pNode )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Adds the node to the end of the list.]

Description []

SideEffects []

SeeAlso []

Definition at line 425 of file rwtUtil.c.

{
    Rwt_Node_t * pTemp;
    // find the last one
    for ( pTemp = *ppList; pTemp; pTemp = pTemp->pNext )
        ppList = &pTemp->pNext;
    // attach at the end
    *ppList = pNode;
}

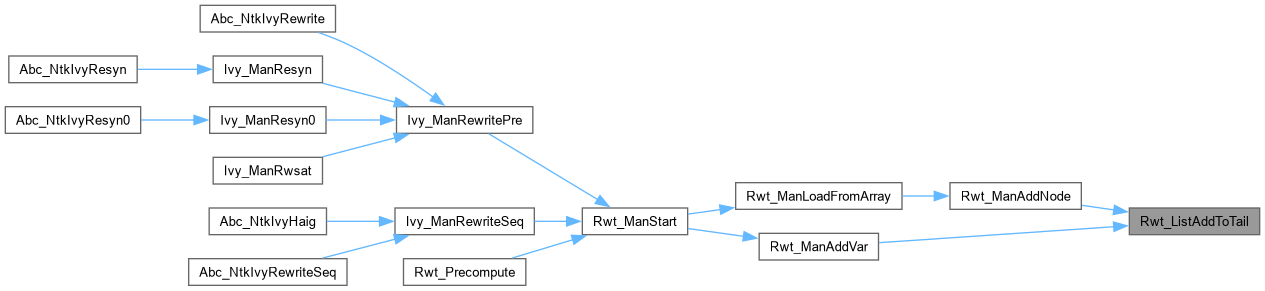

Here is the caller graph for this function:

Rwt_ManAddNode()

Rwt_Node_t * Rwt_ManAddNode	(	Rwt_Man_t *	p,
		Rwt_Node_t *	p0,
		Rwt_Node_t *	p1,
		int	fExor,
		int	Level,
		int	Volume )

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 477 of file rwtUtil.c.

{
    Rwt_Node_t * pNew;
    unsigned uTruth;
    // compute truth table, leve, volume
    p->nConsidered++;
    if ( fExor )
        uTruth = (p0->uTruth ^ p1->uTruth);
    else
        uTruth = (Rwt_IsComplement(p0)? ~Rwt_Regular(p0)->uTruth : Rwt_Regular(p0)->uTruth) &
                 (Rwt_IsComplement(p1)? ~Rwt_Regular(p1)->uTruth : Rwt_Regular(p1)->uTruth) & 0xFFFF;
    // create the new node
    pNew = (Rwt_Node_t *)Mem_FixedEntryFetch( p->pMmNode );
    pNew->Id     = p->vForest->nSize;
    pNew->TravId = 0;
    pNew->uTruth = uTruth;
    pNew->Level  = Level;
    pNew->Volume = Volume;
    pNew->fUsed  = 0;
    pNew->fExor  = fExor;
    pNew->p0     = p0;
    pNew->p1     = p1;
    pNew->pNext  = NULL;
    Vec_PtrPush( p->vForest, pNew );
    // do not add if the node is not essential
    if ( uTruth != p->puCanons[uTruth] )
        return pNew;

    // add to the list
    p->nAdded++;
    if ( p->pTable[uTruth] == NULL )
        p->nClasses++;
    Rwt_ListAddToTail( p->pTable + uTruth, pNew );
    return pNew;
}

Here is the call graph for this function:

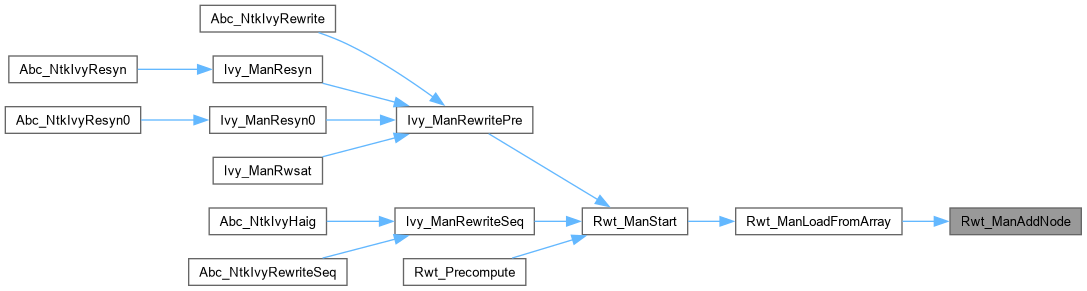

Here is the caller graph for this function:

Rwt_ManAddVar()

Rwt_Node_t * Rwt_ManAddVar	(	Rwt_Man_t *	p,
		unsigned	uTruth,
		int	fPrecompute )

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 446 of file rwtUtil.c.

{
    Rwt_Node_t * pNew;
    pNew = (Rwt_Node_t *)Mem_FixedEntryFetch( p->pMmNode );
    pNew->Id     = p->vForest->nSize;
    pNew->TravId = 0;
    pNew->uTruth = uTruth;
    pNew->Level  = 0;
    pNew->Volume = 0;
    pNew->fUsed  = 1;
    pNew->fExor  = 0;
    pNew->p0     = NULL;
    pNew->p1     = NULL;
    pNew->pNext  = NULL;
    Vec_PtrPush( p->vForest, pNew );
    if ( fPrecompute )
        Rwt_ListAddToTail( p->pTable + uTruth, pNew );
    return pNew;
}

Here is the call graph for this function:

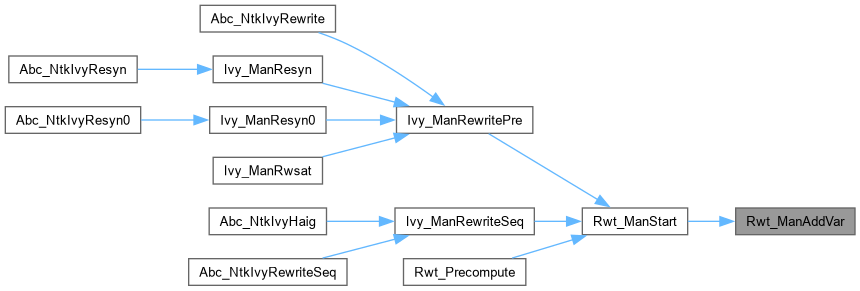

Here is the caller graph for this function:

Rwt_ManGetPractical()

char * Rwt_ManGetPractical

(

Rwt_Man_t *

p

)

Function*************************************************************

Synopsis [Create practical classes.]

Description []

SideEffects []

SeeAlso []

Definition at line 640 of file rwtUtil.c.

{
    char * pPractical;
    int i;
    pPractical = ABC_ALLOC( char, p->nFuncs );
    memset( pPractical, 0, sizeof(char) * p->nFuncs );
    pPractical[0] = 1;
    for ( i = 1; ; i++ )
    {
        if ( s_RwtPracticalClasses[i] == 0 )
            break;
        pPractical[ s_RwtPracticalClasses[i] ] = 1;
    }
    return pPractical;
}

Here is the call graph for this function:

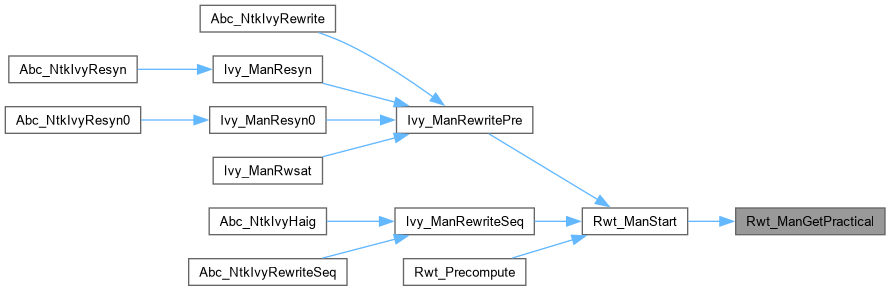

Here is the caller graph for this function:

Rwt_ManIncTravId()

void Rwt_ManIncTravId

(

Rwt_Man_t *

p

)

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 547 of file rwtUtil.c.

{
    Rwt_Node_t * pNode;
    int i;
    if ( p->nTravIds++ < 0x8FFFFFFF )
        return;
    Vec_PtrForEachEntry( Rwt_Node_t *, p->vForest, pNode, i )
        pNode->TravId = 0;
    p->nTravIds = 1;
}

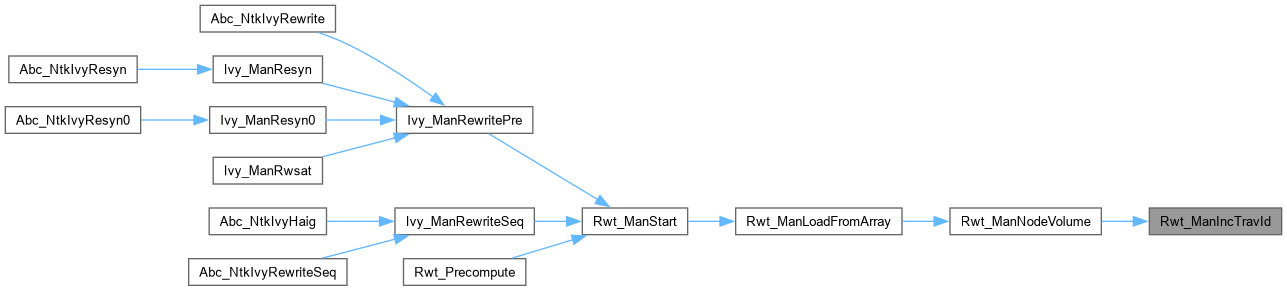

Here is the caller graph for this function:

Rwt_ManLoadFromArray()

void Rwt_ManLoadFromArray	(	Rwt_Man_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis [Loads data.]

Description []

SideEffects []

SeeAlso []

Definition at line 589 of file rwtUtil.c.

{
    unsigned short * pArray = s_RwtAigSubgraphs;
    Rwt_Node_t * p0, * p1;
    unsigned Entry0, Entry1;
    int Level, Volume, nEntries, fExor;
    int i;
    abctime clk = Abc_Clock();

    // reconstruct the forest
    for ( i = 0; ; i++ )
    {
        Entry0 = pArray[2*i + 0];
        Entry1 = pArray[2*i + 1];
        if ( Entry0 == 0 && Entry1 == 0 )
            break;
        // get EXOR flag
        fExor = (Entry0 & 1);
        Entry0 >>= 1;
        // get the nodes
        p0 = (Rwt_Node_t *)p->vForest->pArray[Entry0 >> 1];
        p1 = (Rwt_Node_t *)p->vForest->pArray[Entry1 >> 1];
        // compute the level and volume of the new nodes
        Level  = 1 + RWT_MAX( p0->Level, p1->Level );
        Volume = 1 + Rwt_ManNodeVolume( p, p0, p1 );
        // set the complemented attributes
        p0 = Rwt_NotCond( p0, (Entry0 & 1) );
        p1 = Rwt_NotCond( p1, (Entry1 & 1) );
        // add the node
//        Rwt_ManTryNode( p, p0, p1, Level, Volume );
        Rwt_ManAddNode( p, p0, p1, fExor, Level, Volume + fExor );
    }
    nEntries = i - 1;
    if ( fVerbose )
    {
        printf( "The number of classes = %d. Canonical nodes = %d.\n", p->nClasses, p->nAdded );
        printf( "The number of nodes loaded = %d.  ", nEntries );  ABC_PRT( "Loading", Abc_Clock() - clk );
    }
}

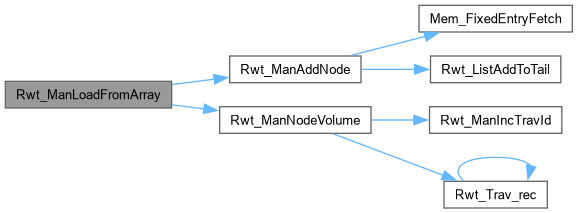

Here is the call graph for this function:

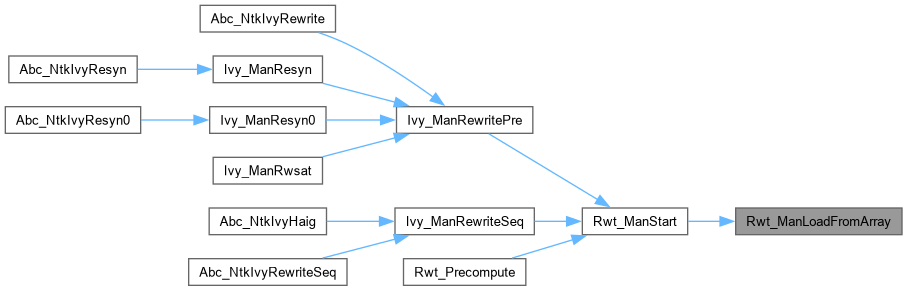

Here is the caller graph for this function:

Rwt_ManNodeVolume()

int Rwt_ManNodeVolume	(	Rwt_Man_t *	p,
		Rwt_Node_t *	p0,
		Rwt_Node_t *	p1 )

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 569 of file rwtUtil.c.

{
    int Volume = 0;
    Rwt_ManIncTravId( p );
    Rwt_Trav_rec( p, p0, &Volume );
    Rwt_Trav_rec( p, p1, &Volume );
    return Volume;
}

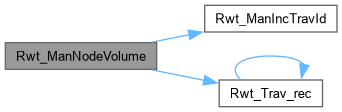

Here is the call graph for this function:

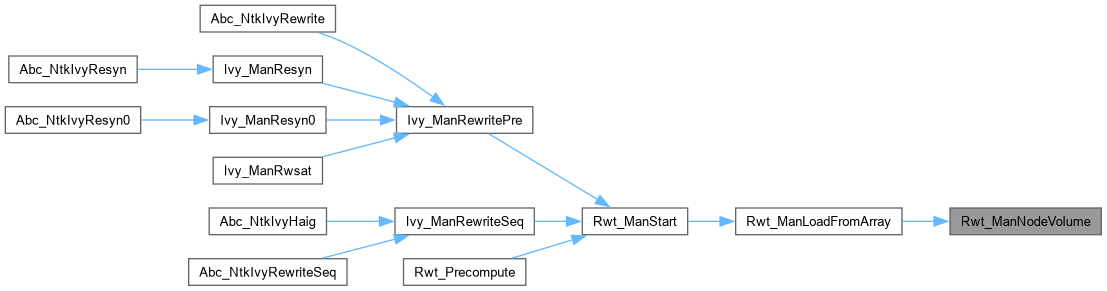

Here is the caller graph for this function:

Rwt_Trav_rec()

void Rwt_Trav_rec	(	Rwt_Man_t *	p,
		Rwt_Node_t *	pNode,
		int *	pVolume )

Function*************************************************************

Synopsis [Adds one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 524 of file rwtUtil.c.

{
    if ( pNode->fUsed || pNode->TravId == p->nTravIds )
        return;
    pNode->TravId = p->nTravIds;
    (*pVolume)++;
    if ( pNode->fExor )
        (*pVolume)++;
    Rwt_Trav_rec( p, Rwt_Regular(pNode->p0), pVolume );
    Rwt_Trav_rec( p, Rwt_Regular(pNode->p1), pVolume );
}

Here is the call graph for this function:

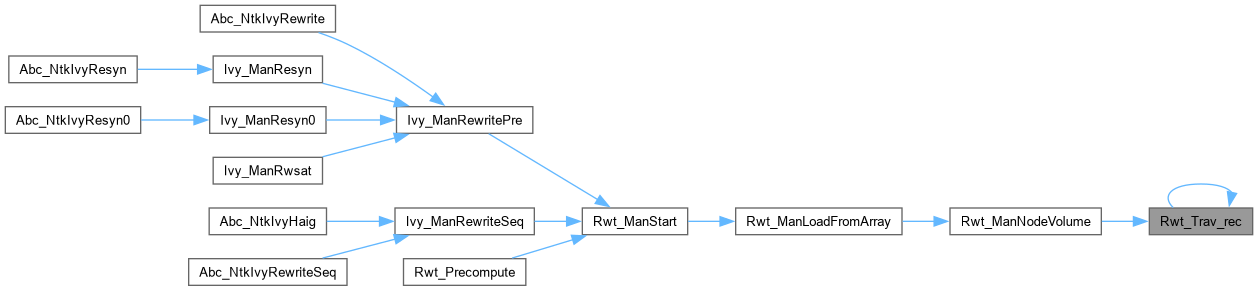

Here is the caller graph for this function:
