satMem.h File Reference

#include "misc/util/abc_global.h"

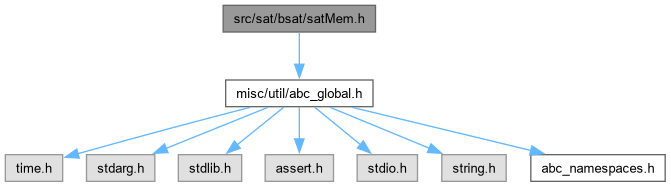

Include dependency graph for satMem.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct Sat_MmFixed_t_	Sat_MmFixed_t
	INCLUDES ///.
typedef struct Sat_MmFlex_t_	Sat_MmFlex_t
typedef struct Sat_MmStep_t_	Sat_MmStep_t

Functions
Sat_MmFixed_t *	Sat_MmFixedStart (int nEntrySize)
	GLOBAL VARIABLES ///.
void	Sat_MmFixedStop (Sat_MmFixed_t *p, int fVerbose)
char *	Sat_MmFixedEntryFetch (Sat_MmFixed_t *p)
void	Sat_MmFixedEntryRecycle (Sat_MmFixed_t *p, char *pEntry)
void	Sat_MmFixedRestart (Sat_MmFixed_t *p)
int	Sat_MmFixedReadMemUsage (Sat_MmFixed_t *p)
Sat_MmFlex_t *	Sat_MmFlexStart ()
void	Sat_MmFlexStop (Sat_MmFlex_t *p, int fVerbose)
char *	Sat_MmFlexEntryFetch (Sat_MmFlex_t *p, int nBytes)
int	Sat_MmFlexReadMemUsage (Sat_MmFlex_t *p)
Sat_MmStep_t *	Sat_MmStepStart (int nSteps)
void	Sat_MmStepStop (Sat_MmStep_t *p, int fVerbose)
void	Sat_MmStepRestart (Sat_MmStep_t *p)
char *	Sat_MmStepEntryFetch (Sat_MmStep_t *p, int nBytes)
void	Sat_MmStepEntryRecycle (Sat_MmStep_t *p, char *pEntry, int nBytes)
int	Sat_MmStepReadMemUsage (Sat_MmStep_t *p)

Typedef Documentation

Sat_MmFixed_t

typedef typedefABC_NAMESPACE_HEADER_START struct Sat_MmFixed_t_ Sat_MmFixed_t

INCLUDES ///.

CFile****************************************************************

FileName [satMem.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [SAT solver.]

Synopsis [Memory management.]

Author [Alan Mishchenko alanm.nosp@m.i@ee.nosp@m.cs.be.nosp@m.rkel.nosp@m.ey.ed.nosp@m.u]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - January 1, 2004.]

Revision [

Id

satMem.h,v 1.0 2004/01/01 1:00:00 alanmi Exp

] PARAMETERS /// STRUCTURE DEFINITIONS ///

Definition at line 40 of file satMem.h.

Sat_MmFlex_t

typedef struct Sat_MmFlex_t_ Sat_MmFlex_t

Definition at line 41 of file satMem.h.

Sat_MmStep_t

typedef struct Sat_MmStep_t_ Sat_MmStep_t

Definition at line 42 of file satMem.h.

Function Documentation

Sat_MmFixedEntryFetch()

char * Sat_MmFixedEntryFetch ( Sat_MmFixed_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 169 of file satMem.c.

{
    char * pTemp;
    int i;

    // check if there are still free entries
    if ( p->nEntriesUsed == p->nEntriesAlloc )
    { // need to allocate more entries
        assert( p->pEntriesFree == NULL );
        if ( p->nChunks == p->nChunksAlloc )
        {
            p->nChunksAlloc *= 2;
            p->pChunks = ABC_REALLOC( char *, p->pChunks, p->nChunksAlloc );
        }
        p->pEntriesFree = ABC_ALLOC( char, p->nEntrySize * p->nChunkSize );
        p->nMemoryAlloc += p->nEntrySize * p->nChunkSize;
        // transform these entries into a linked list
        pTemp = p->pEntriesFree;
        for ( i = 1; i < p->nChunkSize; i++ )
        {
            *((char **)pTemp) = pTemp + p->nEntrySize;
            pTemp += p->nEntrySize;
        }
        // set the last link
        *((char **)pTemp) = NULL;
        // add the chunk to the chunk storage
        p->pChunks[ p->nChunks++ ] = p->pEntriesFree;
        // add to the number of entries allocated
        p->nEntriesAlloc += p->nChunkSize;
    }
    // incrememt the counter of used entries
    p->nEntriesUsed++;
    if ( p->nEntriesMax < p->nEntriesUsed )
        p->nEntriesMax = p->nEntriesUsed;
    // return the first entry in the free entry list
    pTemp = p->pEntriesFree;
    p->pEntriesFree = *((char **)pTemp);
    return pTemp;
}

Here is the caller graph for this function:

Sat_MmFixedEntryRecycle()

void Sat_MmFixedEntryRecycle ( Sat_MmFixed_t * p, char * pEntry )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 220 of file satMem.c.

{
    // decrement the counter of used entries
    p->nEntriesUsed--;
    // add the entry to the linked list of free entries
    *((char **)pEntry) = p->pEntriesFree;
    p->pEntriesFree = pEntry;
}

Here is the caller graph for this function:

Sat_MmFixedReadMemUsage()

int Sat_MmFixedReadMemUsage ( Sat_MmFixed_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 281 of file satMem.c.

{
    return p->nMemoryAlloc;
}

Sat_MmFixedRestart()

void Sat_MmFixedRestart ( Sat_MmFixed_t * p )

extern

Function*************************************************************

Synopsis []

Description [Relocates all the memory except the first chunk.]

SideEffects []

SeeAlso []

Definition at line 240 of file satMem.c.

{
    int i;
    char * pTemp;
    if ( p->nChunks == 0 )
        return;
    assert( p->nChunks > 0 );

    // deallocate all chunks except the first one
    for ( i = 1; i < p->nChunks; i++ )
        ABC_FREE( p->pChunks[i] );
    p->nChunks = 1;
    // transform these entries into a linked list
    pTemp = p->pChunks[0];
    for ( i = 1; i < p->nChunkSize; i++ )
    {
        *((char **)pTemp) = pTemp + p->nEntrySize;
        pTemp += p->nEntrySize;
    }
    // set the last link
    *((char **)pTemp) = NULL;
    // set the free entry list
    p->pEntriesFree  = p->pChunks[0];
    // set the correct statistics
    p->nMemoryAlloc  = p->nEntrySize * p->nChunkSize;
    p->nMemoryUsed   = 0;
    p->nEntriesAlloc = p->nChunkSize;
    p->nEntriesUsed  = 0;
}

Here is the caller graph for this function:

Sat_MmFixedStart()

Sat_MmFixed_t * Sat_MmFixedStart ( int nEntrySize )

extern

GLOBAL VARIABLES ///.

MACRO DEFINITIONS /// FUNCTION DECLARATIONS ///

GLOBAL VARIABLES ///.

Function*************************************************************

Synopsis [Allocates memory pieces of fixed size.]

Description [The size of the chunk is computed as the minimum of 1024 entries and 64K. Can only work with entry size at least 4 byte long.]

SideEffects []

SeeAlso []

Definition at line 101 of file satMem.c.

{
    Sat_MmFixed_t * p;

    p = ABC_ALLOC( Sat_MmFixed_t, 1 );
    memset( p, 0, sizeof(Sat_MmFixed_t) );

    p->nEntrySize    = nEntrySize;
    p->nEntriesAlloc = 0;
    p->nEntriesUsed  = 0;
    p->pEntriesFree  = NULL;

    if ( nEntrySize * (1 << 10) < (1<<16) )
        p->nChunkSize = (1 << 10);
    else
        p->nChunkSize = (1<<16) / nEntrySize;
    if ( p->nChunkSize < 8 )
        p->nChunkSize = 8;

    p->nChunksAlloc  = 64;
    p->nChunks       = 0;
    p->pChunks       = ABC_ALLOC( char *, p->nChunksAlloc );

    p->nMemoryUsed   = 0;
    p->nMemoryAlloc  = 0;
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sat_MmFixedStop()

void Sat_MmFixedStop ( Sat_MmFixed_t * p, int fVerbose )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 140 of file satMem.c.

{
    int i;
    if ( p == NULL )
        return;
    if ( fVerbose )
    {
        printf( "Fixed memory manager: Entry = %5d. Chunk = %5d. Chunks used = %5d.\n",
            p->nEntrySize, p->nChunkSize, p->nChunks );
        printf( "   Entries used = %8d. Entries peak = %8d. Memory used = %8d. Memory alloc = %8d.\n",
            p->nEntriesUsed, p->nEntriesMax, p->nEntrySize * p->nEntriesUsed, p->nMemoryAlloc );
    }
    for ( i = 0; i < p->nChunks; i++ )
        ABC_FREE( p->pChunks[i] );
    ABC_FREE( p->pChunks );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Sat_MmFlexEntryFetch()

char * Sat_MmFlexEntryFetch ( Sat_MmFlex_t * p, int nBytes )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 360 of file satMem.c.

{
    char * pTemp;
    // check if there are still free entries
    if ( p->pCurrent == NULL || p->pCurrent + nBytes > p->pEnd )
    { // need to allocate more entries
        if ( p->nChunks == p->nChunksAlloc )
        {
            p->nChunksAlloc *= 2;
            p->pChunks = ABC_REALLOC( char *, p->pChunks, p->nChunksAlloc );
        }
        if ( nBytes > p->nChunkSize )
        {
            // resize the chunk size if more memory is requested than it can give
            // (ideally, this should never happen)
            p->nChunkSize = 2 * nBytes;
        }
        p->pCurrent = ABC_ALLOC( char, p->nChunkSize );
        p->pEnd     = p->pCurrent + p->nChunkSize;
        p->nMemoryAlloc += p->nChunkSize;
        // add the chunk to the chunk storage
        p->pChunks[ p->nChunks++ ] = p->pCurrent;
    }
    assert( p->pCurrent + nBytes <= p->pEnd );
    // increment the counter of used entries
    p->nEntriesUsed++;
    // keep track of the memory used
    p->nMemoryUsed += nBytes;
    // return the next entry
    pTemp = p->pCurrent;
    p->pCurrent += nBytes;
    return pTemp;
}

Sat_MmFlexReadMemUsage()

int Sat_MmFlexReadMemUsage ( Sat_MmFlex_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 405 of file satMem.c.

{
    return p->nMemoryAlloc;
}

Sat_MmFlexStart()

Sat_MmFlex_t * Sat_MmFlexStart ( )

extern

Function*************************************************************

Synopsis [Allocates entries of flexible size.]

Description [Can only work with entry size at least 4 byte long.]

SideEffects []

SeeAlso []

Definition at line 299 of file satMem.c.

{
    Sat_MmFlex_t * p;

    p = ABC_ALLOC( Sat_MmFlex_t, 1 );
    memset( p, 0, sizeof(Sat_MmFlex_t) );

    p->nEntriesUsed  = 0;
    p->pCurrent      = NULL;
    p->pEnd          = NULL;

    p->nChunkSize    = (1 << 16);
    p->nChunksAlloc  = 64;
    p->nChunks       = 0;
    p->pChunks       = ABC_ALLOC( char *, p->nChunksAlloc );

    p->nMemoryUsed   = 0;
    p->nMemoryAlloc  = 0;
    return p;
}

Here is the call graph for this function:

Sat_MmFlexStop()

void Sat_MmFlexStop ( Sat_MmFlex_t * p, int fVerbose )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 331 of file satMem.c.

{
    int i;
    if ( p == NULL )
        return;
    if ( fVerbose )
    {
        printf( "Flexible memory manager: Chunk size = %d. Chunks used = %d.\n",
            p->nChunkSize, p->nChunks );
        printf( "   Entries used = %d. Memory used = %d. Memory alloc = %d.\n",
            p->nEntriesUsed, p->nMemoryUsed, p->nMemoryAlloc );
    }
    for ( i = 0; i < p->nChunks; i++ )
        ABC_FREE( p->pChunks[i] );
    ABC_FREE( p->pChunks );
    ABC_FREE( p );
}

Sat_MmStepEntryFetch()

char * Sat_MmStepEntryFetch ( Sat_MmStep_t * p, int nBytes )

extern

Function*************************************************************

Synopsis [Creates the entry.]

Description []

SideEffects []

SeeAlso []

Definition at line 523 of file satMem.c.

{
    if ( nBytes == 0 )
        return NULL;
    if ( nBytes > p->nMapSize )
    {
        if ( p->nChunks == p->nChunksAlloc )
        {
            p->nChunksAlloc *= 2;
            p->pChunks = ABC_REALLOC( char *, p->pChunks, p->nChunksAlloc );
        }
        p->pChunks[ p->nChunks++ ] = ABC_ALLOC( char, nBytes );
        return p->pChunks[p->nChunks-1];
    }
    return Sat_MmFixedEntryFetch( p->pMap[nBytes] );
}

Here is the call graph for this function:

Sat_MmStepEntryRecycle()

void Sat_MmStepEntryRecycle ( Sat_MmStep_t * p, char * pEntry, int nBytes )

extern

Function*************************************************************

Synopsis [Recycles the entry.]

Description []

SideEffects []

SeeAlso []

Definition at line 552 of file satMem.c.

{
    if ( nBytes == 0 )
        return;
    if ( nBytes > p->nMapSize )
    {
//        ABC_FREE( pEntry );
        return;
    }
    Sat_MmFixedEntryRecycle( p->pMap[nBytes], pEntry );
}

Here is the call graph for this function:

Sat_MmStepReadMemUsage()

int Sat_MmStepReadMemUsage ( Sat_MmStep_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 575 of file satMem.c.

{
    int i, nMemTotal = 0;
    for ( i = 0; i < p->nMems; i++ )
        nMemTotal += p->pMems[i]->nMemoryAlloc;
    return nMemTotal;
}

Sat_MmStepRestart()

void Sat_MmStepRestart ( Sat_MmStep_t * p )

extern

Function*************************************************************

Synopsis [Stops the memory manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 499 of file satMem.c.

{
    int i;
    if ( p->nChunksAlloc )
    {
        for ( i = 0; i < p->nChunks; i++ )
            ABC_FREE( p->pChunks[i] );
        p->nChunks = 0;
    }
    for ( i = 0; i < p->nMems; i++ )
        Sat_MmFixedRestart( p->pMems[i] );
}

Here is the call graph for this function:

Sat_MmStepStart()

Sat_MmStep_t * Sat_MmStepStart ( int nSteps )

extern

Function*************************************************************

Synopsis [Starts the hierarchical memory manager.]

Description [This manager can allocate entries of any size. Iternally they are mapped into the entries with the number of bytes equal to the power of 2. The smallest entry size is 8 bytes. The next one is 16 bytes etc. So, if the user requests 6 bytes, he gets 8 byte entry. If we asks for 25 bytes, he gets 32 byte entry etc. The input parameters "nSteps" says how many fixed memory managers are employed internally. Calling this procedure with nSteps equal to 10 results in 10 hierarchically arranged internal memory managers, which can allocate up to 4096 (1Kb) entries. Requests for larger entries are handed over to malloc() and then ABC_FREE()ed.]

SideEffects []

SeeAlso []

Definition at line 434 of file satMem.c.

{
    Sat_MmStep_t * p;
    int i, k;
    p = ABC_ALLOC( Sat_MmStep_t, 1 );
    p->nMems = nSteps;
    // start the fixed memory managers
    p->pMems = ABC_ALLOC( Sat_MmFixed_t *, p->nMems );
    for ( i = 0; i < p->nMems; i++ )
        p->pMems[i] = Sat_MmFixedStart( (8<<i) );
    // set up the mapping of the required memory size into the corresponding manager
    p->nMapSize = (4<<p->nMems);
    p->pMap = ABC_ALLOC( Sat_MmFixed_t *, p->nMapSize+1 );
    p->pMap[0] = NULL;
    for ( k = 1; k <= 4; k++ )
        p->pMap[k] = p->pMems[0];
    for ( i = 0; i < p->nMems; i++ )
        for ( k = (4<<i)+1; k <= (8<<i); k++ )
            p->pMap[k] = p->pMems[i];
//for ( i = 1; i < 100; i ++ )
//printf( "%10d: size = %10d\n", i, p->pMap[i]->nEntrySize );
    p->nChunksAlloc  = 64;
    p->nChunks       = 0;
    p->pChunks       = ABC_ALLOC( char *, p->nChunksAlloc );
    return p;
}

Here is the call graph for this function:

Sat_MmStepStop()

void Sat_MmStepStop ( Sat_MmStep_t * p, int fVerbose )

extern

Function*************************************************************

Synopsis [Stops the memory manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 472 of file satMem.c.

{
    int i;
    if ( p->nChunksAlloc )
    {
        for ( i = 0; i < p->nChunks; i++ )
            ABC_FREE( p->pChunks[i] );
        ABC_FREE( p->pChunks );
    }
    for ( i = 0; i < p->nMems; i++ )
        Sat_MmFixedStop( p->pMems[i], fVerbose );
    ABC_FREE( p->pMems );
    ABC_FREE( p->pMap );
    ABC_FREE( p );
}

Here is the call graph for this function:
