sharp.c File Reference

#include "espresso.h"

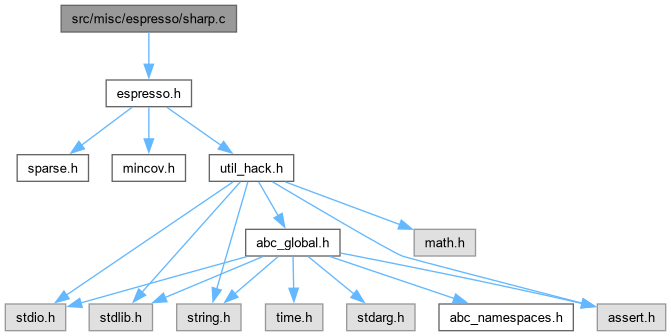

Include dependency graph for sharp.c:

Go to the source code of this file.

Macros
#define	MAGIC   500 /* save 500 cubes before containment */

Functions
pcover	cv_sharp (pcover A, pcover B)
pcover	cb_sharp (pcube c, pcover T)
pcover	cb_recur_sharp (pcube c, pcover T, int first, int last, int level)
pcover	sharp (pcube a, pcube b)
pcover	make_disjoint (pcover A)
pcover	cv_dsharp (pcover A, pcover B)
pcover	cb1_dsharp (pcover T, pcube c)
pcover	cb_dsharp (pcube c, pcover T)
pcover	dsharp (pcube a, pcube b)
pcover	cv_intersect (pcover A, pcover B)

Variables
ABC_NAMESPACE_IMPL_START long	start_time

Macro Definition Documentation

MAGIC

#define MAGIC   500 /* save 500 cubes before containment */

Definition at line 214 of file sharp.c.

Function Documentation

cb1_dsharp()

pcover cb1_dsharp	(	pcover	T,
		pcube	c )

Definition at line 133 of file sharp.c.

{
    pcube last, p;
    pcover R;

    R = new_cover(T->count);
    foreach_set(T, last, p) {
    R = sf_union(R, dsharp(p, c));
    }
    return R;
}

Here is the call graph for this function:

cb_dsharp()

pcover cb_dsharp	(	pcube	c,
		pcover	T )

Definition at line 149 of file sharp.c.

{
    pcube last, p;
    pcover Y, Y1;

    if (T->count == 0) {
    Y = sf_addset(new_cover(1), c);
    } else {
    Y = new_cover(T->count);
    set_copy(GETSET(Y,Y->count++), c);
    foreach_set(T, last, p) {
        Y1 = cb1_dsharp(Y, p);
        free_cover(Y);
        Y = Y1;
    }
    }
    return Y;
}

Here is the call graph for this function:

cb_recur_sharp()

pcover cb_recur_sharp	(	pcube	c,
		pcover	T,
		int	first,
		int	last,
		int	level )

Definition at line 52 of file sharp.c.

{
    pcover temp, left, right;
    int middle;

    if (first == last) {
    temp = sharp(c, GETSET(T, first));
    } else {
    middle = (first + last) / 2;
    left = cb_recur_sharp(c, T, first, middle, level+1);
    right = cb_recur_sharp(c, T, middle+1, last, level+1);
    temp = cv_intersect(left, right);
    if ((debug & SHARP) && level < 4) {
        printf("# SHARP[%d]: %4d = %4d x %4d, time = %s\n",
        level, temp->count, left->count, right->count,
        print_time(ptime() - start_time));
        (void) fflush(stdout);
    }
    free_cover(left);
    free_cover(right);
    }
    return temp;
}

Here is the call graph for this function:

cb_sharp()

pcover cb_sharp	(	pcube	c,
		pcover	T )

Definition at line 37 of file sharp.c.

{
    if (T->count == 0) {
    T = sf_addset(new_cover(1), c);
    } else {
    start_time = ptime();
    T = cb_recur_sharp(c, T, 0, T->count-1, 0);
    }
    return T;
}

Here is the call graph for this function:

cv_dsharp()

pcover cv_dsharp	(	pcover	A,
		pcover	B )

Definition at line 118 of file sharp.c.

{
    register pcube last, p;
    pcover T;

    T = new_cover(0);
    foreach_set(A, last, p) {
    T = sf_union(T, cb_dsharp(p, B));
    }
    return T;
}

Here is the call graph for this function:

cv_intersect()

pcover cv_intersect	(	pcover	A,
		pcover	B )

Definition at line 216 of file sharp.c.

{
    register pcube pi, pj, lasti, lastj, pt;
    pcover T, Tsave = NULL;

    /* How large should each temporary result cover be ? */
    T = new_cover(MAGIC);
    pt = T->data;

    /* Form pairwise intersection of each cube of A with each cube of B */
    foreach_set(A, lasti, pi) {
    foreach_set(B, lastj, pj) {
        if (cdist0(pi, pj)) {
        (void) set_and(pt, pi, pj);
        if (++T->count >= T->capacity) {
            if (Tsave == NULL)
            Tsave = sf_contain(T);
            else
            Tsave = sf_union(Tsave, sf_contain(T));
            T = new_cover(MAGIC);
            pt = T->data;
        } else
            pt += T->wsize;
        }
    }
    }


    if (Tsave == NULL)
    Tsave = sf_contain(T);
    else
    Tsave = sf_union(Tsave, sf_contain(T));
    return Tsave;
}

Here is the call graph for this function:

cv_sharp()

pcover cv_sharp	(	pcover	A,
		pcover	B )

Definition at line 23 of file sharp.c.

{
    pcube last, p;
    pcover T;

    T = new_cover(0);
    foreach_set(A, last, p)
    T = sf_union(T, cb_sharp(p, B));
    return T;
}

Here is the call graph for this function:

dsharp()

pcover dsharp	(	pcube	a,
		pcube	b )

Definition at line 172 of file sharp.c.

{
    register pcube mask, diff, and, temp, temp1 = cube.temp[0];
    int var;
    pcover r;

    r = new_cover(cube.num_vars);

    if (cdist0(a, b)) {
    diff = set_diff(new_cube(), a, b);
    and = set_and(new_cube(), a, b);
    mask = new_cube();
    for(var = 0; var < cube.num_vars; var++) {
        /* check if position var of "a and not b" is not empty */
        if (! setp_disjoint(diff, cube.var_mask[var])) {

        /* coordinate var equals the difference between a and b */
        temp = GETSET(r, r->count++);
        (void) set_and(temp, diff, cube.var_mask[var]);

        /* coordinates 0 ... var-1 equal the intersection */
        INLINEset_and(temp1, and, mask);
        INLINEset_or(temp, temp, temp1);

        /* coordinates var+1 .. cube.num_vars equal a */
        set_or(mask, mask, cube.var_mask[var]);
        INLINEset_diff(temp1, a, mask);
        INLINEset_or(temp, temp, temp1);
        }
    }
    free_cube(diff);
    free_cube(and);
    free_cube(mask);
    } else {
    r = sf_addset(r, a);
    }
    return r;
}

Here is the call graph for this function:

make_disjoint()

pcover make_disjoint

(

pcover

A

)

Definition at line 102 of file sharp.c.

{
    pcover R, new;
    register pset last, p;

    R = new_cover(0);
    foreach_set(A, last, p) {
    new = cb_dsharp(p, R);
    R = sf_append(R, new);
    }
    return R;
}

Here is the call graph for this function:

sharp()

pcover sharp	(	pcube	a,
		pcube	b )

Definition at line 81 of file sharp.c.

{
    register int var;
    register pcube d=cube.temp[0], temp=cube.temp[1], temp1=cube.temp[2];
    pcover r = new_cover(cube.num_vars);

    if (cdist0(a, b)) {
    set_diff(d, a, b);
    for(var = 0; var < cube.num_vars; var++) {
        if (! setp_empty(set_and(temp, d, cube.var_mask[var]))) {
        set_diff(temp1, a, cube.var_mask[var]);
        set_or(GETSET(r, r->count++), temp, temp1);
        }
    }
    } else {
    r = sf_addset(r, a);
    }
    return r;
}

Here is the call graph for this function:

Variable Documentation

start_time

ABC_NAMESPACE_IMPL_START long start_time

Definition at line 19 of file sharp.c.
