sparse.c File Reference

#include "espresso.h"

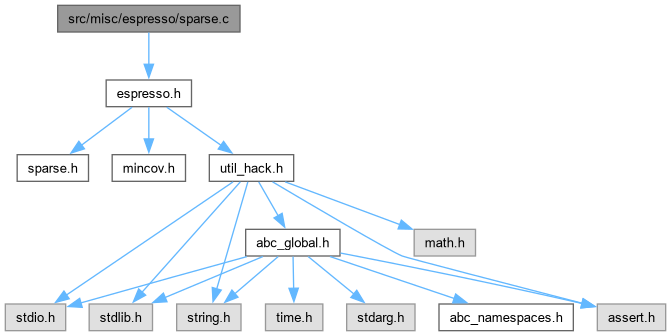

Include dependency graph for sparse.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START pcover	make_sparse (pcover F, pcover D, pcover R)
pcover	mv_reduce (pcover F, pcover D)

Function Documentation

make_sparse()

ABC_NAMESPACE_IMPL_START pcover make_sparse	(	pcover	F,
		pcover	D,
		pcover	R )

Definition at line 26 of file sparse.c.

{
    cost_t cost, best_cost;

    cover_cost(F, &best_cost);

    do {
    EXECUTE(F = mv_reduce(F, D), MV_REDUCE_TIME, F, cost);
    if (cost.total == best_cost.total)
        break;
    copy_cost(&cost, &best_cost);

    EXECUTE(F = expand(F, R, TRUE), RAISE_IN_TIME, F, cost);
    if (cost.total == best_cost.total)
        break;
    copy_cost(&cost, &best_cost);
    } while (force_irredundant);

    return F;
}

Here is the call graph for this function:

mv_reduce()

pcover mv_reduce	(	pcover	F,
		pcover	D )

Definition at line 63 of file sparse.c.

{
    register int i, var;
    register pcube p, p1, last;
    int index;
    pcover F1, D1;
    pcube *F_cube_table;

    /* loop for each multiple-valued variable */
    for(var = 0; var < cube.num_vars; var++) {

    if (cube.sparse[var]) {

        /* loop for each part of the variable */
        for(i = cube.first_part[var]; i <= cube.last_part[var]; i++) {

        /* remember mapping of F1 cubes back to F cubes */
        F_cube_table = ALLOC(pcube, F->count);

        /* 'cofactor' against part #i of variable #var */
        F1 = new_cover(F->count);
        foreach_set(F, last, p) {
            if (is_in_set(p, i)) {
            F_cube_table[F1->count] = p;
            p1 = GETSET(F1, F1->count++);
            (void) set_diff(p1, p, cube.var_mask[var]);
            set_insert(p1, i);
            }
        }

        /* 'cofactor' against part #i of variable #var */
        /* not really necessary -- just more efficient ? */
        D1 = new_cover(D->count);
        foreach_set(D, last, p) {
            if (is_in_set(p, i)) {
            p1 = GETSET(D1, D1->count++);
            (void) set_diff(p1, p, cube.var_mask[var]);
            set_insert(p1, i);
            }
        }

        mark_irredundant(F1, D1);

        /* now remove part i from cubes which are redundant */
        index = 0;
        foreach_set(F1, last, p1) {
            if (! TESTP(p1, ACTIVE)) {
            p = F_cube_table[index];

            /*   don't reduce a variable which is full
             *   (unless it is the output variable)
             */
            if (var == cube.num_vars-1 ||
                 ! setp_implies(cube.var_mask[var], p)) {
                set_remove(p, i);
            }
            RESET(p, PRIME);
            }
            index++;
        }

        free_cover(F1);
        free_cover(D1);
        FREE(F_cube_table);
        }
    }
    }

    /* Check if any cubes disappeared */
    (void) sf_active(F);
    for(var = 0; var < cube.num_vars; var++) {
    if (cube.sparse[var]) {
        foreach_active_set(F, last, p) {
        if (setp_disjoint(p, cube.var_mask[var])) {
            RESET(p, ACTIVE);
            F->active_count--;
        }
        }
    }
    }

    if (F->count != F->active_count) {
    F = sf_inactive(F);
    }
    return F;
}

Here is the call graph for this function:
