kitty::dynamic_truth_table Struct Reference

#include <kitty_dynamic_tt.hpp>

Public Member Functions
	dynamic_truth_table (uint32_t num_vars)
	dynamic_truth_table ()
dynamic_truth_table	construct () const
uint32_t	num_vars () const noexcept
uint32_t	num_blocks () const noexcept
uint32_t	num_bits () const noexcept
std::vector< uint64_t >::iterator	begin () noexcept
	Begin iterator to bits.
std::vector< uint64_t >::iterator	end () noexcept
	End iterator to bits.
std::vector< uint64_t >::const_iterator	begin () const noexcept
	Begin iterator to bits.
std::vector< uint64_t >::const_iterator	end () const noexcept
	End iterator to bits.
std::vector< uint64_t >::reverse_iterator	rbegin () noexcept
	Reverse begin iterator to bits.
std::vector< uint64_t >::reverse_iterator	rend () noexcept
	Reverse end iterator to bits.
std::vector< uint64_t >::const_iterator	cbegin () const noexcept
	Constant begin iterator to bits.
std::vector< uint64_t >::const_iterator	cend () const noexcept
	Constant end iterator to bits.
std::vector< uint64_t >::const_reverse_iterator	crbegin () const noexcept
	Constant reverse begin iterator to bits.
std::vector< uint64_t >::const_reverse_iterator	crend () const noexcept
	Constant teverse end iterator to bits.
template<class TT>
dynamic_truth_table &	operator= (const TT &other)
	Assign other truth table.
void	mask_bits () noexcept

Detailed Description

Truth table in which number of variables is known at runtime.

Definition at line 18 of file kitty_dynamic_tt.hpp.

Constructor & Destructor Documentation

dynamic_truth_table() [1/2]

kitty::dynamic_truth_table::dynamic_truth_table ( uint32_t num_vars )

inlineexplicit

Standard constructor.

The number of variables provided to the truth table can be computed at runtime. However, once the truth table is constructed its number of variables cannot change anymore.

The constructor computes the number of blocks and resizes the vector accordingly.

Parameters

num_vars

Number of variables

Definition at line 31 of file kitty_dynamic_tt.hpp.

      : _bits( ( num_vars <= 6 ) ? 1u : ( 1u << ( num_vars - 6 ) ) ),
        _num_vars( num_vars )
  {
  }

Here is the call graph for this function:

Here is the caller graph for this function:

dynamic_truth_table() [2/2]

kitty::dynamic_truth_table::dynamic_truth_table ( )

inline

Empty constructor.

Creates an empty truth table. It has 0 variables, but no bits, i.e., it is different from a truth table for the constant function. This constructor is only used for convenience, if algorithms require the existence of default constructable classes.

Definition at line 44 of file kitty_dynamic_tt.hpp.

: _num_vars( 0 ) {}

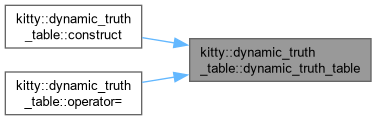

Here is the caller graph for this function:

Member Function Documentation

begin() [1/2]

std::vector< uint64_t >::const_iterator kitty::dynamic_truth_table::begin ( ) const

inlinenoexcept

Begin iterator to bits.

Definition at line 74 of file kitty_dynamic_tt.hpp.

{ return _bits.begin(); }

begin() [2/2]

std::vector< uint64_t >::iterator kitty::dynamic_truth_table::begin ( )

inlinenoexcept

Begin iterator to bits.

Definition at line 66 of file kitty_dynamic_tt.hpp.

{ return _bits.begin(); }

Here is the caller graph for this function:

cbegin()

std::vector< uint64_t >::const_iterator kitty::dynamic_truth_table::cbegin ( ) const

inlinenoexcept

Constant begin iterator to bits.

Definition at line 90 of file kitty_dynamic_tt.hpp.

{ return _bits.cbegin(); }

cend()

std::vector< uint64_t >::const_iterator kitty::dynamic_truth_table::cend ( ) const

inlinenoexcept

Constant end iterator to bits.

Definition at line 94 of file kitty_dynamic_tt.hpp.

{ return _bits.cend(); }

construct()

dynamic_truth_table kitty::dynamic_truth_table::construct ( ) const

inline

Constructs a new dynamic truth table instance with the same number of variables.

Definition at line 47 of file kitty_dynamic_tt.hpp.

  {
    return dynamic_truth_table( _num_vars );
  }

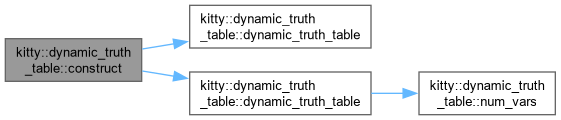

Here is the call graph for this function:

crbegin()

std::vector< uint64_t >::const_reverse_iterator kitty::dynamic_truth_table::crbegin ( ) const

inlinenoexcept

Constant reverse begin iterator to bits.

Definition at line 98 of file kitty_dynamic_tt.hpp.

{ return _bits.crbegin(); }

crend()

std::vector< uint64_t >::const_reverse_iterator kitty::dynamic_truth_table::crend ( ) const

inlinenoexcept

Constant teverse end iterator to bits.

Definition at line 102 of file kitty_dynamic_tt.hpp.

{ return _bits.crend(); }

end() [1/2]

std::vector< uint64_t >::const_iterator kitty::dynamic_truth_table::end ( ) const

inlinenoexcept

End iterator to bits.

Definition at line 78 of file kitty_dynamic_tt.hpp.

{ return _bits.end(); }

end() [2/2]

std::vector< uint64_t >::iterator kitty::dynamic_truth_table::end ( )

inlinenoexcept

End iterator to bits.

Definition at line 70 of file kitty_dynamic_tt.hpp.

{ return _bits.end(); }

mask_bits()

void kitty::dynamic_truth_table::mask_bits ( )

inlinenoexcept

Masks the number of valid truth table bits.

If the truth table has less than 6 variables, it may not use all the bits. This operation makes sure to zero out all non-valid bits.

Definition at line 132 of file kitty_dynamic_tt.hpp.

  {
    if ( _num_vars < 6 )
    {
      _bits[0u] &= detail::masks[_num_vars];
    }
  }

Here is the caller graph for this function:

num_bits()

uint32_t kitty::dynamic_truth_table::num_bits ( ) const

inlinenoexcept

Returns number of bits.

Definition at line 62 of file kitty_dynamic_tt.hpp.

{ return uint64_t( 1 ) << _num_vars; }

num_blocks()

uint32_t kitty::dynamic_truth_table::num_blocks ( ) const

inlinenoexcept

Returns number of blocks.

Definition at line 58 of file kitty_dynamic_tt.hpp.

{ return _bits.size(); }

num_vars()

uint32_t kitty::dynamic_truth_table::num_vars ( ) const

inlinenoexcept

Returns number of variables.

Definition at line 54 of file kitty_dynamic_tt.hpp.

{ return _num_vars; }

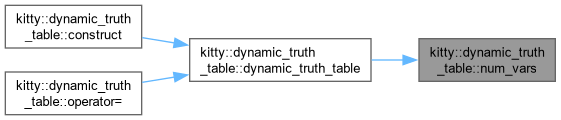

Here is the caller graph for this function:

operator=()

template<class TT>

dynamic_truth_table & kitty::dynamic_truth_table::operator= ( const TT & other )

inline

Assign other truth table.

This replaces the current truth table with another truth table. The truth table type has to be complete. The vector of bits is resized accordingly.

Parameters

other

Other truth table

Definition at line 112 of file kitty_dynamic_tt.hpp.

  {
    _bits.resize( other.num_blocks() );
    std::copy( other.begin(), other.end(), begin() );
    _num_vars = other.num_vars();

    if ( _num_vars < 6 )
    {
      mask_bits();
    }

    return *this;
  }

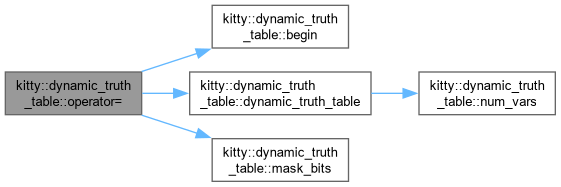

Here is the call graph for this function:

rbegin()

std::vector< uint64_t >::reverse_iterator kitty::dynamic_truth_table::rbegin ( )

inlinenoexcept

Reverse begin iterator to bits.

Definition at line 82 of file kitty_dynamic_tt.hpp.

{ return _bits.rbegin(); }

rend()

std::vector< uint64_t >::reverse_iterator kitty::dynamic_truth_table::rend ( )

inlinenoexcept

Reverse end iterator to bits.

Definition at line 86 of file kitty_dynamic_tt.hpp.

{ return _bits.rend(); }

---

The documentation for this struct was generated from the following file:

• src/map/if/acd/kitty_dynamic_tt.hpp
