kitty::static_truth_table< NumVars, true > Struct Template Reference

#include <kitty_static_tt.hpp>

Public Member Functions
static_truth_table< NumVars >	construct () const
uint32_t	num_vars () const noexcept
uint32_t	num_blocks () const noexcept
uint32_t	num_bits () const noexcept
uint64_t *	begin () noexcept
	Begin iterator to bits.
uint64_t *	end () noexcept
	End iterator to bits.
const uint64_t *	begin () const noexcept
	Begin iterator to bits.
const uint64_t *	end () const noexcept
	End iterator to bits.
uint64_t *	rbegin () noexcept
	Reverse begin iterator to bits.
uint64_t *	rend () noexcept
	Reverse end iterator to bits.
const uint64_t *	cbegin () const noexcept
	Constant begin iterator to bits.
const uint64_t *	cend () const noexcept
	Constant end iterator to bits.
const uint64_t *	crbegin () const noexcept
	Constant reverse begin iterator to bits.
const uint64_t *	crend () const noexcept
	Constant everse end iterator to bits.
template<class TT>
static_truth_table< NumVars > &	operator= (const TT &other)
	Assign other truth table if number of variables match.
void	mask_bits () noexcept

Detailed Description

template<uint32_t NumVars>
struct kitty::static_truth_table< NumVars, true >

Truth table (for up to 6 variables) in which number of variables is known at compile time.

Definition at line 21 of file kitty_static_tt.hpp.

Member Function Documentation

begin() [1/2]

template<uint32_t NumVars>

const uint64_t * kitty::static_truth_table< NumVars, true >::begin ( ) const

inlinenoexcept

Begin iterator to bits.

Definition at line 58 of file kitty_static_tt.hpp.

{ return &_bits; }

begin() [2/2]

template<uint32_t NumVars>

uint64_t * kitty::static_truth_table< NumVars, true >::begin ( )

inlinenoexcept

Begin iterator to bits.

Definition at line 50 of file kitty_static_tt.hpp.

{ return &_bits; }

Here is the caller graph for this function:

cbegin()

template<uint32_t NumVars>

const uint64_t * kitty::static_truth_table< NumVars, true >::cbegin ( ) const

inlinenoexcept

Constant begin iterator to bits.

Definition at line 74 of file kitty_static_tt.hpp.

{ return &_bits; }

cend()

template<uint32_t NumVars>

const uint64_t * kitty::static_truth_table< NumVars, true >::cend ( ) const

inlinenoexcept

Constant end iterator to bits.

Definition at line 78 of file kitty_static_tt.hpp.

{ return ( &_bits ) + 1; }

construct()

template<uint32_t NumVars>

static_truth_table< NumVars > kitty::static_truth_table< NumVars, true >::construct ( ) const

inline

Constructs a new static truth table instance with the same number of variables.

Definition at line 31 of file kitty_static_tt.hpp.

  {
    return static_truth_table<NumVars>();
  }

crbegin()

template<uint32_t NumVars>

const uint64_t * kitty::static_truth_table< NumVars, true >::crbegin ( ) const

inlinenoexcept

Constant reverse begin iterator to bits.

Definition at line 82 of file kitty_static_tt.hpp.

{ return &_bits; }

crend()

template<uint32_t NumVars>

const uint64_t * kitty::static_truth_table< NumVars, true >::crend ( ) const

inlinenoexcept

Constant everse end iterator to bits.

Definition at line 86 of file kitty_static_tt.hpp.

{ return ( &_bits ) + 1; }

end() [1/2]

template<uint32_t NumVars>

const uint64_t * kitty::static_truth_table< NumVars, true >::end ( ) const

inlinenoexcept

End iterator to bits.

Definition at line 62 of file kitty_static_tt.hpp.

{ return ( &_bits ) + 1; }

end() [2/2]

template<uint32_t NumVars>

uint64_t * kitty::static_truth_table< NumVars, true >::end ( )

inlinenoexcept

End iterator to bits.

Definition at line 54 of file kitty_static_tt.hpp.

{ return ( &_bits ) + 1; }

mask_bits()

template<uint32_t NumVars>

void kitty::static_truth_table< NumVars, true >::mask_bits ( )

inlinenoexcept

Masks the number of valid truth table bits.

If the truth table has less than 6 variables, it may not use all the bits. This operation makes sure to zero out all non-valid bits.

Definition at line 113 of file kitty_static_tt.hpp.

{ _bits &= detail::masks[NumVars]; }

num_bits()

template<uint32_t NumVars>

uint32_t kitty::static_truth_table< NumVars, true >::num_bits ( ) const

inlinenoexcept

Returns number of bits.

Definition at line 46 of file kitty_static_tt.hpp.

{ return NumBits; }

num_blocks()

template<uint32_t NumVars>

uint32_t kitty::static_truth_table< NumVars, true >::num_blocks ( ) const

inlinenoexcept

Returns number of blocks.

Definition at line 42 of file kitty_static_tt.hpp.

{ return 1u; }

num_vars()

template<uint32_t NumVars>

uint32_t kitty::static_truth_table< NumVars, true >::num_vars ( ) const

inlinenoexcept

Returns number of variables.

Definition at line 38 of file kitty_static_tt.hpp.

{ return NumVars; }

Here is the caller graph for this function:

operator=()

template<uint32_t NumVars>

template<class TT>

static_truth_table< NumVars > & kitty::static_truth_table< NumVars, true >::operator= ( const TT & other )

inline

Assign other truth table if number of variables match.

This replaces the current truth table with another truth table, if other has the same number of variables. Otherwise, the truth table is not changed.

Parameters

other

Other truth table

Definition at line 97 of file kitty_static_tt.hpp.

  {
    if ( other.num_vars() == num_vars() )
    {
      std::copy( other.begin(), other.end(), begin() );
    }

    return *this;
  }

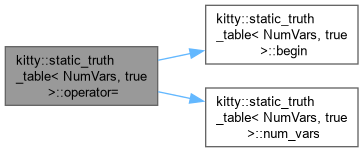

Here is the call graph for this function:

rbegin()

template<uint32_t NumVars>

uint64_t * kitty::static_truth_table< NumVars, true >::rbegin ( )

inlinenoexcept

Reverse begin iterator to bits.

Definition at line 66 of file kitty_static_tt.hpp.

{ return &_bits; }

rend()

template<uint32_t NumVars>

uint64_t * kitty::static_truth_table< NumVars, true >::rend ( )

inlinenoexcept

Reverse end iterator to bits.

Definition at line 70 of file kitty_static_tt.hpp.

{ return ( &_bits ) + 1; }

---

The documentation for this struct was generated from the following file:

• src/map/if/acd/kitty_static_tt.hpp
