timTime.c File Reference

#include "timInt.h"

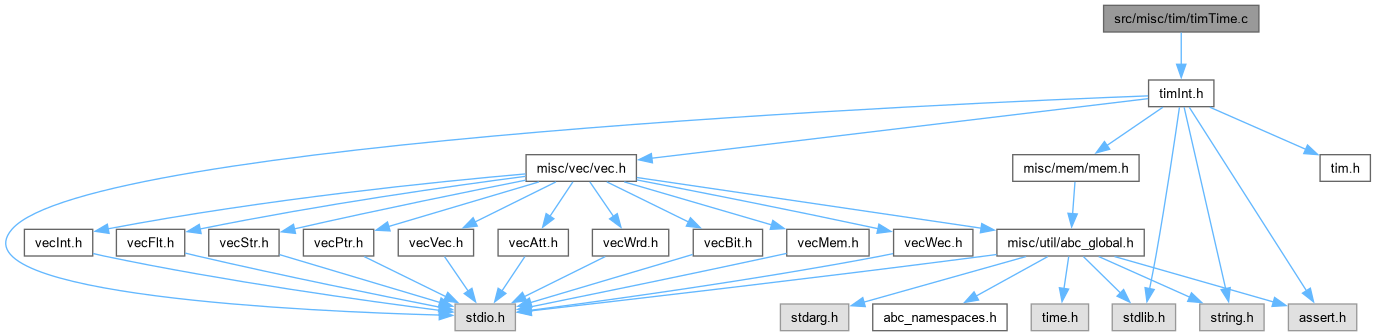

Include dependency graph for timTime.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Tim_ManInitPiArrival (Tim_Man_t *p, int iPi, float Delay)
	DECLARATIONS ///.
void	Tim_ManInitPoRequired (Tim_Man_t *p, int iPo, float Delay)
void	Tim_ManInitPiArrivalAll (Tim_Man_t *p, float Delay)
void	Tim_ManInitPoRequiredAll (Tim_Man_t *p, float Delay)
void	Tim_ManSetCoArrival (Tim_Man_t *p, int iCo, float Delay)
void	Tim_ManSetCiRequired (Tim_Man_t *p, int iCi, float Delay)
void	Tim_ManSetCoRequired (Tim_Man_t *p, int iCo, float Delay)
float	Tim_ManGetCiArrival (Tim_Man_t *p, int iCi)
float	Tim_ManGetCoRequired (Tim_Man_t *p, int iCo)

Function Documentation

Tim_ManGetCiArrival()

float Tim_ManGetCiArrival	(	Tim_Man_t *	p,
		int	iCi )

Function*************************************************************

Synopsis [Returns CO arrival time.]

Description []

SideEffects []

SeeAlso []

Definition at line 174 of file timTime.c.

{
    Tim_Box_t * pBox;
    Tim_Obj_t * pObjThis, * pObj, * pObjRes;
    float * pTable, * pDelays, DelayBest;
    int i, k;
    // consider the already processed PI
    pObjThis = Tim_ManCi( p, iCi );
    if ( p->fUseTravId && pObjThis->TravId == p->nTravIds )
        return pObjThis->timeArr;
    pObjThis->TravId = p->nTravIds;
    // consider the main PI
    pBox = Tim_ManCiBox( p, iCi );
    if ( pBox == NULL )
        return pObjThis->timeArr;
    // update box timing
    pBox->TravId = p->nTravIds;
    // get the arrival times of the inputs of the box (POs)
    if ( p->fUseTravId )
    Tim_ManBoxForEachInput( p, pBox, pObj, i )
        if ( pObj->TravId != p->nTravIds )
            printf( "Tim_ManGetCiArrival(): Input arrival times of the box are not up to date!\n" );
    // compute the arrival times for each output of the box (PIs)
    pTable = Tim_ManBoxDelayTable( p, pBox->iBox );
    Tim_ManBoxForEachOutput( p, pBox, pObjRes, i )
    {
        pDelays = pTable + 3 + i * pBox->nInputs;
        DelayBest = -TIM_ETERNITY;
        Tim_ManBoxForEachInput( p, pBox, pObj, k )
            if ( pDelays[k] != -ABC_INFINITY )
                DelayBest = Abc_MaxInt( DelayBest, pObj->timeArr + pDelays[k] );
        pObjRes->timeArr = DelayBest;
        pObjRes->TravId = p->nTravIds;
    }
    return pObjThis->timeArr;
}

Here is the call graph for this function:

Here is the caller graph for this function:

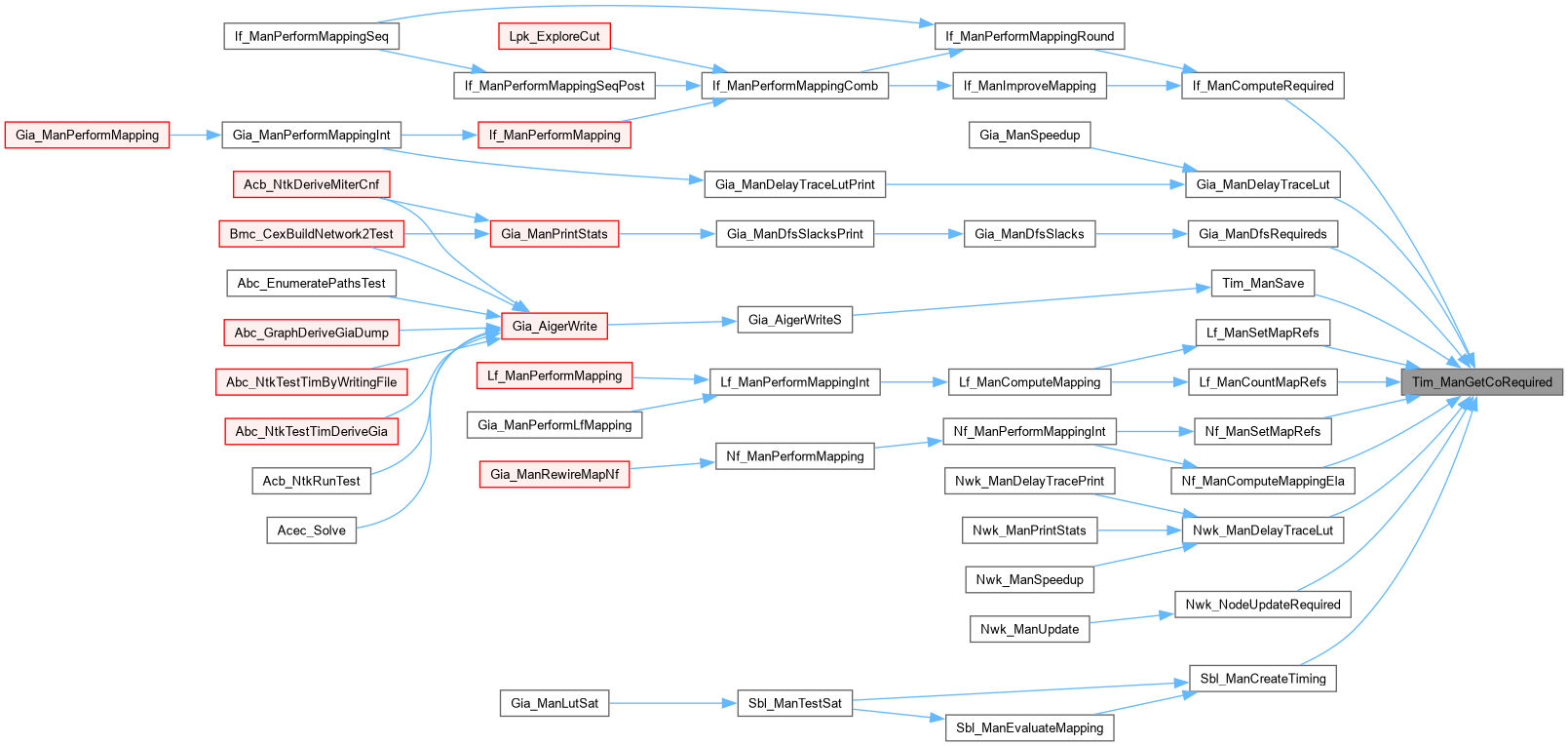

Tim_ManGetCoRequired()

float Tim_ManGetCoRequired	(	Tim_Man_t *	p,
		int	iCo )

Function*************************************************************

Synopsis [Returns CO required time.]

Description []

SideEffects []

SeeAlso []

Definition at line 222 of file timTime.c.

{
    Tim_Box_t * pBox;
    Tim_Obj_t * pObjThis, * pObj, * pObjRes;
    float * pTable, * pDelays, DelayBest;
    int i, k;
    // consider the already processed PO
    pObjThis = Tim_ManCo( p, iCo );
    if ( p->fUseTravId && pObjThis->TravId == p->nTravIds )
        return pObjThis->timeReq;
    pObjThis->TravId = p->nTravIds;
    // consider the main PO
    pBox = Tim_ManCoBox( p, iCo );
    if ( pBox == NULL )
        return pObjThis->timeReq;
    // update box timing
    pBox->TravId = p->nTravIds;
    // get the required times of the outputs of the box (PIs)
    if ( p->fUseTravId )
    Tim_ManBoxForEachOutput( p, pBox, pObj, i )
        if ( pObj->TravId != p->nTravIds )
            printf( "Tim_ManGetCoRequired(): Output required times of output %d the box %d are not up to date!\n", i, pBox->iBox );
    // compute the required times for each input of the box (POs)
    pTable = Tim_ManBoxDelayTable( p, pBox->iBox );
    Tim_ManBoxForEachInput( p, pBox, pObjRes, i )
    {
        DelayBest = TIM_ETERNITY;
        Tim_ManBoxForEachOutput( p, pBox, pObj, k )
        {
            pDelays = pTable + 3 + k * pBox->nInputs;
            if ( pDelays[k] != -ABC_INFINITY )
                DelayBest = Abc_MinFloat( DelayBest, pObj->timeReq - pDelays[i] );
        }
        pObjRes->timeReq = DelayBest;
        pObjRes->TravId = p->nTravIds;
    }
    return pObjThis->timeReq;
}

Here is the call graph for this function:

Here is the caller graph for this function:

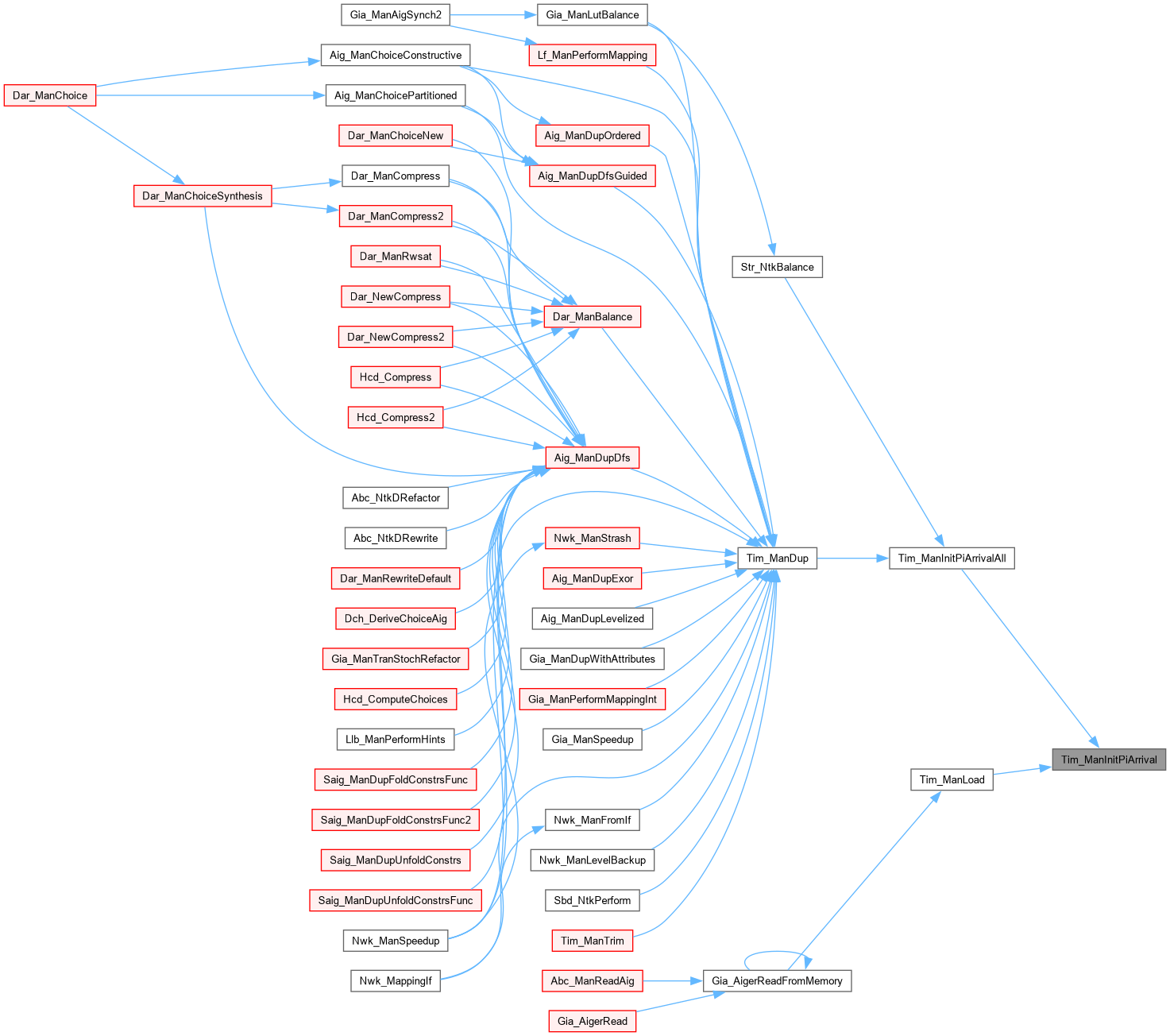

Tim_ManInitPiArrival()

ABC_NAMESPACE_IMPL_START void Tim_ManInitPiArrival	(	Tim_Man_t *	p,
		int	iPi,
		float	Delay )

DECLARATIONS ///.

CFile****************************************************************

FileName [timTime.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Hierarchy/timing manager.]

Synopsis [Setting and resetting timing information of the boxes.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

timTime.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Initializes arrival time of the PI.]

Description []

SideEffects []

SeeAlso []

Definition at line 44 of file timTime.c.

{
    assert( iPi < p->nCis );
    p->pCis[iPi].timeArr = Delay;
}

Here is the caller graph for this function:

Tim_ManInitPiArrivalAll()

void Tim_ManInitPiArrivalAll	(	Tim_Man_t *	p,
		float	Delay )

Function*************************************************************

Synopsis [Sets arrival times of all PIs.]

Description []

SideEffects []

SeeAlso []

Definition at line 78 of file timTime.c.

{
    Tim_Obj_t * pObj;
    int i;
    Tim_ManForEachPi( p, pObj, i )
        Tim_ManInitPiArrival( p, i, Delay );
}

Here is the call graph for this function:

Here is the caller graph for this function:

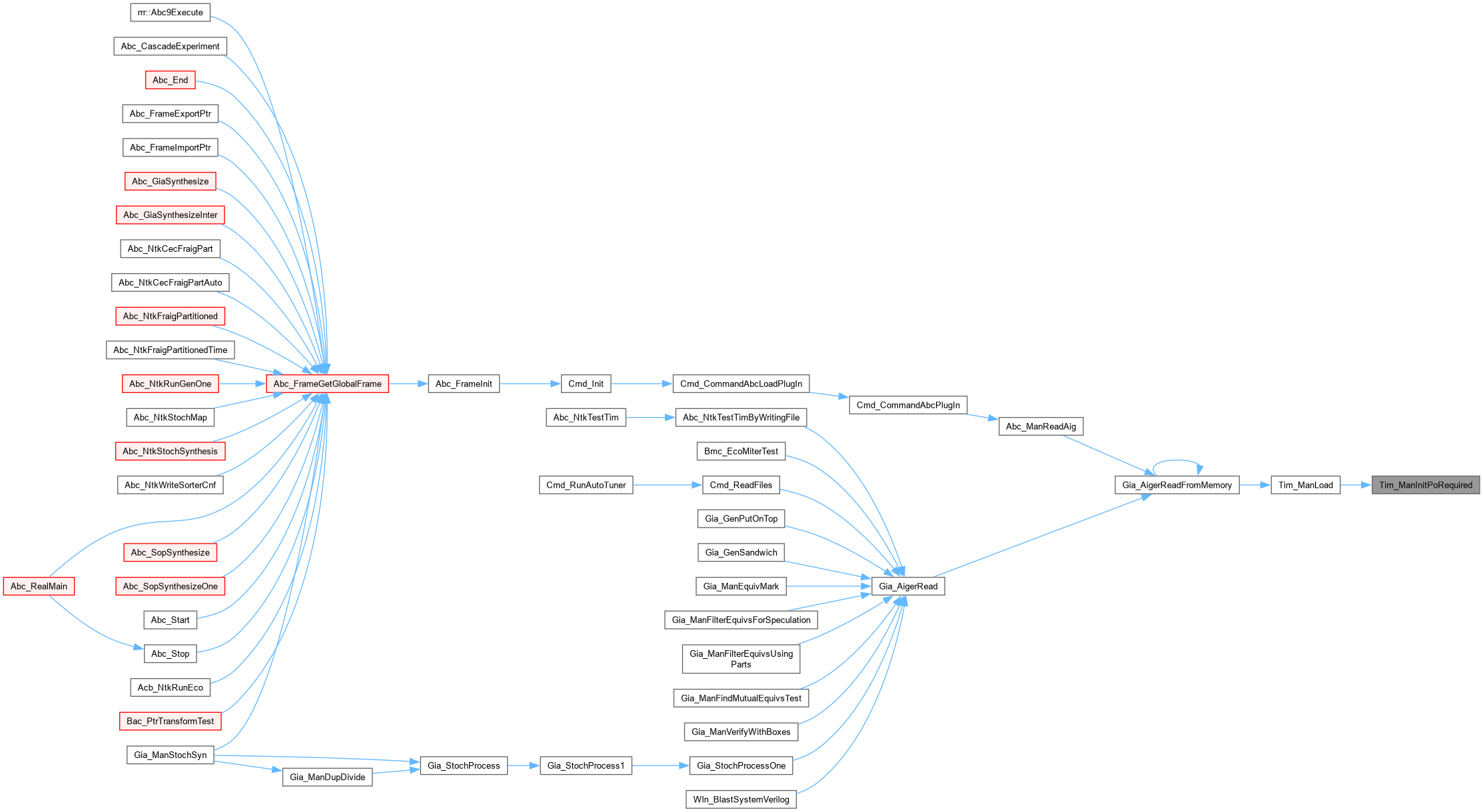

Tim_ManInitPoRequired()

void Tim_ManInitPoRequired	(	Tim_Man_t *	p,
		int	iPo,
		float	Delay )

Function*************************************************************

Synopsis [Initializes required time of the PO.]

Description []

SideEffects []

SeeAlso []

Definition at line 61 of file timTime.c.

{
    assert( iPo < p->nCos );
    p->pCos[iPo].timeReq = Delay;
}

Here is the caller graph for this function:

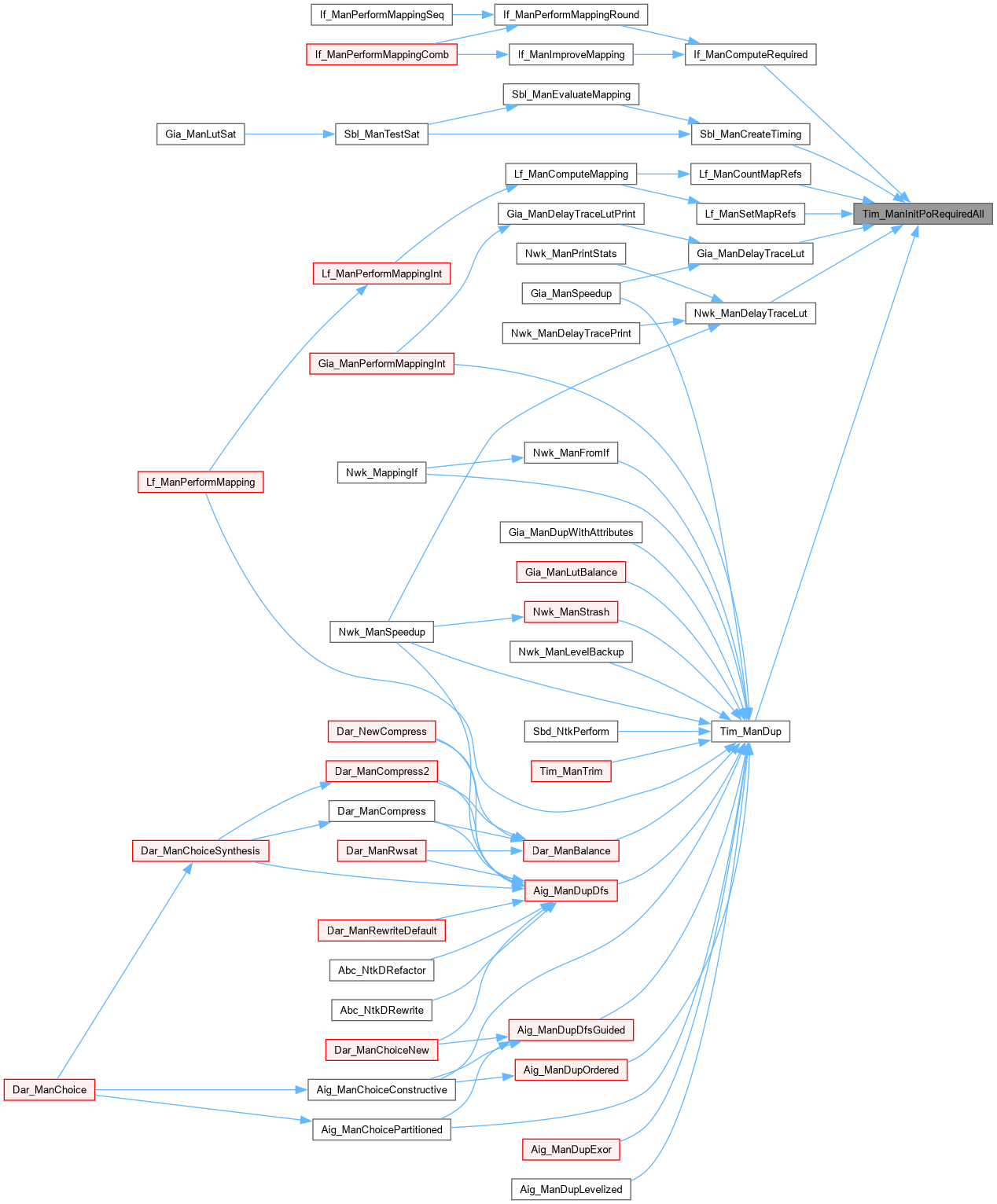

Tim_ManInitPoRequiredAll()

void Tim_ManInitPoRequiredAll	(	Tim_Man_t *	p,
		float	Delay )

Function*************************************************************

Synopsis [Sets required times of all POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 97 of file timTime.c.

{
    Tim_Obj_t * pObj;
    int i;
    Tim_ManForEachPo( p, pObj, i )
        Tim_ManSetCoRequired( p, i, Delay );
}

Here is the call graph for this function:

Here is the caller graph for this function:

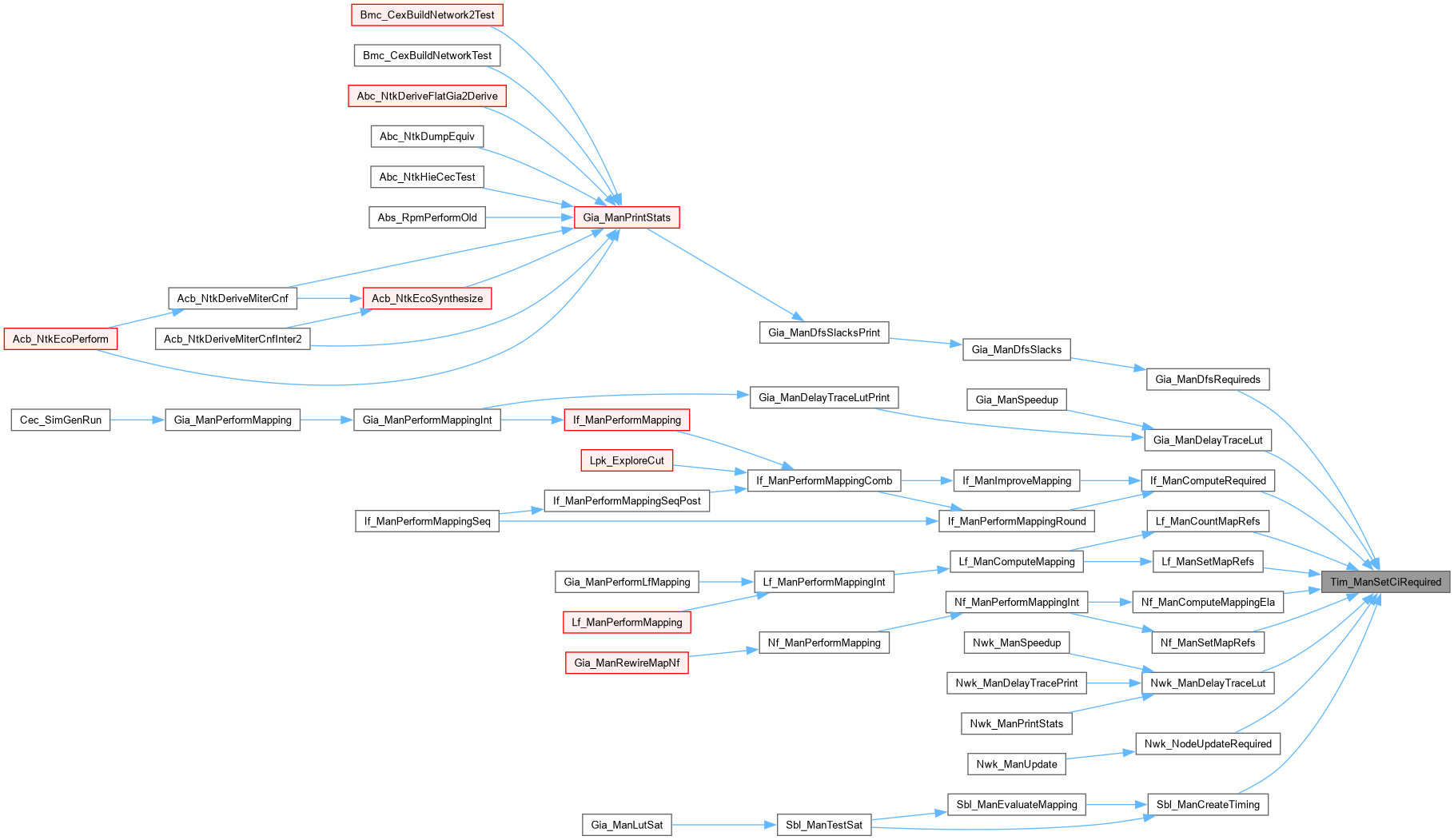

Tim_ManSetCiRequired()

void Tim_ManSetCiRequired	(	Tim_Man_t *	p,
		int	iCi,
		float	Delay )

Function*************************************************************

Synopsis [Updates required time of the CI.]

Description []

SideEffects []

SeeAlso []

Definition at line 135 of file timTime.c.

{
    assert( iCi < p->nCis );
    assert( !p->fUseTravId || p->pCis[iCi].TravId != p->nTravIds );
    p->pCis[iCi].timeReq = Delay;
    p->pCis[iCi].TravId = p->nTravIds;
}

Here is the caller graph for this function:

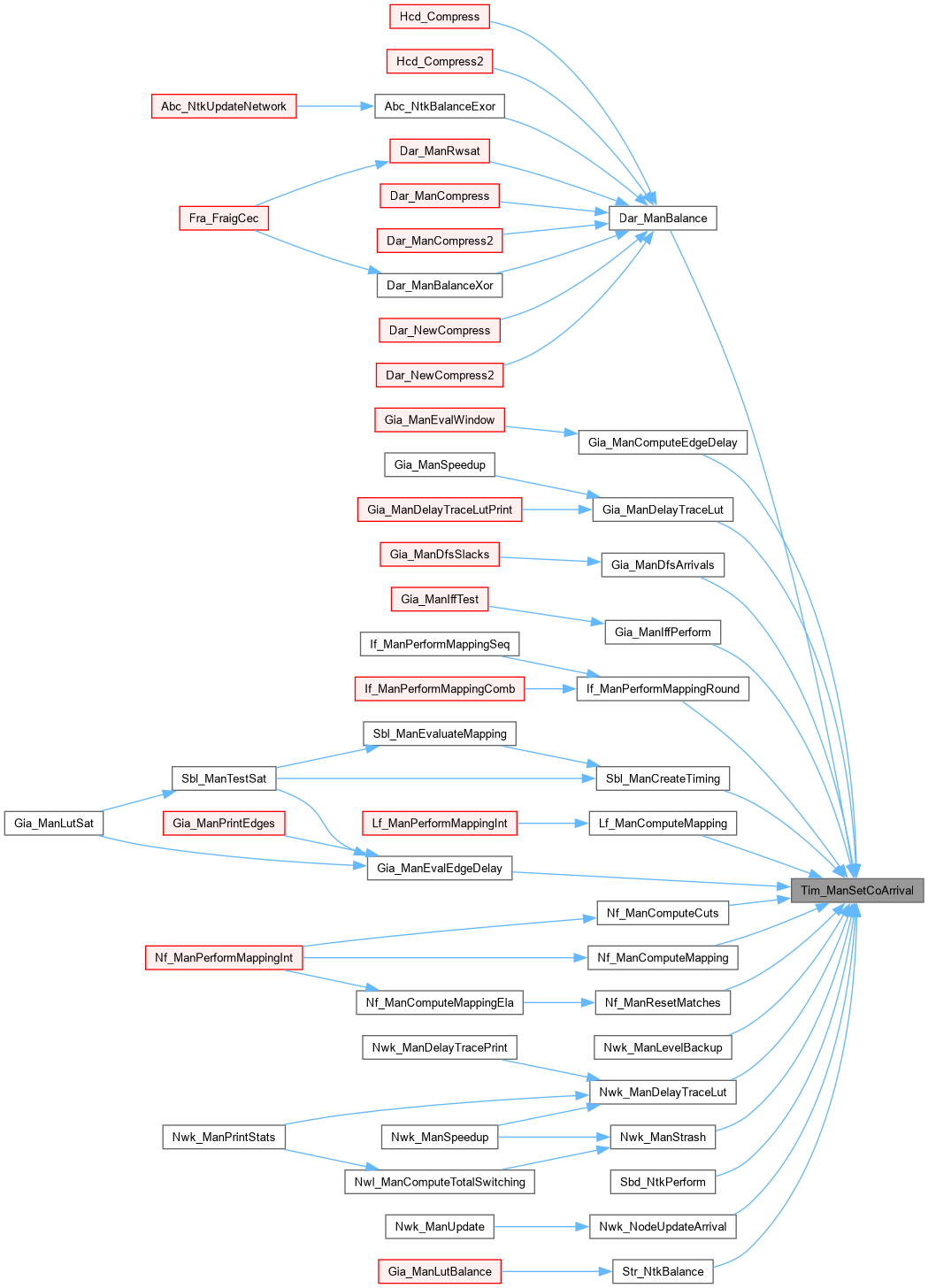

Tim_ManSetCoArrival()

void Tim_ManSetCoArrival	(	Tim_Man_t *	p,
		int	iCo,
		float	Delay )

Function*************************************************************

Synopsis [Updates arrival time of the CO.]

Description []

SideEffects []

SeeAlso []

Definition at line 116 of file timTime.c.

{
    assert( iCo < p->nCos );
    assert( !p->fUseTravId || p->pCos[iCo].TravId != p->nTravIds );
    p->pCos[iCo].timeArr = Delay;
    p->pCos[iCo].TravId = p->nTravIds;
}

Here is the caller graph for this function:

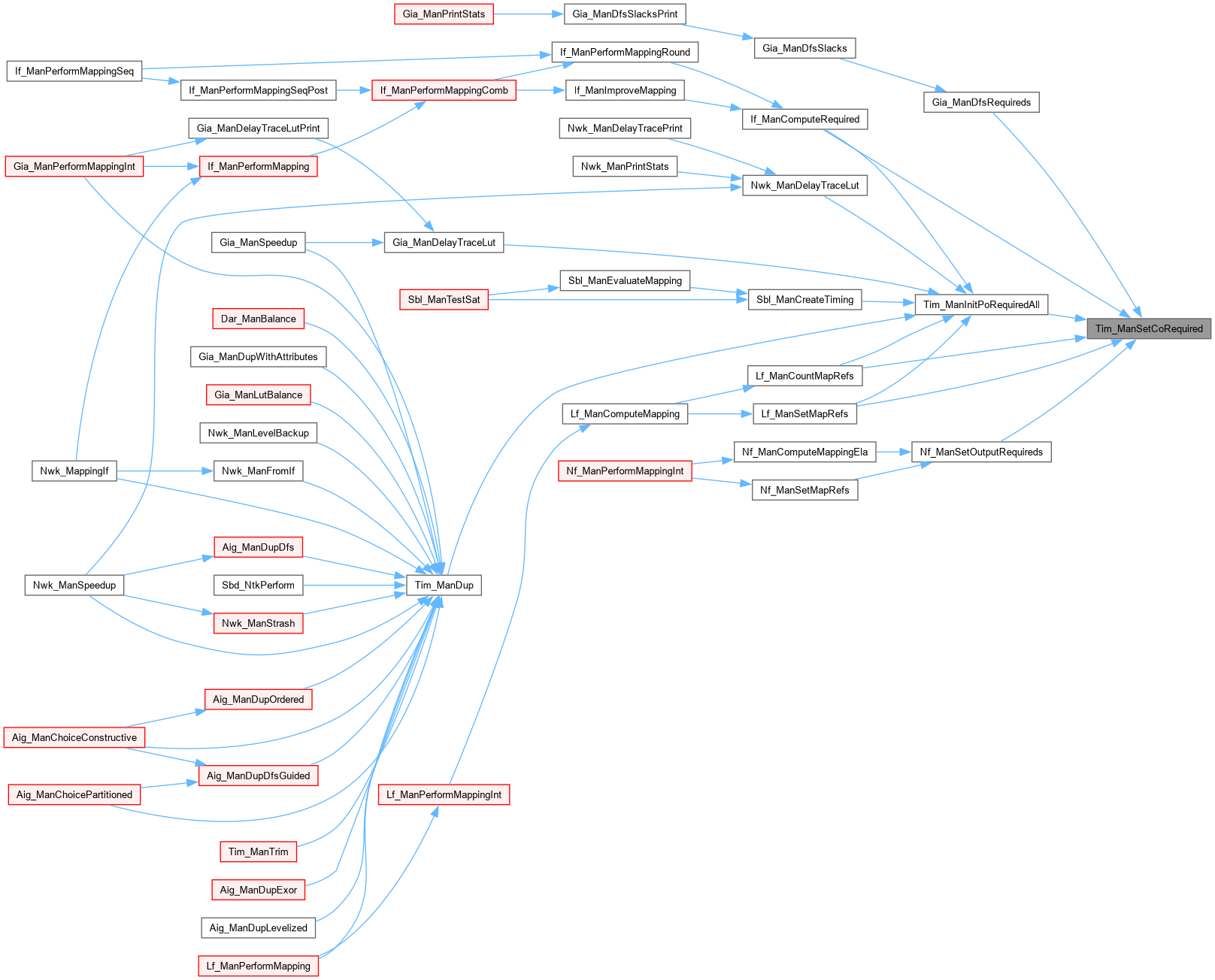

Tim_ManSetCoRequired()

void Tim_ManSetCoRequired	(	Tim_Man_t *	p,
		int	iCo,
		float	Delay )

Function*************************************************************

Synopsis [Updates required time of the CO.]

Description []

SideEffects []

SeeAlso []

Definition at line 154 of file timTime.c.

{
    assert( iCo < p->nCos );
    assert( !p->fUseTravId || !p->nTravIds || p->pCos[iCo].TravId != p->nTravIds );
    p->pCos[iCo].timeReq = Delay;
    p->pCos[iCo].TravId = p->nTravIds;
}

Here is the caller graph for this function:
