utilCex.c File Reference

#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <assert.h>
#include "misc/vec/vec.h"
#include "utilCex.h"

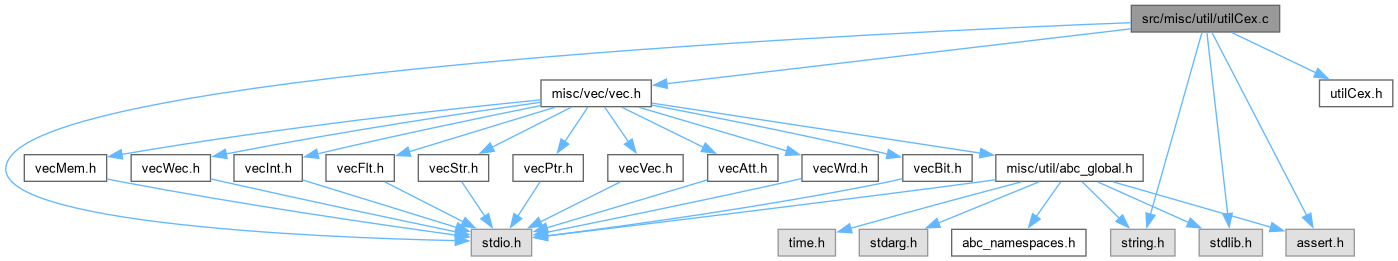

Include dependency graph for utilCex.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Abc_Cex_t *	Abc_CexAlloc (int nRegs, int nRealPis, int nFrames)
	DECLARATIONS ///.
Abc_Cex_t *	Abc_CexAllocFull (int nRegs, int nRealPis, int nFrames)
Abc_Cex_t *	Abc_CexMakeTriv (int nRegs, int nTruePis, int nTruePos, int iFrameOut)
Abc_Cex_t *	Abc_CexCreate (int nRegs, int nPis, int *pArray, int iFrame, int iPo, int fSkipRegs)
Abc_Cex_t *	Abc_CexDup (Abc_Cex_t *p, int nRegsNew)
Abc_Cex_t *	Abc_CexDeriveFromCombModel (int *pModel, int nPis, int nRegs, int iPo)
Abc_Cex_t *	Abc_CexMerge (Abc_Cex_t *pCex, Abc_Cex_t *pPart, int iFrBeg, int iFrEnd)
void	Abc_CexPrintStats (Abc_Cex_t *p)
void	Abc_CexPrintStatsInputs (Abc_Cex_t *p, int nRealPis)
void	Abc_CexPrint (Abc_Cex_t *p)
void	Abc_CexFreeP (Abc_Cex_t **p)
void	Abc_CexFree (Abc_Cex_t *p)
Abc_Cex_t *	Abc_CexTransformPhase (Abc_Cex_t *p, int nPisOld, int nPosOld, int nRegsOld)
Abc_Cex_t *	Abc_CexTransformTempor (Abc_Cex_t *p, int nPisOld, int nPosOld, int nRegsOld)
Abc_Cex_t *	Abc_CexTransformUndc (Abc_Cex_t *p, char *pInit)
Abc_Cex_t *	Abc_CexPermute (Abc_Cex_t *p, Vec_Int_t *vMapOld2New)
Abc_Cex_t *	Abc_CexPermuteTwo (Abc_Cex_t *p, Vec_Int_t *vPermOld, Vec_Int_t *vPermNew)
int	Abc_CexCountOnes (Abc_Cex_t *p)

Function Documentation

Abc_CexAlloc()

ABC_NAMESPACE_IMPL_START Abc_Cex_t * Abc_CexAlloc	(	int	nRegs,
		int	nRealPis,
		int	nFrames )

DECLARATIONS ///.

MACRO DEFINITIONS ///.

CFile****************************************************************

FileName [utilCex.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Handling counter-examples.]

Synopsis [Handling counter-examples.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - Feburary 13, 2011.]

Revision [

Id

utilCex.c,v 1.00 2011/02/11 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Allocates a counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 51 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int nWords = Abc_BitWordNum( nRegs + nRealPis * nFrames );
    pCex = (Abc_Cex_t *)ABC_ALLOC( char, sizeof(Abc_Cex_t) + sizeof(unsigned) * nWords );
    memset( pCex, 0, sizeof(Abc_Cex_t) + sizeof(unsigned) * nWords );
    pCex->nRegs  = nRegs;
    pCex->nPis   = nRealPis;
    pCex->nBits  = nRegs + nRealPis * nFrames;
    return pCex;
}

Here is the call graph for this function:

Abc_CexAllocFull()

Abc_Cex_t * Abc_CexAllocFull	(	int	nRegs,
		int	nRealPis,
		int	nFrames )

Definition at line 62 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int nWords = Abc_BitWordNum( nRegs + nRealPis * nFrames );
    pCex = (Abc_Cex_t *)ABC_ALLOC( char, sizeof(Abc_Cex_t) + sizeof(unsigned) * nWords );
    memset( pCex, 0xFF, sizeof(Abc_Cex_t) + sizeof(unsigned) * nWords );
    pCex->nRegs  = nRegs;
    pCex->nPis   = nRealPis;
    pCex->nBits  = nRegs + nRealPis * nFrames;
    return pCex;
}

Here is the call graph for this function:

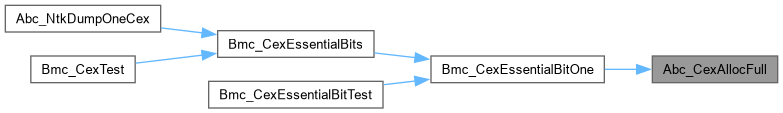

Here is the caller graph for this function:

Abc_CexCountOnes()

int Abc_CexCountOnes

(

Abc_Cex_t *

p

)

Definition at line 559 of file utilCex.c.

{
    int nWords = Abc_BitWordNum( p->nBits );
    int i, Count = 0;
    for ( i = 0; i < nWords; i++ )
        Count += Abc_CexOnes32( p->pData[i] );
    return Count;
}

Here is the caller graph for this function:

Abc_CexCreate()

Abc_Cex_t * Abc_CexCreate	(	int	nRegs,
		int	nPis,
		int *	pArray,
		int	iFrame,
		int	iPo,
		int	fSkipRegs )

Function*************************************************************

Synopsis [Derives the counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 110 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int i;
    pCex = Abc_CexAlloc( nRegs, nPis, iFrame+1 );
    pCex->iPo    = iPo;
    pCex->iFrame = iFrame;
    if ( pArray == NULL )
        return pCex;
    if ( fSkipRegs )
    {
        for ( i = nRegs; i < pCex->nBits; i++ )
            if ( pArray[i-nRegs] )
                Abc_InfoSetBit( pCex->pData, i );
    }
    else
    {
        for ( i = 0; i < pCex->nBits; i++ )
            if ( pArray[i] )
                Abc_InfoSetBit( pCex->pData, i );
    }
    return pCex;
}

Here is the call graph for this function:

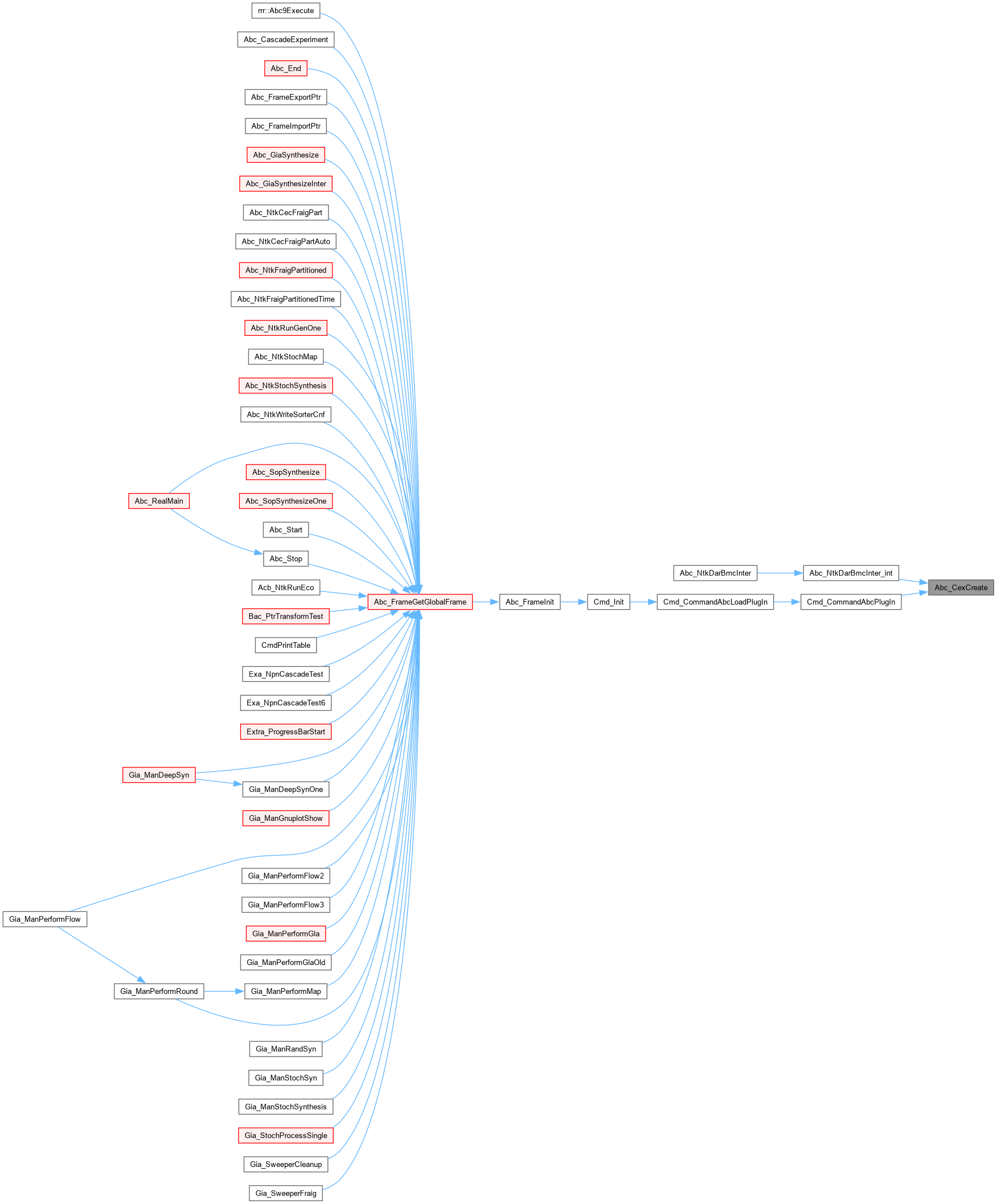

Here is the caller graph for this function:

Abc_CexDeriveFromCombModel()

Abc_Cex_t * Abc_CexDeriveFromCombModel	(	int *	pModel,
		int	nPis,
		int	nRegs,
		int	iPo )

Function*************************************************************

Synopsis [Derives CEX from comb model.]

Description []

SideEffects []

SeeAlso []

Definition at line 173 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int i;
    pCex = Abc_CexAlloc( nRegs, nPis, 1 );
    pCex->iPo = iPo;
    pCex->iFrame = 0;
    for ( i = 0; i < nPis; i++ )
        if ( pModel[i] )
            pCex->pData[i>>5] |= (1<<(i & 31));
    return pCex;
}

Here is the call graph for this function:

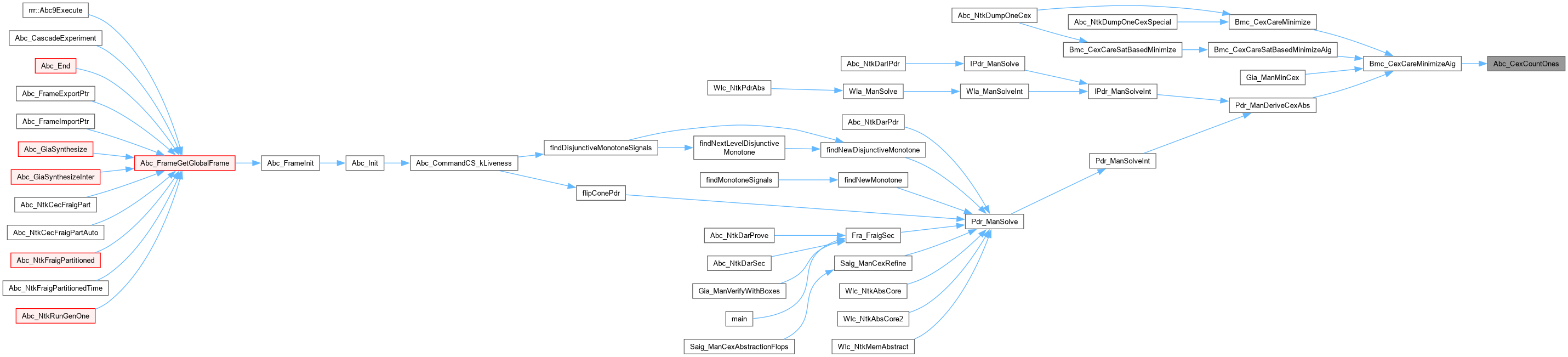

Here is the caller graph for this function:

Abc_CexDup()

Abc_Cex_t * Abc_CexDup	(	Abc_Cex_t *	p,
		int	nRegsNew )

Function*************************************************************

Synopsis [Make the trivial counter-example for the trivially asserted output.]

Description []

SideEffects []

SeeAlso []

Definition at line 145 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int i;
    if ( p == (Abc_Cex_t *)(ABC_PTRINT_T)1 )
        return p;
    if ( nRegsNew == -1 )
        nRegsNew = p->nRegs;
    pCex = Abc_CexAlloc( nRegsNew, p->nPis, p->iFrame+1 );
    pCex->iPo    = p->iPo;
    pCex->iFrame = p->iFrame;
    for ( i = p->nRegs; i < p->nBits; i++ )
        if ( Abc_InfoHasBit(p->pData, i) )
            Abc_InfoSetBit( pCex->pData, pCex->nRegs + i - p->nRegs );
    return pCex;
}

Here is the call graph for this function:

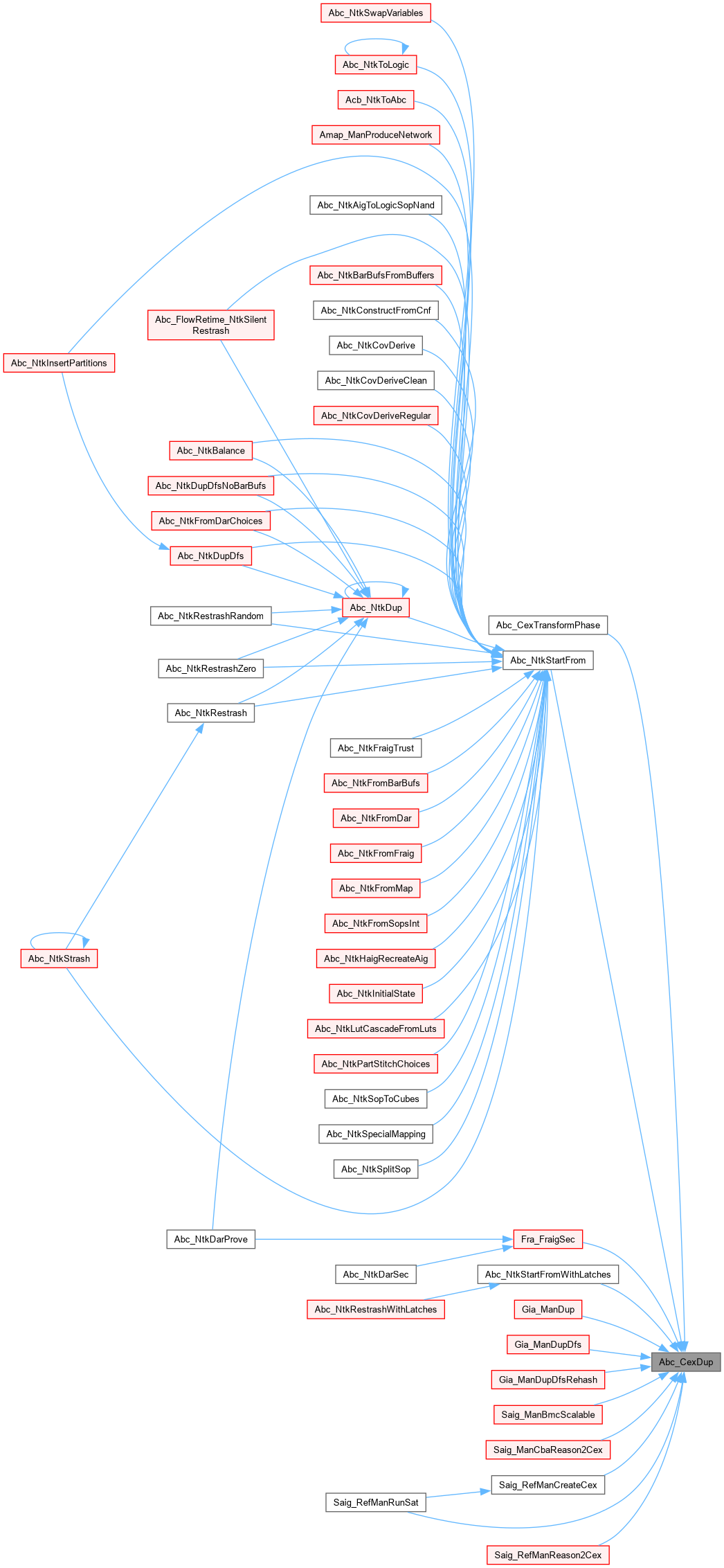

Here is the caller graph for this function:

Abc_CexFree()

void Abc_CexFree

(

Abc_Cex_t *

p

)

Function*************************************************************

Synopsis [Frees the counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 382 of file utilCex.c.

{
    if ( p == (Abc_Cex_t *)(ABC_PTRINT_T)1 )
        return;
    ABC_FREE( p );
}

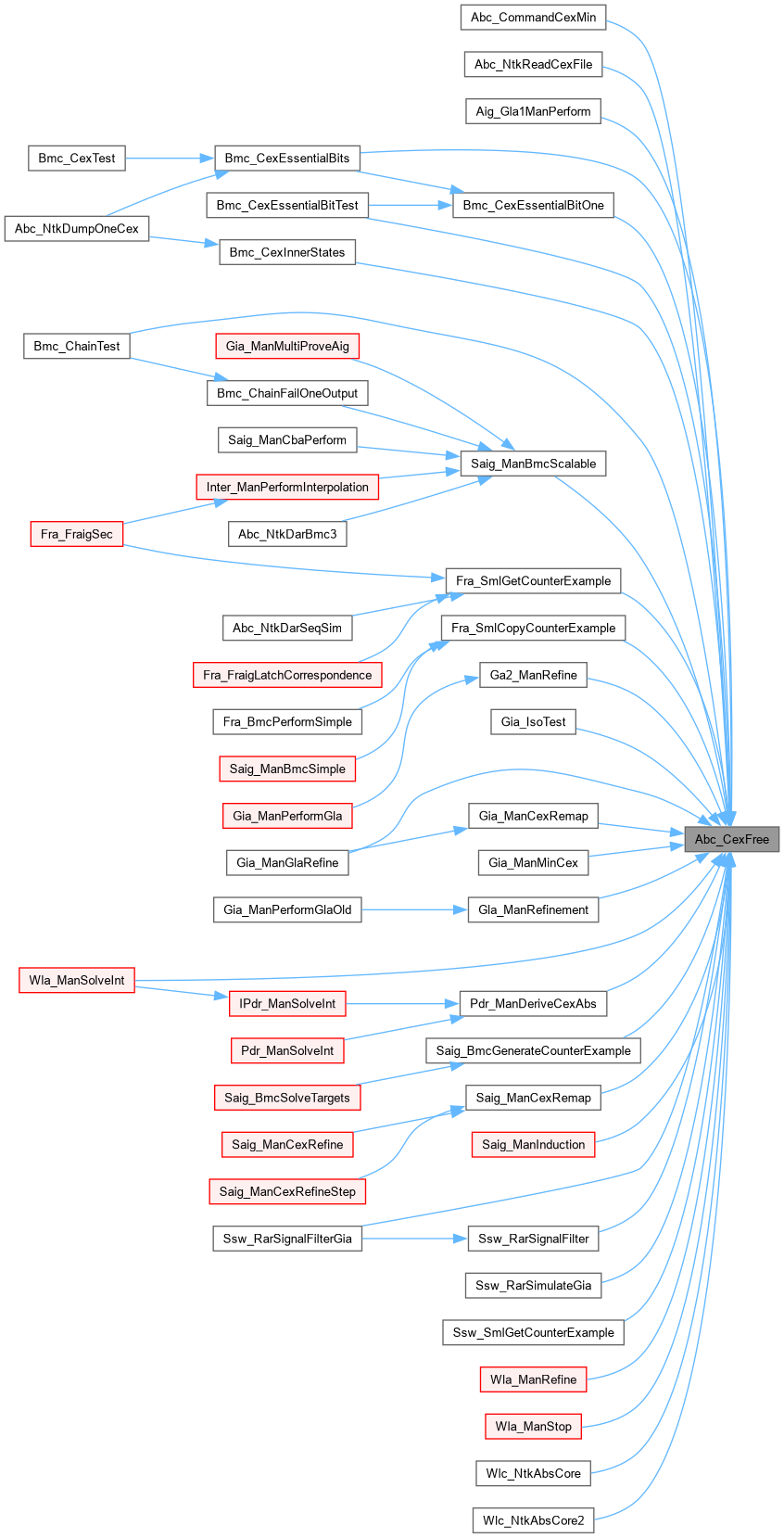

Here is the caller graph for this function:

Abc_CexFreeP()

void Abc_CexFreeP

(

Abc_Cex_t **

p

)

Function*************************************************************

Synopsis [Frees the counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 361 of file utilCex.c.

{
    if ( *p == NULL )
        return;
    if ( *p == (Abc_Cex_t *)(ABC_PTRINT_T)1 )
        *p = NULL;
    else
        ABC_FREE( *p );
}

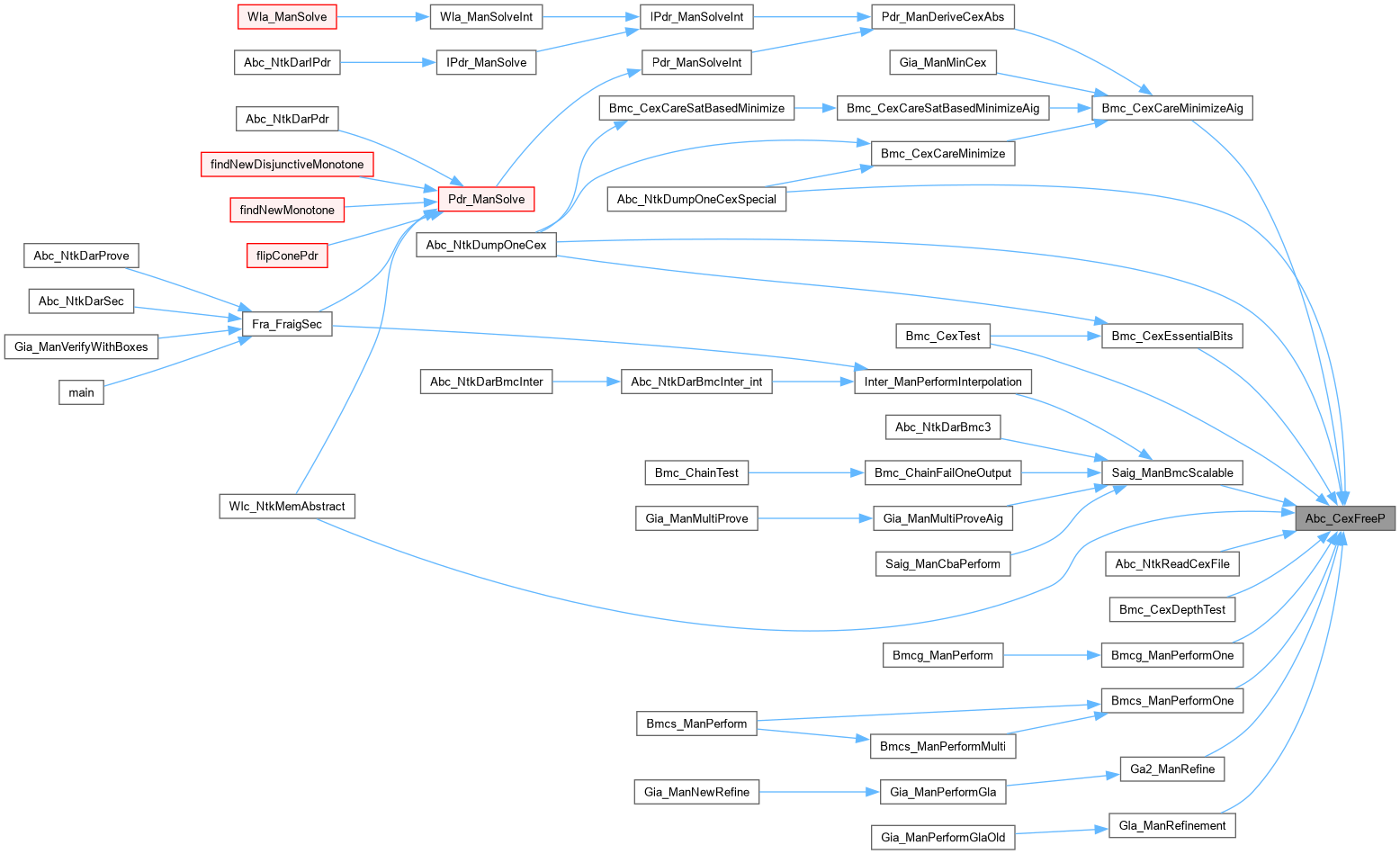

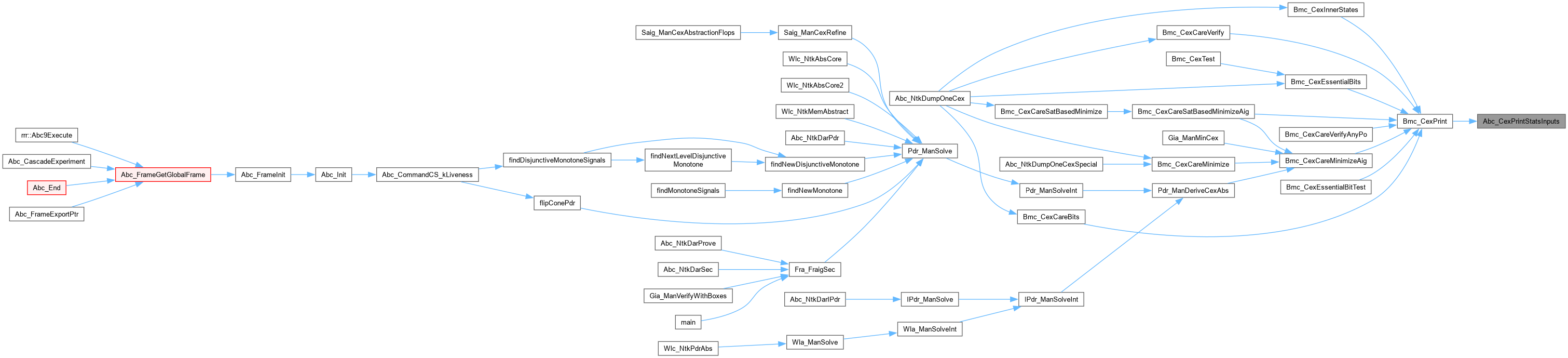

Here is the caller graph for this function:

Abc_CexMakeTriv()

Abc_Cex_t * Abc_CexMakeTriv	(	int	nRegs,
		int	nTruePis,
		int	nTruePos,
		int	iFrameOut )

Function*************************************************************

Synopsis [Make the trivial counter-example for the trivially asserted output.]

Description []

SideEffects []

SeeAlso []

Definition at line 85 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int iPo, iFrame;
    assert( nRegs > 0 );
    iPo    = iFrameOut % nTruePos;
    iFrame = iFrameOut / nTruePos;
    // allocate the counter example
    pCex = Abc_CexAlloc( nRegs, nTruePis, iFrame + 1 );
    pCex->iPo    = iPo;
    pCex->iFrame = iFrame;
    return pCex;
}

Here is the call graph for this function:

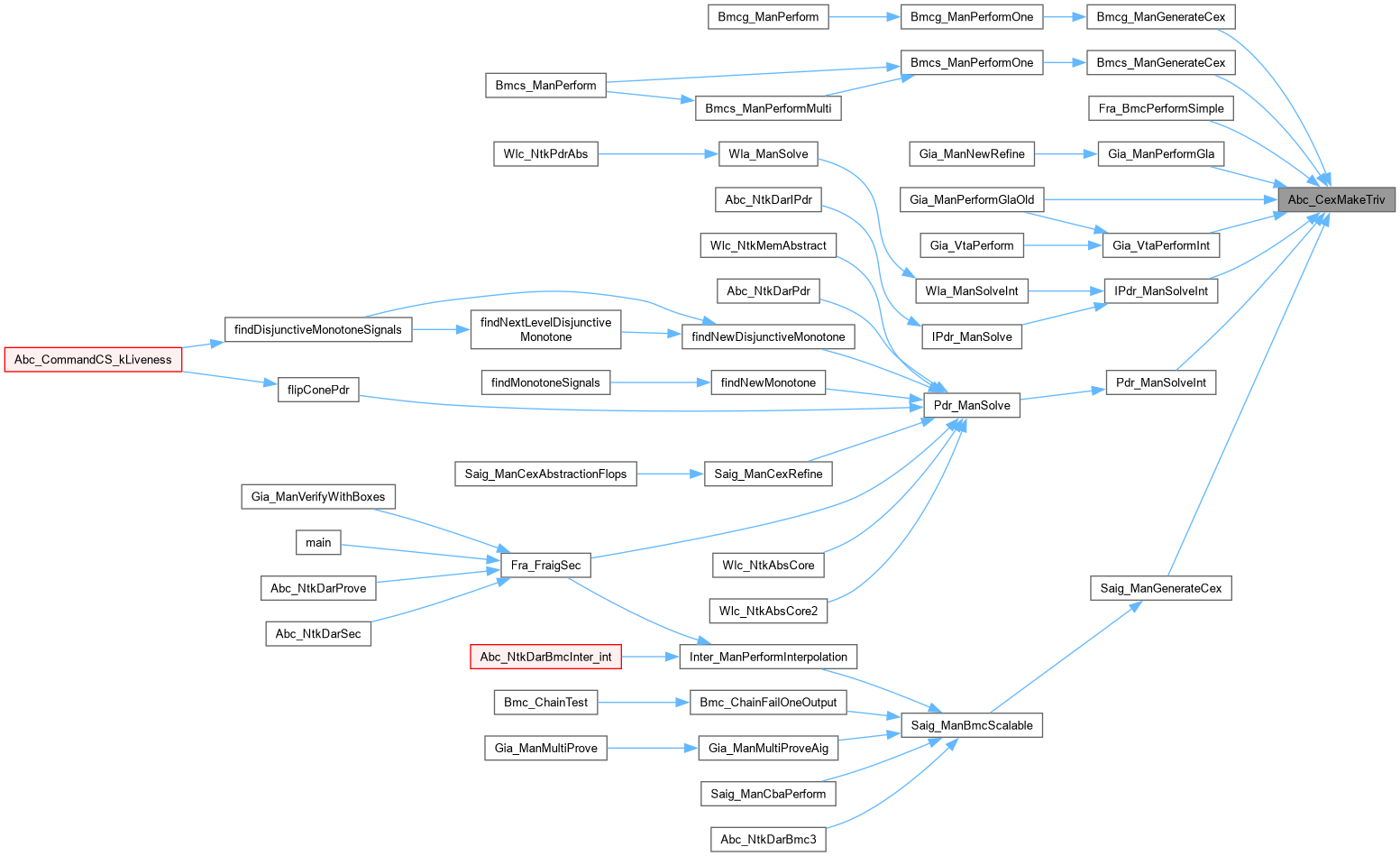

Here is the caller graph for this function:

Abc_CexMerge()

Abc_Cex_t * Abc_CexMerge	(	Abc_Cex_t *	pCex,
		Abc_Cex_t *	pPart,
		int	iFrBeg,
		int	iFrEnd )

Function*************************************************************

Synopsis [Derives CEX from comb model.]

Description []

SideEffects []

SeeAlso []

Definition at line 197 of file utilCex.c.

{
    Abc_Cex_t * pNew;
    int nFramesGain;
    int i, f, iBit;

    if ( iFrBeg < 0 )
        { printf( "Starting frame is less than 0.\n" ); return NULL; }
    if ( iFrEnd < 0 )
        { printf( "Stopping frame is less than 0.\n" ); return NULL; }
    if ( iFrBeg > pCex->iFrame )
        { printf( "Starting frame is more than the last frame of CEX (%d).\n", pCex->iFrame ); return NULL; }
    if ( iFrEnd > pCex->iFrame )
        { printf( "Stopping frame is more than the last frame of CEX (%d).\n", pCex->iFrame ); return NULL; }
    if ( iFrBeg > iFrEnd )
        { printf( "Starting frame (%d) should be less than stopping frame (%d).\n", iFrBeg, iFrEnd ); return NULL; }
    assert( iFrBeg >= 0 && iFrBeg <= pCex->iFrame );
    assert( iFrEnd >= 0 && iFrEnd <= pCex->iFrame );
    assert( iFrBeg <= iFrEnd );

    assert( pCex->nPis == pPart->nPis );
    assert( iFrEnd - iFrBeg + pPart->iPo >= pPart->iFrame );

    nFramesGain = iFrEnd - iFrBeg + pPart->iPo - pPart->iFrame;
    pNew = Abc_CexAlloc( pCex->nRegs, pCex->nPis, pCex->iFrame + 1 - nFramesGain );
    pNew->iPo    = pCex->iPo;
    pNew->iFrame = pCex->iFrame - nFramesGain;

    for ( iBit = 0; iBit < pCex->nRegs; iBit++ )
        if ( Abc_InfoHasBit(pCex->pData, iBit) )
            Abc_InfoSetBit( pNew->pData, iBit );
    for ( f = 0; f < iFrBeg; f++ )
        for ( i = 0; i < pCex->nPis; i++, iBit++ )
            if ( Abc_InfoHasBit(pCex->pData, pCex->nRegs + pCex->nPis * f + i) )
                Abc_InfoSetBit( pNew->pData, iBit );
    for ( f = 0; f < pPart->iFrame; f++ )
        for ( i = 0; i < pCex->nPis; i++, iBit++ )
            if ( Abc_InfoHasBit(pPart->pData, pPart->nRegs + pCex->nPis * f + i) )
                Abc_InfoSetBit( pNew->pData, iBit );
    for ( f = iFrEnd; f <= pCex->iFrame; f++ )
        for ( i = 0; i < pCex->nPis; i++, iBit++ )
            if ( Abc_InfoHasBit(pCex->pData, pCex->nRegs + pCex->nPis * f + i) )
                Abc_InfoSetBit( pNew->pData, iBit );
    assert( iBit == pNew->nBits );

    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_CexPermute()

Abc_Cex_t * Abc_CexPermute	(	Abc_Cex_t *	p,
		Vec_Int_t *	vMapOld2New )

Function*************************************************************

Synopsis [Derives permuted CEX using permutation of its inputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 498 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int i, iNew;
    assert( Vec_IntSize(vMapOld2New) == p->nPis );
    pCex = Abc_CexAlloc( p->nRegs, p->nPis, p->iFrame+1 );
    pCex->iPo    = p->iPo;
    pCex->iFrame = p->iFrame;
    for ( i = p->nRegs; i < p->nBits; i++ )
        if ( Abc_InfoHasBit(p->pData, i) )
        {
            iNew = p->nRegs + p->nPis * ((i - p->nRegs) / p->nPis) + Vec_IntEntry( vMapOld2New, (i - p->nRegs) % p->nPis );
            Abc_InfoSetBit( pCex->pData, iNew );
        }
    return pCex;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_CexPermuteTwo()

Abc_Cex_t * Abc_CexPermuteTwo	(	Abc_Cex_t *	p,
		Vec_Int_t *	vPermOld,
		Vec_Int_t *	vPermNew )

Function*************************************************************

Synopsis [Derives permuted CEX using two canonical permutations.]

Description []

SideEffects []

SeeAlso []

Definition at line 526 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    Vec_Int_t * vPerm;
    int i, eOld, eNew;
    assert( Vec_IntSize(vPermOld) == p->nPis );
    assert( Vec_IntSize(vPermNew) == p->nPis );
    vPerm = Vec_IntStartFull( p->nPis );
    Vec_IntForEachEntryTwo( vPermOld, vPermNew, eOld, eNew, i )
        Vec_IntWriteEntry( vPerm, eOld, eNew );
    pCex = Abc_CexPermute( p, vPerm );
    Vec_IntFree( vPerm );
    return pCex;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_CexPrint()

void Abc_CexPrint

(

Abc_Cex_t *

p

)

Function*************************************************************

Synopsis [Prints out the counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 322 of file utilCex.c.

{
    int i, f, k;
    if ( p == NULL )
    {
        printf( "The counter example is NULL.\n" );
        return;
    }
    if ( p == (Abc_Cex_t *)(ABC_PTRINT_T)1 )
    {
        printf( "The counter example is present but not available (pointer has value \"1\").\n" );
        return;
    }
    Abc_CexPrintStats( p );
    printf( "State    : " );
    for ( k = 0; k < p->nRegs; k++ )
        printf( "%d", Abc_InfoHasBit(p->pData, k) );
    printf( "\n" );
    for ( f = 0; f <= p->iFrame; f++ )
    {
        printf( "Frame %3d : ", f );
        for ( i = 0; i < p->nPis; i++ )
            printf( "%d", Abc_InfoHasBit(p->pData, k++) );
        printf( "\n" );
    }
    assert( k == p->nBits );
}

Here is the call graph for this function:

Abc_CexPrintStats()

void Abc_CexPrintStats

(

Abc_Cex_t *

p

)

Function*************************************************************

Synopsis [Prints out the counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 256 of file utilCex.c.

{
    int k, Counter = 0;
    if ( p == NULL )
    {
        printf( "The counter example is NULL.\n" );
        return;
    }
    if ( p == (Abc_Cex_t *)(ABC_PTRINT_T)1 )
    {
        printf( "The counter example is present but not available (pointer has value \"1\").\n" );
        return;
    }
    for ( k = 0; k < p->nBits; k++ )
        Counter += Abc_InfoHasBit(p->pData, k);
    printf( "CEX: Po =%4d  Frame =%4d  FF = %d  PI = %d  Bit =%8d  1s =%8d (%5.2f %%)\n",
        p->iPo, p->iFrame, p->nRegs, p->nPis, p->nBits,
        Counter, 100.0 * Counter / (p->nBits - p->nRegs) );
}

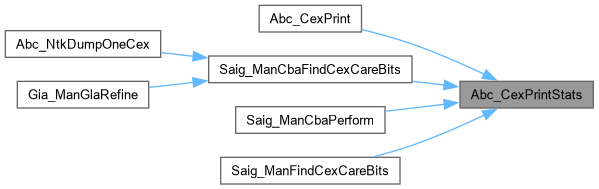

Here is the caller graph for this function:

Abc_CexPrintStatsInputs()

void Abc_CexPrintStatsInputs	(	Abc_Cex_t *	p,
		int	nRealPis )

Definition at line 275 of file utilCex.c.

{
    int k, Counter = 0, CounterPi = 0, CounterPpi = 0;
    if ( p == NULL )
    {
        printf( "The counter example is NULL.\n" );
        return;
    }
    if ( p == (Abc_Cex_t *)(ABC_PTRINT_T)1 )
    {
        printf( "The counter example is present but not available (pointer has value \"1\").\n" );
        return;
    }
    assert( nRealPis <= p->nPis );
    for ( k = 0; k < p->nBits; k++ )
    {
        Counter += Abc_InfoHasBit(p->pData, k);
        if ( nRealPis == p->nPis )
            continue;
        if ( (k - p->nRegs) % p->nPis < nRealPis )
            CounterPi += Abc_InfoHasBit(p->pData, k);
        else
            CounterPpi += Abc_InfoHasBit(p->pData, k);
    }
    printf( "CEX: Po =%4d  Fr =%4d  FF = %d  PI = %d  Bit =%7d  1 =%8d (%5.2f %%)",
        p->iPo, p->iFrame, p->nRegs, p->nPis, p->nBits,
        Counter,  100.0 * Counter    / ((p->iFrame + 1) * p->nPis ) );
    if ( nRealPis < p->nPis )
    {
        printf( " 1pi =%8d (%5.2f %%) 1ppi =%8d (%5.2f %%)",
            CounterPi,  100.0 * CounterPi  / ((p->iFrame + 1) * nRealPis ),
            CounterPpi, 100.0 * CounterPpi / ((p->iFrame + 1) * (p->nPis - nRealPis)) );
    }
    printf( "\n" );
}

Here is the caller graph for this function:

Abc_CexTransformPhase()

Abc_Cex_t * Abc_CexTransformPhase	(	Abc_Cex_t *	p,
		int	nPisOld,
		int	nPosOld,
		int	nRegsOld )

Function*************************************************************

Synopsis [Transform CEX after phase abstraction with nFrames frames.]

Description []

SideEffects []

SeeAlso []

Definition at line 401 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int nFrames = p->nPis / nPisOld;
    int nPosNew = nPosOld * nFrames;
    assert( p->nPis % nPisOld == 0 );
    assert( p->iPo < nPosNew );
    pCex = Abc_CexDup( p, nRegsOld );
    pCex->nPis   = nPisOld;
    pCex->iPo    = -1;
    pCex->iFrame = (p->iFrame + 1) * nFrames - 1;
    pCex->nBits  = p->nBits;
    return pCex;
}

Here is the call graph for this function:

Abc_CexTransformTempor()

Abc_Cex_t * Abc_CexTransformTempor	(	Abc_Cex_t *	p,
		int	nPisOld,
		int	nPosOld,
		int	nRegsOld )

Function*************************************************************

Synopsis [Transform CEX after phase temporal decomposition with nFrames frames.]

Description []

SideEffects []

SeeAlso []

Definition at line 427 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int i, k, iBit = nRegsOld, nFrames = p->nPis / nPisOld - 1;
    assert( p->iFrame > 0 ); // otherwise tempor did not properly check for failures in the prefix
    assert( p->nPis % nPisOld == 0 );
    pCex = Abc_CexAlloc( nRegsOld, nPisOld, nFrames + p->iFrame + 1 );
    pCex->iPo    = p->iPo;
    pCex->iFrame = nFrames + p->iFrame;
    for ( i = 0; i < nFrames; i++ )
        for ( k = 0; k < nPisOld; k++, iBit++ )
            if ( Abc_InfoHasBit(p->pData, p->nRegs + (i+1)*nPisOld + k) )
                Abc_InfoSetBit( pCex->pData, iBit );
    for ( i = 0; i <= p->iFrame; i++ )
        for ( k = 0; k < nPisOld; k++, iBit++ )
            if ( Abc_InfoHasBit(p->pData, p->nRegs + i*p->nPis + k) )
                Abc_InfoSetBit( pCex->pData, iBit );
    assert( iBit == pCex->nBits );
    return pCex;
}

Here is the call graph for this function:

Abc_CexTransformUndc()

Abc_Cex_t * Abc_CexTransformUndc	(	Abc_Cex_t *	p,
		char *	pInit )

Function*************************************************************

Synopsis [Transform CEX after "logic; undc; st; zero".]

Description []

SideEffects []

SeeAlso []

Definition at line 459 of file utilCex.c.

{
    Abc_Cex_t * pCex;
    int nFlops = strlen(pInit);
    int i, f, iBit, iAddPi = 0, nAddPis = 0;
    // count how many flops got a new PI
    for ( i = 0; i < nFlops; i++ )
        nAddPis += (int)(pInit[i] == 'x' || pInit[i] == 'X');
    // create new CEX
    pCex = Abc_CexAlloc( nFlops, p->nPis - nAddPis, p->iFrame + 1 );
    pCex->iPo    = p->iPo;
    pCex->iFrame = p->iFrame;
    for ( iBit = 0; iBit < nFlops; iBit++ )
    {
        if ( pInit[iBit] == '1' || ((pInit[iBit] == 'x' || pInit[iBit] == 'X') && Abc_InfoHasBit(p->pData, p->nRegs + p->nPis - nAddPis + iAddPi)) )
            Abc_InfoSetBit( pCex->pData, iBit );
        iAddPi += (int)(pInit[iBit] == 'x' || pInit[iBit] == 'X');
    }
    assert( iAddPi == nAddPis );
    // add timeframes
    for ( f = 0; f <= p->iFrame; f++ )
        for ( i = 0; i < pCex->nPis; i++, iBit++ )
            if ( Abc_InfoHasBit(p->pData, p->nRegs + p->nPis * f + i) )
                Abc_InfoSetBit( pCex->pData, iBit );
    assert( iBit == pCex->nBits );
    return pCex;
}

Here is the call graph for this function:
