utilNam.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	Abc_NamManForEachObj(p, pStr, i)
	MACRO DEFINITIONS ///.

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct Abc_Nam_t_	Abc_Nam_t
	INCLUDES ///.

Functions
Abc_Nam_t *	Abc_NamStart (int nObjs, int nAveSize)
	FUNCTION DECLARATIONS ///.
void	Abc_NamStop (Abc_Nam_t *p)
void	Abc_NamPrint (Abc_Nam_t *p, char *pFileName)
void	Abc_NamSave (Abc_Nam_t *p, char *pFileName)
Abc_Nam_t *	Abc_NamLoad (char *pFileName)
Abc_Nam_t *	Abc_NamRef (Abc_Nam_t *p)
void	Abc_NamDeref (Abc_Nam_t *p)
int	Abc_NamObjNumMax (Abc_Nam_t *p)
int	Abc_NamMemUsed (Abc_Nam_t *p)
int	Abc_NamMemAlloc (Abc_Nam_t *p)
int	Abc_NamStrFind (Abc_Nam_t *p, char *pStr)
int	Abc_NamStrFindLim (Abc_Nam_t *p, char *pStr, char *pLim)
int	Abc_NamStrFindOrAdd (Abc_Nam_t *p, char *pStr, int *pfFound)
int	Abc_NamStrFindOrAddLim (Abc_Nam_t *p, char *pStr, char *pLim, int *pfFound)
int	Abc_NamStrFindOrAddF (Abc_Nam_t *p, const char *format,...)
char *	Abc_NamStr (Abc_Nam_t *p, int id)
Vec_Str_t *	Abc_NamBuffer (Abc_Nam_t *p)
Vec_Int_t *	Abc_NamComputeIdMap (Abc_Nam_t *p1, Abc_Nam_t *p2)
int	Abc_NamReportCommon (Vec_Int_t *vNameIds1, Abc_Nam_t *p1, Abc_Nam_t *p2)
char *	Abc_NamReportUnique (Vec_Int_t *vNameIds1, Abc_Nam_t *p1, Abc_Nam_t *p2)

Macro Definition Documentation

Abc_NamManForEachObj

#define Abc_NamManForEachObj	(		p,
			pStr,
			i )

Value:

    for ( i = 1; (i < Abc_NamObjNumMax(p)) && ((pStr) = Abc_NamStr(p, i)); i++ )

MACRO DEFINITIONS ///.

Definition at line 45 of file utilNam.h.

#define Abc_NamManForEachObj( p, pStr, i )  \
    for ( i = 1; (i < Abc_NamObjNumMax(p)) && ((pStr) = Abc_NamStr(p, i)); i++ )

Typedef Documentation

Abc_Nam_t

typedef typedefABC_NAMESPACE_HEADER_START struct Abc_Nam_t_ Abc_Nam_t

INCLUDES ///.

CFile****************************************************************

FileName [utilNam.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Memory recycling utilities.]

Synopsis [Internal declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

utilNam.h,v 1.00 2005/06/20 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Definition at line 39 of file utilNam.h.

Function Documentation

Abc_NamBuffer()

Vec_Str_t * Abc_NamBuffer ( Abc_Nam_t * p )

extern

Function*************************************************************

Synopsis [Returns internal buffer.]

Description []

SideEffects []

SeeAlso []

Definition at line 571 of file utilNam.c.

{
    Vec_StrClear(&p->vBuffer);
    return &p->vBuffer;
}

Here is the caller graph for this function:

Abc_NamComputeIdMap()

Vec_Int_t * Abc_NamComputeIdMap ( Abc_Nam_t * p1, Abc_Nam_t * p2 )

extern

Function*************************************************************

Synopsis [For each ID of the first manager, gives ID of the second one.]

Description []

SideEffects []

SeeAlso []

Definition at line 588 of file utilNam.c.

{
    Vec_Int_t * vMap;
    char * pThis;
    int * piPlace, iHandle1, i;
    if ( p1 == p2 )
        return Vec_IntStartNatural( Abc_NamObjNumMax(p1) );
    vMap = Vec_IntStart( Abc_NamObjNumMax(p1) );
    Vec_IntForEachEntryStart( &p1->vInt2Handle, iHandle1, i, 1 )
    {
        pThis = Abc_NamHandleToStr( p1, iHandle1 );
        piPlace = Abc_NamStrHashFind( p2, pThis, NULL );
        Vec_IntWriteEntry( vMap, i, *piPlace );
//        Abc_Print( 1, "%d->%d  ", i, *piPlace );
    }
    return vMap;
}

Here is the call graph for this function:

Abc_NamDeref()

void Abc_NamDeref ( Abc_Nam_t * p )

extern

Function*************************************************************

Synopsis [Dereferences the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 212 of file utilNam.c.

{
    if ( p == NULL )
        return;
    if ( --p->nRefs == 0 )
        Abc_NamStop( p );
}

Here is the call graph for this function:

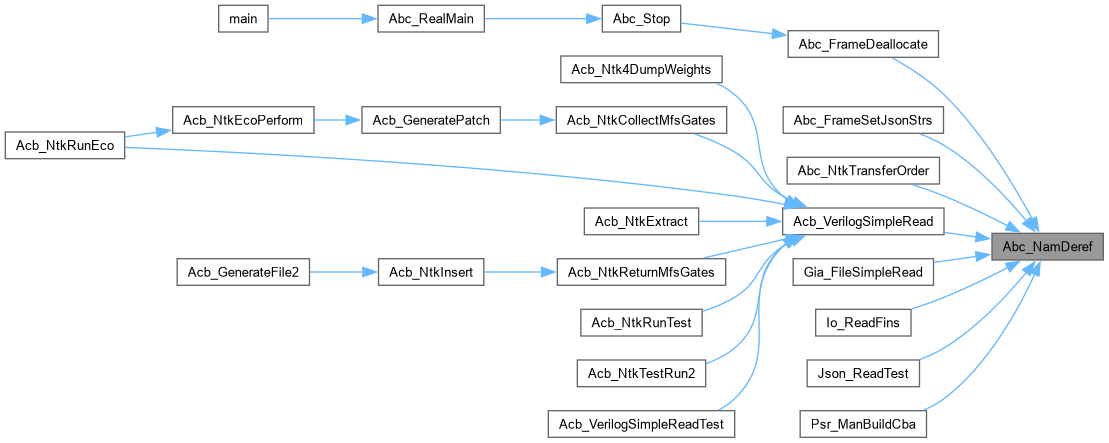

Here is the caller graph for this function:

Abc_NamLoad()

Abc_Nam_t * Abc_NamLoad ( char * pFileName )

extern

Definition at line 164 of file utilNam.c.

{
    Abc_Nam_t * p;
    int fFound, NameId = -1, nLineSize = 1 << 20;
    char * pBuffer = ABC_ALLOC( char, nLineSize+1 );
    FILE * pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL ) { printf( "Count node open output file %s\n", pFileName ); return NULL; }
    p = Abc_NamStart( 1000, 20 );
    while ( fgets( pBuffer, nLineSize, pFile ) != NULL )
    {
        pBuffer[strlen(pBuffer)-1] = 0;
        NameId = Abc_NamStrFindOrAdd( p, pBuffer, &fFound );
        assert( !fFound );
    }
    assert( NameId+1 == Abc_NamObjNumMax(p) );
    fclose( pFile );
    ABC_FREE( pBuffer );
    return p;
}

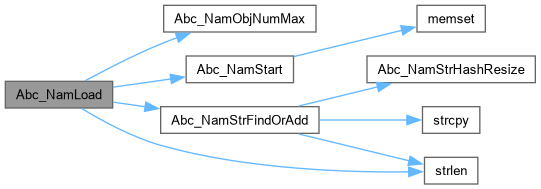

Here is the call graph for this function:

Abc_NamMemAlloc()

int Abc_NamMemAlloc ( Abc_Nam_t * p )

extern

Function*************************************************************

Synopsis [Reports memory usage of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 266 of file utilNam.c.

{
    if ( p == NULL )
        return 0;
    return sizeof(Abc_Nam_t) + p->nStore + sizeof(int) * p->nBins +
        sizeof(int) * (p->vInt2Handle.nCap + p->vInt2Next.nCap);
}

Abc_NamMemUsed()

int Abc_NamMemUsed ( Abc_Nam_t * p )

extern

Function*************************************************************

Synopsis [Reports memory usage of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 247 of file utilNam.c.

{
    if ( p == NULL )
        return 0;
    return sizeof(Abc_Nam_t) + p->iHandle + sizeof(int) * p->nBins +
        sizeof(int) * (p->vInt2Handle.nSize + p->vInt2Next.nSize);
}

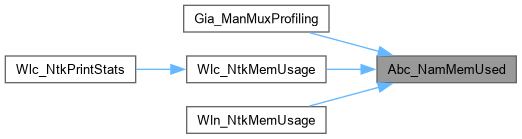

Here is the caller graph for this function:

Abc_NamObjNumMax()

int Abc_NamObjNumMax ( Abc_Nam_t * p )

extern

Function*************************************************************

Synopsis [Returns the number of used entries.]

Description []

SideEffects []

SeeAlso []

Definition at line 231 of file utilNam.c.

{
    return Vec_IntSize(&p->vInt2Handle);
}

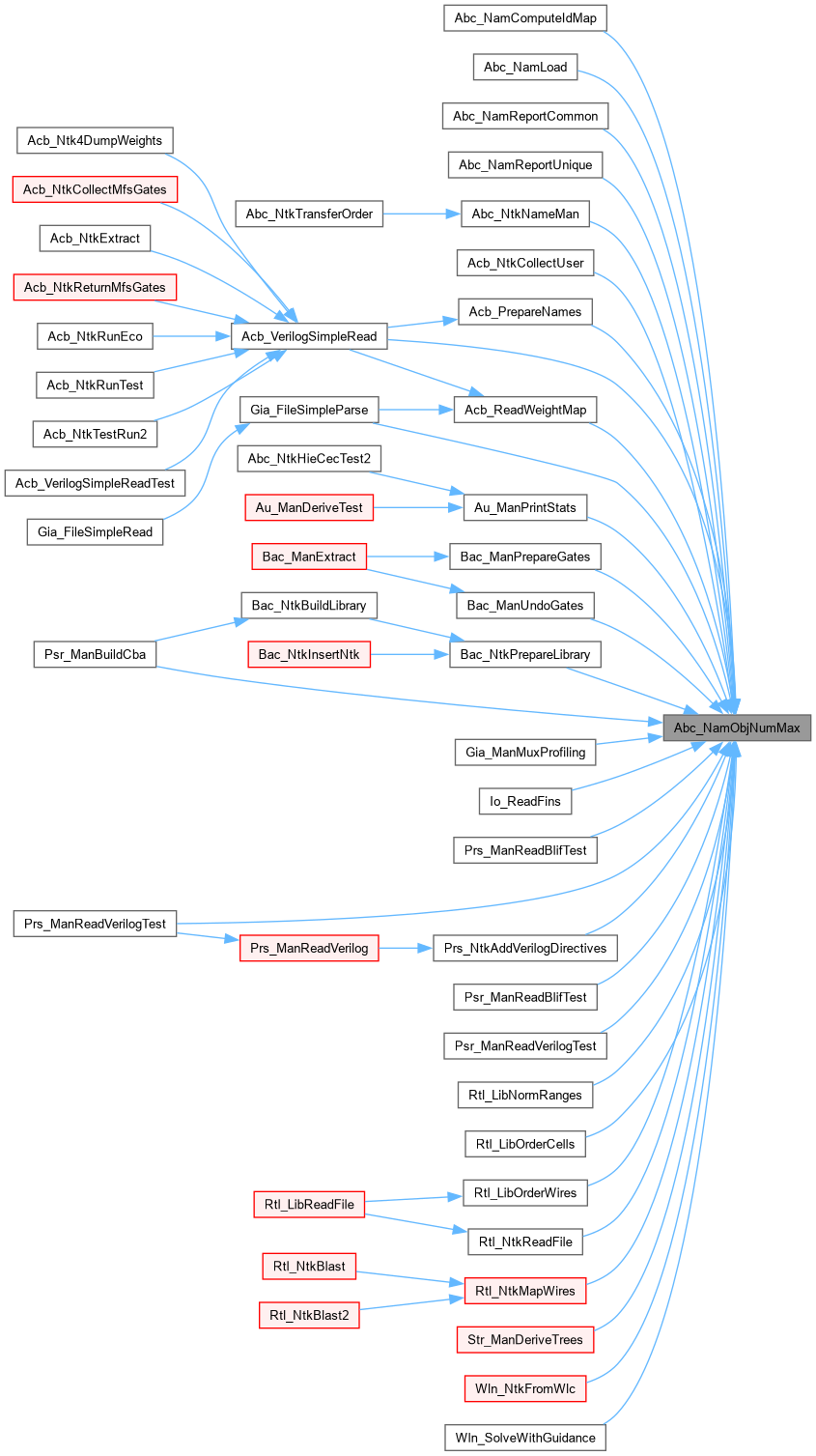

Here is the caller graph for this function:

Abc_NamPrint()

void Abc_NamPrint ( Abc_Nam_t * p, char * pFileName )

extern

Function*************************************************************

Synopsis [Prints manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 134 of file utilNam.c.

{
    FILE * pFile = pFileName ? fopen( pFileName, "wb" ) : stdout;
    int h, i;
    if ( pFile == NULL ) { printf( "Count node open file %s\n", pFileName ); return; }
    Vec_IntForEachEntryStart( &p->vInt2Handle, h, i, 1 )
        fprintf( pFile, "%8d = %s\n", i, Abc_NamHandleToStr(p, h) );
    if ( pFile != stdout )
        fclose(pFile);
}

Abc_NamRef()

Abc_Nam_t * Abc_NamRef ( Abc_Nam_t * p )

extern

Function*************************************************************

Synopsis [References the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 195 of file utilNam.c.

{
    p->nRefs++;
    return p;
}

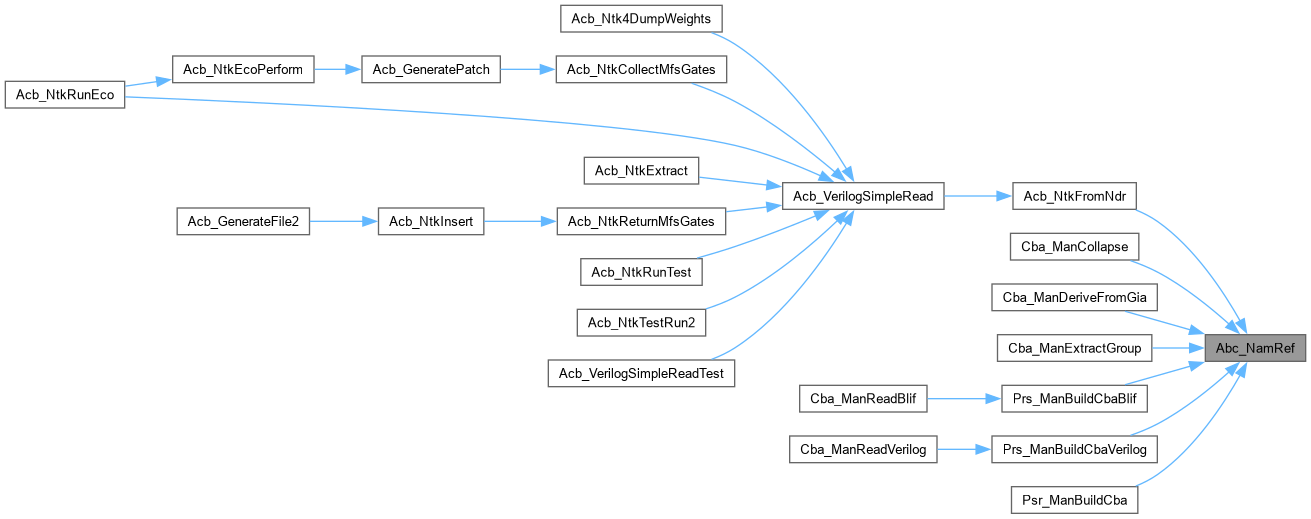

Here is the caller graph for this function:

Abc_NamReportCommon()

int Abc_NamReportCommon ( Vec_Int_t * vNameIds1, Abc_Nam_t * p1, Abc_Nam_t * p2 )

extern

Function*************************************************************

Synopsis [Returns the number of common names in the array.]

Description [The array contains name IDs in the first manager. The procedure returns the number of entries that correspond to names in the first manager that appear in the second manager.]

SideEffects []

SeeAlso []

Definition at line 619 of file utilNam.c.

{
    int i, Entry, Counter = 0;
    Vec_IntForEachEntry( vNameIds1, Entry, i )
    {
        assert( Entry > 0 && Entry < Abc_NamObjNumMax(p1) );
        Counter += (Abc_NamStrFind(p2, Abc_NamStr(p1, Entry)) > 0);
//        if ( Abc_NamStrFind(p2, Abc_NamStr(p1, Entry)) == 0 )
//            Abc_Print( 1, "unique name <%s>\n", Abc_NamStr(p1, Entry) );
    }
    return Counter;
}

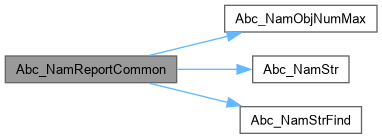

Here is the call graph for this function:

Abc_NamReportUnique()

char * Abc_NamReportUnique ( Vec_Int_t * vNameIds1, Abc_Nam_t * p1, Abc_Nam_t * p2 )

extern

Function*************************************************************

Synopsis [Returns the name that appears in p1 does not appear in p2.]

Description []

SideEffects []

SeeAlso []

Definition at line 643 of file utilNam.c.

{
    int i, Entry;
    Vec_IntForEachEntry( vNameIds1, Entry, i )
    {
        assert( Entry > 0 && Entry < Abc_NamObjNumMax(p1) );
        if ( Abc_NamStrFind(p2, Abc_NamStr(p1, Entry)) == 0 )
            return Abc_NamStr(p1, Entry);
    }
    return NULL;
}

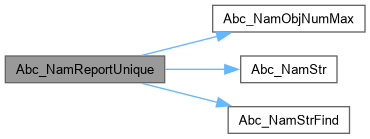

Here is the call graph for this function:

Abc_NamSave()

void Abc_NamSave ( Abc_Nam_t * p, char * pFileName )

extern

Function*************************************************************

Synopsis [Writes into a file and reads from a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 156 of file utilNam.c.

{
    FILE * pFile = fopen( pFileName, "wb" ); int h, i;
    if ( pFile == NULL ) { printf( "Count node open input file %s\n", pFileName ); return; }
    Vec_IntForEachEntryStart( &p->vInt2Handle, h, i, 1 )
        fprintf( pFile, "%s\n", Abc_NamHandleToStr(p, h) );
    fclose(pFile);
}

Abc_NamStart()

Abc_Nam_t * Abc_NamStart ( int nObjs, int nAveSize )

extern

FUNCTION DECLARATIONS ///.

FUNCTION DECLARATIONS ///.

Function*************************************************************

Synopsis [Creates manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 80 of file utilNam.c.

{
    Abc_Nam_t * p;
    if ( nObjs == 0 )
        nObjs = 16;
    p = ABC_CALLOC( Abc_Nam_t, 1 );
    p->nStore      = ((nObjs * (nAveSize + 1) + 16) / 4) * 4;
    p->pStore      = ABC_ALLOC( char, p->nStore );
    p->nBins       = Abc_PrimeCudd( nObjs );
    p->pBins       = ABC_CALLOC( int, p->nBins );
    // 0th object is unused
    Vec_IntGrow( &p->vInt2Handle, nObjs );  Vec_IntPush( &p->vInt2Handle, -1 );
    Vec_IntGrow( &p->vInt2Next,   nObjs );  Vec_IntPush( &p->vInt2Next,   -1 );
    p->iHandle     = 4;
    memset( p->pStore, 0, 4 );
//Abc_Print( 1, "Starting nam with %d bins.\n", p->nBins );
    // start reference counting
    p->nRefs       = 1;
    return p;
}

Here is the call graph for this function:

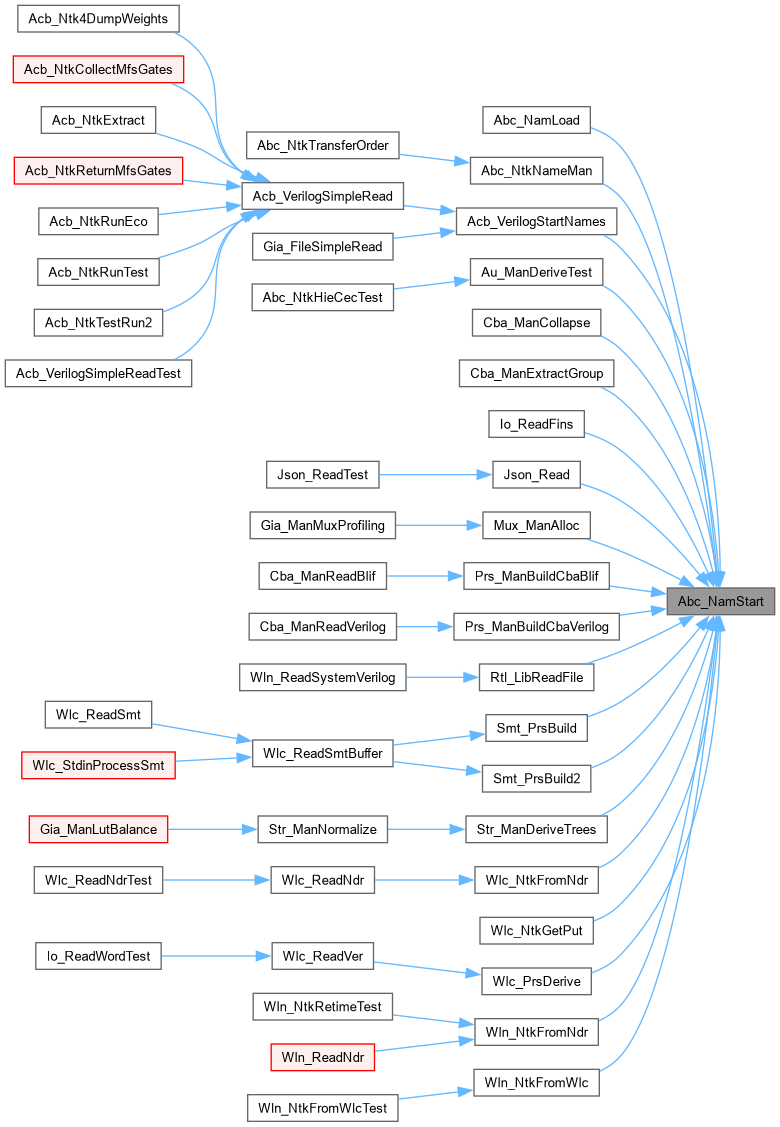

Here is the caller graph for this function:

Abc_NamStop()

void Abc_NamStop ( Abc_Nam_t * p )

extern

Function*************************************************************

Synopsis [Deletes manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 112 of file utilNam.c.

{
//Abc_Print( 1, "Starting nam with %d bins.\n", p->nBins );
    Vec_StrErase( &p->vBuffer );
    Vec_IntErase( &p->vInt2Handle );
    Vec_IntErase( &p->vInt2Next );
    ABC_FREE( p->pStore );
    ABC_FREE( p->pBins );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Abc_NamStr()

char * Abc_NamStr ( Abc_Nam_t * p, int NameId )

extern

Function*************************************************************

Synopsis [Returns name from name ID.]

Description []

SideEffects []

SeeAlso []

Definition at line 555 of file utilNam.c.

{
    return NameId > 0 ? Abc_NamIntToStr(p, NameId) : NULL;
}

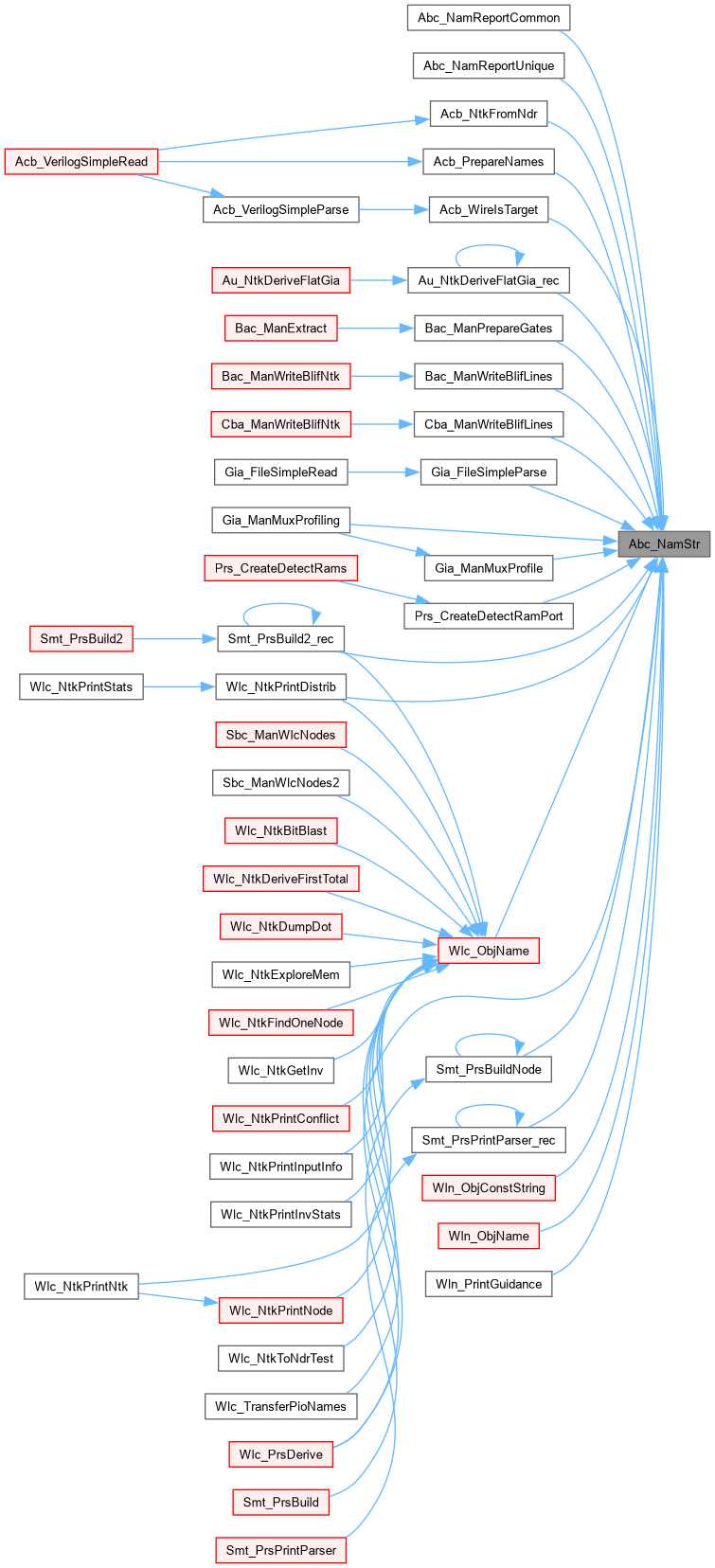

Here is the caller graph for this function:

Abc_NamStrFind()

int Abc_NamStrFind ( Abc_Nam_t * p, char * pStr )

extern

Function*************************************************************

Synopsis [Returns the index of the string in the table.]

Description []

SideEffects []

SeeAlso []

Definition at line 433 of file utilNam.c.

{
    return *Abc_NamStrHashFind( p, pStr, NULL );
}

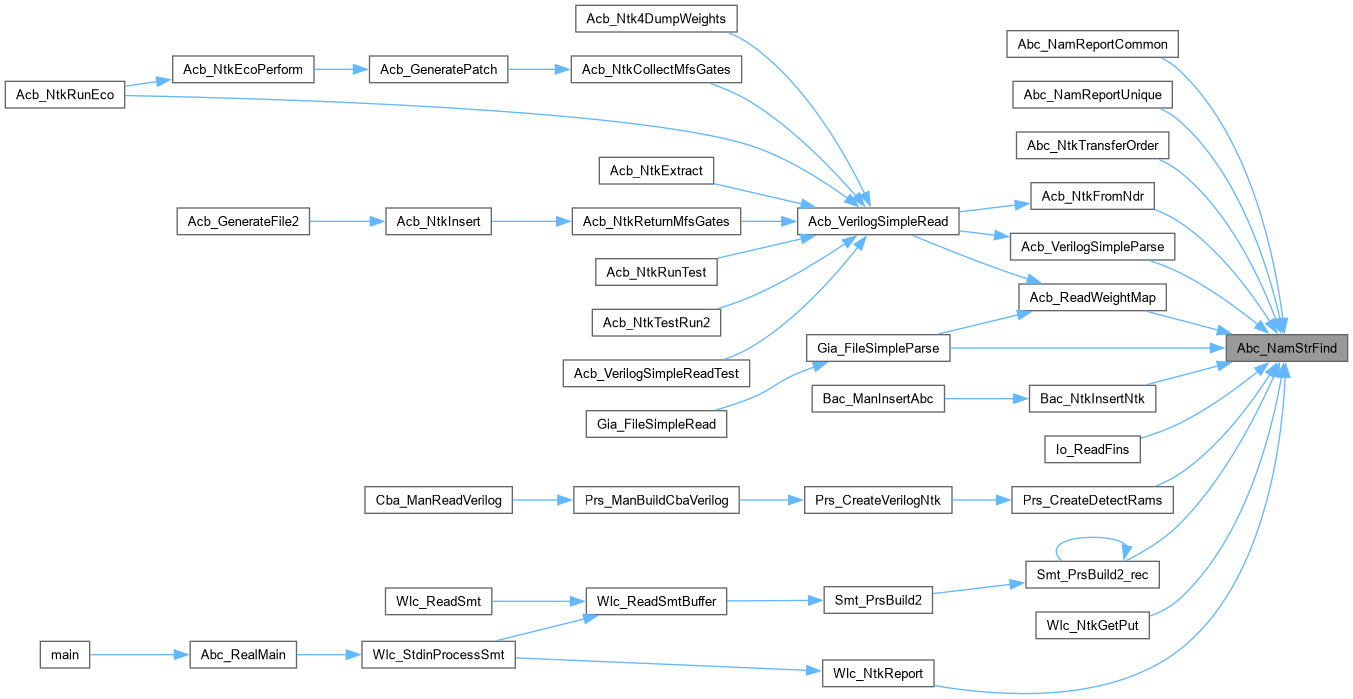

Here is the caller graph for this function:

Abc_NamStrFindLim()

int Abc_NamStrFindLim ( Abc_Nam_t * p, char * pStr, char * pLim )

extern

Definition at line 437 of file utilNam.c.

{
    return *Abc_NamStrHashFind( p, pStr, pLim );
}

Abc_NamStrFindOrAdd()

int Abc_NamStrFindOrAdd ( Abc_Nam_t * p, char * pStr, int * pfFound )

extern

Function*************************************************************

Synopsis [Finds or adds the given name to storage.]

Description []

SideEffects []

SeeAlso []

Definition at line 453 of file utilNam.c.

{
    int i, iHandleNew;
    int *piPlace;
    if ( !(pStr[0] != '\\' || pStr[strlen(pStr)-1] == ' ') )
    {
        for ( i = strlen(pStr) - 1; i >= 0; i-- )
            if ( *pStr == ' ' )
                break;
        assert( i < (int)strlen(pStr) );
    }
    piPlace = Abc_NamStrHashFind( p, pStr, NULL );
    if ( *piPlace )
    {
        if ( pfFound )
            *pfFound = 1;
        return *piPlace;
    }
    if ( pfFound )
        *pfFound = 0;
    iHandleNew = p->iHandle + strlen(pStr) + 1;
    while ( p->nStore < iHandleNew )
    {
        p->nStore *= 3;
        p->nStore /= 2;
        p->pStore  = ABC_REALLOC( char, p->pStore, p->nStore );
    }
    assert( p->nStore >= iHandleNew );
    // create new handle
    *piPlace = Vec_IntSize( &p->vInt2Handle );
    strcpy( Abc_NamHandleToStr( p, p->iHandle ), pStr );
    Vec_IntPush( &p->vInt2Handle, p->iHandle );
    Vec_IntPush( &p->vInt2Next, 0 );
    p->iHandle = iHandleNew;
    // extend the hash table
    if ( Vec_IntSize(&p->vInt2Handle) > 2 * p->nBins )
        Abc_NamStrHashResize( p );
    return Vec_IntSize(&p->vInt2Handle) - 1;
}

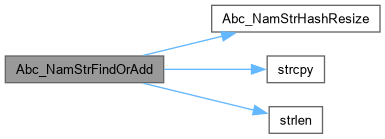

Here is the call graph for this function:

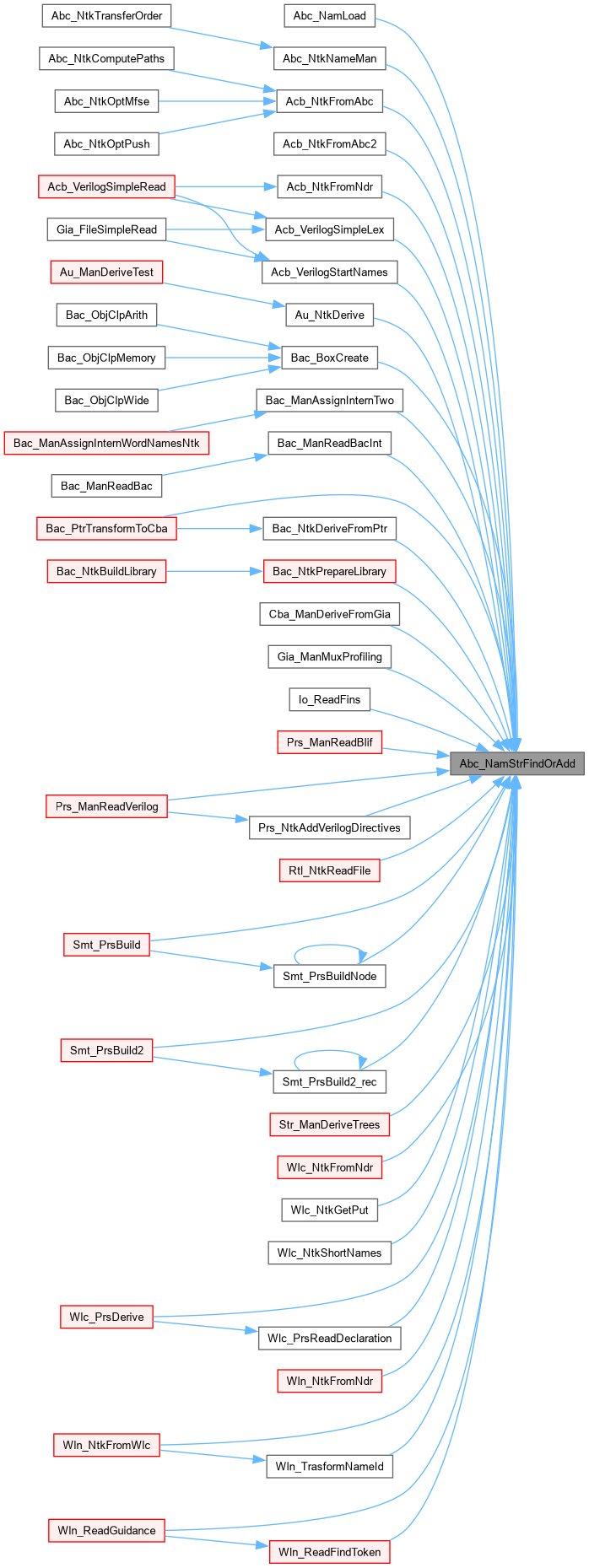

Here is the caller graph for this function:

Abc_NamStrFindOrAddF()

int Abc_NamStrFindOrAddF ( Abc_Nam_t * p, const char * format, ... )

extern

Definition at line 528 of file utilNam.c.

{
    int nAdded, nSize = 1000;
    va_list args;  va_start( args, format );
    Vec_StrGrow( &p->vBuffer, Vec_StrSize(&p->vBuffer) + nSize );
    nAdded = vsnprintf( Vec_StrLimit(&p->vBuffer), nSize, format, args );
    if ( nAdded > nSize )
    {
        Vec_StrGrow( &p->vBuffer, Vec_StrSize(&p->vBuffer) + nAdded + nSize );
        nSize = vsnprintf( Vec_StrLimit(&p->vBuffer), nAdded, format, args );
        assert( nSize == nAdded );
    }
    va_end( args );
    return Abc_NamStrFindOrAddLim( p, Vec_StrLimit(&p->vBuffer), Vec_StrLimit(&p->vBuffer) + nAdded, NULL );
}

Here is the call graph for this function:

Abc_NamStrFindOrAddLim()

int Abc_NamStrFindOrAddLim ( Abc_Nam_t * p, char * pStr, char * pLim, int * pfFound )

extern

Definition at line 492 of file utilNam.c.

{
    int iHandleNew;
    int *piPlace;
    char * pStore;
    assert( pStr < pLim );
    piPlace = Abc_NamStrHashFind( p, pStr, pLim );
    if ( *piPlace )
    {
        if ( pfFound )
            *pfFound = 1;
        return *piPlace;
    }
    if ( pfFound )
        *pfFound = 0;
    iHandleNew = p->iHandle + (pLim - pStr) + 1;
    while ( p->nStore < iHandleNew )
    {
        p->nStore *= 3;
        p->nStore /= 2;
        p->pStore  = ABC_REALLOC( char, p->pStore, p->nStore );
    }
    assert( p->nStore >= iHandleNew );
    // create new handle
    *piPlace = Vec_IntSize( &p->vInt2Handle );
    pStore = Abc_NamHandleToStr( p, p->iHandle );
    strncpy( pStore, pStr, pLim - pStr );
    pStore[pLim - pStr] = 0;
    Vec_IntPush( &p->vInt2Handle, p->iHandle );
    Vec_IntPush( &p->vInt2Next, 0 );
    p->iHandle = iHandleNew;
    // extend the hash table
    if ( Vec_IntSize(&p->vInt2Handle) > 2 * p->nBins )
        Abc_NamStrHashResize( p );
    return Vec_IntSize(&p->vInt2Handle) - 1;
}

Here is the call graph for this function:

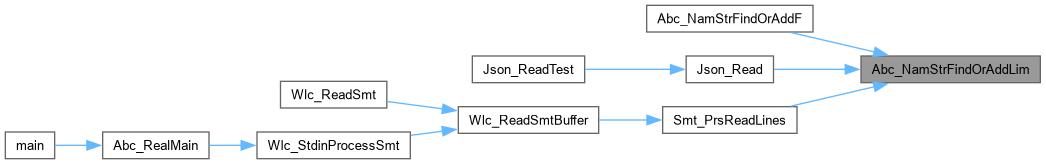

Here is the caller graph for this function:
