wlcWin.c File Reference

#include "wlc.h"
#include "base/abc/abc.h"

Include dependency graph for wlcWin.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Wlc_ObjIsArithm (Wlc_Obj_t *pObj)
	DECLARATIONS ///.
int	Wlc_ObjIsArithmReal (Wlc_Obj_t *pObj)
int	Wlc_ManCountArithmReal (Wlc_Ntk_t *p, Vec_Int_t *vNodes)
int	Wlc_ObjHasArithm_rec (Wlc_Ntk_t *p, Wlc_Obj_t *pObj)
int	Wlc_ObjHasArithmFanins (Wlc_Ntk_t *p, Wlc_Obj_t *pObj)
void	Wlc_WinCompute_rec (Wlc_Ntk_t *p, Wlc_Obj_t *pObj, Vec_Int_t *vLeaves, Vec_Int_t *vNodes)
void	Wlc_WinCleanMark_rec (Wlc_Ntk_t *p, Wlc_Obj_t *pObj)
void	Wlc_WinCompute (Wlc_Ntk_t *p, Wlc_Obj_t *pObj, Vec_Int_t *vLeaves, Vec_Int_t *vNodes)
void	Wlc_WinProfileArith (Wlc_Ntk_t *p)

Function Documentation

Wlc_ManCountArithmReal()

int Wlc_ManCountArithmReal	(	Wlc_Ntk_t *	p,
		Vec_Int_t *	vNodes )

Definition at line 60 of file wlcWin.c.

{
    Wlc_Obj_t * pObj;
    int i, Counter = 0;
    Wlc_NtkForEachObjVec( vNodes, p, pObj, i )
        Counter += Wlc_ObjIsArithmReal( pObj );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_ObjHasArithm_rec()

int Wlc_ObjHasArithm_rec	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj )

Definition at line 68 of file wlcWin.c.

{
    if ( pObj->Type == WLC_OBJ_CONST )
        return 0;
    if ( pObj->Type == WLC_OBJ_BUF         || pObj->Type == WLC_OBJ_BIT_NOT ||
         pObj->Type == WLC_OBJ_BIT_ZEROPAD || pObj->Type == WLC_OBJ_BIT_SIGNEXT )
         return Wlc_ObjHasArithm_rec( p, Wlc_ObjFanin0(p, pObj) );
    return pObj->Type == WLC_OBJ_ARI_ADD   || pObj->Type == WLC_OBJ_ARI_SUB ||
           pObj->Type == WLC_OBJ_ARI_MULTI || pObj->Type == WLC_OBJ_ARI_MINUS;
}

Here is the call graph for this function:

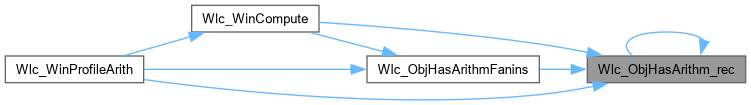

Here is the caller graph for this function:

Wlc_ObjHasArithmFanins()

int Wlc_ObjHasArithmFanins	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj )

Definition at line 78 of file wlcWin.c.

{
    Wlc_Obj_t * pFanin;  int i;
    assert( !Wlc_ObjHasArithm_rec(p, pObj) );
    Wlc_ObjForEachFaninObj( p, pObj, pFanin, i )
        if ( Wlc_ObjHasArithm_rec(p, pFanin) )
            return 1;
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_ObjIsArithm()

ABC_NAMESPACE_IMPL_START int Wlc_ObjIsArithm

(

Wlc_Obj_t *

pObj

)

DECLARATIONS ///.

CFile****************************************************************

FileName [wlcWin.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Verilog parser.]

Synopsis [Parses several flavors of word-level Verilog.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - August 22, 2014.]

Revision [

Id

wlcWin.c,v 1.00 2014/09/12 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Collect arithmetic nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file wlcWin.c.

{
    return pObj->Type == WLC_OBJ_CONST       ||
           pObj->Type == WLC_OBJ_BUF         || pObj->Type == WLC_OBJ_BIT_NOT     ||
           pObj->Type == WLC_OBJ_BIT_ZEROPAD || pObj->Type == WLC_OBJ_BIT_SIGNEXT ||
//           pObj->Type == WLC_OBJ_BIT_SELECT  || pObj->Type == WLC_OBJ_BIT_CONCAT  ||
           pObj->Type == WLC_OBJ_ARI_ADD     || pObj->Type == WLC_OBJ_ARI_SUB     ||
           pObj->Type == WLC_OBJ_ARI_MULTI   || pObj->Type == WLC_OBJ_ARI_MINUS;
}

Here is the caller graph for this function:

Wlc_ObjIsArithmReal()

int Wlc_ObjIsArithmReal

(

Wlc_Obj_t *

pObj

)

Definition at line 54 of file wlcWin.c.

{
    return pObj->Type == WLC_OBJ_BIT_NOT     ||
           pObj->Type == WLC_OBJ_ARI_ADD     || pObj->Type == WLC_OBJ_ARI_SUB     ||
           pObj->Type == WLC_OBJ_ARI_MULTI   || pObj->Type == WLC_OBJ_ARI_MINUS;
}

Here is the caller graph for this function:

Wlc_WinCleanMark_rec()

void Wlc_WinCleanMark_rec	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj )

Definition at line 102 of file wlcWin.c.

{
    Wlc_Obj_t * pFanin;  int i;
    if ( !pObj->Mark )
        return;
    pObj->Mark = 0;
    Wlc_ObjForEachFaninObj( p, pObj, pFanin, i )
        Wlc_WinCleanMark_rec( p, pFanin );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_WinCompute()

void Wlc_WinCompute	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vNodes )

Definition at line 111 of file wlcWin.c.

{
    Vec_IntClear( vLeaves );
    Vec_IntClear( vNodes );
    if ( Wlc_ObjHasArithm_rec(p, pObj) )
    {
        Wlc_WinCompute_rec( p, pObj, vLeaves, vNodes );
        Wlc_WinCleanMark_rec( p, pObj );
    }
    else if ( Wlc_ObjHasArithmFanins(p, pObj) )
    {
        Wlc_Obj_t * pFanin;  int i;
        Wlc_ObjForEachFaninObj( p, pObj, pFanin, i )
            if ( Wlc_ObjHasArithm_rec(p, pFanin) )
                Wlc_WinCompute_rec( p, pFanin, vLeaves, vNodes );
        Wlc_ObjForEachFaninObj( p, pObj, pFanin, i )
            if ( Wlc_ObjHasArithm_rec(p, pFanin) )
                Wlc_WinCleanMark_rec( p, pFanin );
    }
    else assert( 0 );
}

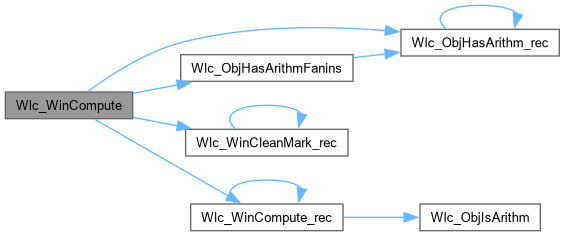

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_WinCompute_rec()

void Wlc_WinCompute_rec	(	Wlc_Ntk_t *	p,
		Wlc_Obj_t *	pObj,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vNodes )

Definition at line 87 of file wlcWin.c.

{
    Wlc_Obj_t * pFanin;  int i;
    if ( pObj->Mark )
        return;
    pObj->Mark = 1;
    if ( !Wlc_ObjIsArithm(pObj) )
    {
        Vec_IntPush( vLeaves, Wlc_ObjId(p, pObj) );
        return;
    }
    Wlc_ObjForEachFaninObj( p, pObj, pFanin, i )
        Wlc_WinCompute_rec( p, pFanin, vLeaves, vNodes );
    Vec_IntPush( vNodes, Wlc_ObjId(p, pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Wlc_WinProfileArith()

void Wlc_WinProfileArith

(

Wlc_Ntk_t *

p

)

Definition at line 132 of file wlcWin.c.

{
    Vec_Int_t * vLeaves = Vec_IntAlloc( 1000 );
    Vec_Int_t * vNodes  = Vec_IntAlloc( 1000 );
    Wlc_Obj_t * pObj; int i, Count = 0;
    Wlc_NtkForEachObj( p, pObj, i )
        pObj->Mark = 0;
    Wlc_NtkForEachObj( p, pObj, i )
        if ( Wlc_ObjHasArithm_rec(p, pObj) ? Wlc_ObjIsCo(pObj) : Wlc_ObjHasArithmFanins(p, pObj) )
        {
            Wlc_WinCompute( p, pObj, vLeaves, vNodes );
            if ( Wlc_ManCountArithmReal(p, vNodes) < 2 )
                continue;

            printf( "Arithmetic cone of node %d (%s):\n", Wlc_ObjId(p, pObj), Wlc_ObjName(p, Wlc_ObjId(p, pObj)) );
            Wlc_NtkPrintNode( p, pObj );
            Vec_IntReverseOrder( vNodes );
            Wlc_NtkPrintNodeArray( p, vNodes );
            printf( "\n" );
            Count++;
        }
    Wlc_NtkForEachObj( p, pObj, i )
        assert( pObj->Mark == 0 );
    printf( "Finished printing %d arithmetic cones.\n", Count );
    Vec_IntFree( vLeaves );
    Vec_IntFree( vNodes );
}

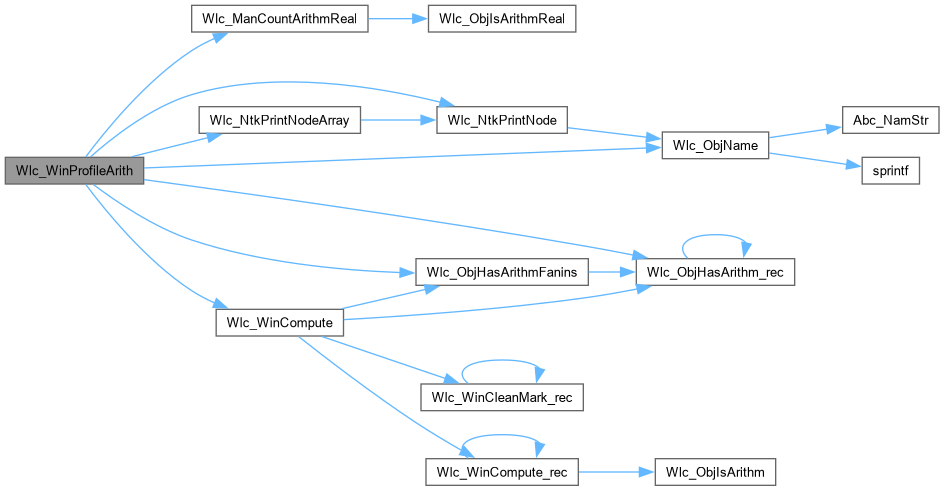

Here is the call graph for this function:
