FxchMan.c File Reference

#include "Fxch.h"

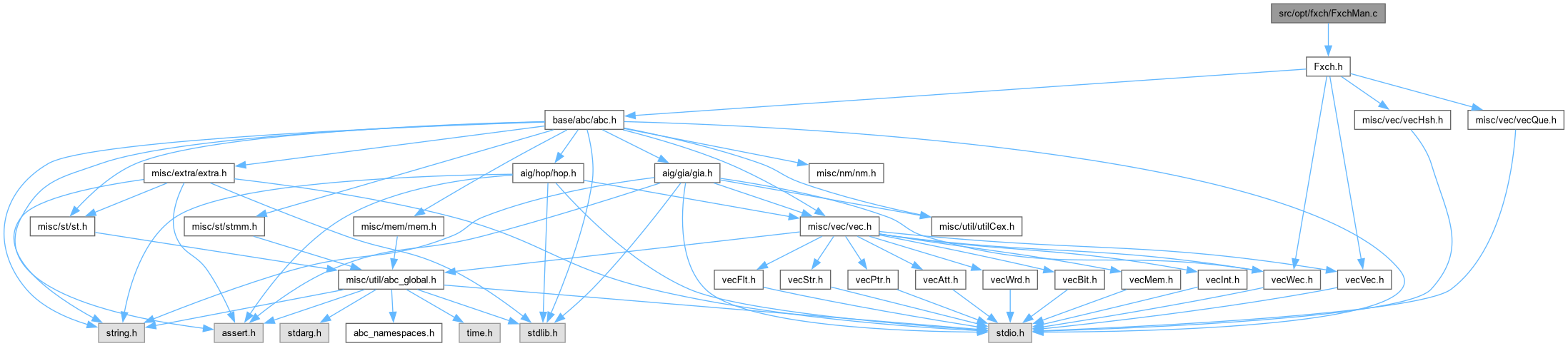

Include dependency graph for FxchMan.c:

Go to the source code of this file.

Functions
Fxch_Man_t *	Fxch_ManAlloc (Vec_Wec_t *vCubes)
	PUBLIC INTERFACE ///.
void	Fxch_ManFree (Fxch_Man_t *pFxchMan)
void	Fxch_ManMapLiteralsIntoCubes (Fxch_Man_t *pFxchMan, int nVars)
void	Fxch_ManGenerateLitHashKeys (Fxch_Man_t *pFxchMan)
void	Fxch_ManSCHashTablesInit (Fxch_Man_t *pFxchMan)
void	Fxch_ManSCHashTablesFree (Fxch_Man_t *pFxchMan)
void	Fxch_ManDivCreate (Fxch_Man_t *pFxchMan)
int	Fxch_ManComputeLevelDiv (Fxch_Man_t *pFxchMan, Vec_Int_t *vCubeFree)
int	Fxch_ManComputeLevelCube (Fxch_Man_t *pFxchMan, Vec_Int_t *vCube)
void	Fxch_ManComputeLevel (Fxch_Man_t *pFxchMan)
void	Fxch_ManUpdate (Fxch_Man_t *pFxchMan, int iDiv)
void	Fxch_ManPrintDivs (Fxch_Man_t *pFxchMan)
void	Fxch_ManPrintStats (Fxch_Man_t *pFxchMan)

Function Documentation

Fxch_ManAlloc()

Fxch_Man_t * Fxch_ManAlloc

(

Vec_Wec_t *

vCubes

)

PUBLIC INTERFACE ///.

Definition at line 169 of file FxchMan.c.

{
    Fxch_Man_t* pFxchMan = ABC_CALLOC( Fxch_Man_t, 1 );

    pFxchMan->vCubes = vCubes;
    pFxchMan->nCubesInit = Vec_WecSize( vCubes );

    pFxchMan->pDivHash = Hsh_VecManStart( 1024 );
    pFxchMan->vDivWeights = Vec_FltAlloc( 1024 );
    pFxchMan->vDivCubePairs = Vec_WecAlloc( 1024 );

    pFxchMan->vCubeFree = Vec_IntAlloc( 4 );
    pFxchMan->vDiv = Vec_IntAlloc( 4 );

    pFxchMan->vCubesS = Vec_IntAlloc( 128 );
    pFxchMan->vPairs = Vec_IntAlloc( 128 );
    pFxchMan->vCubesToUpdate = Vec_IntAlloc( 64 );
    pFxchMan->vCubesToRemove = Vec_IntAlloc( 64 );
    pFxchMan->vSCC = Vec_IntAlloc( 64 );

    return pFxchMan;
}

Here is the caller graph for this function:

Fxch_ManComputeLevel()

void Fxch_ManComputeLevel

(

Fxch_Man_t *

pFxchMan

)

Definition at line 338 of file FxchMan.c.

{
    Vec_Int_t* vCube;
    int i,
        iVar,
        iFirst = 0;

    iVar = Vec_IntEntry( Vec_WecEntry( pFxchMan->vCubes, 0 ), 0 );
    pFxchMan->vLevels = Vec_IntStart( pFxchMan->nVars );

    Vec_WecForEachLevel( pFxchMan->vCubes, vCube, i )
    {
        if ( iVar != Vec_IntEntry( vCube, 0 ) )
        {
            Vec_IntAddToEntry( pFxchMan->vLevels, iVar, i - iFirst );
            iVar = Vec_IntEntry( vCube, 0 );
            iFirst = i;
        }
        Vec_IntUpdateEntry( pFxchMan->vLevels, iVar, Fxch_ManComputeLevelCube( pFxchMan, vCube ) );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fxch_ManComputeLevelCube()

int Fxch_ManComputeLevelCube	(	Fxch_Man_t *	pFxchMan,
		Vec_Int_t *	vCube )

Definition at line 325 of file FxchMan.c.

{
    int k,
        Lit,
        Level = 0;

    Vec_IntForEachEntryStart( vCube, Lit, k, 1 )
        Level = Abc_MaxInt( Level, Vec_IntEntry( pFxchMan->vLevels, Abc_Lit2Var( Lit ) ) );

    return Level;
}

Here is the caller graph for this function:

Fxch_ManComputeLevelDiv()

int Fxch_ManComputeLevelDiv	(	Fxch_Man_t *	pFxchMan,
		Vec_Int_t *	vCubeFree )

Definition at line 312 of file FxchMan.c.

{
    int i,
        Lit,
        Level = 0;

    Vec_IntForEachEntry( vCubeFree, Lit, i )
        Level = Abc_MaxInt( Level, Vec_IntEntry( pFxchMan->vLevels, Abc_Lit2Var( Abc_Lit2Var( Lit ) ) ) );

    return Abc_MinInt( Level, 800 );
}

Here is the caller graph for this function:

Fxch_ManDivCreate()

void Fxch_ManDivCreate

(

Fxch_Man_t *

pFxchMan

)

Definition at line 288 of file FxchMan.c.

{
    Vec_Int_t* vCube;
    float Weight;
    int fAdd = 1,
        fUpdate = 0,
        iCube;

    Vec_WecForEachLevel( pFxchMan->vCubes, vCube, iCube )
    {
        Fxch_ManDivSingleCube( pFxchMan, iCube, fAdd, fUpdate );
        Fxch_ManDivDoubleCube( pFxchMan, iCube, fAdd, fUpdate );
    }

    pFxchMan->vDivPrio = Vec_QueAlloc( Vec_FltSize( pFxchMan->vDivWeights ) );
    Vec_QueSetPriority( pFxchMan->vDivPrio, Vec_FltArrayP( pFxchMan->vDivWeights ) );
    Vec_FltForEachEntry( pFxchMan->vDivWeights, Weight, iCube )
    {
        if ( Weight > 0.0 )
            Vec_QuePush( pFxchMan->vDivPrio, iCube );
    }
}

Here is the caller graph for this function:

Fxch_ManFree()

void Fxch_ManFree

(

Fxch_Man_t *

pFxchMan

)

Definition at line 192 of file FxchMan.c.

{
    Vec_WecFree( pFxchMan->vLits );
    Vec_IntFree( pFxchMan->vLitCount );
    Vec_IntFree( pFxchMan->vLitHashKeys );
    Hsh_VecManStop( pFxchMan->pDivHash );
    Vec_FltFree( pFxchMan->vDivWeights );
    Vec_QueFree( pFxchMan->vDivPrio );
    Vec_WecFree( pFxchMan->vDivCubePairs );
    Vec_IntFree( pFxchMan->vLevels );

    Vec_IntFree( pFxchMan->vCubeFree );
    Vec_IntFree( pFxchMan->vDiv );

    Vec_IntFree( pFxchMan->vCubesS );
    Vec_IntFree( pFxchMan->vPairs );
    Vec_IntFree( pFxchMan->vCubesToUpdate );
    Vec_IntFree( pFxchMan->vCubesToRemove );
    Vec_IntFree( pFxchMan->vSCC );

    ABC_FREE( pFxchMan );
}

Here is the caller graph for this function:

Fxch_ManGenerateLitHashKeys()

void Fxch_ManGenerateLitHashKeys

(

Fxch_Man_t *

pFxchMan

)

Definition at line 255 of file FxchMan.c.

{
    int i;
    /* Generates the random number which will be used for hashing cubes */
    Gia_ManRandom( 1 );
    pFxchMan->vLitHashKeys = Vec_IntAlloc( ( 2 * pFxchMan->nVars ) );
    for ( i = 0; i < (2 * pFxchMan->nVars); i++ )
        Vec_IntPush( pFxchMan->vLitHashKeys, Gia_ManRandom(0) & 0x3FFFFFF );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fxch_ManMapLiteralsIntoCubes()

void Fxch_ManMapLiteralsIntoCubes	(	Fxch_Man_t *	pFxchMan,
		int	nVars )

Definition at line 215 of file FxchMan.c.

{

    Vec_Int_t* vCube;
    int i, k,
        Lit,
        Count;

    pFxchMan->nVars = 0;
    pFxchMan->nLits = 0;
    Vec_WecForEachLevel( pFxchMan->vCubes, vCube, i )
    {
        assert( Vec_IntSize(vCube) > 0 );
        pFxchMan->nVars = Abc_MaxInt( pFxchMan->nVars, Vec_IntEntry( vCube, 0 ) );
        pFxchMan->nLits += Vec_IntSize(vCube) - 1;
        Vec_IntForEachEntryStart( vCube, Lit, k, 1 )
            pFxchMan->nVars = Abc_MaxInt( pFxchMan->nVars, Abc_Lit2Var( Lit ) );
    }

    assert( pFxchMan->nVars < nVars );
    pFxchMan->nVars = nVars;

    /* Count the number of time each literal appears on the SOP */
    pFxchMan->vLitCount = Vec_IntStart( 2 * pFxchMan->nVars );
    Vec_WecForEachLevel( pFxchMan->vCubes, vCube, i )
        Vec_IntForEachEntryStart( vCube, Lit, k, 1 )
            Vec_IntAddToEntry( pFxchMan->vLitCount, Lit, 1 );

    /* Allocate space to the array of arrays wich maps Literals into cubes which uses them */
    pFxchMan->vLits = Vec_WecStart( 2 * pFxchMan->nVars );
    Vec_IntForEachEntry( pFxchMan->vLitCount, Count, Lit )
        Vec_IntGrow( Vec_WecEntry( pFxchMan->vLits, Lit ), Count );

    /* Maps Literals into cubes which uses them */
    Vec_WecForEachLevel( pFxchMan->vCubes, vCube, i )
        Vec_IntForEachEntryStart( vCube, Lit, k, 1 )
            Vec_WecPush( pFxchMan->vLits, Lit, i );
}

Here is the caller graph for this function:

Fxch_ManPrintDivs()

void Fxch_ManPrintDivs

(

Fxch_Man_t *

pFxchMan

)

Definition at line 764 of file FxchMan.c.

{
    int iDiv;

    for ( iDiv = 0; iDiv < Vec_FltSize( pFxchMan->vDivWeights ); iDiv++ )
        Fxch_DivPrint( pFxchMan, iDiv );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fxch_ManPrintStats()

void Fxch_ManPrintStats

(

Fxch_Man_t *

pFxchMan

)

Definition at line 772 of file FxchMan.c.

{
    printf( "Cubes =%8d  ", Vec_WecSizeUsed( pFxchMan->vCubes ) );
    printf( "Lits  =%8d  ", Vec_WecSizeUsed( pFxchMan->vLits ) );
    printf( "Divs  =%8d  ", Hsh_VecSize( pFxchMan->pDivHash ) );
    printf( "Divs+ =%8d  ", Vec_QueSize( pFxchMan->vDivPrio ) );
    printf( "Extr  =%7d  \n", pFxchMan->nExtDivs );
}

Here is the caller graph for this function:

Fxch_ManSCHashTablesFree()

void Fxch_ManSCHashTablesFree

(

Fxch_Man_t *

pFxchMan

)

Definition at line 283 of file FxchMan.c.

{
    Fxch_SCHashTableDelete( pFxchMan->pSCHashTable );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fxch_ManSCHashTablesInit()

void Fxch_ManSCHashTablesInit

(

Fxch_Man_t *

pFxchMan

)

Definition at line 265 of file FxchMan.c.

{
    Vec_Wec_t* vCubes = pFxchMan->vCubes;
    Vec_Int_t* vCube;
    int iCube,
        nTotalHashed = 0;

    Vec_WecForEachLevel( vCubes, vCube, iCube )
    {
        int nLits = Vec_IntSize( vCube ) - 1,
            nSubCubes = nLits <= 2? nLits + 1: ( nLits * nLits + nLits ) / 2;

        nTotalHashed += nSubCubes + 1;
    }

    pFxchMan->pSCHashTable = Fxch_SCHashTableCreate( pFxchMan, nTotalHashed );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fxch_ManUpdate()

void Fxch_ManUpdate	(	Fxch_Man_t *	pFxchMan,
		int	iDiv )

Function*************************************************************

Synopsis [Updates the data-structure when one divisor is selected.]

Description []

SideEffects []

SeeAlso []

Definition at line 584 of file FxchMan.c.

{
    int i, iCube0, iCube1,
        Lit0 = -1,
        Lit1 = -1,
        iVarNew;

    Vec_Int_t* vCube0,
             * vCube1,
             * vDivCubePairs;

    /* Get the selected candidate (divisor) */
    Vec_IntClear( pFxchMan->vDiv );
    Vec_IntAppend( pFxchMan->vDiv, Hsh_VecReadEntry( pFxchMan->pDivHash, iDiv ) );

    /* Find cubes associated with the divisor */
    Vec_IntClear( pFxchMan->vCubesS );
    if ( Vec_IntSize( pFxchMan->vDiv ) == 2 )
    {
        Lit0 = Abc_Lit2Var( Vec_IntEntry( pFxchMan->vDiv, 0 ) );
        Lit1 = Abc_Lit2Var( Vec_IntEntry( pFxchMan->vDiv, 1 ) );
        assert( Lit0 >= 0 && Lit1 >= 0 );

        Fxch_ManCompressCubes( pFxchMan->vCubes, Vec_WecEntry( pFxchMan->vLits, Abc_LitNot( Lit0 ) ) );
        Fxch_ManCompressCubes( pFxchMan->vCubes, Vec_WecEntry( pFxchMan->vLits, Abc_LitNot( Lit1 ) ) );
        Vec_IntTwoRemoveCommon( Vec_WecEntry( pFxchMan->vLits, Abc_LitNot( Lit0 ) ),
                                Vec_WecEntry( pFxchMan->vLits, Abc_LitNot( Lit1 ) ),
                                pFxchMan->vCubesS );
    }

    /* Find pairs associated with the divisor */
    Vec_IntClear( pFxchMan->vPairs );
    vDivCubePairs = Vec_WecEntry( pFxchMan->vDivCubePairs, iDiv );
    Vec_IntAppend( pFxchMan->vPairs, vDivCubePairs );
    Vec_IntErase( vDivCubePairs );

    Vec_IntForEachEntryDouble( pFxchMan->vPairs, iCube0, iCube1, i )
    {
        assert( Fxch_ManGetLit( pFxchMan, iCube0, 0) == Fxch_ManGetLit( pFxchMan, iCube1, 0) );
        if (iCube0 > iCube1)
        {
            Vec_IntSetEntry( pFxchMan->vPairs, i, iCube1);
            Vec_IntSetEntry( pFxchMan->vPairs, i+1, iCube0);
        }
    }

    Vec_IntUniqifyPairs( pFxchMan->vPairs );
    assert( Vec_IntSize( pFxchMan->vPairs ) % 2 == 0 );

    /* subtract cost of single-cube divisors */
    Vec_IntForEachEntry( pFxchMan->vCubesS, iCube0, i )
    {
        Fxch_ManDivSingleCube( pFxchMan, iCube0, 0, 1);

        if ( Vec_WecEntryEntry( pFxchMan->vCubes, iCube0, 0 ) == 0 )
            Fxch_ManDivDoubleCube( pFxchMan, iCube0, 0, 1 );
    }

    Vec_IntForEachEntry( pFxchMan->vPairs, iCube0, i )
    {
        Fxch_ManDivSingleCube( pFxchMan, iCube0, 0, 1);

        if ( Vec_WecEntryEntry( pFxchMan->vCubes, iCube0, 0 ) == 0 )
            Fxch_ManDivDoubleCube( pFxchMan, iCube0, 0, 1 );
    }

    Vec_IntClear( pFxchMan->vCubesToUpdate );
    if ( Fxch_DivIsNotConstant1( pFxchMan->vDiv ) )
    {
        iVarNew = Fxch_ManCreateCube( pFxchMan, Lit0, Lit1 );
        Fxch_ManExtractDivFromCube( pFxchMan, Lit0, Lit1, iVarNew );
        Fxch_ManExtractDivFromCubePairs( pFxchMan, iVarNew );
    }
    else
        Fxch_ManExtractDivFromCubePairs( pFxchMan, 0 );

    assert( Vec_IntSize( pFxchMan->vCubesToUpdate ) );

    /* Add cost */
    Vec_IntForEachEntry( pFxchMan->vCubesToUpdate, iCube0, i )
    {
        Fxch_ManDivSingleCube( pFxchMan, iCube0, 1, 1 );

        if ( Vec_WecEntryEntry( pFxchMan->vCubes, iCube0, 0 ) == 0 )
            Fxch_ManDivDoubleCube( pFxchMan, iCube0, 1, 1 );
    }

    /* Deal with SCC */
    if ( Vec_IntSize( pFxchMan->vSCC ) )
    {
        Vec_IntUniqifyPairs( pFxchMan->vSCC );
        assert( Vec_IntSize( pFxchMan->vSCC ) % 2 == 0 );

        Vec_IntForEachEntryDouble( pFxchMan->vSCC, iCube0, iCube1, i )
        {
            int j, RetValue = 1;
            int* pOutputID0 = Vec_IntEntryP( pFxchMan->vOutputID, iCube0 * pFxchMan->nSizeOutputID );
            int* pOutputID1 = Vec_IntEntryP( pFxchMan->vOutputID, iCube1 * pFxchMan->nSizeOutputID );
            vCube0 = Vec_WecEntry( pFxchMan->vCubes, iCube0 );
            vCube1 = Vec_WecEntry( pFxchMan->vCubes, iCube1 );

            if ( !Vec_WecIntHasMark( vCube0 ) )
            {
                Fxch_ManDivSingleCube( pFxchMan, iCube0, 0, 1 );
                Fxch_ManDivDoubleCube( pFxchMan, iCube0, 0, 1 );
                Vec_WecIntSetMark( vCube0 );
            }

            if ( !Vec_WecIntHasMark( vCube1 ) )
            {
                Fxch_ManDivSingleCube( pFxchMan, iCube1, 0, 1 );
                Fxch_ManDivDoubleCube( pFxchMan, iCube1, 0, 1 );
                Vec_WecIntSetMark( vCube1 );
            }

            if ( Vec_IntSize( vCube0 ) == Vec_IntSize( vCube1 ) )
            {
                for ( j = 0; j < pFxchMan->nSizeOutputID; j++ )
                {
                    pOutputID1[j] |= pOutputID0[j];
                    pOutputID0[j] = 0;
                }
                Vec_IntClear( Vec_WecEntry( pFxchMan->vCubes, iCube0 ) );
                Vec_WecIntXorMark( vCube0 );
                continue;
            }

            for ( j = 0; j < pFxchMan->nSizeOutputID && RetValue; j++ )
                RetValue = ( pOutputID0[j] == pOutputID1[j] );

            if ( RetValue )
            {
                Vec_IntClear( Vec_WecEntry( pFxchMan->vCubes, iCube0 ) );
                Vec_WecIntXorMark( vCube0 );
            }
            else
            {
                RetValue = 0;
                for ( j = 0; j < pFxchMan->nSizeOutputID; j++ )
                {
                    RetValue |= ( pOutputID0[j] & ~( pOutputID1[j] ) );
                    pOutputID0[j] &= ~( pOutputID1[j] );
                }

                if ( RetValue == 0 )
                {
                    Vec_IntClear( Vec_WecEntry( pFxchMan->vCubes, iCube0 ) );
                    Vec_WecIntXorMark( vCube0 );
                }
            }
        }

        Vec_IntForEachEntryDouble( pFxchMan->vSCC, iCube0, iCube1, i )
        {
            vCube0 = Vec_WecEntry( pFxchMan->vCubes, iCube0 );
            vCube1 = Vec_WecEntry( pFxchMan->vCubes, iCube1 );

            if ( Vec_WecIntHasMark( vCube0 ) )
            {
                Fxch_ManDivSingleCube( pFxchMan, iCube0, 1, 1 );
                Fxch_ManDivDoubleCube( pFxchMan, iCube0, 1, 1 );
                Vec_WecIntXorMark( vCube0 );
            }

            if ( Vec_WecIntHasMark( vCube1 ) )
            {
                Fxch_ManDivSingleCube( pFxchMan, iCube1, 1, 1 );
                Fxch_ManDivDoubleCube( pFxchMan, iCube1, 1, 1 );
                Vec_WecIntXorMark( vCube1 );
            }
        }

        Vec_IntClear( pFxchMan->vSCC );
    }

    pFxchMan->nExtDivs++;
}

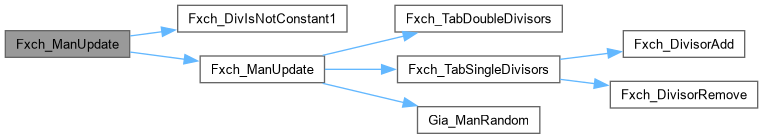

Here is the call graph for this function:
