#include "abc.h"

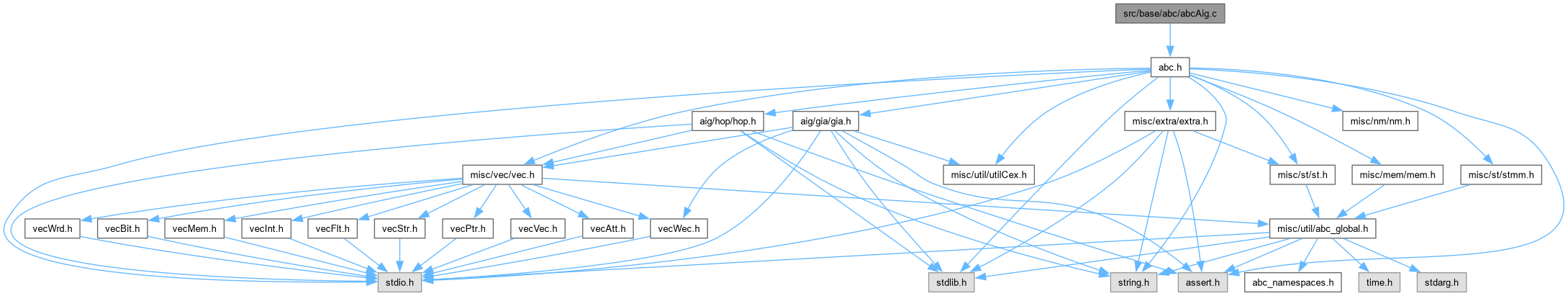

Include dependency graph for abcAig.c:

Classes
struct	Abc_Aig_t_
	DECLARATIONS ///. More...

Macros
#define	Abc_AigBinForEachEntry(pBin, pEnt)

#define	Abc_AigBinForEachEntrySafe(pBin, pEnt, pEnt2)

Functions
Abc_Aig_t *	Abc_AigAlloc (Abc_Ntk_t *pNtkAig)
	FUNCTION DEFINITIONS ///.

void	Abc_AigFree (Abc_Aig_t *pMan)

int	Abc_AigCleanup (Abc_Aig_t *pMan)

int	Abc_AigCheck (Abc_Aig_t *pMan)

int	Abc_AigLevel (Abc_Ntk_t *pNtk)

Abc_Obj_t *	Abc_AigAndLookup (Abc_Aig_t pMan, Abc_Obj_t p0, Abc_Obj_t *p1)

Abc_Obj_t *	Abc_AigXorLookup (Abc_Aig_t pMan, Abc_Obj_t p0, Abc_Obj_t p1, int pType)

Abc_Obj_t *	Abc_AigMuxLookup (Abc_Aig_t pMan, Abc_Obj_t pC, Abc_Obj_t pT, Abc_Obj_t pE, int *pType)

void	Abc_AigRehash (Abc_Aig_t *pMan)

Abc_Obj_t *	Abc_AigConst1 (Abc_Ntk_t *pNtk)

Abc_Obj_t *	Abc_AigAnd (Abc_Aig_t pMan, Abc_Obj_t p0, Abc_Obj_t *p1)

Abc_Obj_t *	Abc_AigOr (Abc_Aig_t pMan, Abc_Obj_t p0, Abc_Obj_t *p1)

Abc_Obj_t *	Abc_AigXor (Abc_Aig_t pMan, Abc_Obj_t p0, Abc_Obj_t *p1)

Abc_Obj_t *	Abc_AigMux (Abc_Aig_t pMan, Abc_Obj_t pC, Abc_Obj_t p1, Abc_Obj_t p0)

Abc_Obj_t *	Abc_AigMiter_rec (Abc_Aig_t pMan, Abc_Obj_t *ppObjs, int nObjs)

Abc_Obj_t *	Abc_AigMiter (Abc_Aig_t pMan, Vec_Ptr_t vPairs, int fImplic)

Abc_Obj_t *	Abc_AigMiter2 (Abc_Aig_t pMan, Vec_Ptr_t vPairs)

int	Abc_AigReplace (Abc_Aig_t pMan, Abc_Obj_t pOld, Abc_Obj_t *pNew, int fUpdateLevel)

void	Abc_AigDeleteNode (Abc_Aig_t pMan, Abc_Obj_t pNode)

int	Abc_AigNodeHasComplFanoutEdge (Abc_Obj_t *pNode)

int	Abc_AigNodeHasComplFanoutEdgeTrav (Abc_Obj_t *pNode)

void	Abc_AigPrintNode (Abc_Obj_t *pNode)

int	Abc_AigNodeIsAcyclic (Abc_Obj_t pNode, Abc_Obj_t pRoot)

void	Abc_AigCheckFaninOrder (Abc_Aig_t *pMan)

void	Abc_AigSetNodePhases (Abc_Ntk_t *pNtk)

Vec_Ptr_t *	Abc_AigUpdateStart (Abc_Aig_t pMan, Vec_Ptr_t *pvUpdatedNets)

void	Abc_AigUpdateStop (Abc_Aig_t *pMan)

void	Abc_AigUpdateReset (Abc_Aig_t *pMan)

int	Abc_AigCountNext (Abc_Aig_t *pMan)

void	Abc_NtkHelloWorld (Abc_Ntk_t *pNtk)
	END OF FILE ///.

Macro Definition Documentation

◆ Abc_AigBinForEachEntry

#define Abc_AigBinForEachEntry	(		pBin,
			pEnt )

Value:

    for ( pEnt = pBin;                                         \
          pEnt;                                                \
          pEnt = pEnt->pNext )

Definition at line 74 of file abcAig.c.

#define Abc_AigBinForEachEntry( pBin, pEnt )                   \
    for ( pEnt = pBin;                                         \
          pEnt;                                                \
          pEnt = pEnt->pNext )

◆ Abc_AigBinForEachEntrySafe

#define Abc_AigBinForEachEntrySafe	(	pBin,
		pEnt,
		pEnt2 )

Value:

    for ( pEnt = pBin,                                         \
          pEnt2 = pEnt? pEnt->pNext: NULL;                     \
          pEnt;                                                \
          pEnt = pEnt2,                                        \
          pEnt2 = pEnt? pEnt->pNext: NULL )

Definition at line 78 of file abcAig.c.

#define Abc_AigBinForEachEntrySafe( pBin, pEnt, pEnt2 )        \
    for ( pEnt = pBin,                                         \
          pEnt2 = pEnt? pEnt->pNext: NULL;                     \
          pEnt;                                                \
          pEnt = pEnt2,                                        \
          pEnt2 = pEnt? pEnt->pNext: NULL )

Function Documentation

◆ Abc_AigAlloc()

Abc_Aig_t * Abc_AigAlloc ( Abc_Ntk_t * pNtkAig )

FUNCTION DEFINITIONS ///.

FUNCTION DECLARATIONS ///.

Function*************************************************************

Synopsis [Allocates the local AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 128 of file abcAig.c.

{
    Abc_Aig_t * pMan;
    // start the manager
    pMan = ABC_ALLOC( Abc_Aig_t, 1 );
    memset( pMan, 0, sizeof(Abc_Aig_t) );
    // allocate the table
    pMan->nBins    = Abc_PrimeCudd( 10000 );
    pMan->pBins    = ABC_ALLOC( Abc_Obj_t *, pMan->nBins );
    memset( pMan->pBins, 0, sizeof(Abc_Obj_t *) * pMan->nBins );
    pMan->vNodes   = Vec_PtrAlloc( 100 );
    pMan->vLevels  = Vec_VecAlloc( 100 );
    pMan->vLevelsR = Vec_VecAlloc( 100 );
    pMan->vStackReplaceOld = Vec_PtrAlloc( 100 );
    pMan->vStackReplaceNew = Vec_PtrAlloc( 100 );
    // create the constant node
    assert( pNtkAig->vObjs->nSize == 0 );
    pMan->pConst1 = Abc_NtkCreateObj( pNtkAig, ABC_OBJ_NODE );
    pMan->pConst1->Type = ABC_OBJ_CONST1;
    pMan->pConst1->fPhase = 1;
    pNtkAig->nObjCounts[ABC_OBJ_NODE]--;
    // save the current network
    pMan->pNtkAig = pNtkAig;
    return pMan;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Abc_AigAnd()

Abc_Obj_t * Abc_AigAnd	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	p0,
		Abc_Obj_t *	p1 )

Function*************************************************************

Synopsis [Performs canonicization step.]

Description [The argument nodes can be complemented.]

SideEffects []

SeeAlso []

Definition at line 700 of file abcAig.c.

{
    Abc_Obj_t * pAnd;
    if ( (pAnd = Abc_AigAndLookup( pMan, p0, p1 )) )
        return pAnd;
    return Abc_AigAndCreate( pMan, p0, p1 );
}

Here is the call graph for this function:

◆ Abc_AigAndLookup()

Abc_Obj_t * Abc_AigAndLookup	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	p0,
		Abc_Obj_t *	p1 )

Function*************************************************************

Synopsis [Performs canonicization step.]

Description [The argument nodes can be complemented.]

SideEffects []

SeeAlso []

Definition at line 403 of file abcAig.c.

{
    Abc_Obj_t * pAnd, * pConst1;
    unsigned Key;
    assert( Abc_ObjRegular(p0)->pNtk->pManFunc == pMan );
    assert( Abc_ObjRegular(p1)->pNtk->pManFunc == pMan );
    // check for trivial cases
    pConst1 = Abc_AigConst1(pMan->pNtkAig);
    if ( p0 == p1 )
        return p0;
    if ( p0 == Abc_ObjNot(p1) )
        return Abc_ObjNot(pConst1);
    if ( Abc_ObjRegular(p0) == pConst1 )
    {
        if ( p0 == pConst1 )
            return p1;
        return Abc_ObjNot(pConst1);
    }
    if ( Abc_ObjRegular(p1) == pConst1 )
    {
        if ( p1 == pConst1 )
            return p0;
        return Abc_ObjNot(pConst1);
    }
/*
    {
        int nFans0 = Abc_ObjFanoutNum( Abc_ObjRegular(p0) );
        int nFans1 = Abc_ObjFanoutNum( Abc_ObjRegular(p1) );
        if ( nFans0 == 0 || nFans1 == 0 )
            pMan->nStrash0++;
        else if ( nFans0 == 1 || nFans1 == 1 )
            pMan->nStrash1++;
        else if ( nFans0 <= 100 && nFans1 <= 100 )
            pMan->nStrash5++;
        else
            pMan->nStrash2++;
    }
*/
    {
        int nFans0 = Abc_ObjFanoutNum( Abc_ObjRegular(p0) );
        int nFans1 = Abc_ObjFanoutNum( Abc_ObjRegular(p1) );
        if ( nFans0 == 0 || nFans1 == 0 )
            return NULL;
    }

    // order the arguments
    if ( Abc_ObjRegular(p0)->Id > Abc_ObjRegular(p1)->Id )
        pAnd = p0, p0 = p1, p1 = pAnd;
    // get the hash key for these two nodes
    Key = Abc_HashKey2( p0, p1, pMan->nBins );
    // find the matching node in the table
    Abc_AigBinForEachEntry( pMan->pBins[Key], pAnd )
        if ( p0 == Abc_ObjChild0(pAnd) && p1 == Abc_ObjChild1(pAnd) )
        {
//            assert( Abc_ObjFanoutNum(Abc_ObjRegular(p0)) && Abc_ObjFanoutNum(p1) );
             return pAnd;
        }
    return NULL;
}

Here is the call graph for this function:

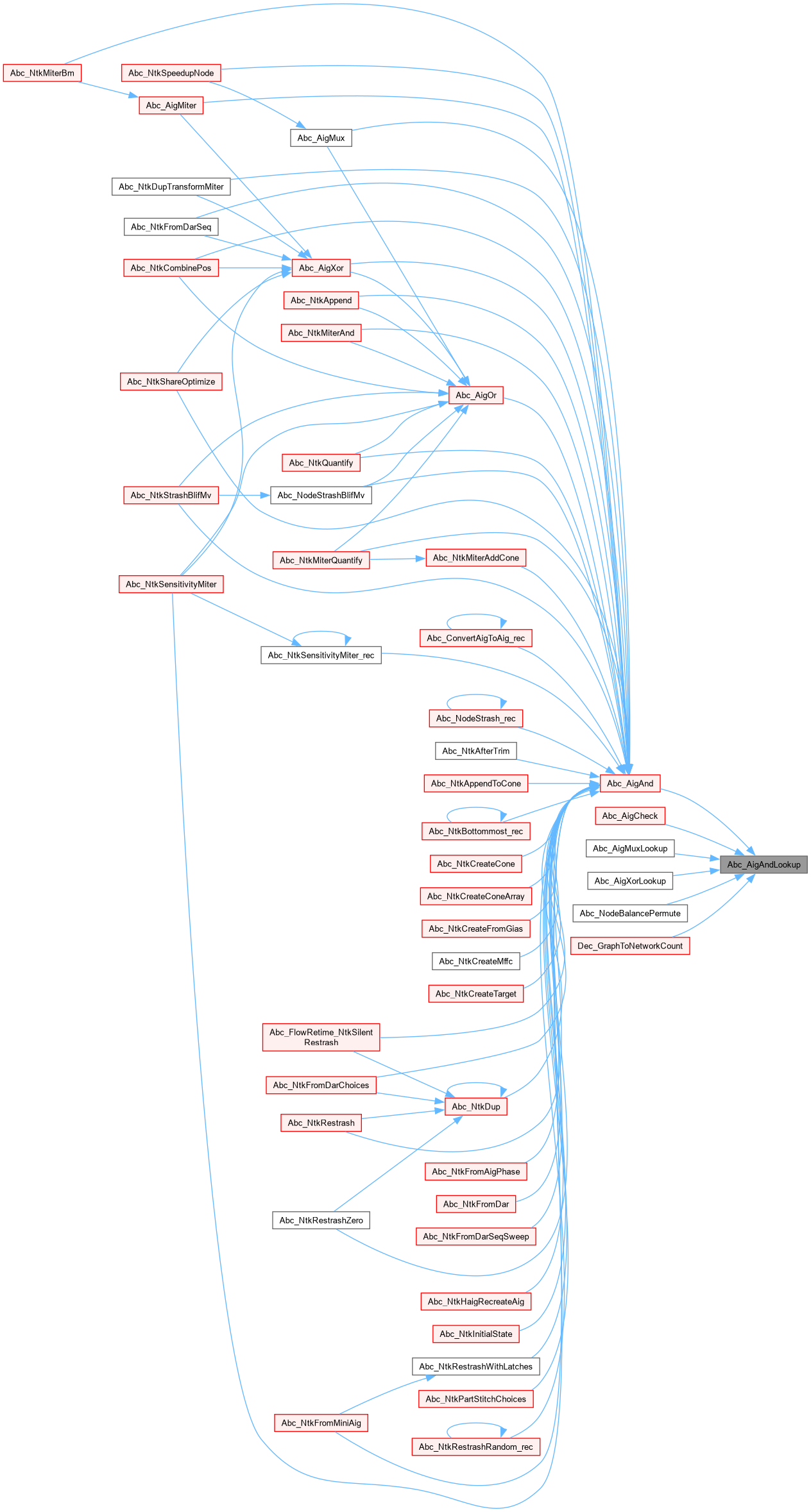

Here is the caller graph for this function:

◆ Abc_AigCheck()

int Abc_AigCheck ( Abc_Aig_t * pMan )

Function*************************************************************

Synopsis [Makes sure that every node in the table is in the network and vice versa.]

Description []

SideEffects []

SeeAlso []

Definition at line 226 of file abcAig.c.

{
    Abc_Obj_t * pObj, * pAnd;
    int i, nFanins, Counter;
    Abc_NtkForEachNode( pMan->pNtkAig, pObj, i )
    {
        nFanins = Abc_ObjFaninNum(pObj);
        if ( nFanins == 0 )
        {
            if ( !Abc_AigNodeIsConst(pObj) )
            {
                printf( "Abc_AigCheck: The AIG has non-standard constant nodes.\n" );
                return 0;
            }
            continue;
        }
        if ( nFanins == 1 )
        {
            printf( "Abc_AigCheck: The AIG has single input nodes.\n" );
            return 0;
        }
        if ( nFanins > 2 )
        {
            printf( "Abc_AigCheck: The AIG has non-standard nodes.\n" );
            return 0;
        }
        if ( pObj->Level != 1 + (unsigned)Abc_MaxInt( Abc_ObjFanin0(pObj)->Level, Abc_ObjFanin1(pObj)->Level ) )
            printf( "Abc_AigCheck: Node \"%s\" has level that does not agree with the fanin levels.\n", Abc_ObjName(pObj) );
        pAnd = Abc_AigAndLookup( pMan, Abc_ObjChild0(pObj), Abc_ObjChild1(pObj) );
        if ( pAnd != pObj )
            printf( "Abc_AigCheck: Node \"%s\" is not in the structural hashing table.\n", Abc_ObjName(pObj) );
    }
    // count the number of nodes in the table
    Counter = 0;
    for ( i = 0; i < pMan->nBins; i++ )
        Abc_AigBinForEachEntry( pMan->pBins[i], pAnd )
            Counter++;
    if ( Counter != Abc_NtkNodeNum(pMan->pNtkAig) )
    {
        printf( "Abc_AigCheck: The number of nodes in the structural hashing table is wrong.\n" );
        return 0;
    }
    // if the node is a choice node, nodes in its class should not have fanouts
    Abc_NtkForEachNode( pMan->pNtkAig, pObj, i )
        if ( Abc_AigNodeIsChoice(pObj) )
            for ( pAnd = (Abc_Obj_t *)pObj->pData; pAnd; pAnd = (Abc_Obj_t *)pAnd->pData )
                if ( Abc_ObjFanoutNum(pAnd) > 0 )
                {
                    printf( "Abc_AigCheck: Representative %s", Abc_ObjName(pAnd) );
                    printf( " of choice node %s has %d fanouts.\n", Abc_ObjName(pObj), Abc_ObjFanoutNum(pAnd) );
                    return 0;
                }
    return 1;
}

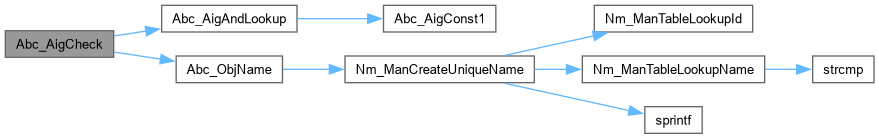

Here is the call graph for this function:

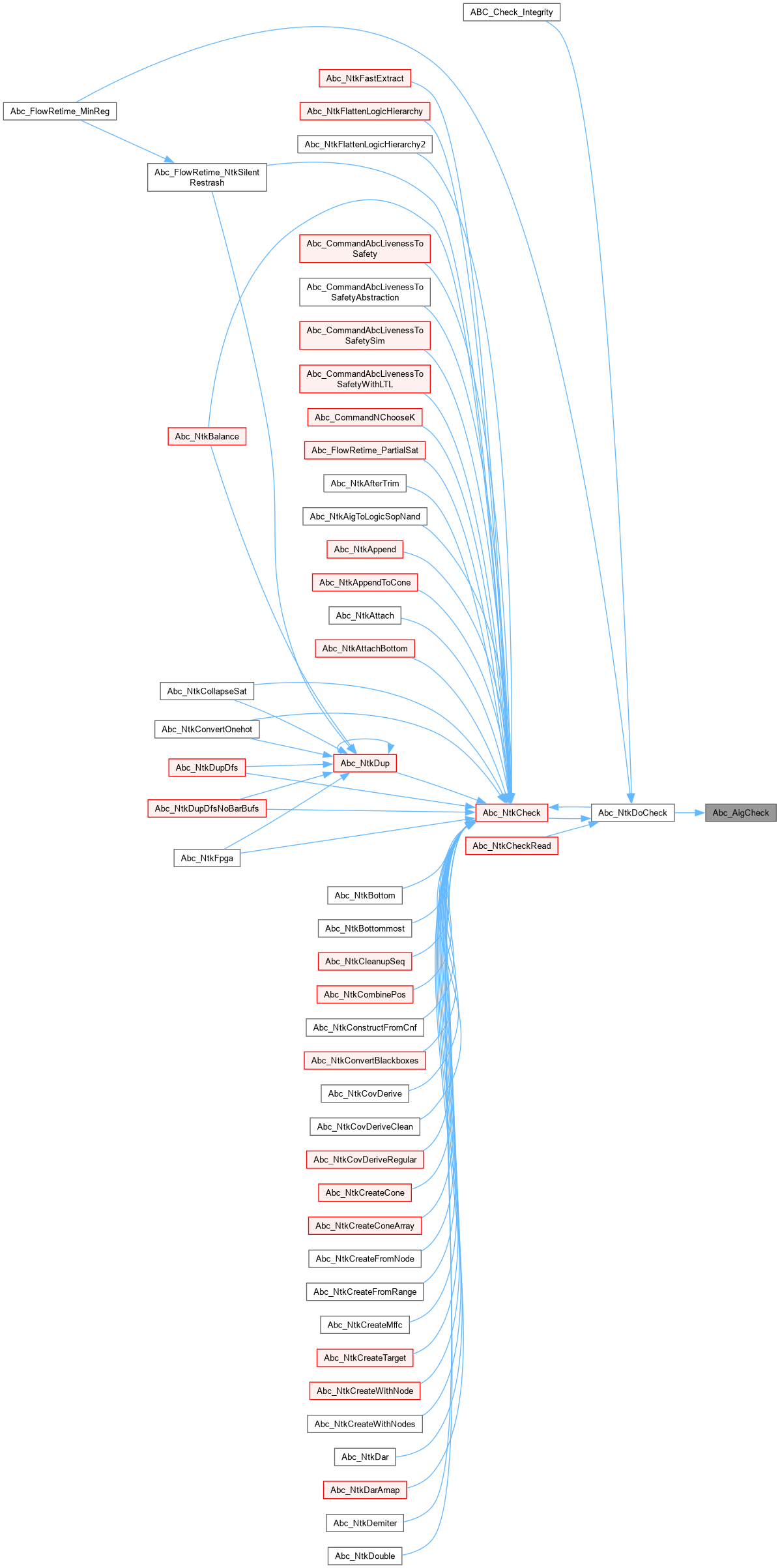

Here is the caller graph for this function:

◆ Abc_AigCheckFaninOrder()

void Abc_AigCheckFaninOrder ( Abc_Aig_t * pMan )

Function*************************************************************

Synopsis [Resizes the hash table of AIG nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 1379 of file abcAig.c.

{
    Abc_Obj_t * pEnt;
    int i;
    for ( i = 0; i < pMan->nBins; i++ )
        Abc_AigBinForEachEntry( pMan->pBins[i], pEnt )
        {
            if ( Abc_ObjRegular(Abc_ObjChild0(pEnt))->Id > Abc_ObjRegular(Abc_ObjChild1(pEnt))->Id )
            {
//                int i0 = Abc_ObjRegular(Abc_ObjChild0(pEnt))->Id;
//                int i1 = Abc_ObjRegular(Abc_ObjChild1(pEnt))->Id;
                printf( "Node %d has incorrect ordering of fanins.\n", pEnt->Id );
            }
        }
}

◆ Abc_AigCleanup()

int Abc_AigCleanup ( Abc_Aig_t * pMan )

Function*************************************************************

Synopsis [Returns the number of dangling nodes removed.]

Description []

SideEffects []

SeeAlso []

Definition at line 194 of file abcAig.c.

{
    Vec_Ptr_t * vDangles;
    Abc_Obj_t * pAnd;
    int i, nNodesOld;
//    printf( "Strash0 = %d.  Strash1 = %d.  Strash100 = %d.  StrashM = %d.\n",
//        pMan->nStrash0, pMan->nStrash1, pMan->nStrash5, pMan->nStrash2 );
    nNodesOld = pMan->nEntries;
    // collect the AND nodes that do not fanout
    vDangles = Vec_PtrAlloc( 100 );
    for ( i = 0; i < pMan->nBins; i++ )
        Abc_AigBinForEachEntry( pMan->pBins[i], pAnd )
            if ( Abc_ObjFanoutNum(pAnd) == 0 )
                Vec_PtrPush( vDangles, pAnd );
    // process the dangling nodes and their MFFCs
    Vec_PtrForEachEntry( Abc_Obj_t *, vDangles, pAnd, i )
        Abc_AigDeleteNode( pMan, pAnd );
    Vec_PtrFree( vDangles );
    return nNodesOld - pMan->nEntries;
}

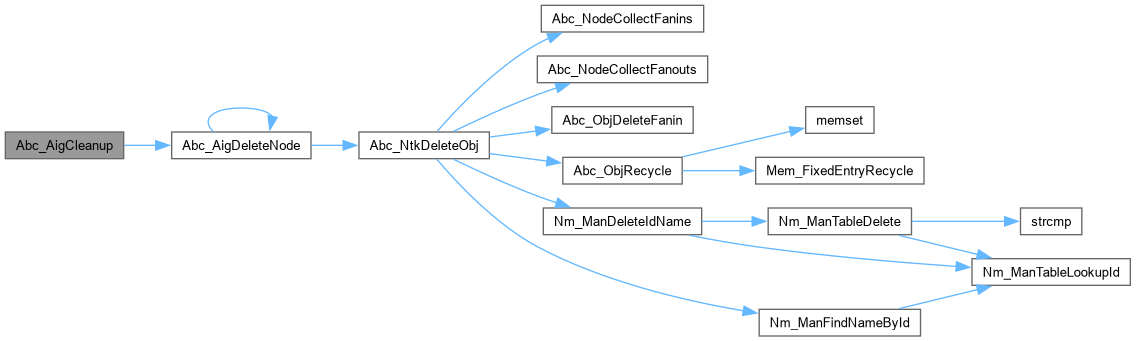

Here is the call graph for this function:

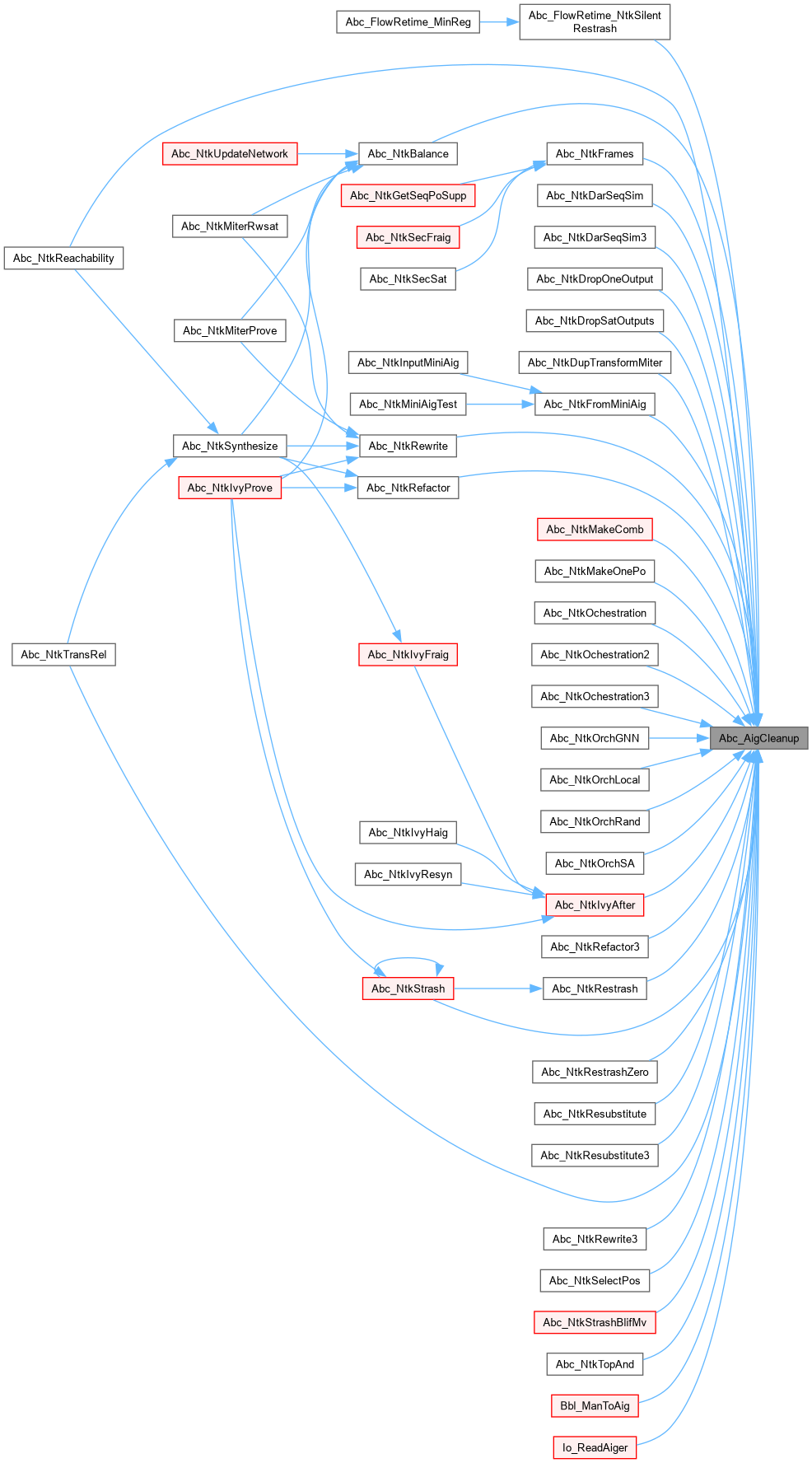

Here is the caller graph for this function:

◆ Abc_AigConst1()

Abc_Obj_t * Abc_AigConst1 ( Abc_Ntk_t * pNtk )

Function*************************************************************

Synopsis [Performs canonicization step.]

Description [The argument nodes can be complemented.]

SideEffects []

SeeAlso []

Definition at line 683 of file abcAig.c.

{
    assert( Abc_NtkIsStrash(pNtk) );
    return ((Abc_Aig_t *)pNtk->pManFunc)->pConst1;
}

◆ Abc_AigCountNext()

int Abc_AigCountNext ( Abc_Aig_t * pMan )

Function*************************************************************

Synopsis [Start the update list.]

Description []

SideEffects []

SeeAlso []

Definition at line 1495 of file abcAig.c.

{
    Abc_Obj_t * pAnd;
    int i, Counter = 0, CounterTotal = 0;
    // count how many nodes have pNext set
    for ( i = 0; i < pMan->nBins; i++ )
        Abc_AigBinForEachEntry( pMan->pBins[i], pAnd )
        {
            Counter += (pAnd->pNext != NULL);
            CounterTotal++;
        }
    printf( "Counter = %d.  Nodes = %d.  Ave = %6.2f\n", Counter, CounterTotal, 1.0 * CounterTotal/pMan->nBins );
    return Counter;
}

◆ Abc_AigDeleteNode()

void Abc_AigDeleteNode	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	pNode )

Function*************************************************************

Synopsis [Performs internal deletion step.]

Description []

SideEffects []

SeeAlso []

Definition at line 989 of file abcAig.c.

{
    Abc_Obj_t * pNode0, * pNode1, * pTemp;
    int i, k;

    // make sure the node is regular and dangling
    assert( !Abc_ObjIsComplement(pNode) );
    assert( Abc_ObjIsNode(pNode) );
    assert( Abc_ObjFaninNum(pNode) == 2 );
    assert( Abc_ObjFanoutNum(pNode) == 0 );

    // when deleting an old node that is scheduled for replacement, remove it from the replacement queue
    Vec_PtrForEachEntry( Abc_Obj_t *, pMan->vStackReplaceOld, pTemp, i )
        if ( pNode == pTemp )
        {
            // remove the entry from the replacement array
            for ( k = i; k < pMan->vStackReplaceOld->nSize - 1; k++ )
            {
                pMan->vStackReplaceOld->pArray[k] = pMan->vStackReplaceOld->pArray[k+1];
                pMan->vStackReplaceNew->pArray[k] = pMan->vStackReplaceNew->pArray[k+1];
            }
            pMan->vStackReplaceOld->nSize--;
            pMan->vStackReplaceNew->nSize--;
        }

    // when deleting a new node that should replace another node, do not delete
    Vec_PtrForEachEntry( Abc_Obj_t *, pMan->vStackReplaceNew, pTemp, i )
        if ( pNode == Abc_ObjRegular(pTemp) )
            return;

    // remember the node's fanins
    pNode0 = Abc_ObjFanin0( pNode );
    pNode1 = Abc_ObjFanin1( pNode );

    // add the node to the list of updated nodes
    if ( pMan->vUpdatedNets )
    {
        Vec_PtrPushUnique( pMan->vUpdatedNets, pNode0 );
        Vec_PtrPushUnique( pMan->vUpdatedNets, pNode1 );
    }

    // remove the node from the table
    Abc_AigAndDelete( pMan, pNode );
    // if the node is in the level structure, remove it
    if ( pNode->fMarkA )
        Abc_AigRemoveFromLevelStructure( pMan->vLevels, pNode );
    if ( pNode->fMarkB )
        Abc_AigRemoveFromLevelStructureR( pMan->vLevelsR, pNode );
    // remove the node from the network
    Abc_NtkDeleteObj( pNode );

    // call recursively for the fanins
    if ( Abc_ObjIsNode(pNode0) && pNode0->vFanouts.nSize == 0 )
        Abc_AigDeleteNode( pMan, pNode0 );
    if ( Abc_ObjIsNode(pNode1) && pNode1->vFanouts.nSize == 0 )
        Abc_AigDeleteNode( pMan, pNode1 );
}

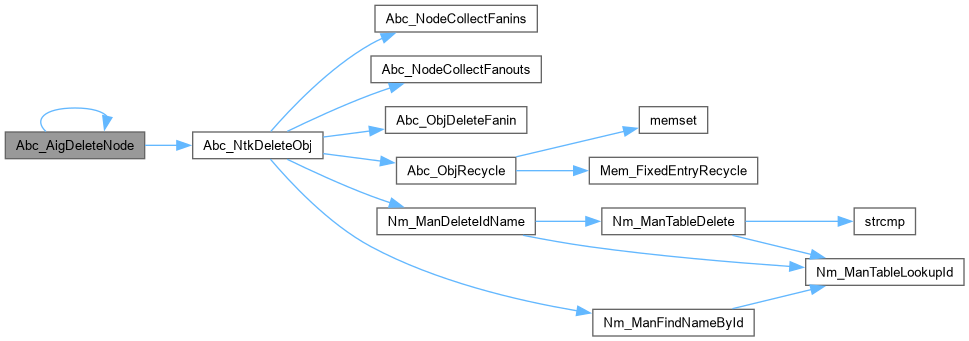

Here is the call graph for this function:

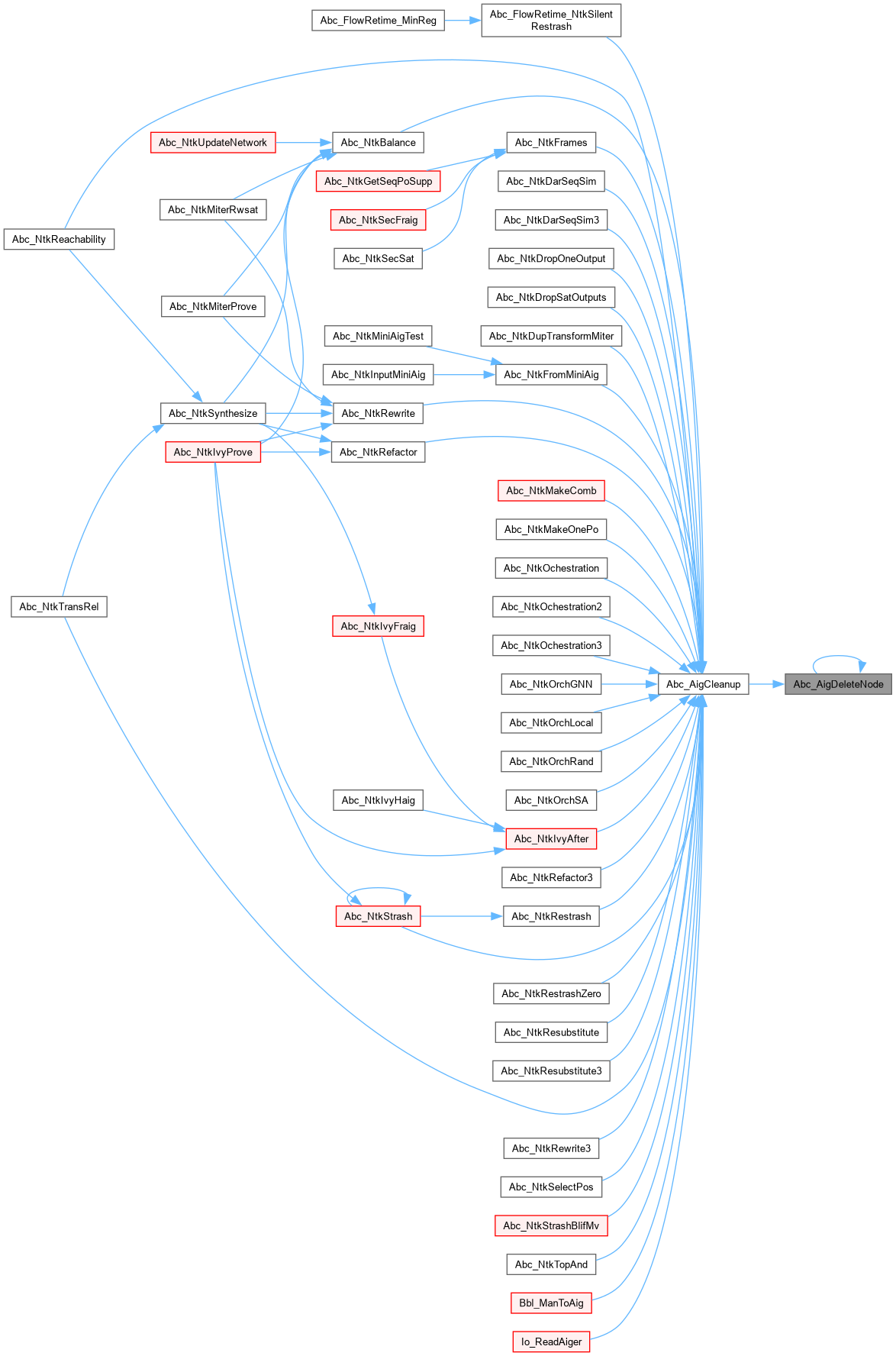

Here is the caller graph for this function:

◆ Abc_AigFree()

void Abc_AigFree ( Abc_Aig_t * pMan )

Function*************************************************************

Synopsis [Deallocates the local AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 165 of file abcAig.c.

{
    assert( Vec_PtrSize( pMan->vStackReplaceOld ) == 0 );
    assert( Vec_PtrSize( pMan->vStackReplaceNew ) == 0 );
    // free the table
    if ( pMan->vAddedCells )
        Vec_PtrFree( pMan->vAddedCells );
    if ( pMan->vUpdatedNets )
        Vec_PtrFree( pMan->vUpdatedNets );
    Vec_VecFree( pMan->vLevels );
    Vec_VecFree( pMan->vLevelsR );
    Vec_PtrFree( pMan->vStackReplaceOld );
    Vec_PtrFree( pMan->vStackReplaceNew );
    Vec_PtrFree( pMan->vNodes );
    ABC_FREE( pMan->pBins );
    ABC_FREE( pMan );
}

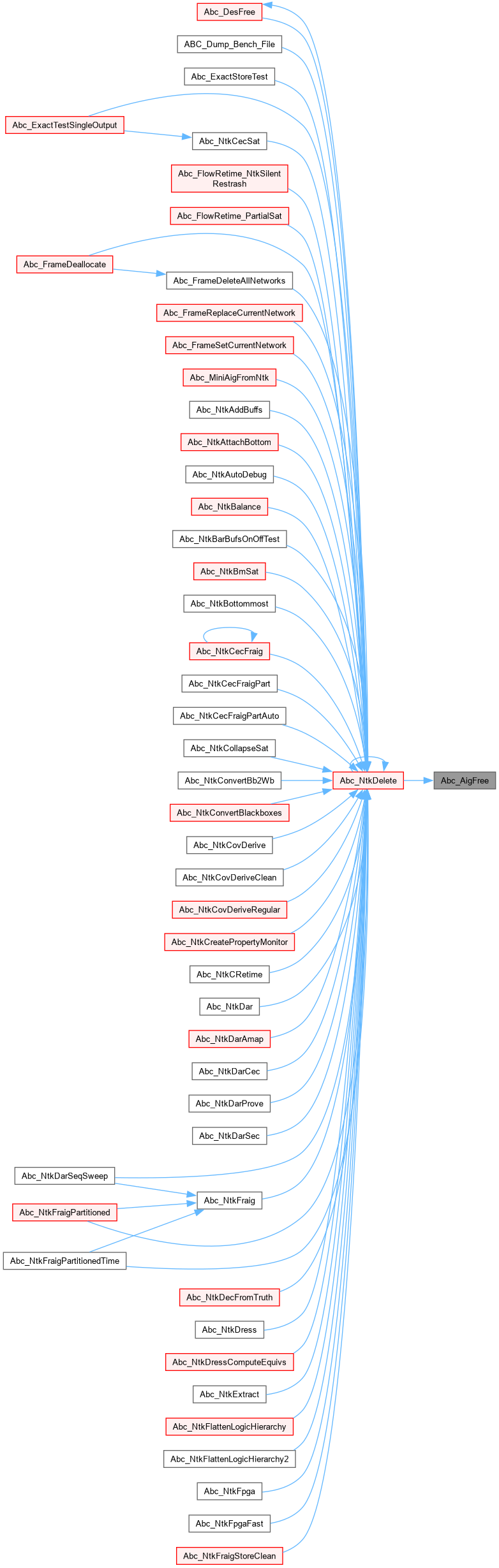

Here is the caller graph for this function:

◆ Abc_AigLevel()

int Abc_AigLevel ( Abc_Ntk_t * pNtk )

Function*************************************************************

Synopsis [Computes the number of logic levels not counting PIs/POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 292 of file abcAig.c.

{
    Abc_Obj_t * pNode;
    int i, LevelsMax;
    assert( Abc_NtkIsStrash(pNtk) );
    if ( pNtk->nBarBufs )
        return Abc_NtkLevel( pNtk );
    // perform the traversal
    LevelsMax = 0;
    Abc_NtkForEachCo( pNtk, pNode, i )
        if ( LevelsMax < (int)Abc_ObjFanin0(pNode)->Level )
            LevelsMax = (int)Abc_ObjFanin0(pNode)->Level;
    return LevelsMax;
}

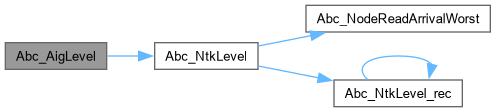

Here is the call graph for this function:

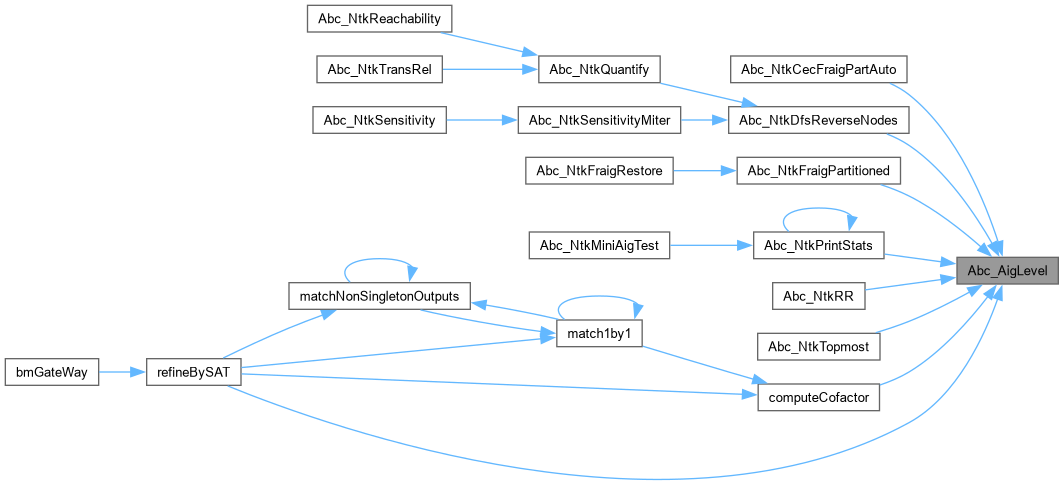

Here is the caller graph for this function:

◆ Abc_AigMiter()

Abc_Obj_t * Abc_AigMiter	(	Abc_Aig_t *	pMan,
		Vec_Ptr_t *	vPairs,
		int	fImplic )

Function*************************************************************

Synopsis [Implements the miter.]

Description []

SideEffects []

SeeAlso []

Definition at line 789 of file abcAig.c.

{
    int i;
    if ( vPairs->nSize == 0 )
        return Abc_ObjNot( Abc_AigConst1(pMan->pNtkAig) );
    assert( vPairs->nSize % 2 == 0 );
    // go through the cubes of the node's SOP
    if ( fImplic )
    {
        for ( i = 0; i < vPairs->nSize; i += 2 )
            vPairs->pArray[i/2] = Abc_AigAnd( pMan, (Abc_Obj_t *)vPairs->pArray[i], Abc_ObjNot((Abc_Obj_t *)vPairs->pArray[i+1]) );
    }
    else
    {
        for ( i = 0; i < vPairs->nSize; i += 2 )
            vPairs->pArray[i/2] = Abc_AigXor( pMan, (Abc_Obj_t *)vPairs->pArray[i], (Abc_Obj_t *)vPairs->pArray[i+1] );
    }
    vPairs->nSize = vPairs->nSize/2;
    return Abc_AigMiter_rec( pMan, (Abc_Obj_t **)vPairs->pArray, vPairs->nSize );
}

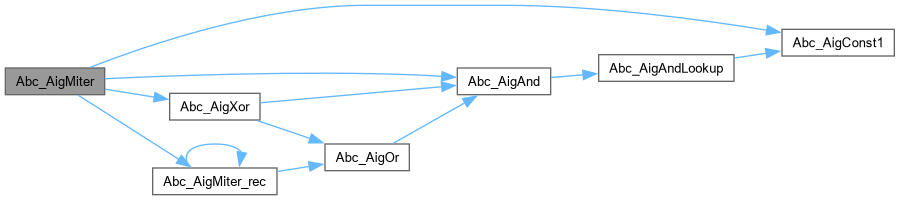

Here is the call graph for this function:

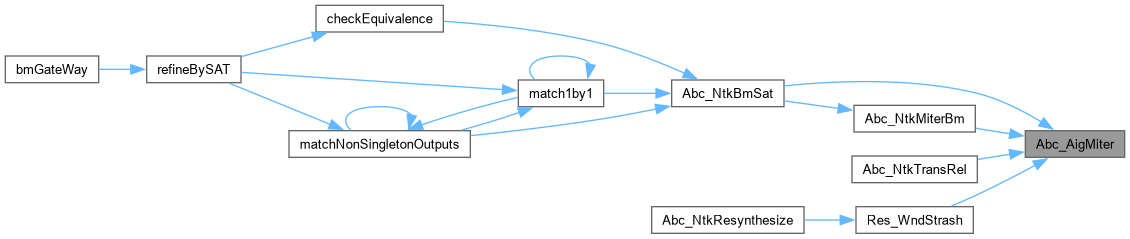

Here is the caller graph for this function:

◆ Abc_AigMiter2()

Abc_Obj_t * Abc_AigMiter2	(	Abc_Aig_t *	pMan,
		Vec_Ptr_t *	vPairs )

Function*************************************************************

Synopsis [Implements the miter.]

Description []

SideEffects []

SeeAlso []

Definition at line 821 of file abcAig.c.

{
    Abc_Obj_t * pMiter, * pXor;
    int i;
    assert( vPairs->nSize % 2 == 0 );
    // go through the cubes of the node's SOP
    pMiter = Abc_ObjNot( Abc_AigConst1(pMan->pNtkAig) );
    for ( i = 0; i < vPairs->nSize; i += 2 )
    {
        pXor   = Abc_AigXor( pMan, (Abc_Obj_t *)vPairs->pArray[i], (Abc_Obj_t *)vPairs->pArray[i+1] );
        pMiter = Abc_AigOr( pMan, pMiter, pXor );
    }
    return pMiter;
}

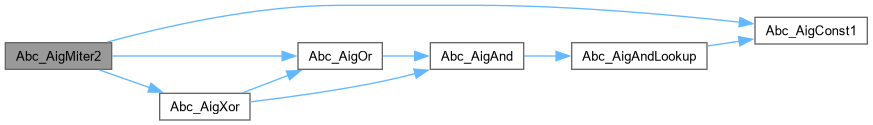

Here is the call graph for this function:

◆ Abc_AigMiter_rec()

Abc_Obj_t * Abc_AigMiter_rec	(	Abc_Aig_t *	pMan,
		Abc_Obj_t **	ppObjs,
		int	nObjs )

Function*************************************************************

Synopsis [Implements the miter.]

Description []

SideEffects []

SeeAlso []

Definition at line 768 of file abcAig.c.

{
    Abc_Obj_t * pObj1, * pObj2;
    if ( nObjs == 1 )
        return ppObjs[0];
    pObj1 = Abc_AigMiter_rec( pMan, ppObjs,           nObjs/2 );
    pObj2 = Abc_AigMiter_rec( pMan, ppObjs + nObjs/2, nObjs - nObjs/2 );
    return Abc_AigOr( pMan, pObj1, pObj2 );
}

Here is the call graph for this function:

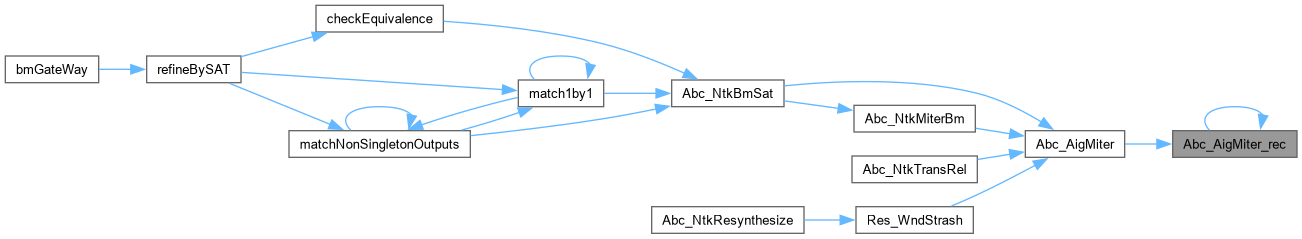

Here is the caller graph for this function:

◆ Abc_AigMux()

Abc_Obj_t * Abc_AigMux	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	pC,
		Abc_Obj_t *	p1,
		Abc_Obj_t *	p0 )

Function*************************************************************

Synopsis [Implements Boolean XOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 752 of file abcAig.c.

{
    return Abc_AigOr( pMan, Abc_AigAnd(pMan, pC, p1), Abc_AigAnd(pMan, Abc_ObjNot(pC), p0) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Abc_AigMuxLookup()

Abc_Obj_t * Abc_AigMuxLookup	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	pC,
		Abc_Obj_t *	pT,
		Abc_Obj_t *	pE,
		int *	pType )

Function*************************************************************

Synopsis [Returns the gate implementing EXOR of the two arguments if it exists.]

Description [The argument nodes can be complemented.]

SideEffects []

SeeAlso []

Definition at line 508 of file abcAig.c.

{
    Abc_Obj_t * pNode1, * pNode2, * pNode;
    // set the flag to zero
    if ( pType ) *pType = 0;
    // check the case of MUX(c,t,e) = OR(ct', c'e')'
    if ( (pNode1 = Abc_AigAndLookup(pMan, pC, Abc_ObjNot(pT))) &&
         (pNode2 = Abc_AigAndLookup(pMan, Abc_ObjNot(pC), Abc_ObjNot(pE))) )
    {
        pNode = Abc_AigAndLookup( pMan, Abc_ObjNot(pNode1), Abc_ObjNot(pNode2) );
        if ( pNode && pType ) *pType = 1;
        return pNode;
    }
    // check the case of MUX(c,t,e) = OR(ct, c'e)
    if ( (pNode1 = Abc_AigAndLookup(pMan, pC, pT)) &&
         (pNode2 = Abc_AigAndLookup(pMan, Abc_ObjNot(pC), pE)) )
    {
        pNode = Abc_AigAndLookup( pMan, Abc_ObjNot(pNode1), Abc_ObjNot(pNode2) );
        return pNode? Abc_ObjNot(pNode) : NULL;
    }
    return NULL;
}

Here is the call graph for this function:

◆ Abc_AigNodeHasComplFanoutEdge()

int Abc_AigNodeHasComplFanoutEdge ( Abc_Obj_t * pNode )

Function*************************************************************

Synopsis [Returns 1 if the node has at least one complemented fanout.]

Description [A fanout is complemented if the fanout's fanin edge pointing to the given node is complemented.]

SideEffects []

SeeAlso []

Definition at line 1241 of file abcAig.c.

{
    Abc_Obj_t * pFanout;
    int i, iFanin;
    Abc_ObjForEachFanout( pNode, pFanout, i )
    {
        iFanin = Vec_IntFind( &pFanout->vFanins, pNode->Id );
        assert( iFanin >= 0 );
        if ( Abc_ObjFaninC( pFanout, iFanin ) )
            return 1;
    }
    return 0;
}

◆ Abc_AigNodeHasComplFanoutEdgeTrav()

int Abc_AigNodeHasComplFanoutEdgeTrav ( Abc_Obj_t * pNode )

Function*************************************************************

Synopsis [Returns 1 if the node has at least one complemented fanout.]

Description [A fanout is complemented if the fanout's fanin edge pointing to the given node is complemented. Only the fanouts with current TravId are counted.]

SideEffects []

SeeAlso []

Definition at line 1268 of file abcAig.c.

{
    Abc_Obj_t * pFanout;
    int i, iFanin;
    Abc_ObjForEachFanout( pNode, pFanout, i )
    {
        if ( !Abc_NodeIsTravIdCurrent(pFanout) )
            continue;
        iFanin = Vec_IntFind( &pFanout->vFanins, pNode->Id );
        assert( iFanin >= 0 );
        if ( Abc_ObjFaninC( pFanout, iFanin ) )
            return 1;
    }
    return 0;
}

Here is the caller graph for this function:

◆ Abc_AigNodeIsAcyclic()

int Abc_AigNodeIsAcyclic	(	Abc_Obj_t *	pNode,
		Abc_Obj_t *	pRoot )

Function*************************************************************

Synopsis [Check if the node has a combination loop of depth 1 or 2.]

Description []

SideEffects []

SeeAlso []

Definition at line 1330 of file abcAig.c.

{
    Abc_Obj_t * pFanin0, * pFanin1;
    Abc_Obj_t * pChild00, * pChild01;
    Abc_Obj_t * pChild10, * pChild11;
    if ( !Abc_AigNodeIsAnd(pNode) )
        return 1;
    pFanin0 = Abc_ObjFanin0(pNode);
    pFanin1 = Abc_ObjFanin1(pNode);
    if ( pRoot == pFanin0 || pRoot == pFanin1 )
        return 0;
    if ( Abc_ObjIsCi(pFanin0) )
    {
        pChild00 = NULL;
        pChild01 = NULL;
    }
    else
    {
        pChild00 = Abc_ObjFanin0(pFanin0);
        pChild01 = Abc_ObjFanin1(pFanin0);
        if ( pRoot == pChild00 || pRoot == pChild01 )
            return 0;
    }
    if ( Abc_ObjIsCi(pFanin1) )
    {
        pChild10 = NULL;
        pChild11 = NULL;
    }
    else
    {
        pChild10 = Abc_ObjFanin0(pFanin1);
        pChild11 = Abc_ObjFanin1(pFanin1);
        if ( pRoot == pChild10 || pRoot == pChild11 )
            return 0;
    }
    return 1;
}

◆ Abc_AigOr()

Abc_Obj_t * Abc_AigOr	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	p0,
		Abc_Obj_t *	p1 )

Function*************************************************************

Synopsis [Implements Boolean OR.]

Description []

SideEffects []

SeeAlso []

Definition at line 719 of file abcAig.c.

{
    return Abc_ObjNot( Abc_AigAnd( pMan, Abc_ObjNot(p0), Abc_ObjNot(p1) ) );
}

Here is the call graph for this function:

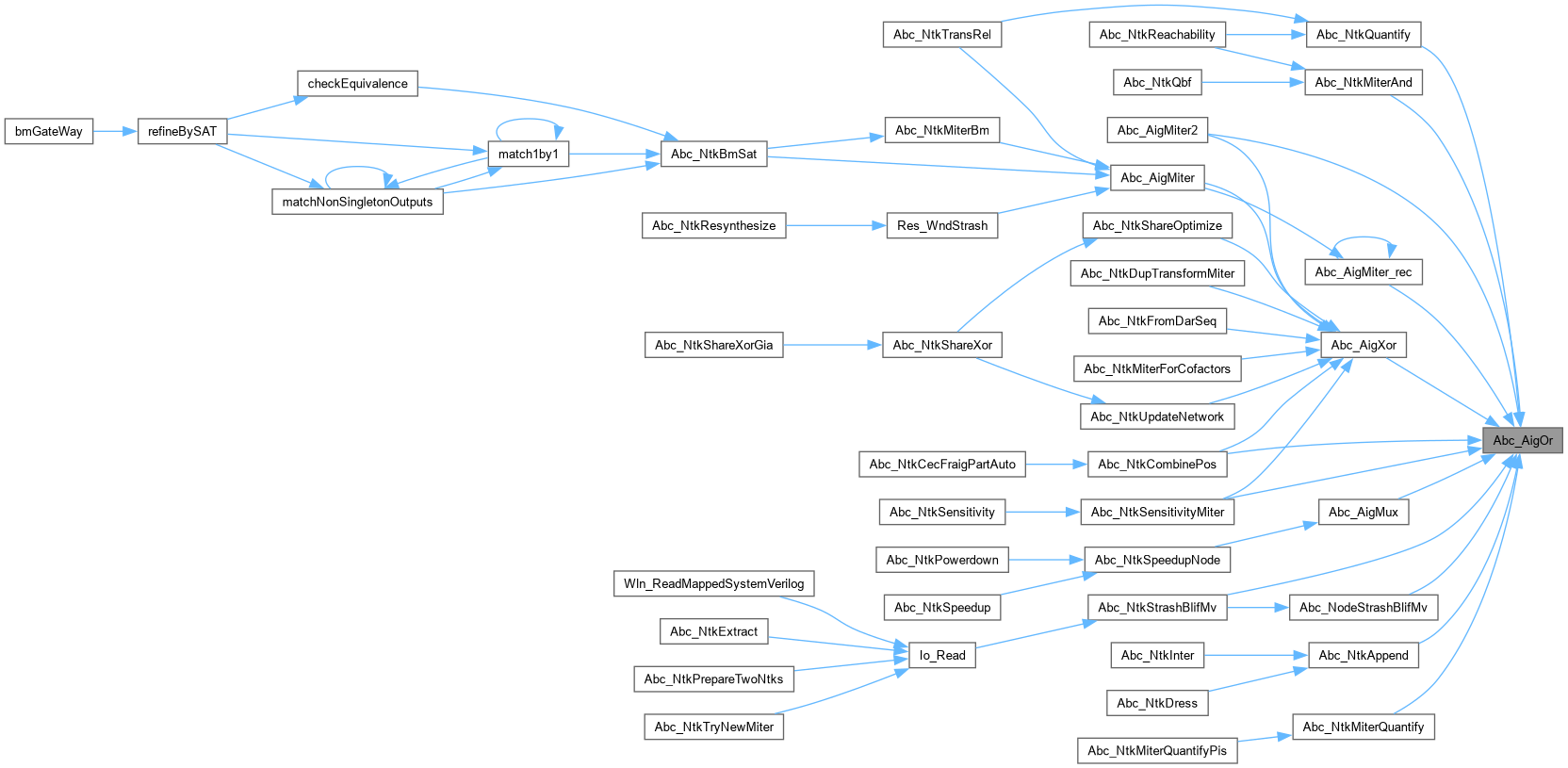

Here is the caller graph for this function:

◆ Abc_AigPrintNode()

void Abc_AigPrintNode ( Abc_Obj_t * pNode )

Function*************************************************************

Synopsis [Prints the AIG node for debugging purposes.]

Description []

SideEffects []

SeeAlso []

Definition at line 1296 of file abcAig.c.

{
    Abc_Obj_t * pNodeR = Abc_ObjRegular(pNode);
    if ( Abc_ObjIsCi(pNodeR) )
    {
        printf( "CI %4s%s.\n", Abc_ObjName(pNodeR), Abc_ObjIsComplement(pNode)? "\'" : "" );
        return;
    }
    if ( Abc_AigNodeIsConst(pNodeR) )
    {
        printf( "Constant 1 %s.\n", Abc_ObjIsComplement(pNode)? "(complemented)" : ""  );
        return;
    }
    // print the node's function
    printf( "%7s%s", Abc_ObjName(pNodeR),                Abc_ObjIsComplement(pNode)? "\'" : "" );
    printf( " = " );
    printf( "%7s%s", Abc_ObjName(Abc_ObjFanin0(pNodeR)), Abc_ObjFaninC0(pNodeR)?     "\'" : "" );
    printf( " * " );
    printf( "%7s%s", Abc_ObjName(Abc_ObjFanin1(pNodeR)), Abc_ObjFaninC1(pNodeR)?     "\'" : "" );
    printf( "\n" );
}

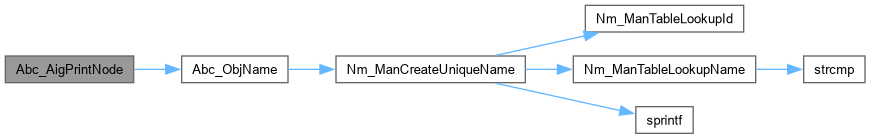

Here is the call graph for this function:

◆ Abc_AigRehash()

void Abc_AigRehash ( Abc_Aig_t * pMan )

Function*************************************************************

Synopsis [Resizes the hash table of AIG nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 628 of file abcAig.c.

{
    Abc_Obj_t ** pBinsNew;
    Abc_Obj_t * pEnt, * pEnt2;
    int * pArray;
    unsigned Key;
    int Counter, Temp, i;

    // allocate a new array
    pBinsNew = ABC_ALLOC( Abc_Obj_t *, pMan->nBins );
    memset( pBinsNew, 0, sizeof(Abc_Obj_t *) * pMan->nBins );
    // rehash the entries from the old table
    Counter = 0;
    for ( i = 0; i < pMan->nBins; i++ )
        Abc_AigBinForEachEntrySafe( pMan->pBins[i], pEnt, pEnt2 )
        {
            // swap the fanins if needed
            pArray = pEnt->vFanins.pArray;
            if ( pArray[0] > pArray[1] )
            {
                Temp = pArray[0];
                pArray[0] = pArray[1];
                pArray[1] = Temp;
                Temp = pEnt->fCompl0;
                pEnt->fCompl0 = pEnt->fCompl1;
                pEnt->fCompl1 = Temp;
            }
            // rehash the node
            Key = Abc_HashKey2( Abc_ObjChild0(pEnt), Abc_ObjChild1(pEnt), pMan->nBins );
            pEnt->pNext   = pBinsNew[Key];
            pBinsNew[Key] = pEnt;
            Counter++;
        }
    assert( Counter == pMan->nEntries );
    // replace the table and the parameters
    ABC_FREE( pMan->pBins );
    pMan->pBins = pBinsNew;
}

Here is the call graph for this function:

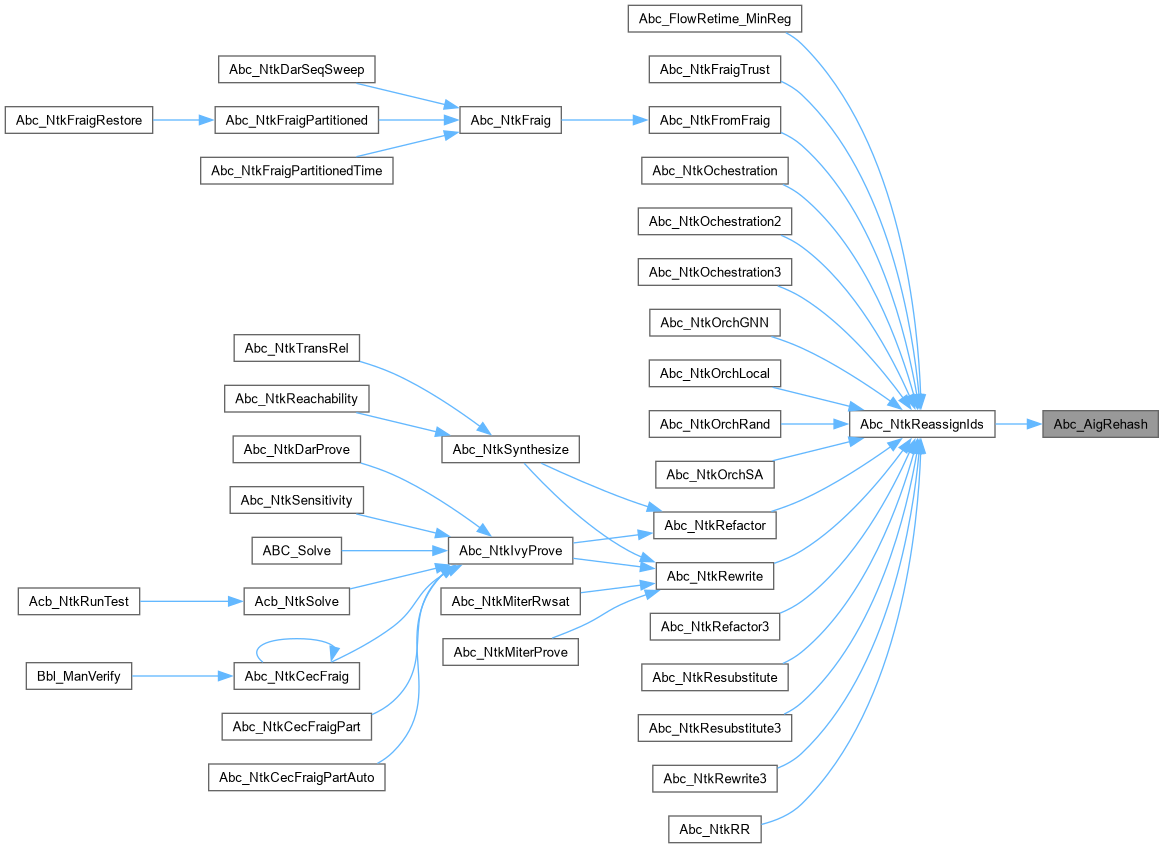

Here is the caller graph for this function:

◆ Abc_AigReplace()

int Abc_AigReplace	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	pOld,
		Abc_Obj_t *	pNew,
		int	fUpdateLevel )

Function*************************************************************

Synopsis [Replaces one AIG node by the other.]

Description []

SideEffects []

SeeAlso []

Definition at line 850 of file abcAig.c.

{
    assert( Vec_PtrSize(pMan->vStackReplaceOld) == 0 );
    assert( Vec_PtrSize(pMan->vStackReplaceNew) == 0 );
    Vec_PtrPush( pMan->vStackReplaceOld, pOld );
    Vec_PtrPush( pMan->vStackReplaceNew, pNew );
    assert( !Abc_ObjIsComplement(pOld) );
    // process the replacements
    while ( Vec_PtrSize(pMan->vStackReplaceOld) )
    {
        pOld = (Abc_Obj_t *)Vec_PtrPop( pMan->vStackReplaceOld );
        pNew = (Abc_Obj_t *)Vec_PtrPop( pMan->vStackReplaceNew );
        if ( Abc_ObjFanoutNum(pOld) == 0 )
            //return 0;
            continue;
        Abc_AigReplace_int( pMan, pOld, pNew, fUpdateLevel );
    }
    if ( fUpdateLevel )
    {
        Abc_AigUpdateLevel_int( pMan );
        if ( pMan->pNtkAig->vLevelsR )
            Abc_AigUpdateLevelR_int( pMan );
    }
    return 1;
}

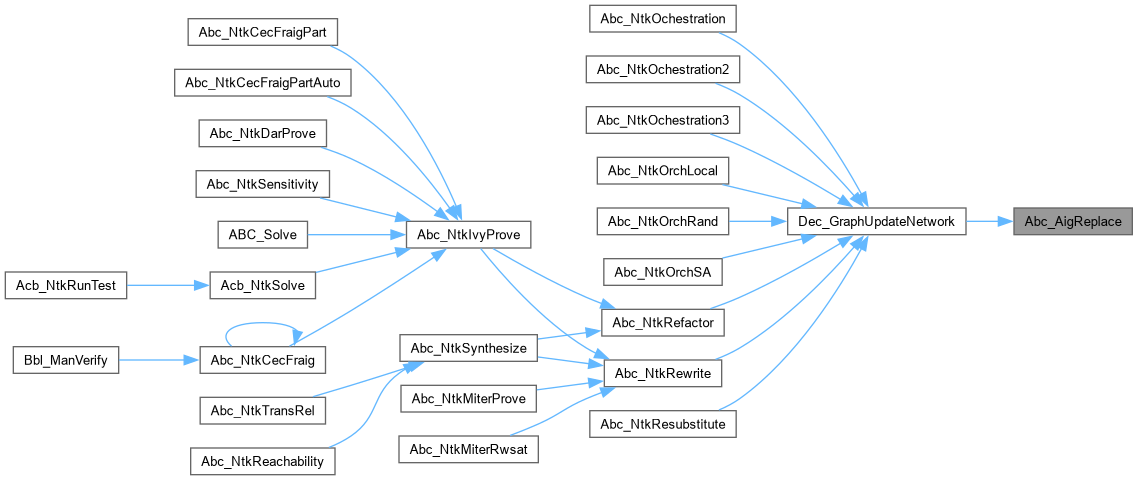

Here is the caller graph for this function:

◆ Abc_AigSetNodePhases()

void Abc_AigSetNodePhases ( Abc_Ntk_t * pNtk )

Function*************************************************************

Synopsis [Sets the correct phase of the nodes.]

Description [The AIG nodes should be in the DFS order.]

SideEffects []

SeeAlso []

Definition at line 1406 of file abcAig.c.

{
    Abc_Obj_t * pObj;
    int i;
    assert( Abc_NtkIsDfsOrdered(pNtk) );
    Abc_AigConst1(pNtk)->fPhase = 1;
    Abc_NtkForEachPi( pNtk, pObj, i )
        pObj->fPhase = 0;
    Abc_NtkForEachLatchOutput( pNtk, pObj, i )
        pObj->fPhase = Abc_LatchIsInit1(pObj);
    Abc_AigForEachAnd( pNtk, pObj, i )
        pObj->fPhase = (Abc_ObjFanin0(pObj)->fPhase ^ Abc_ObjFaninC0(pObj)) & (Abc_ObjFanin1(pObj)->fPhase ^ Abc_ObjFaninC1(pObj));
    Abc_NtkForEachPo( pNtk, pObj, i )
        pObj->fPhase = (Abc_ObjFanin0(pObj)->fPhase ^ Abc_ObjFaninC0(pObj));
    Abc_NtkForEachLatchInput( pNtk, pObj, i )
        pObj->fPhase = (Abc_ObjFanin0(pObj)->fPhase ^ Abc_ObjFaninC0(pObj));
}

Here is the call graph for this function:

◆ Abc_AigUpdateReset()

void Abc_AigUpdateReset ( Abc_Aig_t * pMan )

Function*************************************************************

Synopsis [Start the update list.]

Description []

SideEffects []

SeeAlso []

Definition at line 1477 of file abcAig.c.

{
    assert( pMan->vAddedCells != NULL );
    Vec_PtrClear( pMan->vAddedCells );
    Vec_PtrClear( pMan->vUpdatedNets );
}

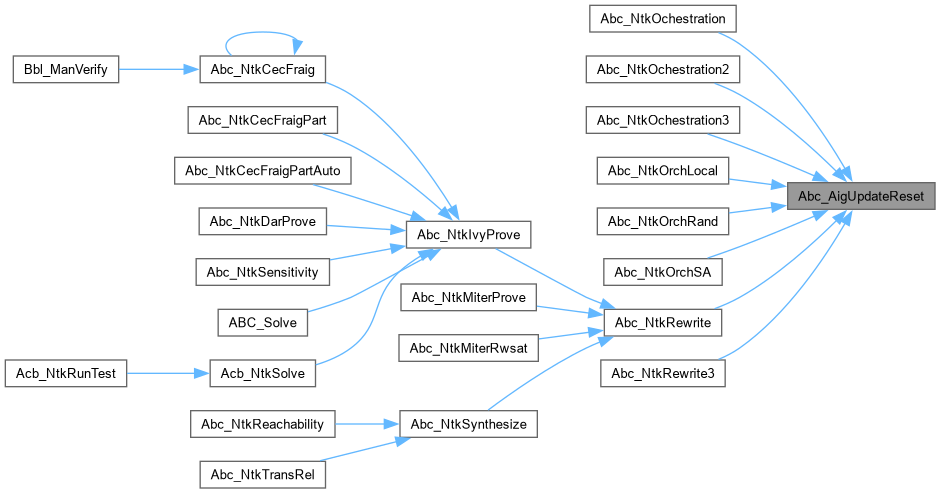

Here is the caller graph for this function:

◆ Abc_AigUpdateStart()

Vec_Ptr_t * Abc_AigUpdateStart	(	Abc_Aig_t *	pMan,
		Vec_Ptr_t **	pvUpdatedNets )

Function*************************************************************

Synopsis [Start the update list.]

Description []

SideEffects []

SeeAlso []

Definition at line 1437 of file abcAig.c.

{
    assert( pMan->vAddedCells == NULL );
    pMan->vAddedCells  = Vec_PtrAlloc( 1000 );
    pMan->vUpdatedNets = Vec_PtrAlloc( 1000 );
    *pvUpdatedNets = pMan->vUpdatedNets;
    return pMan->vAddedCells;
}

◆ Abc_AigUpdateStop()

void Abc_AigUpdateStop ( Abc_Aig_t * pMan )

Function*************************************************************

Synopsis [Start the update list.]

Description []

SideEffects []

SeeAlso []

Definition at line 1457 of file abcAig.c.

{
    assert( pMan->vAddedCells != NULL );
    Vec_PtrFree( pMan->vAddedCells );
    Vec_PtrFree( pMan->vUpdatedNets );
    pMan->vAddedCells = NULL;
    pMan->vUpdatedNets = NULL;
}

◆ Abc_AigXor()

Abc_Obj_t * Abc_AigXor	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	p0,
		Abc_Obj_t *	p1 )

Function*************************************************************

Synopsis [Implements Boolean XOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 735 of file abcAig.c.

{
    return Abc_AigOr( pMan, Abc_AigAnd(pMan, p0, Abc_ObjNot(p1)),
                            Abc_AigAnd(pMan, p1, Abc_ObjNot(p0)) );
}

Here is the call graph for this function:

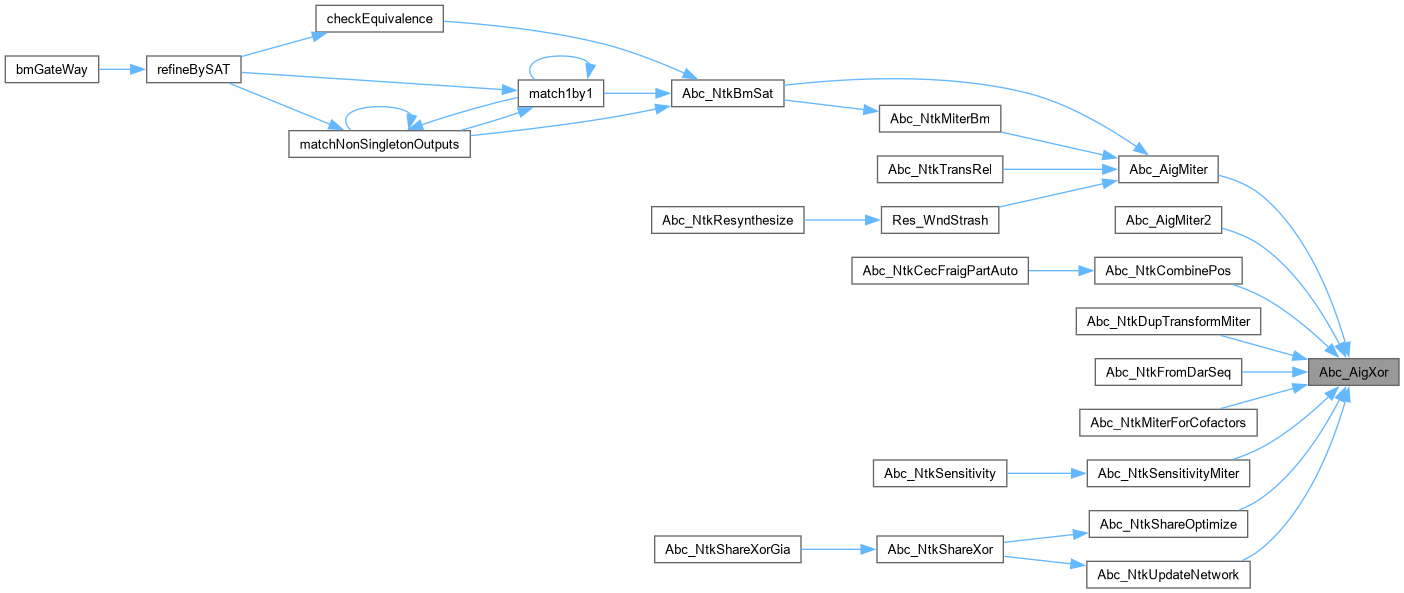

Here is the caller graph for this function:

◆ Abc_AigXorLookup()

Abc_Obj_t * Abc_AigXorLookup	(	Abc_Aig_t *	pMan,
		Abc_Obj_t *	p0,
		Abc_Obj_t *	p1,
		int *	pType )

Function*************************************************************

Synopsis [Returns the gate implementing EXOR of the two arguments if it exists.]

Description [The argument nodes can be complemented.]

SideEffects []

SeeAlso []

Definition at line 474 of file abcAig.c.

{
    Abc_Obj_t * pNode1, * pNode2, * pNode;
    // set the flag to zero
    if ( pType ) *pType = 0;
    // check the case of XOR(a,b) = OR(ab, a'b')'
    if ( (pNode1 = Abc_AigAndLookup(pMan, Abc_ObjNot(p0), Abc_ObjNot(p1))) &&
         (pNode2 = Abc_AigAndLookup(pMan, p0, p1)) )
    {
        pNode = Abc_AigAndLookup( pMan, Abc_ObjNot(pNode1), Abc_ObjNot(pNode2) );
        if ( pNode && pType ) *pType = 1;
        return pNode;
    }
    // check the case of XOR(a,b) = OR(a'b, ab')
    if ( (pNode1 = Abc_AigAndLookup(pMan, p0, Abc_ObjNot(p1))) &&
         (pNode2 = Abc_AigAndLookup(pMan, Abc_ObjNot(p0), p1)) )
    {
        pNode = Abc_AigAndLookup( pMan, Abc_ObjNot(pNode1), Abc_ObjNot(pNode2) );
        return pNode? Abc_ObjNot(pNode) : NULL;
    }
    return NULL;
}

Here is the call graph for this function:

◆ Abc_NtkHelloWorld()

void Abc_NtkHelloWorld ( Abc_Ntk_t * pNtk )

END OF FILE ///.

Definition at line 1515 of file abcAig.c.

{
    printf( "Hello, World!\n" );
}

Classes

Macros

Functions

Macro Definition Documentation

◆ Abc_AigBinForEachEntry

◆ Abc_AigBinForEachEntrySafe

Function Documentation

◆ Abc_AigAlloc()

◆ Abc_AigAnd()

◆ Abc_AigAndLookup()

◆ Abc_AigCheck()

◆ Abc_AigCheckFaninOrder()

◆ Abc_AigCleanup()

◆ Abc_AigConst1()

◆ Abc_AigCountNext()

◆ Abc_AigDeleteNode()

◆ Abc_AigFree()

◆ Abc_AigLevel()

◆ Abc_AigMiter()

◆ Abc_AigMiter2()

◆ Abc_AigMiter_rec()

◆ Abc_AigMux()

◆ Abc_AigMuxLookup()

◆ Abc_AigNodeHasComplFanoutEdge()

◆ Abc_AigNodeHasComplFanoutEdgeTrav()

◆ Abc_AigNodeIsAcyclic()

◆ Abc_AigOr()

◆ Abc_AigPrintNode()

◆ Abc_AigRehash()

◆ Abc_AigReplace()

◆ Abc_AigSetNodePhases()

◆ Abc_AigUpdateReset()

◆ Abc_AigUpdateStart()

◆ Abc_AigUpdateStop()

◆ Abc_AigXor()

◆ Abc_AigXorLookup()

◆ Abc_NtkHelloWorld()
